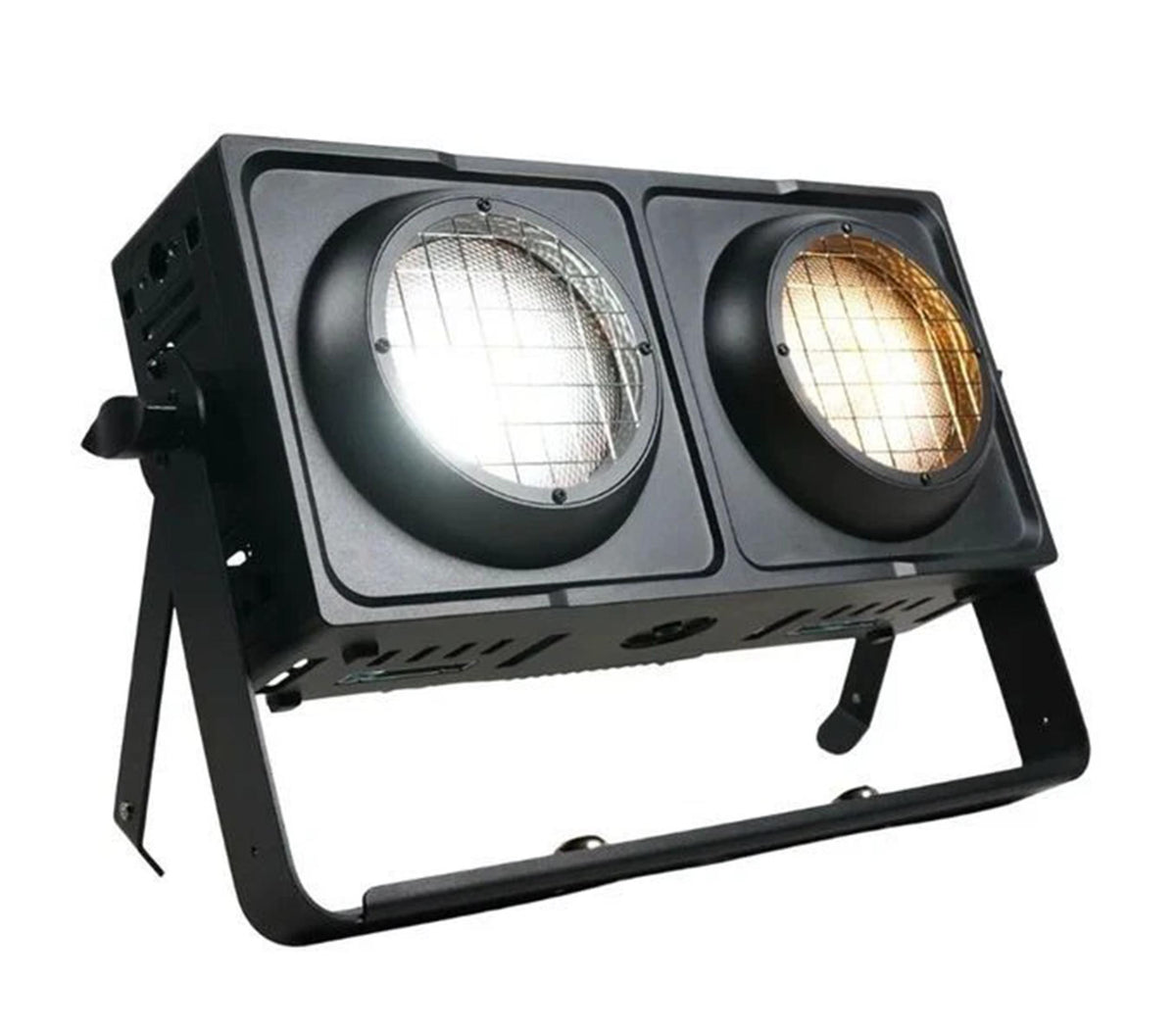

The Event Lighting HYBRICK-BL is an IP65-rated variable white LED blinder designed for professional stage, touring, and event lighting applications. It combines two 200W COB warm white and cool white LEDs with 64 amber LEDs to deliver powerful illumination, adjustable white tones from 2700K to 6500K, and added amber color effects. With a CRI of 95+, it provides high-quality color rendering for performers and live productions.

The HYBRICK-BL offers a range of control options, including DMX512, RDM, and WDMX, alongside static, color fade, auto program, sound-active, and master/slave operating modes. Its 16-bit dimming system features five dimming curves, a tungsten effect, and strobe speeds from 1 to 25 Hz for flexible lighting effects. A four-button LCD control panel provides convenient access to settings, while software can be upgraded through DMX.

Built for demanding production environments, the fixture features an aluminium housing with a matte black finish and two cooling fans. Its double yokes support floor standing or horizontal hanging, while top and bottom mounting points accommodate vertical suspension. Integrated coffin locks, tool-free locking handles, and included Omega bracket hardware allow multiple fixtures to be connected for larger lighting arrays.

Key Features

• Produces powerful variable white illumination using two 200W COB LEDs.
• Provides adjustable warm and cool white output from 2700K to 6500K.
• Adds amber accents through 64 dedicated amber LEDs.
• Delivers high color fidelity with a CRI of 95+.
• Supports five 16-bit digital dimming curves and a tungsten effect.
• Offers DMX512, RDM, and WDMX control options.
• Provides multiple operating modes for standalone and synchronized use.
• Supports floor standing, horizontal hanging, and vertical suspension.

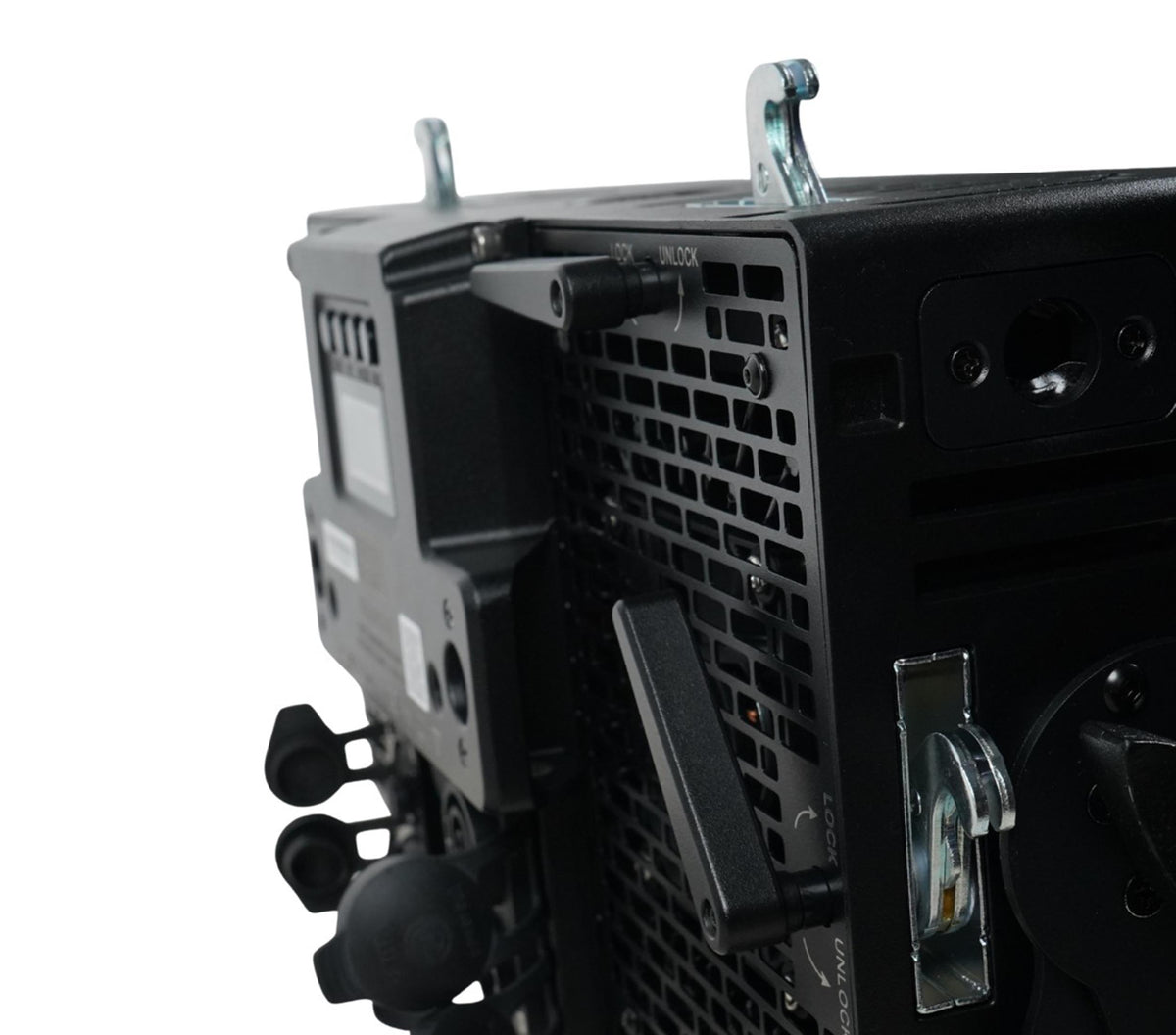

• Enables multi-fixture linking with coffin locks and tool-free locking handles.
• Uses an IP65-rated design for suitable indoor and outdoor production environments.

Ideal For

• Concerts and touring productions
• Theatres and live performance venues
• Outdoor events and festivals
• Stage lighting rigs and production companies
• Professional lighting installations requiring linked blinder arrays

What’s in the Box

• Event Lighting HYBRICK-BL LED Blinder.
• 1 × Omega Bracket.

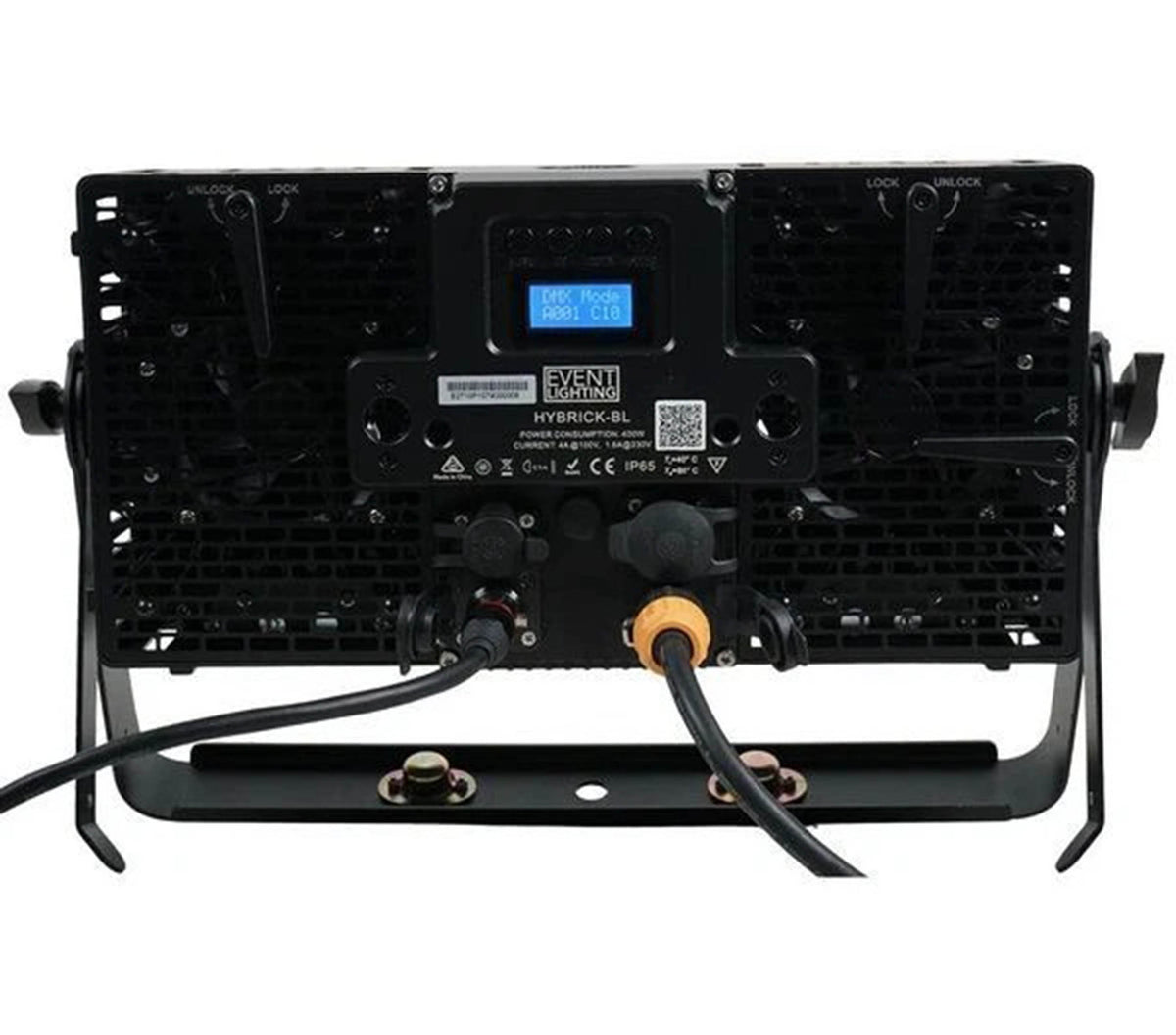

Inputs & Outputs

• DMX Connection: 5-pin XLR
• Power Connection: True1 power input and output
• Control Protocols: DMX512, RDM, WDMX
• Software Upgrade: Via DMX

Frequently Asked Questions

What type of light source does the HYBRICK-BL use?

It uses two 200W COB warm white and cool white LEDs, along with 64 amber LEDs.

What is the color temperature range?

The variable white LEDs operate at 2700K and 6500K, providing warm and cool white output.

Can multiple fixtures be linked together?

Yes. The housing includes six coffin locks and three tool-free locking handles for multi-fixture linking and hanging in horizontal or vertical arrangements.

Can the fixture be used outdoors?

Its IP65 rating makes it suitable for appropriate outdoor production environments. Installation should still follow the manufacturer's environmental and rigging guidance.

Full Technical Specifications

General

Housing Design	Interlocking
IP Rating	IP65
Light Source	2 × 200W COB warm white and cool white LEDs
LED Color Temperature	2700K and 6500K
Amber LEDs	64 × 0.1W (32 LEDs × 2 segments)
CRI	95+
Beam Angle	53°
Field Angle	85°
Light Output	27,300 lux at 1 m; 6,860 lux at 2 m
PWM Frequency	1200 Hz
LED Life	50,000 hours
Tungsten Effect	Yes
Dimming	Five 16-bit digital dimming curves
Strobe	1–25 Hz
Operating Modes	Static, color fade, auto program, sound active, master/slave, DMX
Control Protocols	DMX512, RDM, WDMX
DMX Channel Modes	1 / 1U / 2 / 5 / 7 / 8 / 10
DMX Interface	5-pin XLR
Display	Four-button LCD control panel
Software Upgrade	Via DMX
Input Voltage	100–240V AC, 50/60Hz
Power Consumption	400W
Power Connection	True1 power input and output
Cooling	2 fans
Housing Material	Aluminium
Housing Finish	Matte black
Warranty	3 years

Physical Specifications

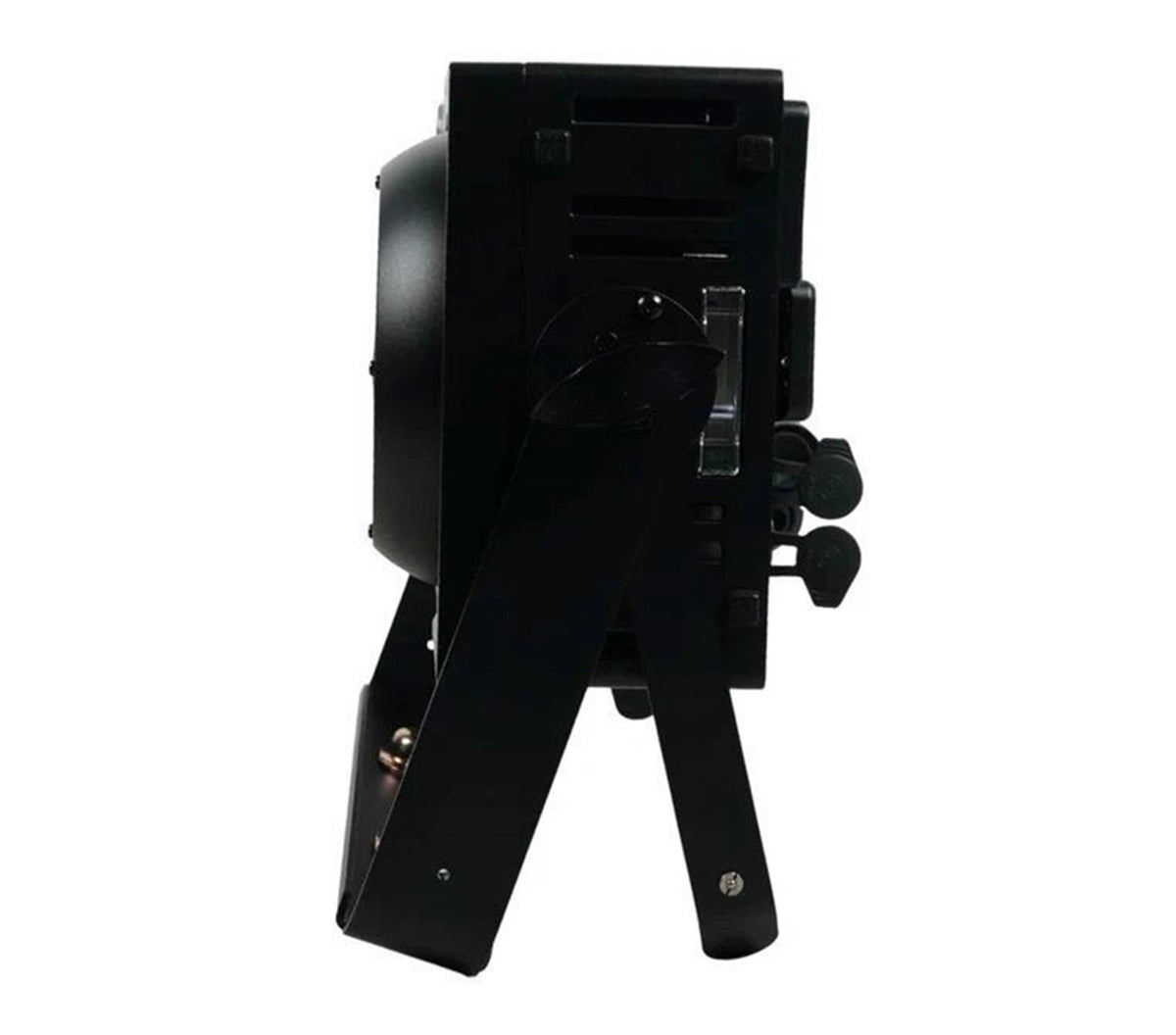

Mounting	Double yokes; floor standing or horizontal hanging
Vertical Rigging	Top and bottom mounting points
Multi-Fixture Linking	6 coffin locks and 3 tool-free locking handles
Omega Bracket	1 included; cam-lock mounting points on side and back
Maximum Hanging Load	Up to 8 units; approximately 143 lbs combined
Product Weight	17.9 lbs
Product Dimensions	5.8" H × 7.3" W × 14.7" L
Shipping Weight	23.15 lbs
Shipping Dimensions	12.80" H × 7.87" W × 19.69" L
