Description

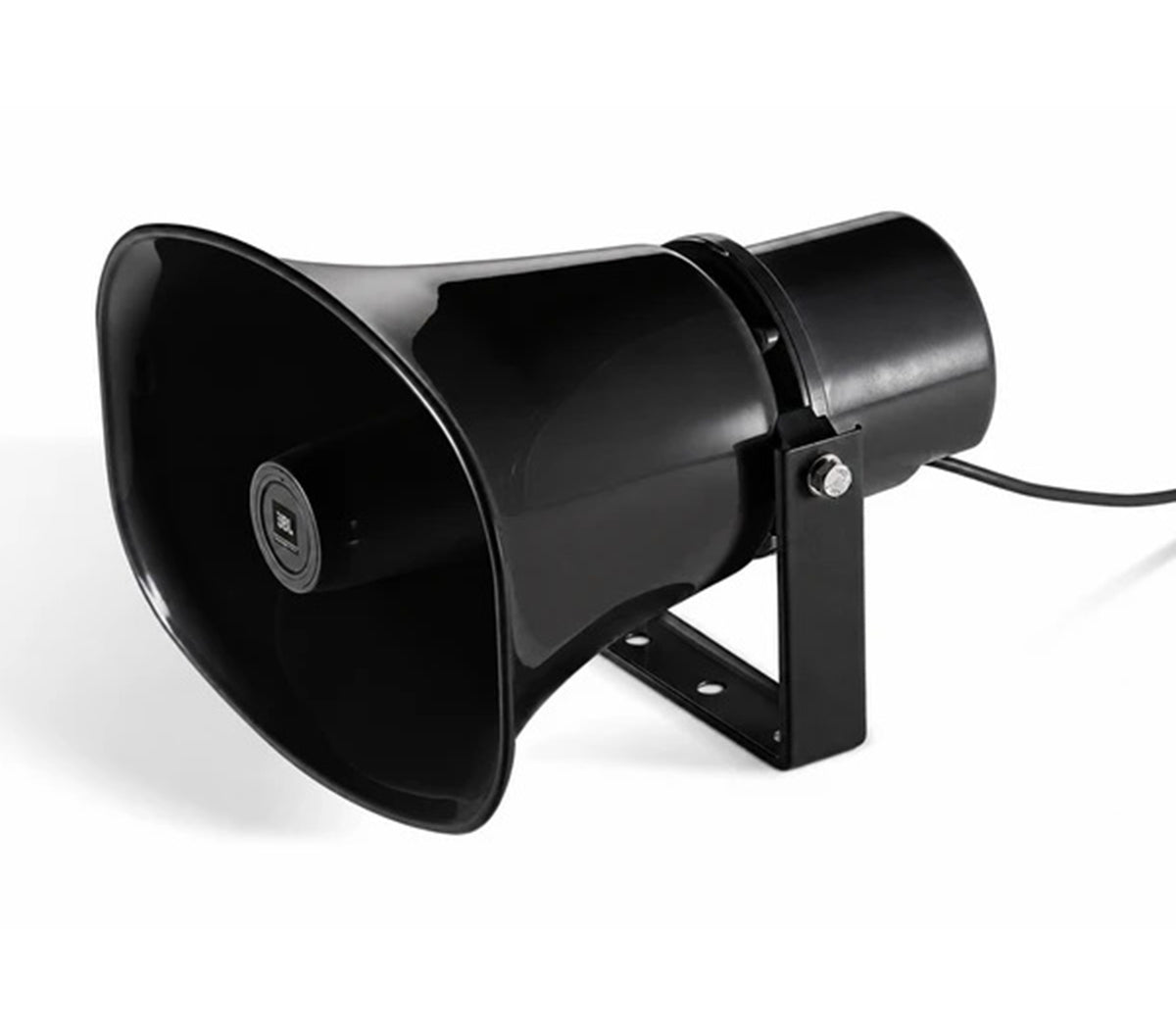

The JBL CSS-H30-BK is a 30W commercial paging horn designed to provide clear, intelligible speech over long distances for announcement and paging applications. Its high-sensitivity 1.5-inch compression driver delivers high sound levels with relatively low amplifier power, making it well suited for public access areas, educational facilities, commercial buildings, recreational spaces, and warehouses.

The horn provides a focused 50° horizontal by 70° vertical coverage pattern to support long-throw applications where narrower dispersion is beneficial. Its integrated 30W multi-tap transformer supports 70V and 100V distributed audio systems, while an 8Ω direct bypass provides additional system flexibility. A built-in 350 Hz high-pass filter helps protect the driver from damaging low-frequency content.

Built for indoor and outdoor installations, the CSS-H30-BK features a weather-resistant ABS enclosure with an IP65 rating for protection against dust and water. The phenolic diaphragm driver provides durability for demanding environments, while the included stainless steel mounting bracket and hardware simplify installation. Its black finish also provides a professional appearance for commercial paging and sound-reinforcement applications.

Product Specifications:

Series: Commercial Solutions Series

Product Type: Commercial Paging Horn

System Type: Passive

Speaker Configuration: Horn

Included Speakers: 1

Driver Type: Compression Driver

Driver Size: 1.5" / 38 mm

Diaphragm Material: Phenolic

Power Handling: 30W Continuous

Peak Power Handling: 120W Peak

Transformer Wattage: 30W

Impedance: 8Ω

Transformer Operation: 70V / 100V

70V Transformer Taps: 30 / 15 / 7.5 / 3.8 / 1.9W

100V Transformer Taps: 30 / 15 / 7.5 / 3.8W

8Ω Operation: Direct Bypass

Frequency Range: 380 Hz–6 kHz (-10 dB)

Sensitivity: 112 dB

Maximum SPL: 127 dB Continuous / 133 dB Peak

Coverage Angle: 50° H × 70° V

Directivity Index: 12

Directivity / Q Factor: 15.8

High-Pass Filter: Built-In 350 Hz

Enclosure Type: Sealed

Enclosure Material: ABS

Environmental Rating: IP65

Environmental Resistance: Dust / Water-Resistant

Mounting: 1 × Bracket Point on Each Side

Mounting Hardware: Stainless Steel Bracket & Hardware

Input Connection: 1 × Wire Lead 2-Pole Speaker Input

Certification: UL

Application: Paging & Announcement

Installation: Indoor / Outdoor

Product Weight: 4.5 lbs

Product Dimensions: 11.3" H × 11.2" W × 8.2" L
