JBL EBK4 M10-20 Universal M10 Eyebolt Kit for QuickLink Products
JBL EBK4 M10-20 Universal M10 Eyebolt Kit for QuickLink Products
Passez votre souris pour zoomer Cliquez sur l'image pour zoomer
JBL EBK4 M10-20 Universal M10 Eyebolt Kit for QuickLink ProductsJBL EBK4 M10-20 Universal M10 Eyebolt Kit for QuickLink Products

JBL EBK4 M10-20 Universal M10 Eyebolt Kit for QuickLink Products
Economisez $31.00
0 avis
SKU H-JBL-EBK4M1020 UPC 691991040870
Prix:
$69.00 $100.00
Earn 34500 points (worth $3.45)
Price Match Guaranteed if we lower the price within 30 days of your purchase, we’ll issue a store credit for the difference. Shop confidently knowing you’ll always get our best price. Free 2nd Day Air Delivery We offer Free 2nd Day Air on most items! Some exceptions apply, including oversized, truss, and stage products. Reward Points Earn 5% Back in HDJ Points on every purchase — use your points toward future gear purchases with us.

2 Day Shipping is Free or heavily discounted on most items! Make sure you select 2nd Day Shipping. We want to ship your order the fastest way possible.

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we can help.

We price match competitor advertised prices.

Our online prices are always honored instore guaranteed.

Hassle Free Financing Available

Get the gear you need now with Financing options. As an artist or sound professional your business needs high speakers, lighting and cases to do your job, be professional and competitive.

Choose Shop Pay or After Pay in checkout for instant financing. We also offer Accima, Synchrony, Progressive or Snap financing just give us a call 1-800-700-4542.

Description

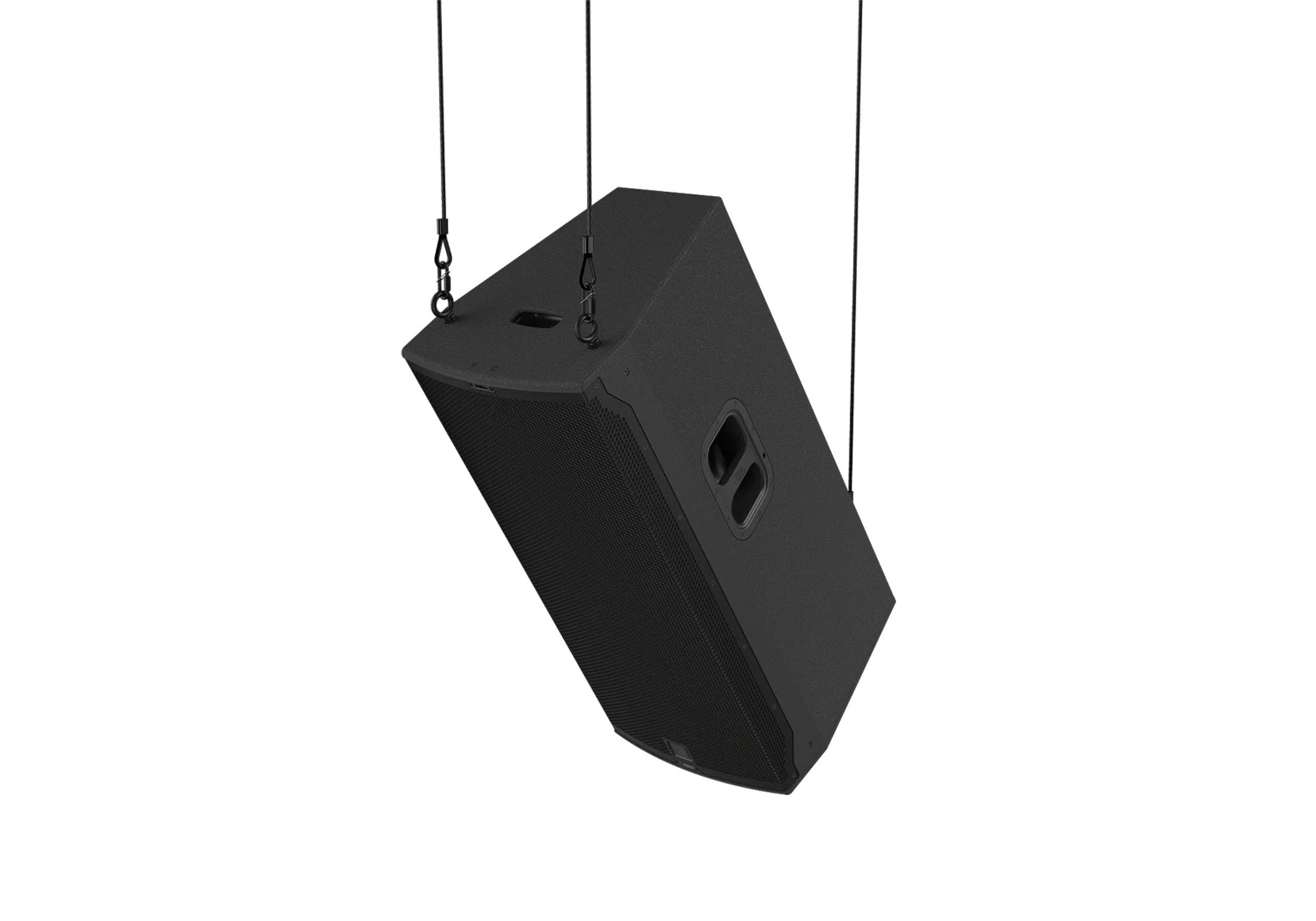

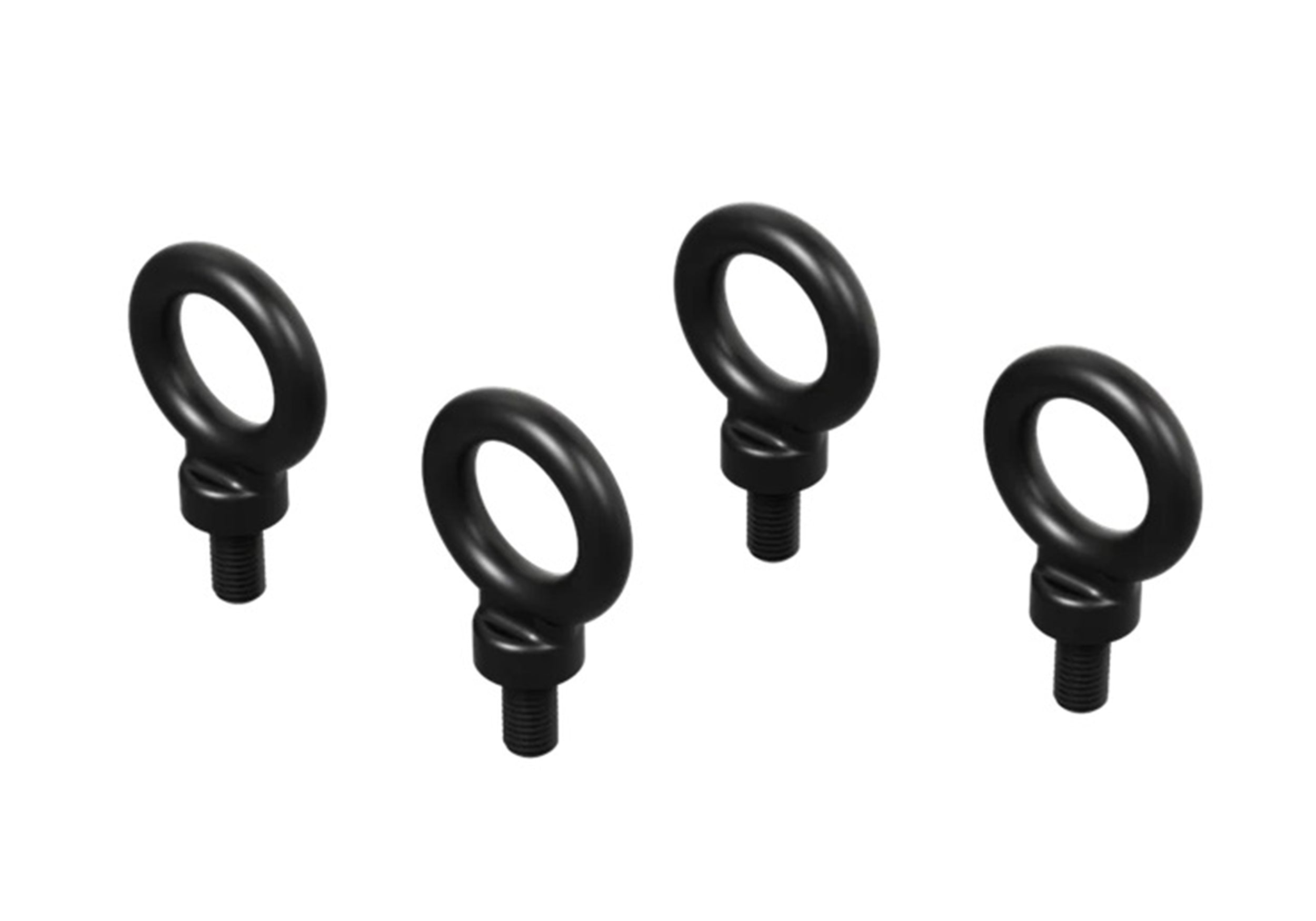

The JBL EBK4 M10-20 Universal M10 Eyebolt Kit is designed for suspension installations using JBL products equipped with QuickLink M10 attachment points. The kit includes four M10 × 20 mm shoulder-style forged carbon steel eyebolts along with four stainless steel load-spreading washers, providing the hardware required for compatible JBL loudspeaker suspension applications.

Each eyebolt features an M10 × 1.5 thread and a 20 mm shank length, with a 24 mm eyelet opening for secure attachment. The included washers are designed to distribute load when used with wooden and plastic enclosures. The eyebolts are manufactured to recognized ASME-ANSI B18.15 and DIN 580 specifications and are load tested to exceed applicable DIN 580, and ASME B18.15 requirements.

With a 10:1 safety factor and Working Load Limits of 507 lbs at 0°, 334 lbs at 45°, and 253 lbs at 90°, the EBK4 M10-20 is suitable for professional suspension and rigging applications when used according to JBL's specified installation requirements.

Product Specifications:

Product Type: Universal M10 Eyebolt Kit

Compatibility: JBL QuickLink M10 Attachment Points

Quantity: 4 Eyebolts + 4 Washers

Eyebolt Construction: Forged Carbon Steel

Washer Construction: Stainless Steel

Thread Type: M10 × 1.5

Shank Length: 0.8" (20 mm)

Eyelet Opening: 1" (24 mm)

Working Load Limit at 0°: 507 lbs (230 kg)

Working Load Limit at 45°: 334 lbs (170 kg)

Working Load Limit at 90°: 253 lbs (115 kg)

Standards: DIN 580, ISO 3266, ASME B18.15

Product Weight: 1.0 lbs

Product Dimensions: 2.5" × 1.7" × 1.0"

Shipping Weight: 1.1 lbs

Shipping Dimensions: 4.5" × 3.7" × 3.0"
