Description

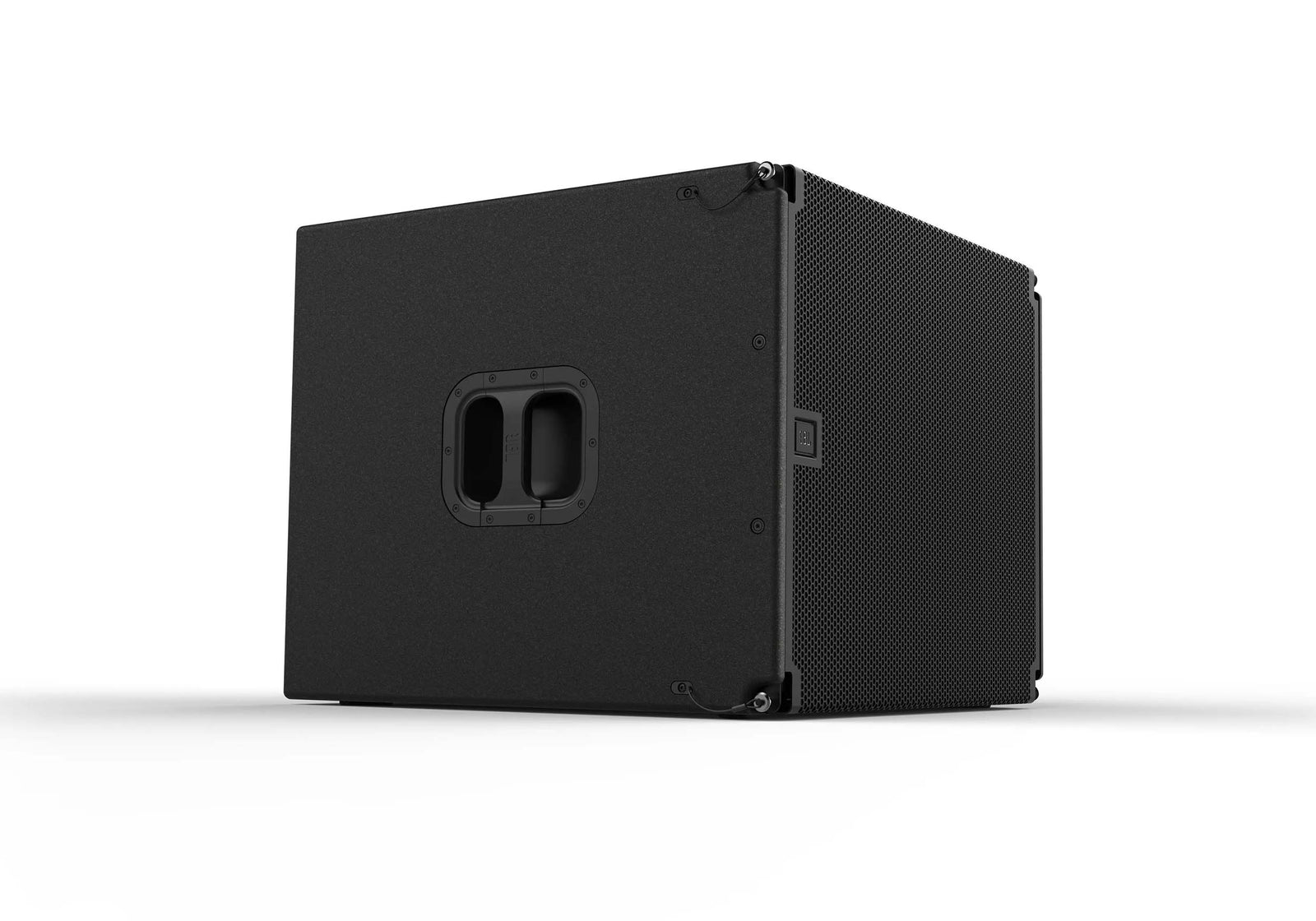

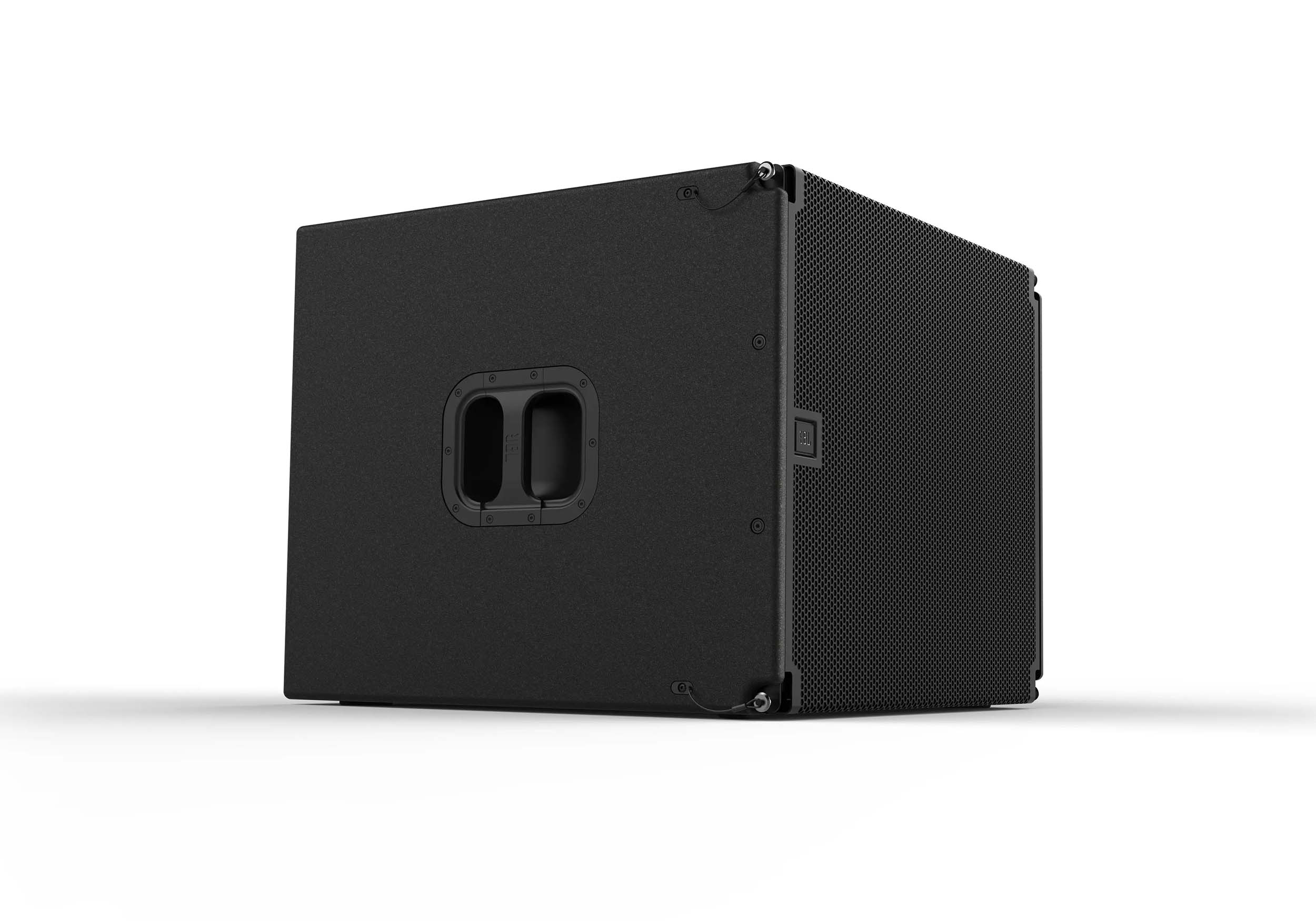

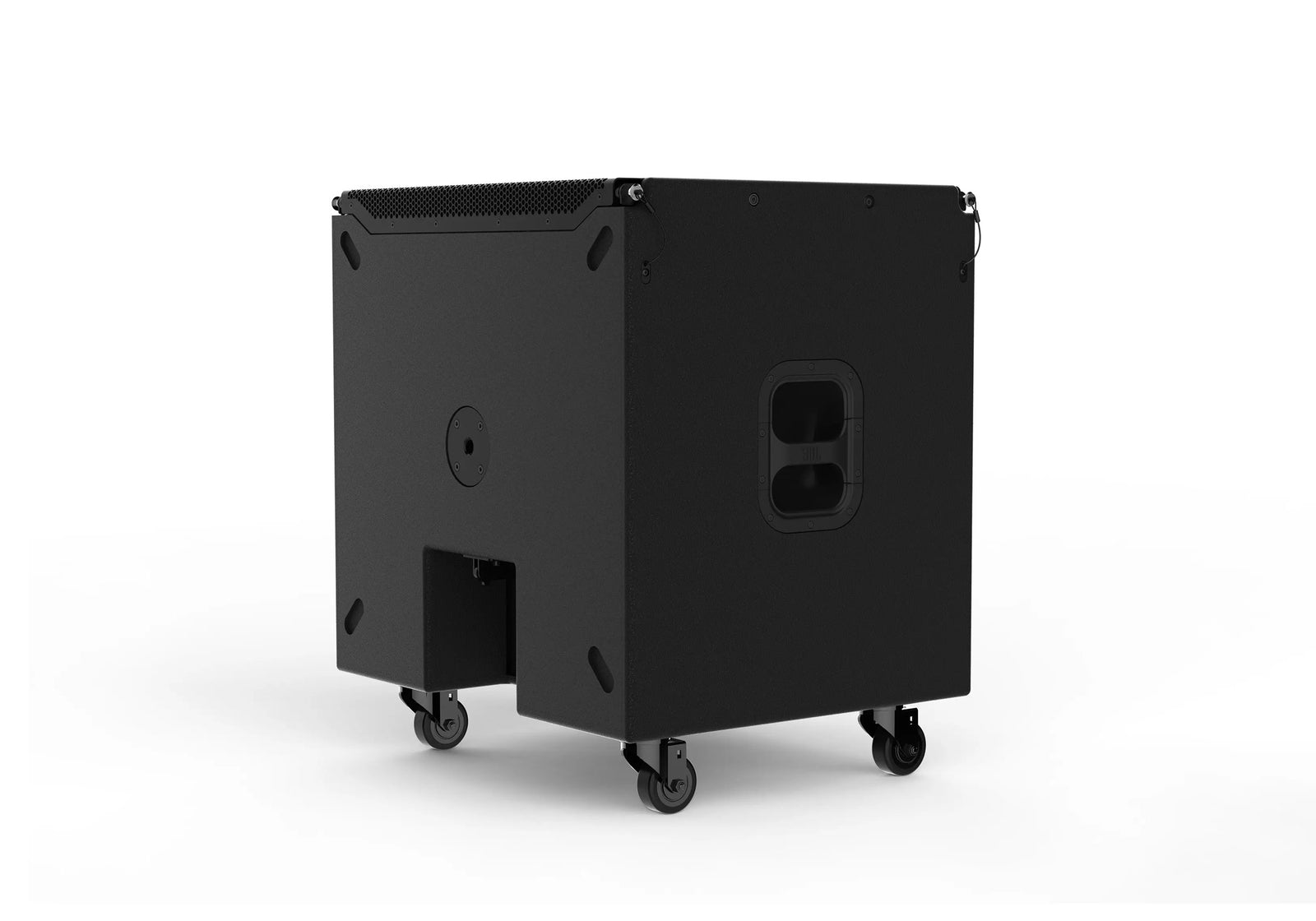

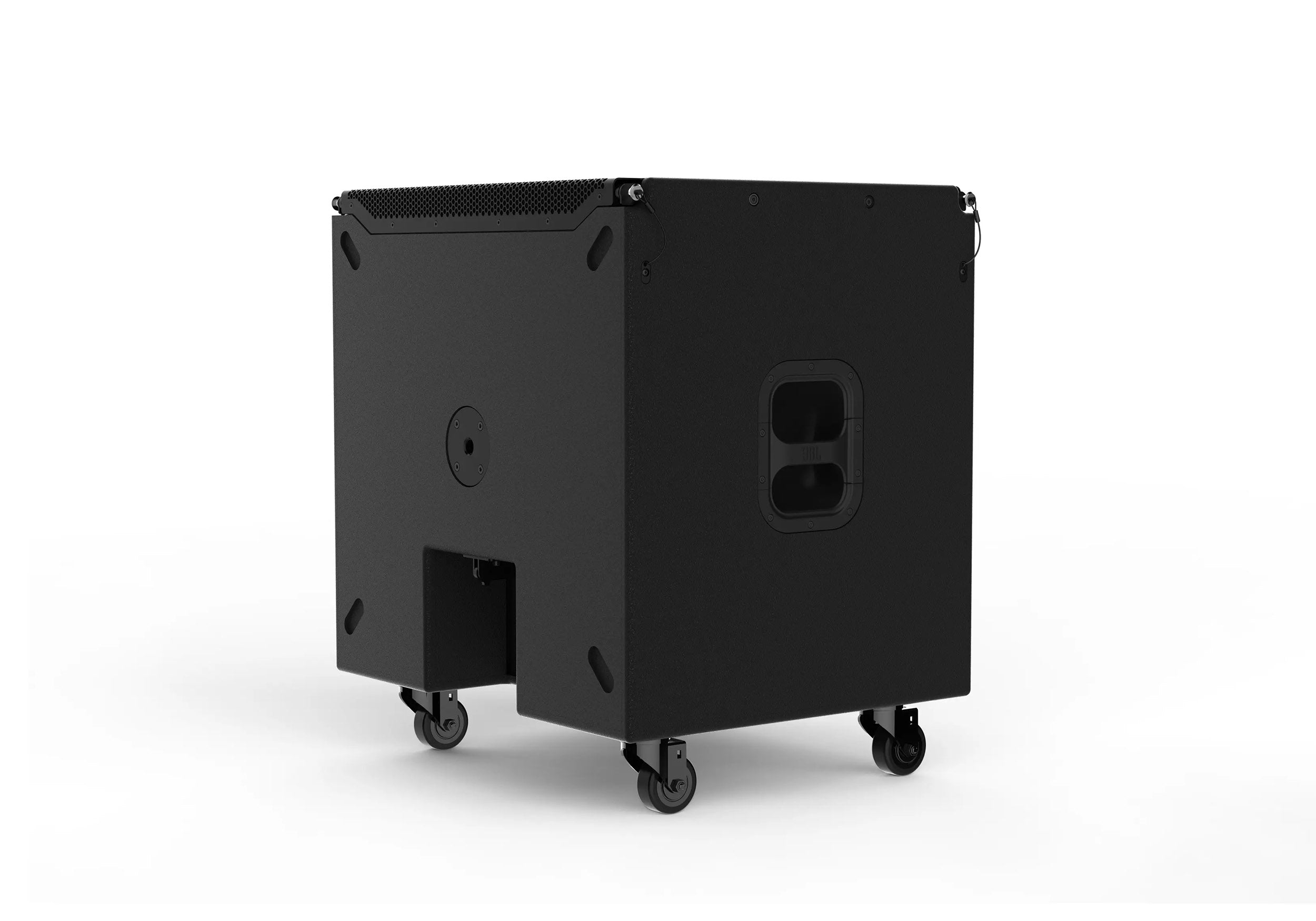

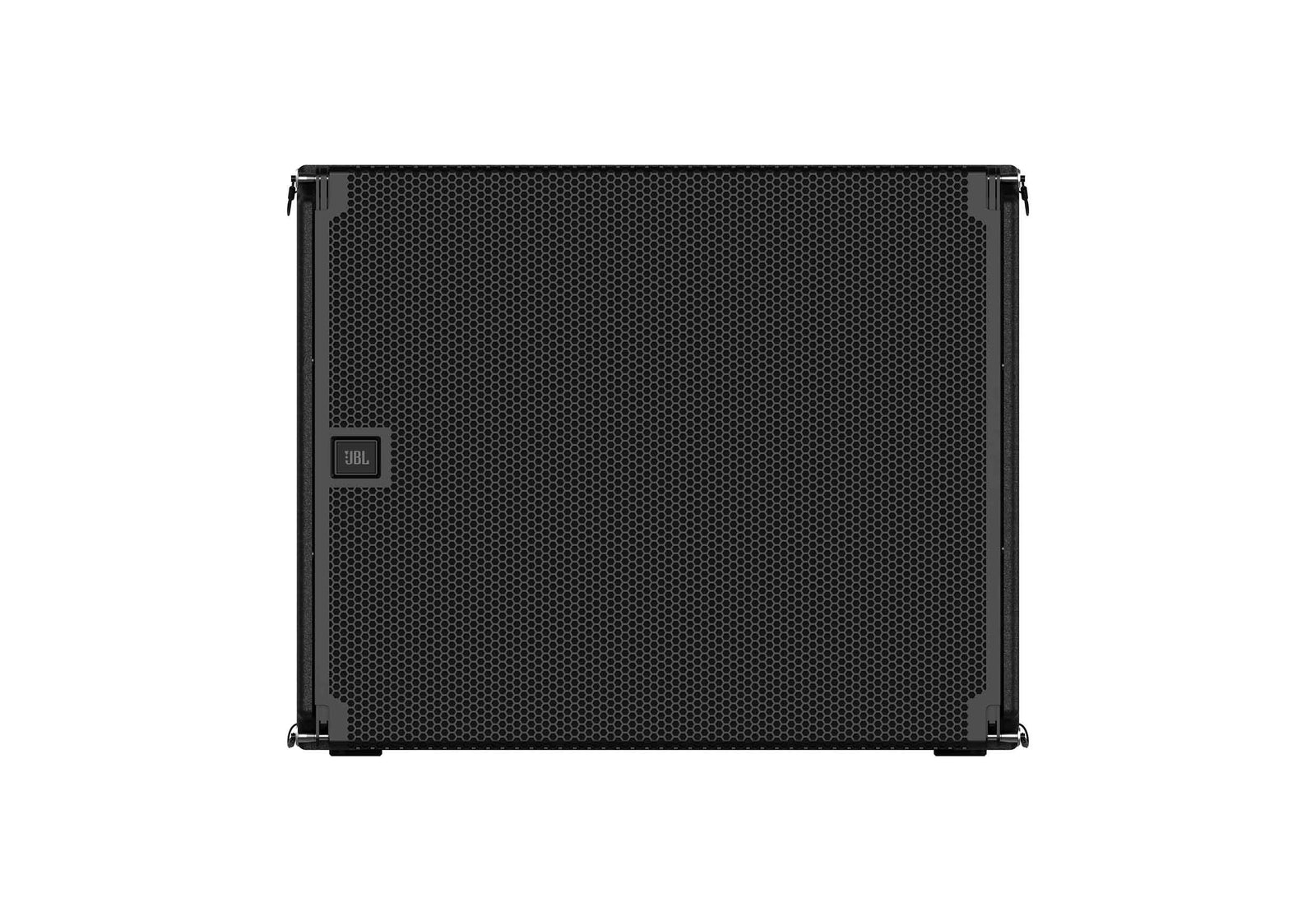

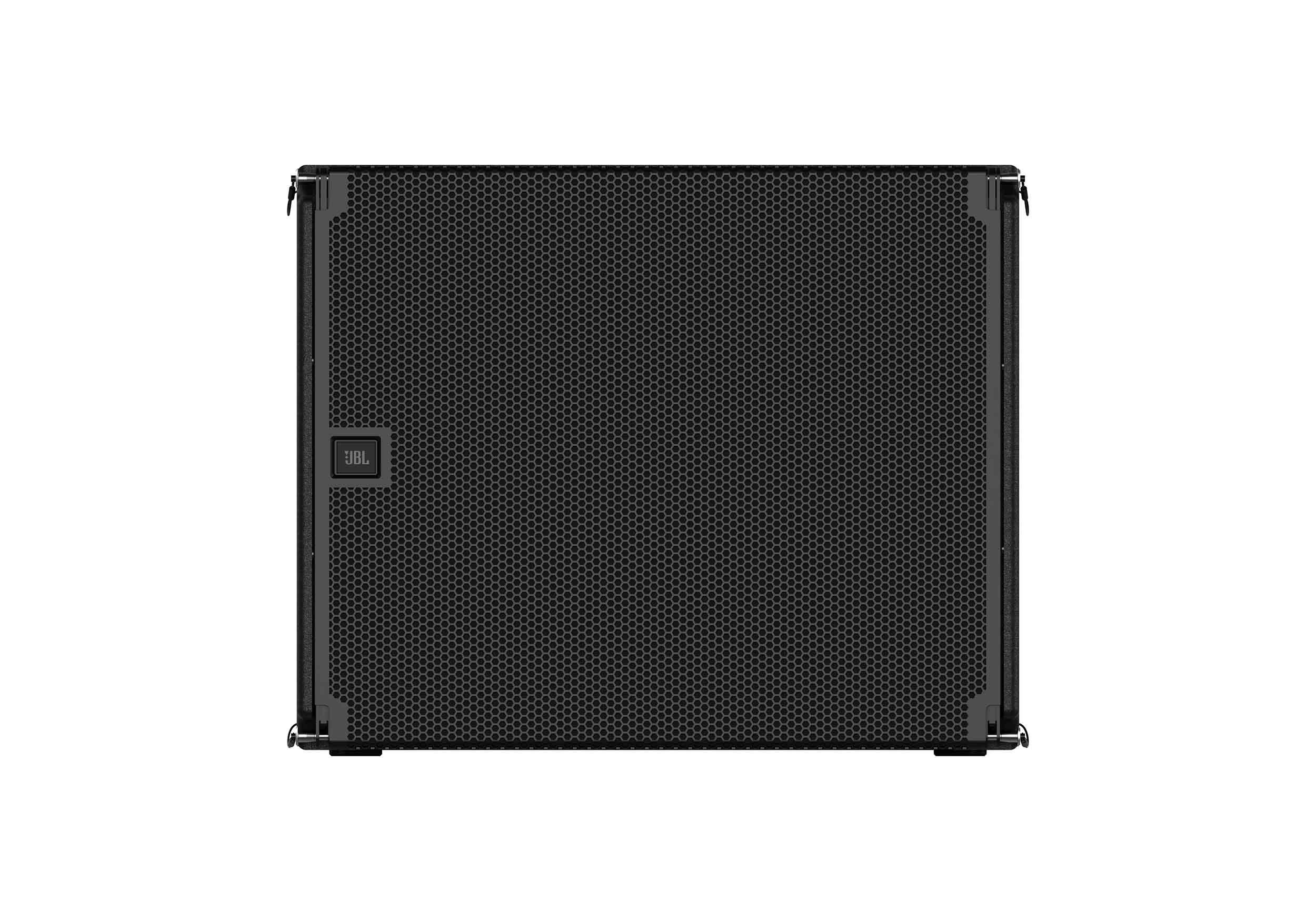

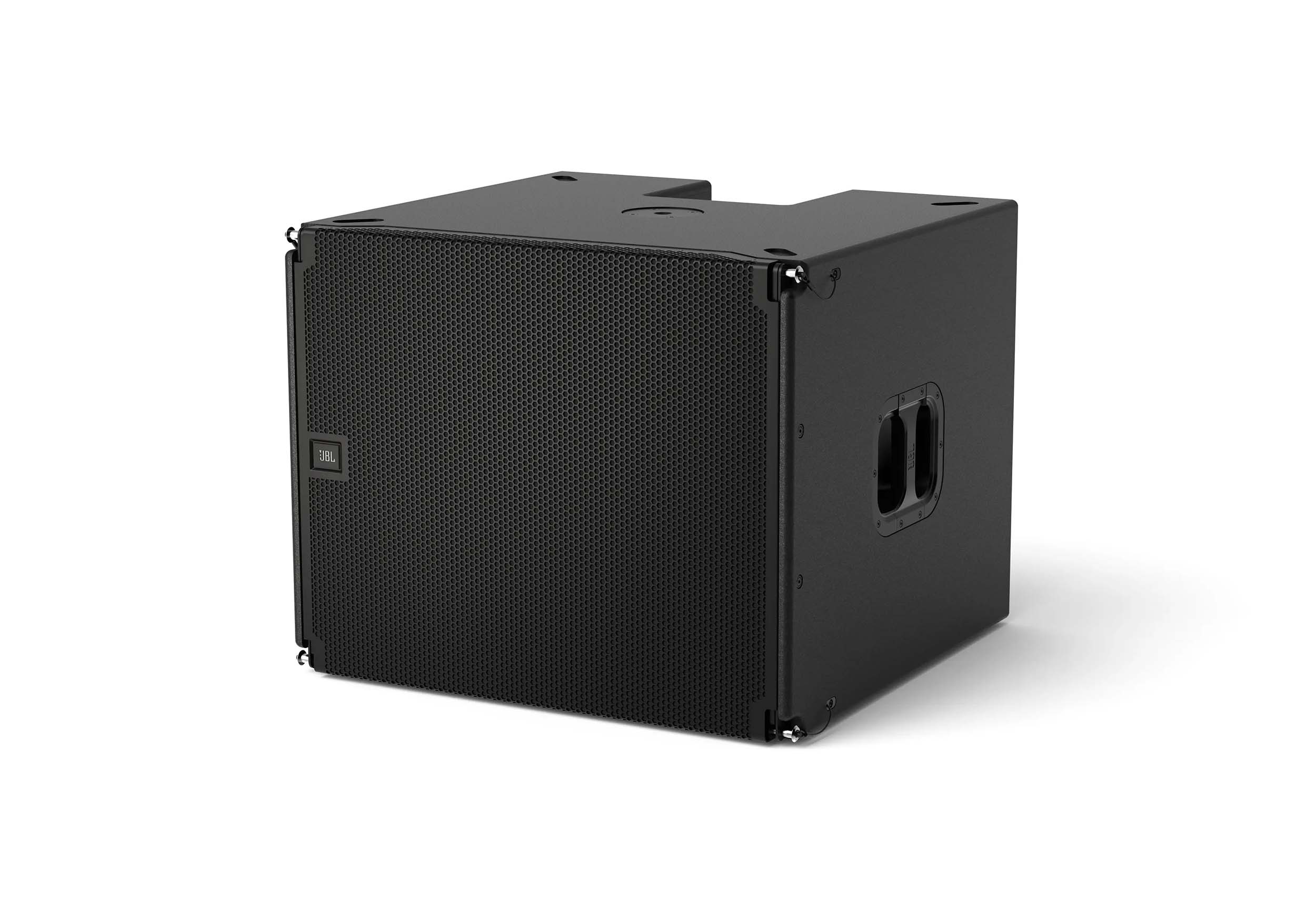

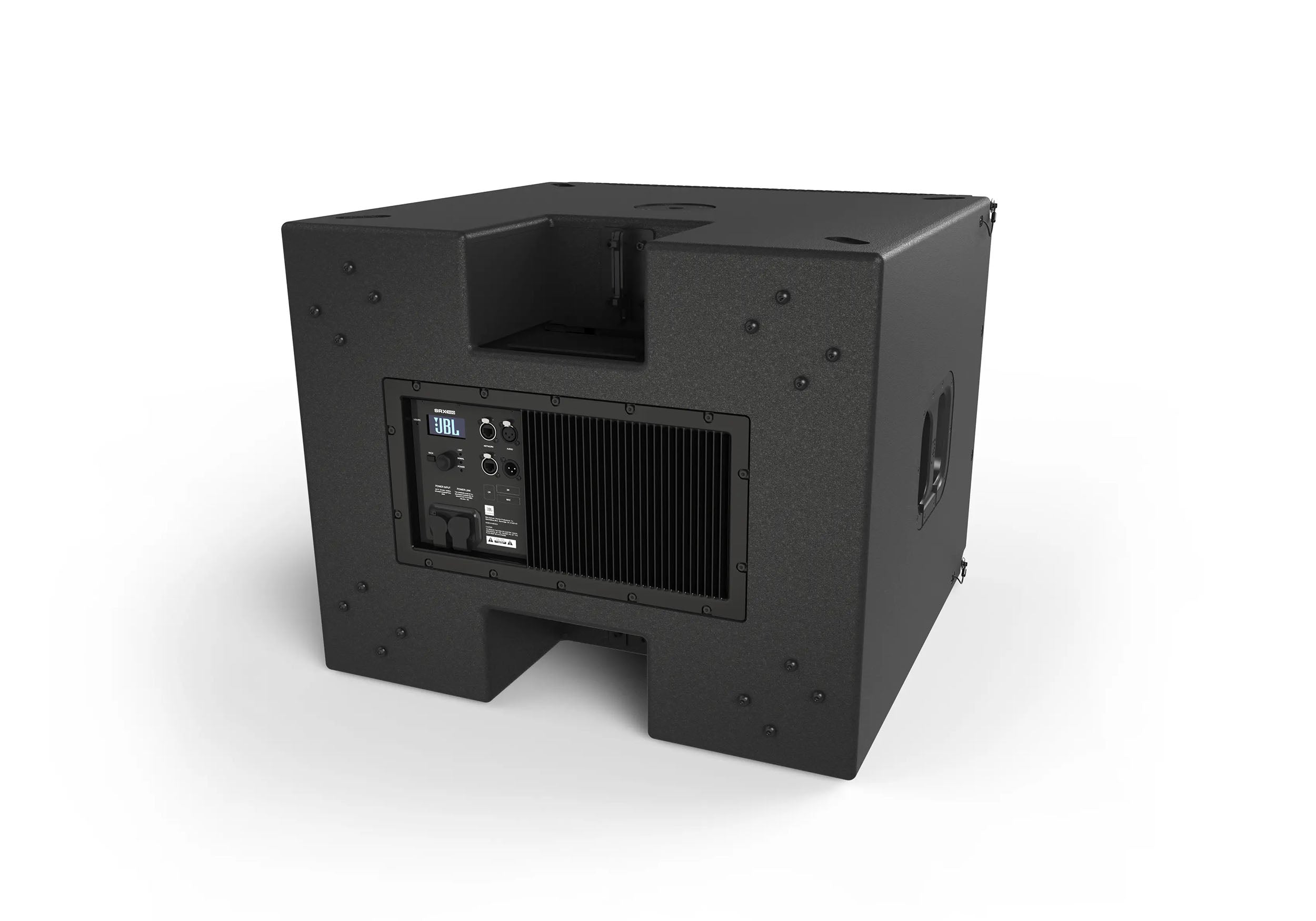

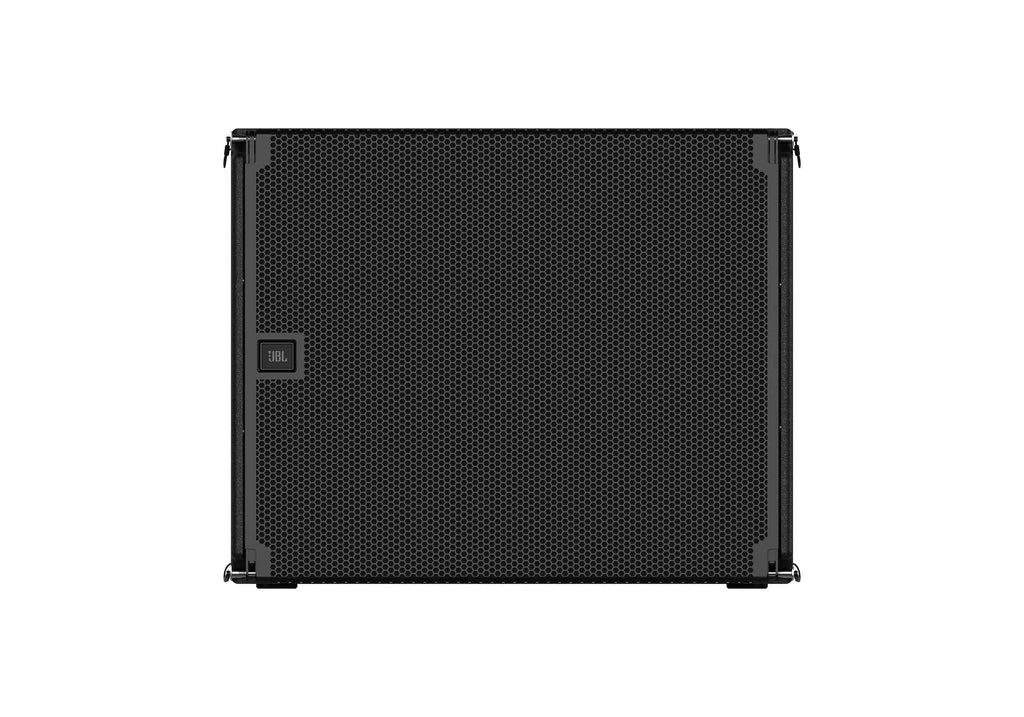

The JBL SRX918SF is a high-performance 18-inch powered flyable subwoofer designed to add substantial low-frequency output to professional SRX900 Series sound reinforcement systems. Equipped with a JBL 2279G-1 Differential Drive 18-inch woofer featuring dual 3-inch voice coils, it delivers powerful, controlled bass response from 35 Hz while providing excellent thermal management, reduced power compression, and wide dynamic range. With a maximum output of 134 dB SPL, the SRX918SF is well suited for touring, rental, live performance, DJ, and professional installation applications.

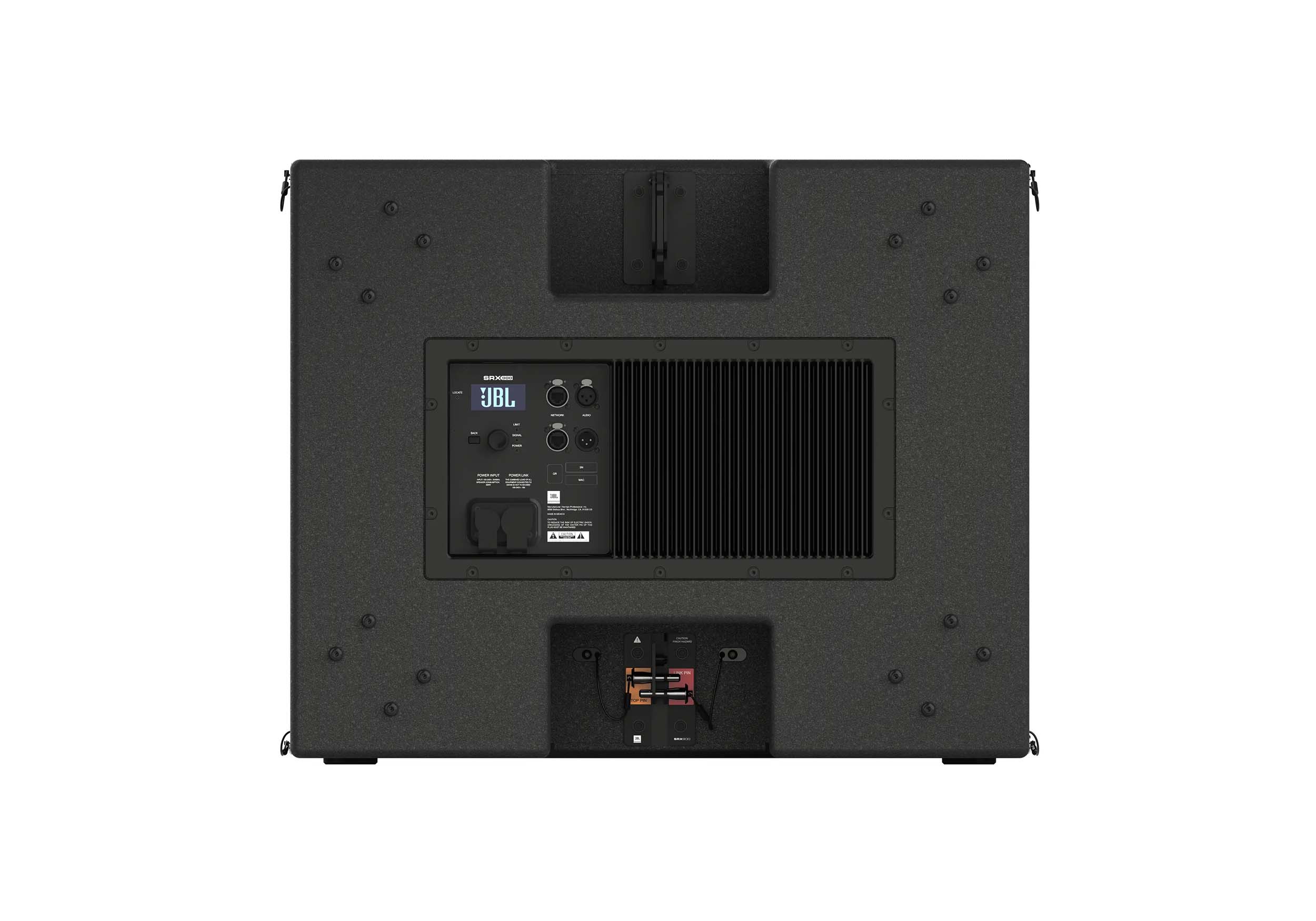

The integrated Class-D amplifier and advanced 24-bit DSP provide a complete plug-and-play solution with consistent performance worldwide. Its DSP platform includes 24 user-adjustable filters, up to 2,000 ms of delay, Array Size Compensation, FIR-based Throw Distance Correction, and LevelMax limiting for sophisticated transducer protection. Omnidirectional and cardioid operating modes allow the SRX918SF to be configured for different system requirements, while the rear-panel LCD provides convenient access to essential control and configuration functions.
Designed for demanding professional applications, the SRX918SF features an integrated three-point rigging system and shares the same width and suspension hardware as the SRX910LA, enabling flown and ground-stacked configurations. The reinforced birch plywood cabinet incorporates a large low-frequency port design, M20 threaded mount, dual Ethernet connectivity, Neutrik connectors, and a universal 100–240 VAC power supply. Its robust construction and scalable design make it an excellent low-frequency solution for SRX900 Series systems.
Product Specifications:
Speaker Type: Powered Flyable Subwoofer
System Type: Active Subwoofer
LF Driver: 1 × JBL 2279G-1 18" Woofer, 4 Ohms, Dual 3" Voice Coil, Ferrite Differential Drive®
Frequency Response (-10 dB): 35 Hz – 100 Hz
Frequency Response (-3 dB): 45 Hz – 80 Hz (80 Hz Preset)
Maximum SPL: 134 dB
Coverage Pattern: Omnidirectional or Cardioid
Continuous Power: 1,100W
Peak Power: 2,500W
DSP: 24-Bit DSP
Sample Rate: 48 kHz
Protection: LevelMax Limiting
Input Type: Balanced Line Level
Inputs/Outputs: 2 × Neutrik XLR IN/OUT
Nominal Input Sensitivity: +6 dBu
Maximum Input Level: +21 dBu
Input Impedance: 100 kΩ
Network Type: TCP/IP
Network Protocol: HARMAN HControl
Network Ports: 2 × Neutrik etherCON® Dual 100 Mbps
AC Voltage: 100–240 VAC, 50/60 Hz
AC Voltage Limits: 80–260 VAC, 50/60 Hz
Power Connectors: Dual Neutrik powerCON TRUE1® IN/OUT
Cooling: Convection, External Aluminum Heat Sink with Internal On-Demand Fan
Rigging: Integrated Three-Point Rigging System
Mounting: M20 Threaded Pole Mount
Enclosure: Exterior-Grade Birch Plywood
Environmental Rating: IP54
Product Weight: 120 lbs
Product Dimensions: 22.7" x 28.0" x 27.0"
Shipping Weight: 144 lbs
Shipping Dimensions: 24.7" x 30.0" x 29.0"
