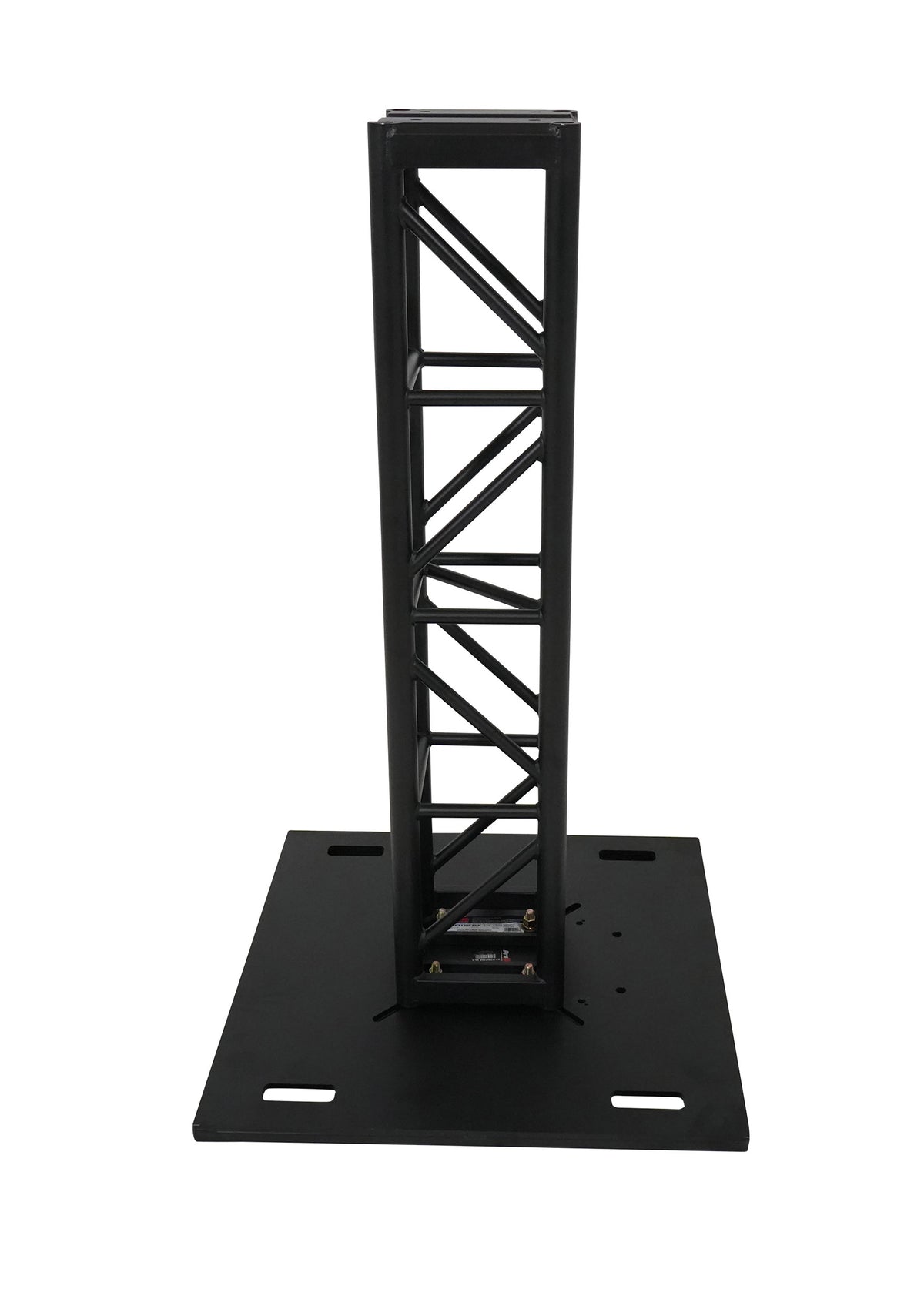

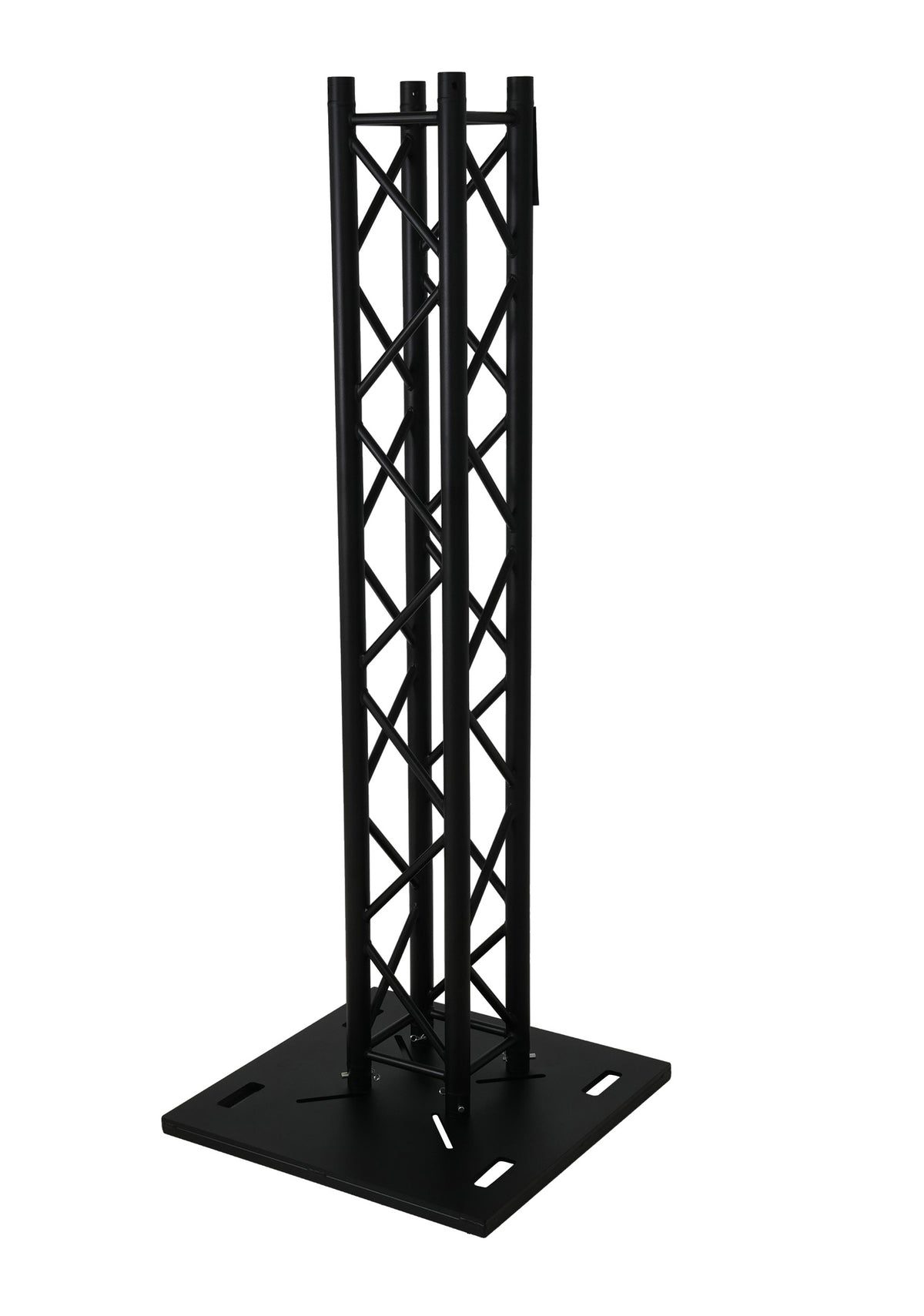

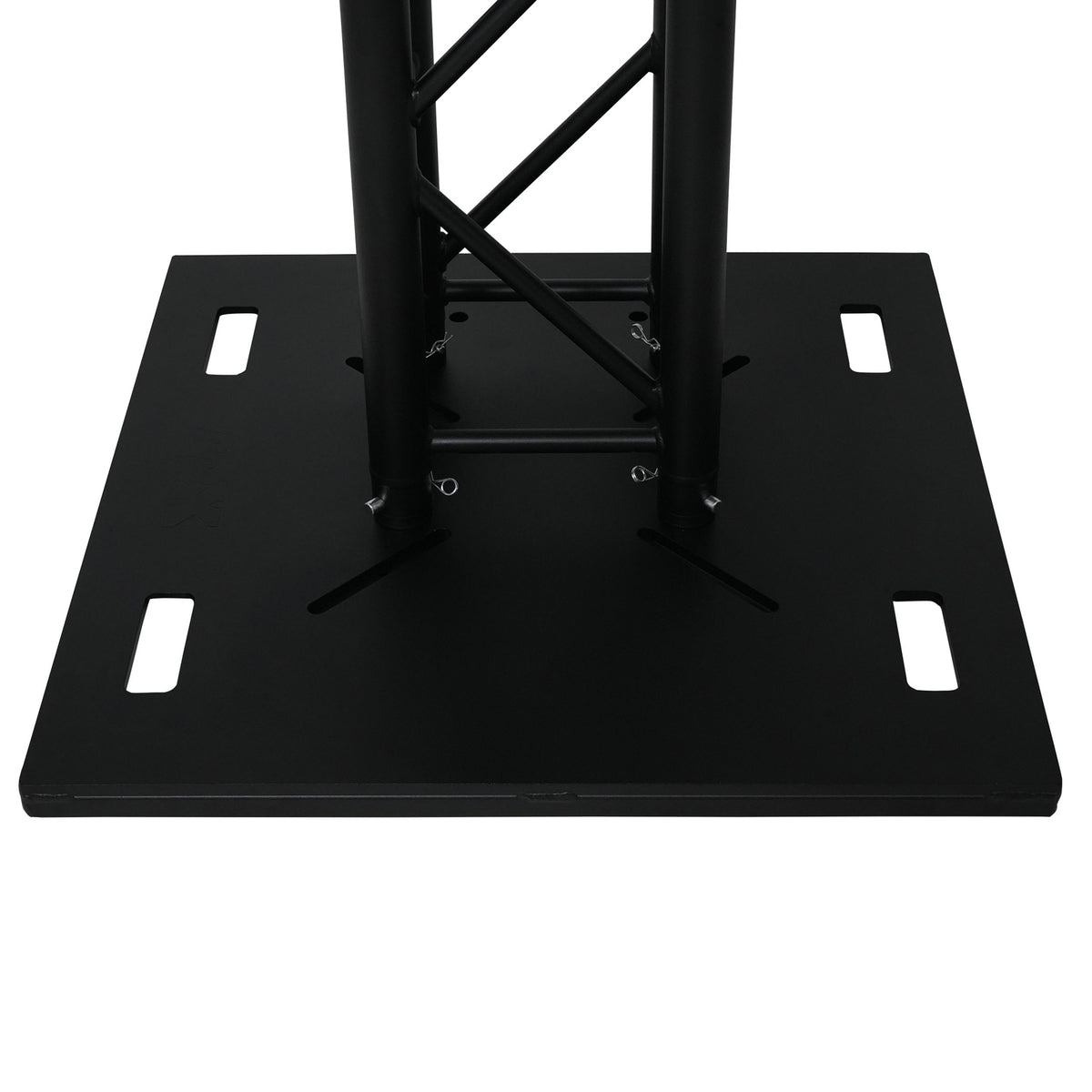

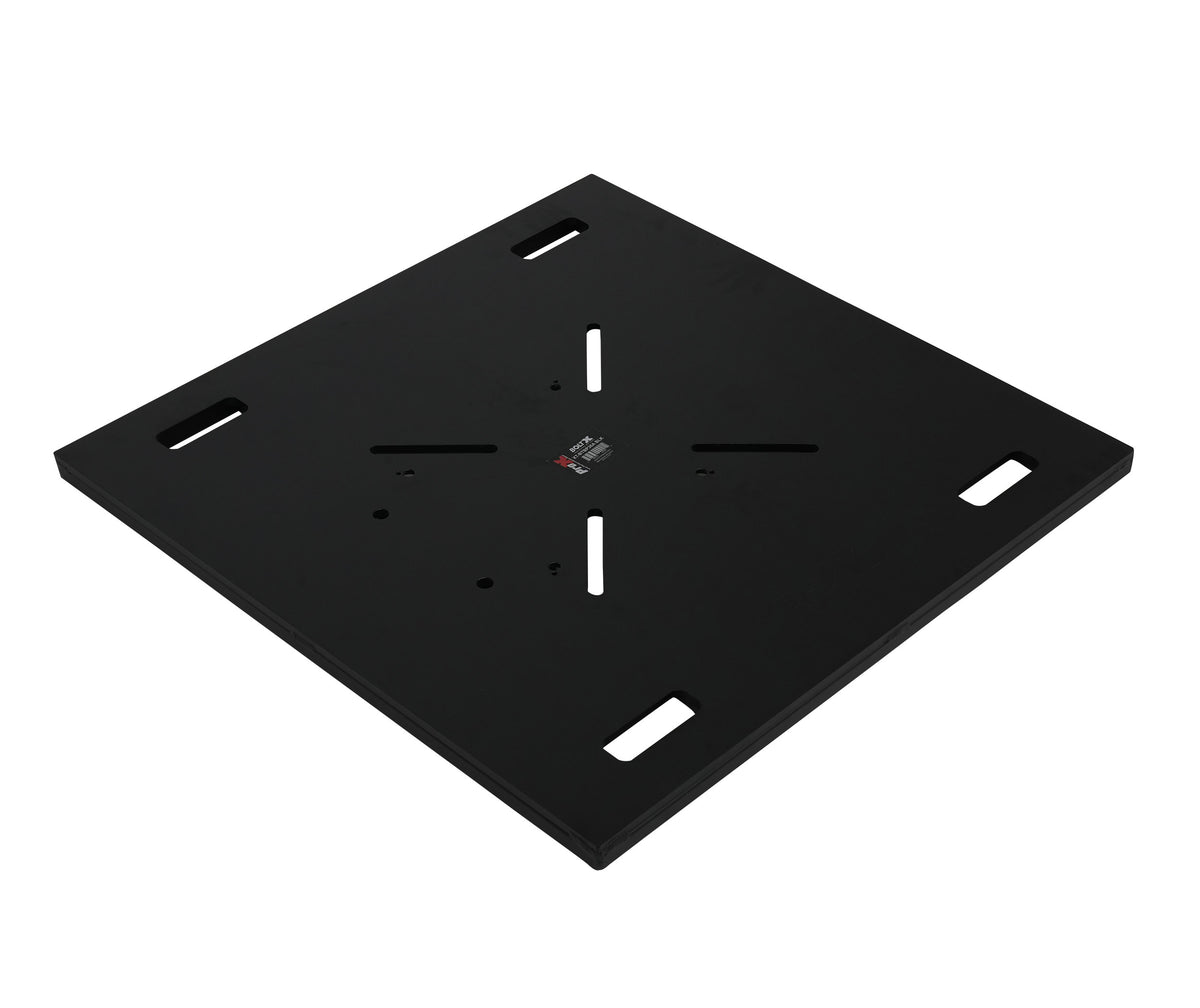

The ProX XT-BTBP36ABLK 36-inch Black Aluminum BoltX Base Plate is designed to provide a stable foundation for professional truss towers and structural installations. Its wide footprint helps distribute loads across the base, making it suitable for concerts, stage productions, trade shows, and other demanding event environments where dependable truss support is essential.

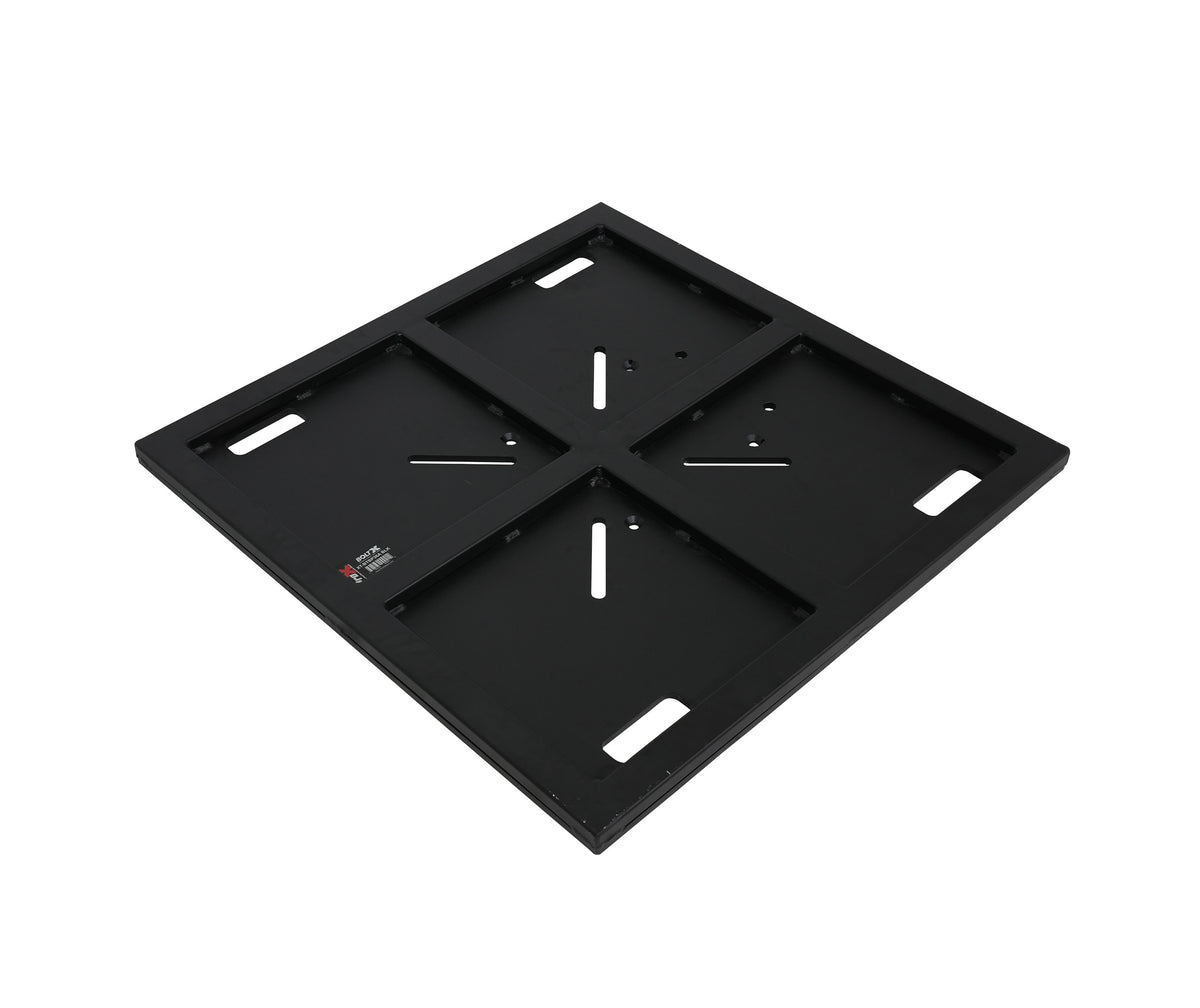

Constructed from a heavy-duty 1/2-inch aluminum plate, the XT-BTBP36ABLK features a raised frame made from solid 1 × 1.5-inch aluminum extrusion for added reinforcement. Its black powder-coated finish provides a professional appearance suitable for touring productions, rental applications, and permanent installations.

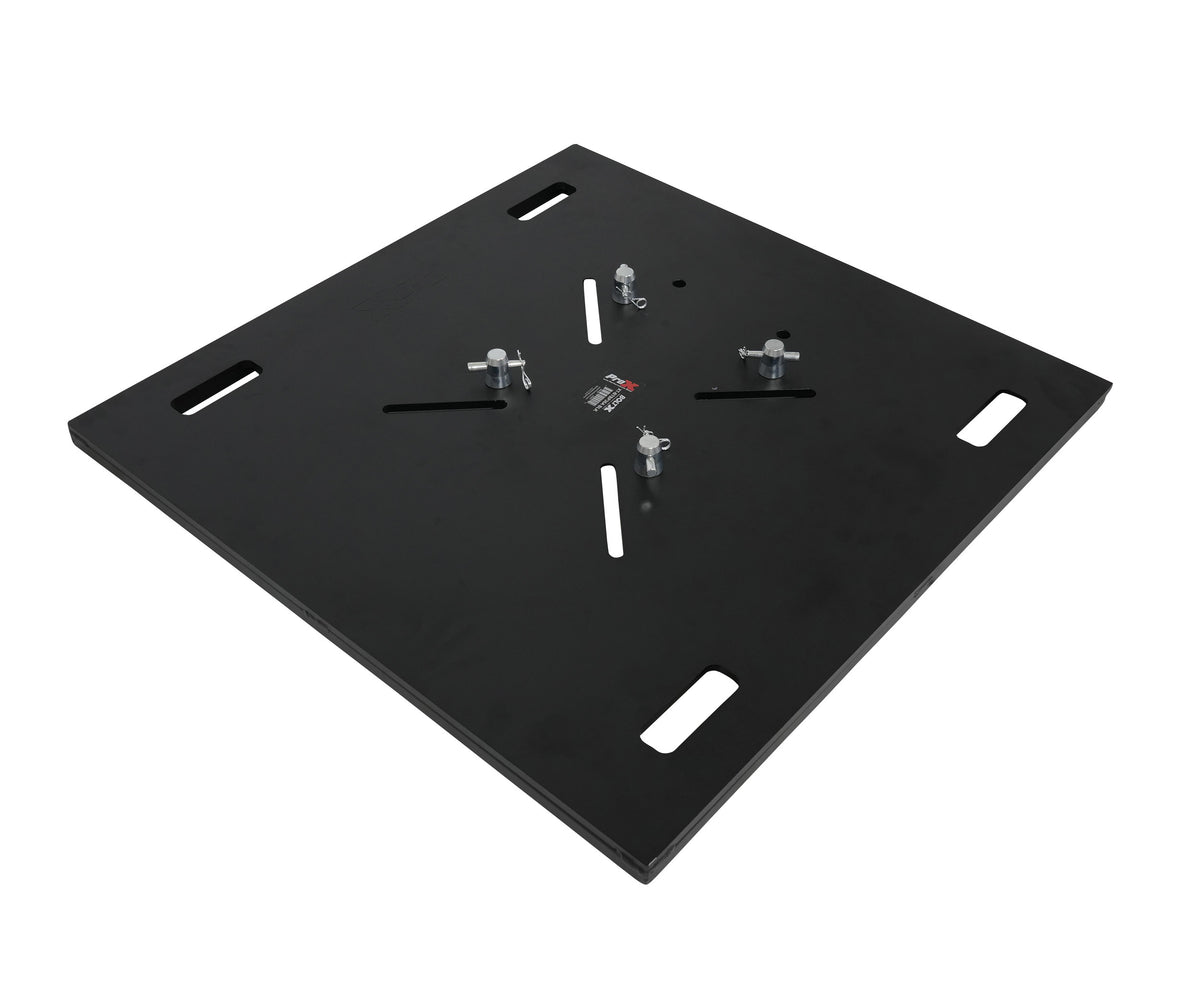

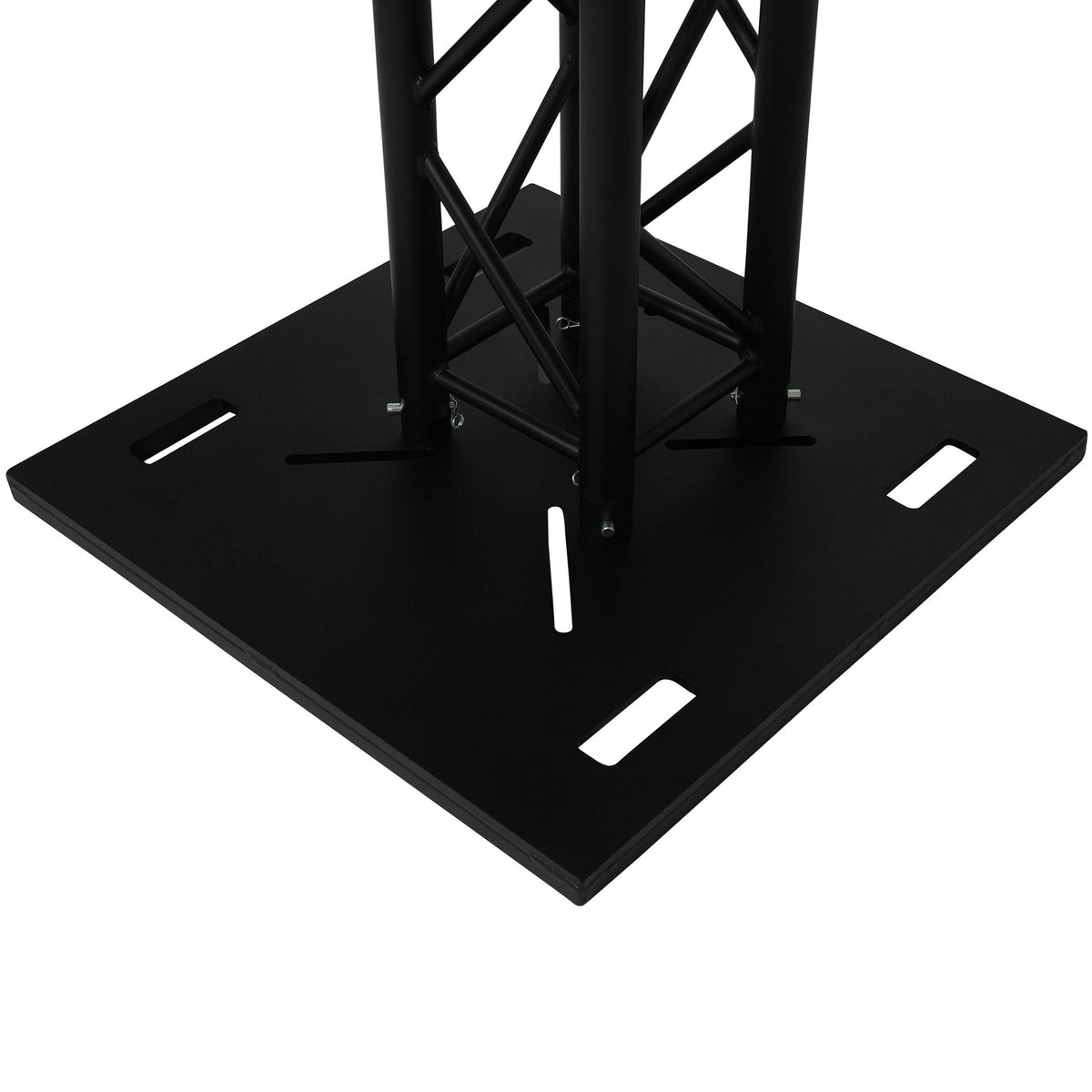

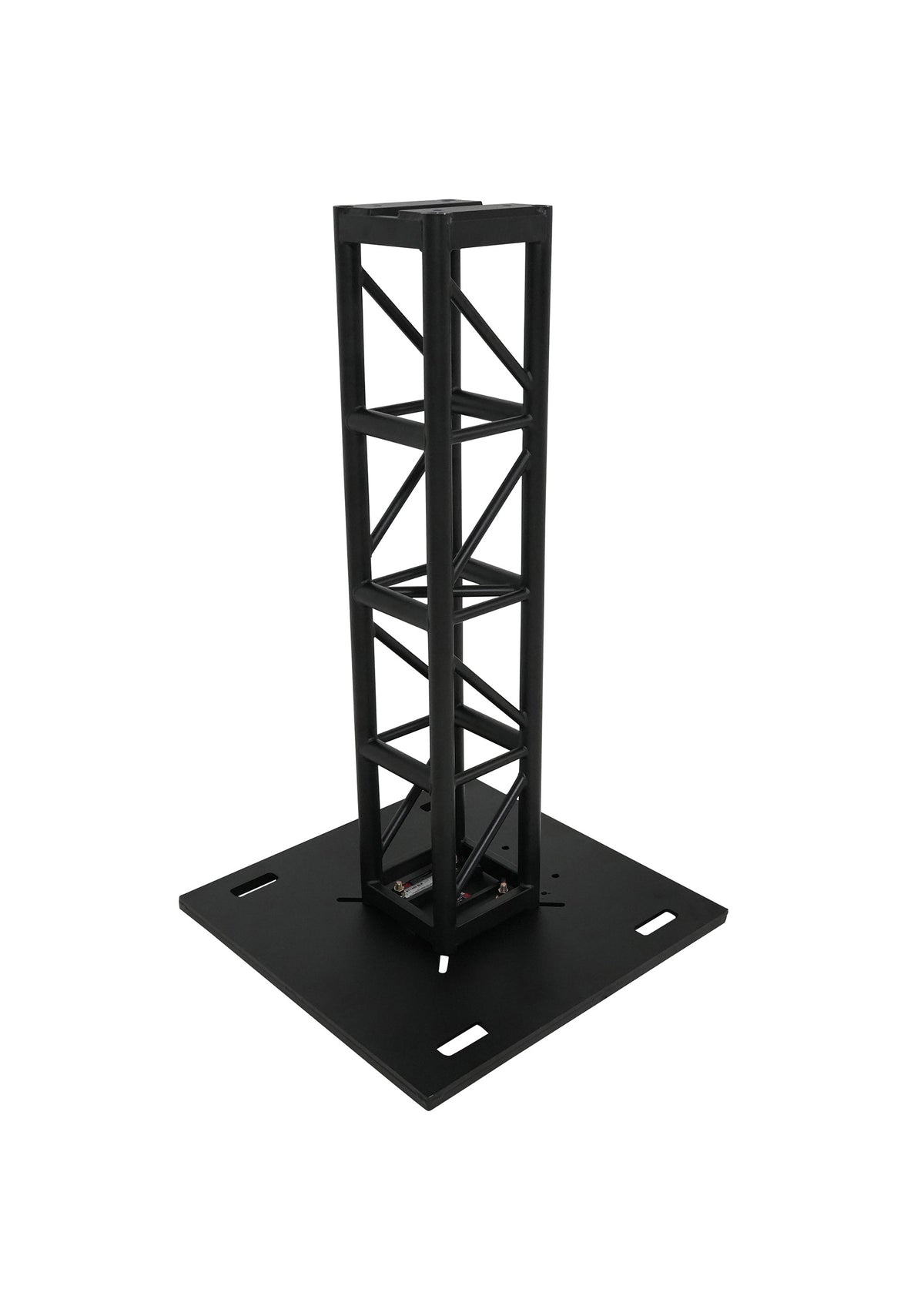

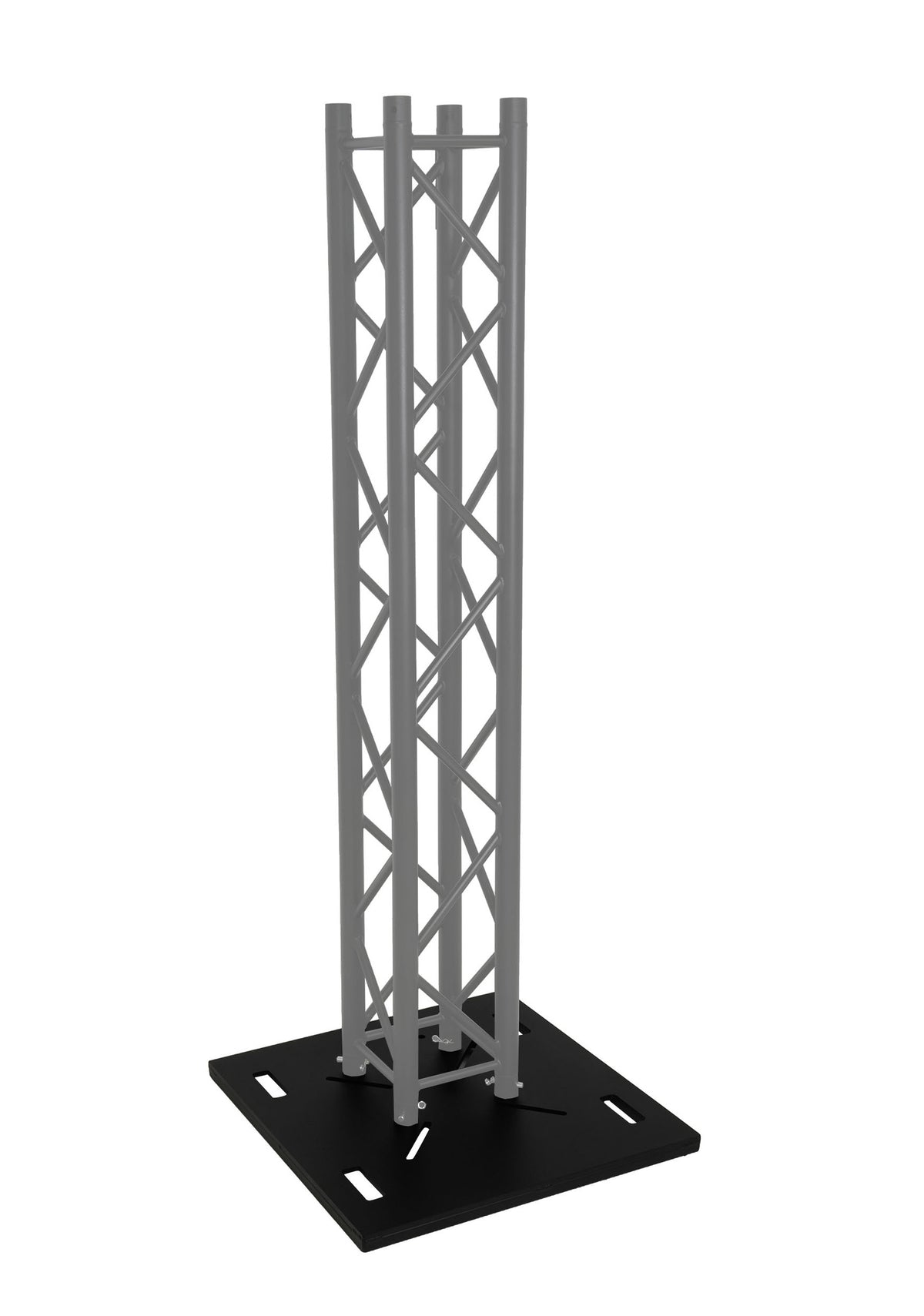

Designed for ProX BoltX 12-inch and 16-inch bolted box truss systems, the base plate is also drilled for F34 truss patterns. Its slotted mounting design supports center or offset positioning, while four integrated hand holes simplify lifting and placement. Each unit includes attachment hardware and is load tested and inspected during manufacturing and quality control. The plate is welded to TÜV standards by GSI SLV-certified welders using 6082-T6 aluminum alloy. Always consult the appropriate loading chart and verify structural requirements before use.

Key Features

• 36-inch base plate for stable truss tower support.
• Compatible with ProX BoltX 12-inch and 16-inch box truss.
• Drilled for F34 truss patterns.
• Heavy-duty 1/2-inch aluminum plate with reinforced raised frame.

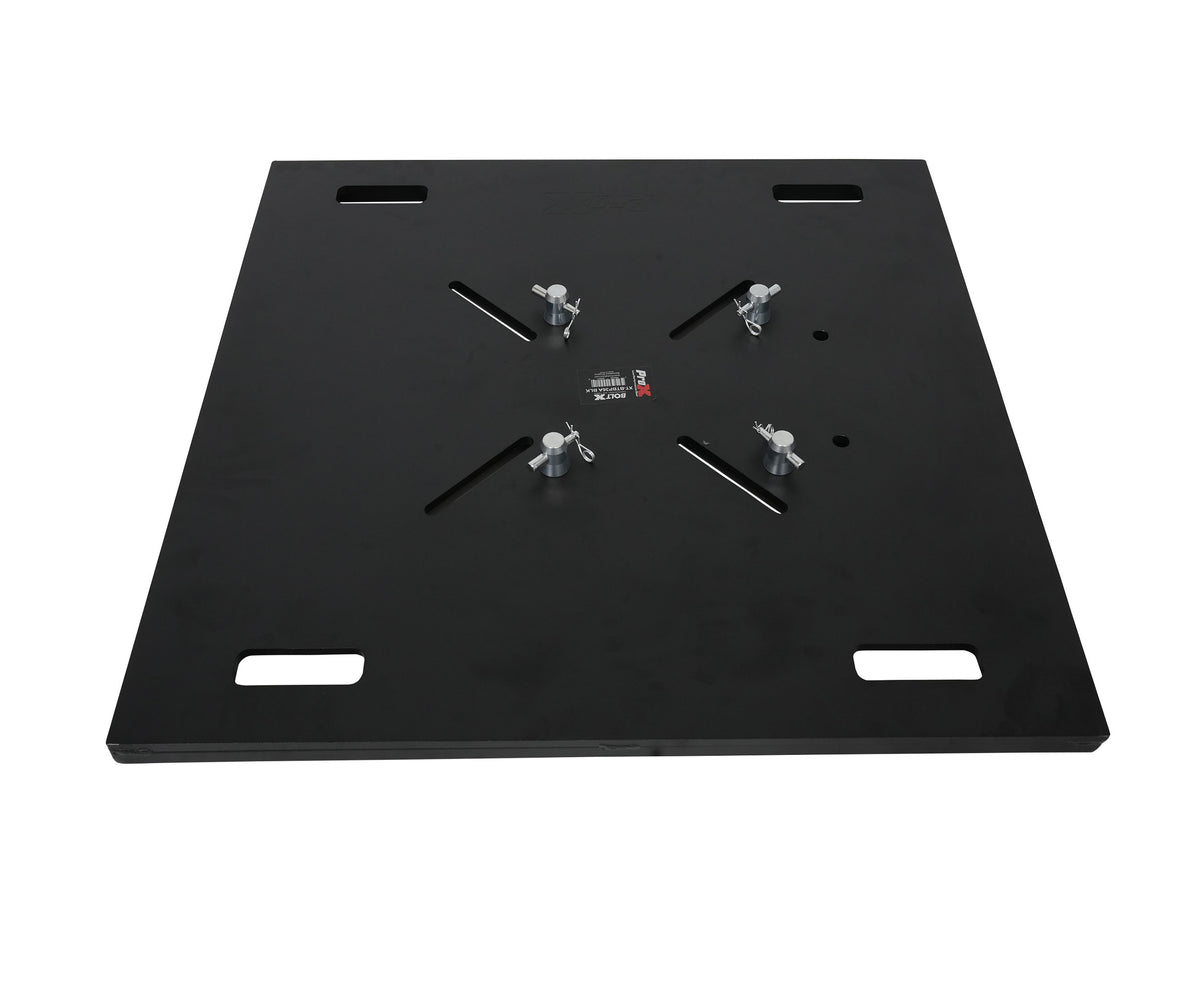

• Center or offset mounting with four integrated hand holes.
• Black powder-coated finish with included attachment hardware.

Ideal For

• Concerts and live stage productions.
• Professional lighting and rigging structures.
• Trade shows and exhibition installations.
• Touring and rental production companies.
• Houses of worship and performance venues.
• Compatible ProX BoltX and F34 truss assemblies.

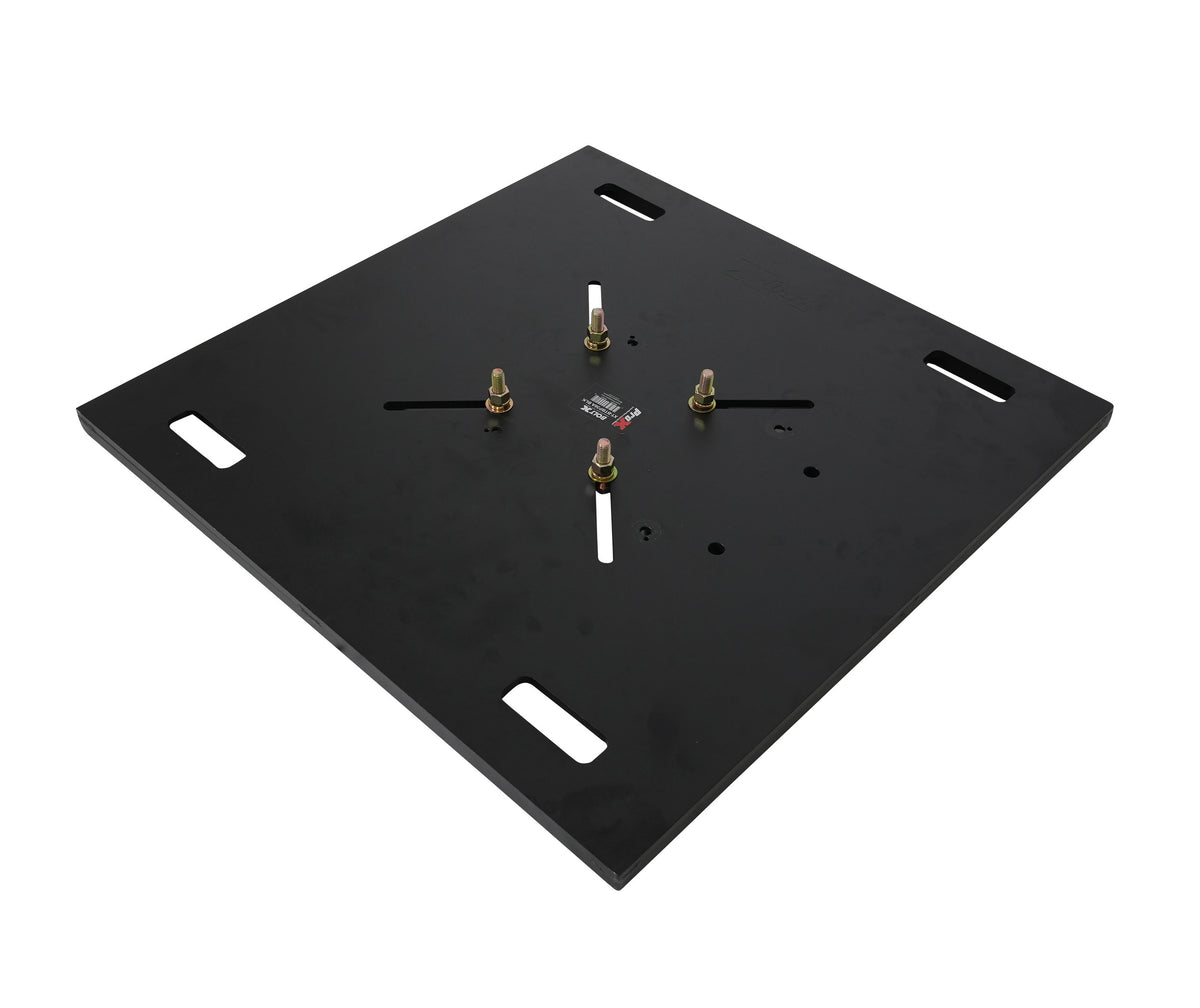

What’s in the Box

• ProX XT-BTBP36ABLK BoltX Base Plate.
• Four 5/8"-11 × 2.5" (NC) attachment bolts.
• Four matching nuts.
• Flat washers and lock washers.

Inputs & Outputs

• Truss Mounting: 5/8-inch holes with a compatible bolt pattern.
• Mounting Options: Center or offset mounting.
• Compatibility: ProX BoltX 12-inch and 16-inch box truss; F34 truss patterns.
• Attachment Hardware: Four bolts, nuts, flat washers, and lock washers.
• Structural Design: Raised aluminum extrusion frame.
• Quality Control: Load tested and inspected during manufacturing.

Frequently Asked Questions

What is the ProX XT-BTBP36ABLK?

It is a 36-inch black aluminum base plate designed to provide a stable foundation for compatible professional box truss systems.

Which truss systems are compatible with this base plate?

It is designed for ProX BoltX™ 12-inch and 16-inch bolted box truss systems and is drilled for F34 truss patterns.

Does the base plate support different mounting positions?

Yes, its slotted and drilled design supports center or offset mounting configurations.

What hardware is included?

The package includes four 5/8"-11 × 2.5-inch attachment bolts, four matching nuts, flat washers, and lock washers.

How is the base plate constructed?

It features a 1/2-inch aluminum plate reinforced by a raised 1 × 1.5-inch solid aluminum extrusion frame, with a black powder-coated finish.

Is the base plate load tested?

Yes, each unit is load tested and inspected during manufacturing and quality control. Always consult the applicable loading chart before use.

What are the product dimensions and weight?

It measures 36 × 36 × 2 inches (L × W × H) and weighs 72 lbs.

What are the shipping dimensions and weight?

The shipping box measures 37 × 37 × 3 inches (L × W × H) and has a shipping weight of 80 lbs.

Full Technical Specifications

General Specifications & Construction

Product Type	Heavy-Duty Truss Base Plate
Product Series	BoltX
Compatible Truss Sizes	12-inch and 16-inch Box Truss
Additional Compatibility	F34 Truss Patterns
Plate Material	Aluminum
Plate Thickness	1/2 inch
Frame Material	Solid Aluminum Extrusion
Frame Dimensions	1 × 1.5 inches
Aluminum Alloy	6082-T6
Finish	Black Powder Coated

Included Hardware & Quality Control

Attachment Bolts	4 × 5/8"-11 × 2.5" (NC)
Nuts	Included
Flat Washers	Included
Lock Washers	Included
Load Testing	Load Tested and Inspected
Welding Standards	TÜV Standards; GSI SLV-Certified Welder

Mounting & Design

Bolt Pattern	6.75 × 6.75 inches
Bolt Hole Size	5/8 inch
Hand Holes	4 Integrated Hand Holes
Mounting Options	Center or Offset Mounting
Plate Design	Raised Frame
Truss Connection	Bolted Attachment

Applications & Use

Primary Application	Box Truss Support
Stage Production	Suitable
Concerts & Live Events	Suitable
Trade Show Builds	Suitable
House of Worship Installations	Suitable
Structural Setup	Consult Applicable Loading Charts

Physical Specifications

Product Weight	72 lbs
Product Dimensions (L × W × H)	36 × 36 × 2 inches
Shipping Dimensions (L × W × H)	37 × 37 × 3 inches
Shipping Weight	80 lbs
