Description

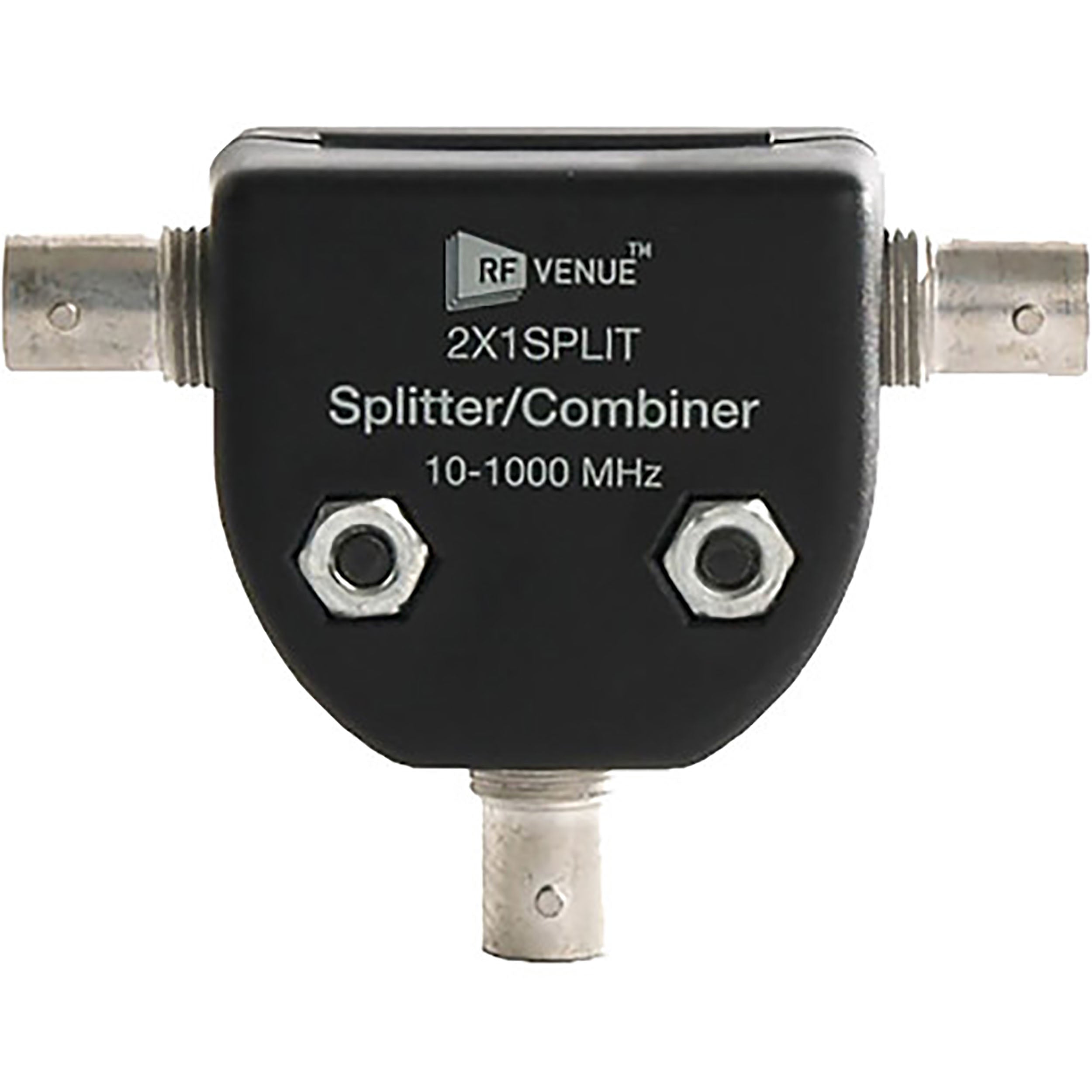

The RF Venue 2X1SPLIT is a passive 2x1 RF signal splitter/combiner designed for professional wireless audio applications. Featuring three BNC female connectors, it provides flexible RF signal distribution and is compatible with major brands of wireless microphone receivers as well as passively combinable IEM transmitters.

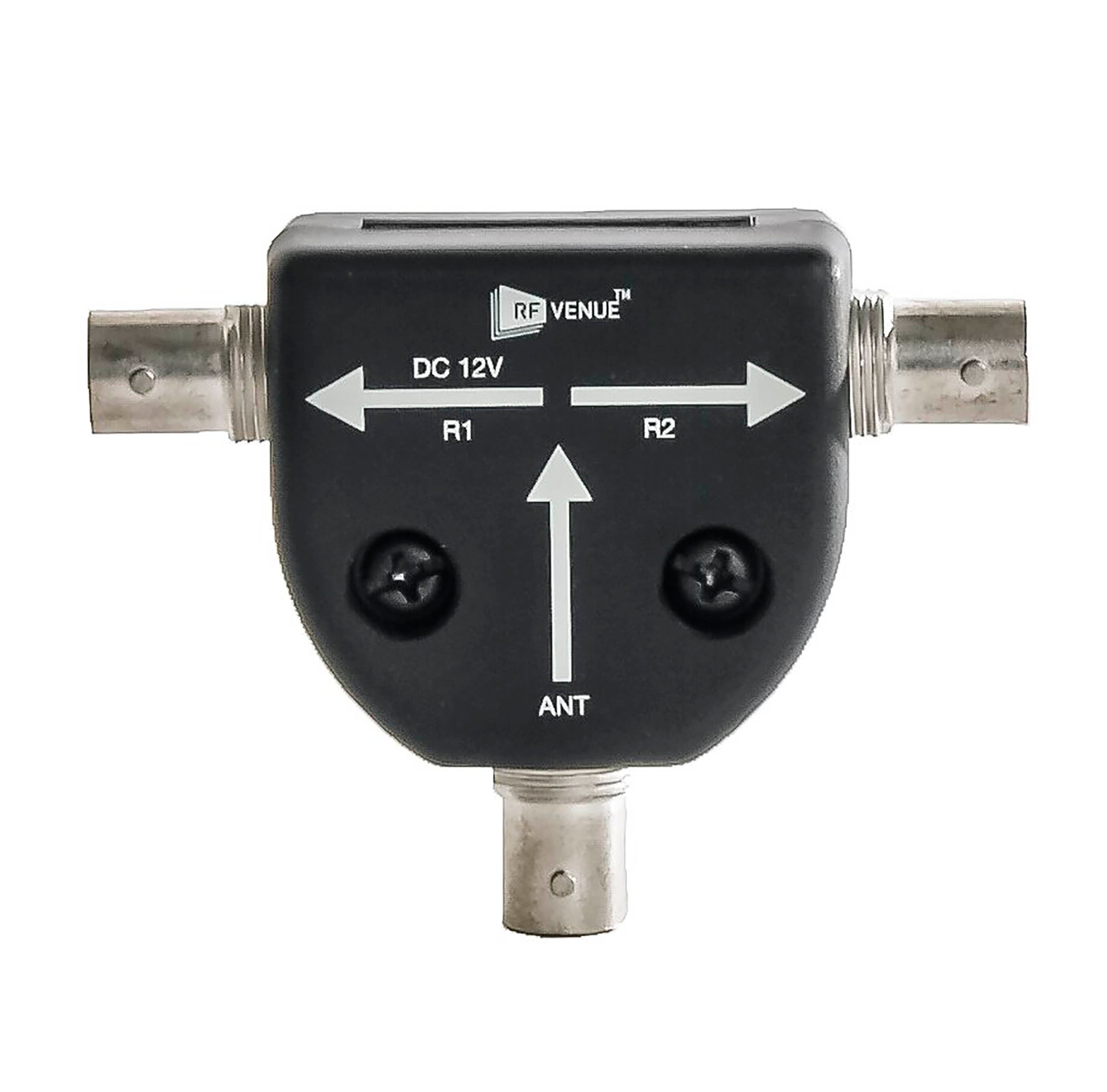

The 2X1SPLIT can be configured in two ways: as one BNC antenna input with two BNC outputs, or as two BNC antenna inputs with one BNC output. Operating across a wide 10 to 1000 MHz RF carrier frequency range, it delivers reliable signal management for a variety of wireless microphone and in-ear monitoring systems.

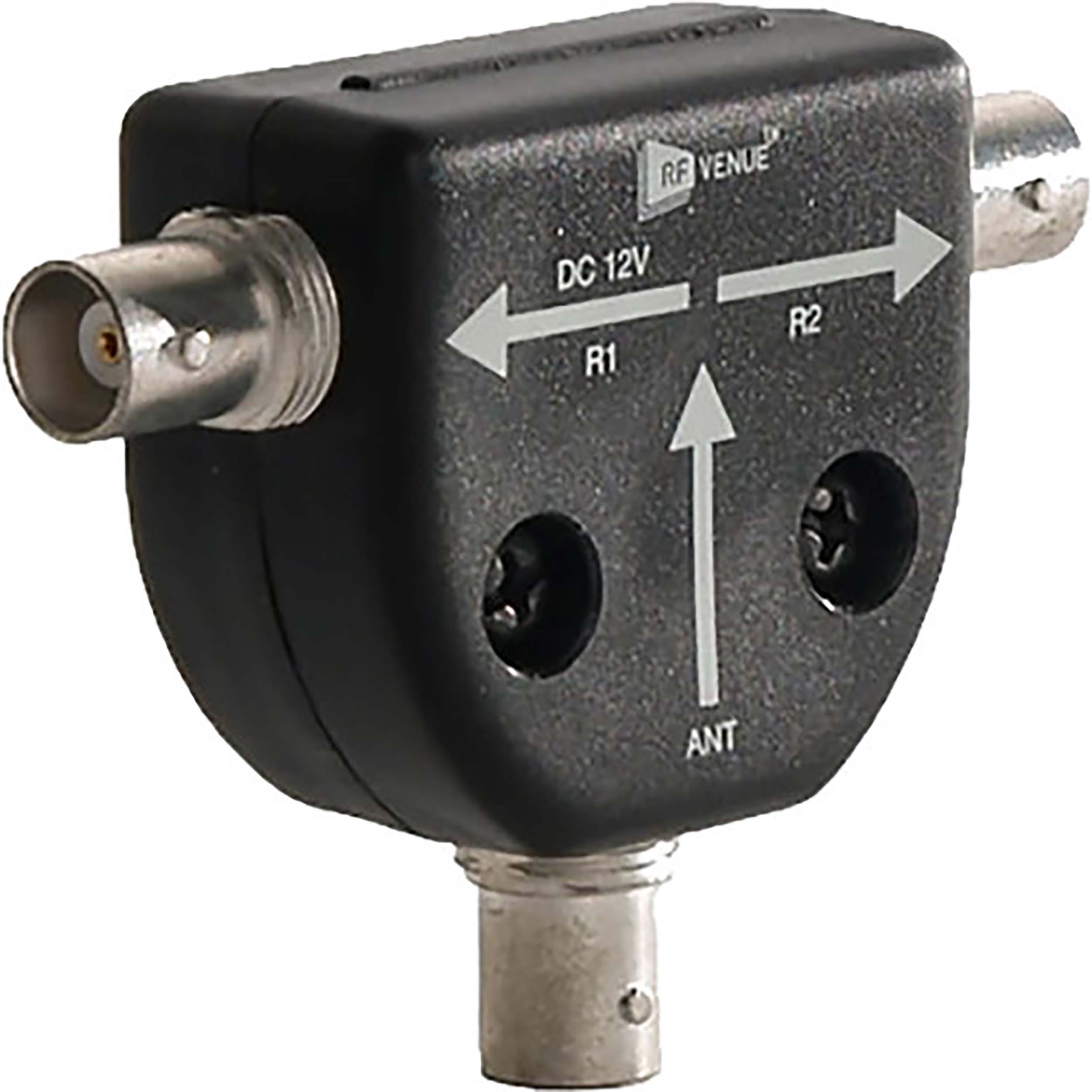

Built for professional RF environments, this passive splitter/combiner features 50-ohm impedance, 20 dB isolation, and low 2 dB insertion loss for efficient signal performance. The R1 channel also supports 12 VDC pass-through when DC over coax is provided, making it a versatile solution for wireless system installations.
Product Specifications:
Product Type: Passive RF Signal Splitter/Combiner
Configuration: 2x1 Splitter/Combiner
Connectors: 3x BNC Female
RF Frequency Range: 10 to 1000 MHz
Impedance: 50 Ohms
VSWR: 1.2:1
Isolation: 20 dB
Insertion Loss: 2 dB
Max ANT Input Power: 30 dBm
Max R1/R2 Output Power: 26 dBm
DC Pass-Through: 12 VDC on R1 Channel
Applications: Wireless Microphone Receivers and IEM Systems
Weight: 0.25 lb (0.11 kg)
Package Dimensions: 2.5 x 1.5 x 1 in
