Description

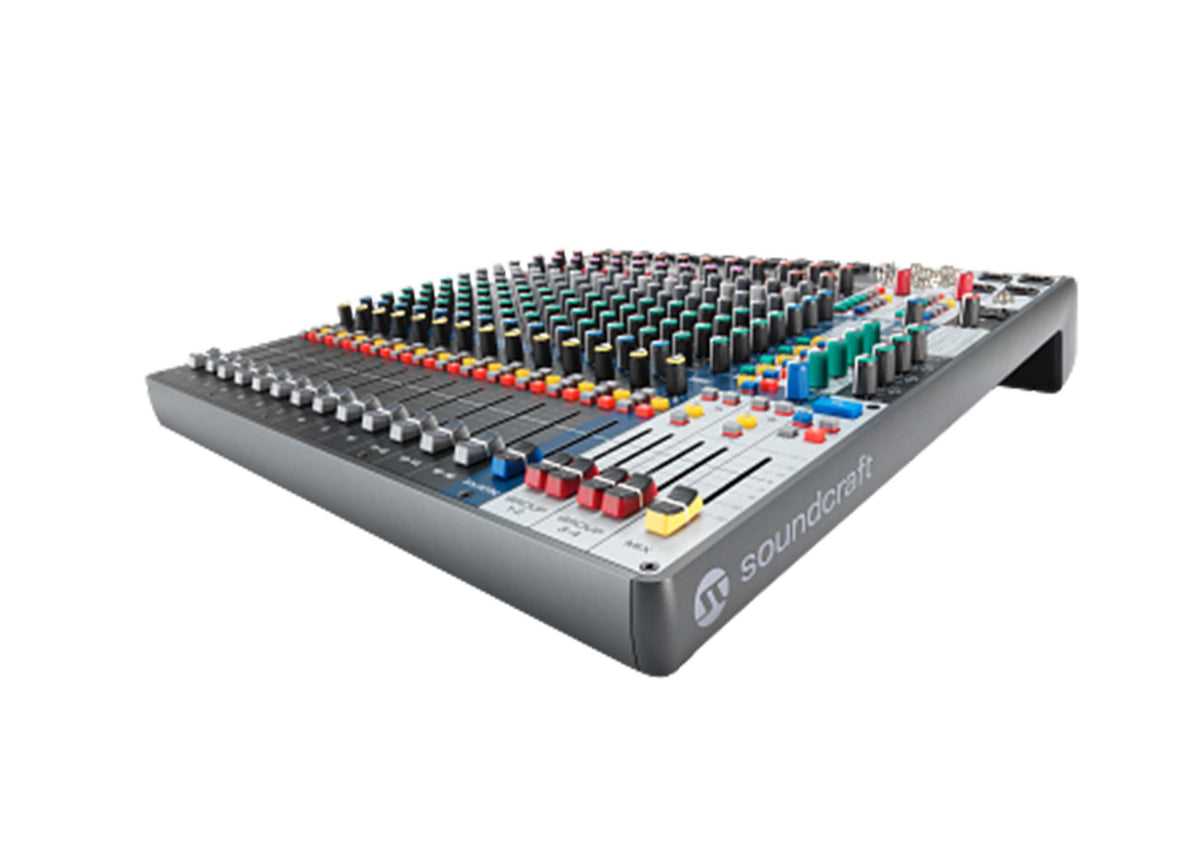

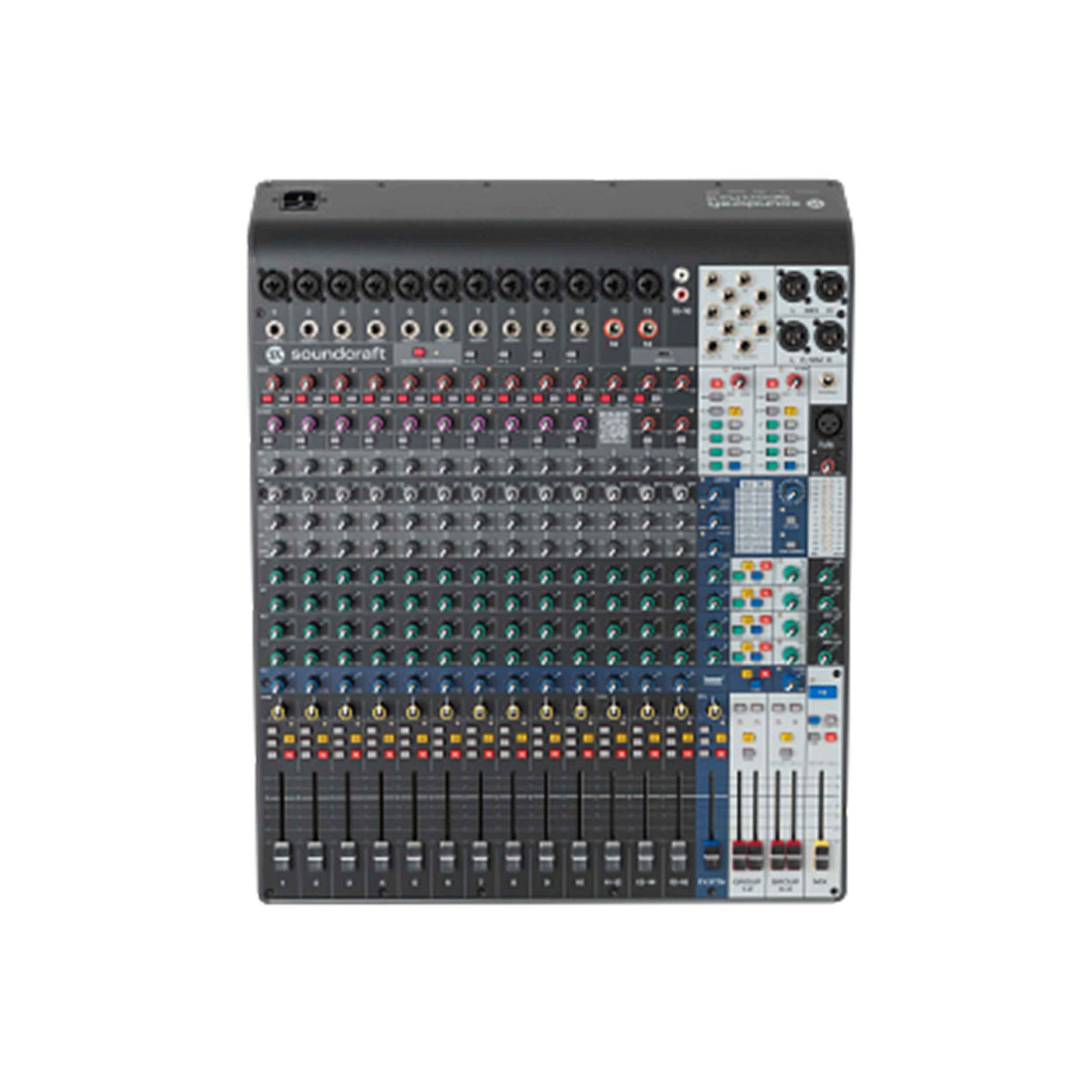

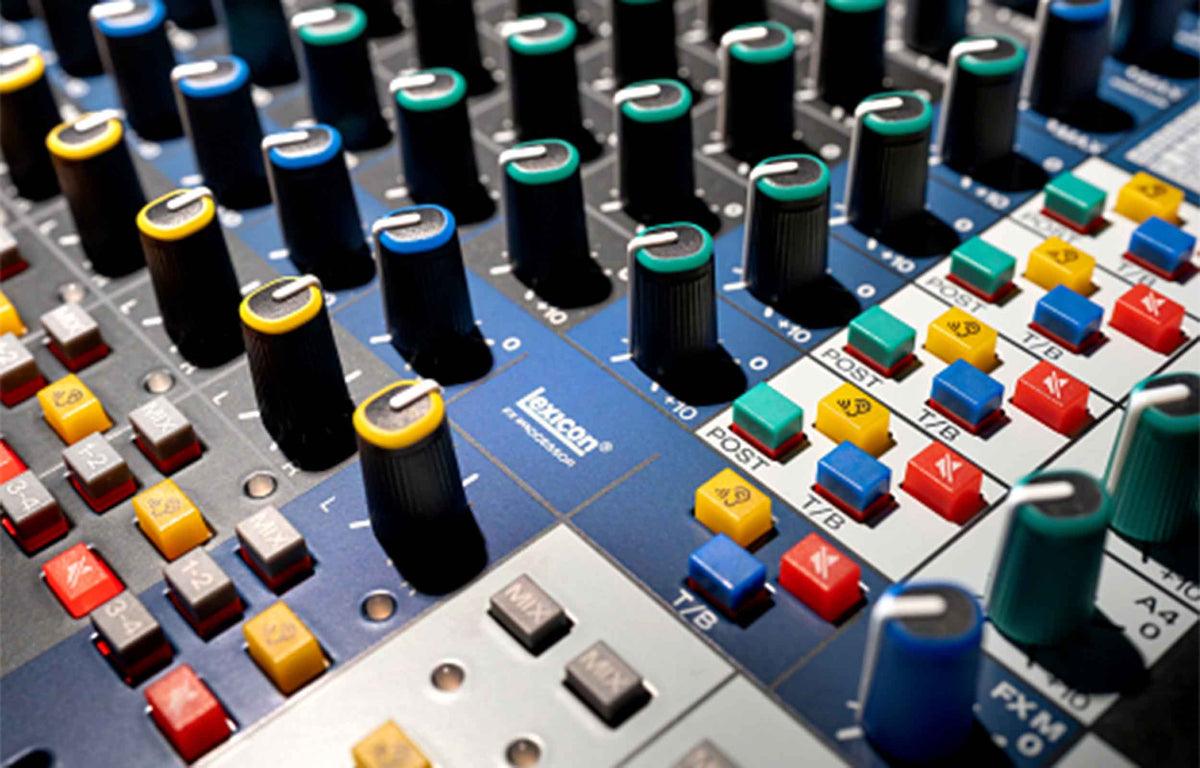

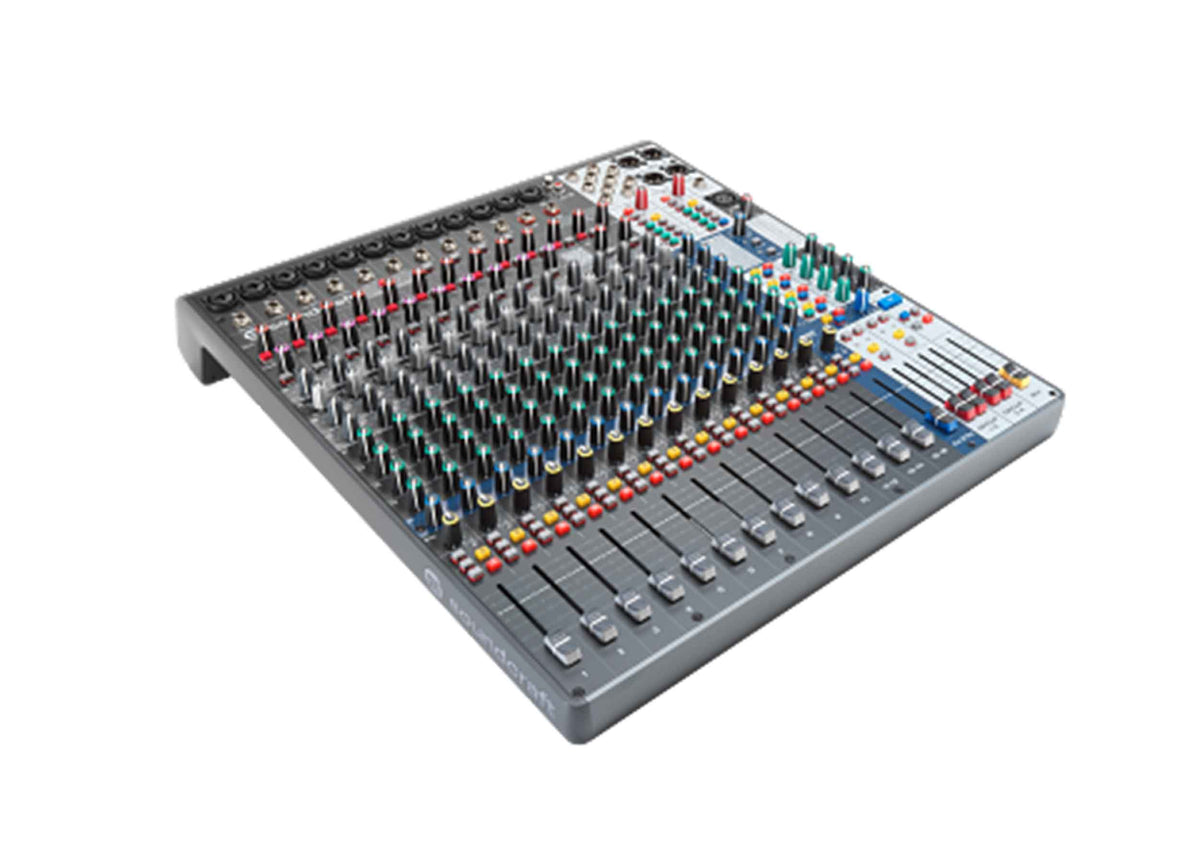

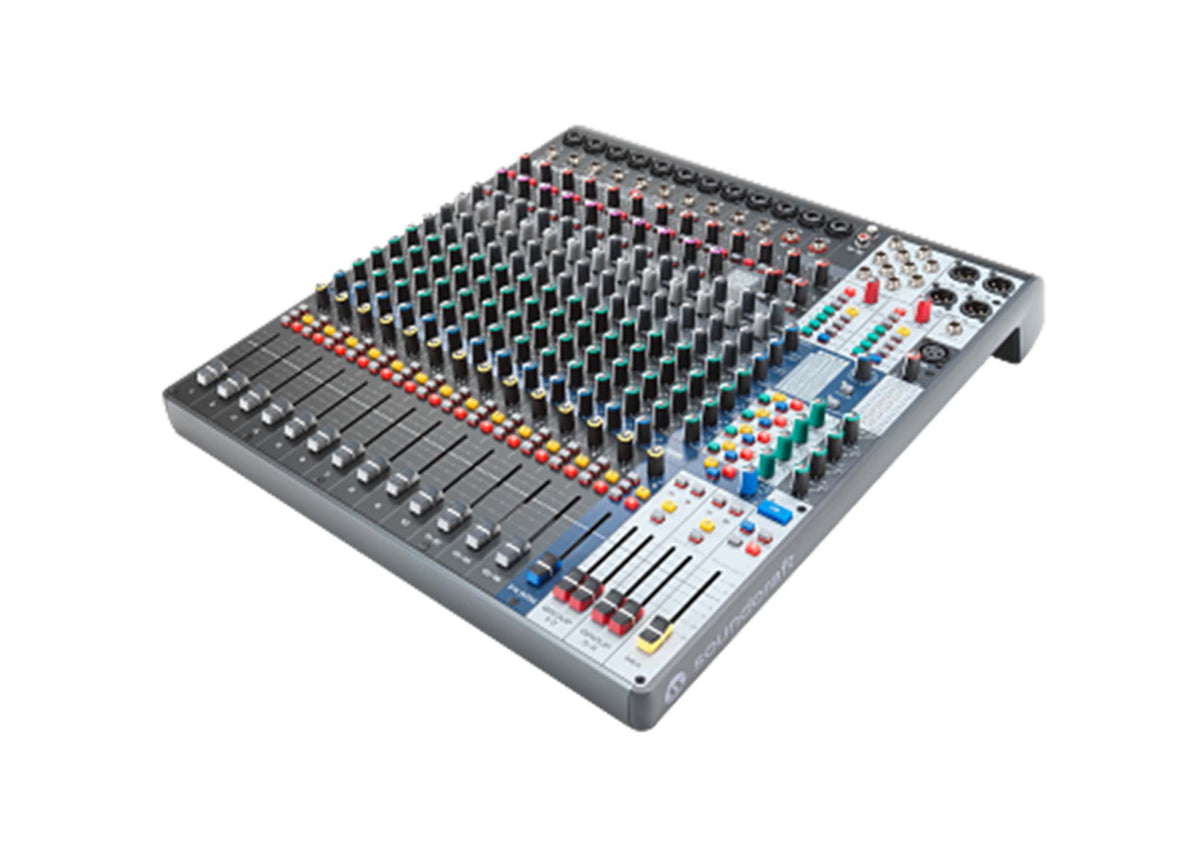

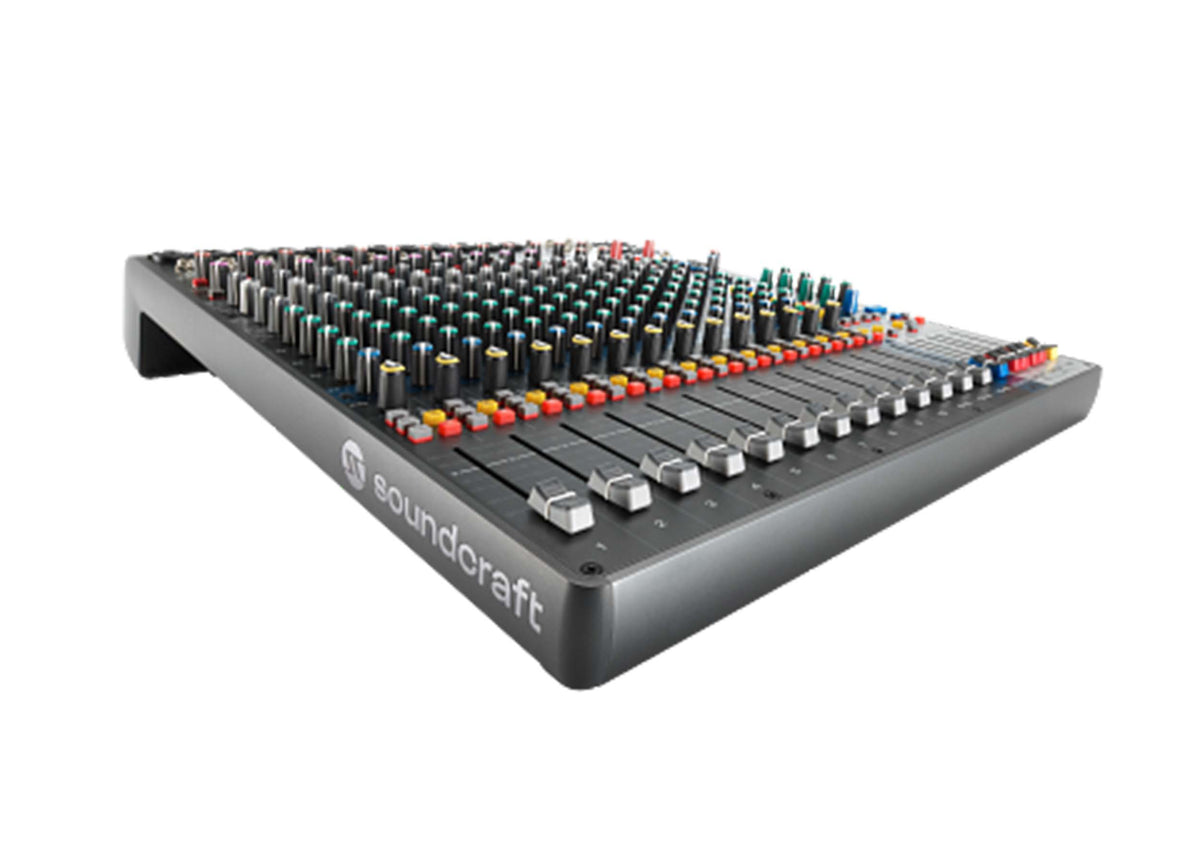

The Soundcraft Signature Plus 16 is a professional 16-channel analog mixing console designed for live sound, studio production, streaming, and creative audio workflows. Its purpose-driven layout combines color-coded controls, tactile “squircle” knobs, and smooth faders for fast and confident operation. Soundcraft Ghost mic preamps provide high-quality input amplification with smooth overload behavior and rich harmonics, while Sapphyre EQ delivers musical tone shaping. Built-in dbx OverEasy one-knob compressors provide convenient dynamics control with harmonic enhancement, and TRS insert points allow external processors to be integrated into individual channels.
The Signature Plus 16 features an integrated Lexicon hardware effects processor with Store and Tap Tempo functionality for flexible creative processing. Dedicated footswitch connections provide convenient control over FX Bypass and Tap Tempo during performances. Simple Success Metering (SSM) provides visual feedback across inputs and outputs, while the dedicated Listen bus allows engineers to monitor channels without interrupting the main mix. Talkback To routing provides communication to selected outputs, while four Aux sends and Mix to Auxes support versatile monitoring configurations. User-configurable headphone and control-room monitoring includes Mute, Dim, Mono Sum, and selectable Mix, Aux, Listen, or direct USB sources.
A 4x4 USB-C audio interface supports playback and recording at sample rates from 44.1 kHz through 192 kHz, allowing seamless integration with laptops and mobile devices. USB returns can be routed into channel strips or used to replace the main mix for break music and DJ playback. The rugged console includes rack-mount ears and a front-panel QR code that provides quick access to training videos, manuals, and support resources. With its combination of professional analog processing, digital connectivity, flexible routing, and intuitive controls, the Signature Plus 16 provides a versatile mixing solution for studios, stages, streaming environments, and production applications.
Product Specifications:
Product Type: 16-Channel Analog Mixer
Application: Live Sound, Studio, Streaming, Recording, and DJ Playback
Input Configuration: 16-Channel Creative Inputs
Mic Preamps: Soundcraft Ghost
Equalization: Sapphyre EQ
Compressors: dbx OverEasy One-Knob Compressors
Effects Processor: Lexicon Hardware Effects Processor
Effects Features: Store and Tap Tempo
Footswitch Control: FX Bypass and Tap Tempo
SSM Metering: Simple Success Metering
Listen Bus: Pro Listen Bus
Talkback: Talkback To Routing
Aux Sends: 4 Aux Sends
Mix Routing: Mix to Auxes
Monitoring: User-Configurable Headphone and Control Room Monitoring
Monitor Functions: Mute, Dim, Mono Sum, Mix, Aux, Listen, and USB Sources
USB Interface: 4x4 USB-C
Maximum USB Sample Rate: Up to 192 kHz
Supported USB Sample Rates: 44.1, 48, 88.1, 96, 176.2, and 192 kHz
USB Full Scale Playback Level: +17 dBu
USB Full Scale Recording Level: +20 dBu
USB Playback Dynamic Range: 94 dB
USB Recording Dynamic Range: 107 dB
USB Playback THD+N: <0.01%
USB Recording THD+N: <0.005%
Rack Mounting: Included Rack-Mount Ears
Power Supply: Worldwide
Box Dimensions (L x W x H): 24.02" x 25.55" x 7.83"
Product Weight: 17.2 lbs.
Product Dimensions (L x W x H): 17.24" x 21.06" x 4.17"
