Description

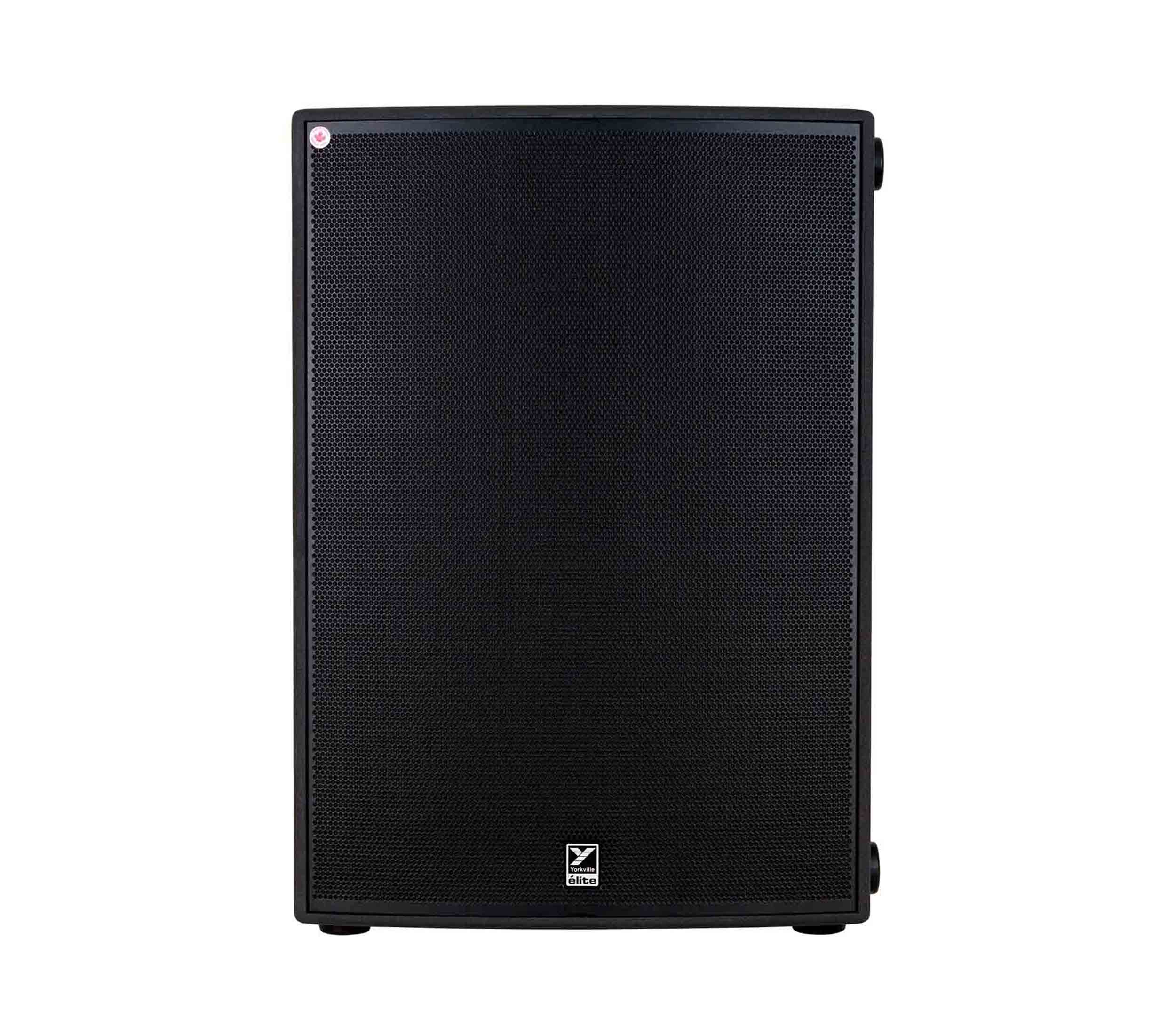

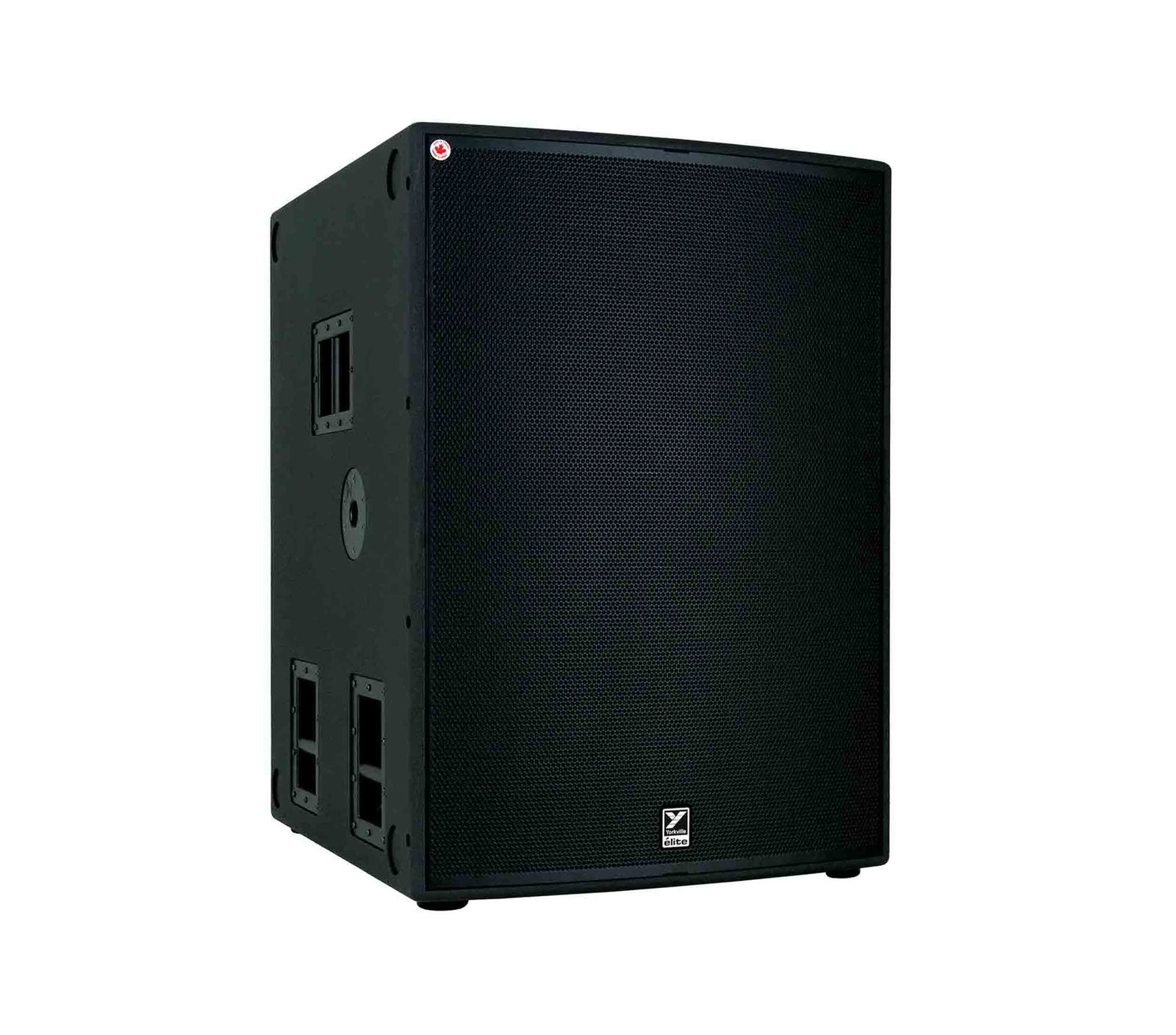

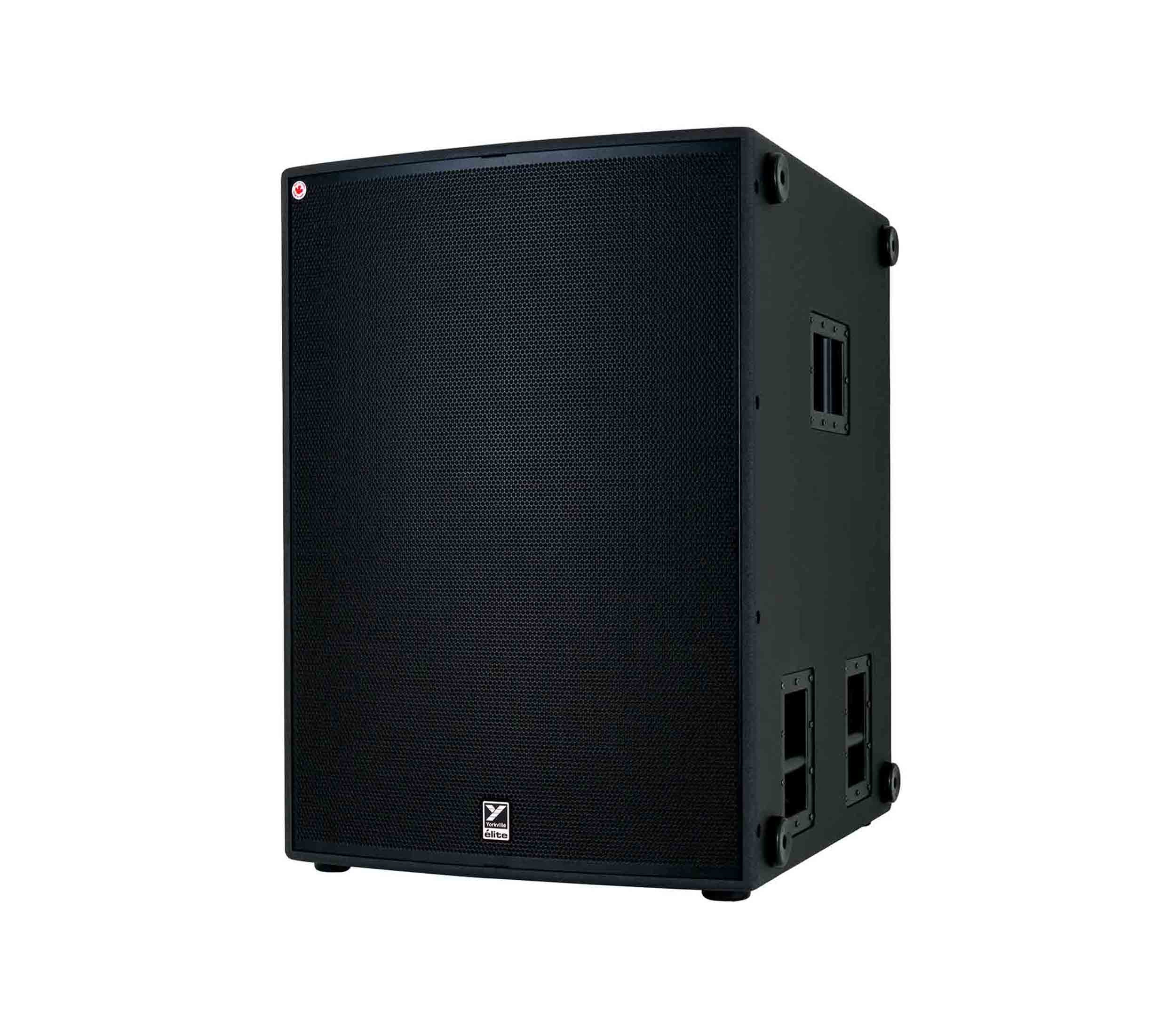

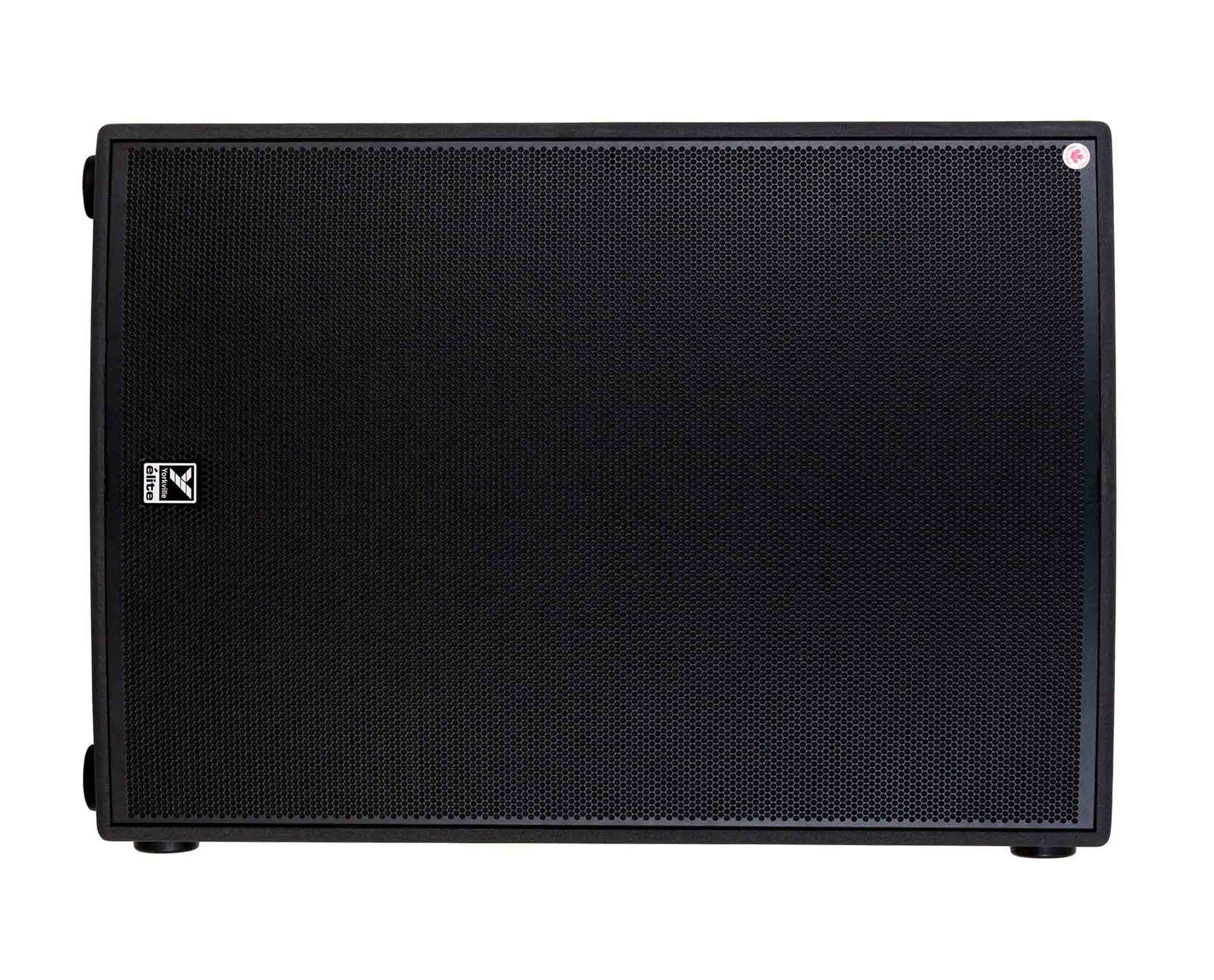

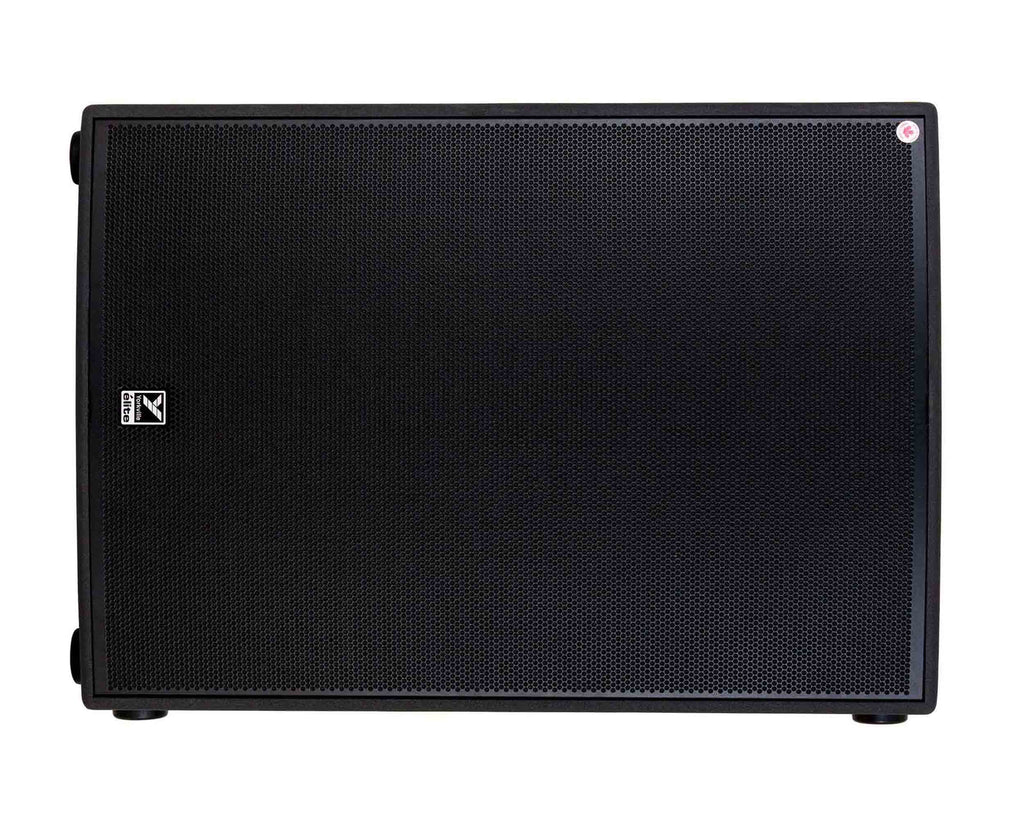

The Yorkville EL24S Elite 24" Powered Subwoofer is a high-output professional PA subwoofer designed for live sound applications where extremely deep and powerful low-frequency performance is required. Its massive 24" neodymium driver and 6" voice coil deliver an impressive 5000W peak power and 143 dB peak SPL.

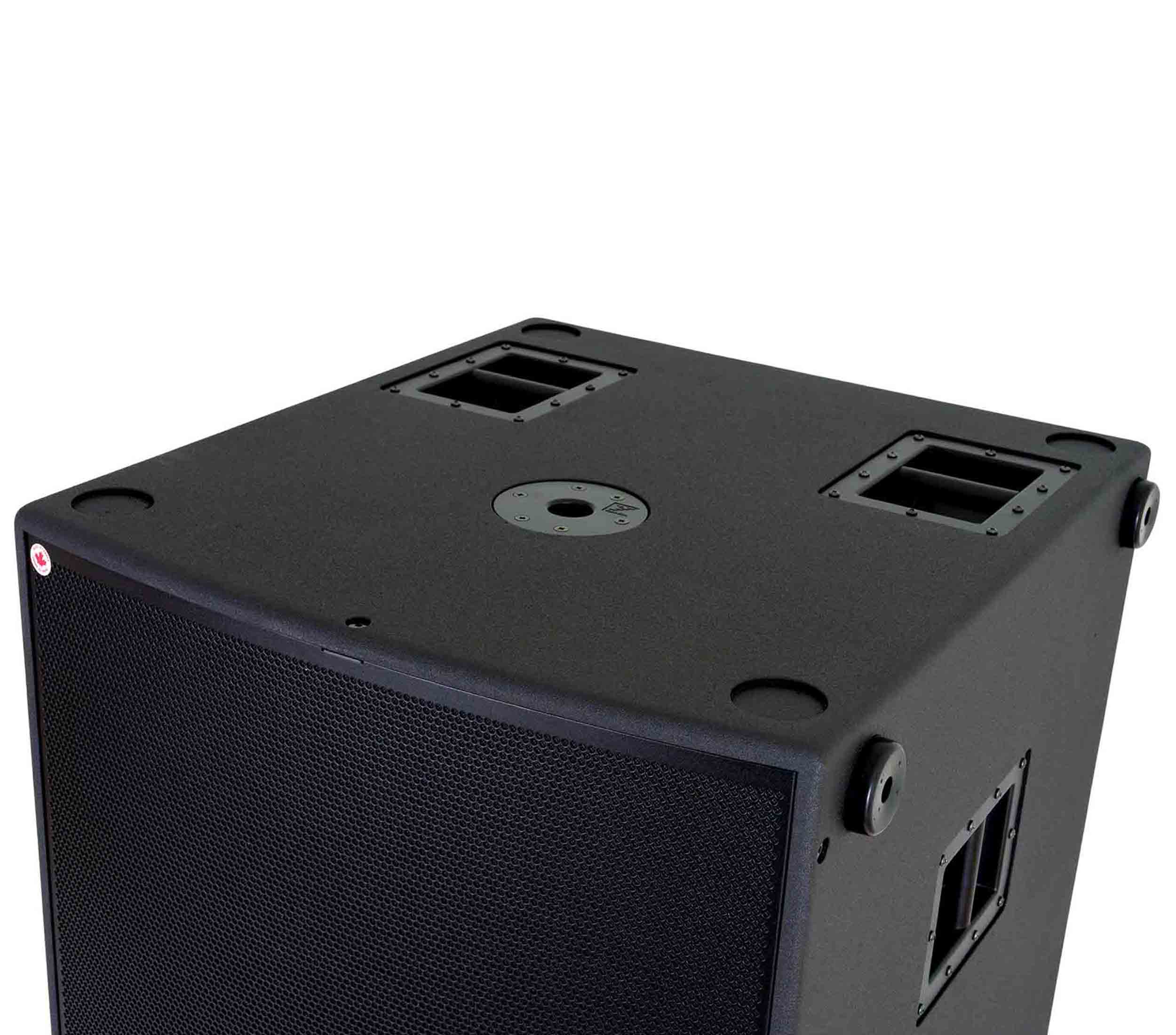

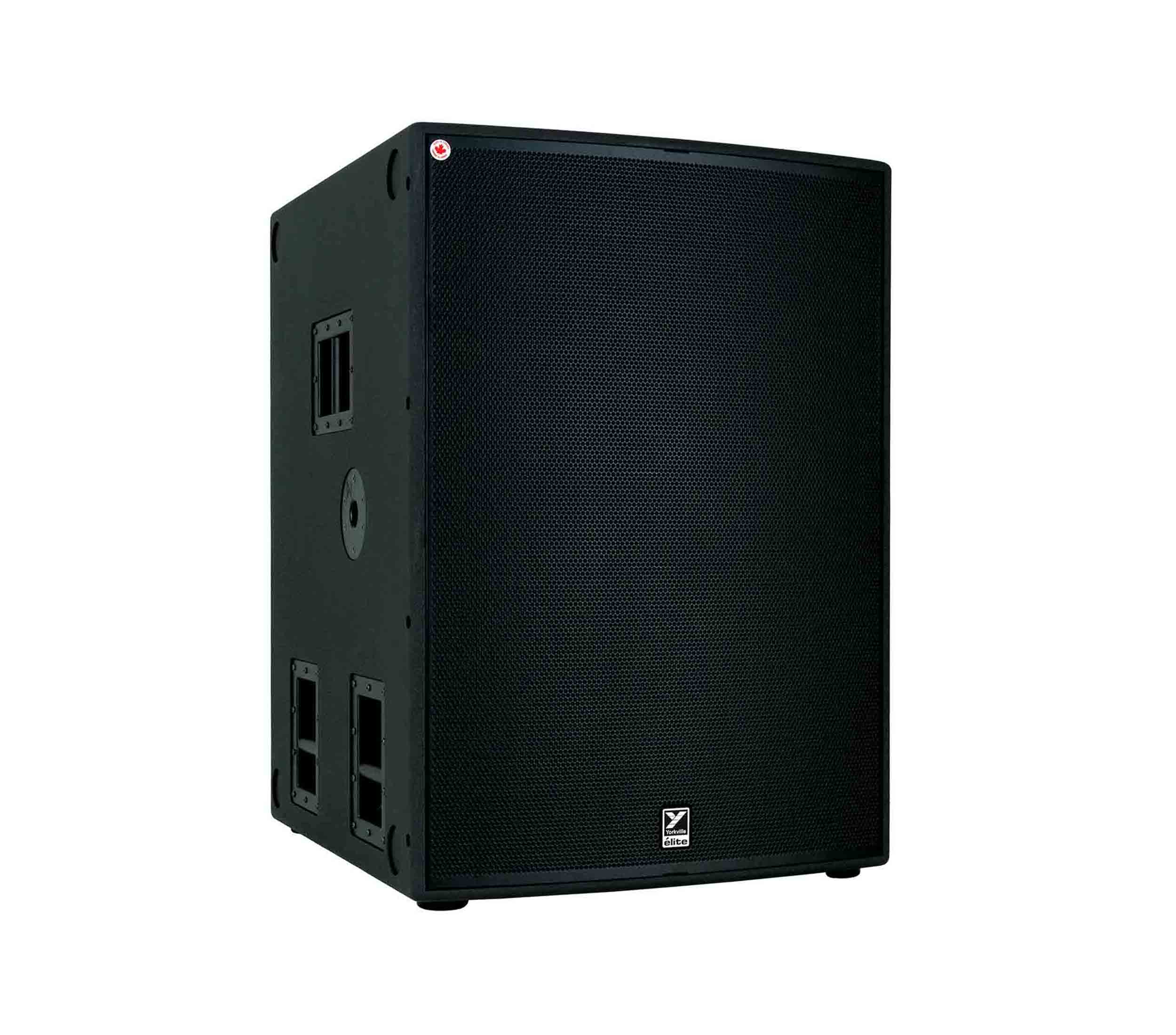

The EL24S features a rugged 15mm birch plywood enclosure with a powder-coated steel grille, textured finish, and multiple integrated handles for professional transport and setup. Top and side pole-mount adapters provide flexible system configuration, while the onboard limiter helps maintain reliable performance during demanding applications.

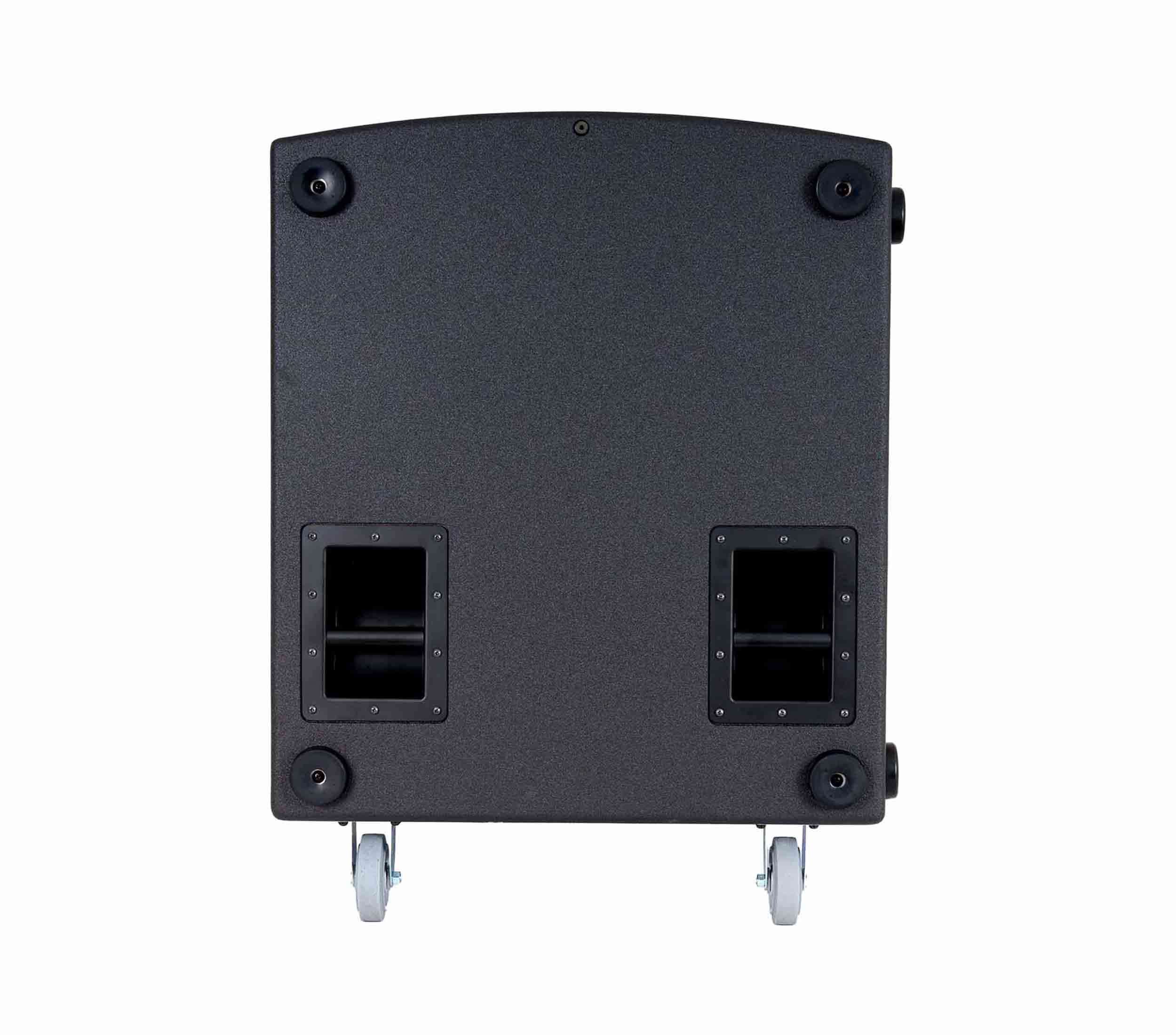

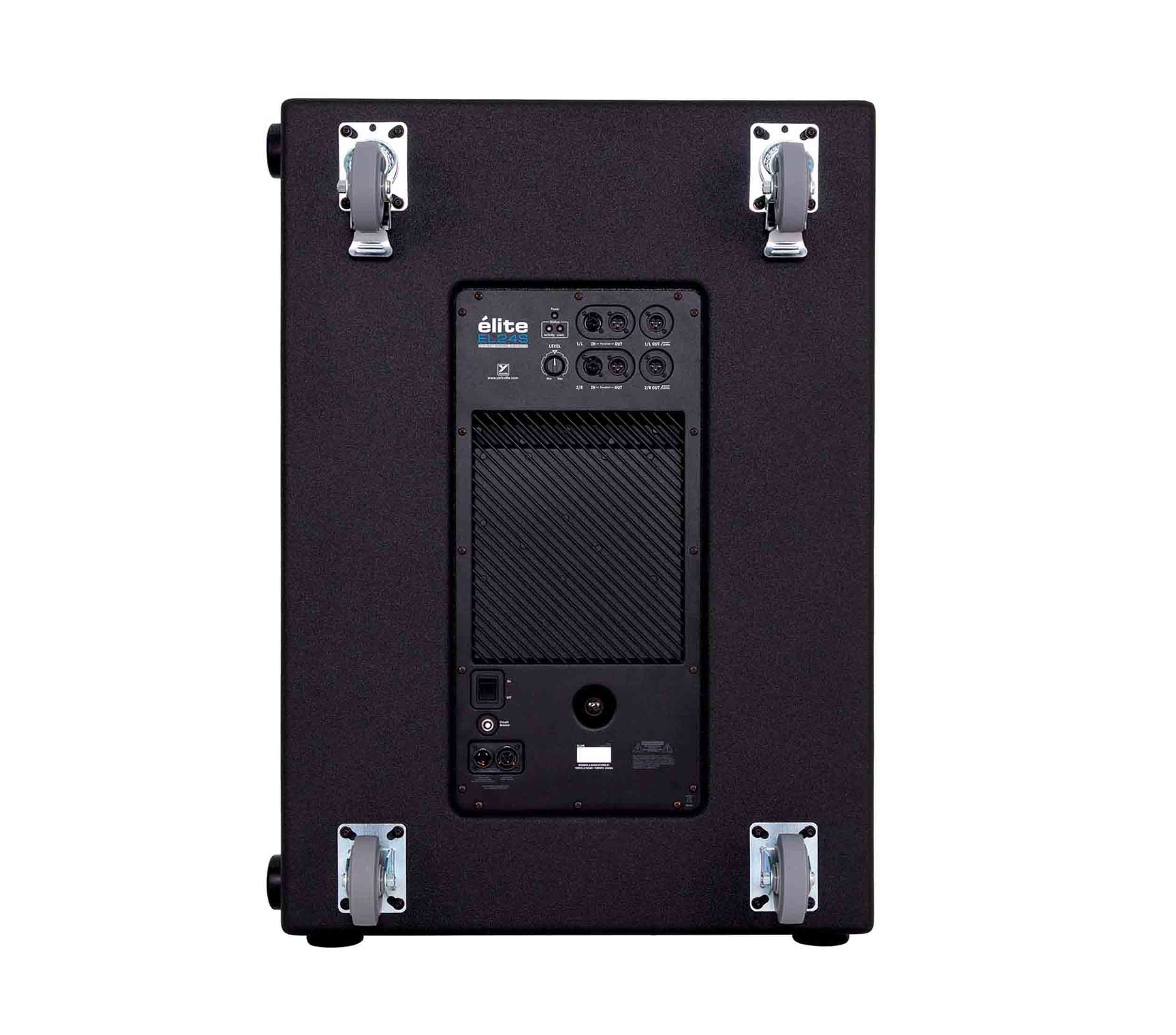

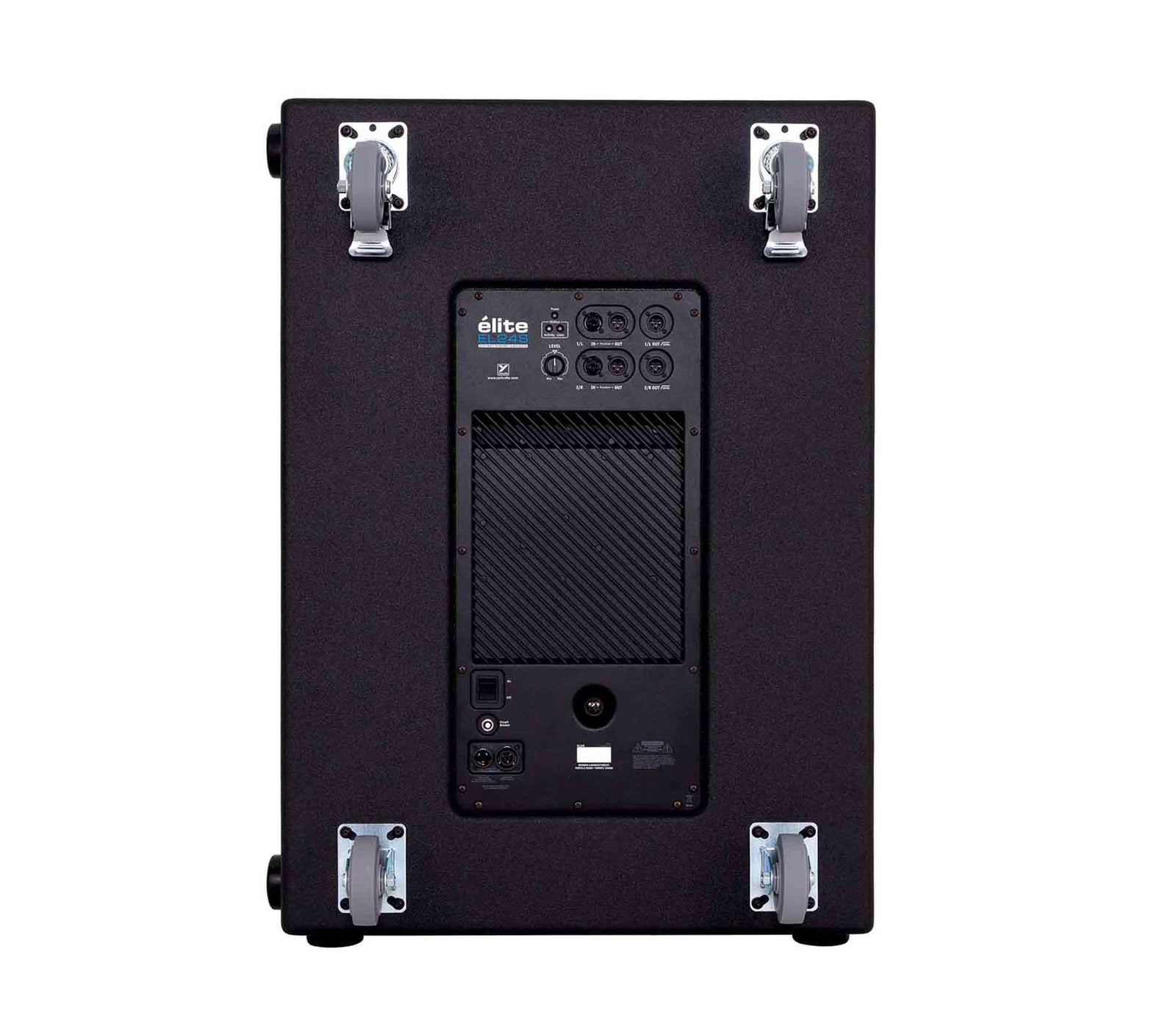

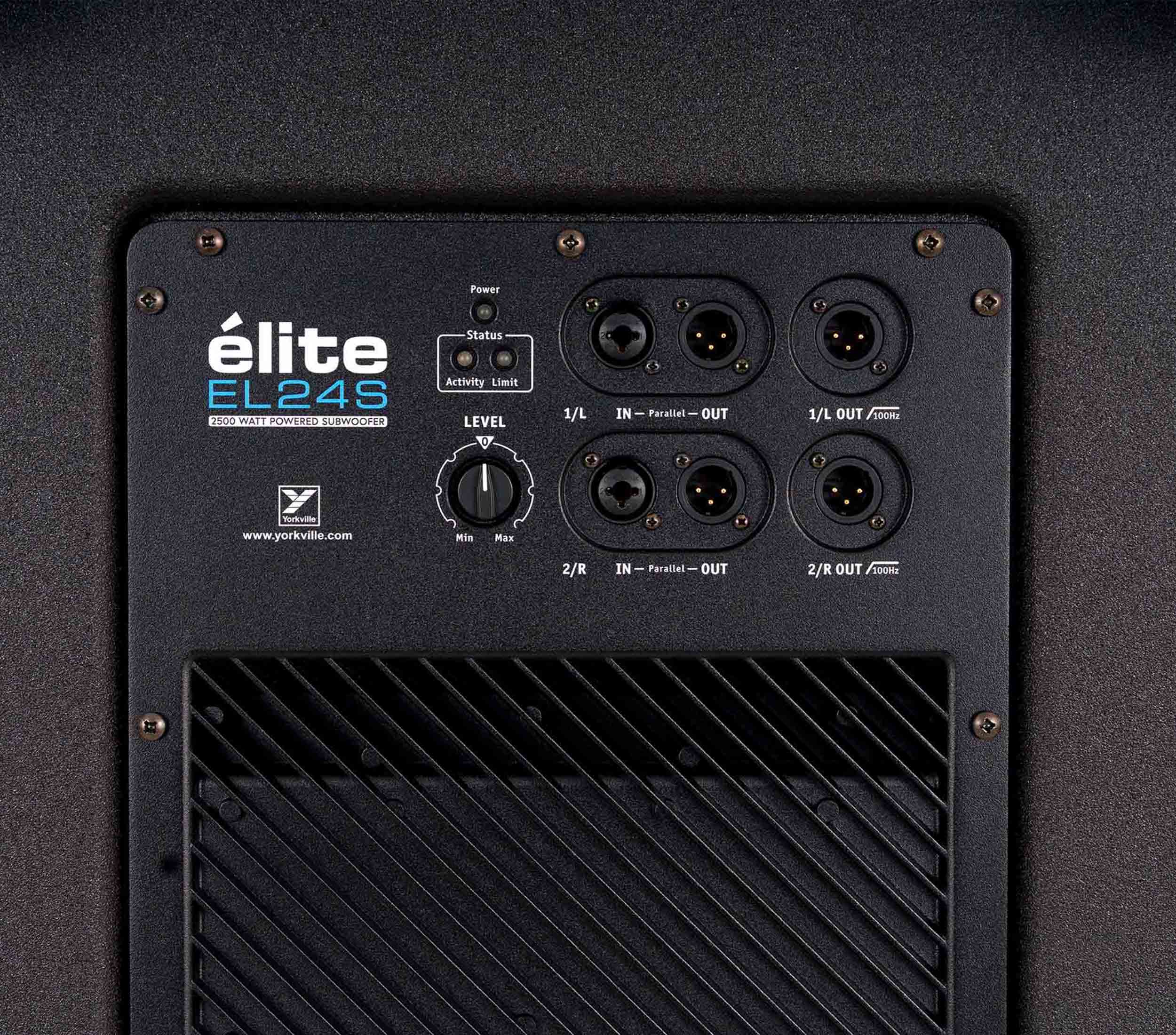

Connectivity includes two XLR inputs, two full-range link outputs, and two high-pass XLR outputs, making the EL24S easy to integrate into professional PA systems. With a 30 Hz–100 Hz frequency response, caster wheels, and powerCON TRUE1-compatible connections, it is built for concerts, touring productions, festivals, and other high-output sound reinforcement applications.
Product Specifications:
System Type: Powered Subwoofer
Power Rating: 5000W Peak / 2500W Program
Max SPL: 143 dB Peak / 137 dB Continuous
Frequency Response: 30 Hz–100 Hz ±3 dB
LF Driver: 24" Neodymium, 6" Voice Coil
Crossover Frequency: 100 Hz
Inputs: 2× Combo XLR / 1/4" TRS
Outputs: 2× XLR High-Pass, 2× XLR Link
Enclosure: 15mm Birch Plywood
Product Weight: 240 lbs
Product Dimensions: 37" L × 29" W × 39" H
Shipping Weight: 250 lbs
Shipping Dimensions: 39" L × 31" W × 41" H
