Descripción

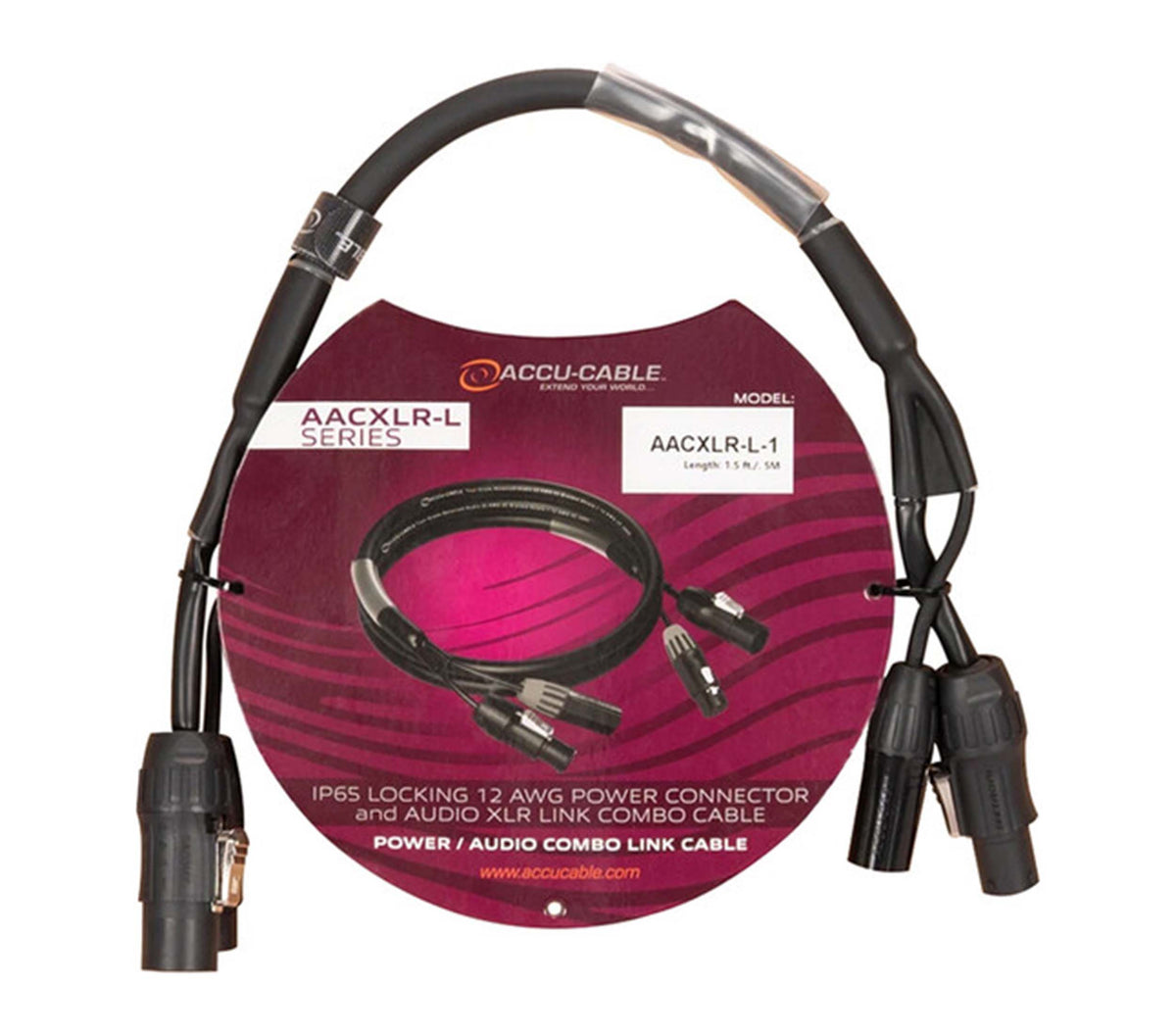

The Accu-Cable AACXLR-L-1 Power/Audio Combo Link Cable combines balanced audio and power connections into one compact 1.5-foot / 0.5-meter cable. Designed for linking compatible powered speakers and other closely positioned equipment, it eliminates the need for separate audio and power cables while helping create a cleaner, more organized setup.

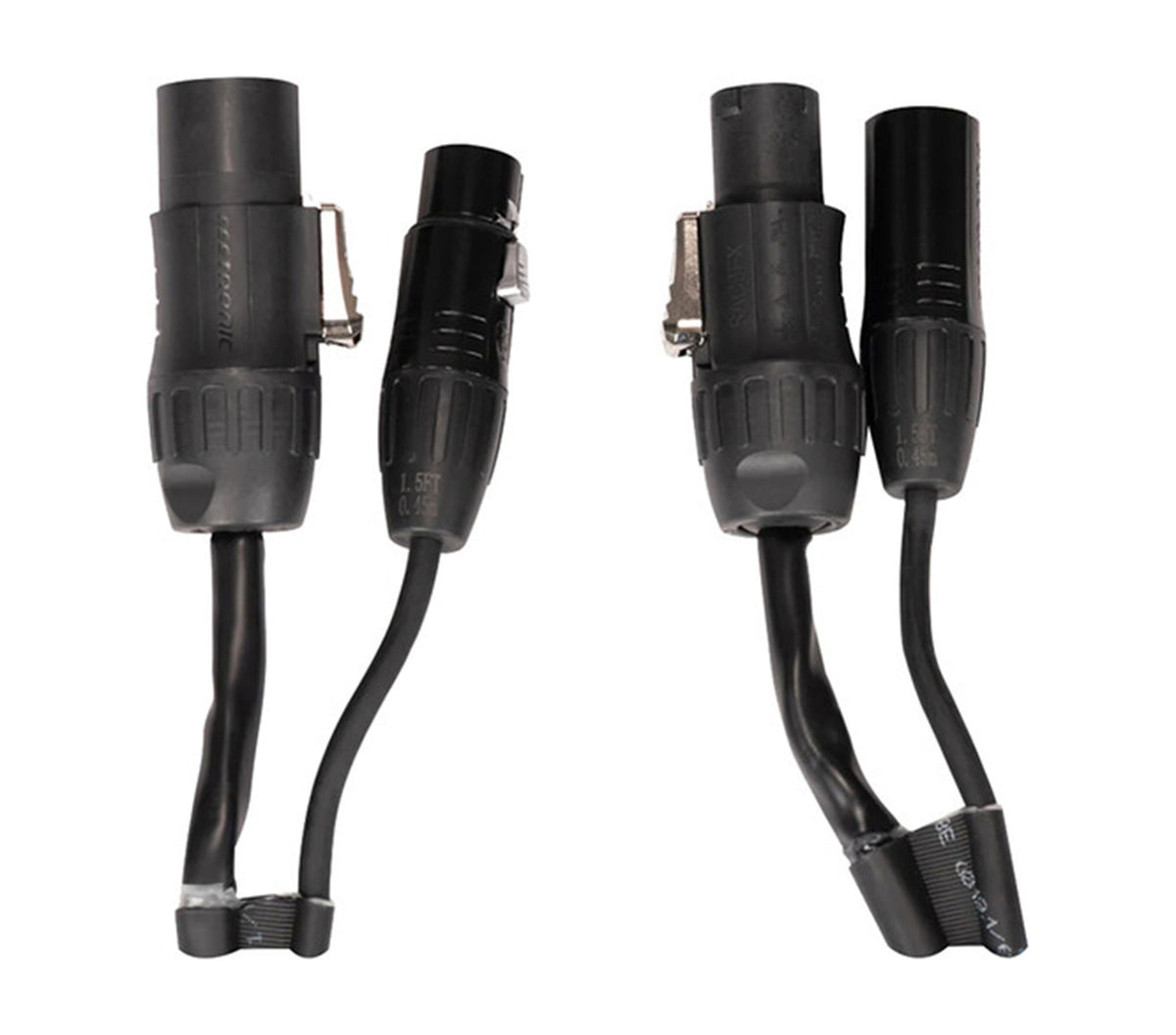

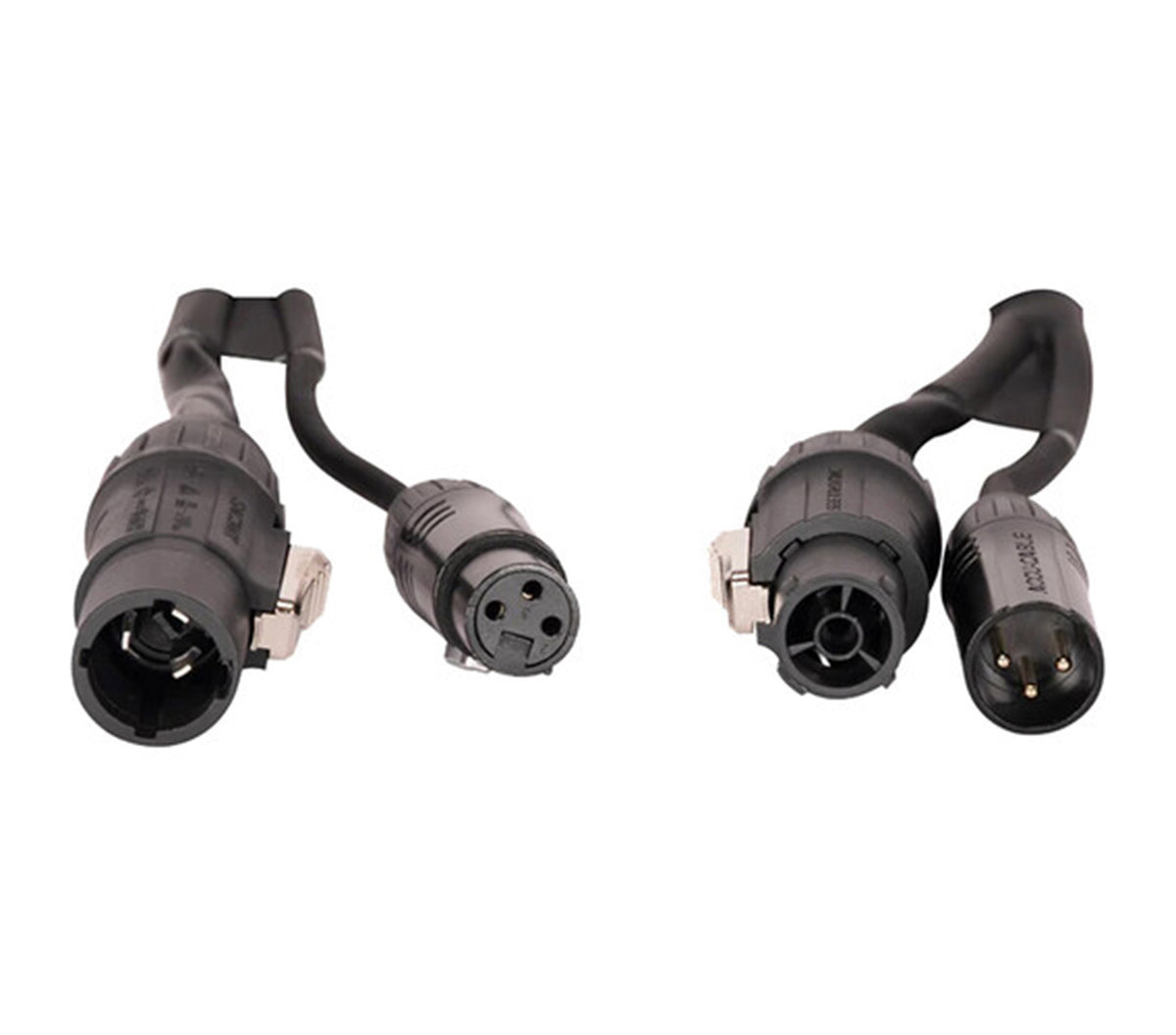

The audio section uses 20 AWG twisted-pair oxygen-free copper conductors with a braided copper shield to support clear signal transmission and protection against electromagnetic and RF interference. Its 3-pin XLR male-to-female connection makes it convenient for linking the audio output of one powered speaker to the input of another, while the locking IP male-to-female connection provides power pass-through between compatible devices.
Built with a flexible 12 mm low-memory PVC outer jacket, Seetronic XLR connectors with gold-plated contacts, and an IP65-rated construction, the AACXLR-L-1 is designed for practical handling and dependable professional use. Its compact length is particularly useful for adjacent line-array elements, speaker stacks, floor monitors, touring systems, corporate AV setups, houses of worship, and permanent installations.
Product Specifications:
Product Type: Power/Audio Combo Link Cable
Cable Type: Combined Audio and Power Cable
Cable Length: 1.5 ft / 0.5 m
Audio Connector A: 1 × 3-Pin XLR Male
Audio Connector B: 1 × 3-Pin XLR Female
Audio Connection: Balanced XLR
Audio Conductors: 2
Audio Conductor Gauge: 20 AWG
Audio Conductor Construction: Twisted Pair
Audio Conductor Material: Oxygen-Free Copper
Audio Shield: Braided Copper Shield
Shield Function: Electromagnetic and RF Noise Protection
Power Connector A: 1 × Locking IP Male
Power Connector B: 1 × Locking IP Female
Power Conductors: 3
Power Conductor Gauge: 12 AWG
Power Connection: Locking IP Male-to-Female
Outer Jacket Material: Flexible PVC
Outer Jacket Type: Low-Memory PVC
Outer Jacket Diameter: 12 mm
XLR Connector Brand: Seetronic
XLR Contact Finish: Gold-Plated
Primary Function: Combined Audio and Power Linking
Cable Configuration: Audio and Power in One Assembly
Recommended Equipment: Compatible Powered Speakers and Professional Audio Equipment
Recommended Applications: Powered Speaker Stacks, Line-Array Elements, Floor Monitors, Concerts, Touring, Corporate AV, Houses of Worship, Entertainment Venues, Permanent Installations
