Descripción
The Accu-Cable AACXLR-L-10 Power/Audio Combo Link Cable provides 10 feet / 3 meters of reach for connecting compatible powered speakers across stages, platforms, and professional audio installations. By combining balanced audio and locking power connections in one flexible assembly, it helps reduce cable clutter and simplifies setup and teardown.

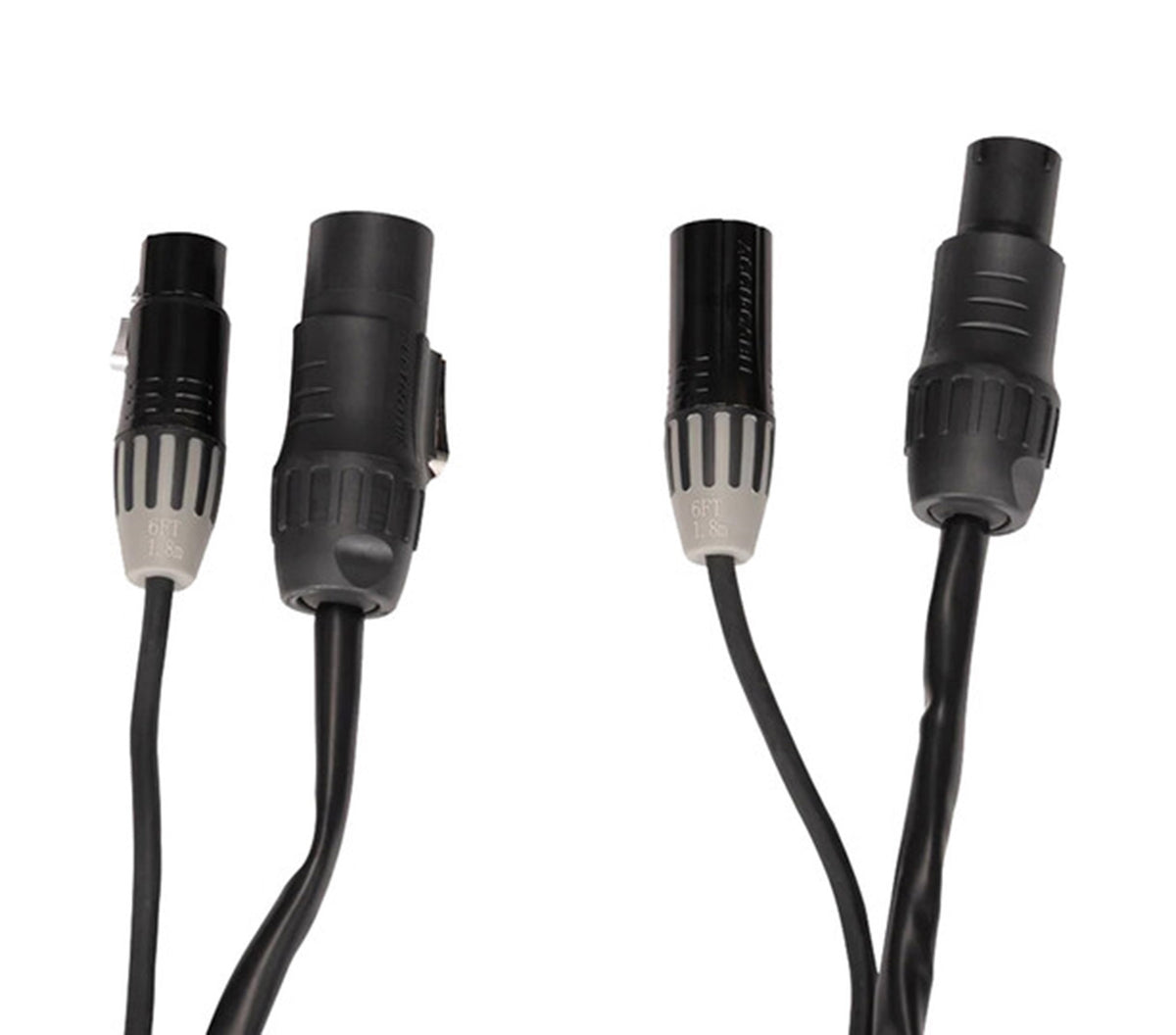

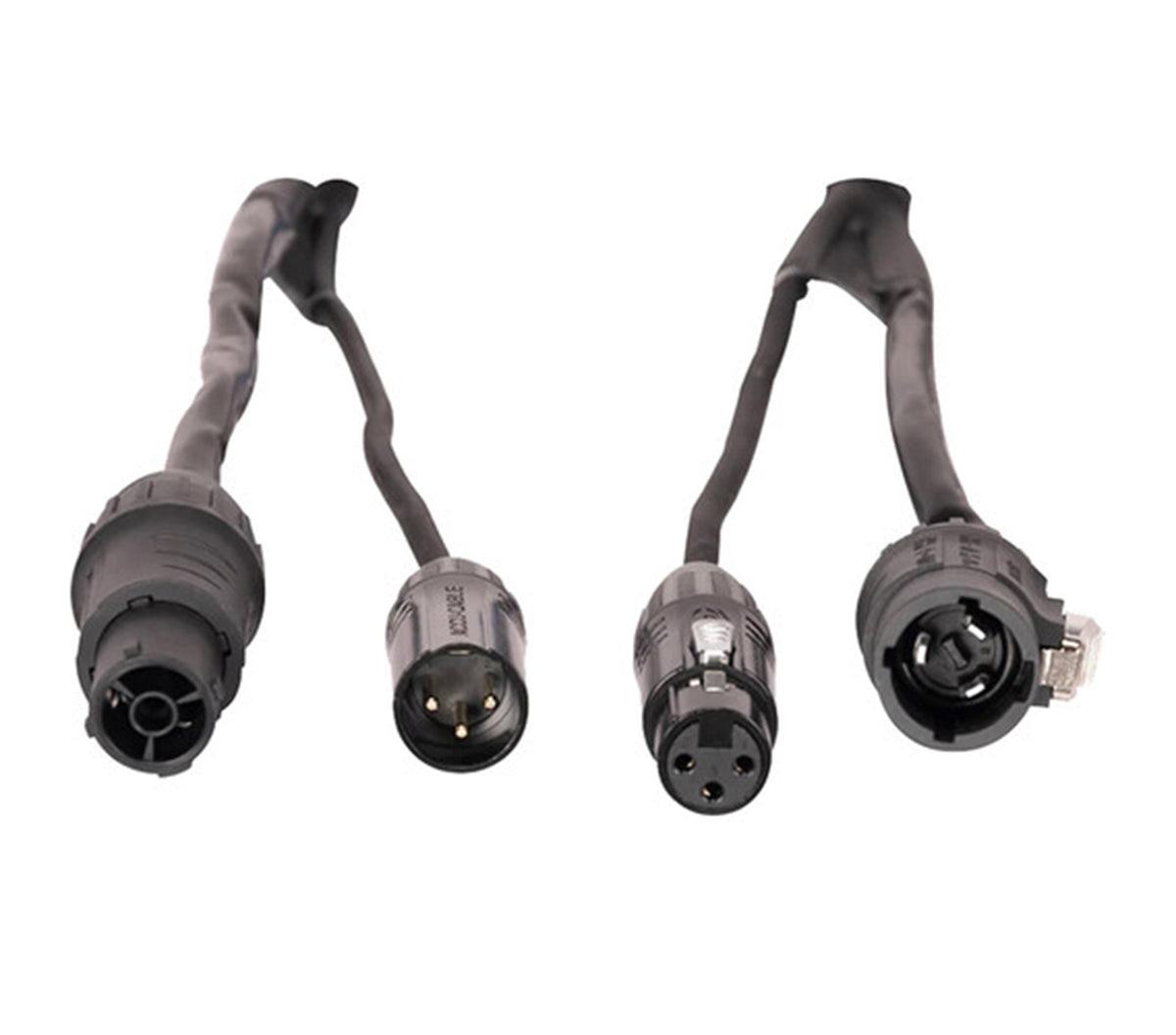

The audio section features two 20 AWG twisted-pair oxygen-free copper conductors with a braided copper shield for dependable signal transmission and protection against electromagnetic and RF noise. The 3-pin XLR male-to-female connection carries balanced audio between compatible powered speakers, while the locking IP male-to-female connection provides an integrated power link.
Built with a flexible 12 mm low-memory PVC outer jacket, Seetronic XLR connectors with gold-plated contacts, and IP65-rated construction, the AACXLR-L-10 is designed for reliable professional use. Its extended length provides greater placement flexibility for powered speaker systems, concert tours, live productions, and corporate AV events, houses of worship, theaters, entertainment venues, and permanent installations.
Product Specifications:
Product Type: Power/Audio Combo Link Cable
Cable Type: Combined Audio and Power Cable
Cable Length: 10 ft / 3 m
Audio Connection: Balanced XLR
Audio Connector A: 1 × 3-Pin XLR Male
Audio Connector B: 1 × 3-Pin XLR Female
Audio Conductors: 2
Audio Conductor Gauge: 20 AWG
Audio Conductor Construction: Twisted Pair
Audio Conductor Material: Oxygen-Free Copper
Audio Shield: Braided Copper Shield
Shield Function: Electromagnetic and RF Noise Protection
Power Connection: Locking IP Male-to-Female
Power Connector A: 1 × Locking IP Male
Power Connector B: 1 × Locking IP Female
Power Conductors: 3
Power Conductor Gauge: 12 AWG
Power Cable Construction: Three-Conductor
Outer Jacket Material: Flexible PVC
Outer Jacket Type: Low-Memory PVC
Outer Jacket Diameter: 12 mm
XLR Connector Brand: Seetronic
XLR Contact Finish: Gold-Plated
Ingress Protection: IP65
Primary Function: Combined Audio and Power Linking
Cable Configuration: Integrated Audio and Power Assembly
Recommended Equipment: Compatible Powered Speakers and Professional Audio Equipment
Recommended Applications: Powered Speaker Systems, Concert Tours, Live Production, Corporate AV, Houses of Worship, Theaters, Performing Arts Centers, Entertainment Venues, Professional Installations
