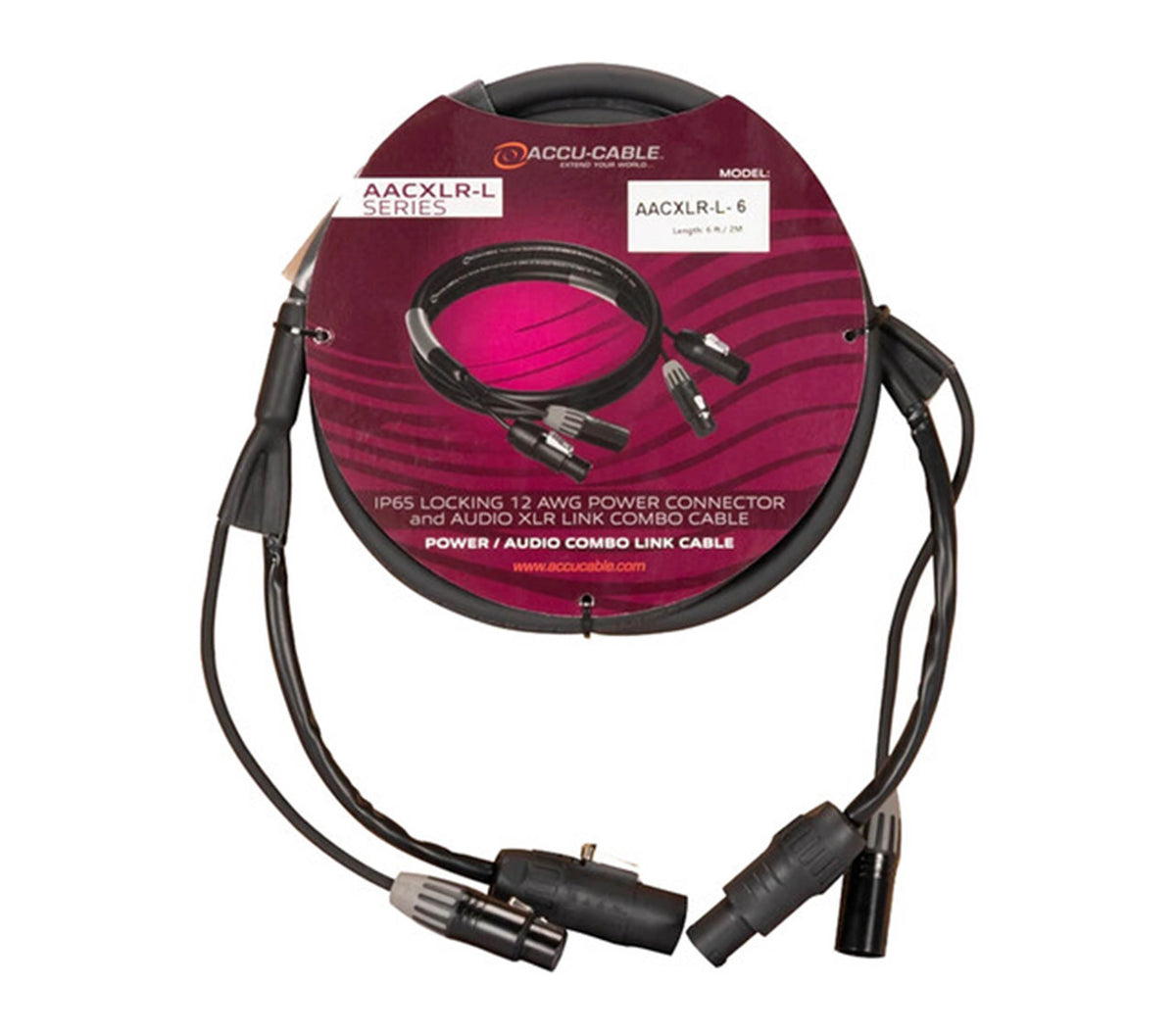

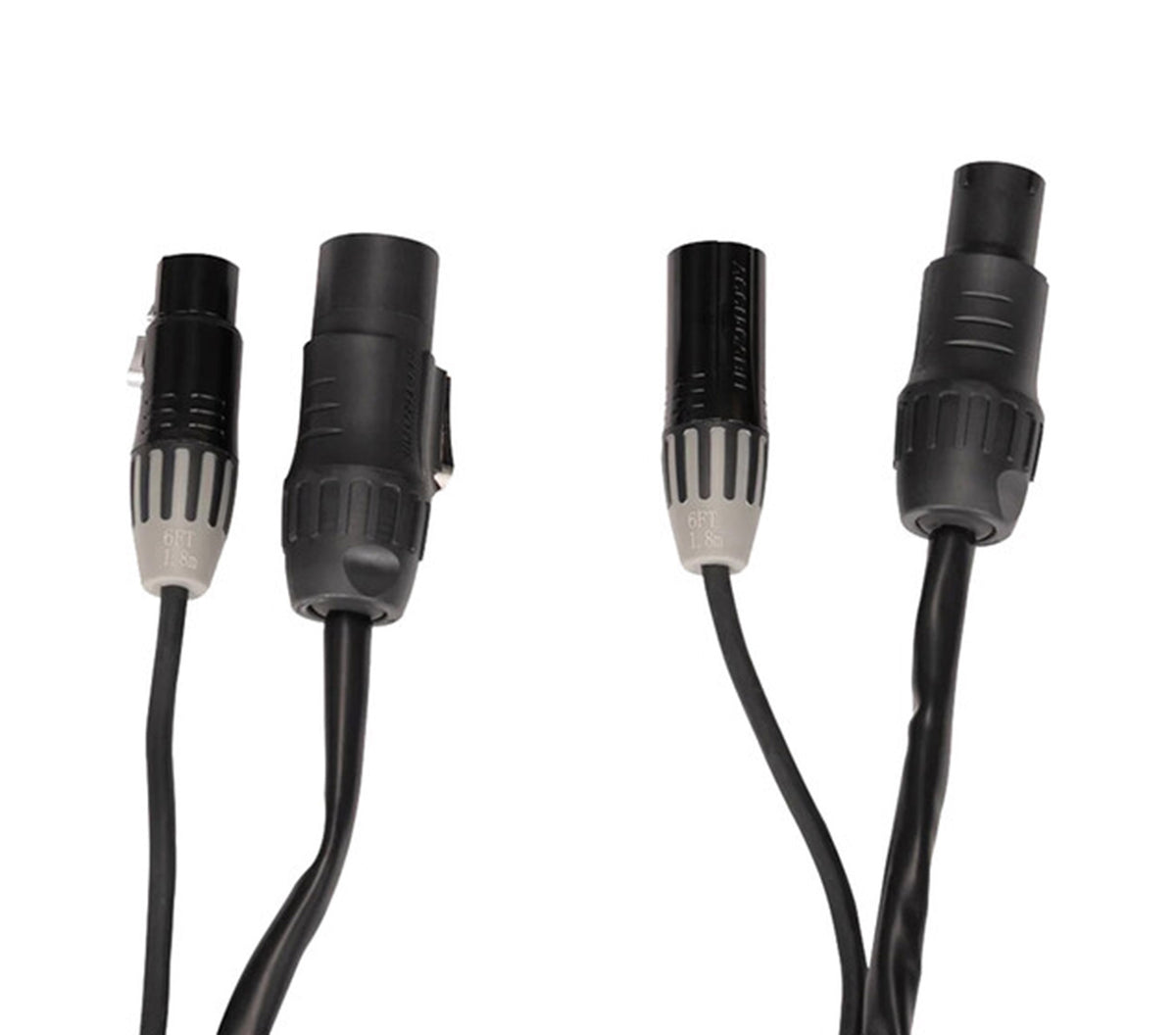

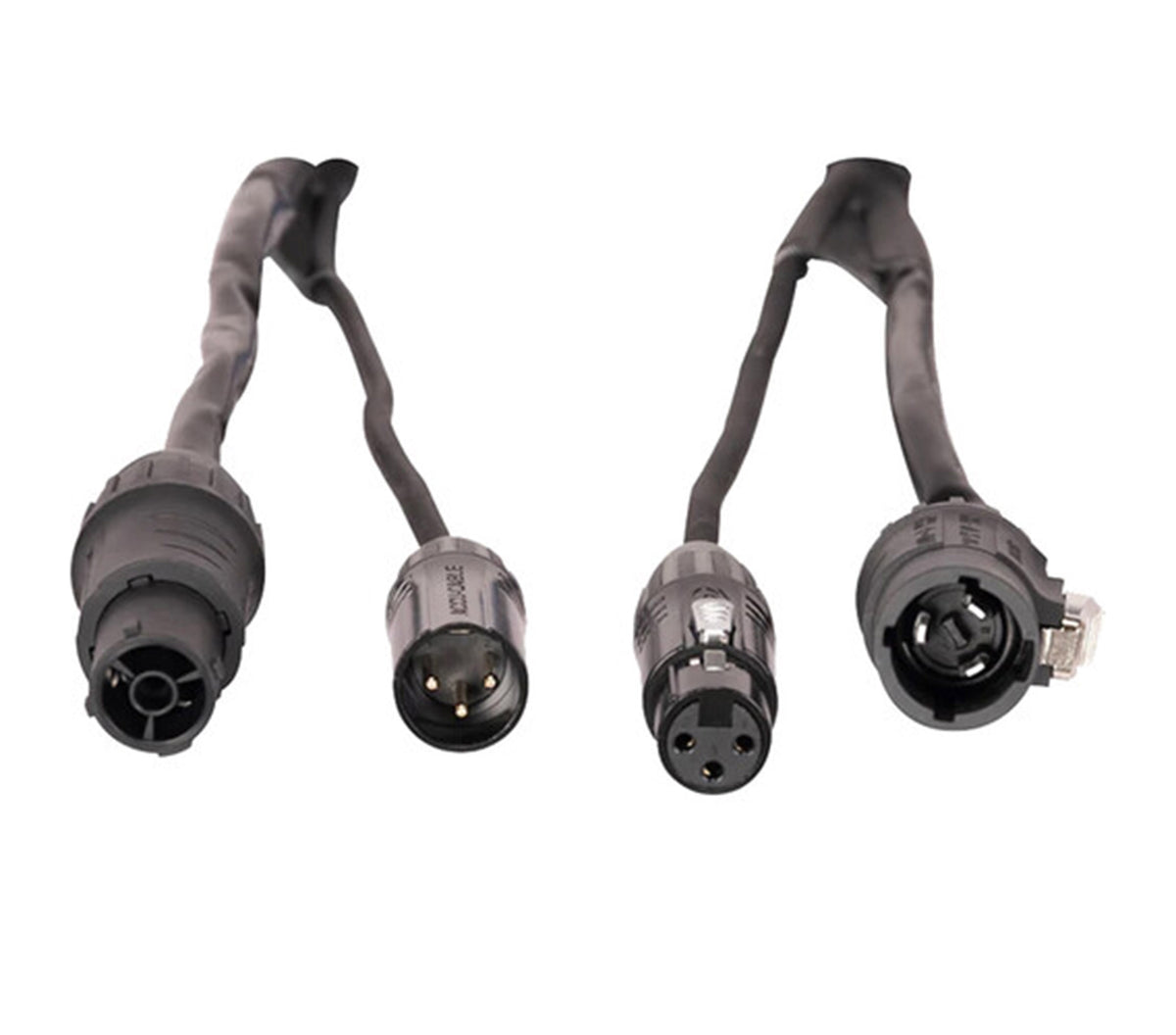

The Accu-Cable AACXLR-L-6 Power/Audio Combo Link Cable provides a convenient way to connect compatible powered speakers and professional audio equipment using one organized cable assembly. Measuring 6 feet / 1.8 meters, it combines balanced 3-pin XLR audio with locking IP power connections to reduce cable clutter and simplify professional audio setups.
The audio section uses two 20 AWG twisted-pair oxygen-free copper conductors with a braided copper shield to support clear signal transmission while helping protect against electromagnetic and RF interference. The power section uses three heavy-duty 12 AWG conductors with locking IP male-to-female connectors, helping provide a secure power connection between compatible devices.
A flexible 12 mm low-memory PVC outer jacket allows the cable to be routed, handled, and coiled easily while maintaining a clean professional appearance. The AACXLR-L-6 is well suited for powered speakers on stands, portable PA systems, touring productions, corporate events, and houses of worship, theaters, entertainment venues, and permanent professional audio installations.
Product Specifications:
Product Type: Power/Audio Combo Link Cable
Cable Type: Combined Audio and Power Cable
Cable Length: 6 ft / 1.8 m
Audio Connection: Balanced XLR
Audio Connector A: 1 × 3-Pin XLR Male
Audio Connector B: 1 × 3-Pin XLR Female
Audio Conductor Quantity: 2
Audio Conductor Gauge: 20 AWG
Audio Conductor Construction: Twisted Pair
Audio Conductor Material: Oxygen-Free Copper
Audio Shield: Braided Copper Shield
Shield Function: Electromagnetic and RF Noise Protection
Power Connector A: 1 × Locking IP Male
Power Connector B: 1 × Locking IP Female
Power Conductors: 3
Power Conductor Gauge: 12 AWG
Power Connection: Locking IP Male-to-Female
Outer Jacket Material: Flexible PVC
Outer Jacket Type: Low-Memory PVC
Outer Jacket Diameter: 12 mm
Ingress Protection: IP65
XLR Connector Brand: Seetronic
XLR Contact Finish: Gold-Plated
Primary Function: Combined Audio and Power Linking
Cable Configuration: Audio and Power in One Assembly
Cable Management: Reduces Separate Audio and Power Cable Runs
Recommended Equipment: Compatible Powered Speakers and Professional Audio Equipment
Recommended Applications: Powered Speakers on Stands, Portable PA Systems, Concerts, Touring, Corporate Events, Houses of Worship, Nightclubs, Theaters, Entertainment Venues and Professional Installations
