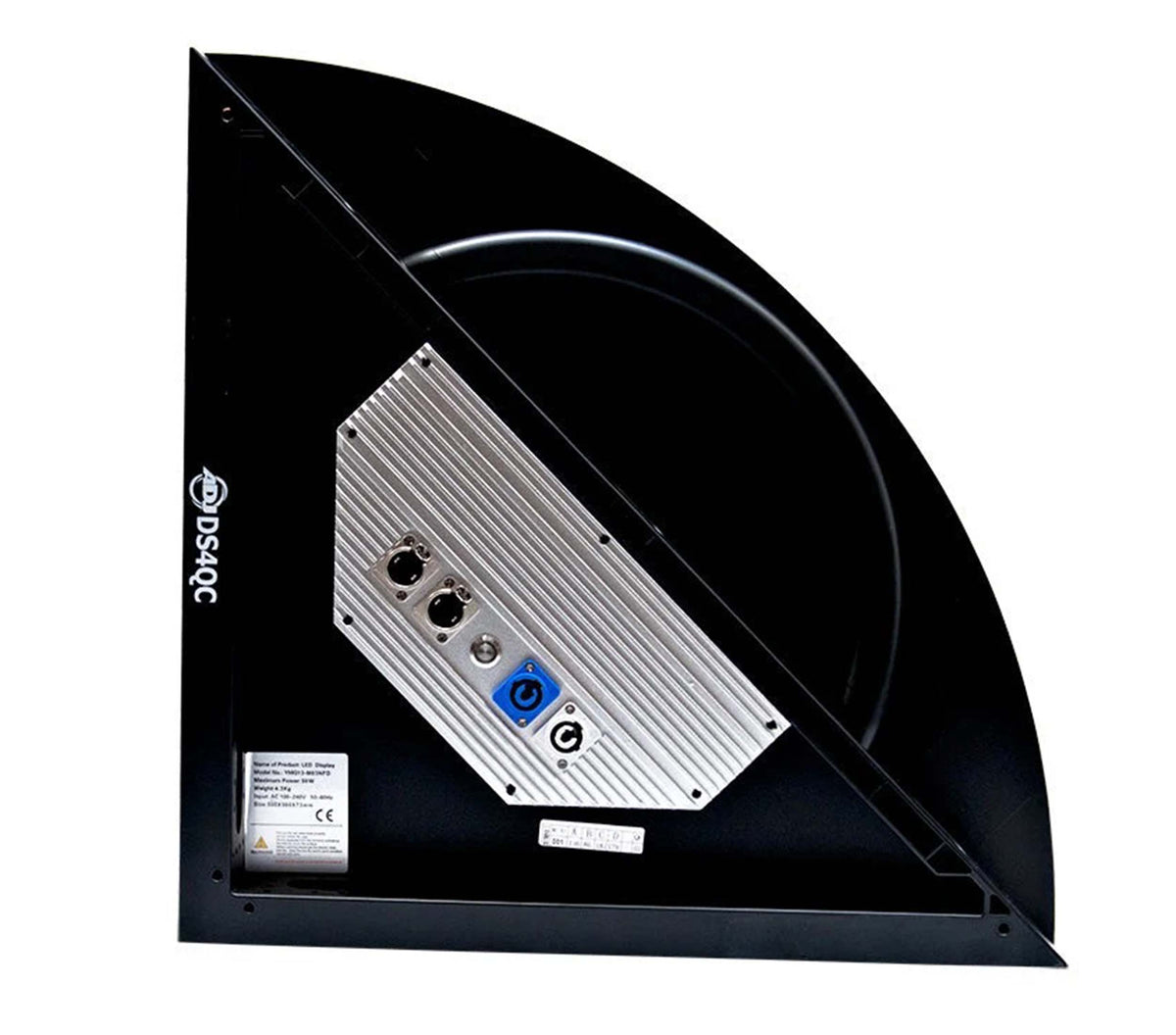

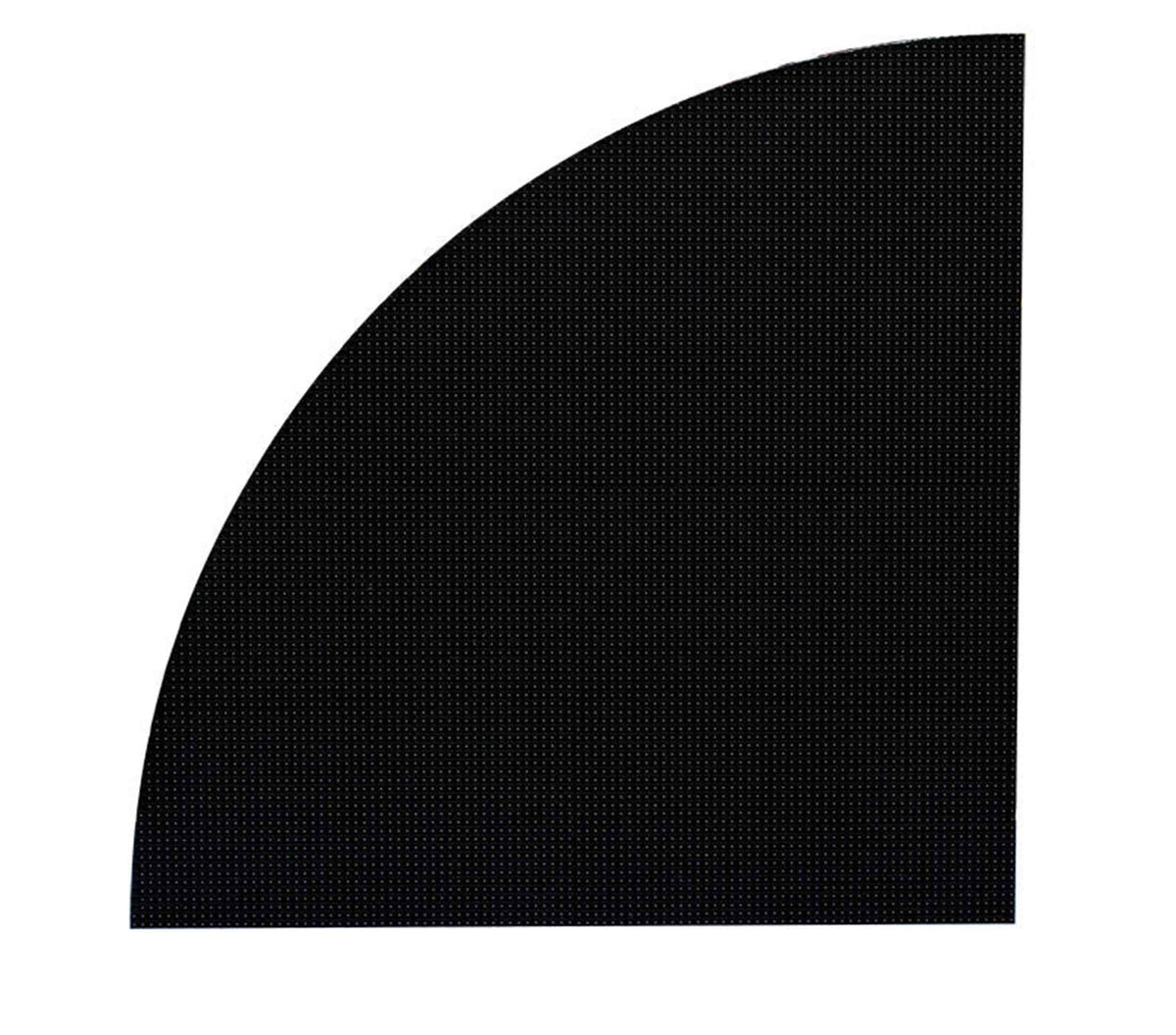

ADJ Design Series DS4QC1 4.8mm Top Left Quarter Circle LED Video Panel
ADJ Design Series DS4QC1 4.8mm Top Left Quarter Circle LED Video Panel
ADJ Design Series DS4QC1 4.8mm Top Left Quarter Circle LED Video Panel
Pasa el cursor sobre la imagen para ampliarla. Clic en la imagen para aumentar
ADJ Design Series DS4QC1 4.8mm Top Left Quarter Circle LED Video PanelADJ Design Series DS4QC1 4.8mm Top Left Quarter Circle LED Video PanelADJ Design Series DS4QC1 4.8mm Top Left Quarter Circle LED Video Panel

ADJ Design Series DS4QC1 4.8mm Top Left Quarter Circle LED Video Panel
Ahorrar $329.98
ADJ Lighting
0 reseña
SKU H-ADJ-DS4089 UPC 818651022254
Precio:
$1,099.95 $1,429.93
Earn 549975 points (worth $55.0)
Price Match Guaranteed if we lower the price within 30 days of your purchase, we’ll issue a store credit for the difference. Shop confidently knowing you’ll always get our best price. Free 2nd Day Air Delivery We offer Free 2nd Day Air on most items! Some exceptions apply, including oversized, truss, and stage products. Reward Points Earn 5% Back in HDJ Points on every purchase. Use your points toward future gear purchases with us. Points expire 90 days after they're earned.

2 Day Shipping is Free or heavily discounted on most items! Make sure you select 2nd Day Shipping. We want to ship your order the fastest way possible.

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we can help.

We price match competitor advertised prices.

Our online prices are always honored instore guaranteed.

Hassle Free Financing Available

Get the gear you need now with Financing options. As an artist or sound professional your business needs high speakers, lighting and cases to do your job, be professional and competitive.

Choose Shop Pay or After Pay in checkout for instant financing. We also offer Accima, Synchrony, Progressive or Snap financing just give us a call 1-800-700-4542.

Descripción

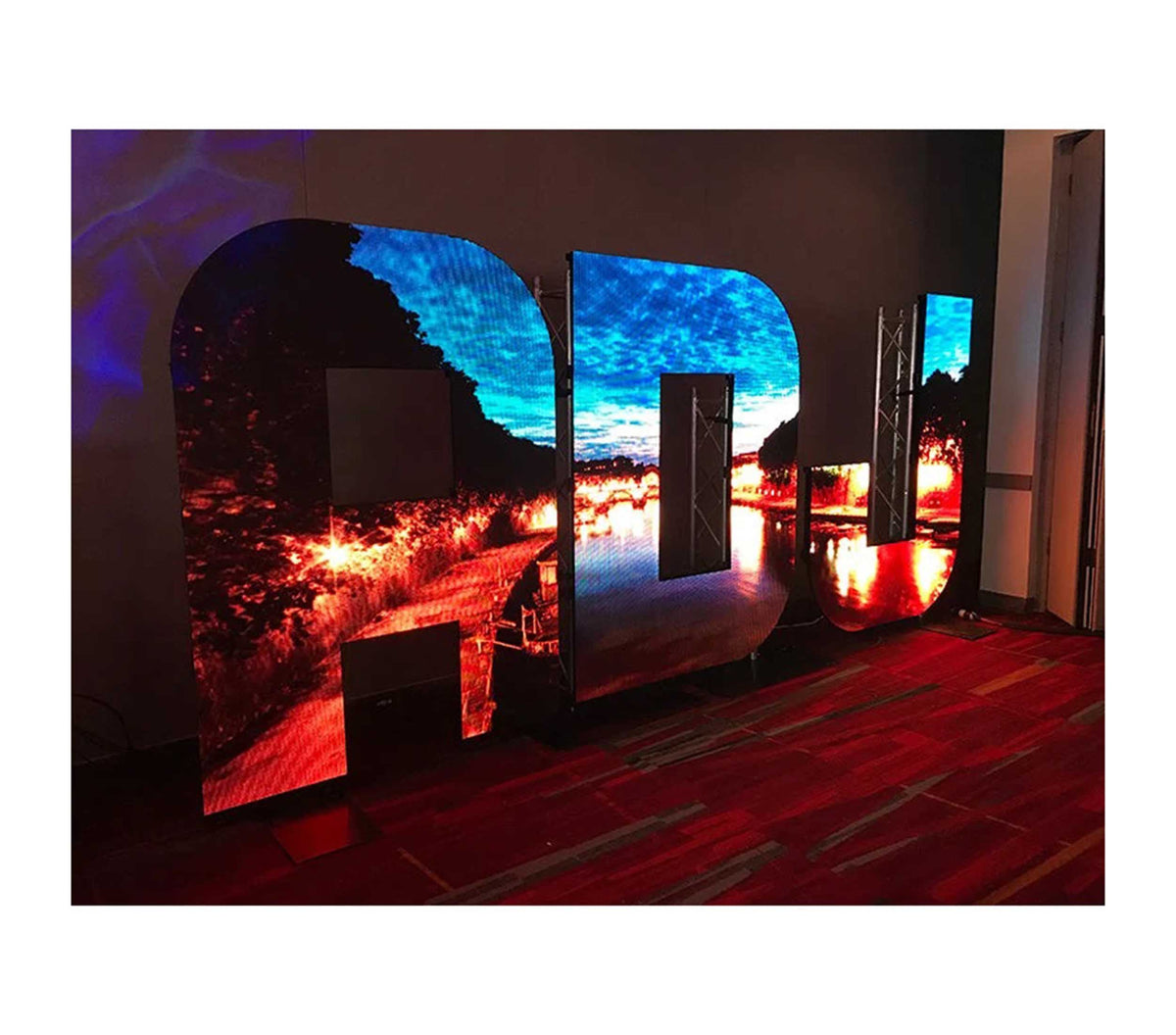

The Adj Design Series DS4QC1 is a top-left quarter-circle LED video panel designed for creating unique and customized LED displays. As part of the DS4 modular video panel system, it can be combined with square, triangular, quarter-circle, and rectangular panels to create screens in a wide range of shapes and configurations.

Featuring a 4.8mm pixel pitch, 3-in-1 SMD2020 LED configuration, and 1200 NITS brightness, the DS4QC1 delivers detailed and vibrant visual performance. Its 160° horizontal and 120° vertical viewing angles provide broad visibility, while 14-bit processing, 14-bit grayscale, and a 1920Hz refresh rate support smooth and consistent image reproduction.The lightweight modular design makes the DS4QC1 suitable for both touring productions and fixed installations. Power and data connections use PowerCON and EtherCON interfaces, while NovaStar synchronous control supports a wide range of video inputs including DVI, HDMI, HD-SDI, VGA, component, composite, and S-Video.

Product Specifications:

Product Type: LED Video Panel

Panel Shape: Quarter Circle

Panel Position: Top Left (TL)

Pixel Pitch: 4.8mm

LED Configuration: 3-in-1 SMD2020

Pixel Density: 43,264 Pixels/m²

Pixel Resolution: 104 × 104

Brightness: 1200 NITS

Viewing Angle: 160° Horizontal / 120° Vertical

Grayscale: 14-Bit

Processing: 14-Bit

Refresh Rate: 1920Hz

Frame Rate: 50–60Hz

Scan Mode: 1/13 Duty

Brightness Adjustment: 0–100%, 100 Levels

Control System: NovaStar Synchronous System

Power Input: 100–240V, 50–60Hz

Maximum Power Consumption: 157.5W per Panel

Average Power Consumption: 52.5W per Panel

Power Connections: PowerCON In/Out

Data Connections: EtherCON In/Out

Supported Inputs: Composite, S-Video, Component, VGA, DVI, HDMI, HD-SDI

Control Distance: Ethernet Cable <100m / Fiber Optic >120m

Operating Temperature: -20° to 45°C

Operating Humidity: 10–90%, Non-Condensing

Operating Life: 80,000 Hours

MTBF: 10,000 Hours

Certifications: CE, FCC, ETL

Surface Flatness: Gaps ±0.3mm

Product Weight: 14 lbs.

Product Dimensions: 20 H × 3 W × 20 L
