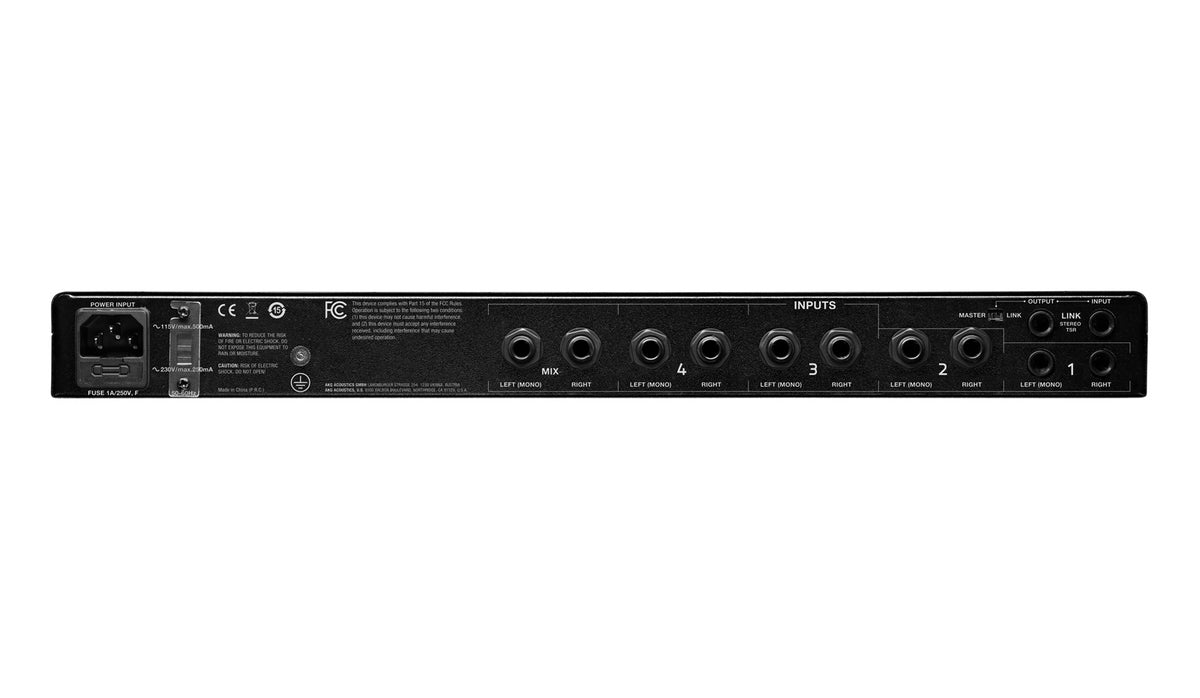

The AKG HP6E US is a professional 6-channel headphone amplifier designed for monitoring, mixing, recording, and other demanding audio applications. It provides five stereo input channels and six stereo headphone outputs, giving multiple performers, engineers, or listeners convenient access to individually routed monitoring signals.
Its flexible matrix design allows each headphone output to be assigned to the master channel or one of four selectable input channels. With six Class-A headphone amplifier sections, dedicated output connections, and individual routing flexibility, the HP6E US provides a practical monitoring solution for studios, recording sessions, broadcast environments, and professional production setups.
Built into a sturdy 19-inch metal chassis with an integrated power supply, the HP6E US is designed for reliable professional use and easy rack integration. Multiple HP6E US units can also be connected when additional headphone channels are required, making it suitable for expanding monitoring systems as production requirements grow. Available in the US only.
Product Specifications:
Product Type: 6-Channel Headphone Amplifier
Application: Monitoring, Mixing, Recording, Studio and Professional Audio
Number of Channels: 6
Input Channels: 5 Stereo Channels
Output Channels: 6 Stereo Channels
Input Connectors: 6.3 mm (1/4") Unbalanced TRS Sockets
Input Configuration: 10 TRS Inputs / 5 Stereo Channels
Output Connectors: 6.3 mm (1/4") Socket Per Channel
Input Impedance: 100k Ohms
Output Impedance: 11 Ohms
Amplifier Design: Class-A Headphone Amplifiers
Routing Design: Flexible Matrix Routing
Output Assignment: Master Channel or One of Four Selectable Input Channels
Maximum Output Level: 300 mW
Maximum Output Power: Up to 600 mW Per Channel
Audio Frequency Bandwidth: 20 Hz – 20 kHz
Distortion: < 0.05%
Signal-to-Noise Ratio: Better Than 85 dB-A
Chassis: 19" Rackmount Metal Chassis
Power Supply: Integrated Power Supply
Expandable System: Multiple HP6E Units Can Be Connected
Product Weight: 9.5 lbs
Product Dimensions: 3.74" H × 3.5" W × 22.5" L
