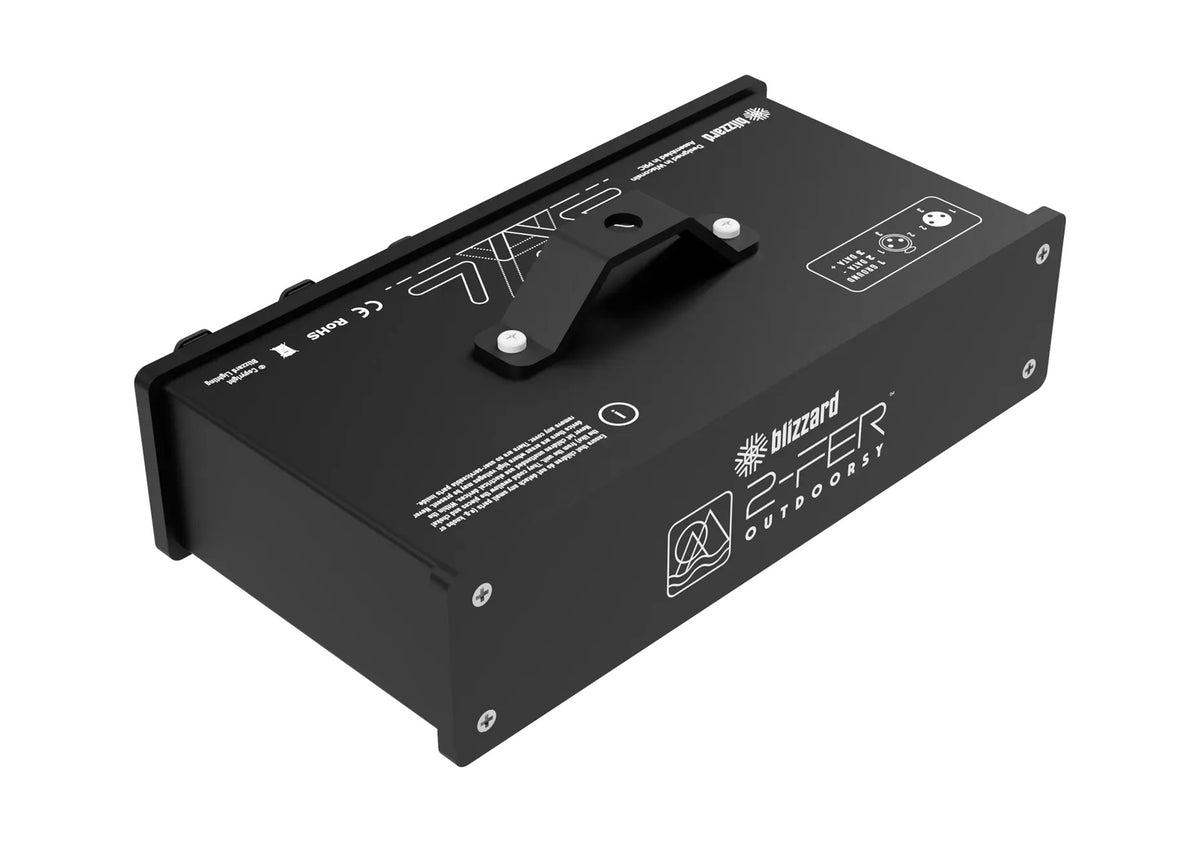

The Blizzard Lighting 2-Fer Outdoorsy 5-Pin combines DMX signal distribution and AC power splitting in one compact, weather-resistant unit designed for professional outdoor lighting applications. It provides one 5-pin DMX input split into two optically and electronically isolated 5-pin DMX outputs, along with one powerCON TRUE1-compatible power input feeding two power outputs. With IP65-rated protection, weather-resistant rubber-capped connectors, and a rugged metal housing, the 2-Fer Outdoorsy provides dependable signal and power distribution in demanding environments.

Designed for flexible installation, the 2-Fer Outdoorsy features a secure mounting bracket with an M10-sized hole for clamp mounting and soft rubber feet for stable freestanding placement. Its 512-channel DMX512 configuration supports professional lighting systems, while the isolated outputs help maintain reliable DMX signal distribution between connected fixtures.

The compact enclosure measures 9 × 5.2 × 3.3 inches and weighs 2.35 lbs, making it easy to integrate into touring rigs, outdoor events, stages, festivals, and other professional lighting setups where space and environmental protection are important.

Key Features

• 2-in-1 DMX and power splitter.
• IP65-rated outdoor-ready design.
• 5-pin DMX input and dual outputs.
• Optically and electronically isolated outputs.
• powerCON TRUE1-compatible power connections.
• Weather-resistant rubber-capped connectors.
• M10 mounting bracket for clamps.
• Soft rubber feet for stability.

Ideal For

• Outdoor lighting systems.
• Stage and event production.
• Concert and festival setups.
• Architectural lighting.
• Touring and mobile productions.
• Professional DMX installations.

What’s in the Box

• Blizzard 2-Fer Outdoorsy 5-Pin DMX and power splitter.

Inputs & Outputs

• DMX Input 1 × IP65-rated 5-pin XLR DMX input
• DMX Outputs 2 × IP65-rated 5-pin XLR DMX outputs
• Power Input 1 × powerCON TRUE1-compatible input
• Power Outputs 2 × powerCON TRUE1-compatible outputs
• Mounting Point 1 × M10 mounting bracket hole

Frequently Asked Questions

What does the Blizzard 2-Fer Outdoorsy do?

It combines DMX signal splitting and AC power distribution in one compact IP65-rated unit.

How many DMX outputs does it have?

It provides one DMX input and two optically and electronically isolated DMX outputs.

Is the 2-Fer Outdoorsy suitable for outdoor use?

Yes. Its IP65-rated housing and weather-resistant rubber caps provide protection against dust and water.

What power connections does it use?

It has one powerCON TRUE1-compatible input and two power outputs.

Can it be mounted?

Yes. It includes an M10 mounting hole for clamp attachment and soft rubber feet for freestanding placement.

What are the dimensions and weight?

It measures 9 × 5.2 × 3.3 inches and weighs 2.35 lbs.

Full Technical Specifications

General & Key Specifications

Product Type	DMX + Power Splitter
Inputs/Outputs	1x XLR 5-Pin (DMX) Input, 2x XLR 5-Pin (DMX) Output, 1x Power Input, 2x Power Output
DMX Channels	512
Power Source	AC Power
DMX Input	1x DMX Input
DMX Outputs	2x DMX Outputs
Power Input	1x Power Input
Power Outputs	2x Power Outputs
Dimming	Optional
DMX Configuration	3-Pin or 5-Pin

DMX

DMX Channels	512
DMX Protocol	DMX512
DMX Input Connector	XLR
DMX Output Connectors	XLR
DMX Input Quantity	1
DMX Output Quantity	2
Output Isolation	Optically and electronically isolated
Connector Rating	IP65

Design & Features

Material of Construction	Steel
Connector Protection	Weather-resistant rubber caps
Internal Wiring	12/14 AWG
Environmental Resistance	Dust/Water-Resistant
Signal Splitting	1 DMX Input to 2 DMX Outputs
Power Splitting	1 Power Input to 2 Power Outputs

Physical Specifications

Product Dimensions (L x W x H)	9" x 5.2" x 3.3"
Product Weight	2.35 lbs
