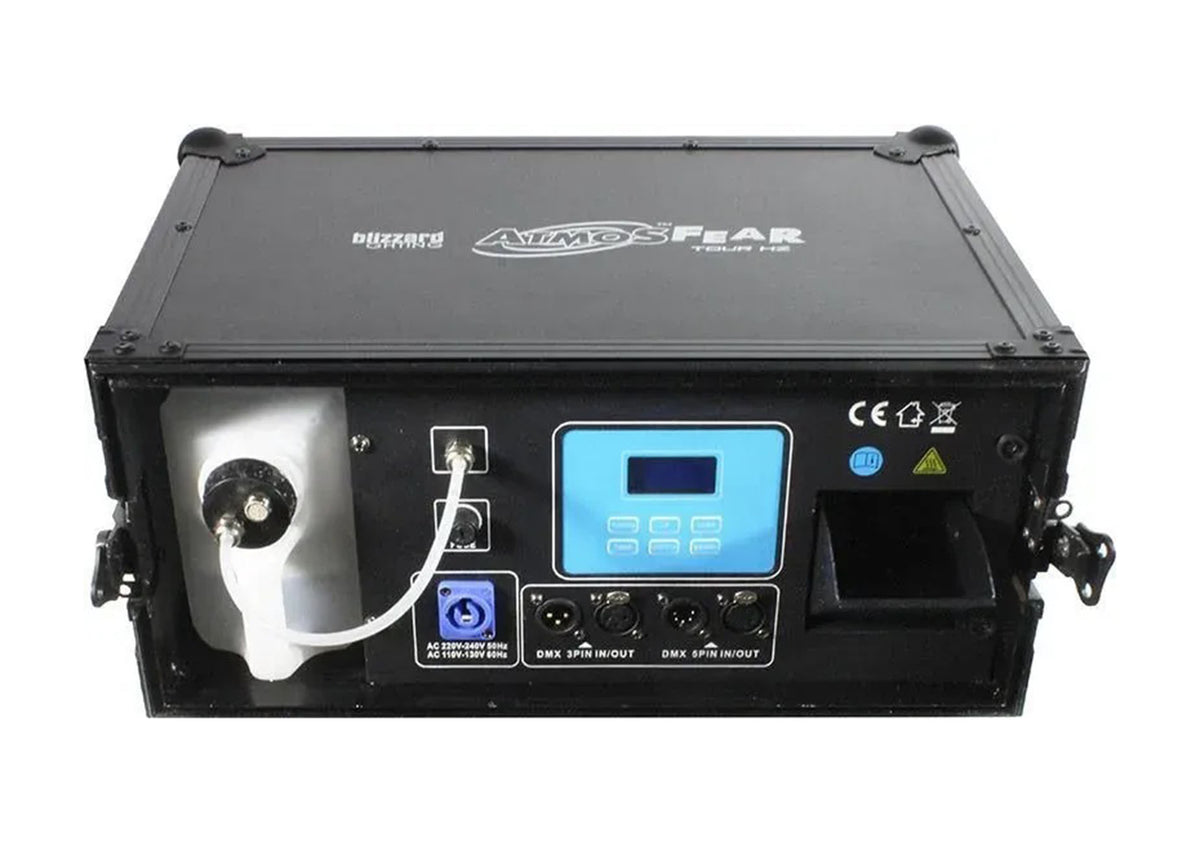

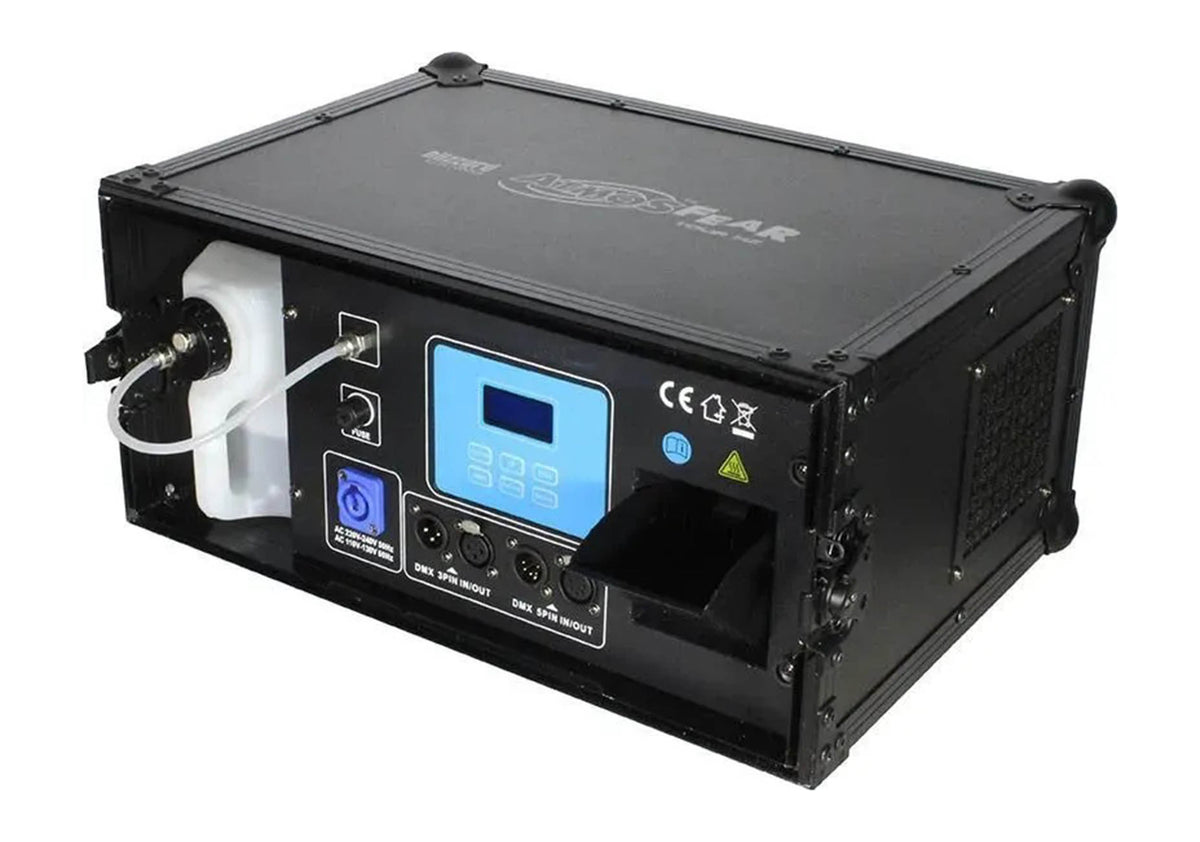

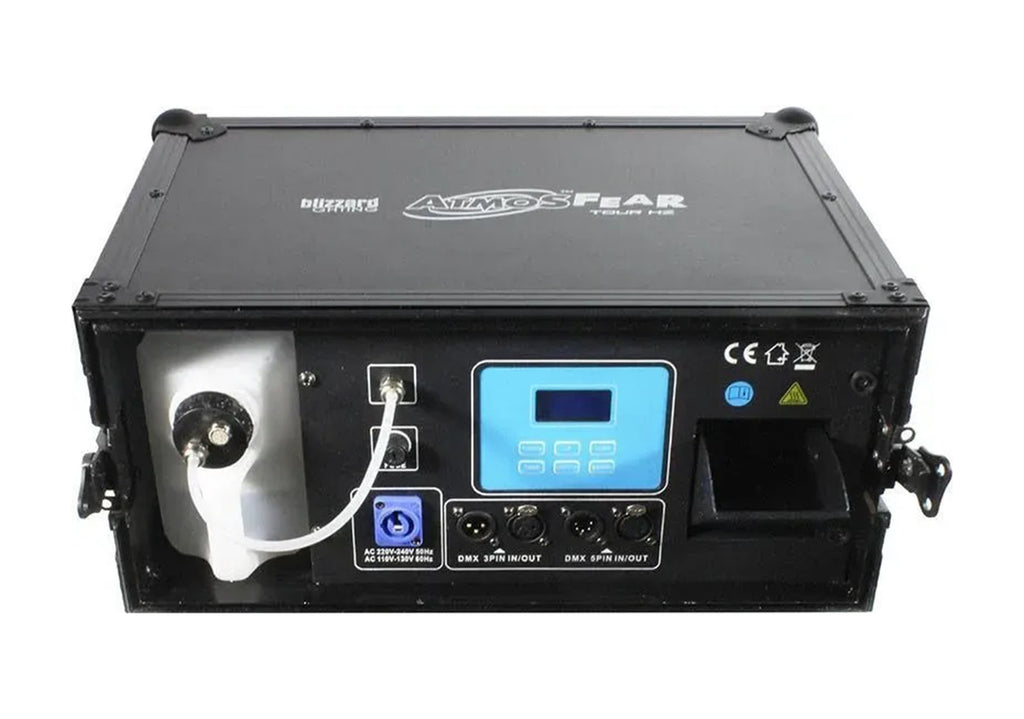

The Blizzard Lighting AtmosFEAR Tour HZ is a professional, tour-ready water-based haze machine designed to deliver consistent atmospheric effects for concerts, touring productions, theaters, clubs, events, and other demanding applications. Its powerful 1,000W heat exchanger produces up to 8,000 cubic feet per minute of continuous haze output, providing effective coverage for venues of various sizes.

Designed for quick setup and straightforward operation, the AtmosFEAR Tour HZ reaches operating temperature after approximately six minutes of warm-up time. Users can control haze output and blower speed, configure timed intervals and emission durations, or trigger instant haze using the dedicated manual output button. A six-button control panel with LCD display provides convenient access to settings directly from the unit.

It supports DMX-512, master/slave, and standalone operation through 3- and 5-pin XLR connectivity, while its six-position directional output guide allows users to control the direction of the haze.

Key Features

• 1,000W water-based haze machine.
• Up to 8,000 CFM continuous haze output.

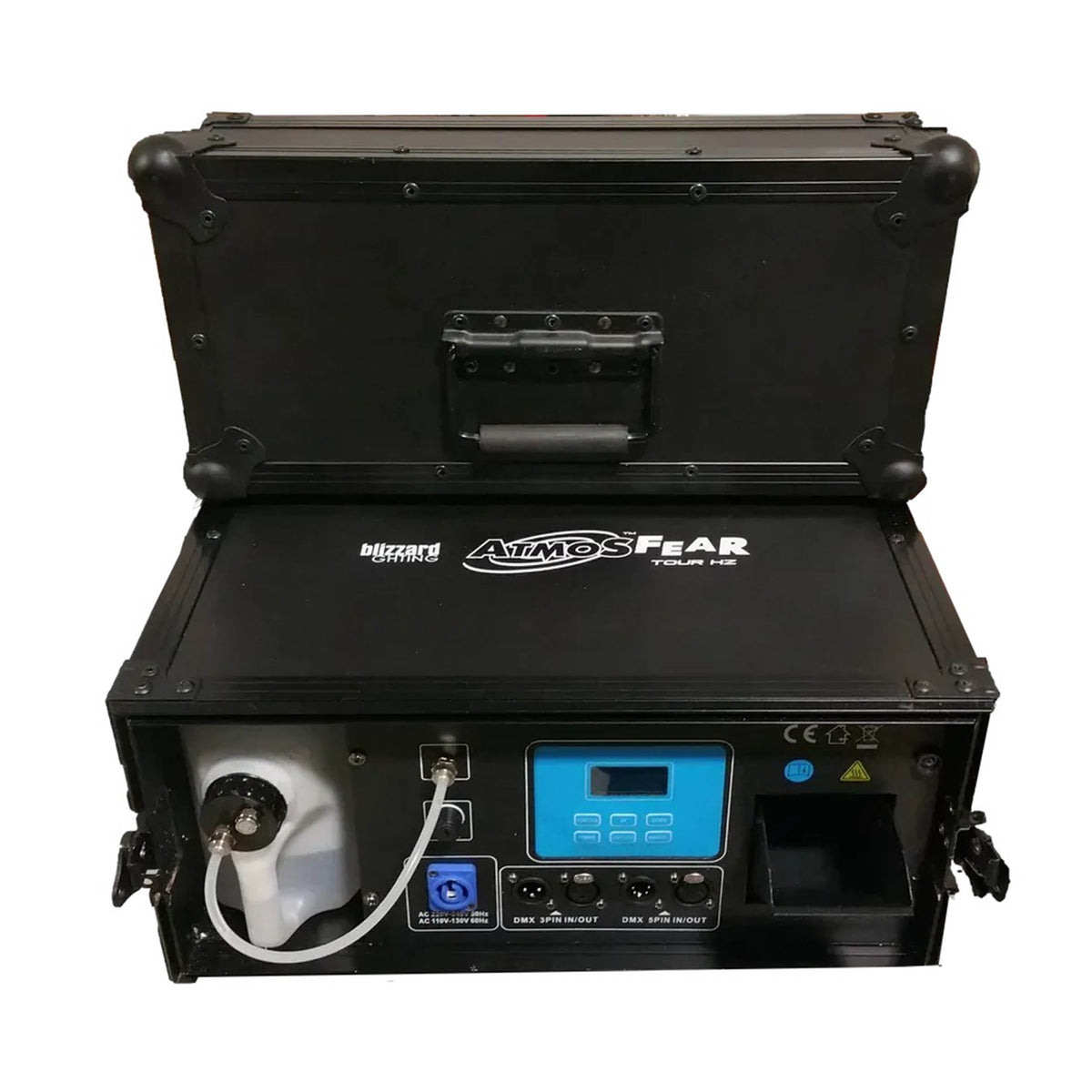

• Tour-ready ATA-spec flight case.
• DMX-512, master/slave, and standalone modes.
• Adjustable haze output and blower speed.
• Timer with interval and duration settings.
• Six-button LCD control panel.
• Manual haze output button.
• Six-position directional output guide.
• 3- and 5-pin DMX connectivity.

Ideal For

• Concerts and touring productions.
• Theaters and performing arts venues.
• Nightclubs and entertainment venues.
• Live events and stage productions.
• DJs and mobile entertainment.
• Installations requiring continuous atmospheric haze.
• Professional lighting and effects environments.

What’s in the Box

• Blizzard Lighting AtmosFEAR Tour HZ haze machine.
• Integrated ATA-spec flight case.

Inputs & Outputs

• DMX Input 3-pin and 5-pin XLR DMX connectivity.
• DMX Output 3-pin and 5-pin XLR DMX connectivity.
• Power Input PowerCON-compatible power input connector.
• Manual Control Dedicated manual haze output button.
• Control Panel Six-button control panel with LCD display.

Frequently Asked Questions

What is the Blizzard AtmosFEAR Tour HZ?

The AtmosFEAR Tour HZ is a professional, tour-ready 1,000W water-based haze machine designed for continuous haze output.

How much haze can it produce?

It produces up to 8,000 cubic feet per minute of continuous haze output, with adjustable haze volume and blower speed.

How long does the Tour HZ take to warm up?

The machine requires approximately 6 minutes of warm-up time before it is ready for operation.

Can the AtmosFEAR Tour HZ be controlled via DMX?

Yes. It supports DMX-512 control through 3/5-pin XLR connections and uses 3 DMX channels for mode, fan speed, and output volume.

What control options are available?

It offers DMX, master/slave, and standalone operation, along with a 6-button LCD control panel, timer settings, and a manual haze output button.

What are the dimensions and weight?

The AtmosFEAR Tour HZ measures 17.4 × 15.6 × 9.9 inches and weighs 29.8 lbs.

Full Technical Specifications

Haze & Output Specifications

Machine Type	Water-Based Haze Machine
Heat Exchanger	1,000W
Haze Output	Up to 8,000 CFM Continuous
Output Control	Haze Output & Blower Speed Adjustment
Fluid Type	Water-Based Haze Fluid
Warm-Up Time	6 Minutes
Timer	Adjustable Interval & Duration
Manual Output	Manual Haze Output Button
Directional Control	6-Position Output Guide
Low Fluid Shutdown	Optional

Control & Power Specifications

Control Panel	6-Button Control Panel with LCD Display
DMX Channels	3 Channels
DMX Functions	Mode, Fan Speed, Output Volume
Operating Modes	DMX-512, Master/Slave, Standalone
DMX Connectivity	3/5-Pin XLR Input/Output
Power Input	PowerCON® Compatible
Voltage	AC 110–120V, 50/60Hz
Fuse	10A, 250V
Power Consumption	1,000W

Construction & Features

Flight Case	Tour-Ready, All-Black ATA-Spec Flight Case
Construction	Road-Worthy Tour-Ready Design
Control Features	Timer, Manual Output Button, LCD Display
Fluid System	Water-Based Fluid
Output Adjustment	Adjustable Haze Volume & Blower Speed
Directional Output	6-Position Guide

Physical Specifications

Product Weight	29.8 lbs.
Product Dimensions (L x W x H)	17.4" x 15.6" x 9.9"
