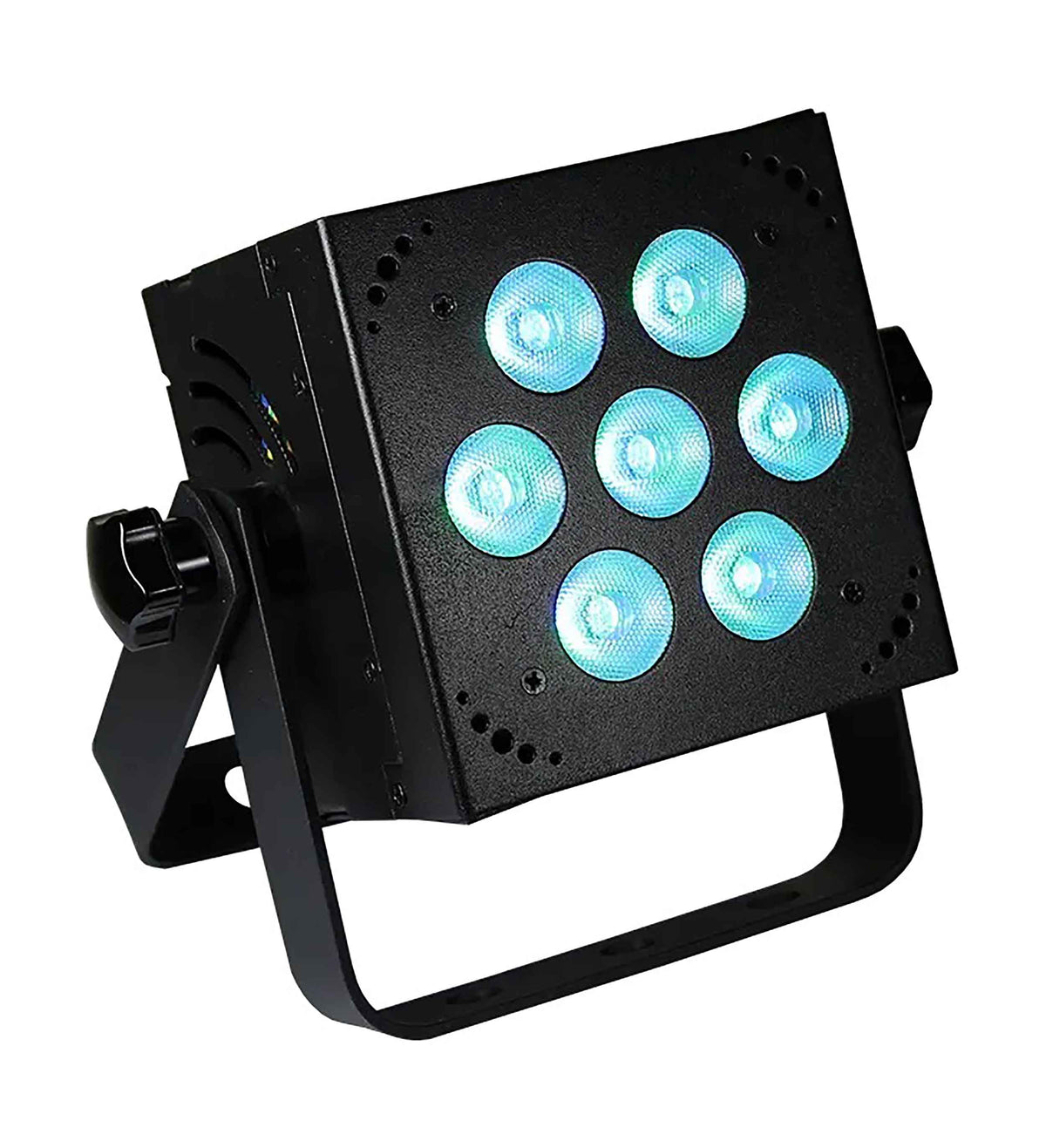

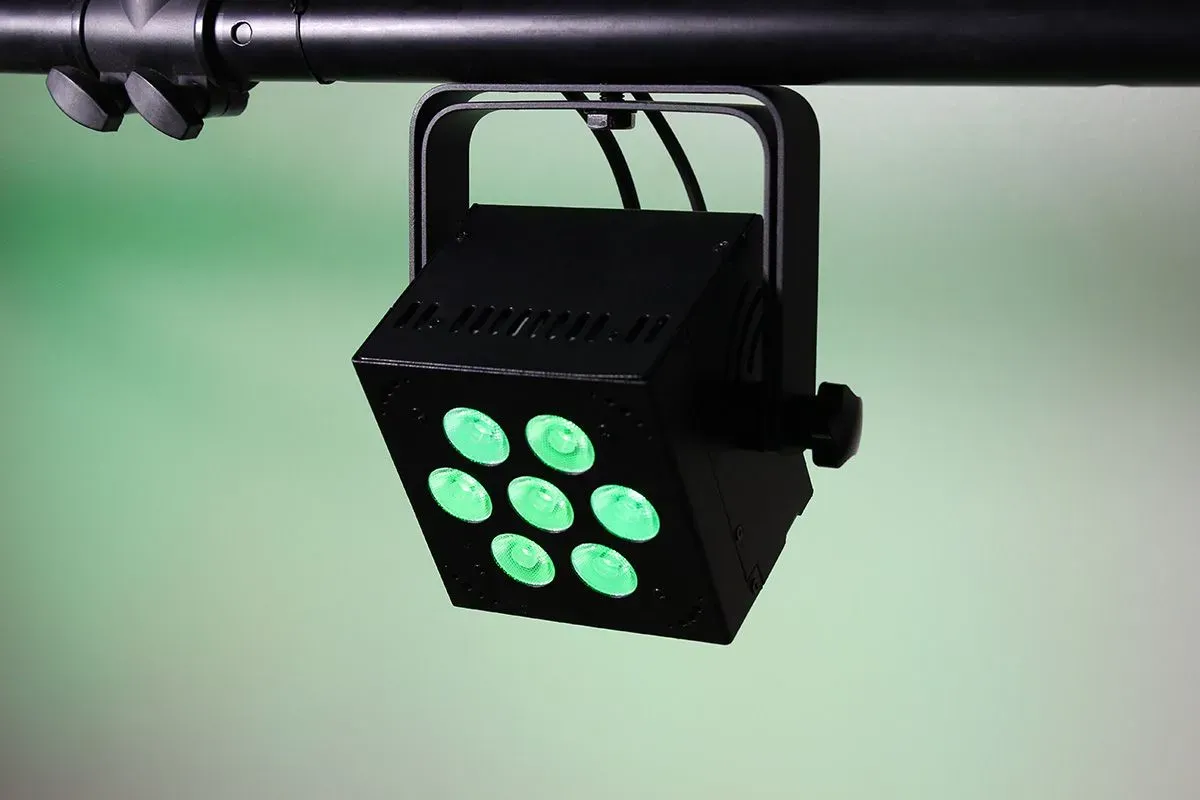

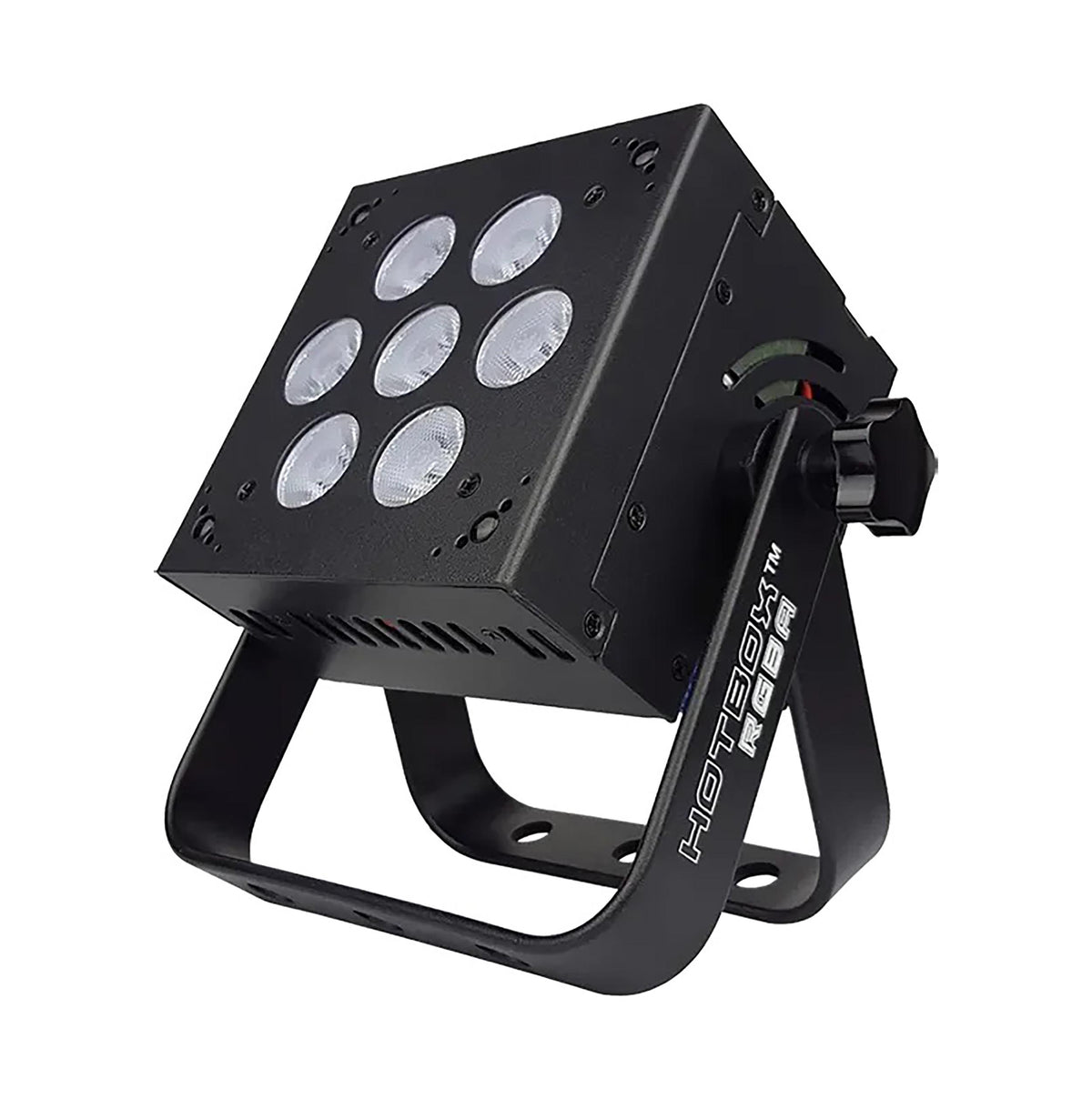

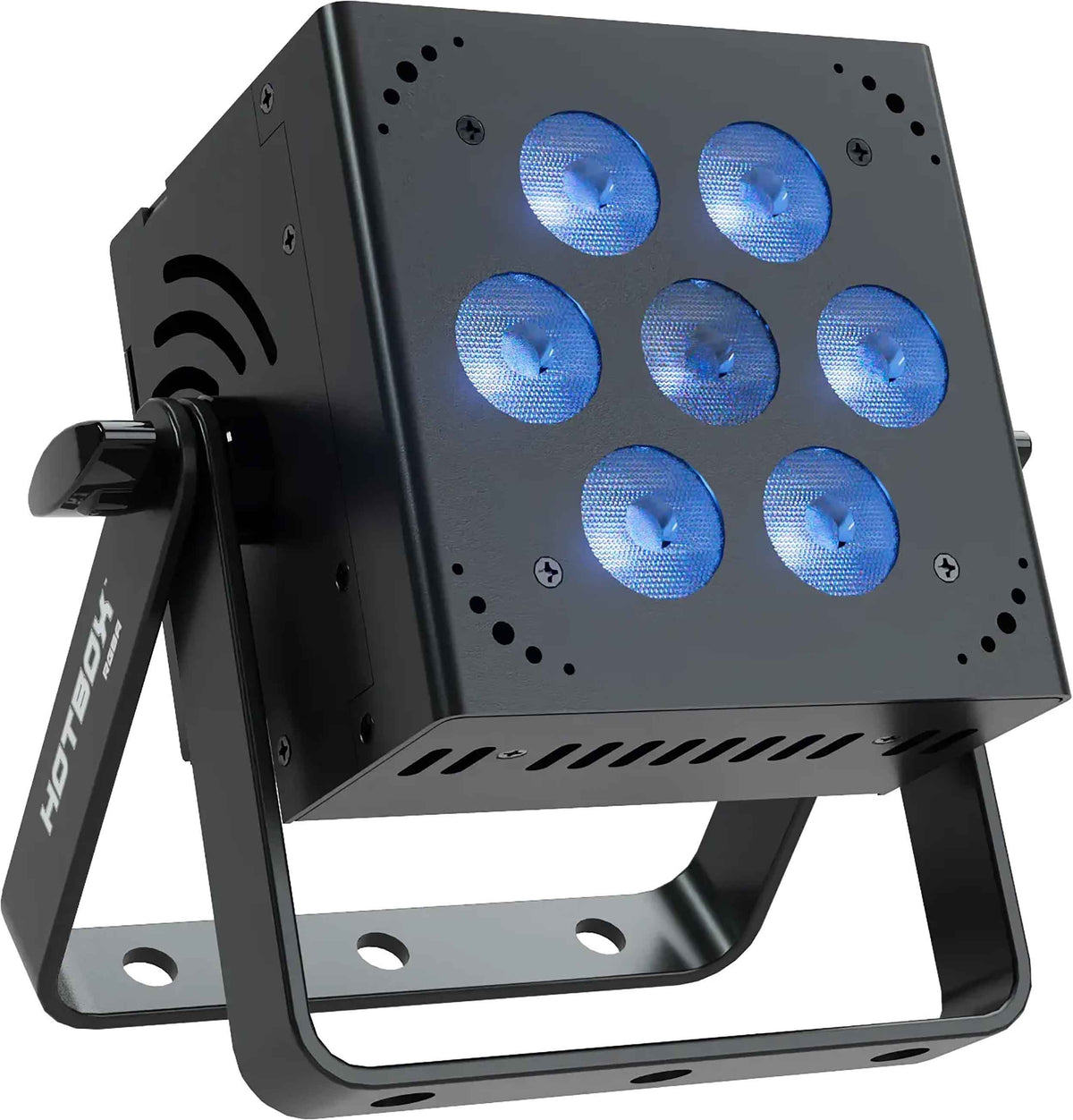

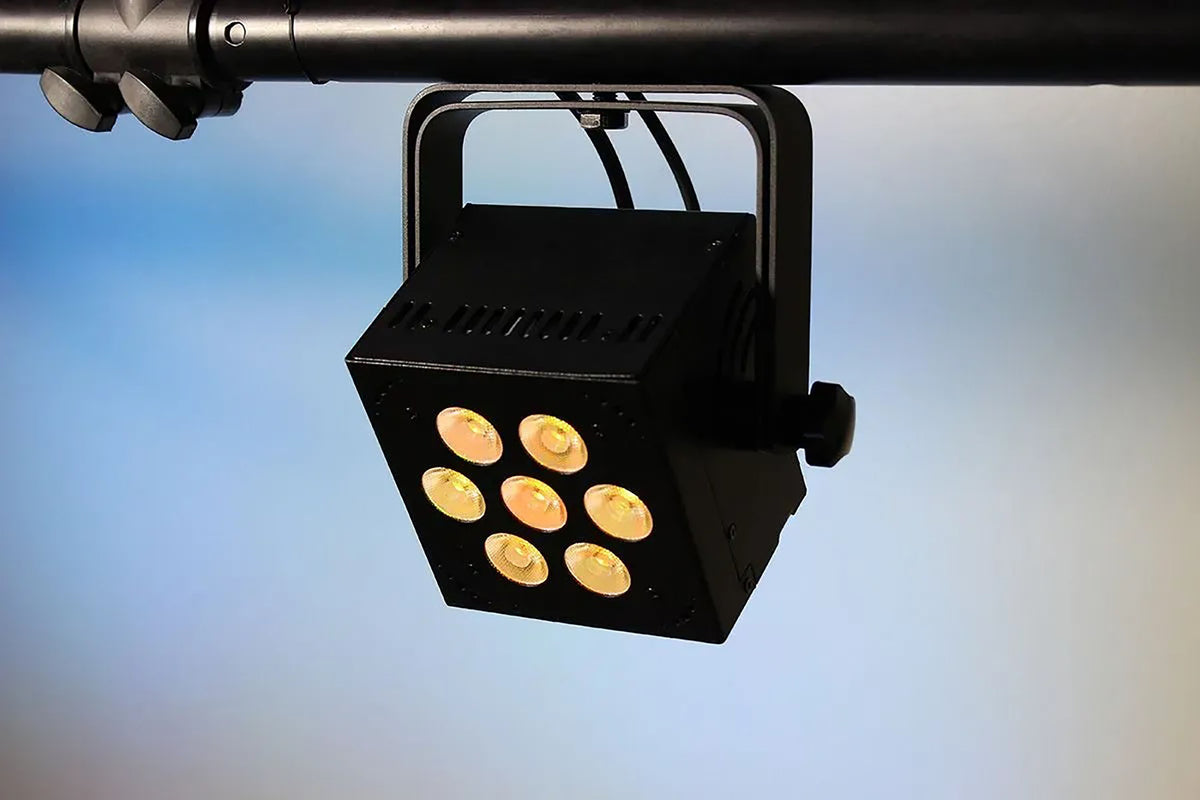

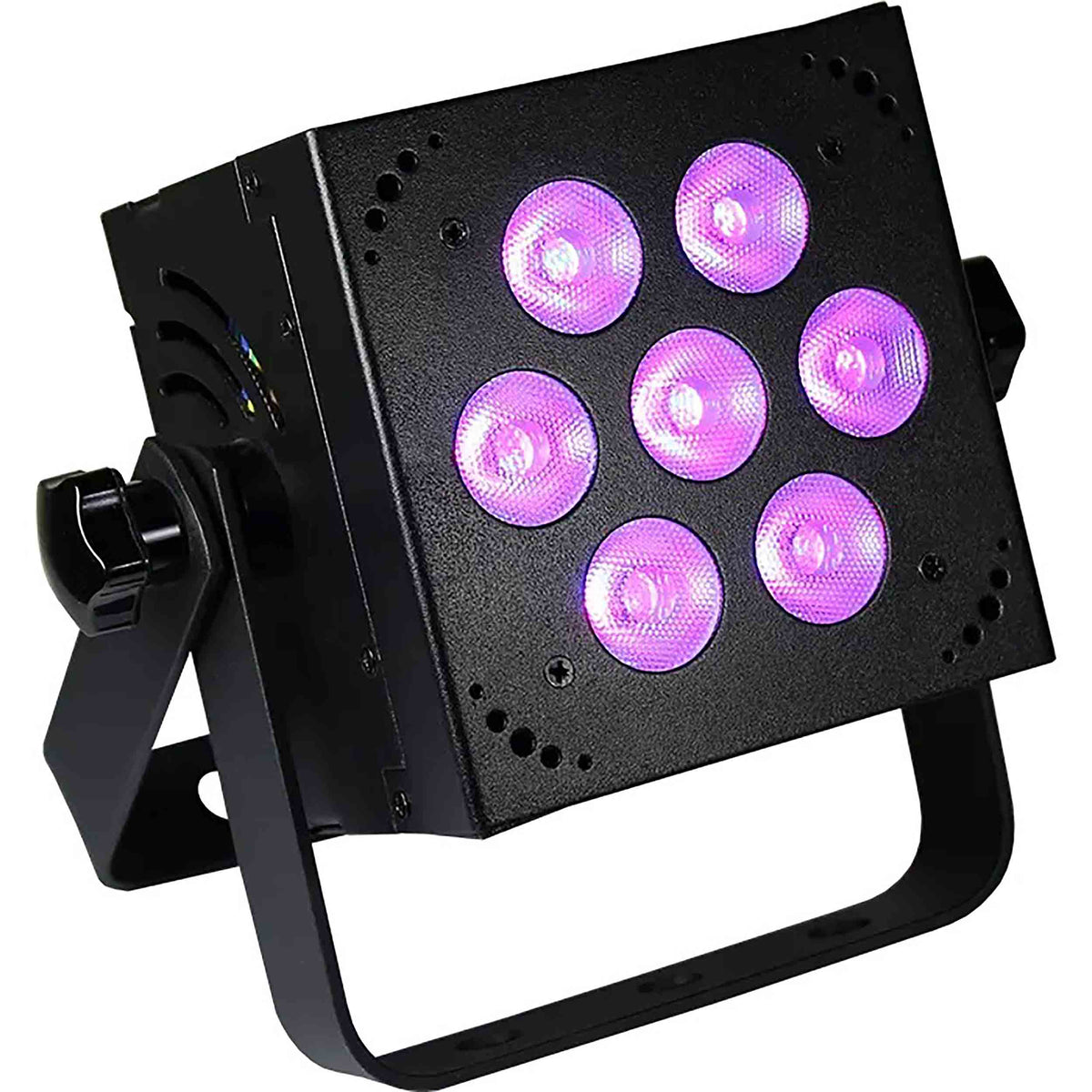

Blizzard Lighting HotBox RGBA is a compact yet powerful LED effects fixture designed for mobile entertainers, touring productions, clubs, and installations where space is limited but performance is essential. Featuring 7 × 10W 4-in-1 RGBA LEDs, the fixture delivers rich color mixing, bright output, and smooth wash effects from a rugged aluminum housing.

The HotBox RGBA offers extensive control options with 3-, 4-, 5-, 8-, and 9-channel DMX modes, making it compatible with a wide range of lighting controllers. Built-in color macros, chase effects, automated programs, sound-active operation, and standalone color mixing provide flexible operation for both beginners and professionals.

Designed for reliable professional use, the fixture includes a 4-button LED control panel for local operation and supports DMX, Master/Slave, Sound Active, and Standalone modes. Connectivity includes 3-pin DMX input/output, powerCON-compatible power input/output, and WICICLE-enabled wireless DMX capability for cable-free control.

Key Features

• 7 × 10W 4-in-1 RGBA LEDs deliver vibrant color mixing and wash effects.
• 15,000-lumen output provides bright illumination with a 25° beam angle.
• Supports 3, 4, 5, 8, and 9-channel DMX modes for flexible control.
• Built-in color macros, chase effects, and automated programs enhance creativity.

Ideal For

• Mobile DJs and entertainers.
• Concerts and live performances.
• Clubs, bars, and nightclubs.
• Weddings and special events.
• Stage and theatrical productions.
• Touring lighting rigs.
• Uplighting and accent lighting.
• Houses of worship.

What's in the Box

• Blizzard HotBox RGBA LED Effects Light
• Dual Hanging Brackets

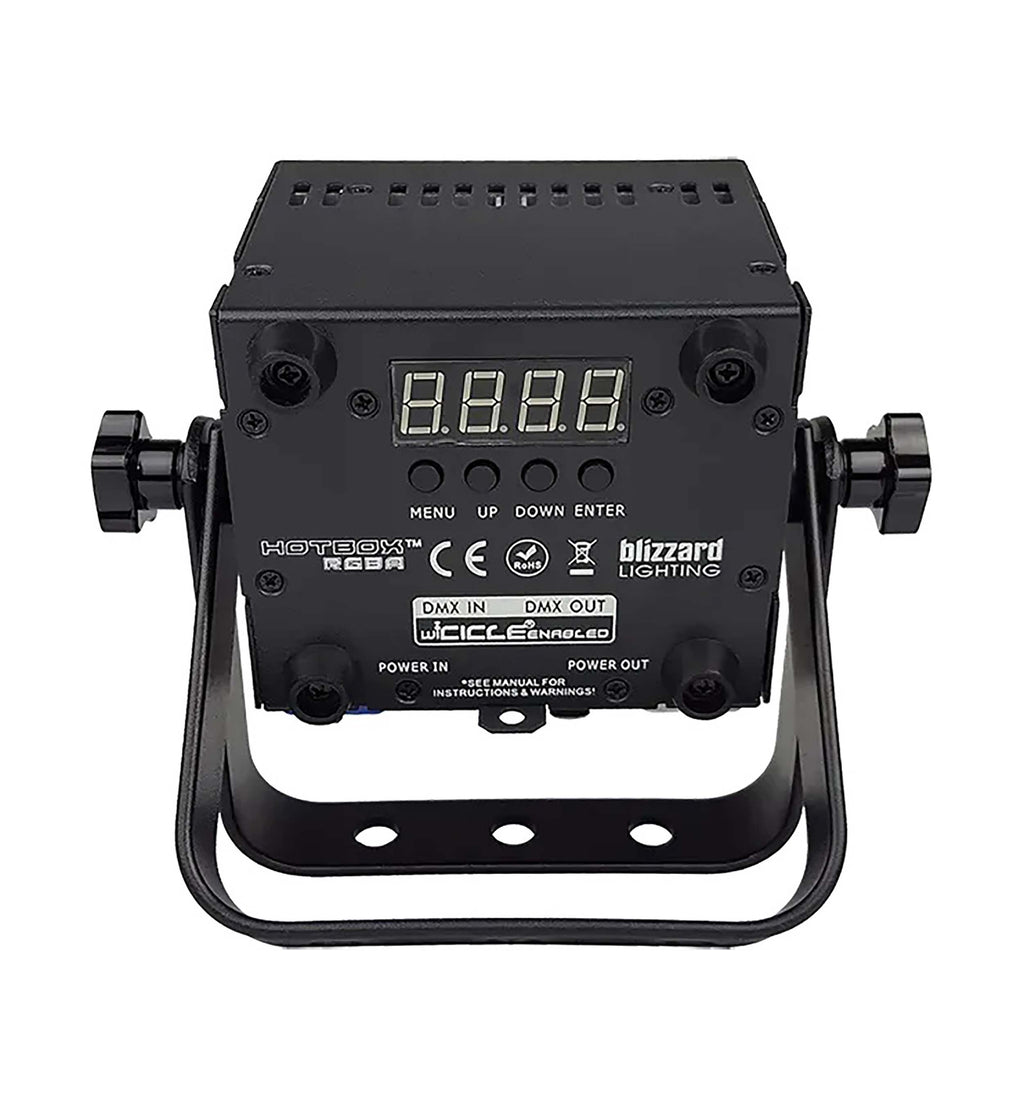

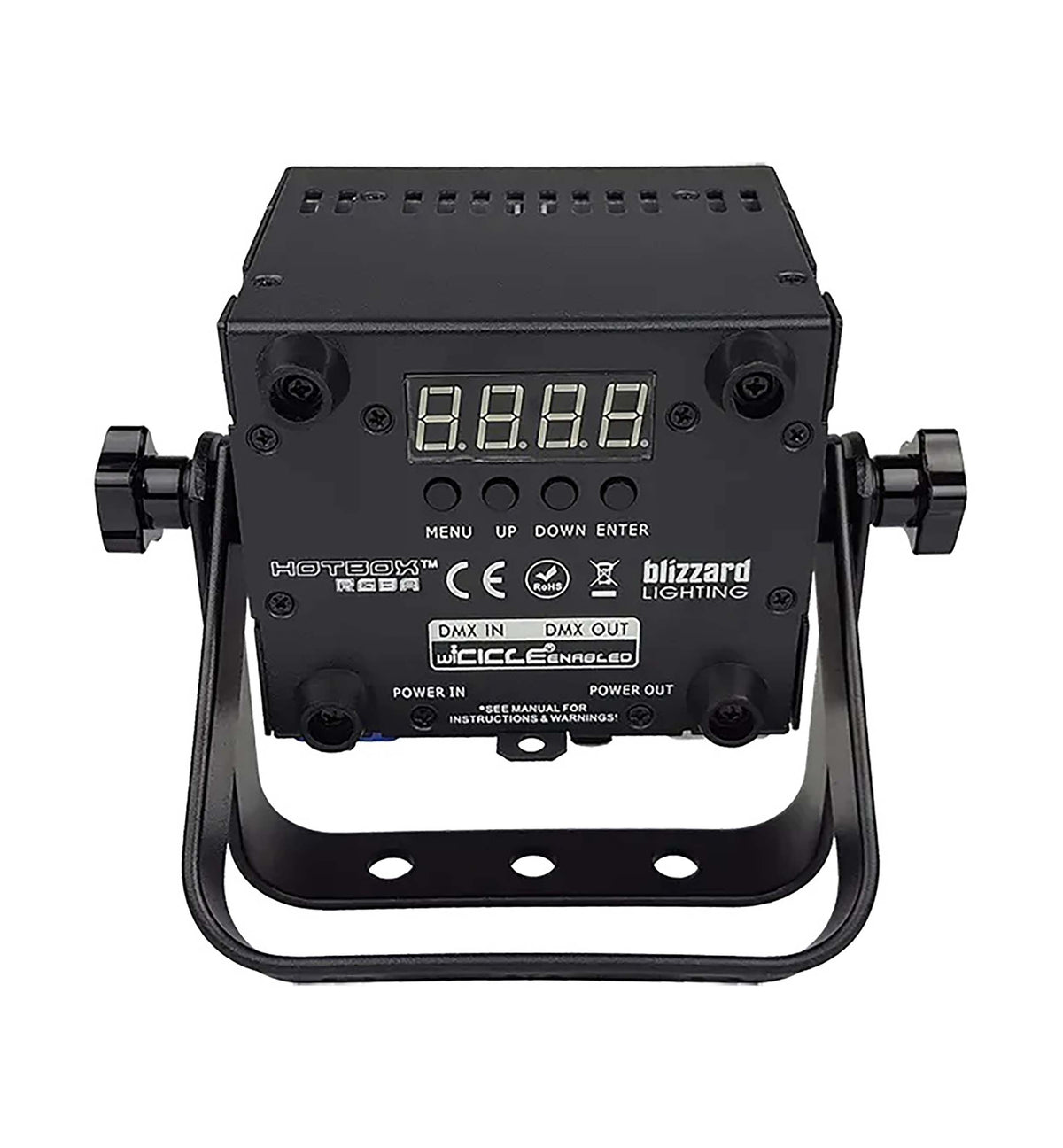

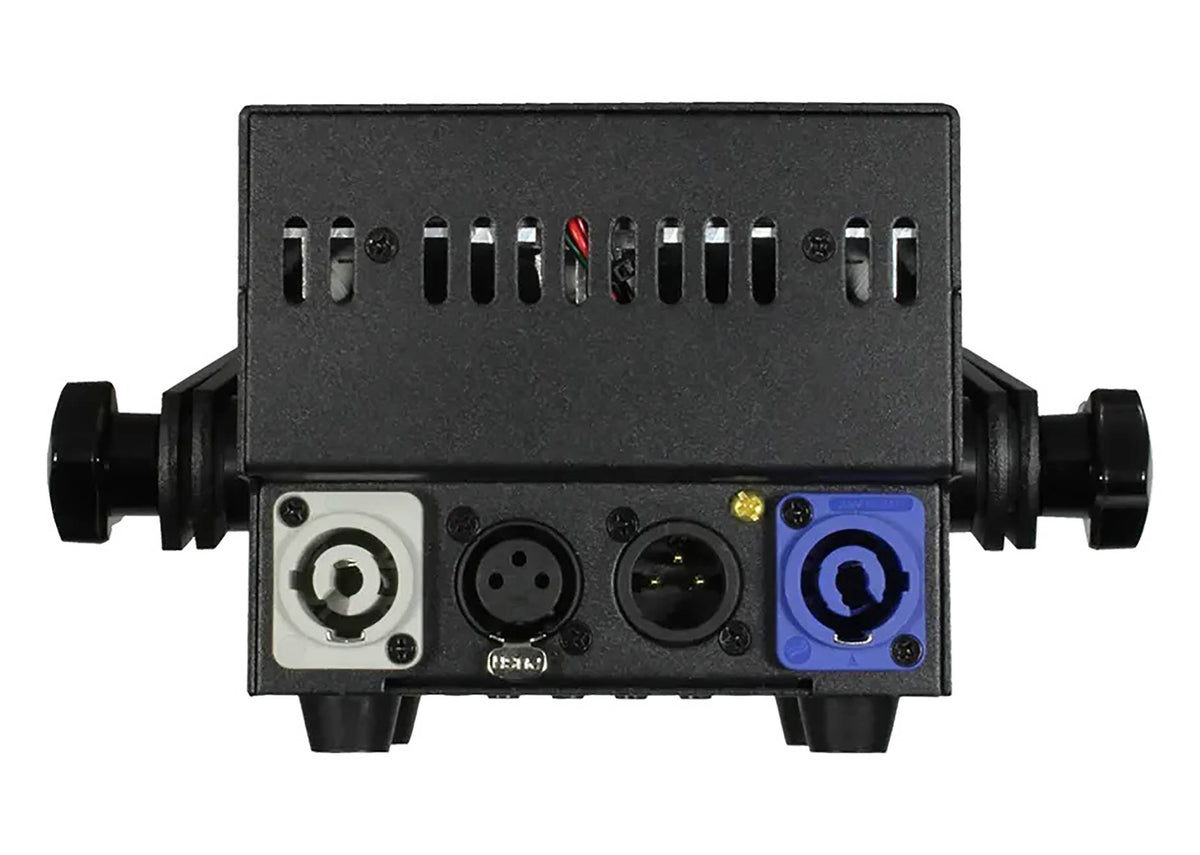

Inputs & Outputs

• 1 × 3-pin XLR DMX Input.
• 1 × powerCON AC Power Input.
• WICICLE Wireless DMX Input (wireless operation).
• 1 × 3-pin XLR DMX Output.
• 1 × powerCON AC Power Output.

Frequently Asked Questions

What type of LEDs does the HotBox RGBA use?

It features 7 × 10W 4-in-1 RGBA LEDs for vibrant color mixing and wash effects.

What DMX channel modes are available?

The fixture supports 3-, 4-, 5-, 8-, and 9-channel DMX modes for flexible control options.

Can the HotBox RGBA be used without a DMX controller?

Yes. It supports standalone, sound-active, and Master/Slave operating modes with built-in programs and color mixing.

Does the HotBox RGBA support wireless DMX?

Yes. It is WICICLE-enabled and can be used with compatible wireless DMX accessories for cable-free operation.

Full Technical Specifications

Audio Performance

Model	Blizzard Lighting HotBox RGBA
Fixture Type	PAR LED Light
Light Source	7 × 10W 4-in-1 Color LEDs
LED Configuration	RGBA
Colors	Red, Green, Blue, Amber
LED Life	100,000 hours
Lumen Output	15,000 lumens
Beam Angle	25°
Field Angle	30°
Photometrics	408 fc / 4,390 lux at 3.3 ft / 1 m
Dimming	32-bit electronic, 0–100%
Dimming Modes	5 selectable dimming curves
Strobe	Variable electronic strobe
Focus	Manual
Zoom	None
Gobos	None
Operating Modes	DMX, Primary/Secondary, Sound Active, Standalone
Built-In Programs	Color and chase macros, automated programs, and sound-active programs
Control Protocol	DMX512
DMX Channel Modes	3/4/5/8/9 channels
Control Panel:	LED display with 4 buttons
Wireless Control	WICICLE wireless DMX
Mobile App	No
DMX Connections	3-pin XLR input/output
Power Connections	powerCON-compatible input/output
Input Voltage	100–250VAC, 50/60Hz

Connectors

DMX Input	3-pin XLR
DMX Output	3-pin XLR
Power Input	powerCON-compatible
Power Output	powerCON-compatible
Wireless DMX	WICICLE-enabled

Power & Operation

Light Source	7 × 10W 4-in-1 RGBA LEDs
Color Mixing	RGBA color mixing with Red, Green, Blue, and Amber
Dimming	32-bit electronic, 0–100% with 5 selectable dimming curves
Strobe	Variable electronic strobe
Programs	Built-in color, chase, automated, and sound-active programs
Control	DMX512, Primary/Secondary, Sound Active, and Standalone
DMX Modes	3/4/5/8/9 channels
Wireless DMX	WICICLE-enabled
Power	100–250VAC, 50/60Hz
Consumption	47W / 0.68A
Power Connections	powerCON-compatible input and output
Cooling	Quiet variable-speed internal fan

Dimensions & Weight

Dimensions	5" L × 5" W × 4" H
Weight	3.5 lbs / 1.6 kg
