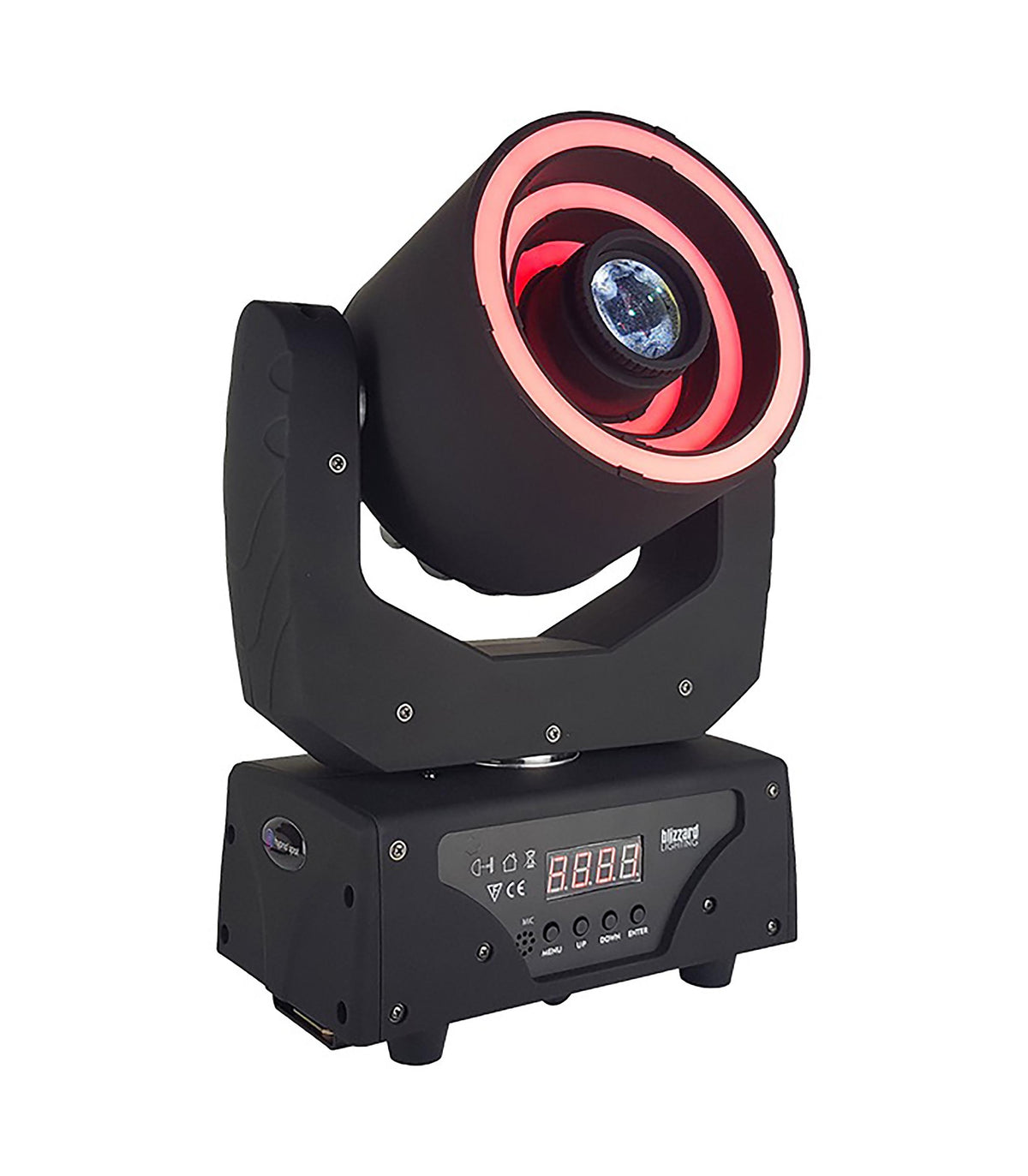

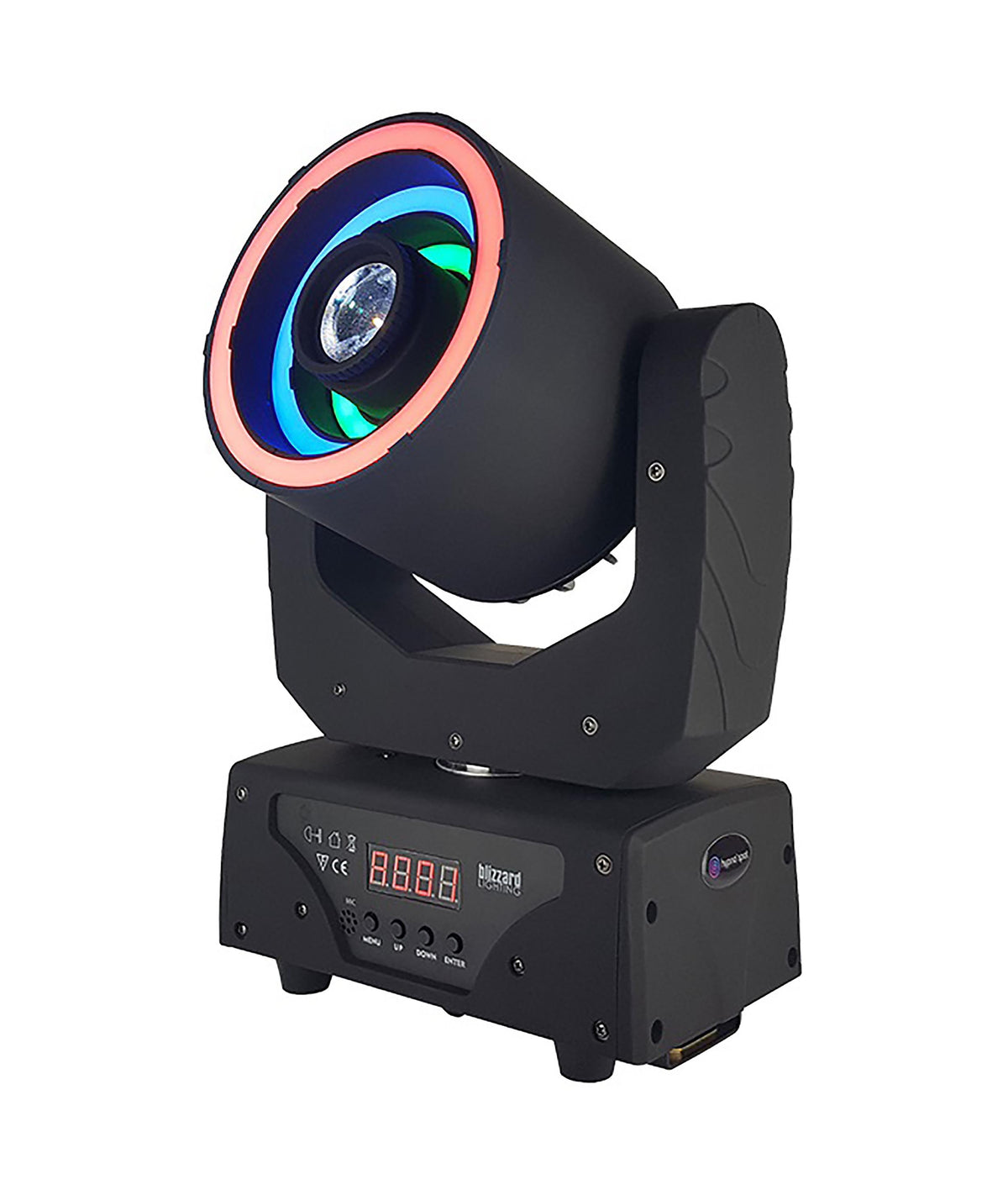

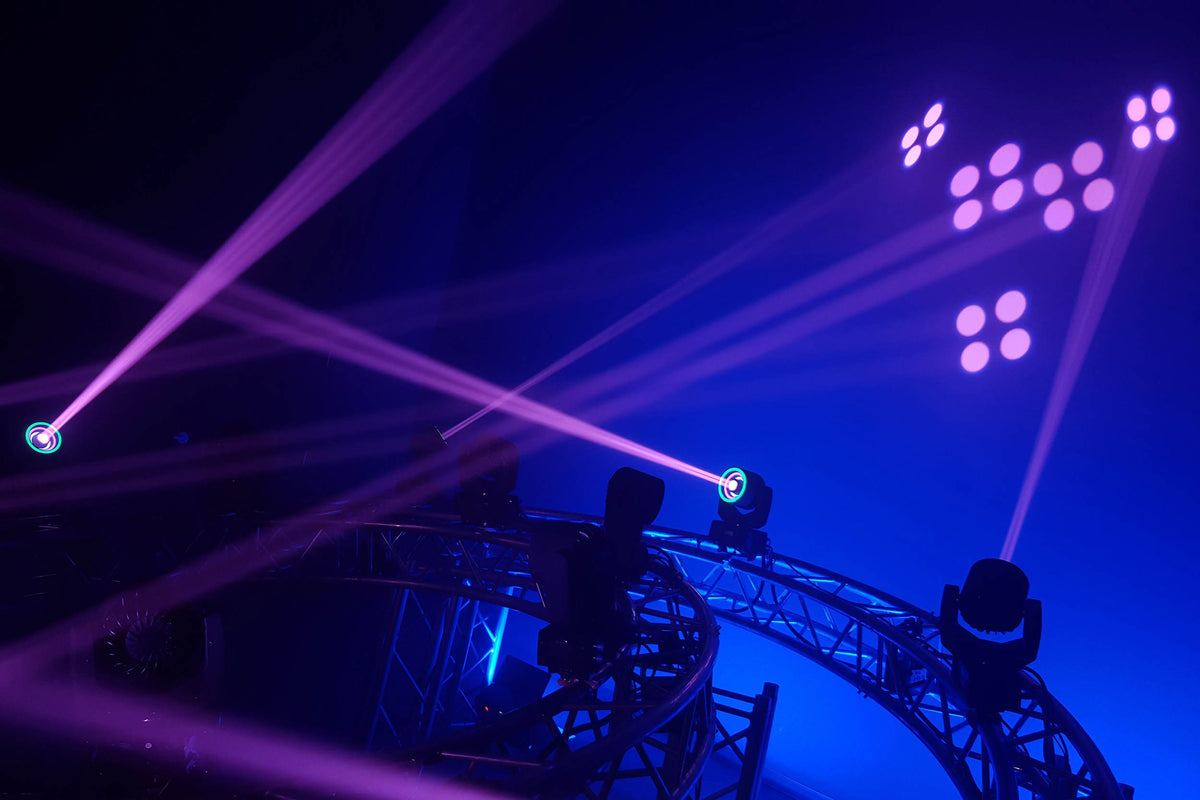

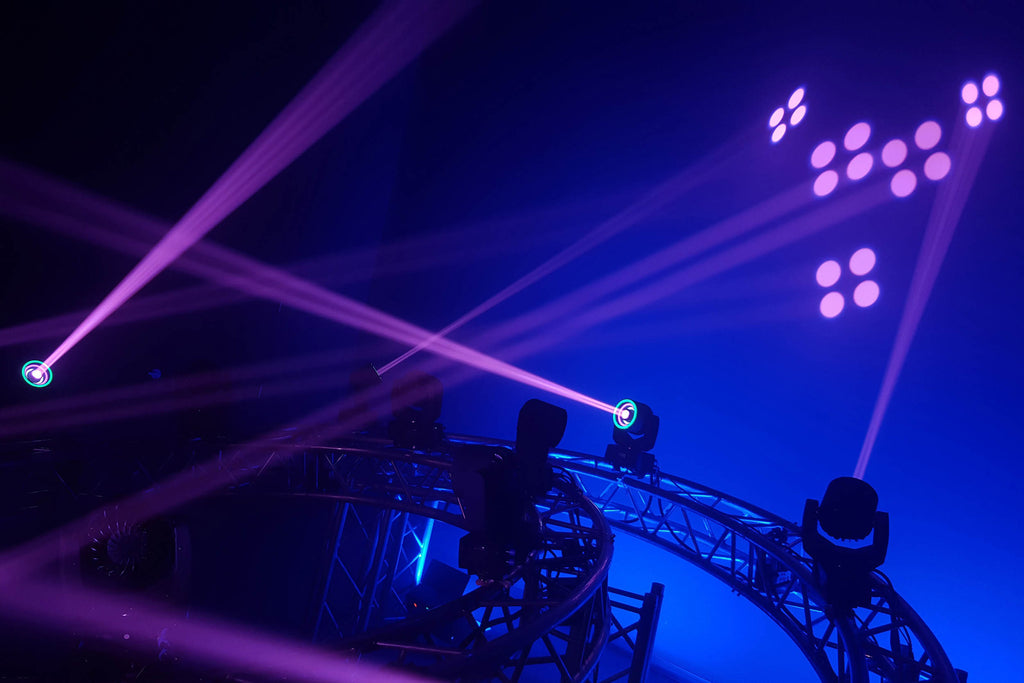

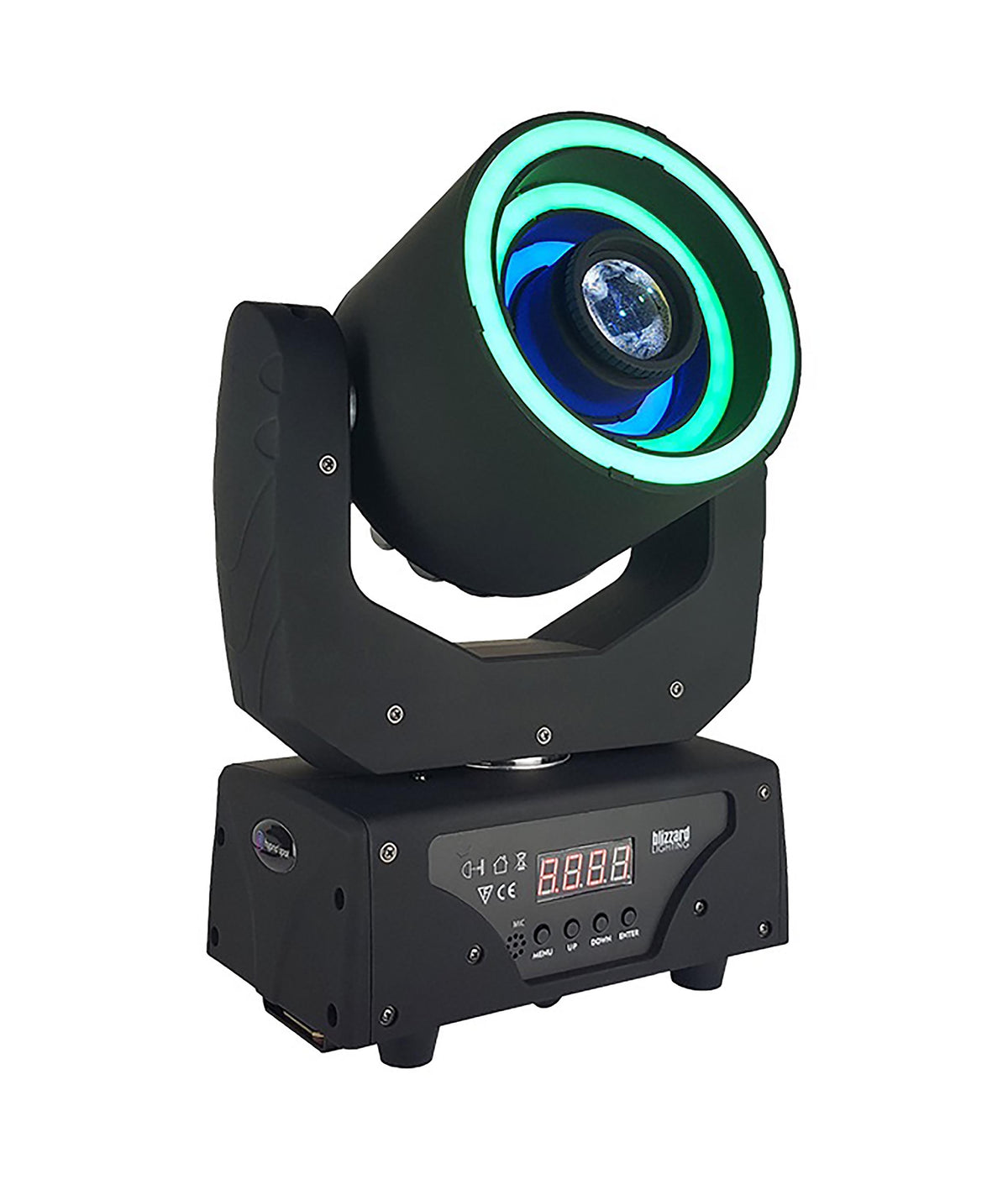

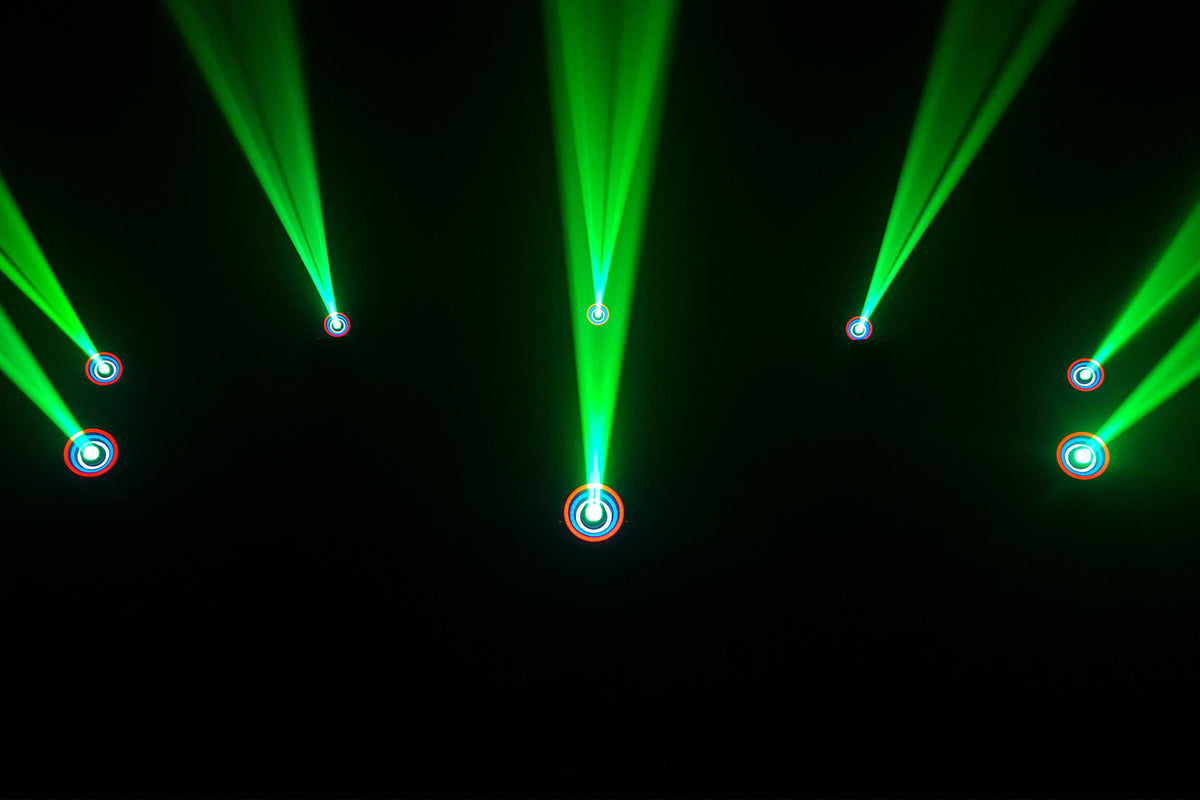

Blizzard Lighting Hypno Spot is a compact moving-head spot fixture designed to create focused beam effects for stages, DJs, clubs, events, and entertainment spaces. It features a high-output 30W white LED with a narrow 4.7° beam angle, surrounded by three RGB LED rings with 76 RGB 3-in-1 LEDs each. The fixture also includes a 9-position color wheel and 9-gobo wheel, each with an open position, giving you flexible options for shaping and coloring the beam.

The Hypno Spot provides precise movement with 540/630° pan and 200° tilt at 8–16-bit resolution. The beam and LED ring effects can be controlled independently through DMX, with selectable 12- and 23-channel DMX modes.

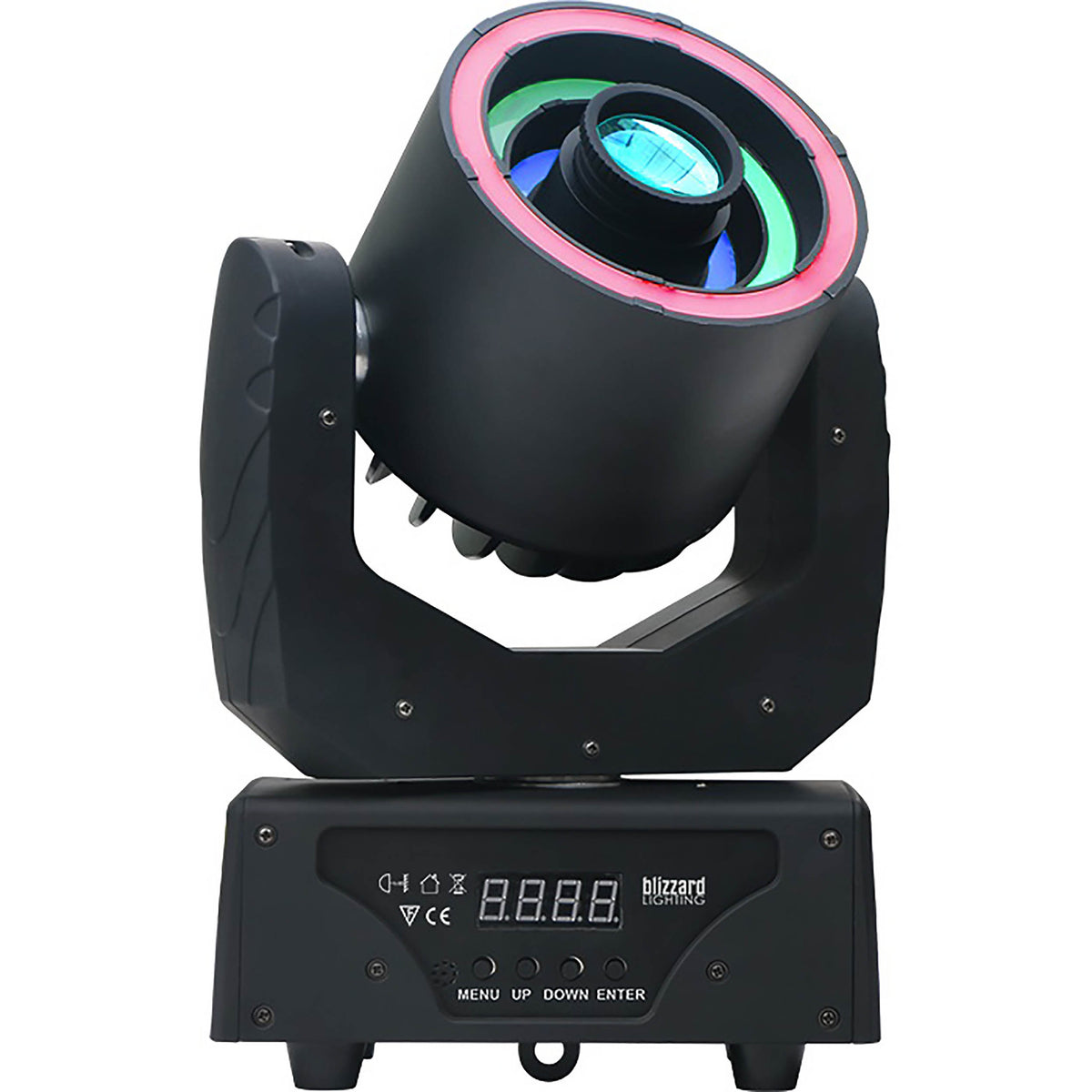

Designed for professional lighting setups, the Hypno Spot features a four-button LCD control panel and 3-pin XLR DMX input and output connections using the USITT DMX-512 protocol.

Key Features

• 30W white LED delivers a focused 4.7° moving spot beam.
• Three RGB LED rings with 76 SMD5050 LEDs each create dynamic effects.
• 9-position color wheel and 9-gobo wheel provide versatile beam effects.
• Independent DMX control allows separate control of the beam and LED rings.

Ideal For

• DJs and mobile entertainment setups.
• Live concerts and stage performances.
• Nightclubs and dance venues.
• Theaters and stage productions.
• Weddings and private events.
• Concerts and festivals.
• Clubs and entertainment venues.

What's in the Box

• Blizzard Lighting Hypno Spot Moving Head Light.
• Omega Quick-Connect Clamp Bracket.
• Power Cable.
• User Manual.

Inputs & Outputs

• 1 × 3-Pin DMX Input.
• 1 × PowerCON-Compatible AC Power Input.

Frequently Asked Questions

What type of light is the Blizzard Lighting Hypno Spot?

The Hypno Spot is a moving-head spot fixture with a 30W white LED and a 4.7° beam angle.

How many DMX channels does the Hypno Spot support?

It offers selectable 12-channel and 23-channel DMX modes.

What are the pan and tilt ranges?

The fixture provides 540/630° pan and 200° tilt with 8–16-bit resolution.

Does the Hypno Spot have built-in lighting programs?

Yes, it includes standalone, master/slave, sound-active, and color preset operating modes, along with auto
programs, dimming, and strobe effects.

Full Technical Specifications

Audio Performance

Fixture Type	LED Moving Head Spot
Light Source	1 × 30W White LED
LED Rings	3 × SMD5050 RGB LED rings, 76 RGB 3-in-1 LEDs per ring
Beam Angle	4.7°
Color Temperature	6500K
Color Wheel	9 Colors + Open
Gobo Wheel	9 Gobos + Open
Luminous Intensity	63,163 lux @ 1m; 9,480 lux @ 2.5m; 2,185 lux @ 5m
Pan	540° / 630°
Tilt	200°
Pan/Tilt Resolution	8–16 bit
Dimmer	0–100% Linear LED Dimmer
Strobe	1–25 Hz
DMX Modes	12-Channel and 23-Channel
DMX Control	Independent control of beam and LED ring effects
Operating Modes	Standalone, Master/Slave, Sound Active, and Color Preset
Programs	Built-in Auto and Sound-Active Programs
Pan/Tilt Control	Pan/Tilt Invert

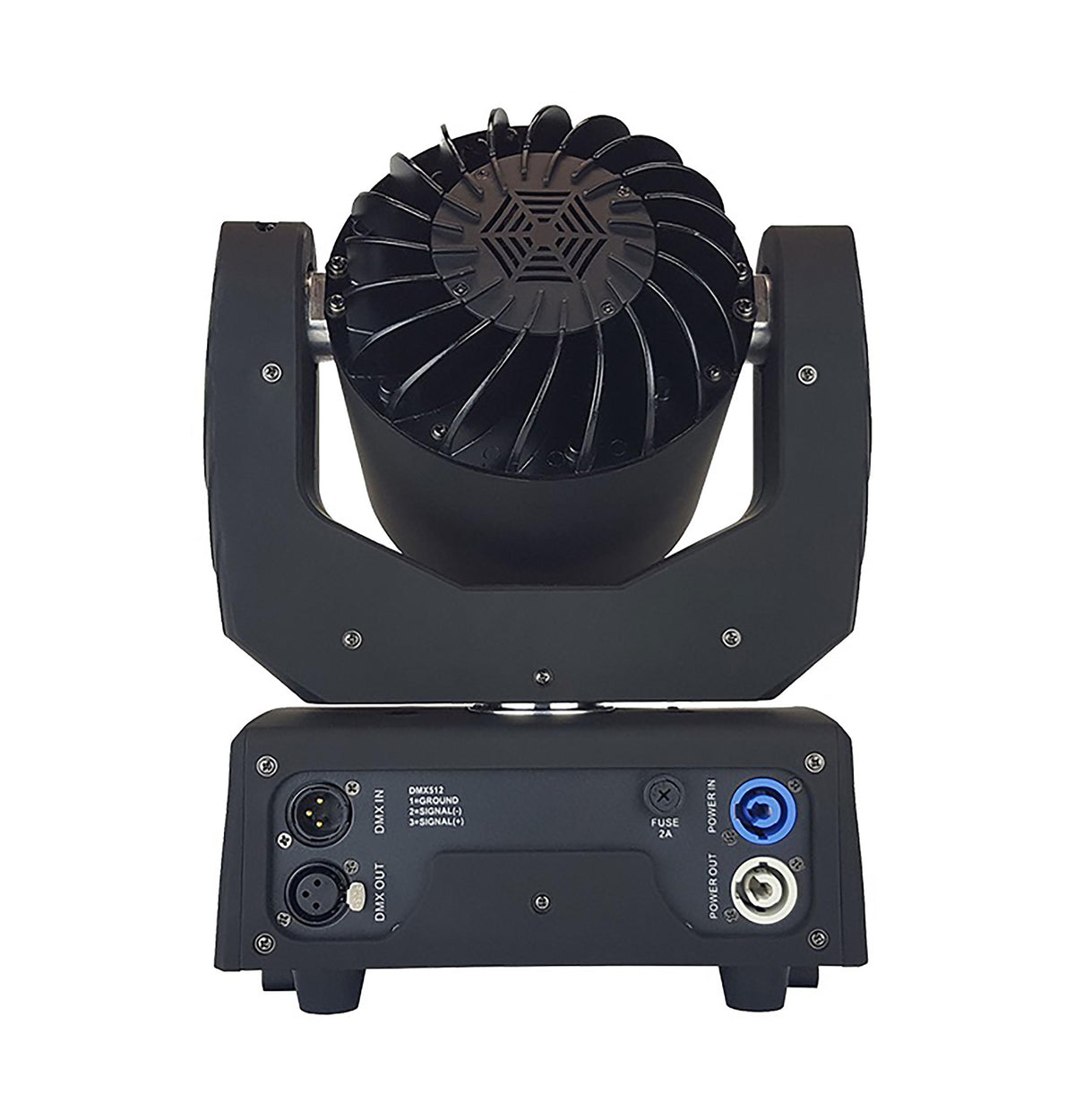

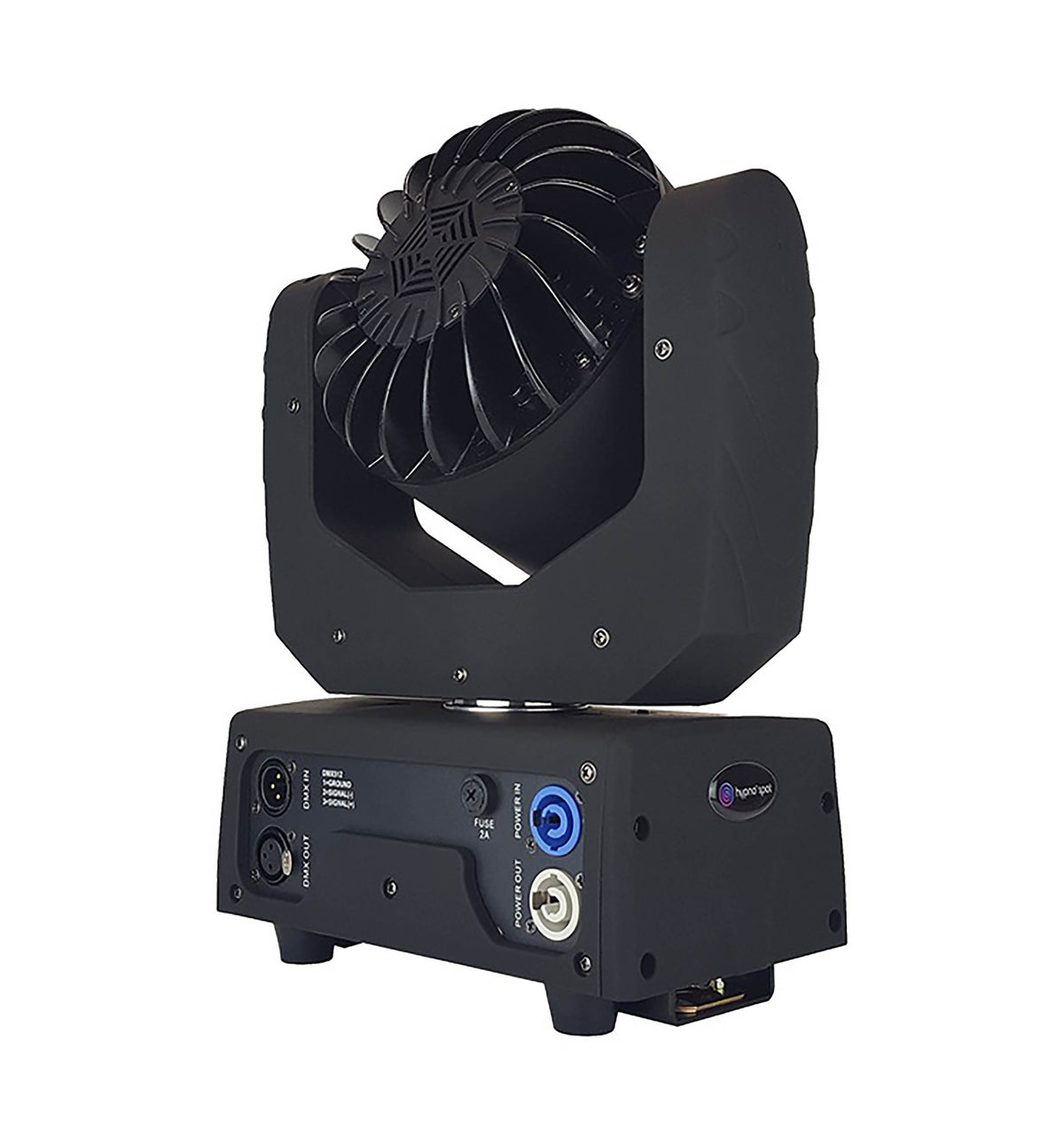

Connectors

DMX control signals	3-Pin DMX Input
DMX signal linking	3-Pin DMX Output
fixture power	PowerCON-Compatible AC Power Input
Daisy-chaining compatible fixtures	PowerCON-Compatible AC Power Output
Mounting	Quarter-Turn Omega Quick-Connect Clamp Bracket

Power & Operation

Light Source	30W white LED with a 4.7° beam angle
LED Rings	3 × RGB LED rings with 76 RGB 3-in-1 LEDs each
Operating Voltage	100–240 VAC, 50–60 Hz
Power Consumption	84W / 1.11A
Power Factor	0.66
Fuse	2A, 250V
Pan	540° / 630° with 8–16-bit resolution
Tilt	200° with 8–16-bit resolution
Dimmer	0–100% linear LED dimmer

Dimensions & Weight

Unit Dimensions	10.5" L × 6.6" W × 11.9" H (26.5 × 16.8 × 30.1 cm)
Unit Weight	11 lbs (5 kg)
Package Dimensions	15.2" L × 13.25" W × 10.5" H
Package Weight	14.5 lbs
