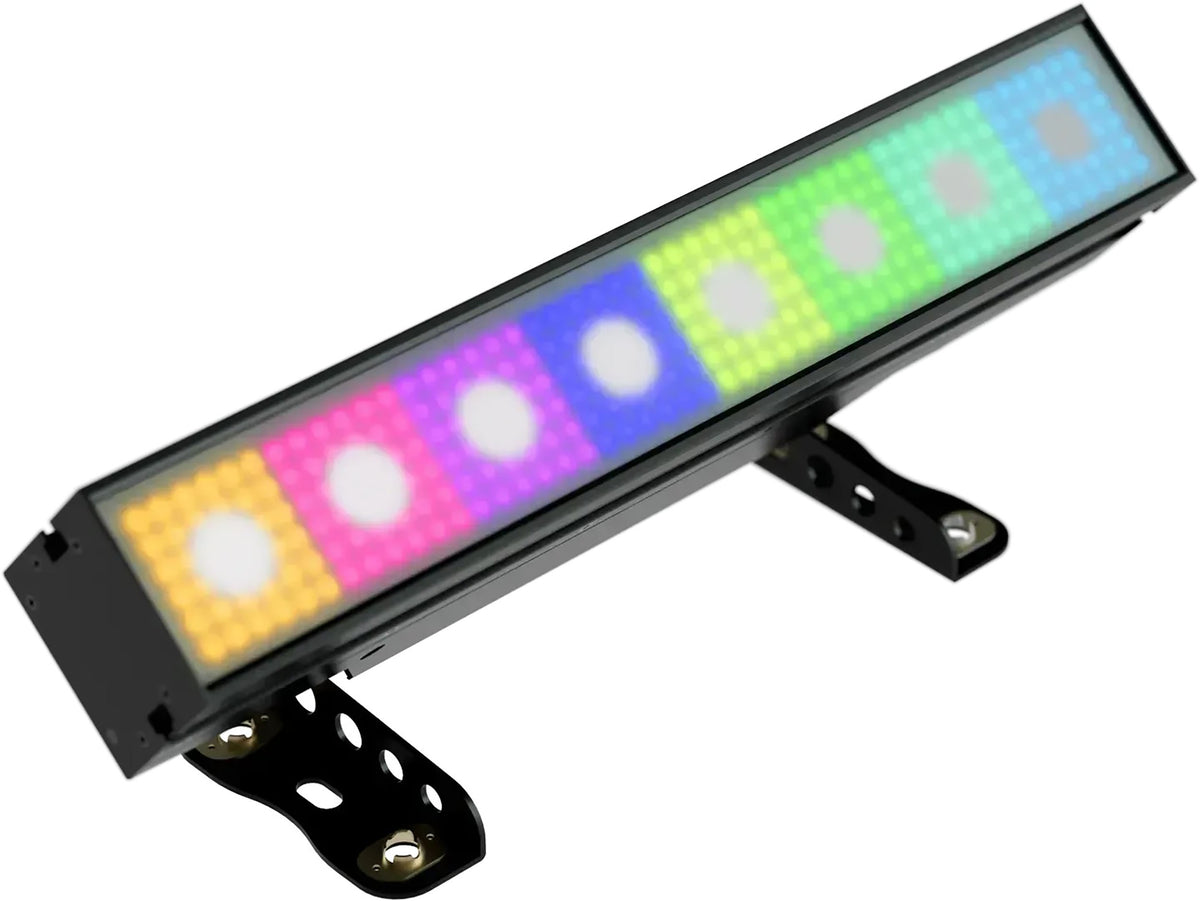

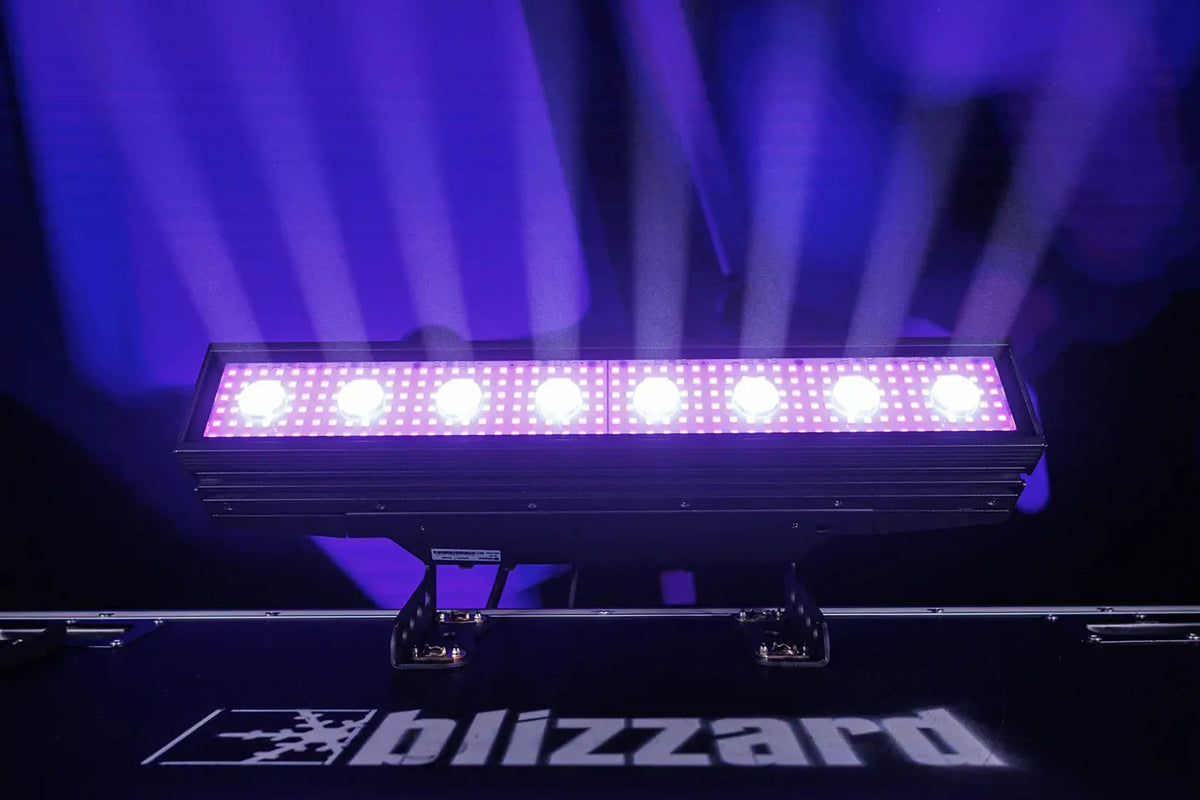

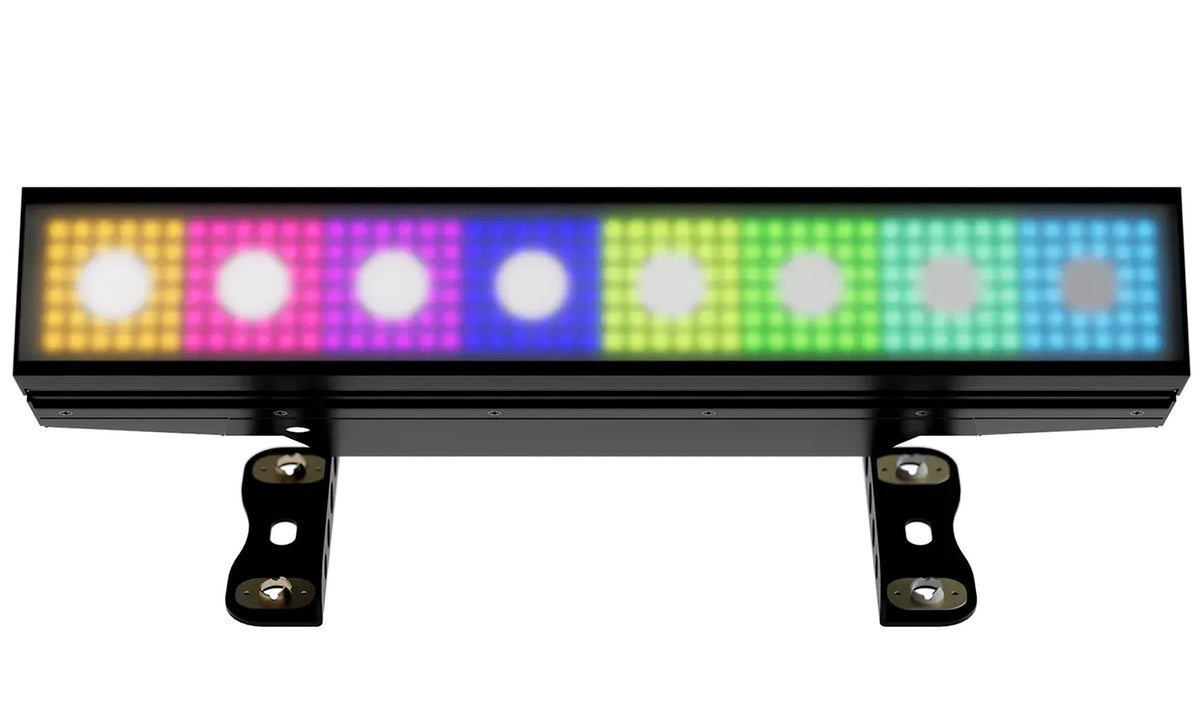

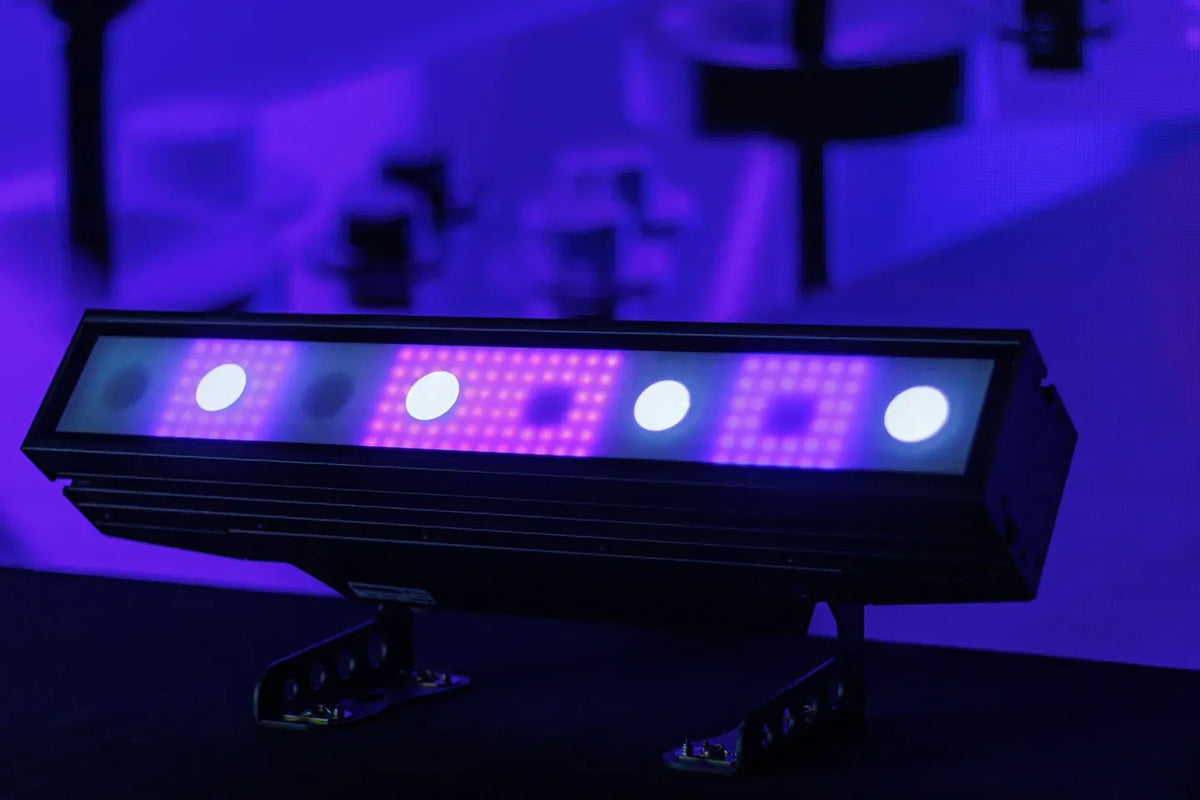

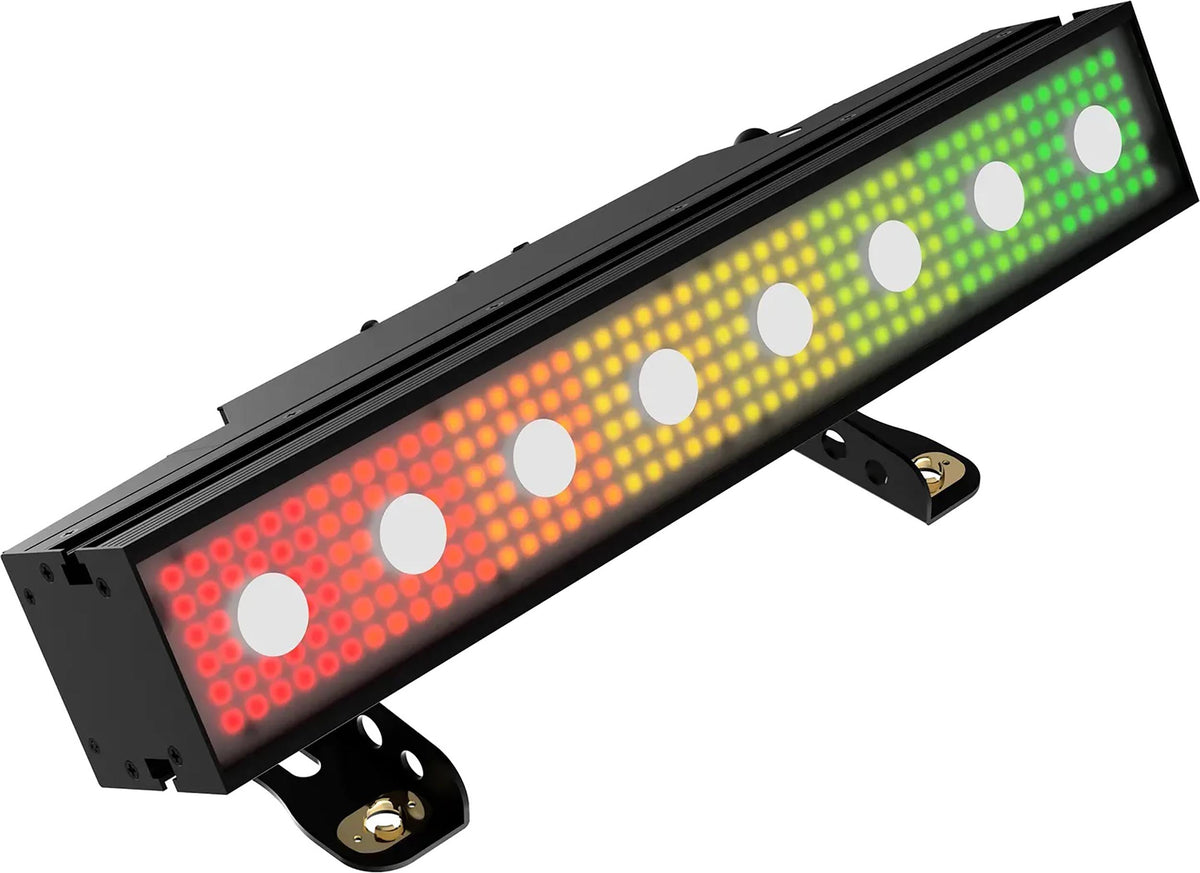

Blizzard Lighting Professional Infinipix Arcade is an innovative linear wash fixture designed to create dramatic beam effects, vibrant color displays, and advanced pixel-mapped visuals for stages, events, clubs, and architectural applications. Combining 8 × 20W white LEDs with a narrow 3° beam angle and 256 RGBW SMD LEDs arranged across eight controllable sections, the fixture delivers both sharp aerial beams and colorful background effects from a single compact unit. Its unique dual-beam design allows lighting professionals to create eye-catching looks that stand out in any production environment.

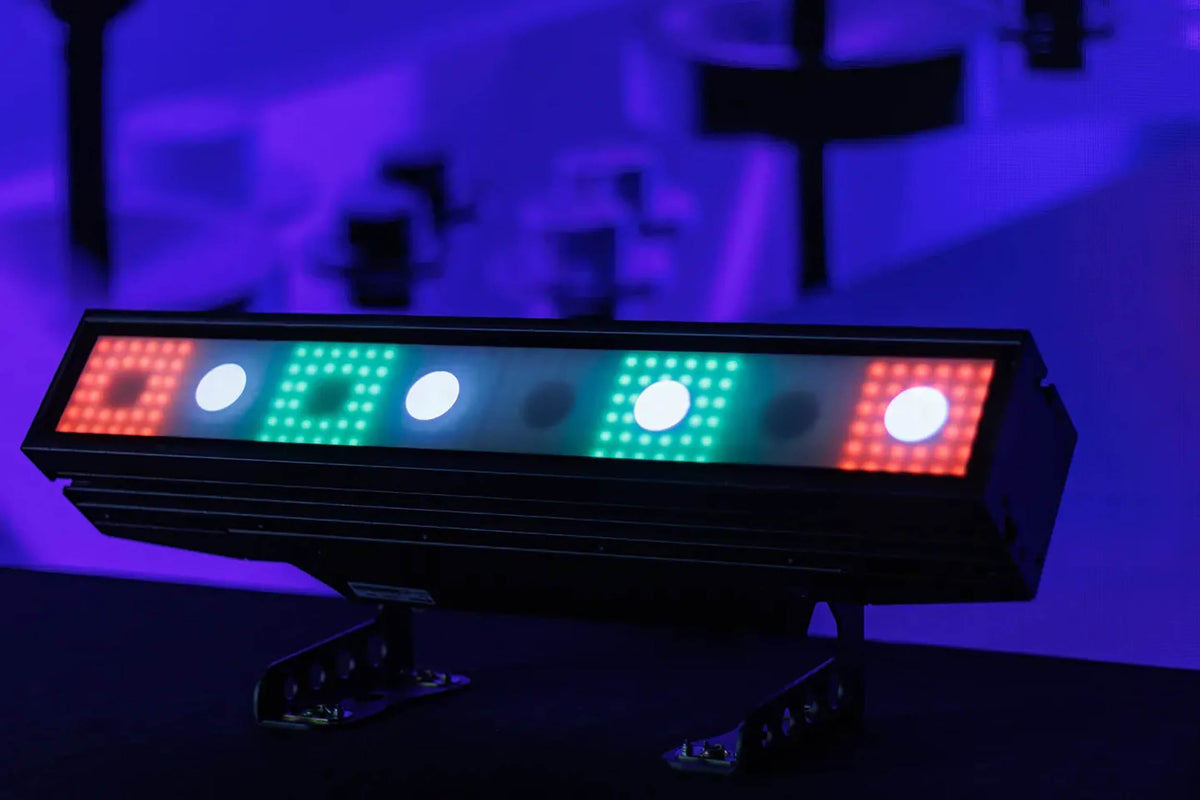

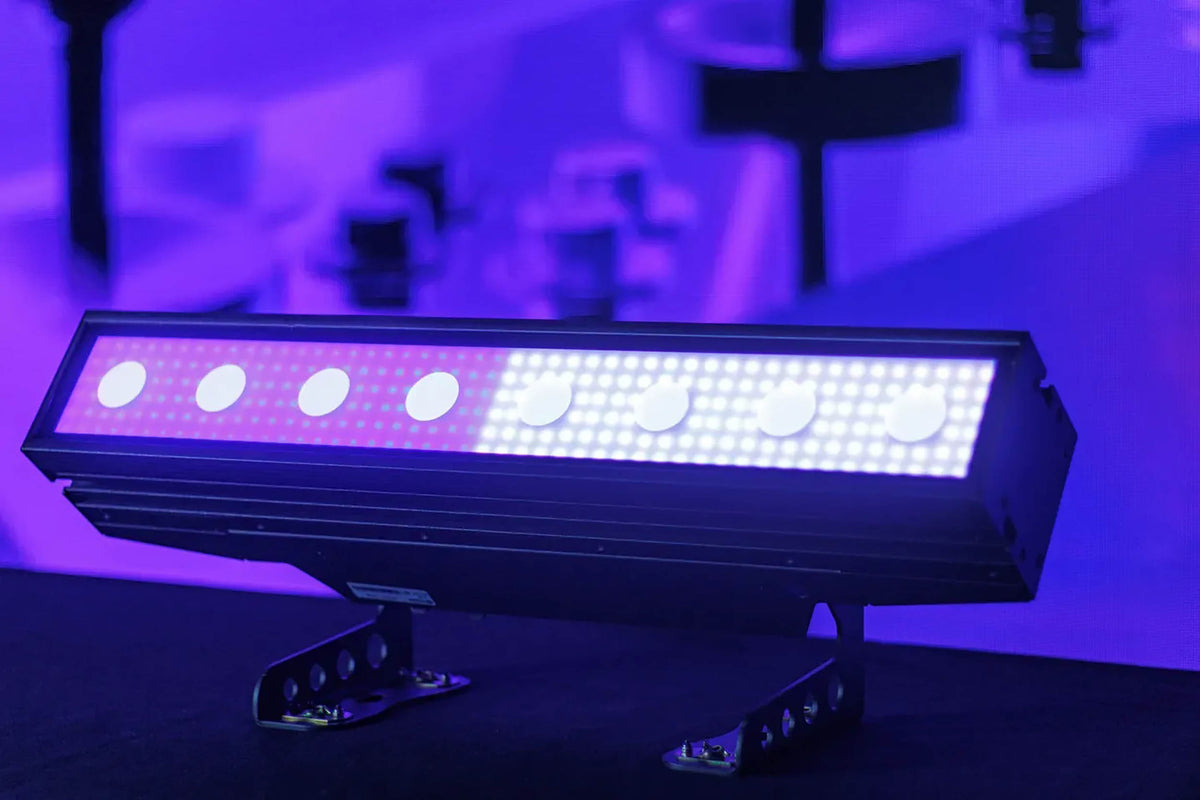

The Infinipix Arcade offers extensive creative flexibility through independent control of the white beam LEDs and RGBW background LEDs. Built-in strobe, chase, and trail effects can be programmed through DMX, while manual color mixing and automated programs provide additional options for quick setup and operation.

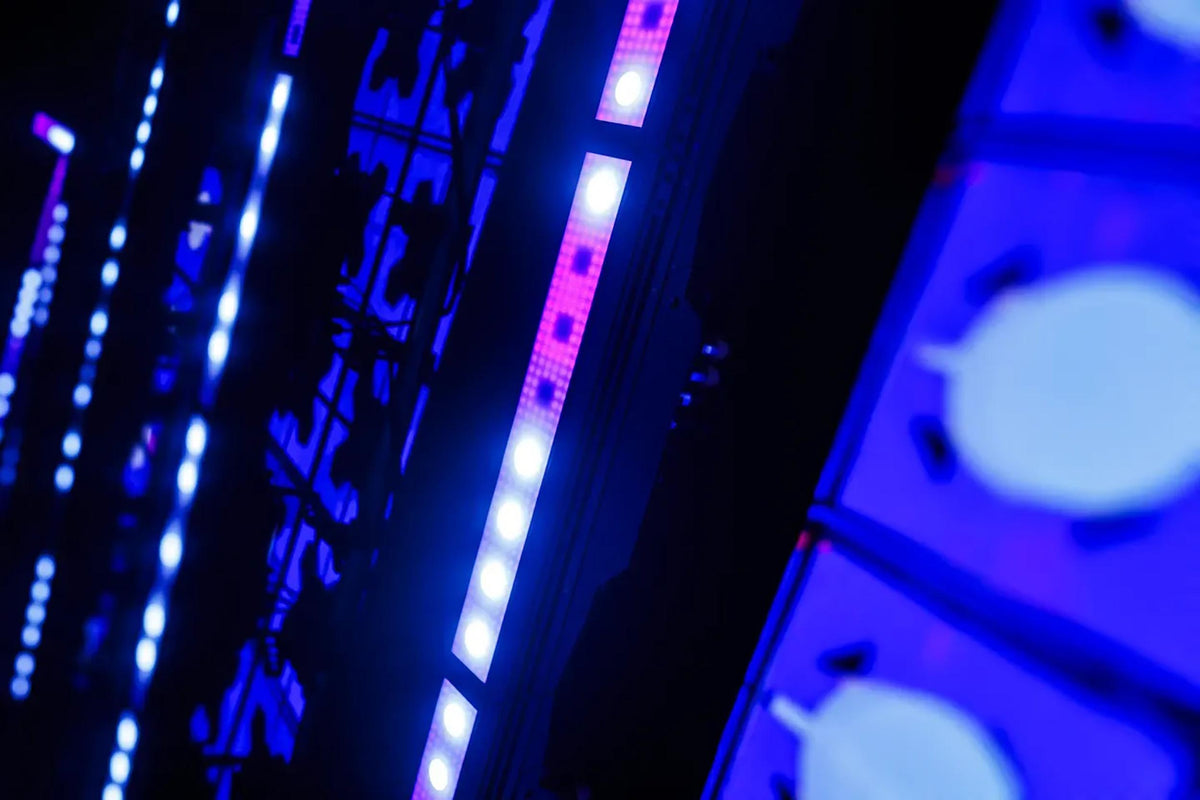

Built with a heavy-duty aluminum enclosure, the Infinipix Arcade is designed for both touring and permanent installations. Its interlocking design allows multiple fixtures to connect seamlessly into larger lighting arrays, while dual mounting brackets and an omega clamp bracket provide versatile installation options.

Key Features

• 8 × 20W white LEDs create intense 3° beam effects.
• 256 RGBW SMD LEDs deliver vibrant background colors and pixel effects.
• Independent control of beams and background colors enables dynamic visuals.
• Electronic frost transforms beams into smooth, round light effects.

Ideal For

• Concerts and live productions.
• Stages and touring events.
• Clubs, bars, and entertainment venues.
• Pixel mapping and creative lighting displays.
• Architectural lighting installations.
• Corporate events and presentations.
• Theaters and performance spaces.
• Houses of worship.

What's in the Box

• Blizzard Professional Infinipix Arcade Fixture.
• Dual Mounting Brackets.
• Omega Clamp Bracket.
• Power Cable.
• User Documentation.

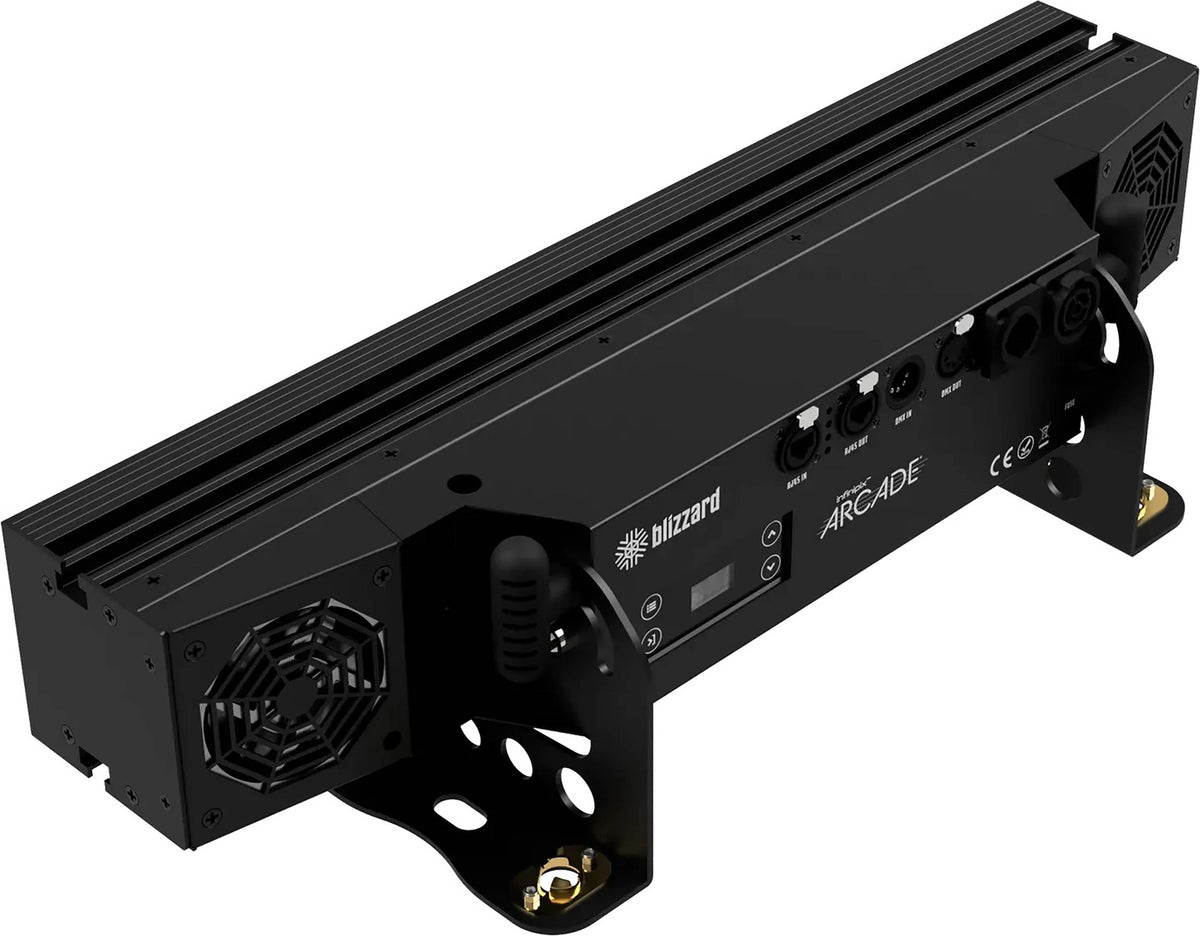

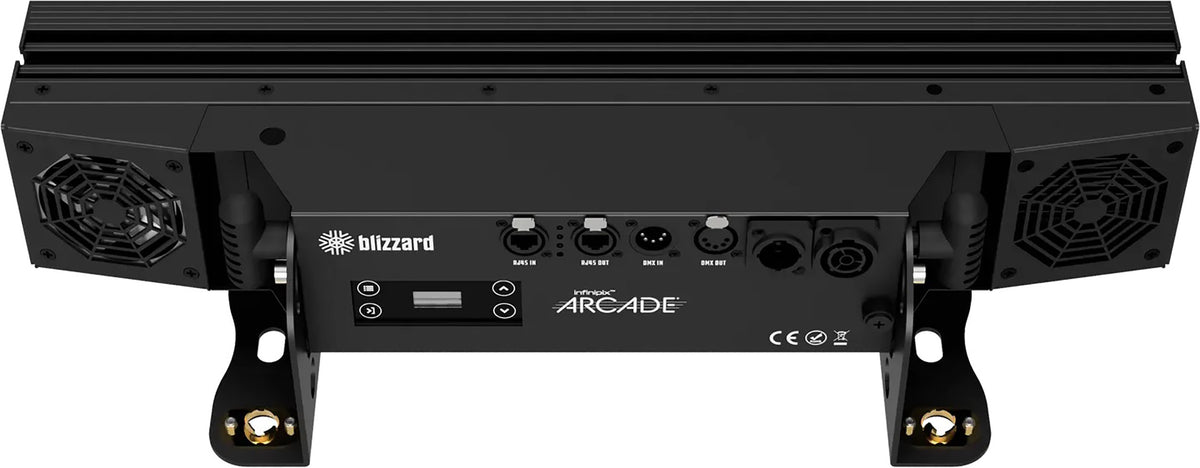

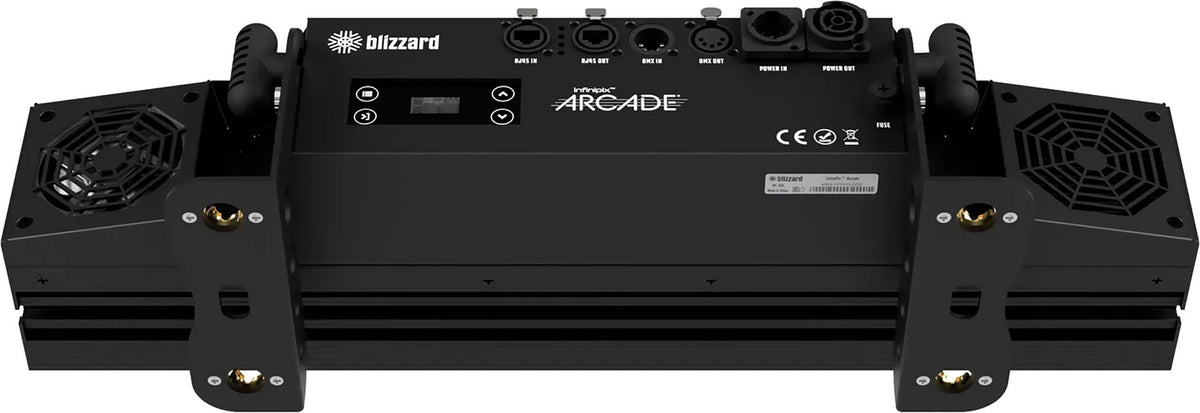

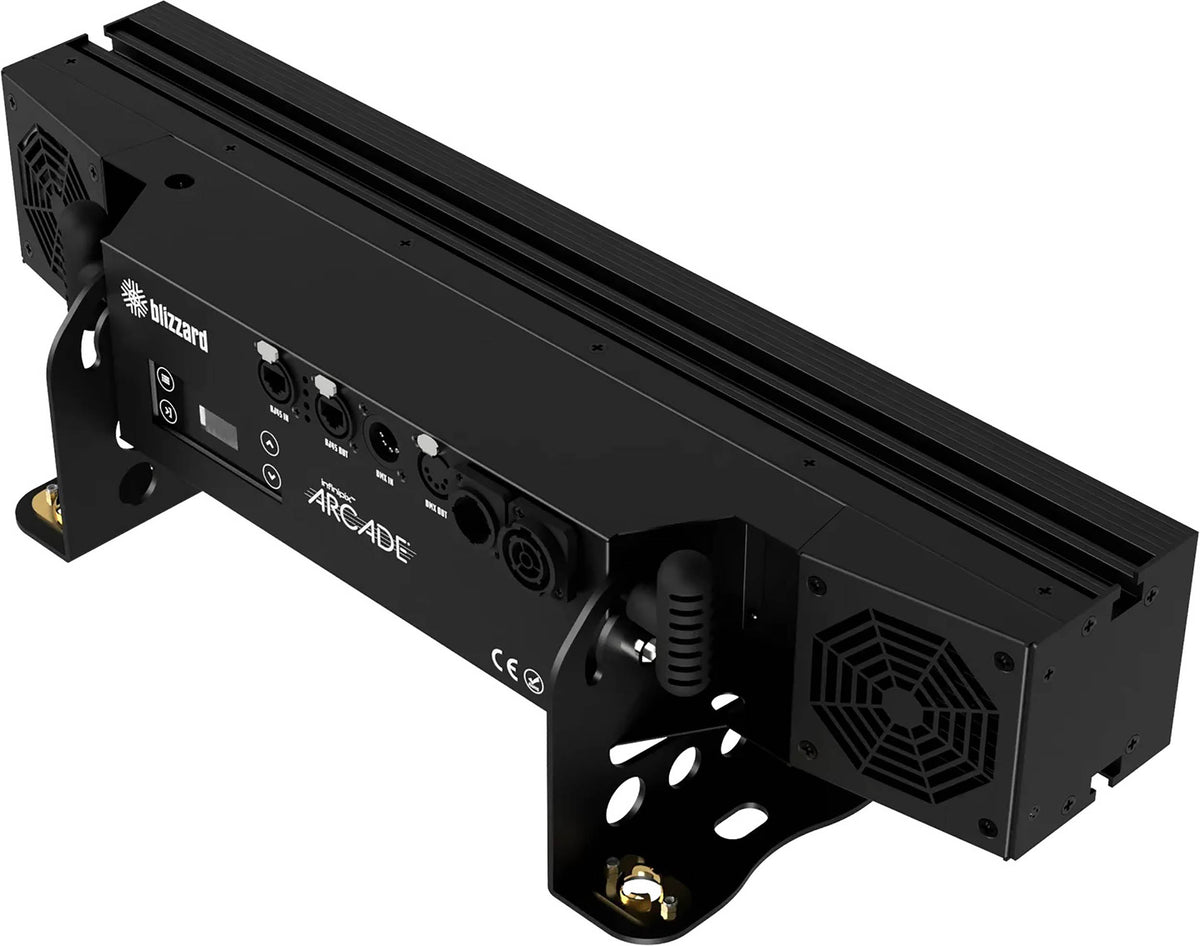

Inputs & Outputs

• 1 × 5-Pin XLR DMX Input.
• 1 × PowerCON TRUE1-Compatible Power Input.
• 1 × 5-Pin XLR DMX Output.
• 1 × PowerCON TRUE1-Compatible Power Output.

Frequently Asked Questions

What type of LEDs does the Infinipix Arcade use?

It uses 8 × 20W white LEDs for narrow 3° beams and 256 × SMD5050 RGBW 0.5W LEDs for colorful background effects.

What lighting effects can the Infinipix Arcade create?

It offers strobe, chase, trail, pixel-mapping, manual color mixing, and automated programs, with independent control of the white beams and RGBW background LEDs.

What DMX modes are available?

The fixture supports 11-, 20-, 21-, and 41-channel DMX modes, along with DMX512, RDM, Auto, and Master/Slave operation.

What is the electronic frost feature?

The electronically controlled frost lens softens the sharp white beams into smooth, round light points while diffusing the RGBW background colors.

Full Technical Specifications

Audio Performance

Model	Blizzard Lighting InfiniPix Arcade
Fixture Type	LED block pixel bar / linear wash fixture
White Light Source	8 × 20W white LEDs
White Beam Angle	3°
RGBW Light Source	256 × 0.5W SMD5050 RGBW LEDs
RGBW Configuration	32 × 8 pixel-mappable sections
RGBW Beam Angle	104°; 110° with electronic frost
Frost	Electronically controlled clear/frosted smart lens
Dimming	Smooth 0–100% dimming
Effects	Strobe, chase, and trail effects
Color Control	Manual color mixing and built-in programs
Pixel Mapping	32 × 8 pixel-mappable sections
Control Protocols	USITT DMX-512 and RDM
DMX Channels	11, 20, 21, and 41 channels
Control Modes	DMX512, Master/Slave, and Auto
Display	4-button OLED control menu
DMX Connections	5-pin XLR input/output
Power Connections	PowerCON TRUE1-compatible input/output
Operating Voltage	100–240VAC, 50–60Hz

Connectors

DMX Input	5-pin XLR
DMX Output	5-pin XLR
Power Input	PowerCON TRUE1-compatible
Power Output	PowerCON TRUE1-compatible for power linking

Power & Operation

Light Source	8 × 20W white LEDs plus 256 × 0.5W SMD5050 RGBW LEDs
White Beam	3° beam angle for sharp, focused effects
RGBW Beam	104° beam angle, expanding to 110° with electronic frost
Dimming	Independent control of the white beams and RGBW background LEDs
Effects	Strobe, chase, trail, pixel mapping, and built-in automated programs
Color Control	Manual RGBW color mixing with independent section control
Control	DMX512, RDM, Master/Slave, and Auto modes
DMX Modes	11CH, 20CH, 21CH, and 41CH
Display	4-button OLED menu
Power	100–240VAC, 50–60Hz
Power Consumption	265W
Current Draw	2.54A
Power Factor	0.91

Dimensions & Weight

Dimensions	21.7" L × 6.9" W × 5.6" H
Weight	13.25 lbs (6 kg)
