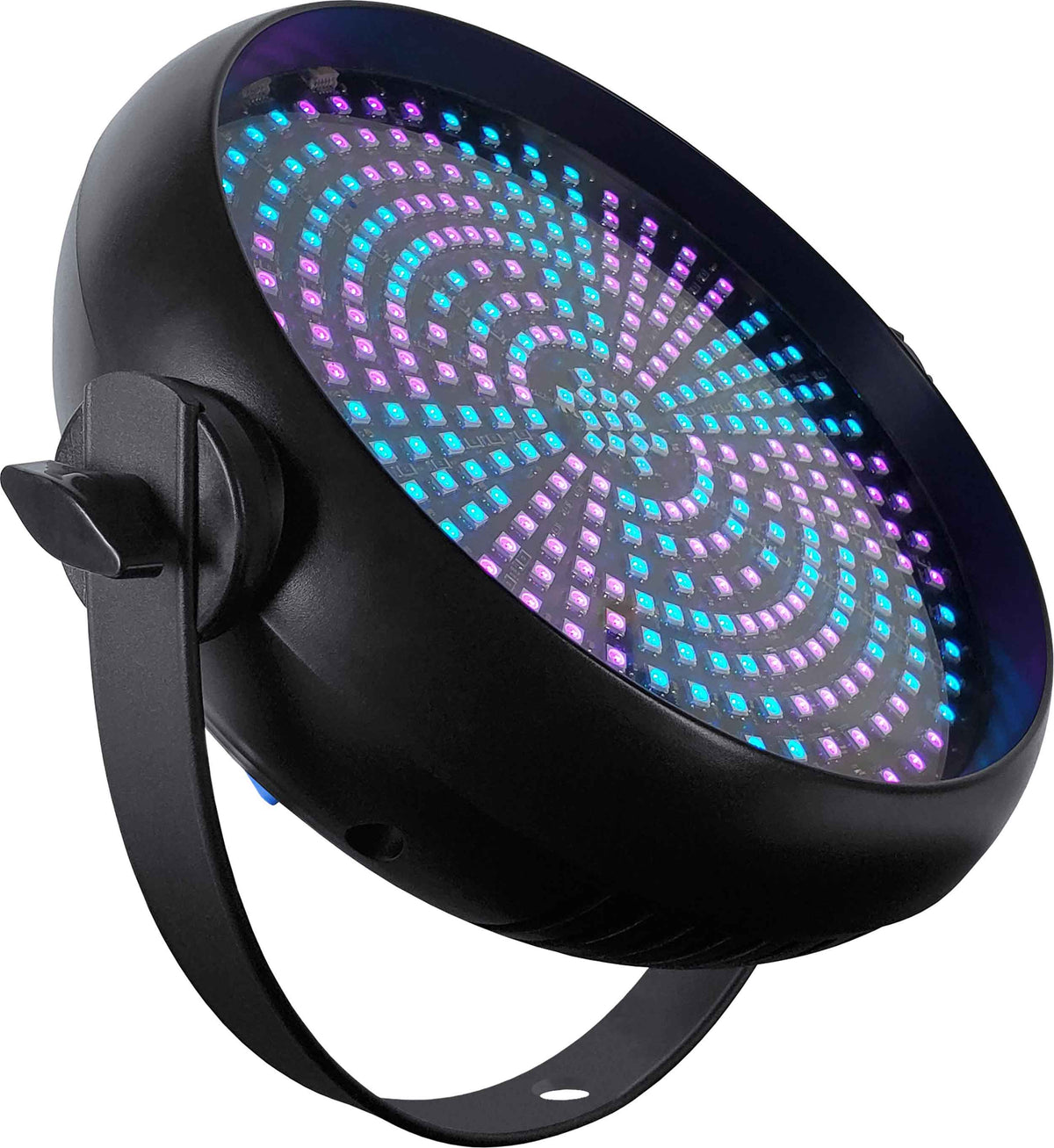

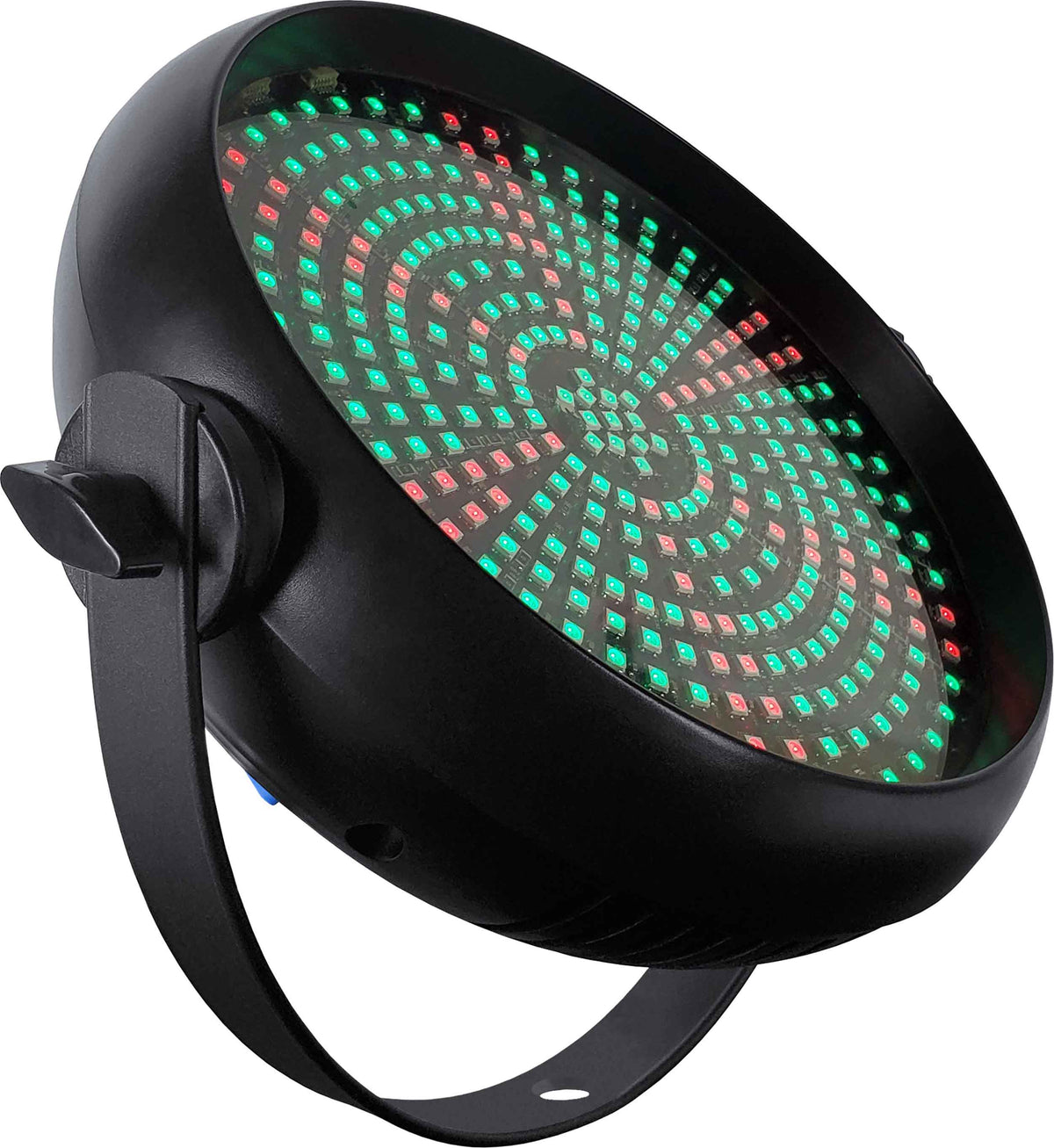

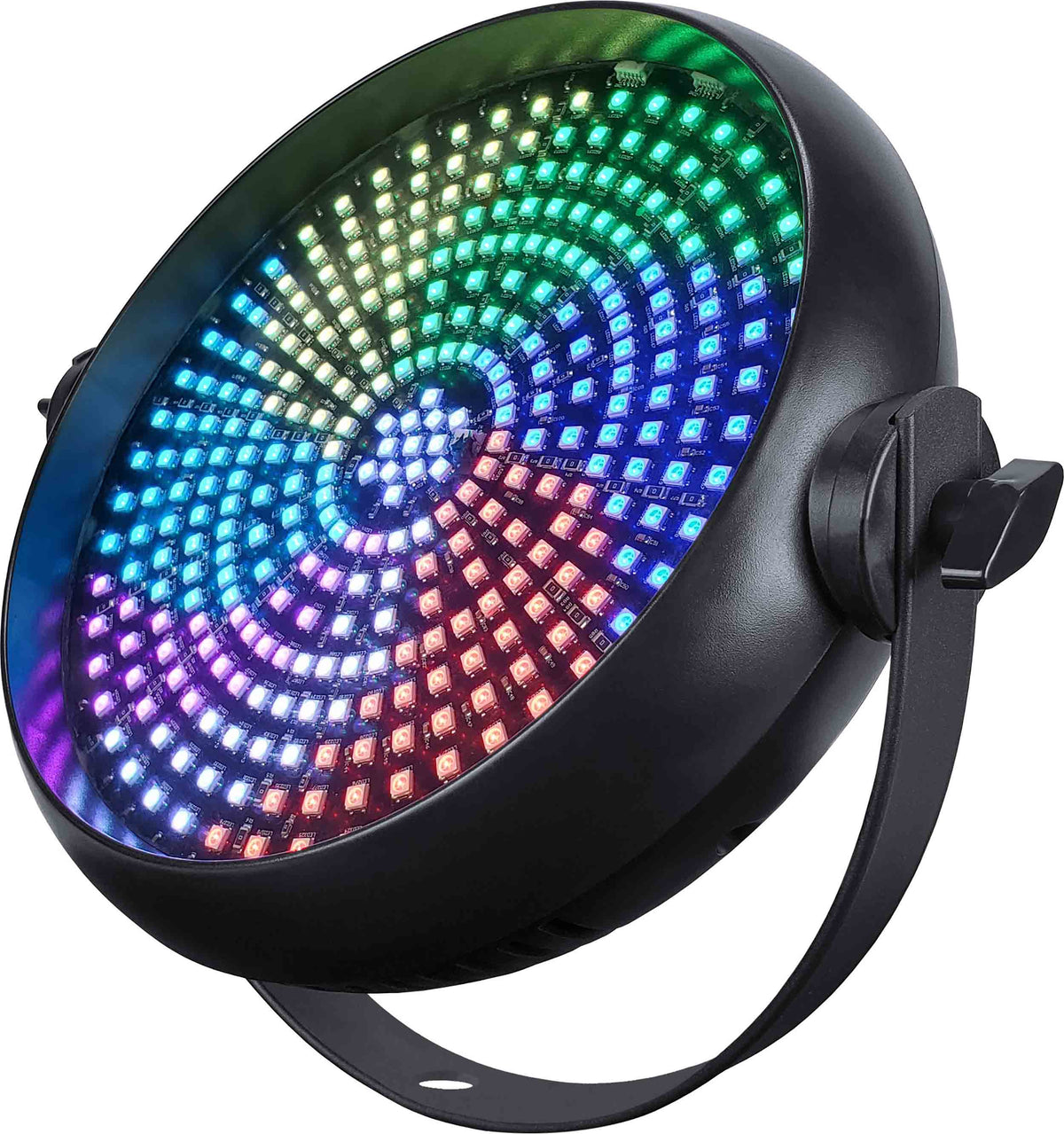

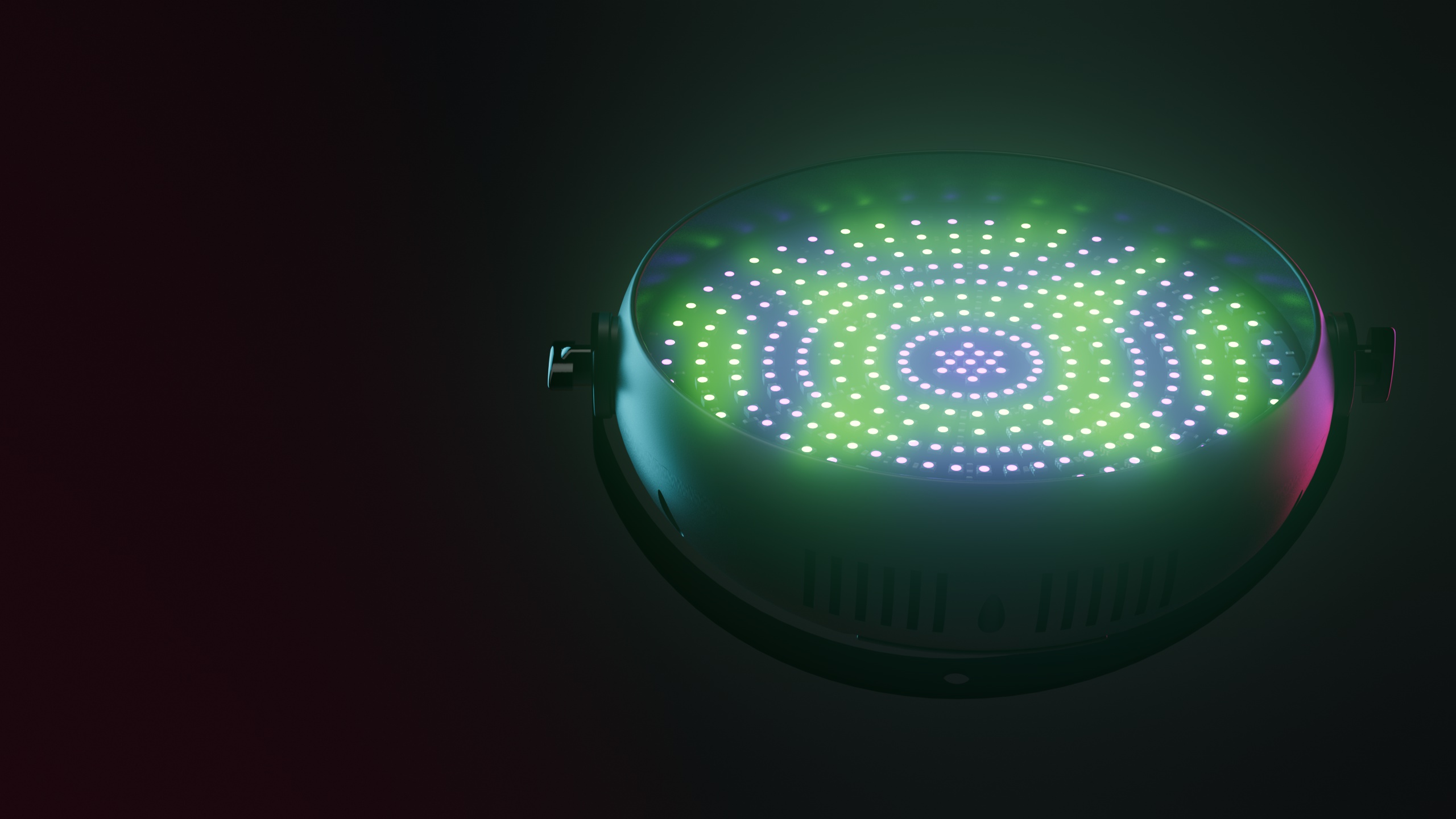

Blizzard Lighting InfiniPix Cyclone is an eye-catching LED Pixel FX light designed to create dynamic lighting effects for clubs, parties, special events, concerts, and live productions. It features 325 × 0.2W RGB 5050 SMD LEDs with a wide 120° beam angle, producing vibrant red, green, and blue effects across a broad area. With 85 animated effects and 20 pattern color presets, the Cyclone can create spinning, swirling, swiping, tunneling, bursting, and other visually engaging patterns.
The InfiniPix Cyclone gives lighting professionals extensive creative control over color, speed, and effects. Its automated patterns can be adjusted for different looks, with many effects allowing RGB mixed-color backgrounds to be layered behind the animations. Smooth 16-bit electronic dimming from 0–100% provides precise brightness control, while the 1–25Hz electronic strobe, pulse.

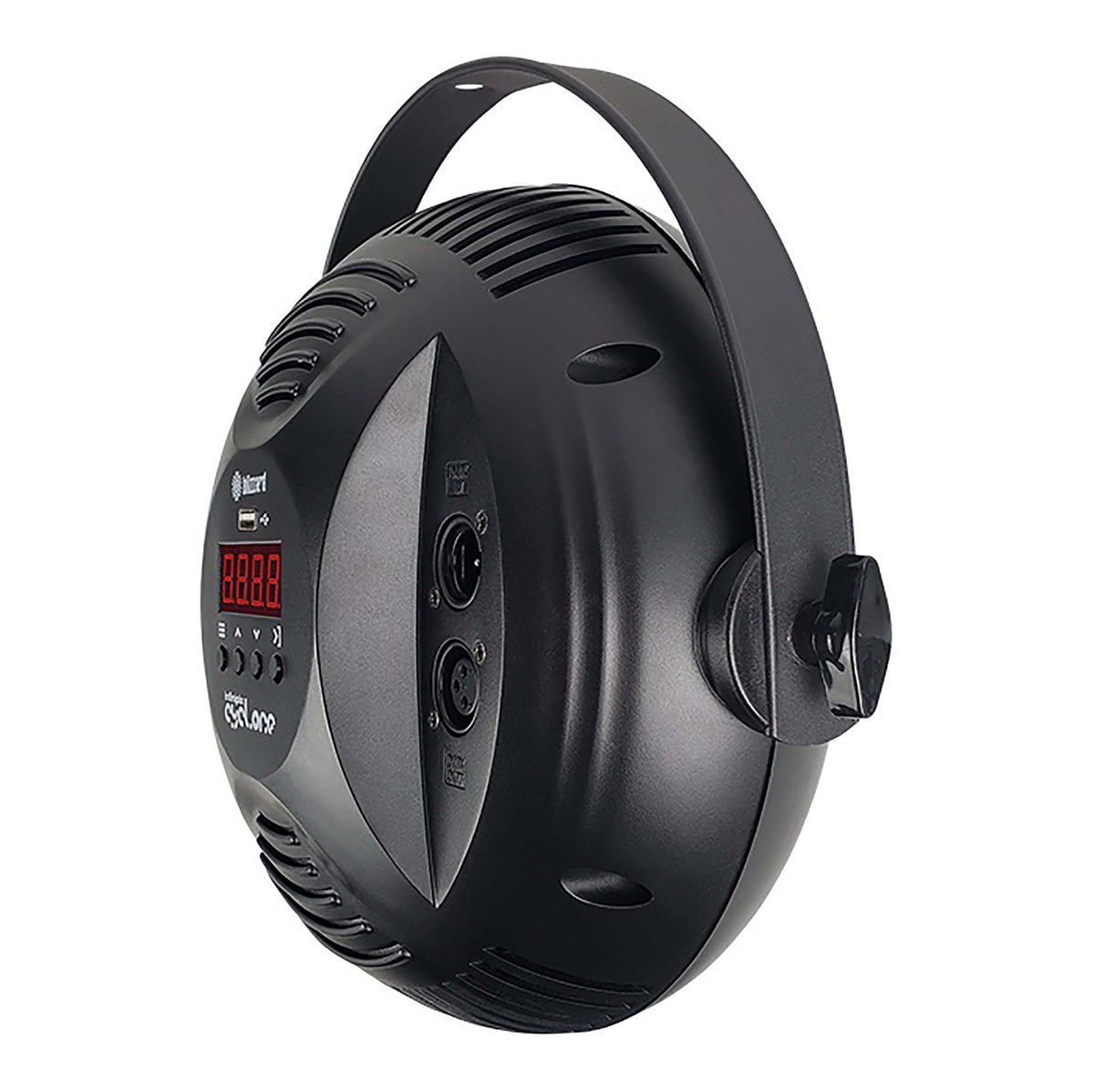

Built for professional lighting environments, the Cyclone supports DMX512 and RDM control with 4-, 5-, and 8-channel DMX modes, along with Primary/Secondary and Sound-Active operating modes. Its durable composite housing features a four-button LED control panel, locking mounting bracket, PowerCON-compatible power input/output, and 3-pin XLR DMX input/output. A +5V.
Key Features
- 325 × 0.2W RGB 5050 SMD LEDs create vibrant pixel effects.
- 85 animated effects and 20 pattern color presets provide creative flexibility.
- 120° beam angle delivers wide and immersive coverage.
- 16-bit electronic dimming provides smooth 0–100% brightness control.
Ideal For
- Clubs and nightclubs.
- Concerts and live performances.
- DJs and mobile entertainers.
- Parties and private events.
- Weddings and special events.
- Stage and theatrical productions.
- Festivals and entertainment venues.
- Video and broadcast productions.
What's in the Box
- Blizzard InfiniPix Cyclone RGB LED Pixel Effects Light
- powerCON Power Cord

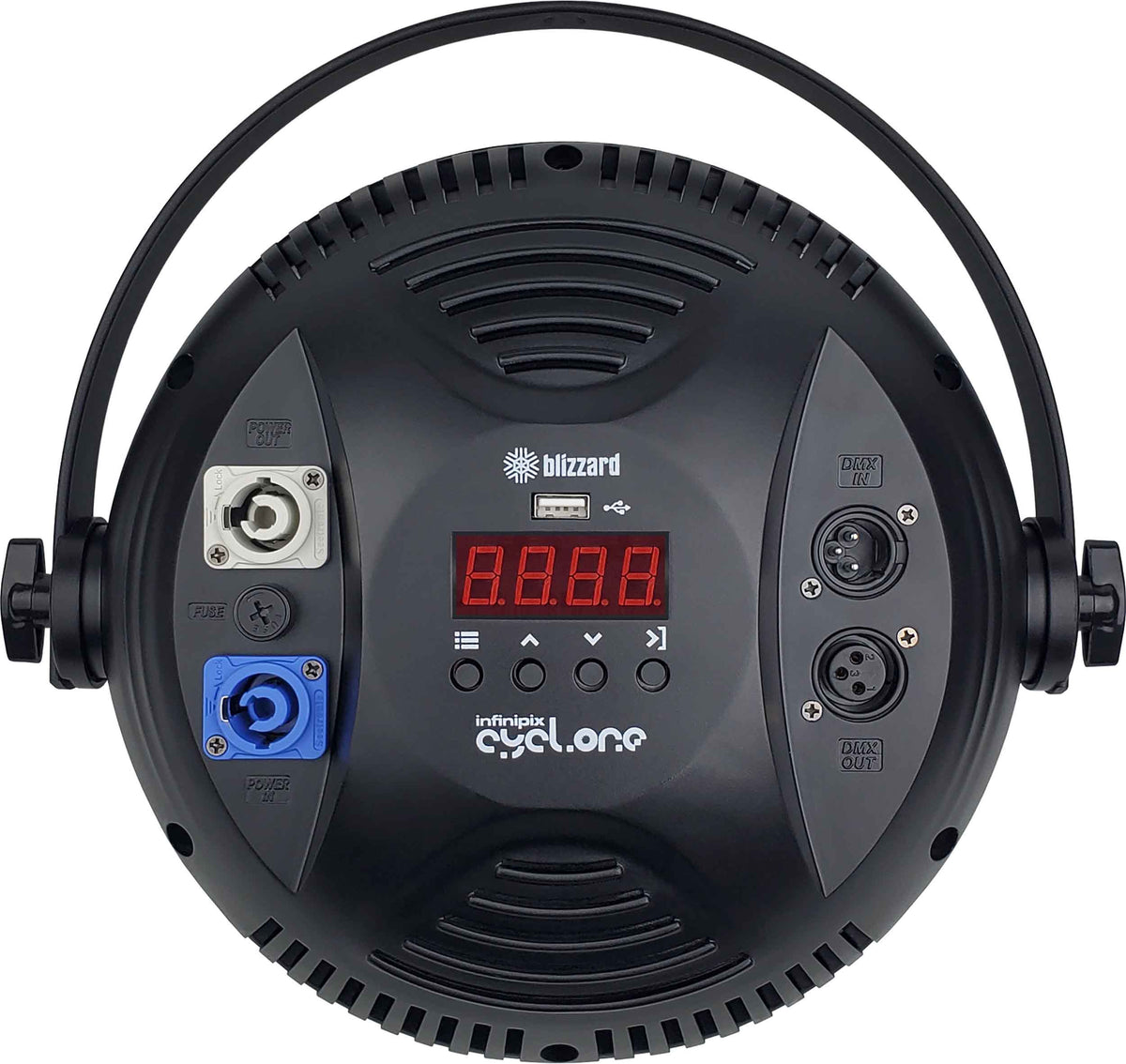

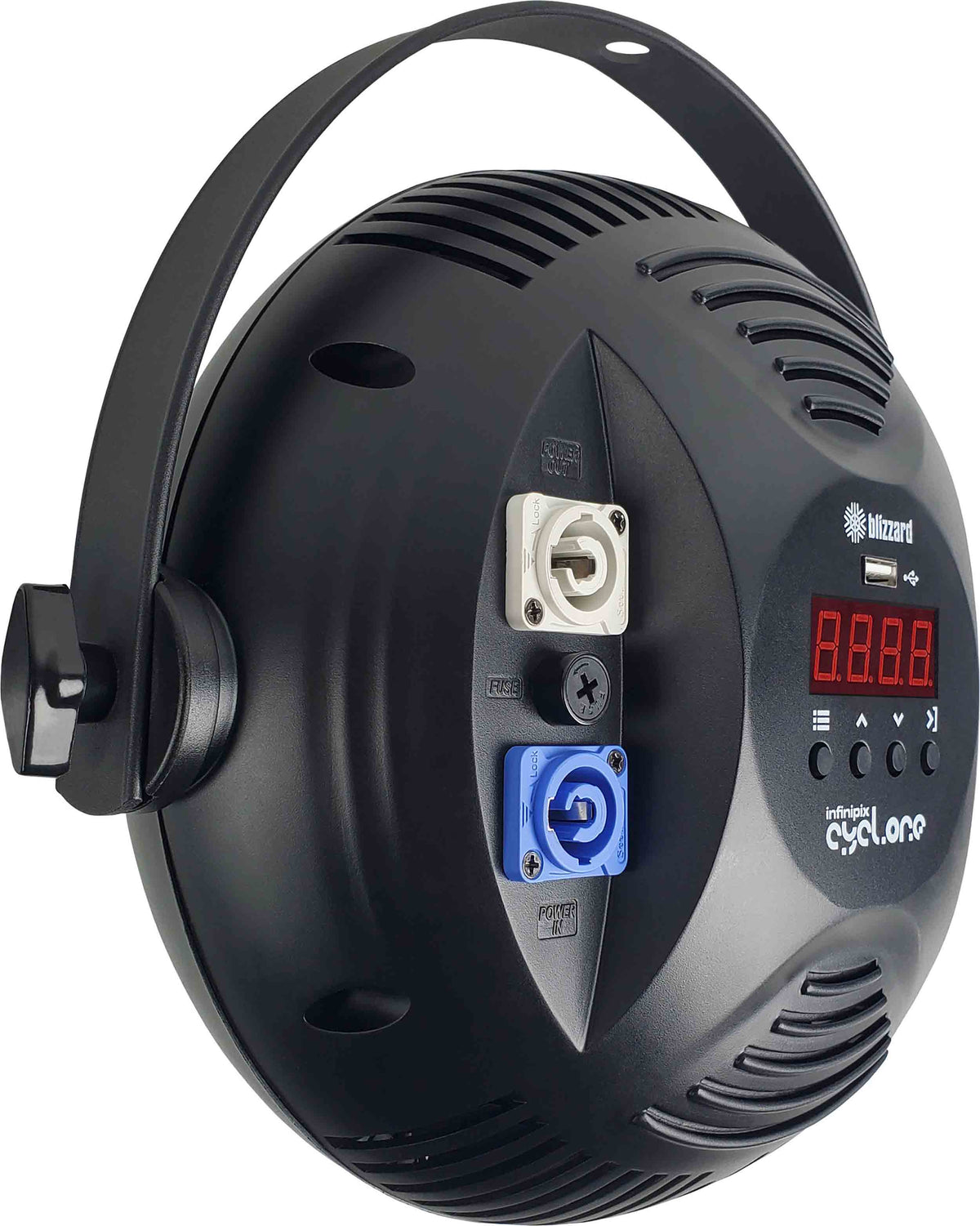

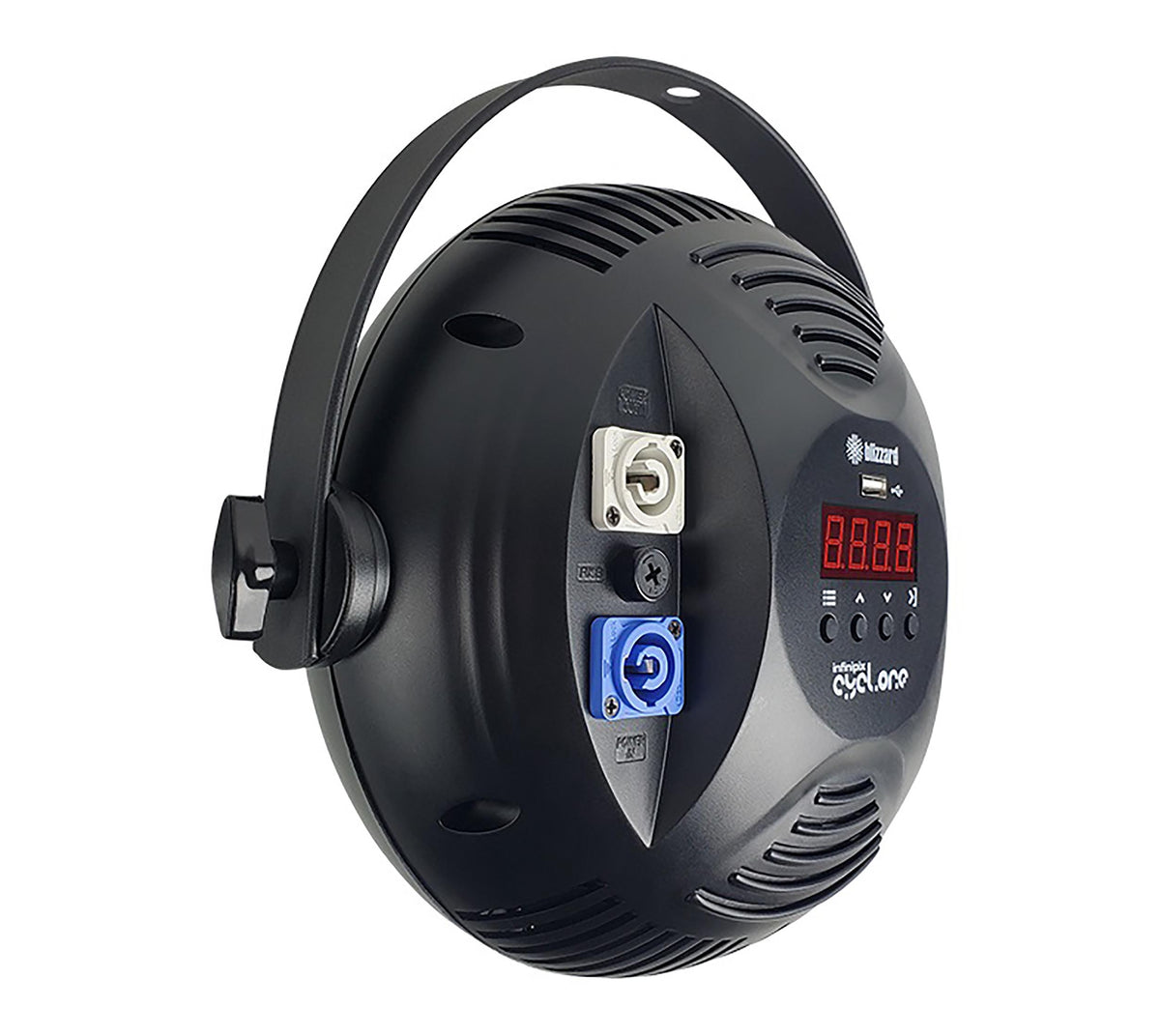

Inputs & Outputs
- 1 × 3-pin XLR DMX Input.
- 1 × PowerCON TRUE1 Power Input.
- 1 × 3-pin XLR DMX Output.
- 1 × PowerCON TRUE1 Power Output.
- +5V USB port for powering optional SoC-It wireless DMX.
Frequently Asked Questions
How many LEDs does the InfiniPix Cyclone have?
It features 325 × 0.2W RGB 5050 SMD LEDs with a 120° beam angle.
How many lighting effects are included?
The Cyclone includes 85 animated effects and 20 pattern color presets, with adjustable color and speed.
What DMX modes does the Cyclone support?
It supports 4-, 5-, and 8-channel DMX modes with DMX512 and RDM compatibility.
Can the Cyclone be used for video production?
Yes. Its flicker-free, constant-current LED driver makes it suitable for video and camera-based applications.
Full Technical Specifications
Audio Performance
|
Fixture Type |
1 × Special Design |
|
Light Source |
325 × 0.2W RGB 5050 SMD LEDs |
|
LED Colors |
Blue, Green, Red |
|
Expected LED Life |
50,000 hours |
|
Beam Angle |
120° |
|
Dimming |
16-bit electronic, 0–100% |
|
Shutter/Strobe |
Electronic |
|
Strobe Rate |
1–25Hz |
|
Effects |
85 animated effects + 20 pattern color presets |
|
Additional Effects |
Pulse and random effects |
|
Operating Modes |
DMX, Primary/Secondary, Sound-Active |
|
Control Protocols |
DMX512 and RDM |
|
DMX Channel Modes |
4, 5, and 8 channels |
|
Display/Controls |
4-button LED control panel |
|
Remote Control |
No |
|
Mobile App Compatible |
No |
|
Wireless |
No built-in wireless; +5V USB supports optional SoC-It wireless DMX |
Connectors
|
DMX Input |
3-pin XLR |
|
DMX Output |
3-pin XLR |
|
Power Input |
1 × powerCON |
|
Power Output |
1 × powerCON |
|
USB Port |
+5V USB output for powering the optional SoC-It wireless DMX solution |
Power & Operation
|
Power Supply |
100–240VAC, 50/60Hz |
|
Power Consumption |
41W / 0.54A |
|
Power Input |
1 × powerCON |
|
Power Output |
1 × powerCON |
|
Power Linking |
Supported via powerCON output |
|
Control Protocols |
DMX512 and RDM |
|
DMX Modes |
4-, 5-, and 8-channel profiles |
|
Operating Modes |
DMX, Primary/Secondary, and Sound-Active |
|
Dimming |
16-bit electronic, 0–100% |
|
Strobe |
1–25Hz electronic strobe |
|
Effects |
85 animated effects, 20 pattern color presets, pulse, and random effects |
|
Controls |
4-button LED control panel |
Dimensions & Weight
|
Dimensions |
12.4" L × 9.4" W × 4.6" H (31.5 × 23.9 × 11.7 cm) |
|
Weight |
4.1 lbs (1.9 kg) |
