Descripción

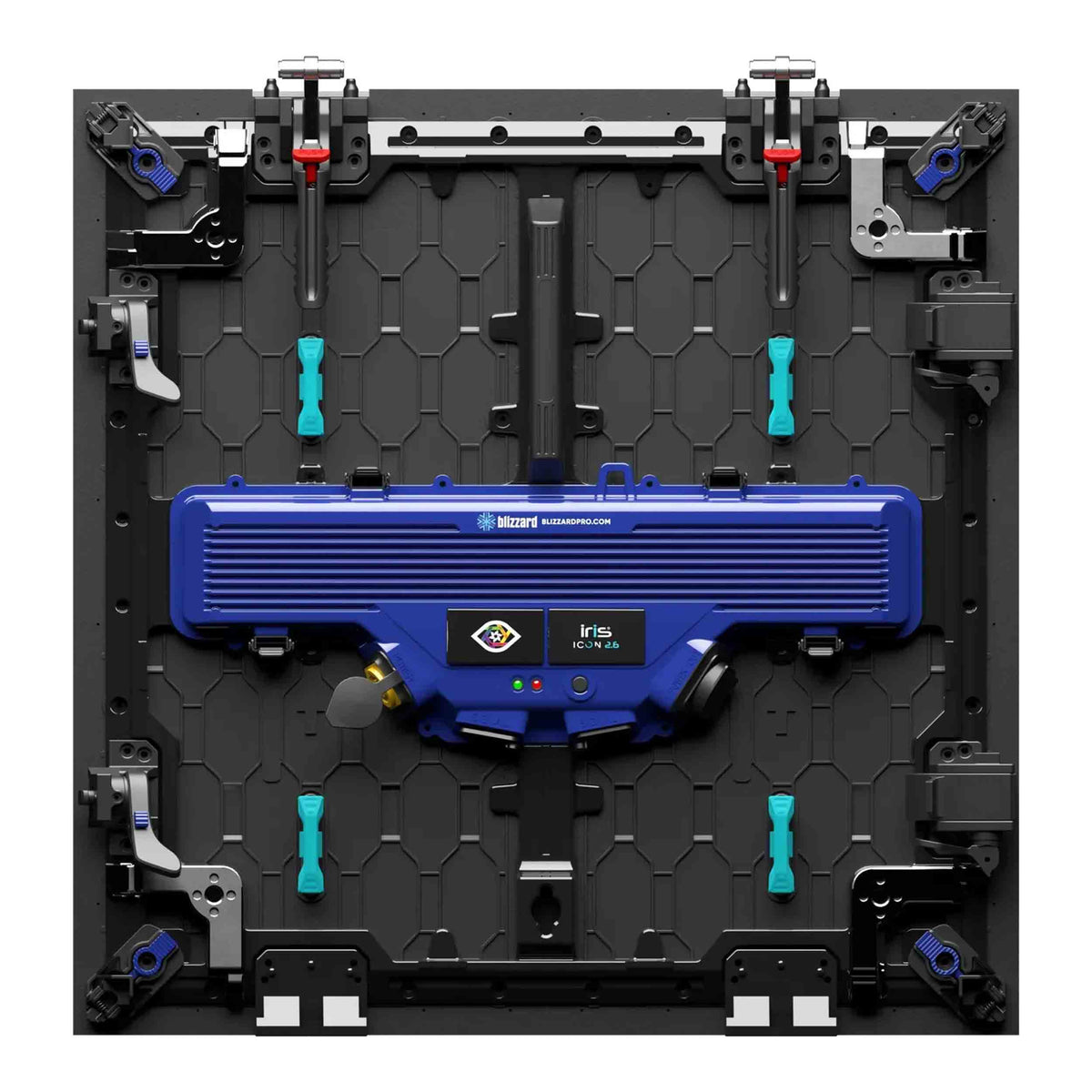

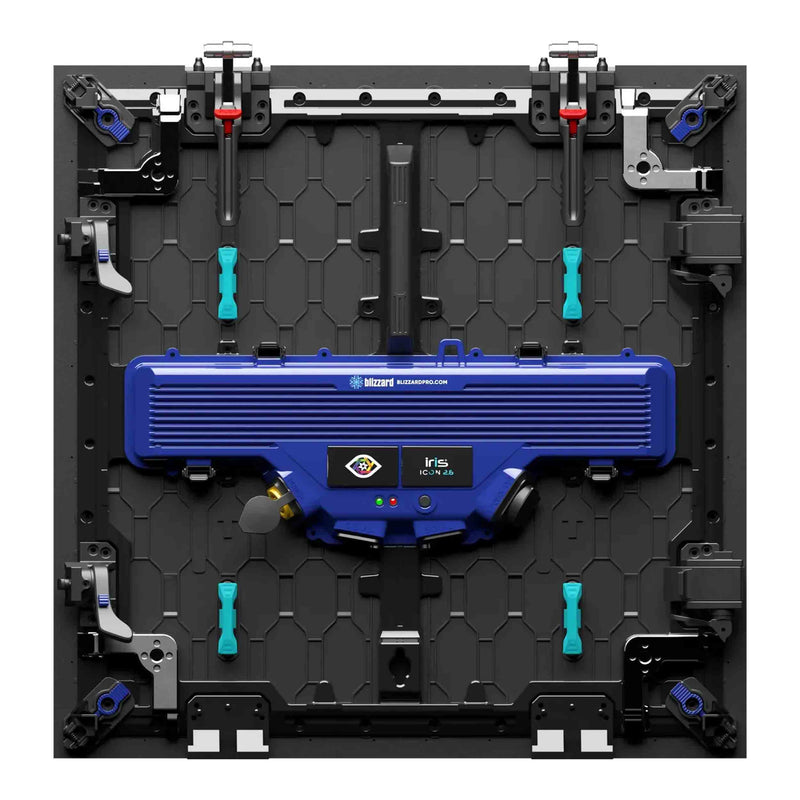

The Blizzard Lighting IRiS ICON 2.6 is a professional LED video wall panel designed for indoor visual displays, events, installations, and other applications requiring detailed image reproduction. Its 2.6mm pixel pitch and 192 x 192 panel resolution provide a high-density display surface, while 800-nit brightness delivers clear and vibrant visuals. The SMD RGB 1515 3-in-1 LED configuration, 14-bit color depth, and 22-bit+ grayscale with Clearview processing provide detailed and consistent image performance.
The 500 x 500mm panel uses four LED modules and supports ±6° curvature for flexible display configurations. Its NovaStar A8s-N receiving card provides reliable LED display control and can be customized for Brompton processing. HDR10-Optima and HLG support expands the panel's compatibility with high-dynamic-range content, while the ≥3,840Hz refresh rate helps provide smooth video reproduction for professional applications. Front and rear serviceability simplifies maintenance and installation access.
Designed as part of the IRiS ICON series, the panel features IP40 protection on the front and IP21 protection on the rear. Corner protectors, quick-thumb locking, blackout gaskets, and ground support locks provide practical features for installation and display assembly. With a 100,000-hour rated lifespan, 10% to 90% operating humidity range, and -10°C to +40°C working temperature range, the ICON 2.6 provides a flexible solution for professional LED video wall applications.
Product Specifications:
Product Type: LED Video Wall Panel
Application: Professional LED Video Displays
Pixel Pitch: 2.6 mm
Panel Resolution: 192 x 192 Pixels
Pixel Density: 147,456 Dots/m²
LED Configuration: SMD RGB 1515 3-in-1
Module Quantity: 4
Brightness: 800 Nits
Color Depth: 14 Bit
Grayscale: 22 Bit+ / Clearview
HDR: HDR10-Optima / HLG
Refresh Rate: ≥3,840 Hz
Scan Mode: 1/24
Curvature: ±6°
Viewing Angle: 120°
IP Rating: IP40 Front / IP21 Rear
Receiving Card: NovaStar A8s-N
Processing Compatibility: Customizable with Brompton Processing
Input Power: 650 W/m²
Maximum Power Usage: 150 W
Lifespan: 100,000 Hours
Working Temperature: -10°C to +40°C
Working Humidity: 10% to 90% RH
Serviceability: Front and Rear
Locking System: Quick-Thumb Locking
Special Features: Corner Protectors, Blackout Gaskets, Ground Support Locks
Primary Usage: ICON Series
Certifications: FCC, ETL, CE, RoHS
Product Weight: 14.6 lbs.
Product Dimensions (W x H x D): 19.69" x 19.69" x 2.83"
