Descripción

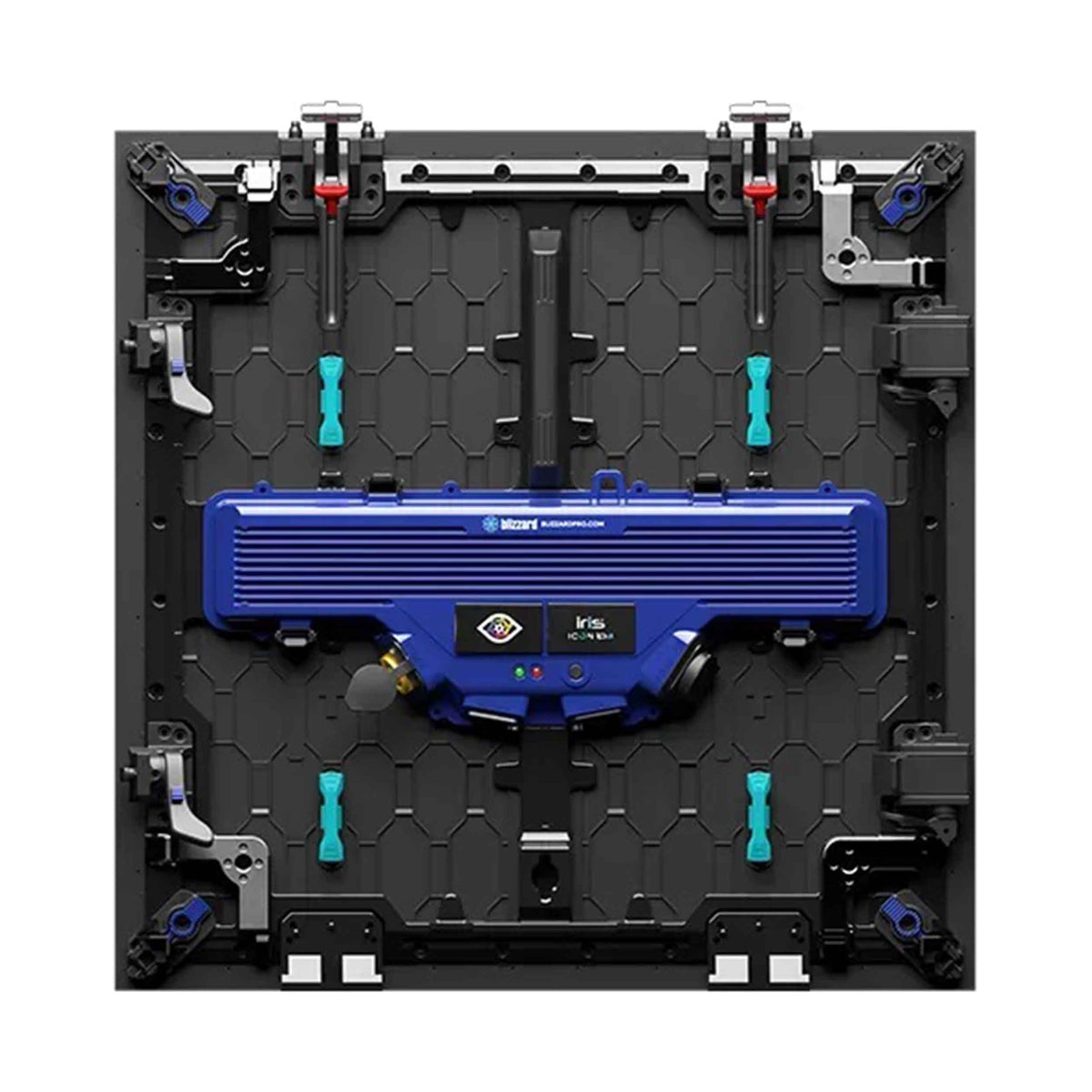

The Blizzard Lighting IRiS ICON IP3 is a professional 500 x 500mm LED video wall panel designed for multipurpose and outdoor visual display applications. Its 3.9mm pixel pitch and 128 x 128 panel resolution provide detailed image reproduction, while 4,500-nit brightness delivers strong visibility in demanding lighting conditions. The SMD RGB 1921 LED configuration, 14-bit color depth, and 22-bit+ grayscale with Clearview processing provide detailed and consistent visual performance.
The panel uses two LED modules and supports ±9° curvature for flexible display configurations. Its NovaStar A8s-N receiving card provides reliable LED display control and can be customized for Brompton processing. HDR10-Optima and HLG support provide compatibility with high-dynamic-range content, while the ≥3,840Hz refresh rate helps deliver smooth video reproduction. Front and rear serviceability provides convenient access for installation and maintenance, while quick-thumb locking simplifies panel assembly.
Designed for demanding indoor and outdoor applications, the IRiS ICON IP3 features IP65 protection on the front and IP54 protection on the rear, with a working temperature range of -20°C to +50°C and humidity range of 10% to 90%. Corner protectors, ground support locks, blackout gaskets, and quick-thumb locking provide practical features for professional deployment. With a 100,000-hour rated lifespan and 800W maximum power usage, the panel provides a versatile solution for events, touring, outdoor displays, corporate installations, and other large-format LED video applications.
Product Specifications:
Product Type: LED Video Wall Panel
Application: Professional LED Video Displays
Primary Usage: Multipurpose
Pixel Pitch: 3.9 mm
Panel Resolution: 128 x 128 Pixels
Pixel Density: 65,536 Dots/m²
Module Quantity: 2
Module Configuration: 2 x 1
Brightness: 4,500 Nits
Color Depth: 14 Bit
Grayscale: 22 Bit+ / Clearview
HDR: HDR10-Optima / HLG
Refresh Rate: ≥3,840 Hz
Scan Mode: 1/16
Curvature: ±9°
Viewing Angle: 140° x 140°
IP Rating: IP65 Front / IP54 Rear
Receiving Card: NovaStar A8s-N
Processing Compatibility: Customizable with Brompton Processing
Input Power: 1,000 W/m²
Maximum Power Usage: 800 W
Average Power Consumption: 267 W/m²
Lifespan: 100,000 Hours
Working Temperature: -20°C to +50°C
Working Humidity: 10% to 90% RH
Serviceability: Front and Rear
Locking System: Quick-Thumb Locking
Special Features: Corner Protectors, Ground Support Locks, Blackout Gaskets
Power Input: 110–220 VAC, 50/60 Hz
Certifications: FCC, ETL, CE, RoHS
Product Weight: 16.6 lbs.
Product Dimensions (W x H x D): 19.69" x 19.69" x 2.87"
