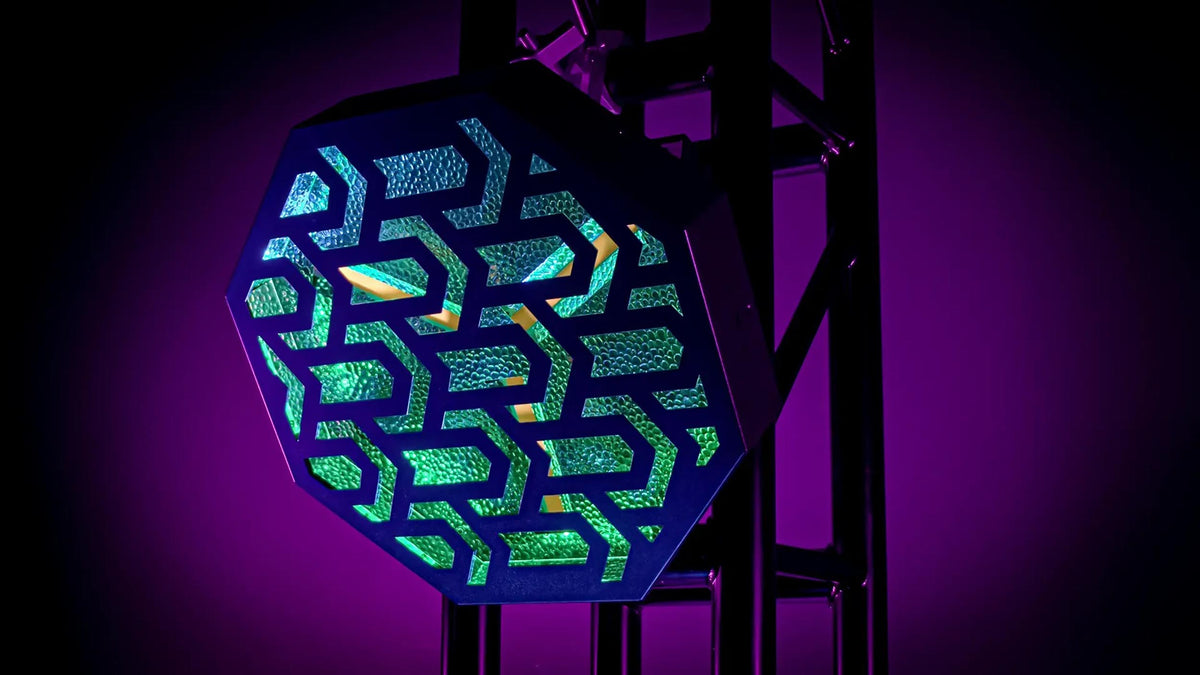

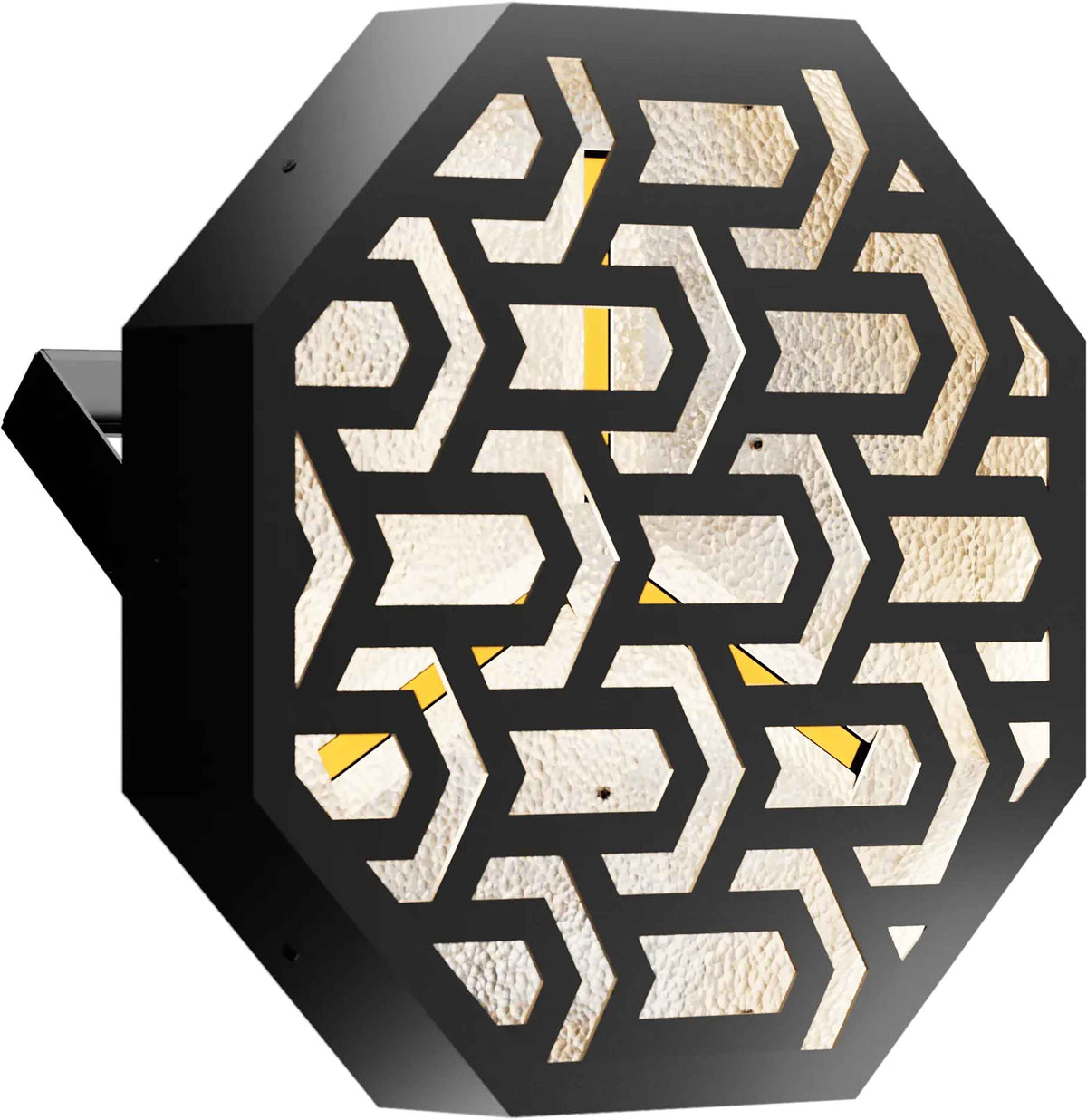

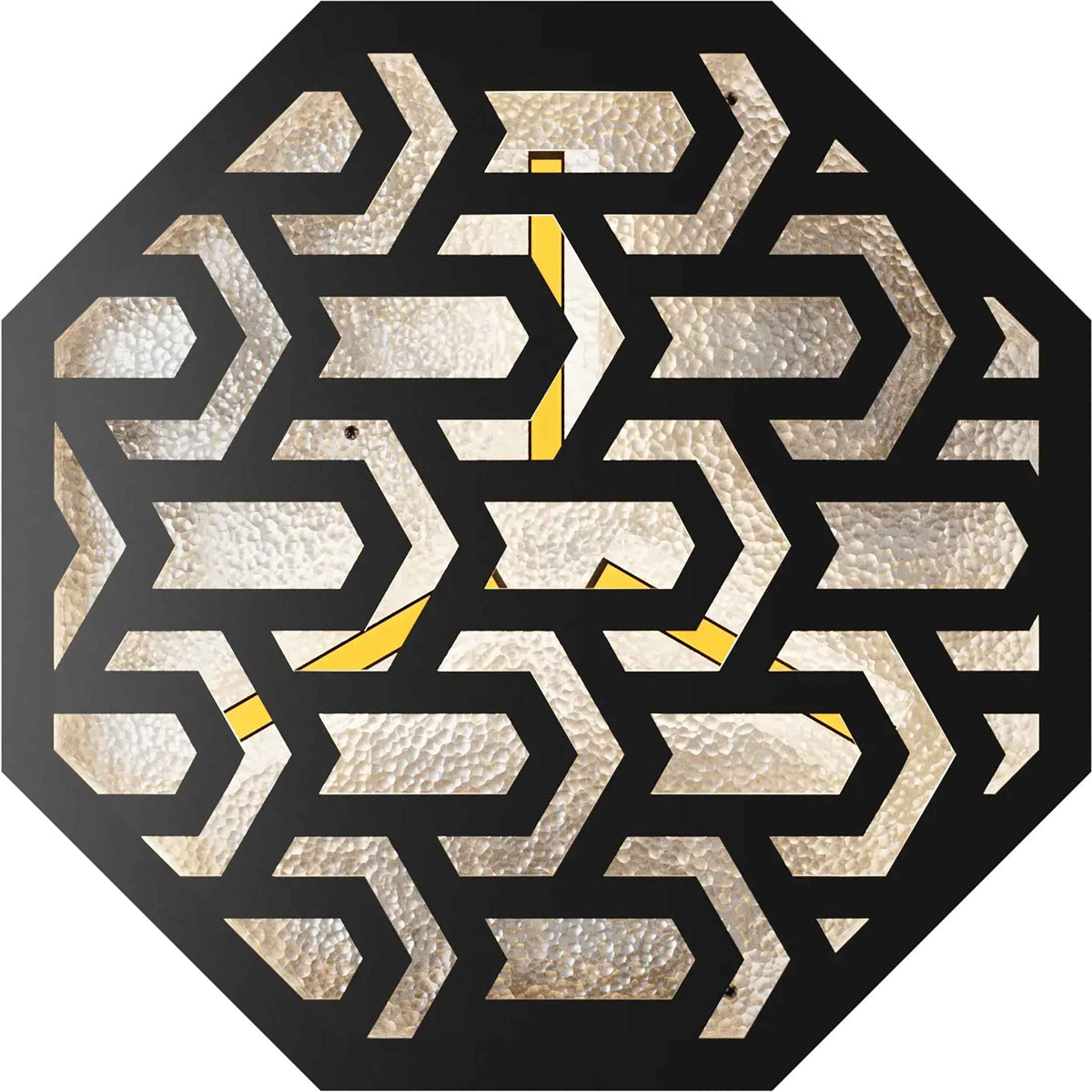

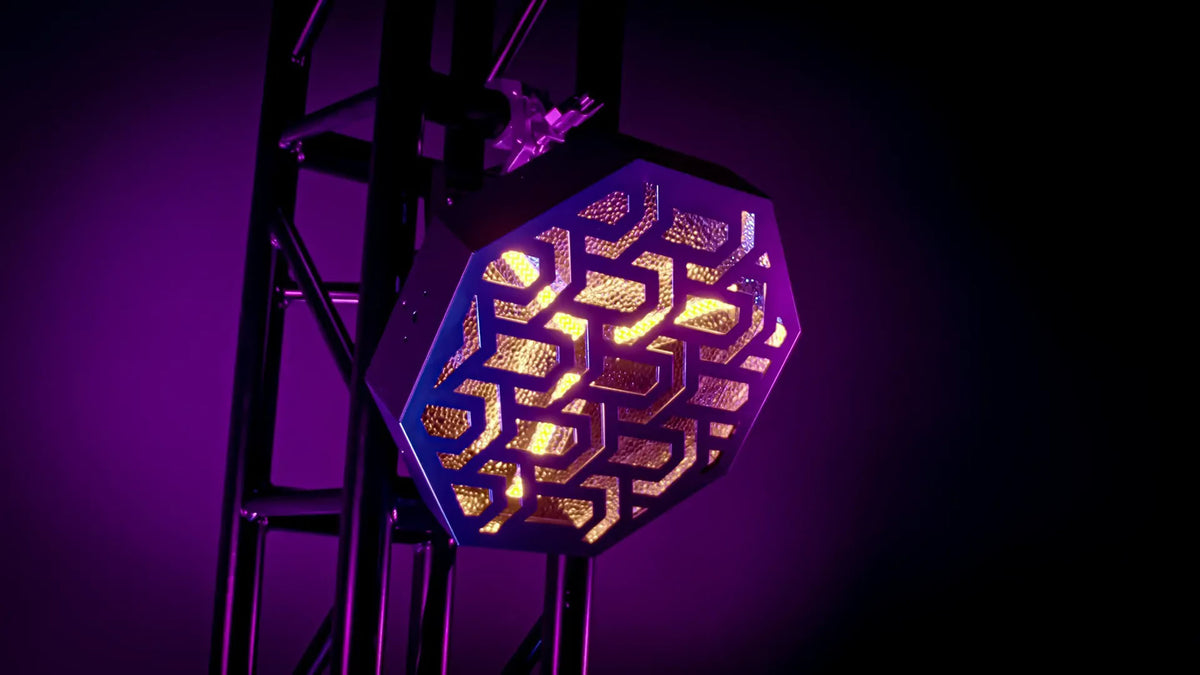

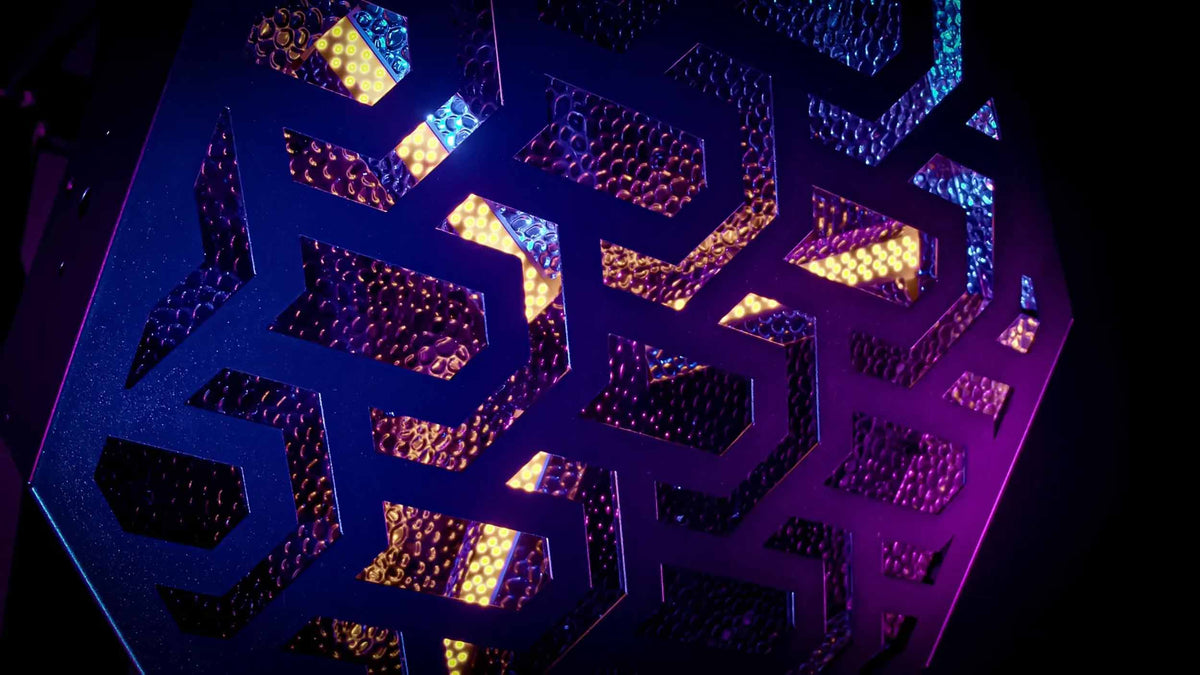

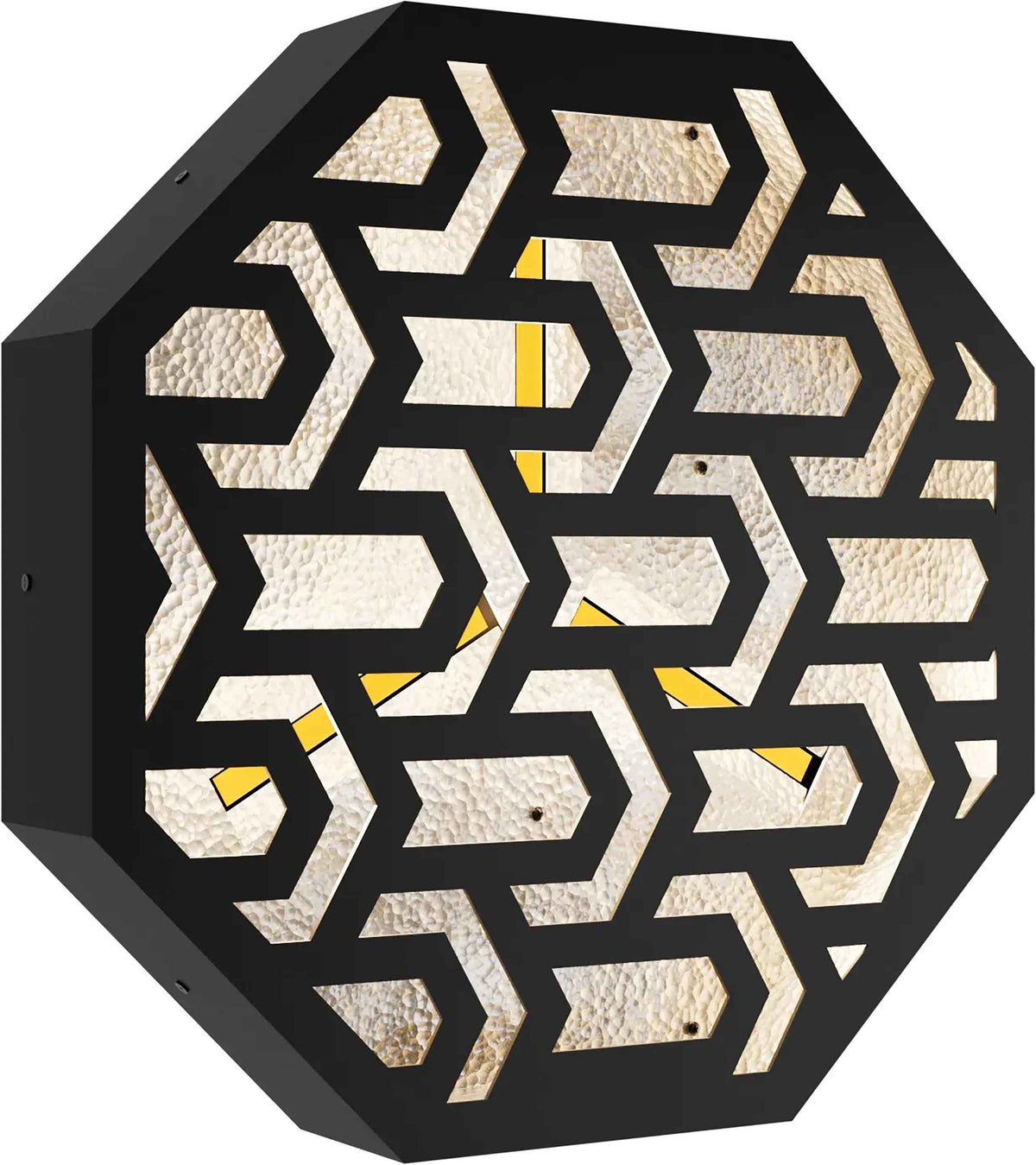

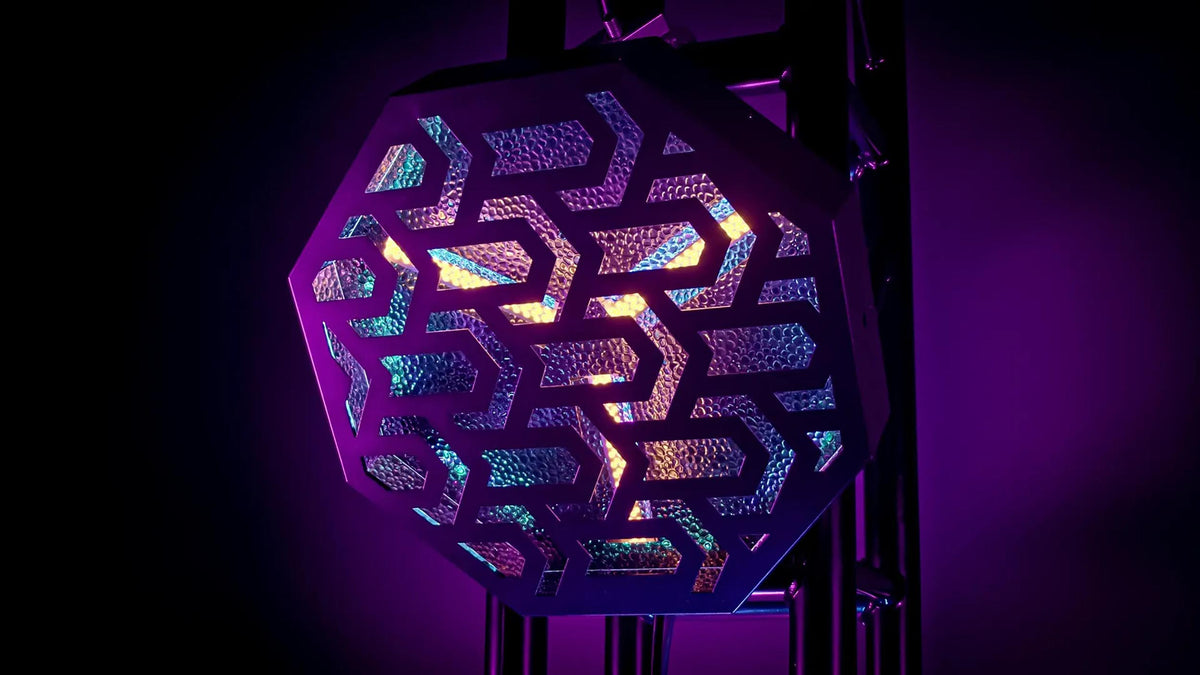

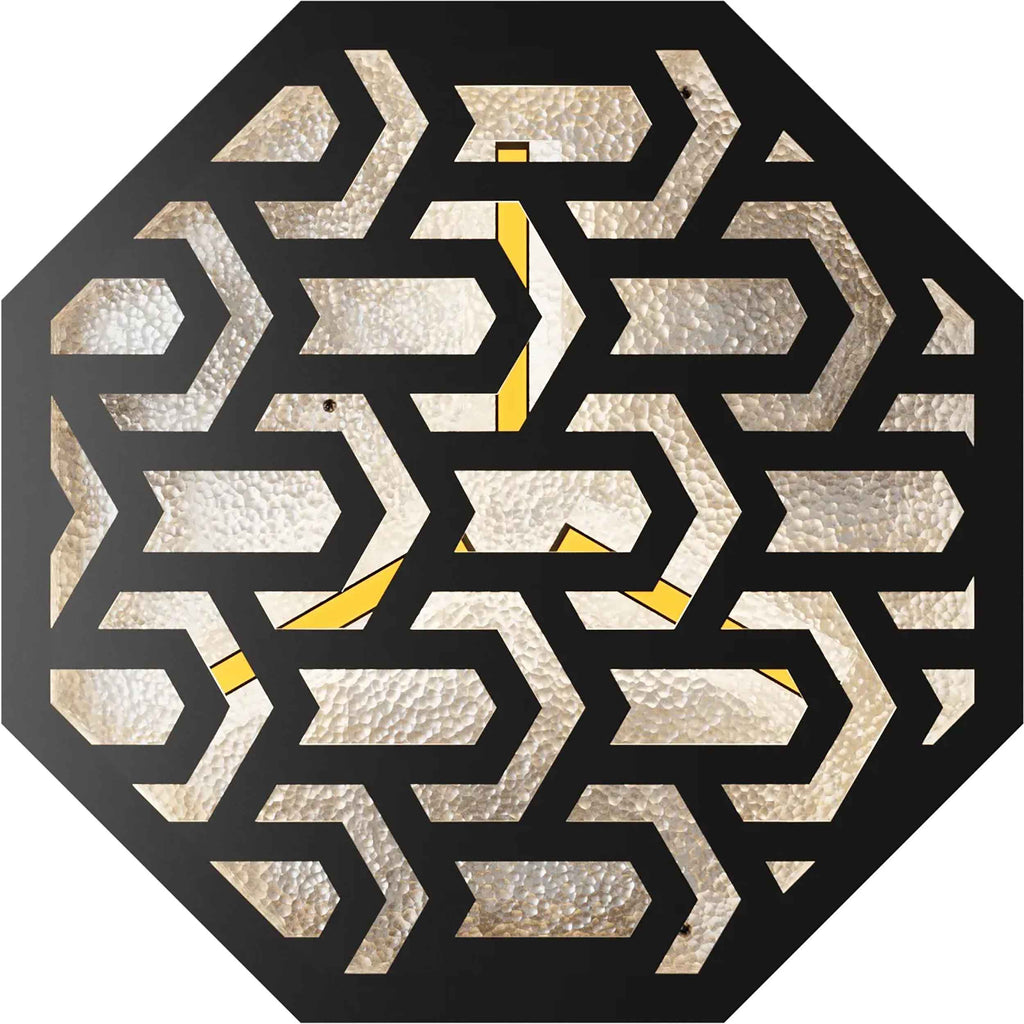

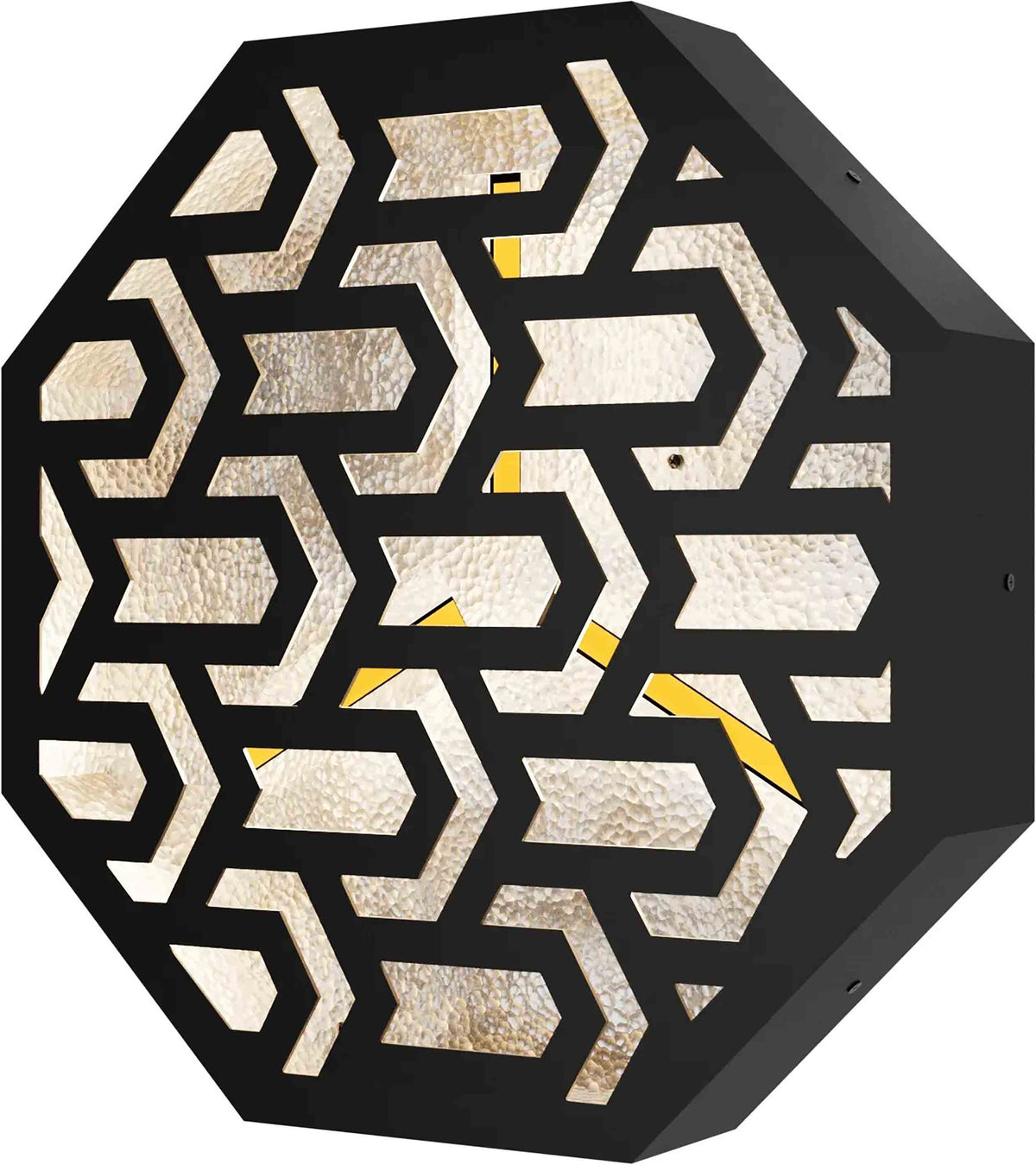

Blizzard Lighting Lux Capacitor 2 is a retro-inspired blinder and RGB effect fixture designed to create bold, eye-catching lighting effects for stages, concerts, clubs, events, and entertainment venues. It combines three 60W vintage-style 2000K warm white LEDs with 48 × 3W RGB LEDs to produce an intense warm amber glow surrounded by a colorful RGB aura.

The Lux Capacitor 2 provides flexible creative control with separate warm white and RGB color control, seven static background colors, and ten built-in programs featuring fades, chases, and speed control. Two sound-active modes allow the fixture to respond to music, while electronic strobe effects from 1–25Hz add dynamic movement.

Built for dependable performance, the Lux Capacitor 2 features a durable metal housing with a locking dual/scissor yoke for secure mounting. Its 4-button LCD control panel provides straightforward local operation, while 5-pin DMX input/output and powerCON TRUE1-compatible power input/output connections simplify professional setup and power linking.

Key Features

• 3 × 60W 2000K warm white LEDs deliver a powerful vintage-style blinder effect.
• 48 × 3W RGB LEDs create vibrant colored aura effects.
• Separate warm white and RGB controls provide flexible color mixing.
• 7 static background colors add versatile visual effects.

Ideal For

• Concerts and live performances.
• Clubs and nightclubs.
• DJs and mobile entertainers.
• Stage and theatrical productions.
• Festivals and music events.
• Weddings and special events.
• Corporate events and productions.
• Entertainment venues and performance spaces.

What's in the Box

• Blizzard Lux Capacitor 2 Warm White LED Blinder with RGB Backlight Effects
• powerCON True1 Power Cord

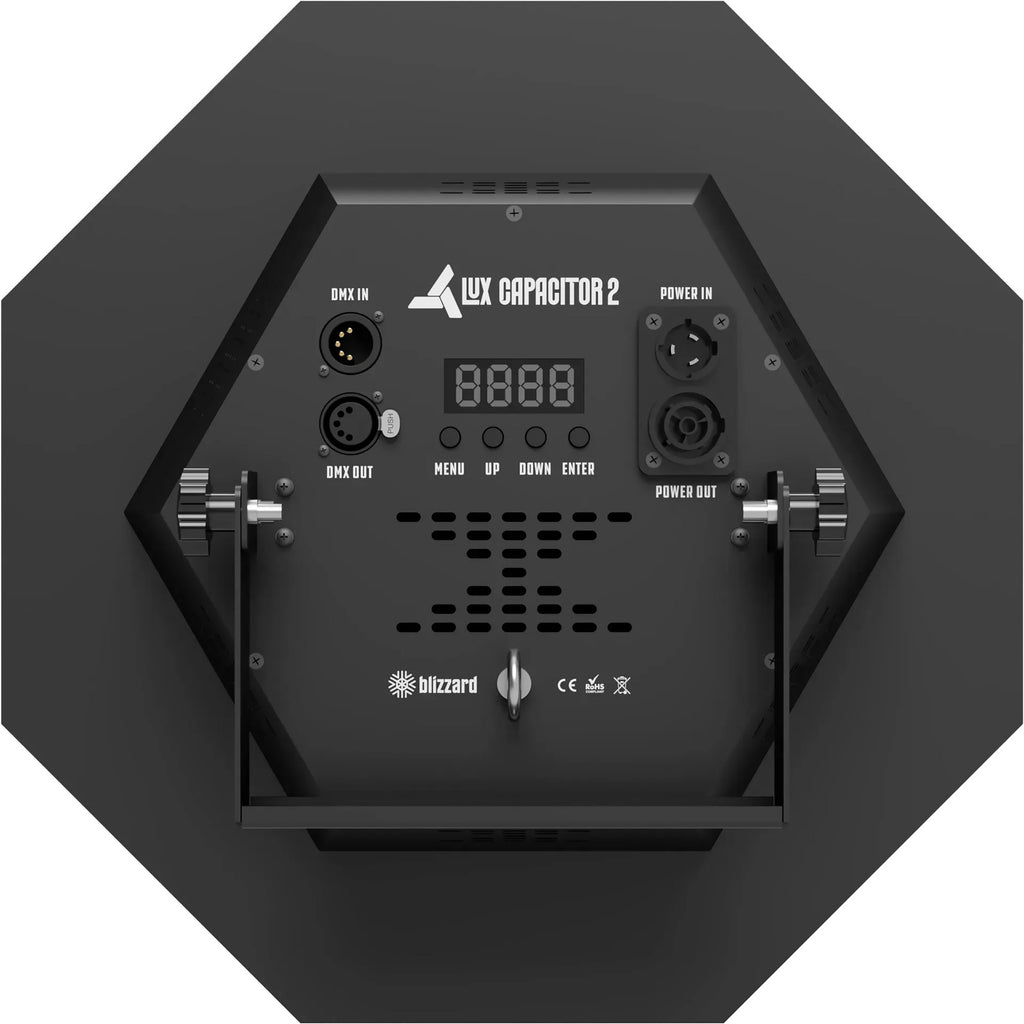

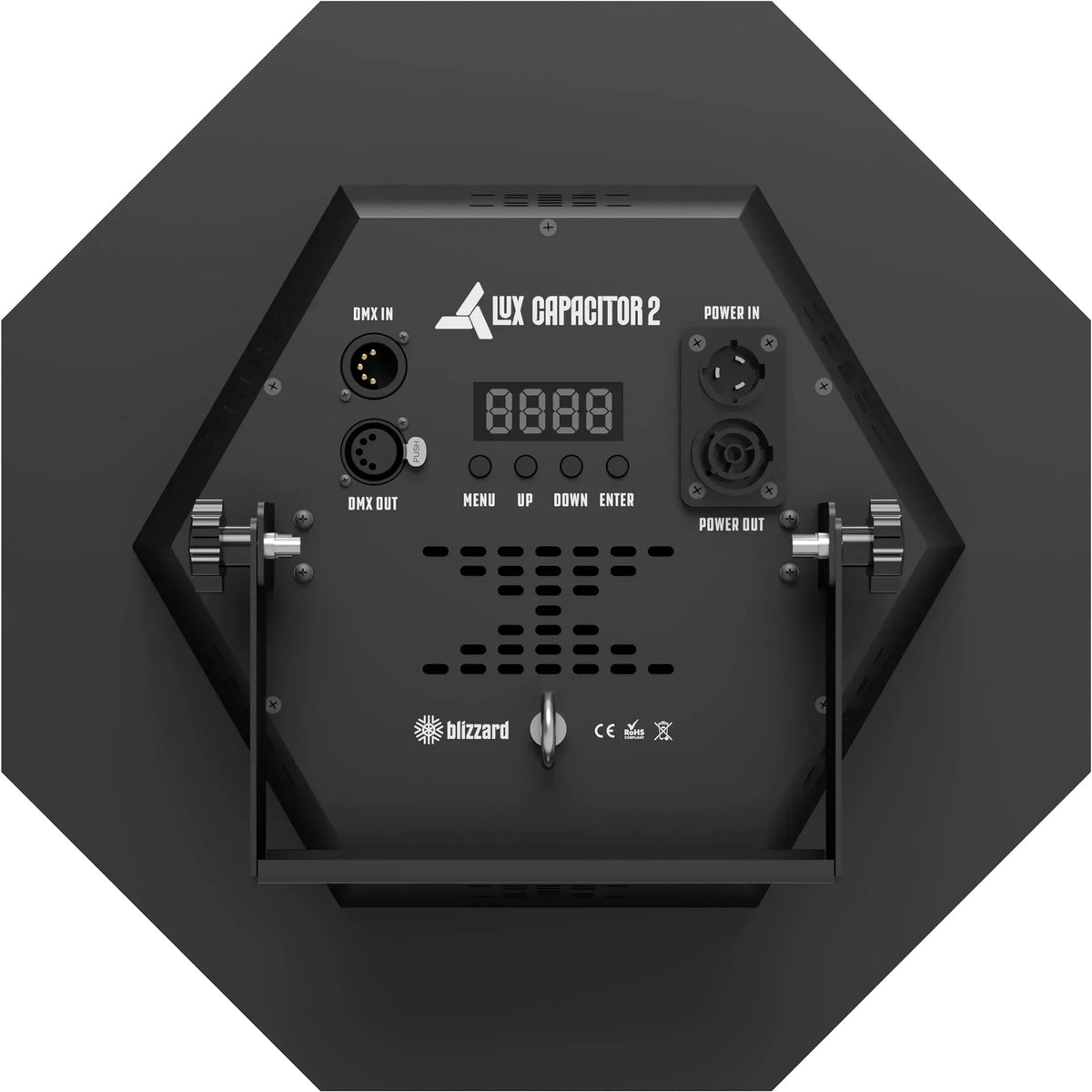

Inputs & Outputs

• 1 × 5-pin XLR DMX Input.
• 1 × powerCON TRUE1 Power Input.
• 1 × 5-pin XLR DMX Output.
• 1 × powerCON TRUE1 Power Output.

Frequently Asked Questions

What type of LEDs does the Lux Capacitor 2 use?

It features 3 × 60W 2000K warm white LEDs and 48 × 3W RGB LEDs for a combination of vintage blinder output and colorful effects.

Can the warm white and RGB LEDs be controlled separately?

Yes. The Lux Capacitor 2 provides separate warm white and RGB color control.

What DMX modes does the Lux Capacitor 2 support?

It supports 6-, 8-, and 10-channel DMX modes with DMX512 and RDM compatibility.

What lighting effects are available?

It includes 7 static colors, 10 built-in programs with fades and chases, two sound-active modes, and 1–25Hz electronic strobe effects.

Full Technical Specifications

Audio Performance

Fixture Type	1 × Special Design
Light Source	3 × 60W White LEDs + 48 × 3W RGB SMD5050 LEDs
LED Colors	Blue, Green, Red, Warm White
Warm White Color Temperature	2000K
Photometrics	425 lux / 39 fc at 8.2 ft / 2.5 m; 108 lux / 10 fc at 16.4 ft / 5 m
Shutter/Strobe	Electronic
Strobe Rate	1–25Hz
Dimming	Electronic, 0–100%
Operating Modes	Automatic, DMX, Primary/Secondary, Sound-Active
Gobos	No
Built-In Programs	10 programs with fades, chases, and speed control
Static Colors	7 background color presets
Control Protocols	DMX512 and RDM
DMX Channel Modes	6, 8, and 10 channels
Display/Controls	LCD display with 4-button control
Remote Control	No
Mobile App Compatible	No

Connectors

DMX Input	5-pin XLR
DMX Output	5-pin XLR
Power Input	PowerCON TRUE1
Power Output	PowerCON TRUE1
USB Port	No wireless connectivity

Power & Operation

Power Supply:	100–250VAC, 50/60Hz
Power Consumption	231W / 2.63A
Power Input	PowerCON TRUE1
Power Output	PowerCON TRUE1
Power Linking	Supported
Control Protocols	DMX512 and RDM
DMX Modes	6-, 8-, and 10-channel profiles
Operating Modes	Automatic, DMX, Primary/Secondary, and Sound-Active
Dimming	0–100% electronic dimming
Strobe	1–25Hz electronic strobe
Built-In Programs	10 programs with fades, chases, and speed control
Static Colors	7 background color presets
Controls	4-button LCD control panel
Color Control	Separate warm white and RGB control

Dimensions & Weight

Dimensions	15.8" L × 15.8" W × 7.5" H (40.1 × 40.1 × 19.1 cm)
Weight	14 lbs (6.4 kg)
