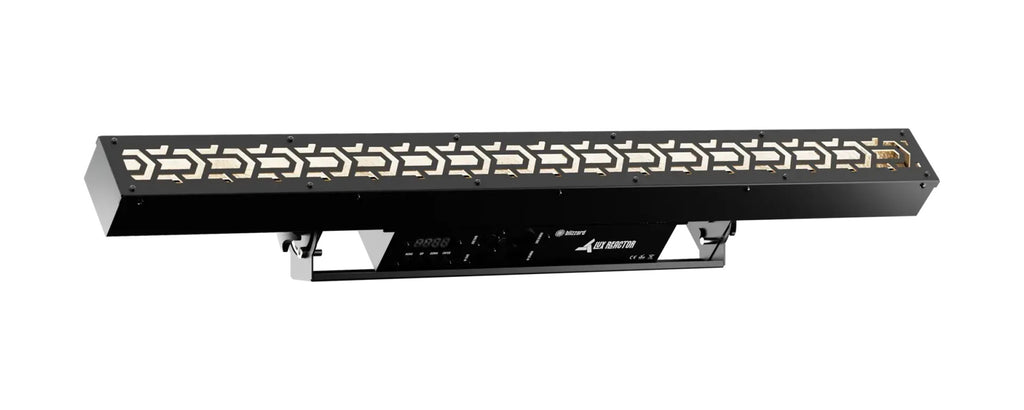

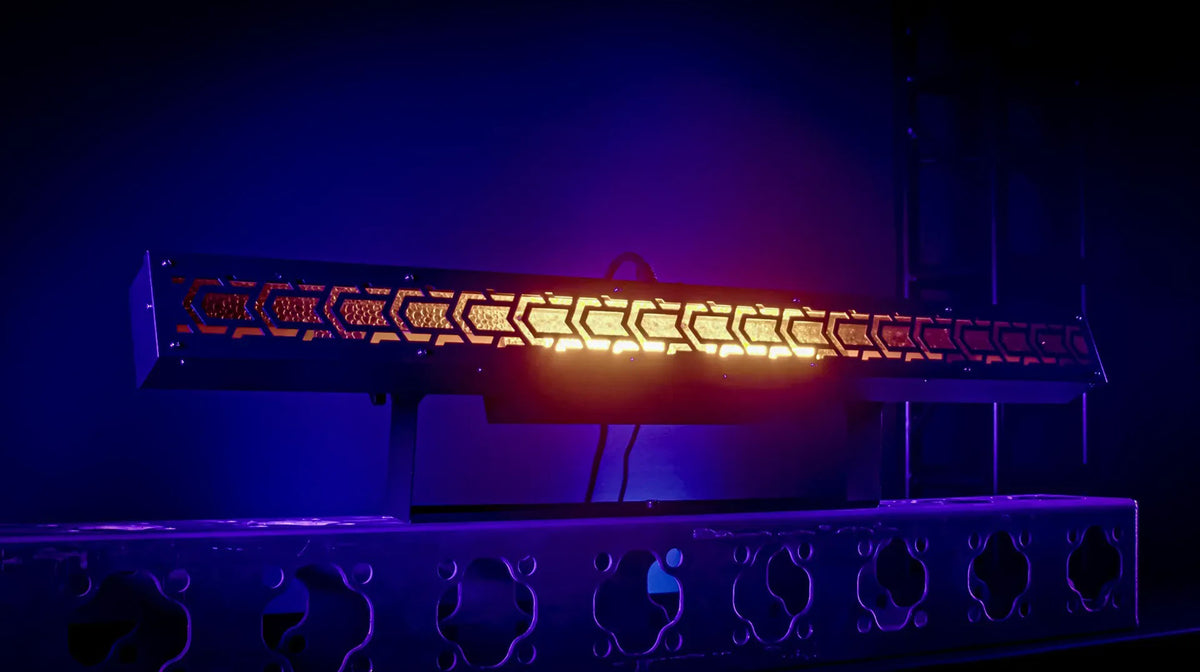

The Blizzard Lighting Lux Reactor is a 1-meter linear blinder and RGB effect fixture that combines high-output 1800K vintage-style warm white illumination with colorful RGB background effects. It features six 60W vintage warm white LEDs for a rich amber appearance along with 440 × 0.2W RGB LEDs that reflect against the aluminum inner housing to create a vivid aura effect.

Each warm white LED and its 20 RGB LED groups can be fully pixel mapped, providing extensive control for dynamic lighting designs. Separate warm white and RGB control allows the fixture to function as both a powerful vintage-style blinder and an eye-catching RGB effect source for stages, events, concerts, productions, and installations.

The Lux Reactor provides multiple DMX control modes, built-in programs, sound-active operation, variable electronic dimming, and 1–20Hz strobe effects. A durable metal housing, locking brackets, 4-button LED control panel, 5-pin DMX input/output, and PowerCON TRUE1-compatible power connections provide practical features for professional lighting setups.

Key Features

• 1-meter linear blinder with vintage white and RGB aura effects.
• Six 60W 1800K vintage warm white LEDs.
• 440 × 0.2W RGB LEDs for colorful background effects.
• Fully pixel-mappable warm white and RGB LED groups.
• Variable dimming and 1–20Hz electronic strobe effects.
• DMX, RDM, auto, master/slave, and sound-active operation.

Ideal For

• Concerts and live performances.
• Stage and theatrical productions.
• Touring and mobile entertainment.
• Event and production lighting.
• DJ and club lighting.
• Architectural and entertainment installations.

What’s in the Box

• Blizzard Lighting Lux Reactor Linear Blinder.

Inputs & Outputs

• DMX Input/Output 5-pin DMX connections for lighting control.
• Power Input/Output PowerCON TRUE1-compatible AC connections.
• Control USITT DMX-512 and RDM.
• Standalone Control Auto, master/slave, and sound-active operation.

Frequently Asked Questions

What is the Blizzard Lux Reactor?

The Lux Reactor is a 1-meter linear blinder and RGB effect fixture combining vintage-style 1800K warm white output with colorful RGB aura effects.

How many LEDs does the Lux Reactor have?

It features six 60W 1800K warm white LEDs and 440 0.2W RGB LEDs for background and aura lighting.

Can the warm white and RGB LEDs be controlled separately?

Yes. The fixture provides separate warm white and RGB control, with each warm white LED and its RGB groups fully pixel mappable.

What DMX modes does the Lux Reactor support?

It offers multiple DMX modes, including 4, 11, 23, 32, 66, and 73-channel configurations, depending on the control setup.

Does the Lux Reactor support RDM and sound activation?

Yes. It supports RDM and includes sound-active operation, along with built-in programs and adjustable program speeds.

What are the dimensions and weight of the Lux Reactor?

The fixture measures approximately 39.5" × 3.3" × 6" and weighs 9.6 lbs.

Full Technical Specifications

Optical & Lighting Specifications

Fixture Type	Linear Blinder with RGB Aura Effects
Fixture Length	1 Meter
Vintage Warm White LEDs	6 x 60W, 1800K
RGB LEDs	440 x 0.2W
RGB Configuration	20 RGB Groups
Pixel Mapping	Each Warm White LED and RGB Group
Luminous Intensity	554 Lux @ 2.5 m; 67 Lux @ 5 m
Dimming	Variable Electronic Dimming
Strobe	1–20 Hz
Built-In Programs	Yes, Adjustable Speed
Sound Active	Yes
Color Control	Separate Warm White and RGB Control

Control, Power & Connectivity

Control Protocol	USITT DMX-512, RDM
DMX Channels	4 / 11 / 23 / 32 / 66 / 73 Channels
DMX Connectors	5-Pin DMX In/Out
Control Panel	4-Button LED Control Panel
Operating Modes	Master/Slave, Auto, Sound Active
Power Input	100–240VAC, 50–60 Hz
Power Consumption	101W
Current Draw	1.31A
Power Factor	0.66
Power Connectors	PowerCON TRUE1-Compatible In/Out
Housing	Durable Metal Housing
Mounting	Locking Brackets

Physical Specifications

Product Weight	9.6 lbs.
Product Dimensions (L x W x H)	39.5" x 3.3" x 6"
