Descripción

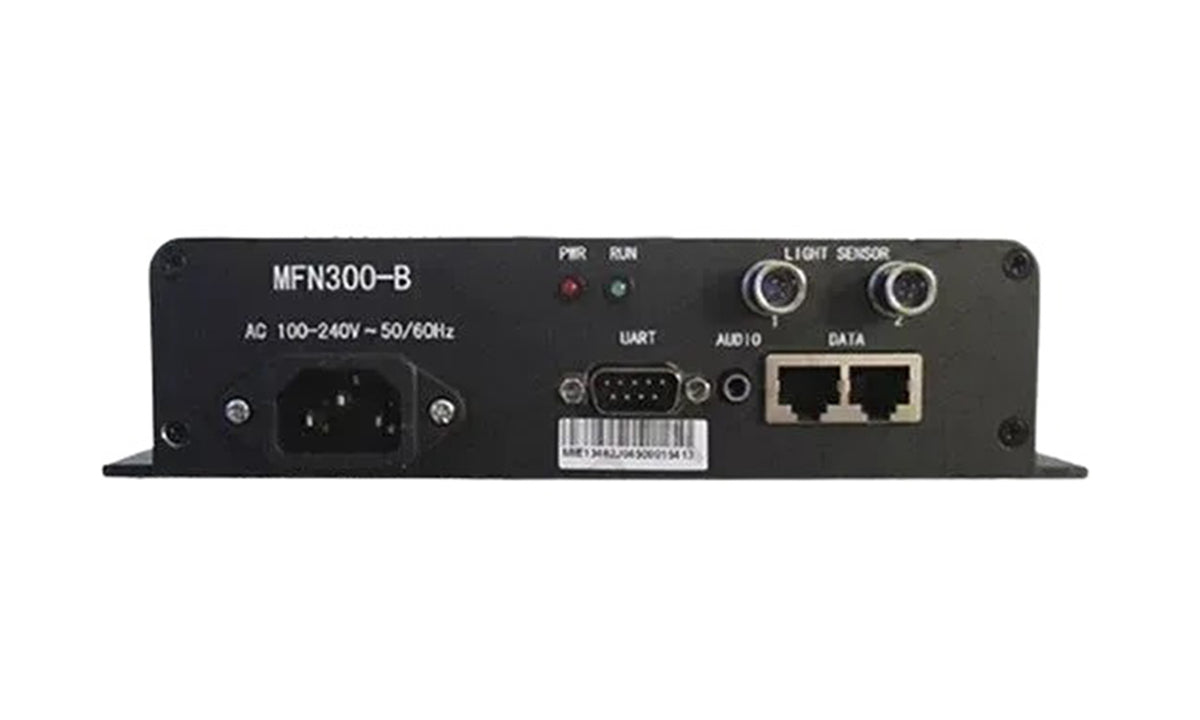

The Blizzard Lighting MFN300-B is a multi-functional control box designed to provide auxiliary control and monitoring functions for LED display systems. It supports RS232 serial communication and Gigabit Ethernet connectivity, allowing flexible communication with compatible display equipment. The MFN300-B can also provide Ethernet connections between two receiving cards or at the end of a receiving-card system, making it a practical addition to professional LED display installations.
The MFN300-B combines several monitoring and control functions in a compact enclosure. It supports temperature and humidity detection for power distribution boxes, as well as connection to a temperature and humidity module. Four light sensor connections enable automatic brightness adjustment based on ambient lighting conditions. An integrated timer function can replace separate timer and delayer equipment, while eight-way power switch control provides convenient management of connected power circuits.
The unit operates from a DC 4.5V to 5.5V power supply with a rated current of 0.38A. Its DMX signal/data connections use 3-pin XLR connectors with double shielding, 120-ohm impedance, and low-capacitance construction. The supplied power connection uses a 14AWG, three-conductor power cord with a maximum current rating of 15A and UL-recognized components. With its communication, monitoring, sensor, timer, and power-control functions, the MFN300-B provides a versatile solution for professional LED display and control applications.
Product Specifications:
Product Type: Multi-Functional LED Display Control Box
Application: LED Display Systems and Auxiliary Control
Communication: RS232 Serial and Gigabit Ethernet
Ethernet Function: Connection Between Two Receiving Cards or End Connection
Timer Function: Timer and Delayer Replacement
Temperature Detection: Power Distribution Box
Humidity Detection: Power Distribution Box
Light Sensor Connections: 4-Way
Automatic Brightness Adjustment: Yes
Temperature and Humidity Module: Supported
Power Switch Control: 8-Way
Audio Output: Yes
DMX Signal/Data: Supported
DMX Connectors: 3-Pin XLR
DMX Shielding: Double Shielded
DMX Impedance: 120 Ohms
DMX Cable Type: Low Capacitance
Power Supply: DC 4.5V to 5.5V
Rated Current: 0.38A
Power Cable: 14AWG, 3-Conductor
Maximum Current: 15A
Power Components: UL-Recognized
Operating Temperature: -20°C to 75°C
Operating Humidity: 10% to 90%
Primary Use: LED Displays, Brightness Control, Environmental Monitoring, and Power Management
Product Weight: 4.2 lbs.
Product Dimensions (L x W x D): 1.9" x 7.5" x 6.3"
