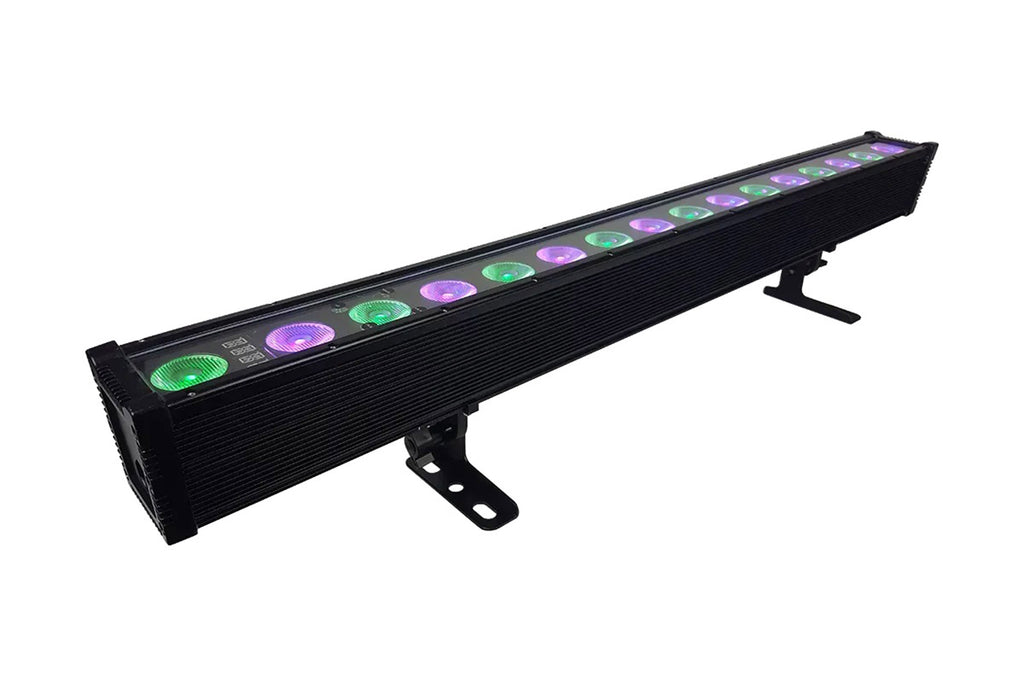

The Blizzard Lighting Motif Atelier 16FX is an IP65-rated, 1-meter LED linear wash fixture designed for professional stage lighting, architectural applications, and outdoor installations. Featuring 16 individually controllable 15W RGB+WW 4-in-1 LEDs, it delivers rich color mixing, warm white output, pixel effects, and smooth wash illumination. Its warm white LEDs emulate the look of tungsten lighting, producing soft, natural warmth or adding warmth to RGB color combinations.

The Motif Atelier 16FX features innovative 10° × 40° asymmetrical optics designed for precise vertical wall washing and lighting along scrims and other boundaries. The narrow 10° beam angle helps minimize unwanted light spill, while the perpendicular 40° spread blends individual LEDs into a homogeneous wash or creates overlapping color gradients and pixel-mapped effects.

Built for demanding indoor and outdoor environments, the Atelier 16FX combines a durable cast-aluminum housing, tempered glass lens, watertight internal gaskets, and IP-rated DMX and power connections with protective sealing covers. Its flicker-free LEDs, convection cooling, flexible DMX channel modes, and adjustable mounting bracket make it suitable for installations requiring reliable performance, quiet operation, and versatile lighting control.

Key Features

• IP65-rated construction for indoor and outdoor applications.
• 16 × 15W RGB+WW 4-in-1 LEDs.
• 2700K warm white LED output.
• 10° × 40° asymmetrical beam spread.
• Wash effects, grouped pixels, and pixel-mapping capabilities.
• Virtual color wheel effects.
• 10 custom colors and three custom program banks.
• RGB+WW color mixing in standalone mode.
• Custom global color calibration settings.
• Variable electronic dimmer and multiple strobe effects.
• DMX synchronization of custom settings between fixtures.
• IP-rated DMX connectors and PowerCON TRUE1-compatible power connections.

Ideal For

• Theatrical productions and stage lighting.
• Concerts and live entertainment.

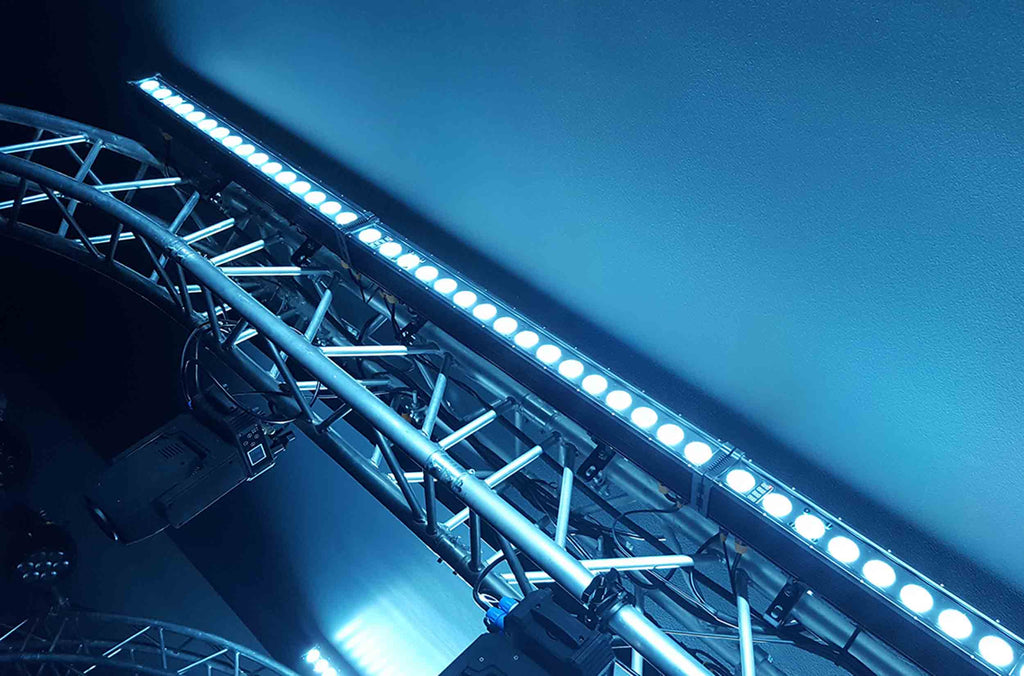

• Architectural wall washing.
• Museums, galleries, and exhibition spaces.
• Outdoor events and installations.
• Scenic backdrops, scrims, and vertical surfaces.
• Pixel-mapped lighting displays.
• Color gradients and wide linear wash effects.

What's in the Box

• Blizzard Lighting Motif Atelier 16FX LED linear wash fixture.
• Mounting bracket with locking knobs.

Inputs & Outputs

• DMX Input 3-pin DMX.
• DMX Output 3-pin DMX.
• Power Input PowerCON TRUE1-compatible AC input.
• Power Output PowerCON TRUE1-compatible AC output.

Frequently Asked Questions

What type of LEDs does the Motif Atelier 16FX use?

It uses 16 individually controllable 15W RGB+WW 4-in-1 LEDs with 2700K warm white output.

What is the beam angle?

The fixture features a 10° × 40° asymmetrical beam, designed to minimize spill while producing a wide, blended wash across vertical surfaces.

Does it support pixel mapping?

Yes. The fixture supports individual LED control, grouped pixels, and pixel-mapping effects through compatible DMX modes.

Is the fixture suitable for outdoor use?

Yes. Its IP65 rating, watertight internal gaskets, and protected connectors make it suitable for outdoor applications when installed according to the manufacturer's guidelines.

Does it offer warm white light?

Yes. Its RGB+WW LEDs include 2700K warm white output to create tungsten-like tones or add warmth to mixed colors.

What DMX channel modes are available?

It supports 4-, 5-, 10-, 16-, 24-, 40-, and 72-channel DMX modes.

Does the fixture operate silently?

Yes. Its efficient convection cooling system operates without fan noise.

What is its power consumption?

The fixture consumes 214W, with a listed current draw of 1.8A and a power factor of 0.99.

Full Technical Specifications

General Specifications

Brand	Blizzard Lighting
Product Name	Motif Atelier 16FX
Product Type	RGB+WW LED Linear Wash Light
Protection Rating	IP65
Fixture Length Class	1 meter
Cooling System	Convection cooling
LED Operation	Flicker-free

LED & Optical Specifications

ED Quantity	16
LED Power	15W per LED
LED Type	RGB+WW 4-in-1
White Color Temperature	2700K warm white
Beam Angle	10° × 40° asymmetrical
Luminous Intensity at 2 m	4,358 lux / 404.9 fc
Luminous Intensity at 3 m	2,134 lux / 198.3 fc
Luminous Intensity at 4 m	1,021 lux / 94.9 fc
Luminous Intensity at 5 m	787 lux / 73.2 fc
Color Mixing	RGB+WW
Pixel Mapping	Supported
Effects	Wash, grouped pixels, pixel mapping, virtual color wheel

Control & Programming

Control Protocol	USITT DMX-512
DMX Channel Modes	4, 5, 10, 16, 24, 40, or 72 channels
Operating Modes	Standalone, Master/Slave, Color Preset, Auto
Built-in Automated Programs	33
Custom Colors	10
Custom Program Banks	3
Electronic Dimmer	Variable
Strobe Effects	Multiple
Color Calibration	Custom global settings
Fixture ID Addressing	Supported
DMX Synchronization	Custom settings can be synchronized between fixtures
Display & Controls	LED control panel with touch-sensitive buttons
Menu Controls	Four-button control

Power Specifications

Input Voltage	100–264V AC
Frequency	47–63 Hz
Power Consumption	214W
Current Draw	1.8A
Power Factor	0.99
Power Connections	PowerCON TRUE1-compatible

Inputs & Outputs

DMX Input/Output	3-pin DMX
AC Power Input/Output	PowerCON TRUE1-compatible
Connector Protection	IP-rated connectors with sealing rubber covers
Housing Material	Cast aluminum
Lens Material	Tempered glass
Mounting	Bracket with locking knobs
Internal Protection	Watertight internal gasket

Physical Specifications

Dimensions (L × W × H)	39.3 × 3.7 × 7.1 in
Mounting Bracket Depth	5.2 in
Weight	15.4 lbs
