Descripción

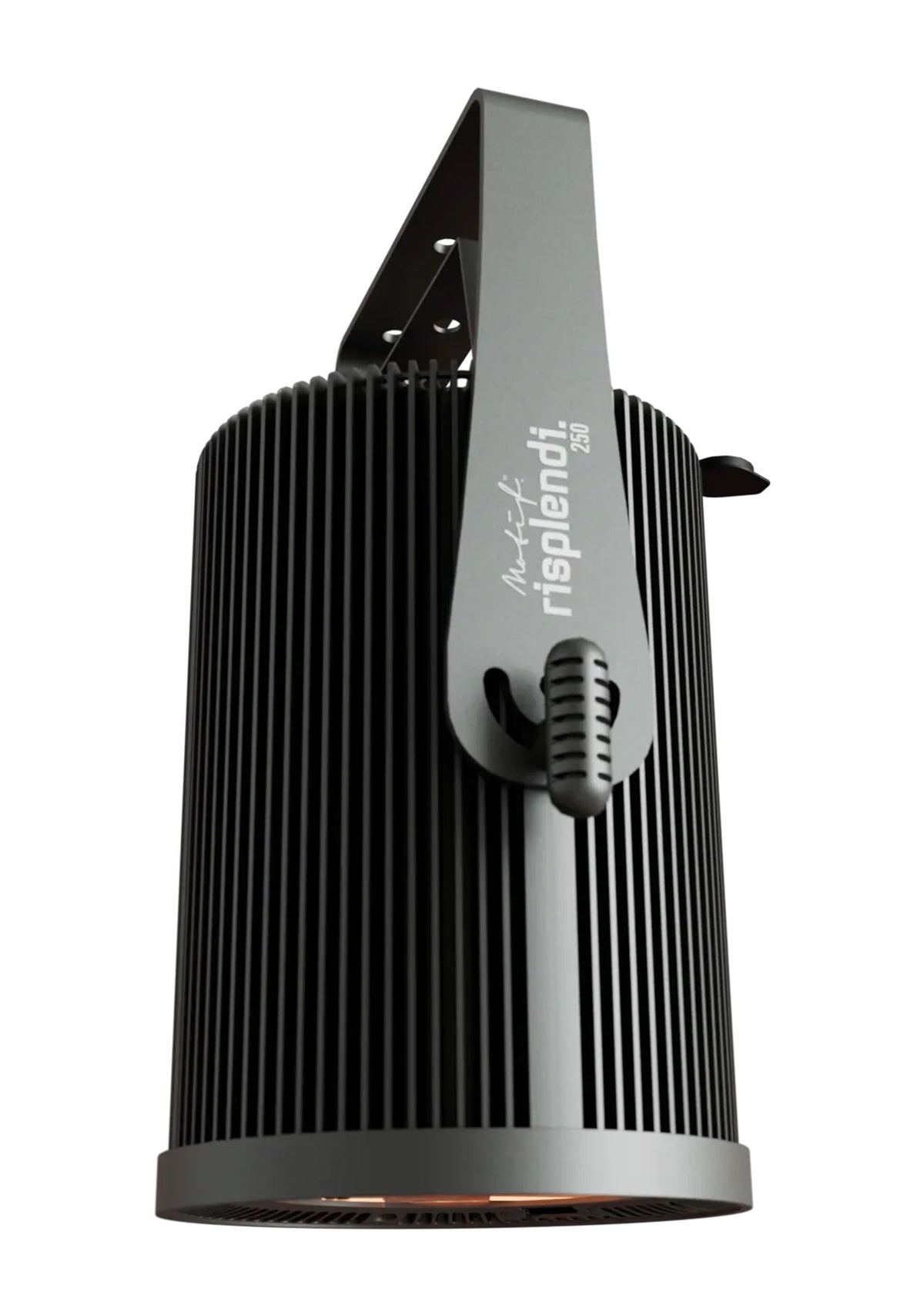

The Blizzard Lighting Motif Risplendi 250 is a professional full-color architectural pendant fixture designed for theaters, hospitality spaces, commercial interiors, and permanent lighting installations. Featuring a 250W RGBAL COB LED light source, it delivers vivid color mixing and high-CRI white light for applications requiring both decorative effects and practical illumination. Four interchangeable optical accessories provide multiple beam options, making it adaptable to different ceiling heights, room layouts, and lighting requirements.
Designed for versatility, the Motif Risplendi 250 includes 35°, 45°, and 60° Fresnel lenses, along with an 80° diffuser. Built-in color and chase macros, automated programs, and standalone color mixing provide flexible operating options, while DMX and RDM support allow integration into compatible professional lighting systems. Adjustable LED refresh rates from 1200Hz to 20kHz offer additional flexibility for camera-sensitive applications.
The fixture features a convection-cooled aluminum housing available in black, white, or space gray. Its mounting options include an adjustable yoke or a suitable bracket for permanent vertical installation. PowerCON TRUE1-compatible power input, hardwired AC connections, and a dedicated 42–48V DC emergency power connection provide options for permanent installations and compatible backup-power arrangements.
Key Features
- 250W RGBAL COB LED light source.
- Full-color RGBAL mixing and high-CRI white light.
- Four interchangeable optics: 35°, 45°, 60°, and 80°.
- Built-in color and chase macros.
- Automated programs and standalone color mixing.
- Adjustable LED refresh rates from 1200Hz to 20kHz.
- DMX and RDM support.
- Convection-cooled aluminum housing.
- Flexible mounting options.
- PowerCON TRUE1-compatible input and hardwired AC connections.
- Dedicated 42–48V DC emergency power connection.
- Available in black, white, or space gray.
Ideal For
- Theaters and performing arts venues.
- Hospitality and restaurant interiors.
- Museums and galleries.
- Commercial and architectural lighting.
- High-ceiling interior spaces.
- Permanent decorative lighting installations.
- Corporate and event venues.
- Spaces requiring functional white light and dynamic color effects.
What’s in the Box
- Blizzard Lighting Motif Risplendi 250 LED pendant fixture.
- Four interchangeable optics: 35°, 45°, 60°, and 80°.
- Mounting hardware as supplied with the fixture.
Inputs & Outputs
- Blizzard Lighting Motif Risplendi 250 LED pendant fixture.
- Four interchangeable optics: 35°, 45°, 60°, and 80°.
- Mounting hardware as supplied with the fixture.
Frequently Asked Questions
What is the Blizzard Lighting Motif Risplendi 250?
It is a 250W RGBAL COB LED architectural pendant designed for vibrant colors and high-quality white light.
What lens options are included?
It includes four interchangeable lenses: 35°, 45°, and 60° Fresnel lenses, plus an 80° diffuser.
What color mixing capabilities does it offer?
Its RGBAL LED source provides full-color mixing, built-in color and chase macros, and standalone color control.
What mounting options are available?
It supports an adjustable yoke or a stable bracket for permanent vertical installation.
What housing colors are available?
The fixture comes in black, white, or space gray aluminum housing.
Which DMX modes are supported?
It supports 5-, 7-, and 11-channel DMX modes, along with RDM.
Can the LED refresh rate be adjusted?
Yes, its refresh rate is adjustable from 1200Hz to 20kHz.
What are its power requirements?
It operates at 100–240VAC, 50–60Hz, with 204W power consumption.
What are its dimensions, weight, and warranty?
It measures 13.7 × 10.5 × 7.9 inches, weighs 15 lbs, and includes a seven-year limited warranty.
Full Technical Specifications
Light Source & Optical Performance
|
Light Source |
250W RGBAL COB LED |
|
LED Lifespan |
100,000 hours |
|
Color Mixing |
RGBAL |
|
Interchangeable Lenses |
35°, 45°, 60° Fresnel and 80° diffuser |
|
PWM Refresh Rate |
1,200 Hz - 20 kHz |
|
Luminous Intensity at 2.5 m (35° Lens) |
5,976 lux |
|
Luminous Intensity at 2.5 m (45° Lens) |
5,722 lux |
|
Luminous Intensity at 2.5 m (60° Lens) |
4,296 lux |
|
Luminous Intensity at 2.5 m (80° Lens) |
1,759 lux |
|
Luminous Intensity at 5 m (35° Lens) |
1,822 lux |
|
Luminous Intensity at 5 m (45° Lens) |
1,640 lux |
|
Luminous Intensity at 5 m (60° Lens) |
1,059 lux |
|
Luminous Intensity at 5 m (80° Lens) |
488 lux |
Control & Programming
|
Control Protocols |
USITT DMX-512, RDM |
|
DMX Channel Modes |
5, 7, 11 channels |
|
DMX Connections |
5-pin XLR input and output |
|
Display |
OLED display |
|
Menu Controls |
4-button menu |
|
Operating Modes |
DMX512, master/slave, standalone, auto |
|
Built-in Effects |
Color and chase macros |
|
Automated Programs |
Built-in master/slave programs |
|
Standalone Operation |
Color mixing without a DMX controller |
Power & Electrical Specifications
|
Input Voltage |
100–240 VAC |
|
Input Frequency |
50–60 Hz |
|
Power Consumption |
204W |
|
Current Draw |
1.81A |
|
Power Factor |
0.98 |
|
Power Input |
PowerCON TRUE1 compatible |
|
Hardwiring |
Terminal block connections |
|
Emergency Power Input |
42–48V DC, 20W |
|
Cooling System |
Convection-cooled aluminum housing |
Physical Specifications
|
Product Dimensions (L × W × H) |
7.9 × 13.7 × 10.5 inches |
|
Product Weight |
15 lbs |
|
Housing Material |
Aluminum |
|
Available Housing Colors |
Black, White, Space Gray |
|
Mounting Options |
Adjustable yoke or stable mounting bracket |
|
Mounting Design |
Dual mounting brackets |
