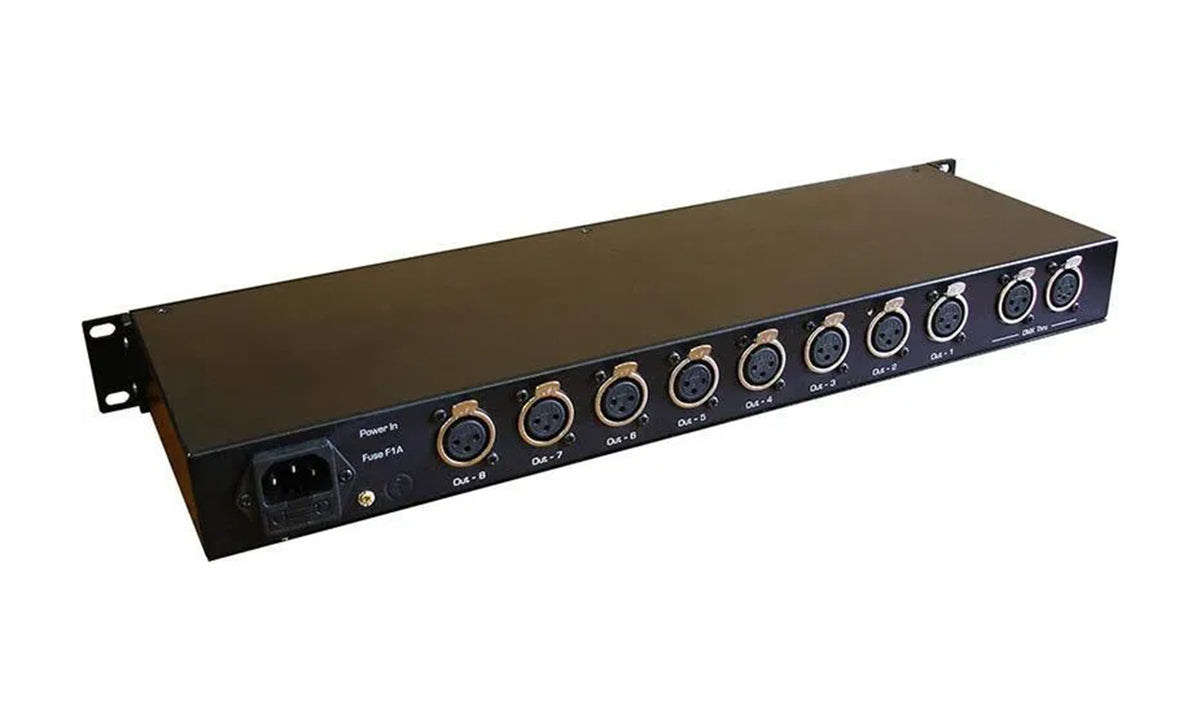

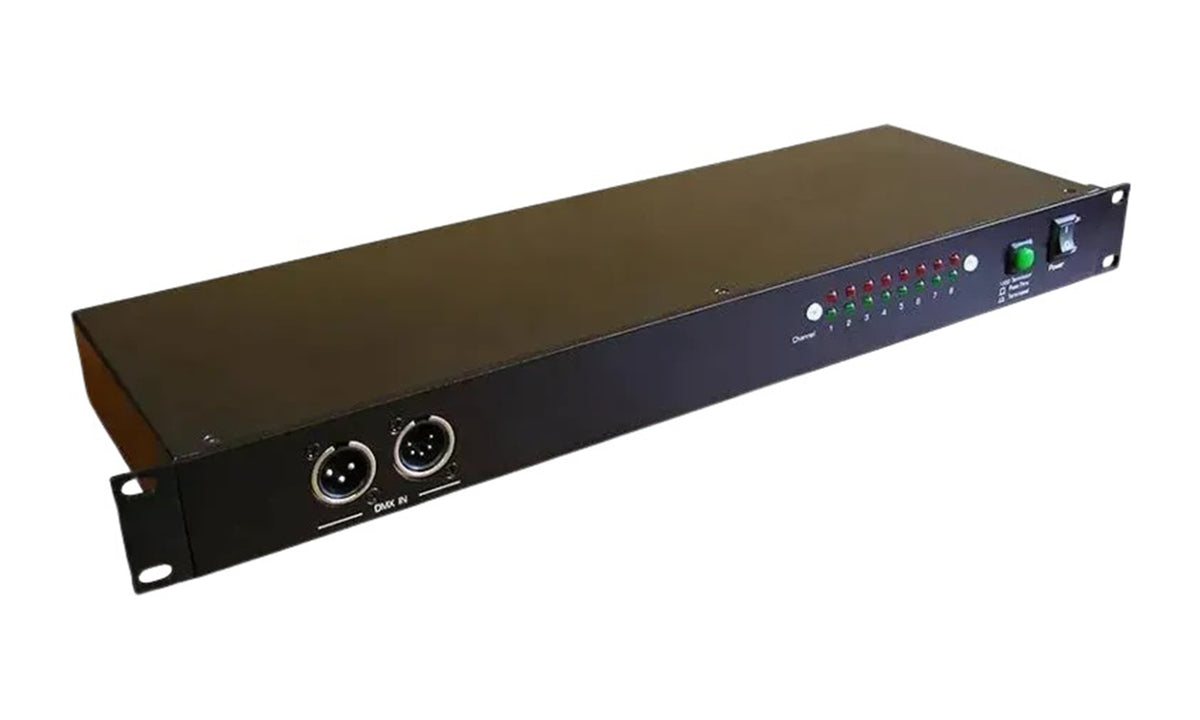

Blizzard Lighting Pipeline, 8-Way DMX Distributor
Blizzard Lighting Pipeline, 8-Way DMX Distributor
Pasa el cursor sobre la imagen para ampliarla. Clic en la imagen para aumentar
Blizzard Lighting Pipeline, 8-Way DMX DistributorBlizzard Lighting Pipeline, 8-Way DMX Distributor

Blizzard Lighting Pipeline, 8-Way DMX Distributor
Ahorrar $85.00
0 reseña
SKU H-BLIZ-PIPELINE UPC 662425034994
Precio:
$249.99 $334.99
Earn 124995 points (worth $12.5)
Price Match Guaranteed if we lower the price within 30 days of your purchase, we’ll issue a store credit for the difference. Shop confidently knowing you’ll always get our best price. Free 2nd Day Air Delivery We offer Free 2nd Day Air on most items! Some exceptions apply, including oversized, truss, and stage products. Reward Points Earn 5% Back in HDJ Points on every purchase. Use your points toward future gear purchases with us. Points expire 90 days after they're earned.

2 Day Shipping is Free or heavily discounted on most items! Make sure you select 2nd Day Shipping. We want to ship your order the fastest way possible.

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we can help.

We price match competitor advertised prices.

Our online prices are always honored instore guaranteed.

Hassle Free Financing Available

Get the gear you need now with Financing options. As an artist or sound professional your business needs high speakers, lighting and cases to do your job, be professional and competitive.

Choose Shop Pay or After Pay in checkout for instant financing. We also offer Accima, Synchrony, Progressive or Snap financing just give us a call 1-800-700-4542.

Descripción

The Blizzard Pipeline is a professional 8-way DMX distributor designed to split and distribute DMX signals across multiple lighting fixtures while maintaining complete electrical isolation between inputs and outputs. With two DMX inputs, eight independently driven outputs, and support for both 3-pin and 5-pin DMX connections, the Pipeline provides flexible signal routing for professional lighting systems. Each output features an independent driver, while 100% electronic isolation between the inputs and outputs and between individual outputs helps separate connected DMX circuits for reliable signal distribution. A dedicated signal and power indicator for each output, along with a terminator resistor switch, provides convenient monitoring and DMX chain management.

The Pipeline can distribute a DMX signal across eight output channels and supports up to 32 units per output channel. Its DMX input and thru connections allow the unit to be integrated into existing DMX chains, while the terminator resistor switch provides an option for terminating the final unit in a DMX chain.

Built for professional lighting rigs, the Pipeline features an anodized aluminum front panel, removable rack wings for rack or wall mounting, and an IEC power input on the rear panel. The unit measures 19 × 5.1 × 1.7 inches and weighs 5.7 lbs.

Key Features

  • 8-way DMX signal distribution.
  • Two DMX inputs and eight outputs.
  • 100% electronic isolation between inputs and outputs.
  • Electronic isolation between individual outputs.
  • 3-pin and 5-pin DMX connectivity.
  • Independent driver for each DMX output.
  • Supports up to 32 units per output channel.
  • Signal and power LED indicators for each output.
  • Terminator resistor switch for DMX chains.
  • Removable rack wings for rack or wall mounting.

Ideal For

  • Professional DMX lighting systems.
  • Stage and theatrical productions.
  • Touring lighting rigs.
  • Concert and event production.
  • Clubs and entertainment venues.
  • DMX signal distribution.
  • Multi-fixture lighting systems.
  • Rack or wall-mounted installations.

What’s in the Box

  • Blizzard Pipeline 8-way DMX distributor.

Inputs & Outputs

  • Power Input 1 × IEC AC power input
  • Terminator Terminator resistor switch for the end of a DMX chain
  • Signal Indicators Signal LED indicator for each output
  • Power Indicators Power LED indicator for each output

Frequently Asked Questions

What does the Blizzard Pipeline do?

It distributes DMX signals across eight isolated outputs while also amplifying the signal.

How many DMX channels does it support?

The Pipeline supports up to 512 DMX channels.

Does it support 3-pin and 5-pin DMX?

Yes. It provides both 3-pin and 5-pin DMX inputs and thru connections.

Are the outputs electrically isolated?

Yes. The inputs and outputs, as well as the individual outputs, have 100% electrical isolation.

Can the Pipeline be rack mounted?

Yes. It has removable rack wings for rack or wall mounting.

What are the dimensions and weight?

It measures 19 × 5.1 × 1.7 inches and weighs 5.7 lbs.

Full Technical Specifications

DMX & Signal Distribution

Device Type

DMX Signal Amplifier, Distributor & Isolator

DMX Channels

512

Protocol

DMX512

DMX Compliance

DMX-512 (1990)

DMX Inputs

1x 3-pin XLR, 1x 5-pin XLR

DMX Thru Outputs

1x 3-pin XLR, 1x 5-pin XLR

DMX Outputs

4 electronically isolated outputs

Output Connectors

3-pin or 5-pin DMX

Input/Output Isolation

100% electronic isolation

Signal Boosting

Dedicated drivers for each output

Maximum Units Per Output Channel

Up to 32 units

Indicators & Controls

Signal Indicators

Signal & power LED indicators for each output

Power Indicator

Yes

Terminator Function

Terminator button for the last unit

Pass-Thru Function

DMX Thru / pass-thru

Dimming

Optional

Power

Power Source

AC Power

Power Consumption

10 W

Input Power

120 VAC, 60 Hz

Power Connector

IEC power input

Rackmount & Construction

Rack Mount

Yes

Rack Size

1U

Construction Material

Aluminum

Environmental Resistance

No

Physical Specifications

Product Weight

5.7 lbs

Product Dimensions (L x W x H)

19" x 5.1" x 1.7"

Package Weight

6.4 lbs

Box Dimensions (L x W x H)

21.4" x 7.7" x 3.3"
