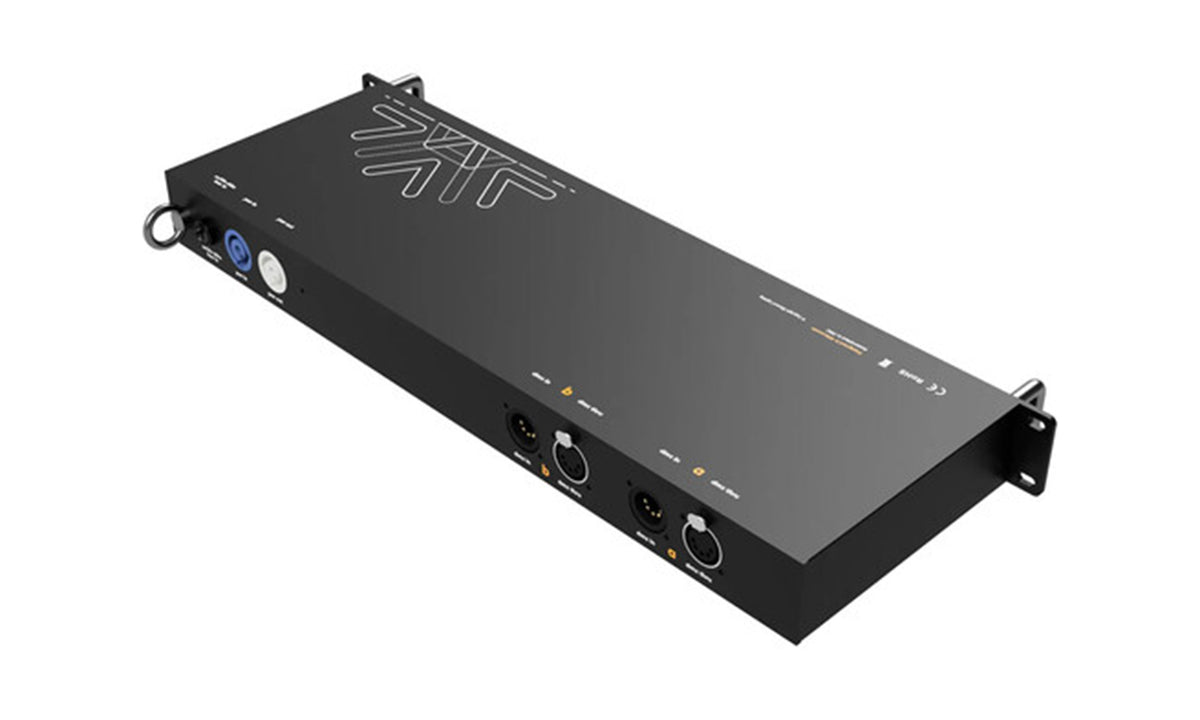

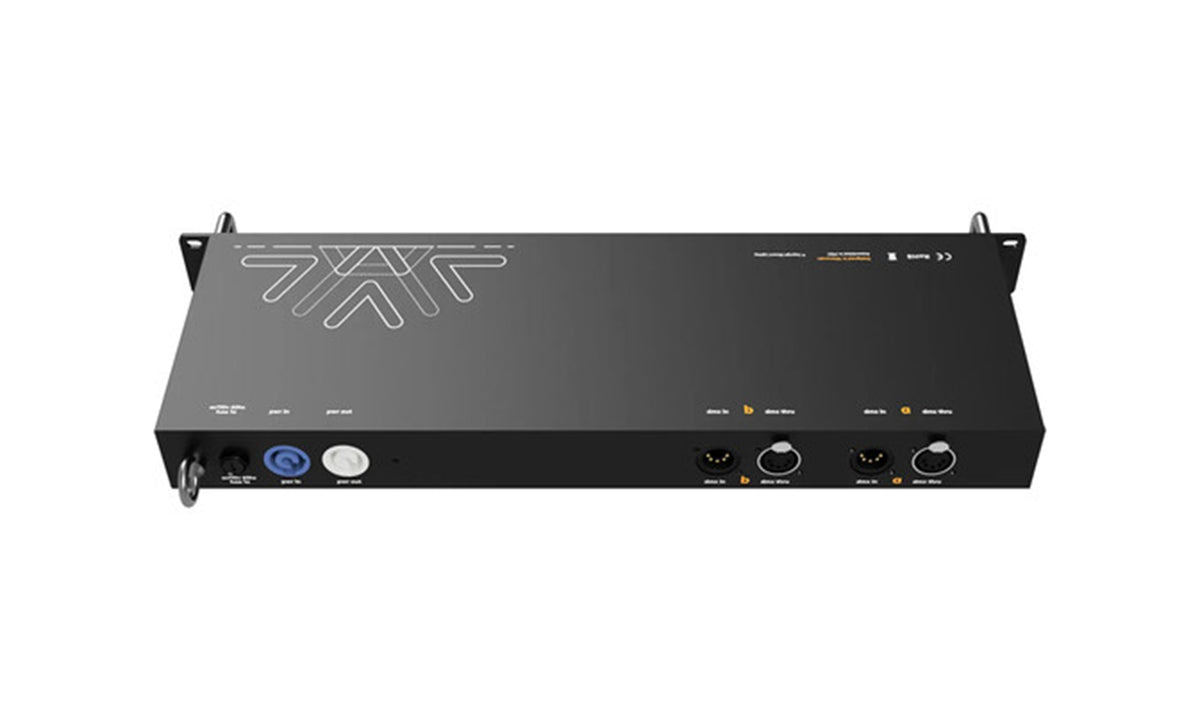

The Blizzard Pipeline Splitterally 8 is a professional 1U rackmount DMX signal splitter and booster designed to distribute DMX signals across lighting systems and support long cable runs. Its dual operating modes provide either 1x8 distribution or 2x4 dual-universe operation, while rear-panel DMX inputs and thru connections allow flexible integration into existing lighting systems. Eight 5-pin DMX outputs, electrical isolation between inputs and outputs, LED signal indicators, and powerCON TRUE1-compatible power connections provide practical connectivity for professional lighting installations.

In 1x8 mode, all eight outputs distribute the same DMX signal, while 2x4 mode separates the outputs into two groups, with outputs 1–4 handling Universe A and outputs 5–8 handling Universe B. A front-panel mode selection switch makes it easy to select the required operating configuration.

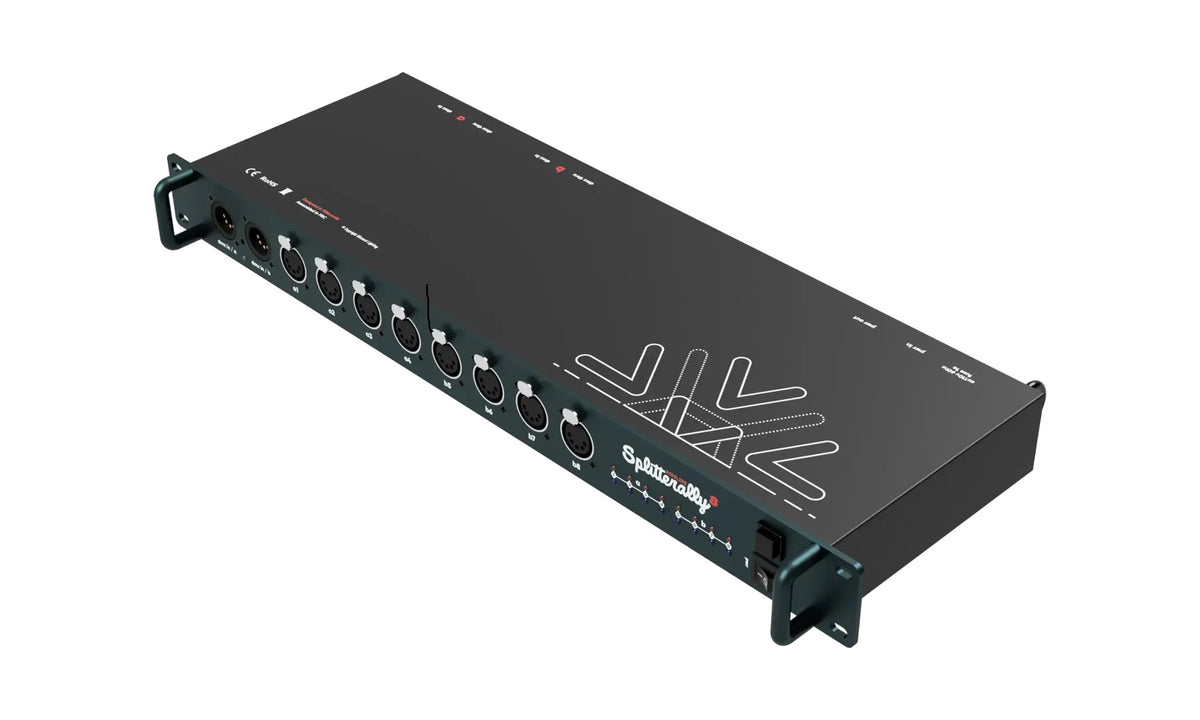

The Pipeline Splitterally 8 occupies 1U of standard 19-inch rack space and features front-panel handles for convenient installation and transportation. Its compact enclosure measures 19 × 5.8 × 1.8 inches and weighs 5.8 lbs.

Key Features

• 1U 19-inch rackmount DMX splitter and booster.
• Dual 1x8 and 2x4 operating modes.
• Supports up to 1024 DMX channels.
• Two 5-pin DMX inputs with thru connections.
• Eight 5-pin DMX outputs.
• Electrical isolation between inputs and outputs.
• LED indicators for DMX signal monitoring.
• powerCON TRUE1-compatible power input and output.
• Front-panel mode selection switch.
• Safety loop and fuse protection.
• Front-panel handles for convenient installation.

Ideal For

• Professional DMX lighting systems.
• Touring and production rigs.
• Concert and event lighting.
• Stage and theatrical applications.
• Clubs and entertainment venues.
• Dual-universe DMX systems.
• Long DMX cable runs.
• 19-inch rack installations.

What’s in the Box

• Blizzard Pipeline Splitterally 8 DMX splitter and booster.

Inputs & Outputs

• Power Input 1 × powerCON TRUE1-compatible AC power input
• Power Output 1 × powerCON TRUE1-compatible AC power output
• Mode Selection Front-panel switch for 1x8 or 2x4 operation
• Signal Monitoring LED indicators for DMX signal status

Frequently Asked Questions

What does the Pipeline Splitterally 8 do?

It splits and boosts DMX signals for reliable distribution and longer cable runs.

What are the operating modes?

It supports 1x8 mode for one DMX universe or 2x4 mode for two separate universes.

How many DMX outputs does it have?

It provides eight 5-pin DMX outputs, plus two DMX inputs and two thru connections.

Does it support DMX512 equipment?

Yes. It is compatible with DMX512 equipment and provides electrical isolation between inputs and outputs.

Is the Pipeline Splitterally 8 rack mountable?

Yes. It fits a standard 19" rack and uses 1U of rack space.

What are the dimensions and weight?

It measures 19 × 5.8 × 1.8 inches and weighs 5.8 lbs.

Full Technical Specifications

DMX & Signal Distribution

Device Type	DMX Signal Splitter / Booster
DMX Channels	1024
Protocol	DMX512
Operation Modes	1x8 or 2x4
DMX Inputs	2x 5-pin XLR (A/B)
DMX Thru Outputs	2x 5-pin XLR
DMX Outputs	8x 5-pin XLR
Output Configuration – Mode A	All 8 outputs distribute the same DMX signal
Output Configuration – Mode B	Outputs 1-4 handle Universe A; outputs 5-8 handle Universe B
Electrical Isolation	Yes, between inputs and outputs
Dimming	Optional
Long Cable Run Support	DMX signal boosting

Power & Connectivity

Power Source	AC Power
Power Consumption	4 W
Input Power	110 VAC, 60 Hz
Power Input	1x powerCON® TRUE1-compatible input
Power Output	1x powerCON® TRUE1-compatible output
Fuse	1 A, 250 V
Safety Protection	Safety loop and fuse protection
Signal Indicators	LED indicators for signal monitoring
DMX Connector Type	5-pin XLR

Rackmount & Construction

Rackmount Size	1U
Rack Compatibility	19" rack
Front Panel Features	Mode selection switch, power switch, DMX inputs, 8 DMX outputs
Front Handles	Yes
Housing	Rugged, durable construction
Equipment Compatibility	DMX512 equipmen

Physical Specifications

Product Weight	5.8 lbs
Product Dimensions (L x W x H)	19.0" x 5.8" x 1.8"
Shipping Dimensions (L x W x H)	21.6" x 8.2" x 3.2"
Shipping Weight	6.89 lbs
