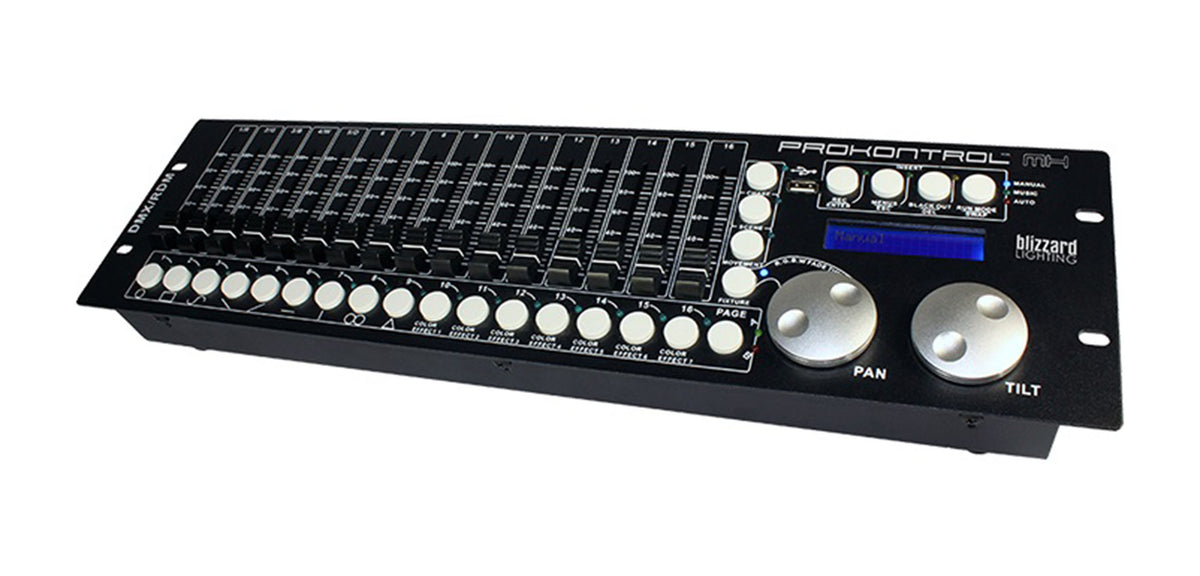

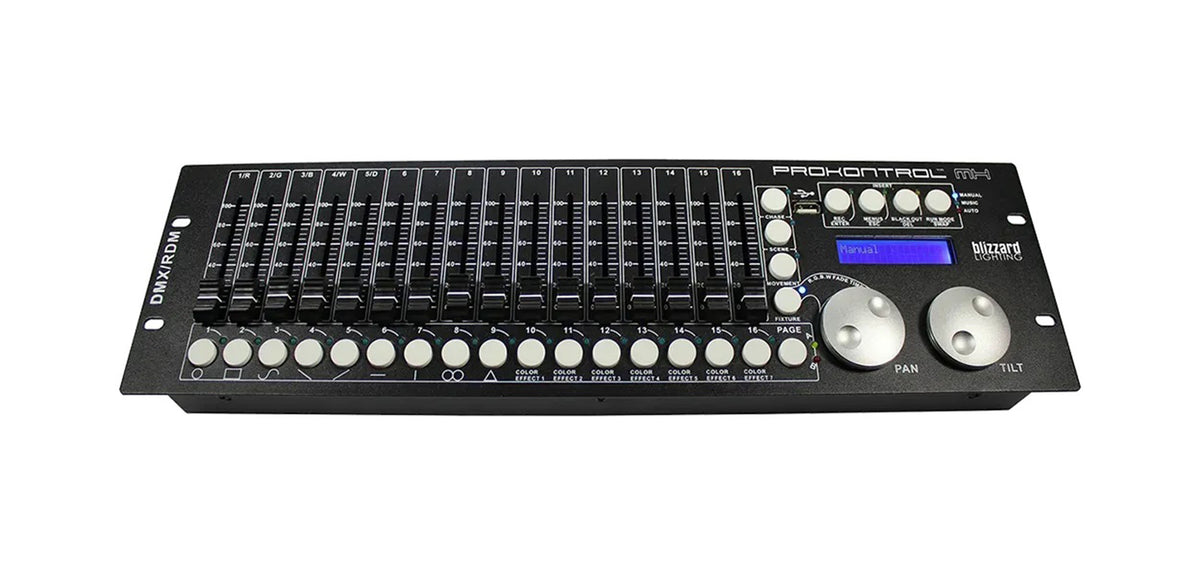

The Blizzard lighting ProKontrol MH is a professional universal lighting controller designed specifically for moving head fixtures. With DMX512 control and RDM protocol compatibility, it provides direct access to up to 32 fixtures with 18 DMX channels each. Dedicated PAN and TILT wheels, 16 universal channel sliders, movement controls, color effect buttons, and an LCD display provide practical hands-on control for programming and live operation.

ProKontrol MH provides 32 chases and 32 scenes, with up to 5 chases able to run simultaneously. Fixture starting addresses and channels can be soft patched, while dedicated effect controls provide quick access to moving head movement and color functions.Its all-metal enclosure provides a durable format and its controller measures 19 inches wide and weighs 1.4 lbs, making it suitable for events, stages, and production applications.

The controller also supports programmable scenes and chases, sound-activated control through its built-in microphone, and USB connectivity for firmware updates and data backup.

Key Features

• 512-channel DMX512 controller with RDM compatibility.
• Controls up to 32 fixtures with 18 channels each.
• Dedicated PAN and TILT wheels for moving heads.
• 16 universal channel sliders.
• 9 moving head effect buttons and 7 color effect buttons.
• 32 chases and 32 scenes.
• Runs up to 5 chases simultaneously.
• USB port for firmware updates and data backup.

Ideal For

• Moving head lighting fixtures.
• Mobile DJs and entertainers.
• Live stages and performances.
• Clubs and entertainment venues.
• Event production.
• Touring and mobile lighting systems.
• Professional DMX lighting control.

What’s in the Box

• Blizzard ProKontrol MH lighting controller.
• 9V AC adapter.
• User Manual.

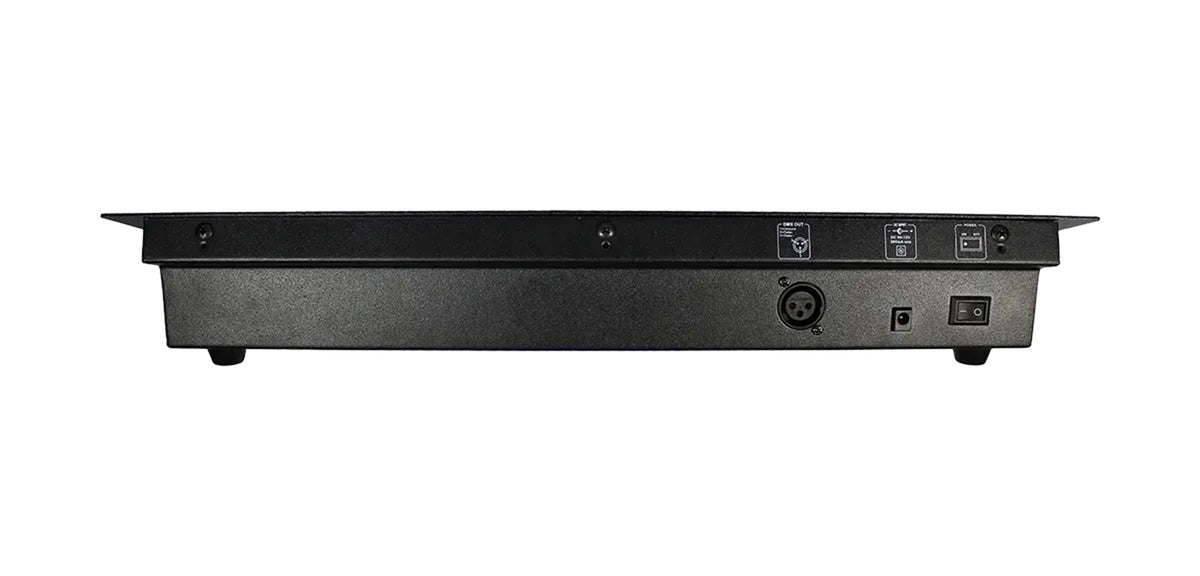

Inputs & Outputs

• DMX 3-pin DMX output
• USB USB port for firmware updates and data backup
• Audio Built-in microphone for sound control
• Power DC 9V, 800mA maximum

Frequently Asked Questions

How many DMX channels does the ProKontrol MH support?

It provides 512 DMX channels and controls up to 32 fixtures with 18 channels each.

Does it support RDM?

Yes. The ProKontrol MH supports RDM for compatible lighting fixtures.

Does it have PAN and TILT controls?

Yes. It has dedicated PAN and TILT wheels for moving head control.

How many scenes and chases can it store?

It provides 32 programmable scenes and 32 chases, with up to 5 chases running simultaneously.

Does it support sound activation and USB backup?

Yes. It has a built-in microphone for sound control and USB for firmware updates and data backup.

What are the dimensions and weight?

The ProKontrol MH measures 19 × 5.1 × 3.1 inches and weighs 1.4 lbs.

Full Technical Specifications

Control & DMX

Protocol	USITT DMX-512
RDM Compatibility	Yes
DMX Channels	512
DMX Output	3-pin DMX
Fixture Control	Up to 32 fixtures with 18 DMX channels each
Soft Patching	Fixture starting addresses and channels
PAN & TILT Control	Dedicated PAN and TILT wheels

Programming & Effects

Effect Buttons	9 moving head effect buttons
Color Effect Buttons	7
Universal Channel Sliders	16
Chases	32
Simultaneous Chases	Up to 5
Scenes	32
Simultaneous Scenes	All scenes
Trigger Modes	Music, automatic, and manual
Sound Control	Built-in microphone
Display	LCD display indicator

Connectivity & Features

USB Port	Firmware updates and data backup
Enclosure	All-metal
Movement Controls	Dedicated PAN and TILT wheels
Color Controls	Built-in color effect buttons

Power & Physical Specifications

Operating Voltage	DC 9V
Current	800mA max
Product Weight	1.4 lbs
Product Dimensions (L x W x H)	19" x 5.1" x 3.1"
