Descripción

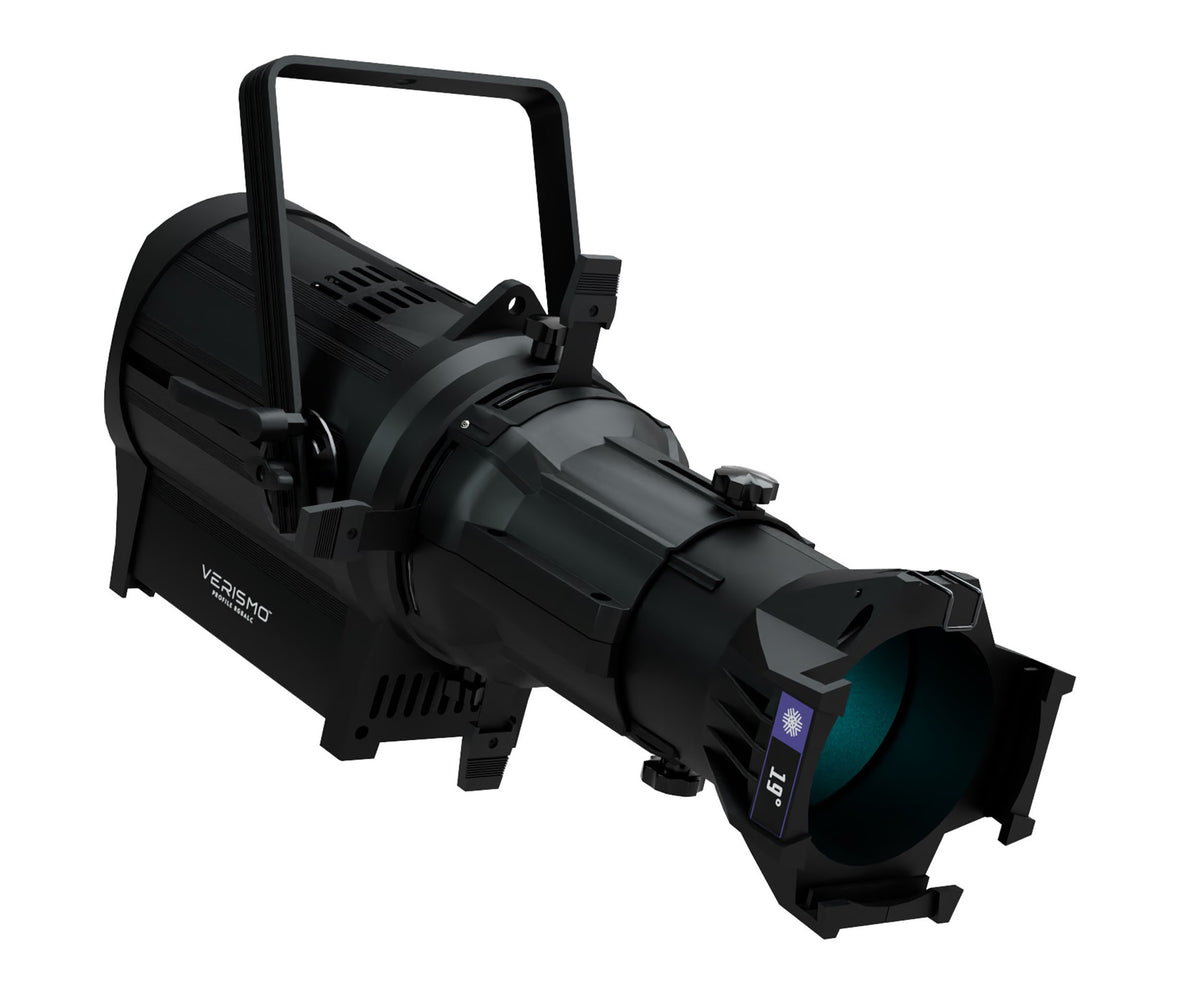

The Blizzard Lighting Verismo Profile RGBALC is a professional full-color LED profile spot featuring a high-output 300W RGBALC LED module. Its advanced RGBALC + HSIC color mixing system provides extensive color control for theater, video, production studios, stage lighting, and other professional applications.
Four interchangeable lens options provide 19°, 26°, 36°, or 50° beam angles for flexible projection and coverage. Four manually adjustable framing shutters allow users to create custom shapes or complete blackout, while manual focus and the included B-sized gobo holder provide precise control for profile and image projection.
Designed for professional production environments, the Verismo Profile RGBALC combines a CRI of 89 with flicker-free operation, 16-bit dimming, selectable dimming curves and speeds, and 1–25Hz strobe effects. Its aluminum housing, PowerCON TRUE1-compatible connections, and 3/5-pin DMX/RDM connectivity provide reliable integration into professional lighting systems.
Key Features
- 300W RGBALC LED light source.
- RGBALC + HSIC color mixing.
- 2200K–10000K CCT range and presets.
- Four interchangeable lens options.
- High CRI of 89.
- 16-bit dimming.
- 1–25Hz strobe effects.
- 1,000–8,000Hz refresh rates.
- 4-blade manual framing shutters.
- DMX and RDM control.
Ideal For
- Theater and stage lighting.
- Video and production studios.
- Professional profile lighting.
- Gobo projection.
- Concert and event production.
- Broadcast and camera environments.
- Architectural and entertainment lighting.
- Applications requiring flexible color control.
What’s in the Box
- Blizzard Lighting Verismo Profile RGBALC fixture.
- B-sized gobo holder.
Inputs & Outputs
- DMX Input 3-pin and 5-pin male XLR for DMX/RDM control.
- DMX Output 3-pin and 5-pin female XLR for DMX signal pass-through.
- Power Input PowerCON TRUE1-compatible input.
- Power Output PowerCON TRUE1-compatible output for power linking.
- Control Menu Four-button OLED display for fixture settings.
Frequently Asked Questions
What is the Blizzard Lighting Verismo Profile RGBALC?
The Verismo Profile RGBALC is a full-color LED profile fixture featuring a 300W RGBALC LED module for theater, video, production studios, and other professional lighting applications.
What color mixing system does it use?
It combines RGBALC and HSIC color mixing with 16-bit fine dimming for individual RGBALC colors and dedicated hue, saturation, intensity, and color temperature controls.
What CCT range does the Verismo Profile RGBALC provide?
It offers direct access to white CCT presets ranging from 2200K to 10,000K for flexible color temperature control.
What lens options are available?
The fixture supports 19°, 26°, 36°, and 50° lens tubes, which are sold separately.
Does it support framing and gobo projection?
Yes. Four manually adjustable framing shutters can create custom shapes or complete blackout, while the included B-sized gobo holder supports image and pattern projection.
What dimming features are available?
The fixture provides 16-bit dimming, four selectable dimming curves, and user-selectable dimming speeds for precise output control.
What control protocols does the Verismo Profile RGBALC support?
It supports DMX and RDM through 3-pin and 5-pin DMX input and output connections, along with DMX512, master/slave, and standalone operation.
What refresh rates and strobe effects are available?
It offers adjustable refresh rates from 1,000Hz to 8,000Hz and strobe effects from 1–25Hz. Flicker-free resolution also makes it suitable for video applications.
What are DMX channel options?
The Verismo Profile RGBALC offers 7-, 8-, 9-, 10-, or 17-channel DMX control for flexible operation.
What are the dimensions and weight of the Verismo Profile RGBALC?
The fixture measures approximately 23.8 × 12.6 × 18 inches and weighs 25.4 lbs.
Full Technical Specifications
RGBALC Color System
|
LED Engine |
300W RGBALC LED |
|
Color Mixing |
RGBALC + HSIC |
|
White CCT Range |
2200K–10,000K |
|
CRI |
89 |
|
Fine Dimming |
16-bit per RGBALC color |
|
HSIC Control |
2 dedicated modes |
|
Dimming Curves |
4 selectable |
|
Dimming Speed |
User selectable |
|
Refresh Rate |
1,000–8,000 Hz |
|
Strobe |
1–25 Hz |
Profile Optics & Framing
|
Lens Options |
19°, 26°, 36°, 50° |
|
19° Output |
10,312 Lux @ 2.5 m / 2,452 Lux @ 5 m |
|
26° Output |
5,190 Lux @ 2.5 m / 1,272 Lux @ 5 m |
|
36° Output |
3,147 Lux @ 2.5 m / 769 Lux @ 5 m |
|
50° Output |
1,483 Lux @ 2.5 m / 383 Lux @ 5 m |
|
Framing Shutters |
4 manual adjustable shutters |
|
Focus |
Manual |
|
Gobo Holder |
B-sized gobo/pattern holder |
DMX, Power & Connections
|
Control Protocols |
DMX, RDM |
|
DMX Channels |
7 / 8 / 9 / 10 / 17 |
|
DMX Connections |
3-pin / 5-pin XLR male & female |
|
Control Modes |
DMX512, Master/Slave, Standalone |
|
User Interface |
4-button OLED display |
|
Power Input |
100–240 VAC, 50–60 Hz |
|
Power Consumption |
294W |
|
Current Draw |
2.6A |
|
Power Factor |
0.99 |
|
Power Connection |
PowerCON TRUE1 compatible in/out |
|
Housing |
Black aluminum |
Physical Specifications
|
Product Weight |
25.4 lbs. |
|
Product Dimensions (L x W x H) |
18" x 23.8" x 12.6" |
