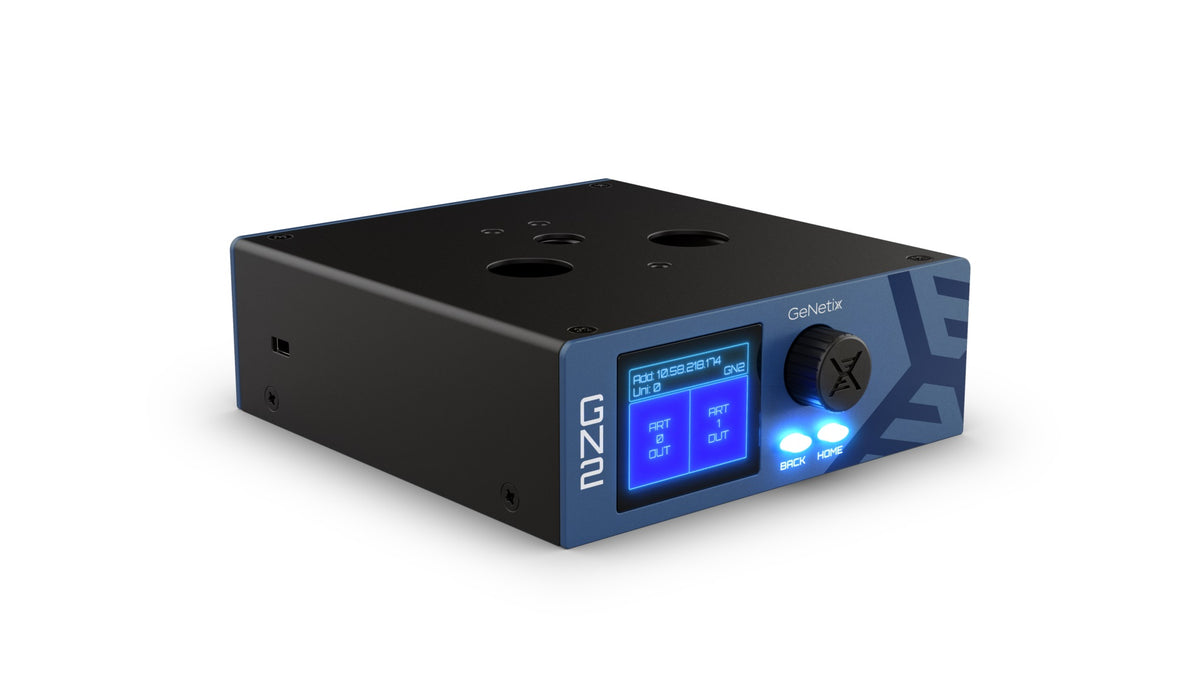

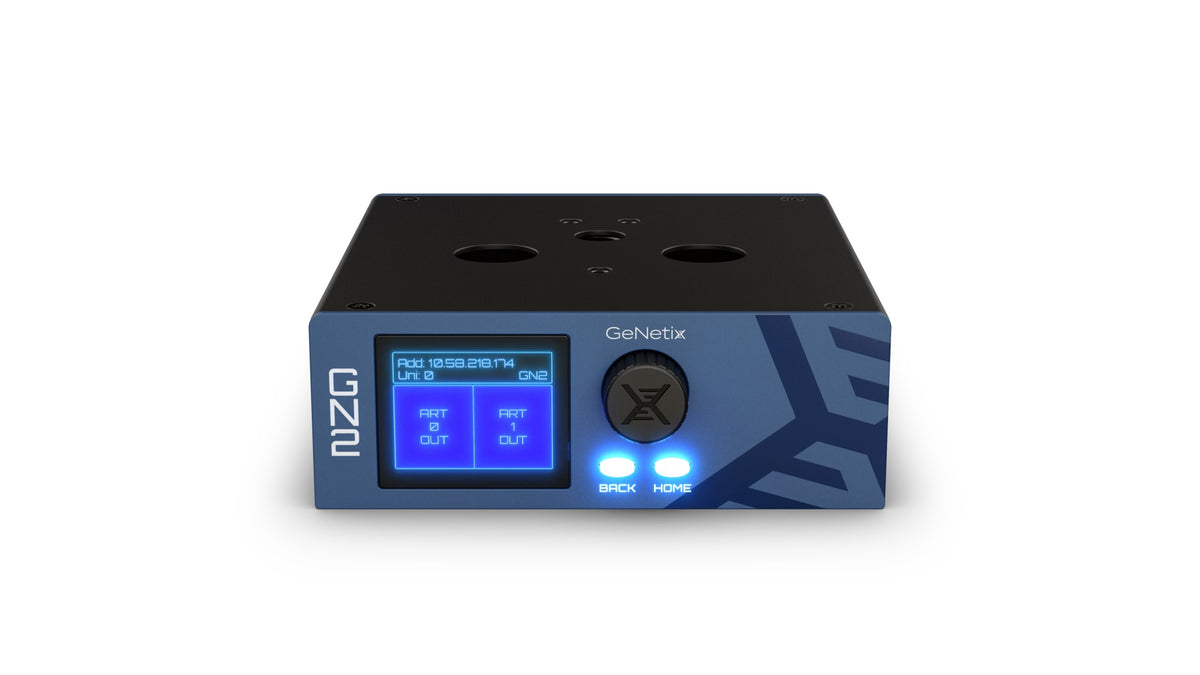

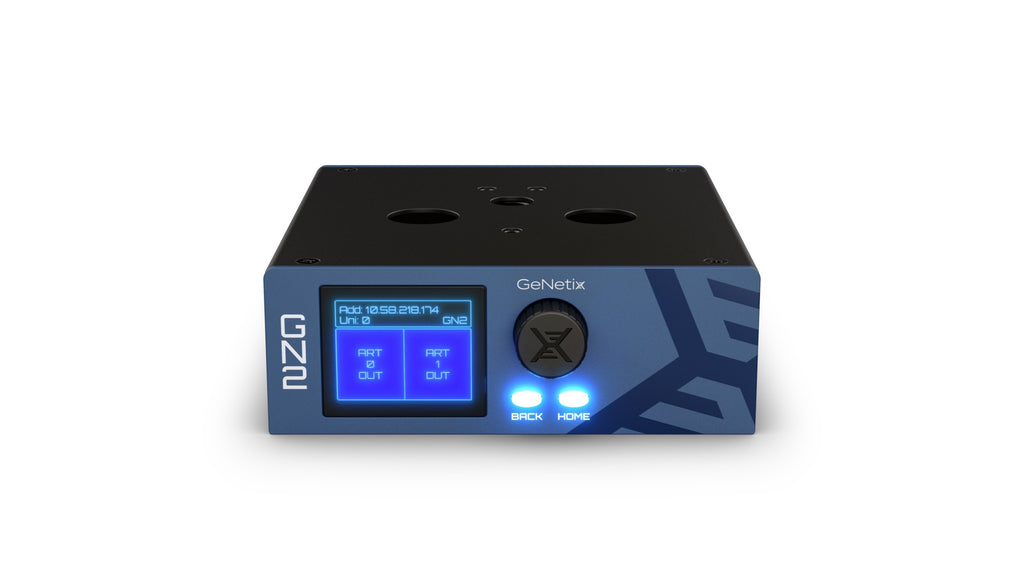

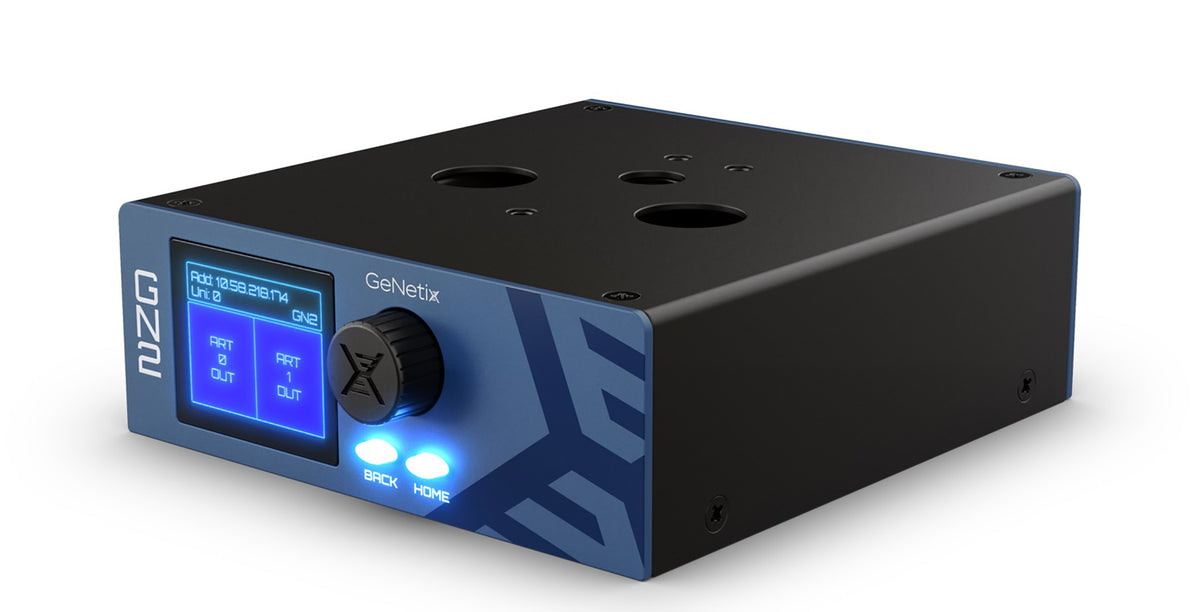

The ChamSys GeNetix GN2 Ethernet/DMX Node is a compact, two-port lighting control device designed for reliable DMX data distribution over Ethernet networks. It supports Art-Net, SACN, DMX512, and RDM protocols, with two configurable DMX ports that support both input and output. The GN2 can also function as a USB interface for MagicQ PC systems, unlocking Core Mode through its USB-C or network connection.

The ChamSys GeNetix GN2 offers flexible configuration options through its built-in display and encoder, onboard web server, or compatible lighting console. It supports ChamNet, configurable DMX timings, DMX redundancy, DMX fallback, merging, and user scene storage. With both Power over Ethernet (PoE) and USB-C power options, it provides convenient operation for a variety of professional lighting environments.

Designed for versatile installation, the GeNetix GN2 features an M12 receiver for truss mounting and includes a DIN rail mounting clip for alternative installation setups. Its single RJ45 network port supports power and data when using PoE, while the USB-C connection provides an additional power and interface option. Measuring approximately.

Key Features

• Two-port Ethernet-DMX node with DMX/RDM input and output support.
• Supports Art-Net, SACN, DMX512, and RDM protocols.
• Compatible with MagicQ PC systems via USB-C or network.
• Supports PoE and USB-C power options.

Ideal For

• Professional stage and theater lighting.
• Live concerts and event productions.
• Touring and truss-mounted lighting systems.
• Permanent lighting installations.
• DMX lighting control and Ethernet data distribution.
• MagicQ PC lighting control systems.
• Art-Net and SACN lighting networks.
• Installations requiring flexible DMX input and output.

What's in the Box

• ChamSys GeNetix GN2 Ethernet/DMX Node (2-Port)
• DIN Rail Mount Clip
• USB Cable

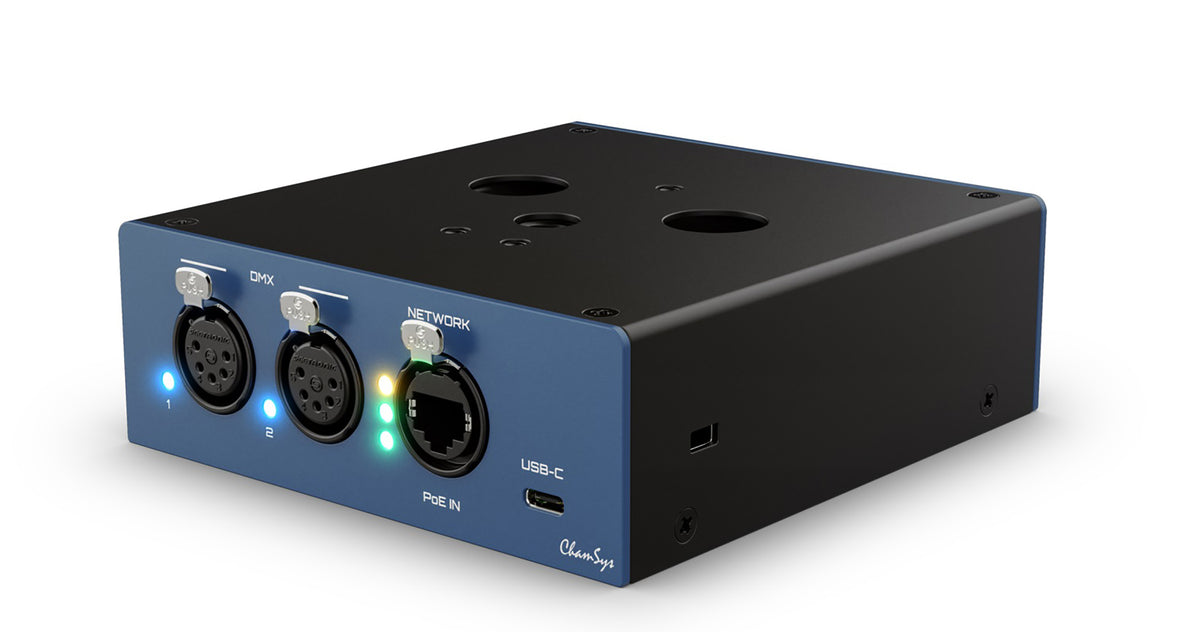

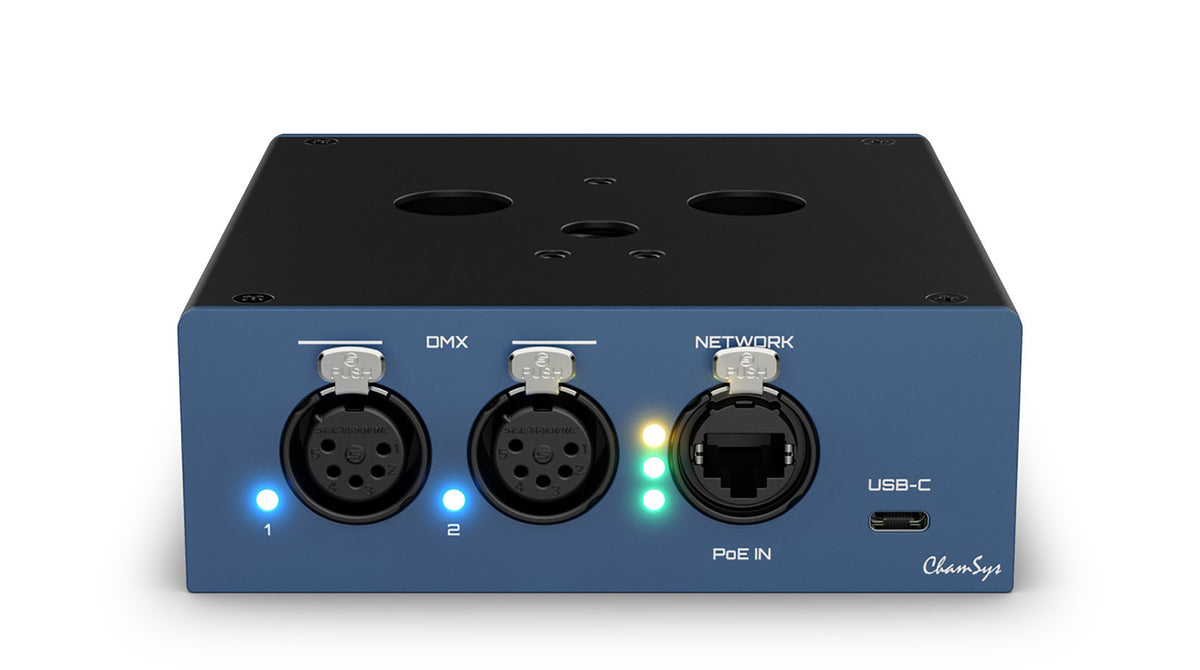

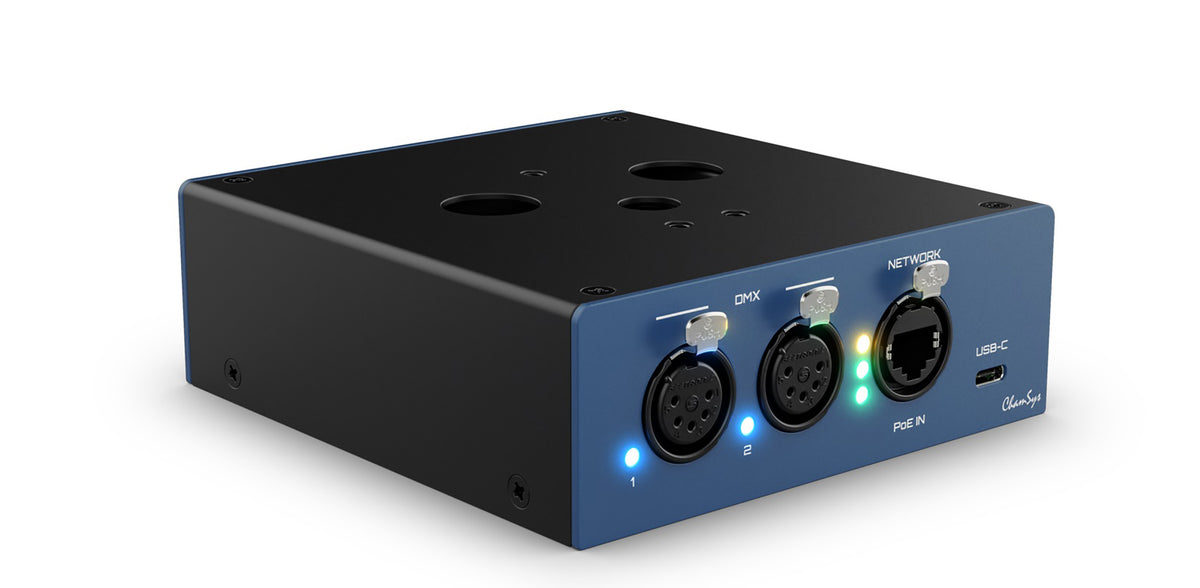

Inputs & Outputs

• 2 × 5-pin XLR DMX/RDM input/output ports.
• 1 × RJ45 Ethernet port for network data and PoE power.
• 1 × USB-C port for power and USB interface connectivity.

Frequently Asked Questions

What is the ChamSys GeNetix GN2 Ethernet/DMX Node?

It is a two-port Ethernet-DMX node designed for professional lighting control and DMX data distribution.

Which protocols does the GN2 support?

It supports Art-Net, sACN, DMX512, and RDM protocols.

Can the GN2 work with MagicQ PC systems?

Yes, it can function as a USB interface for MagicQ PC systems through USB-C or a network connection, unlocking Core Mode.

What power options are available?

The GN2 can be powered through Power over Ethernet (PoE) or USB-C.

Full Technical Specifications

Audio Performance

Brand	ChamSys
Product Name	GeNetix GN2 Ethernet/DMX Node
Product Type	Ethernet-DMX Lighting Node
DMX/RDM Ports	2
DMX Connectors	2 × 5-Pin XLR Female
DMX Functionality	Configurable Input/Output
Network Ports	1 × RJ45 Ethernet
USB Ports	1 × USB-C
Supported Protocols	Art-Net, sACN, DMX512, RDM
DMX Channels	1024
Power Source	PoE or USB-C
PoE Input	Yes, Port 1
PoE Voltage	42.5–57 V DC
PoE Power Rating	Maximum 7 W
USB Input Power	5 V DC, 500 mA
Power Consumption	7 W
Local Configuration	Built-in Display and Encoder

Connectors

DMX/RDM Ports	2 × 5-Pin XLR Female
Ethernet Port	1 × RJ45 Female
USB Port	1 × USB-C Female
PoE Input	Supported via RJ45 Port 1
DMX Functionality	Configurable Input/Output
Network Protocols	Art-Net, sACN, ChamNet

Power & Operation

Power Source	PoE or USB-C
PoE Input	Yes, via RJ45 Port 1
PoE Voltage	42.5–57 V DC
PoE Power Rating	Maximum 7 W
USB Input Voltage	5 V DC
USB Input Current	500 mA
Power Consumption	7 W
Operating Protocols	Art-Net, sACN, DMX512, RDM
DMX Operation	Two Configurable Input/Output Ports
Configuration	Built-in Display and Encoder
Remote Configuration	Integrated Web Server

Dimensions & Weight

Dimensions:	(L × W × H): 5.23 x 4.92 x 1.73in
Weight	2.885 lb
