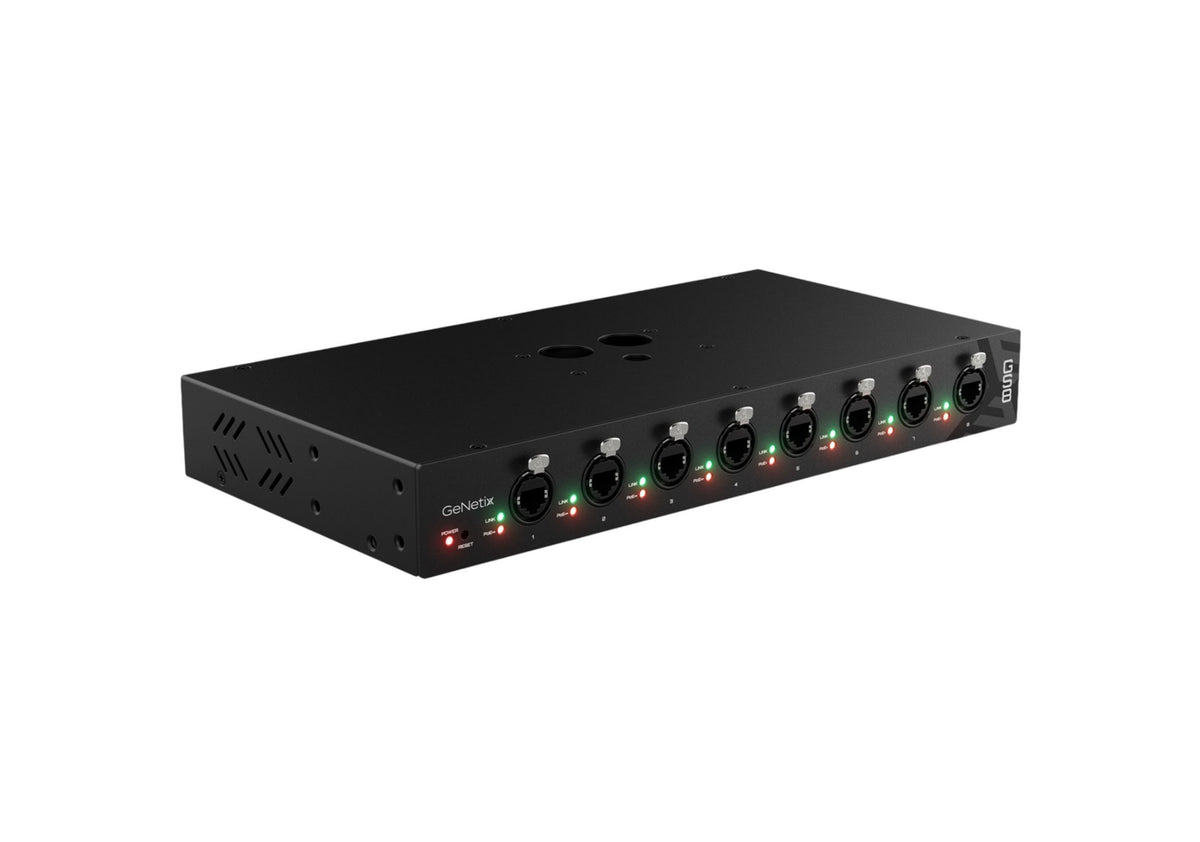

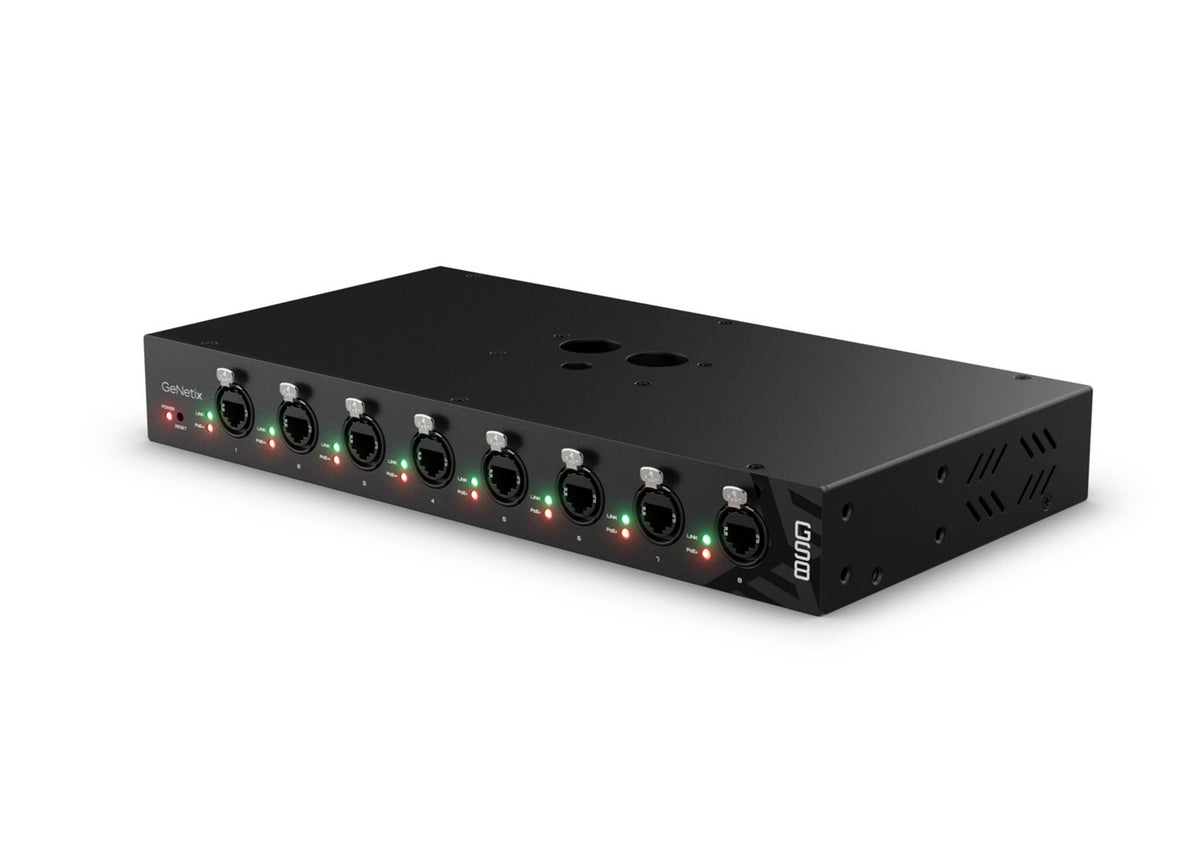

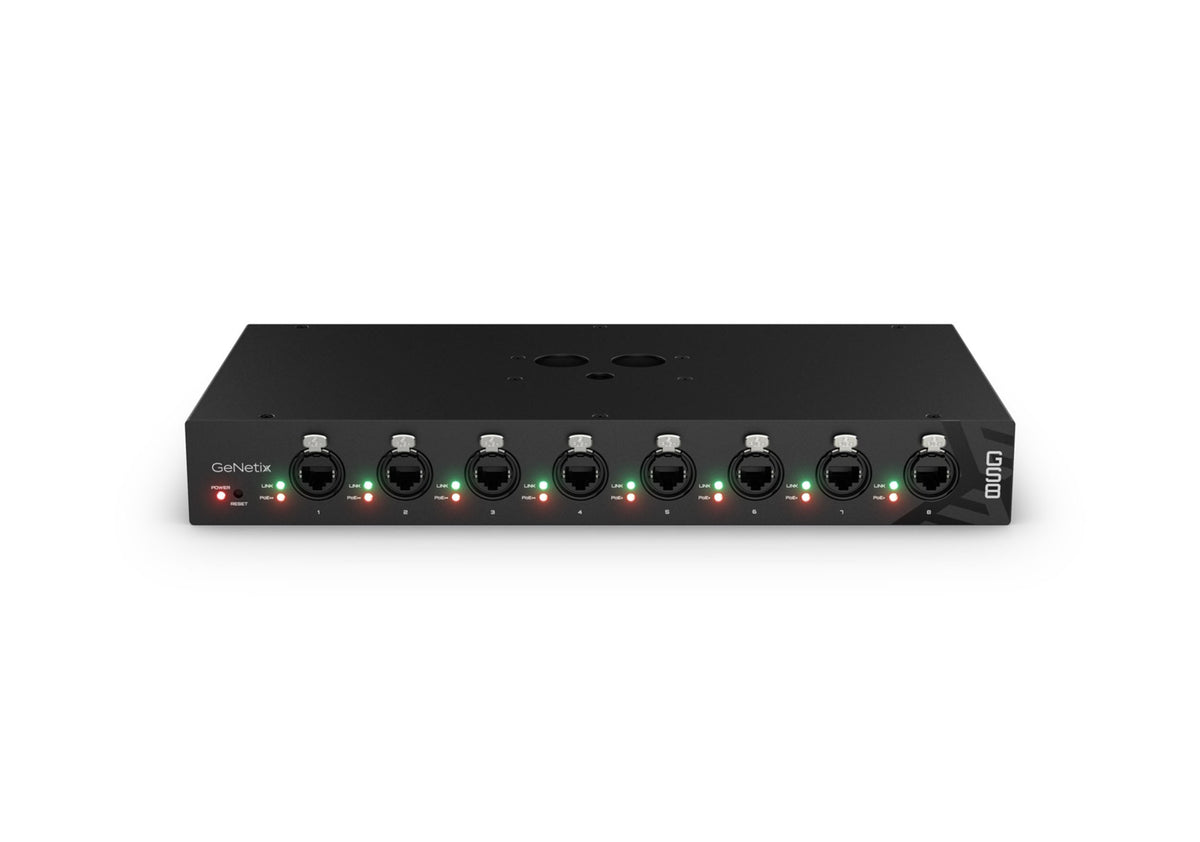

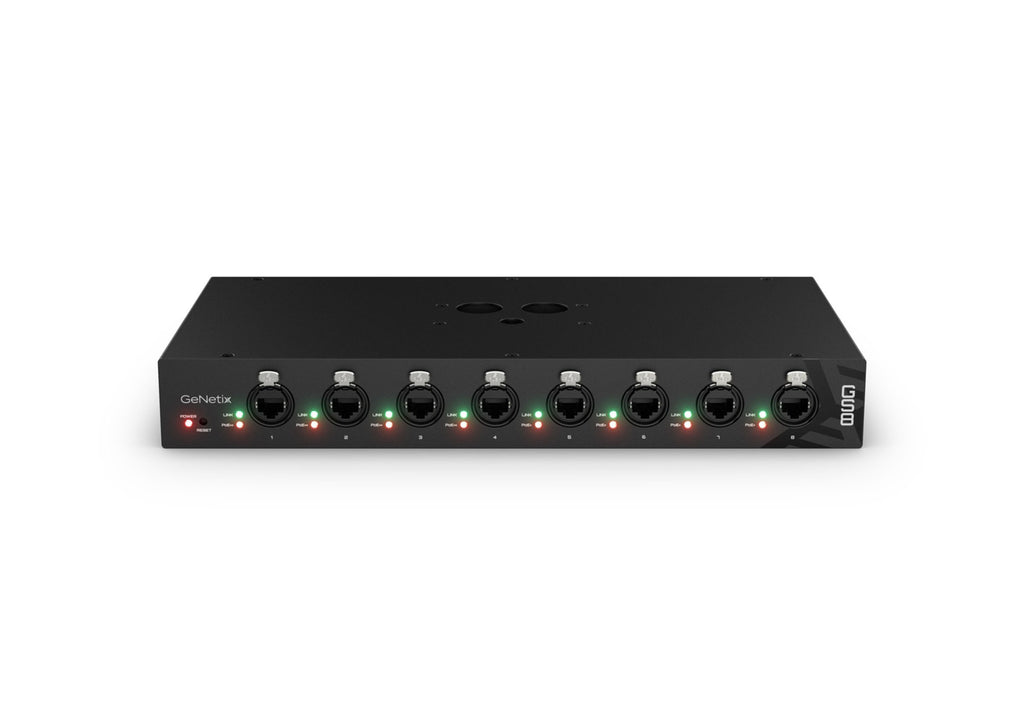

The ChamSys GeNetix GS8 is an eight-port unmanaged Gigabit Ethernet switch designed for professional lighting networks, entertainment installations, and event production systems. With up to 200W of total Power over Ethernet (PoE) output, it supplies network connectivity and compatible PoE-powered devices through a single switch. Its flexible mounting options make it suitable for equipment racks, desktops, and truss-mounted installations.

Flexible PoE Power Distribution

The GS8 supports multiple PoE standards to accommodate different network devices. Ports 1–4 support IEEE 802.3bt PoE++ with up to 100W per port, while ports 5–8 support PoE+ with up to 30W per port. All eight ports also support IEEE 802.3af and IEEE 802.3at in Modes A and B. The switch has a maximum combined PoE output of 200W, so available power across connected devices is subject to this overall limit.

Rack, Desktop, and Truss Installation

The GeNetix GS8 includes removable rack ears for installation in a standard 19-inch equipment rack, occupying 1U of rack space. Its M12 threaded insert also allows clamp mounting to suitable truss structures, providing additional flexibility for touring productions and temporary event networks. The compact chassis supports desktop placement when rack or truss mounting is not required.

Key Features

• Eight Gigabit Ethernet ports.
• Unmanaged network switch.
• Up to 200W total PoE output.
• Ports 1–4 support PoE++ up to 100W per port.
• Ports 5–8 support PoE+ up to 30W per port.
• IEEE 802.3af and 802.3at support on all ports in Modes A and B.
• Locking Ethernet connectors.
• PowerCon TRUE1 TOP mains input.
• Removable 19-inch rack ears.
• 1U rack-mountable chassis.
• M12 threaded insert for clamp mounting.
• Port status LEDs.

Ideal For

• Professional lighting network installations.
• Stage and truss-mounted network equipment.
• Live event production and touring systems.
• Theaters and performance venues.
• Entertainment and architectural lighting infrastructure.
• Networked equipment requiring PoE power.
• Rack-mounted AV and lighting control systems.
• Installations requiring flexible Gigabit Ethernet and PoE distribution.

What's in the Box

• ChamSys GeNetix GS8 network switch.
• PowerCon TRUE1 power cable.
• 19-inch rack-mount ears kit.

Inputs & Outputs

• Network Ports Eight Gigabit Ethernet ports with PoE support.
• PoE++ Ports Ports 1–4 support IEEE 802.3bt up to 100W per port.
• PoE+ Ports Ports 5–8 support up to 30W per port.
• Additional PoE Standards IEEE 802.3af and 802.3at supported on all ports in Modes A and B.

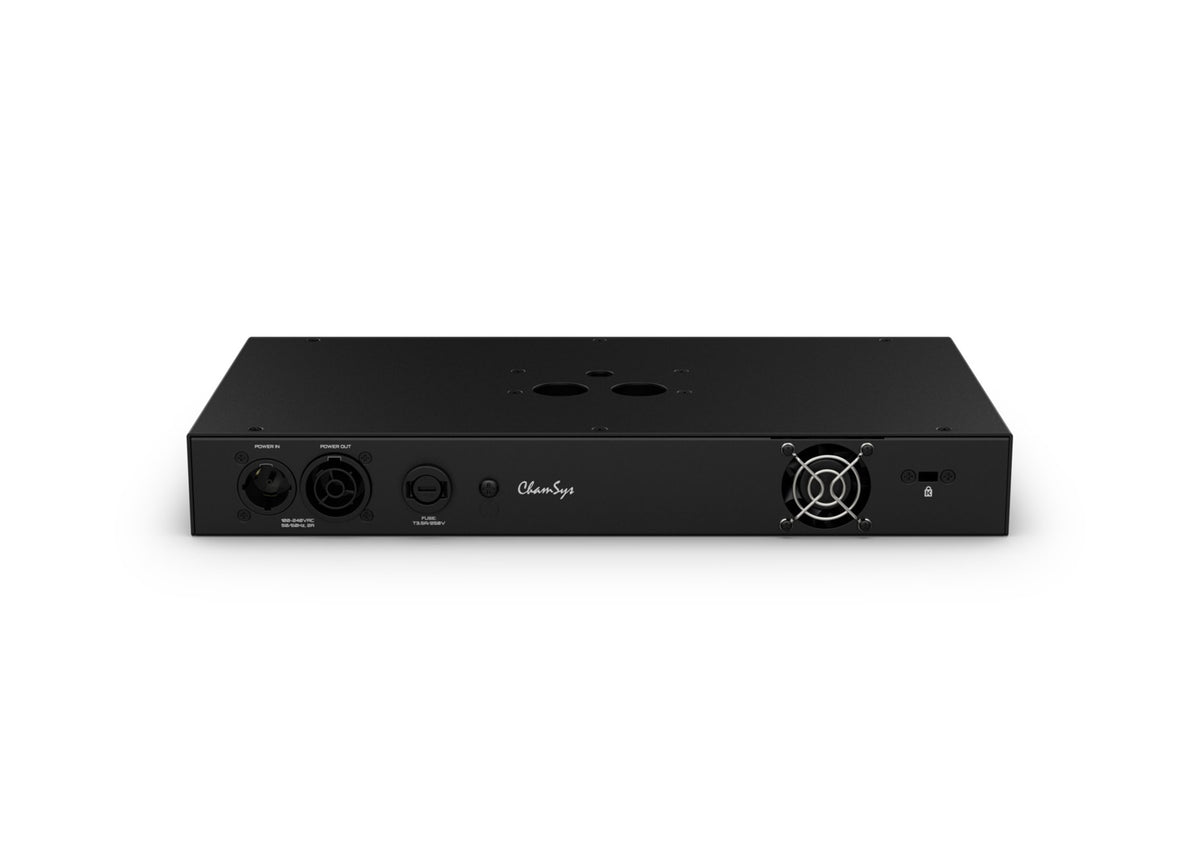

• Mains Input PowerCon TRUE1 TOP.
• Port Indicators LED status indicators for network ports.
• Mounting Interface M12 threaded insert for clamp mounting.

Frequently Asked Questions

How many network ports does the GeNetix GS8 have?

It has eight Gigabit Ethernet network ports.

Is the GS8 a managed or unmanaged switch?

It is an unmanaged Gigabit Ethernet switch.

What is the total PoE power budget?

The switch provides up to 200W of total PoE output across its eight ports.

Can the GS8 be installed in a rack?

Yes. It includes removable rack ears for standard 19-inch rack mounting and occupies 1U of rack space.

Can it be mounted on a truss?

Yes. Its M12 threaded insert supports clamp mounting with a suitable compatible clamp.

What power connector does it use?

It uses a PowerCon TRUE1 TOP mains input.

Does the switch include a power cable?

Yes. One PowerCon TRUE1 power cable is included.

Full Technical Specifications

General Specifications

Brand	ChamSys
Model	GeNetix GS8
Product Type	Unmanaged Gigabit PoE network switch
Number of Network Ports	8
Network Speed	Gigabit Ethernet
Switching Type	Unmanaged
Total PoE Output	Up to 200W
Maximum Mains Power Consumption	8.2W

Network & PoE Specifications

otal Network Ports	8
IEEE 802.3af Support	All ports, Modes A and B
IEEE 802.3at Support	All ports, Modes A and B
IEEE 802.3bt Support	Ports 1–4
PoE++ Output	Up to 100W per port on ports 1–4
PoE+ Output	Up to 30W per port on ports 5–8
Maximum Combined PoE Output	200W
Locking Ethernet Connectors	Yes
Port Status LEDs	Yes

Power Specifications

Mains Input Connector	PowerCon TRUE1 TOP
Power Cable Included	Yes
Maximum Mains Power Consumption	8.2W
PoE Power Budget	Up to 200W total

Mounting & Construction Specifications

Rack Mounting	Yes
Rack Compatibility	19-inch rack
Rack Height	1U
Removable Rack Ears	Yes
Truss / Clamp Mounting	M12 threaded insert
Desktop Placement	Supported

Physical Specifications

Product Width (Without Rack Ears)	12.99 inches
Product Width (With Rack Ears)	18.98 inches
Product Depth	6.77 inches
Product Height	1.69 inches
Product Weight	4.52 lbs
