ChamSys GeNetix GW2O DMX Out Wall Mount Node is a two-port, PoE-powered DMX/RDM wall mount node designed for permanent lighting installations. It fits a standard single-gang US back box and features two 5-pin XLR female DMX/RDM ports, along with a network terminal connection for reliable lighting control and signal distribution.

Supporting Art-Net, DMX512, and SACN protocols, the ChamSys GeNetix GW2O provides flexible integration with professional lighting networks. It offers web server remote configuration, ChamNet support, configurable DMX timings, and DMX redundancy support. Compatible ChamSys consoles and Art-Net connections allow convenient setup and configuration for a variety of lighting applications.

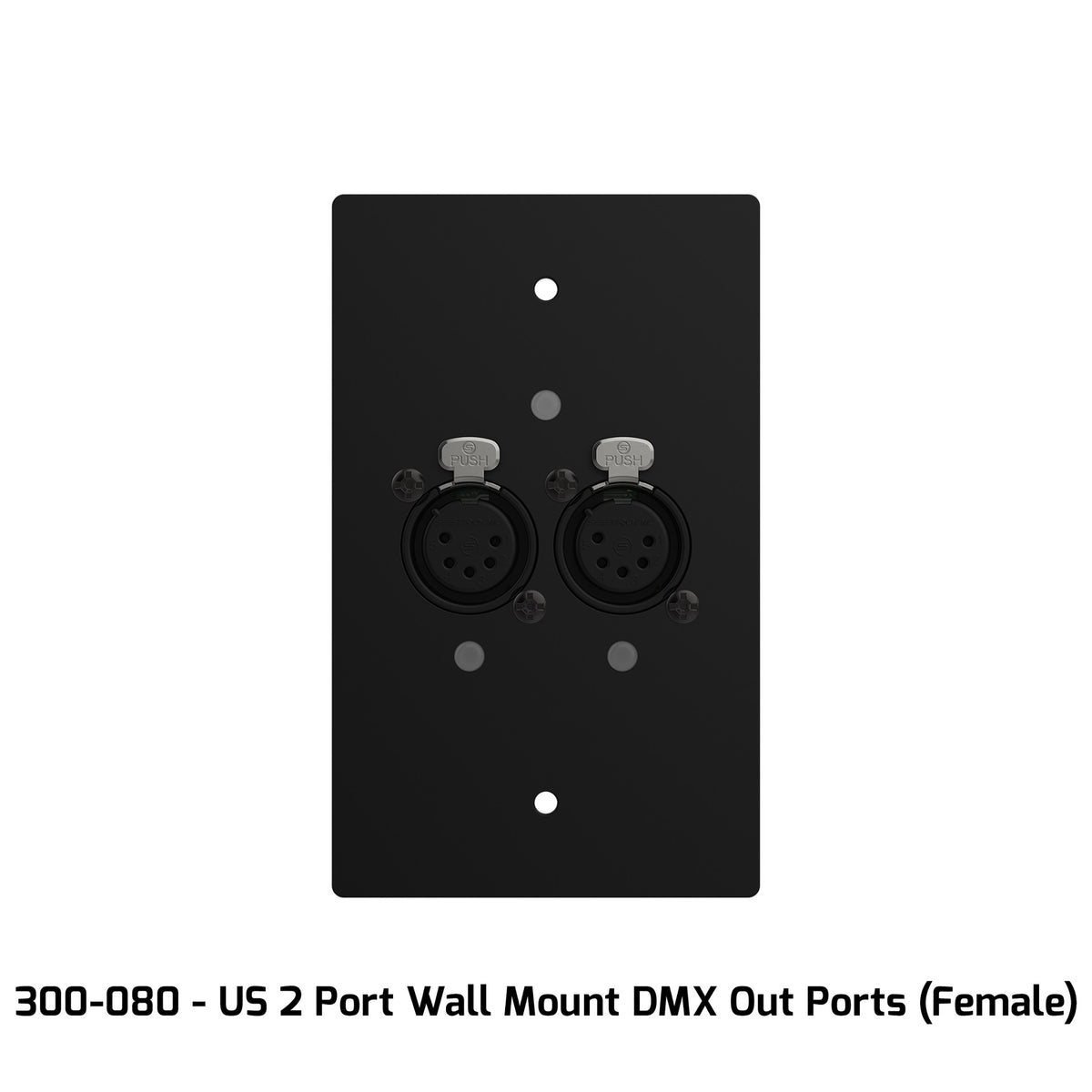

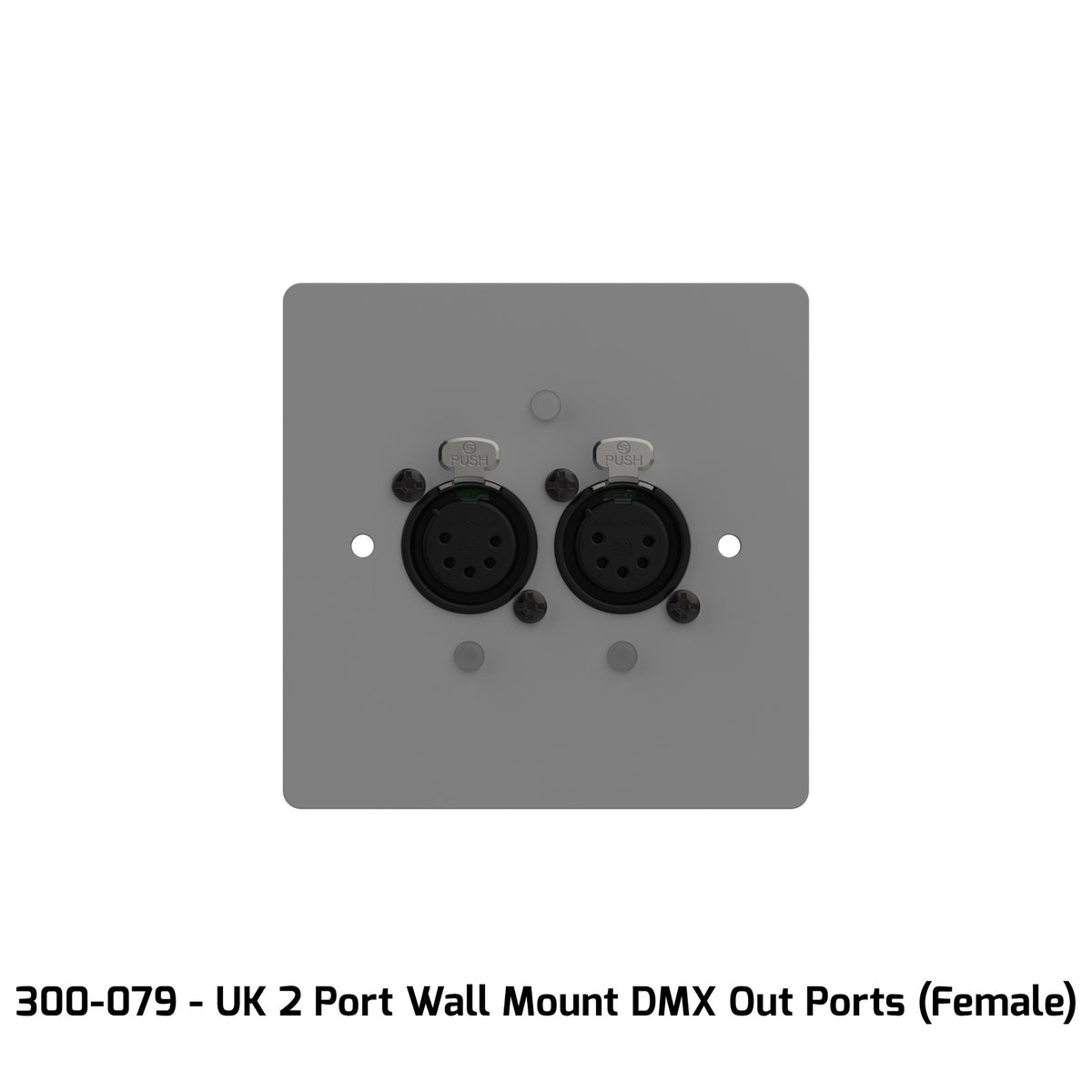

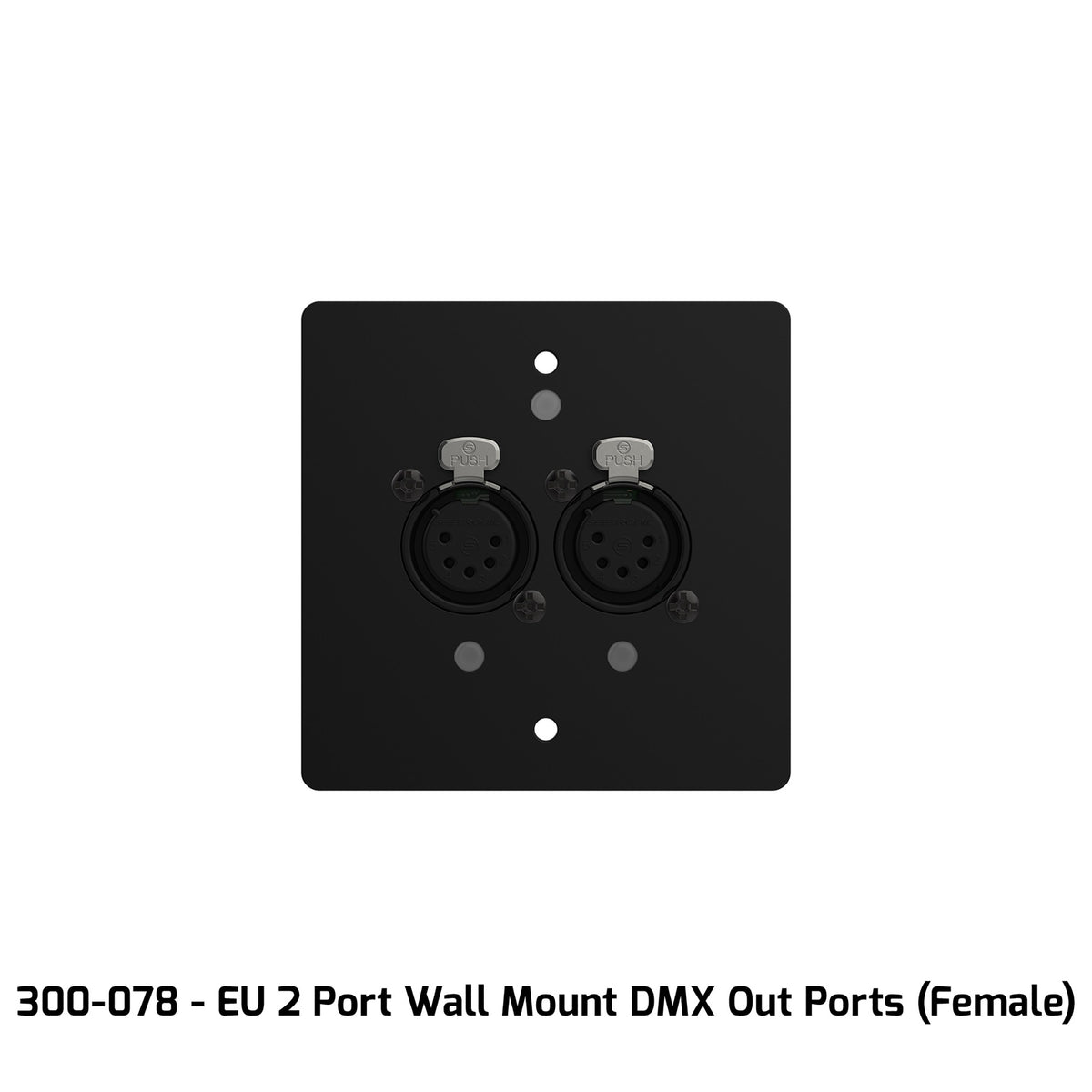

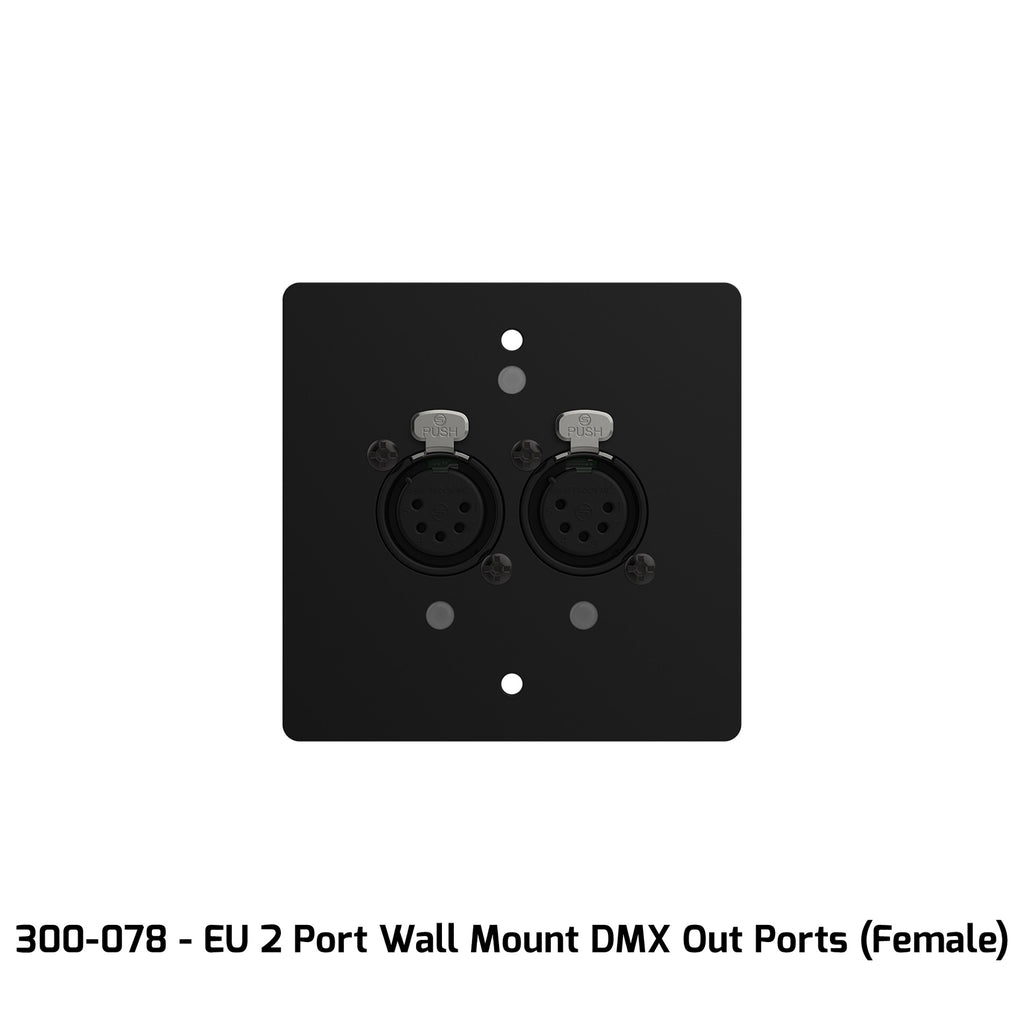

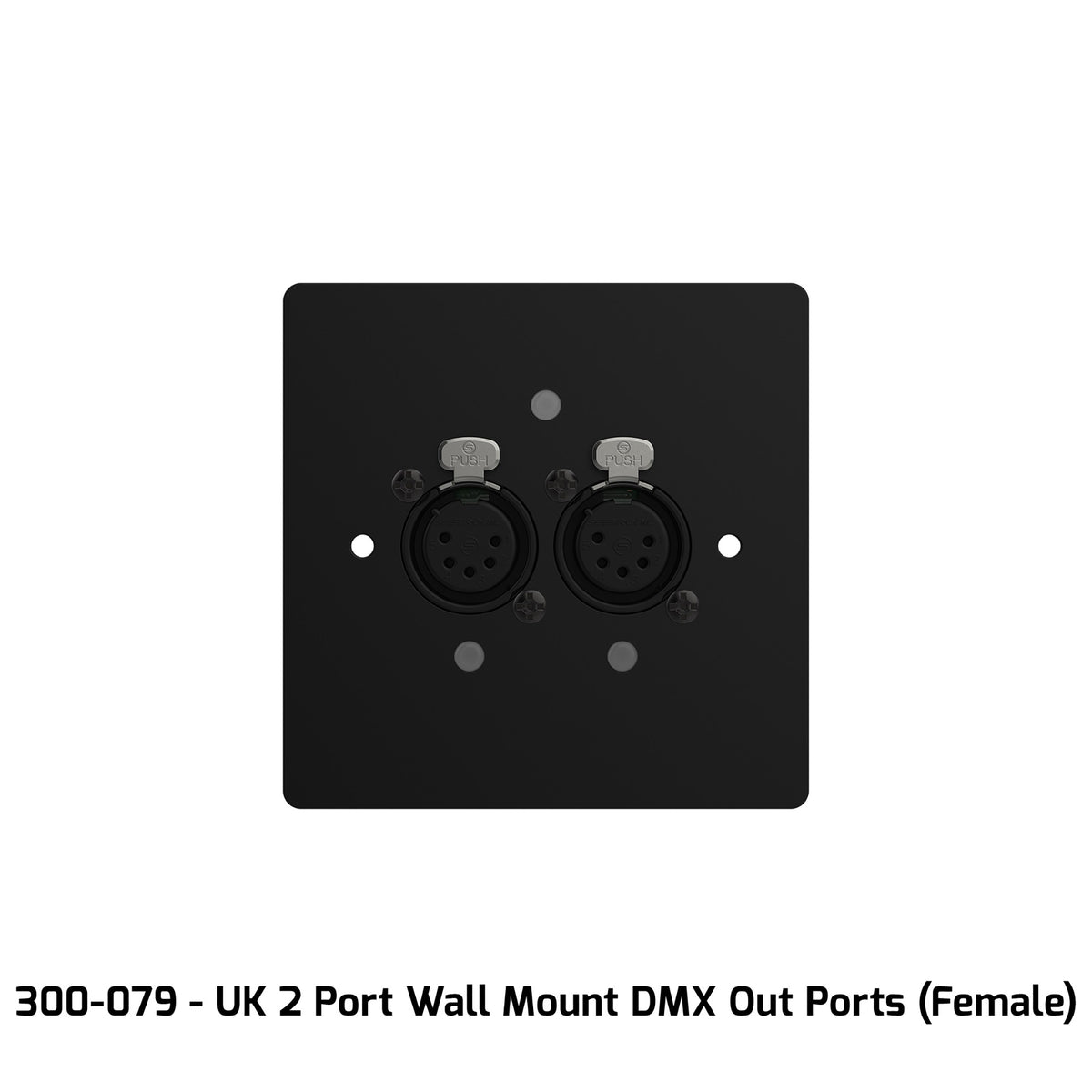

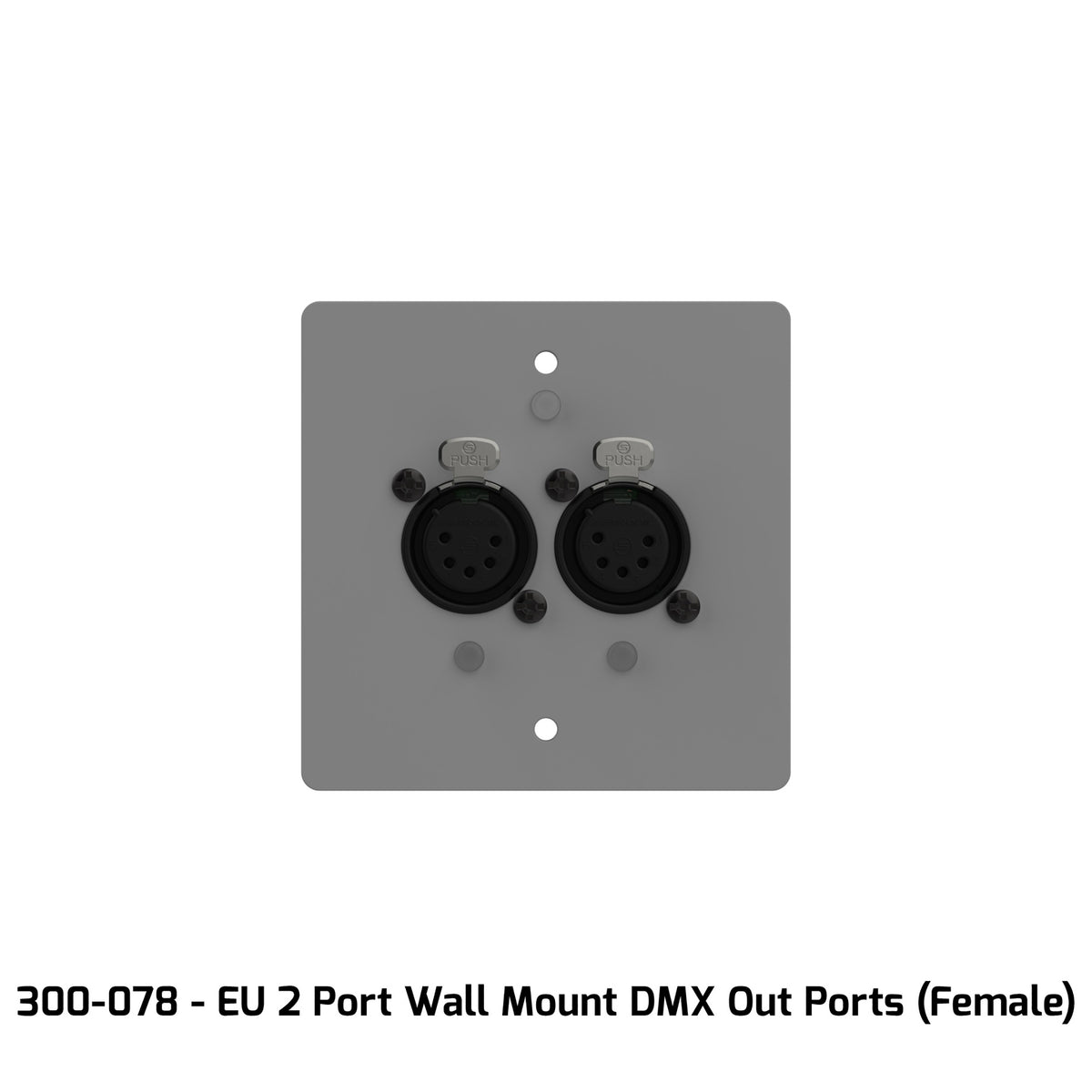

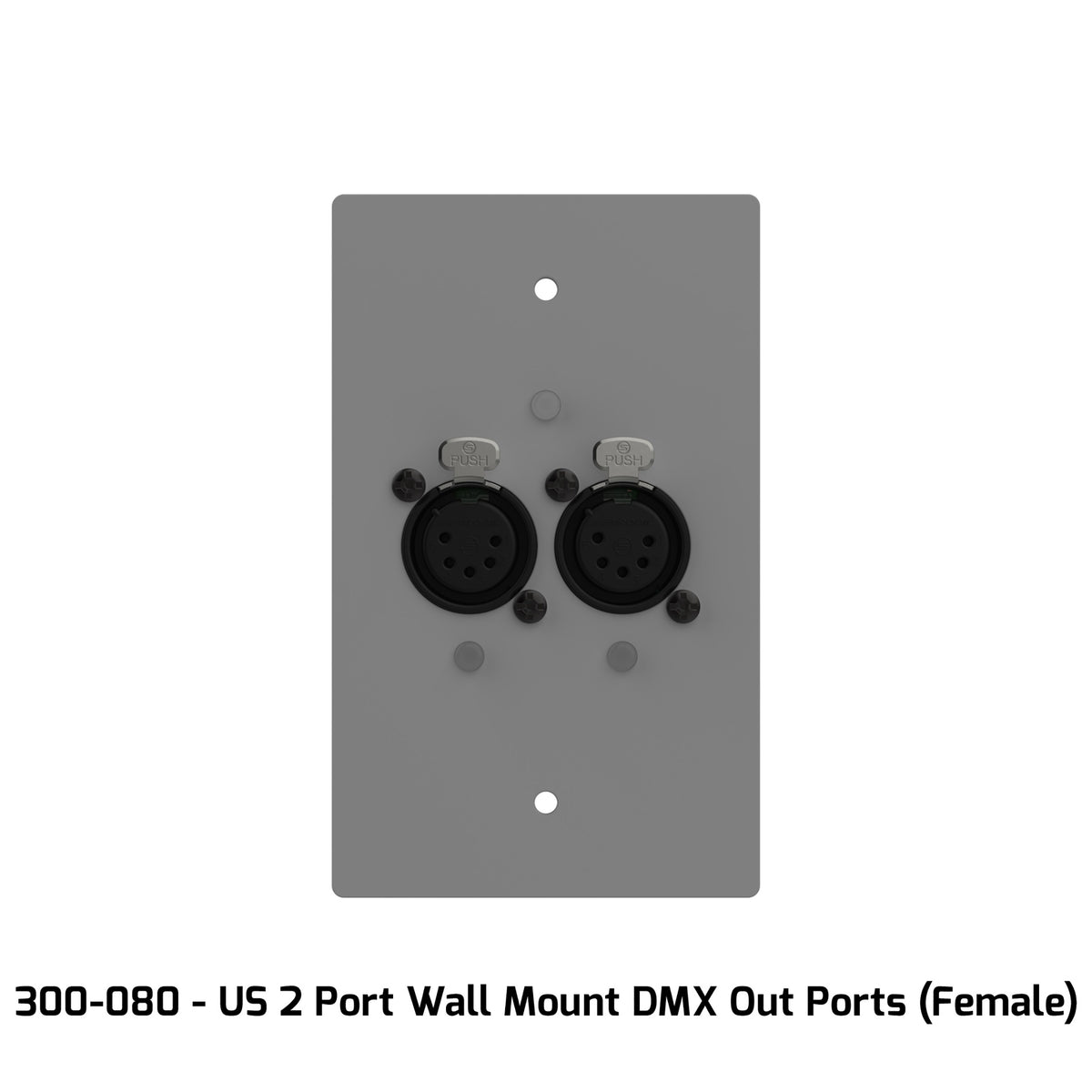

Designed for convenient installation, this compact wall mount node is available in versions for US, UK, and EU single-gang back boxes. It includes interchangeable black and white faceplates to suit different installation environments. Weighing just 0.33 lb (0.15 kg), the ChamSys GeNetix GW2O is a practical solution for theaters, venues, and other permanent lighting control systems. It does not unlock demo mode on MagicQ PC systems.

Key Features

• Two-port DMX/RDM wall mount node for permanent installations.
• PoE-powered design for convenient installation.
• Supports Art-Net, DMX512, and SACN protocols.
• Two 5-pin XLR female DMX/RDM ports.

Ideal For

• Permanent lighting installations.
• Theaters and performing arts venues.
• Concert halls and live event spaces.
• Commercial buildings and entertainment venues.
• Professional DMX lighting control systems.
• Art-Net and SACN lighting networks.
• ChamSys console-based lighting setups.
• Installations requiring remote configuration and DMX redundancy.

What's in the Box

• ChamSys GeNetix GW2O DMX Out Wall Mount Node (2-Port)
• Black Face Plate
• White Face Plate

Inputs & Outputs

• 2 × 5-pin XLR female DMX/RDM ports.
• 1 × punchdown network terminal input.
• Supports DMX512, Art-Net, and SACN protocols.
• Supports DMX input or output functionality.

Frequently Asked Questions

What is the ChamSys GeNetix GW2O DMX Out Wall Mount Node?

It is a two-port PoE-powered DMX/RDM wall mount node designed for permanent lighting installations.

Which lighting protocols does it support?

It supports Art-Net, DMX512, and SACN protocols.

How many DMX ports does it have?

It features two 5-pin XLR female DMX/RDM ports.

How can the node be configured?

It supports configuration through its built-in web server, compatible ChamSys consoles, or Art-Net.

Full Technical Specifications

Audio Performance

Brand	ChamSys
Product Name	GeNetix GW2O DMX Out Wall Mount Node
Product Type	Wall Mount DMX/RDM Node
DMX/RDM Ports	2 × 5-Pin XLR Female
Network Ports	1 × Punchdown Terminal Connector
Inputs/Outputs	2 × XLR 5-Pin DMX Female Output, 1 × Terminal Input
Supported Protocols	Art-Net, DMX512, sACN
Power Supply	Power over Ethernet (PoE)
Web Server	Yes
Remote Configuration	Yes
ChamNet Support	Yes
Configurable DMX Timings	Yes
DMX Redundancy Support	Yes
Dimming	Optional
Cooling System	None
Fixture Compatibility	Compatible ChamSys Consoles and Lighting Networks
Installation Type	Permanent Wall Mount

Connectors

DMX/RDM Ports	2 × 5-Pin XLR Female
Network Connection	1 × Punchdown Terminal Connector
DMX Protocols	DMX512, Art-Net, sACN
Network Support	ChamNet
Power Connection	Power over Ethernet (PoE)
Configuration	Built-in Web Server

Power & Operation

Power Source	Power over Ethernet (PoE)
PoE Powered	Yes
Power Consumption	Not Specified
Operating Mode	DMX/RDM Wall Mount Node
Supported Protocols	Art-Net, DMX512, SACN
Configuration	Built-in Web Server, Compatible ChamSys Consoles, or Art-Net
ChamNet Support	Yes
DMX Timing	Configurable
DMX Redundancy	Supported
Dimming	Optional
Cooling System	None

Dimensions & Weight

Dimensions:	(L × W × H): 5.53 x 2.76 x 1.48
Weight	0.33 lbs
