Descripción

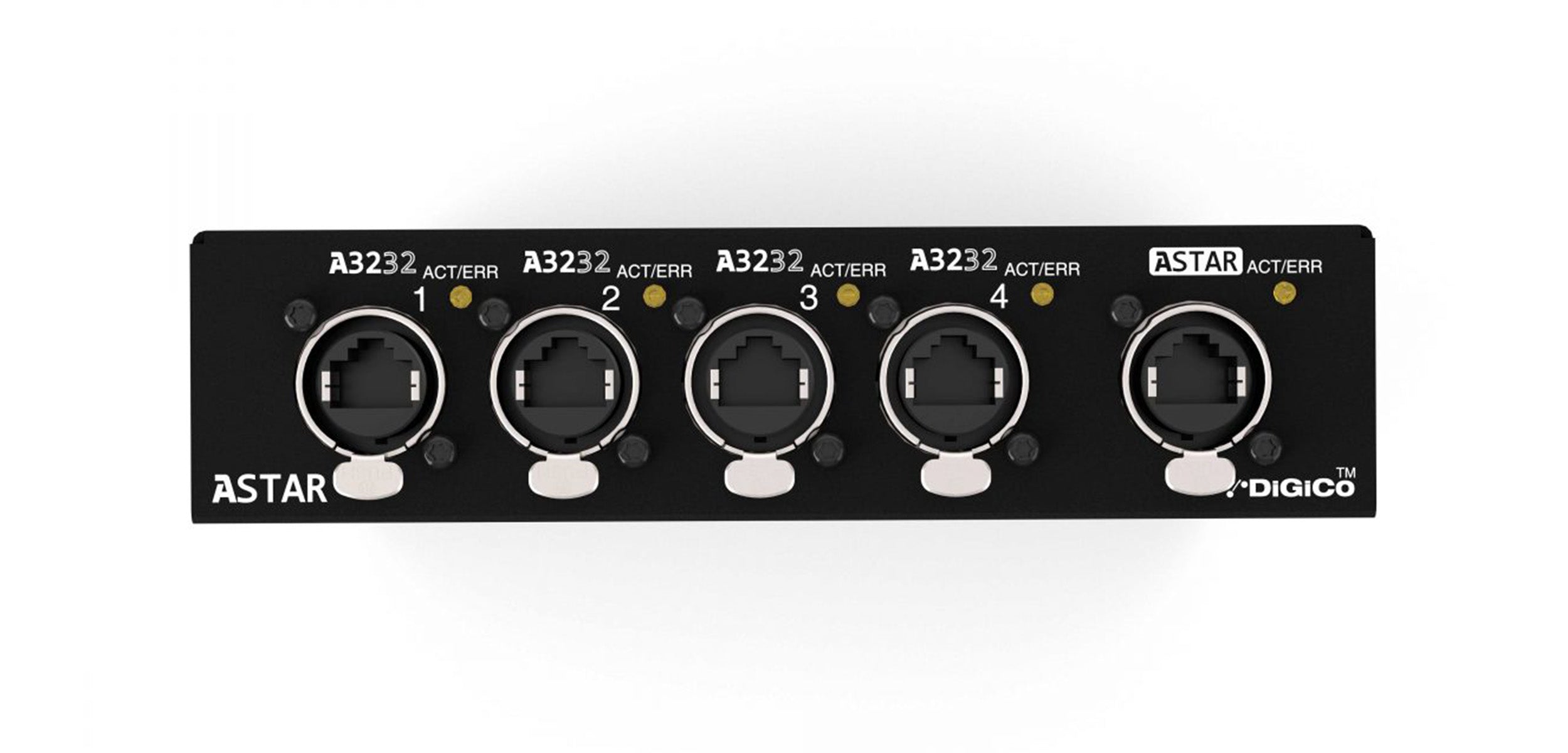

The DiGiCo X-A-STAR is a professional 4-Port A3232 Network I/O Expander designed to extend A3232 audio networks with local I/O connectivity. It provides a simple and cost-effective way to increase system capacity while maintaining exceptional audio performance. The compact unit integrates easily into existing DiGiCo infrastructures and supports demanding live production environments. Its efficient architecture simplifies system expansion without increasing operational complexity.
High-Capacity Audio Transport
The X-A-STAR supports up to 128 input and 128 output audio channels over a single network cable, providing efficient high-channel-count digital audio transport. This capacity allows multiple audio streams to be transmitted simultaneously with low latency and dependable synchronization. The system is engineered for demanding touring, broadcast, theater, and installation applications. Large-scale productions benefit from stable performance and simplified cabling. Engineers can manage complex audio networks with confidence.
Flexible Network Connectivity
Designed for maximum compatibility, the X-A-STAR works with standard Layer 2 Gigabit Ethernet switches and media converters. This allows integration into existing network infrastructures without requiring proprietary networking equipment. The flexible architecture simplifies deployment while reducing installation costs. Engineers can create scalable audio systems using widely available network hardware. The design supports efficient routing between connected devices.
Reliable Redundant Networking
The unit includes support for redundant network operation through its secondary network connection. This enables users to create a backup communication path that helps maintain uninterrupted audio transmission if the primary network becomes unavailable. Redundant networking is essential for mission-critical live events, broadcast facilities, and permanent installations. Engineers gain additional operational security during demanding productions.
Compact Professional Design
The X-A-STAR features a compact rackmount chassis that installs easily into professional equipment racks while minimizing space requirements. Its rugged construction is designed to withstand the demands of touring and permanent installations alike. The streamlined design simplifies transportation, installation, and maintenance without sacrificing performance. Built for continuous operation, it delivers dependable performance in challenging production environments.
What’s in the Box:
- Single PSU IEC
- Connections: ASAR x 1, A3232 x 4
- Connectors: EtherCON
Product Specifications:
Product Type: A3232 Network I/O Expander.
Network Ports: 4 × A3232 network ports.
Maximum Audio Channels: 128 × 128.
Network Protocol: A3232.
Compatibility: DiGiCo 4REA4 Customized DSP Engine.
Switch Compatibility: Standard Layer 2 Gigabit Ethernet switches.
Media Converter Support: Yes.
Redundant Networking: Supported using second ASTAR port.
Primary Function: Network expansion for A3232 audio systems.
Audio Transport: High-channel-count digital audio over Ethernet.
Application: Live sound, broadcast, theater, installed audio, and production facilities.
Rack Mount: Professional rack-mount design.
Construction: Rugged metal chassis.
Power Supply: Internal universal AC power supply.
Operating Environment: Professional indoor installations.
Product Weight: 6.6 lbs.
Product Dimensions (L × W × H): 19.0" × 8.5" × 1.75"
