Descripción
Professional 4-Channel DJ Mixing

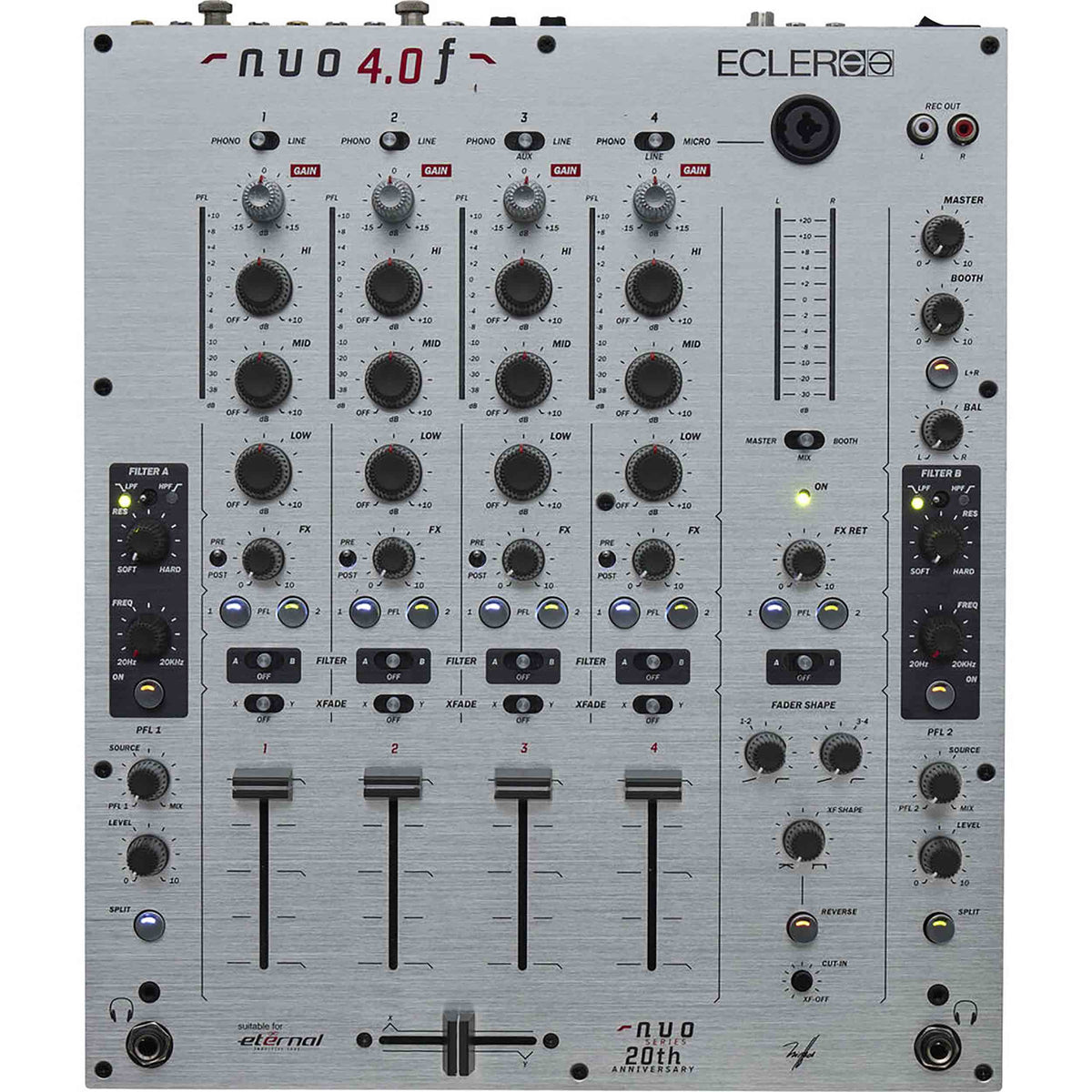

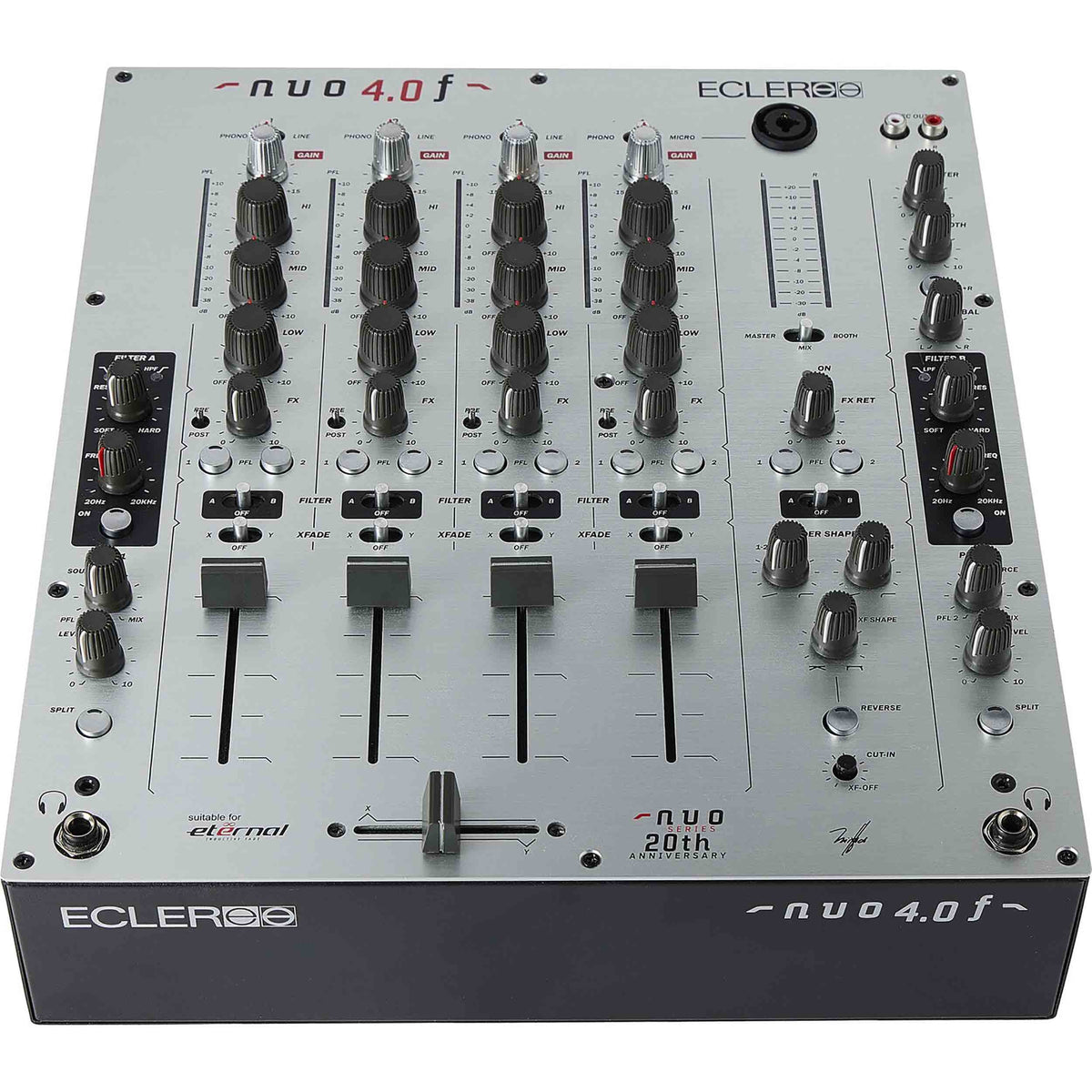

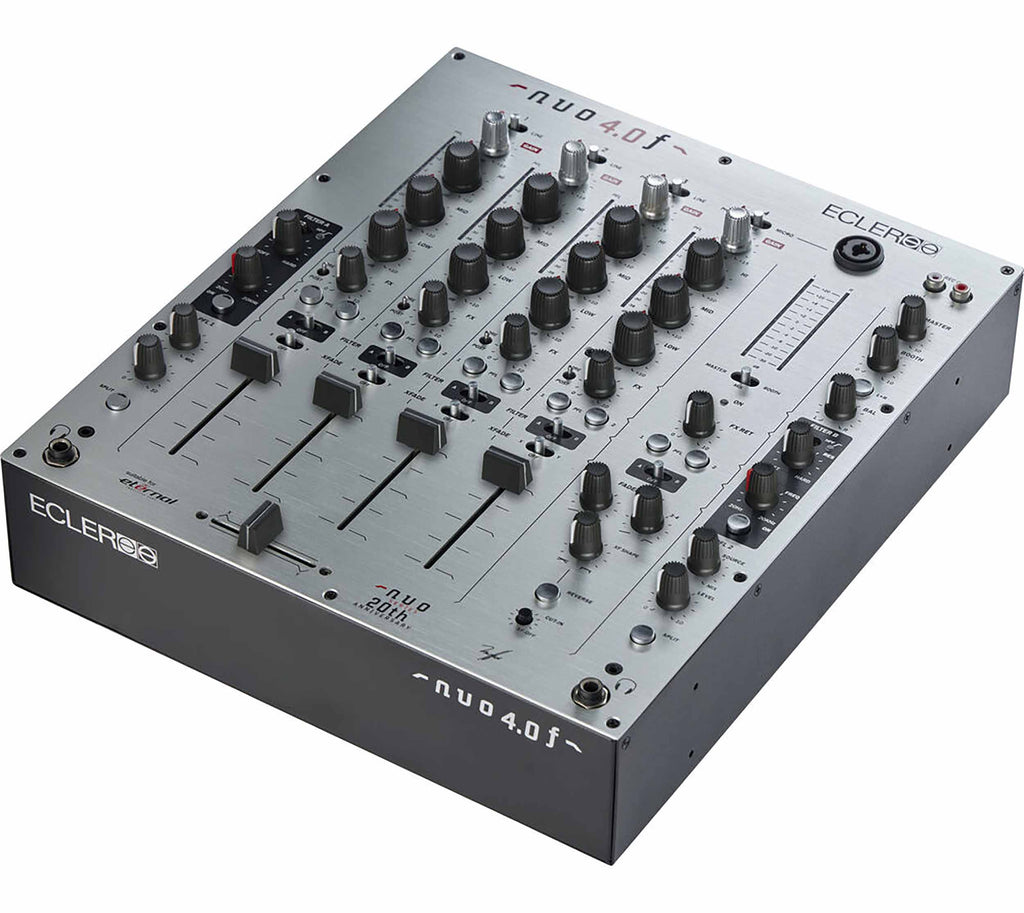

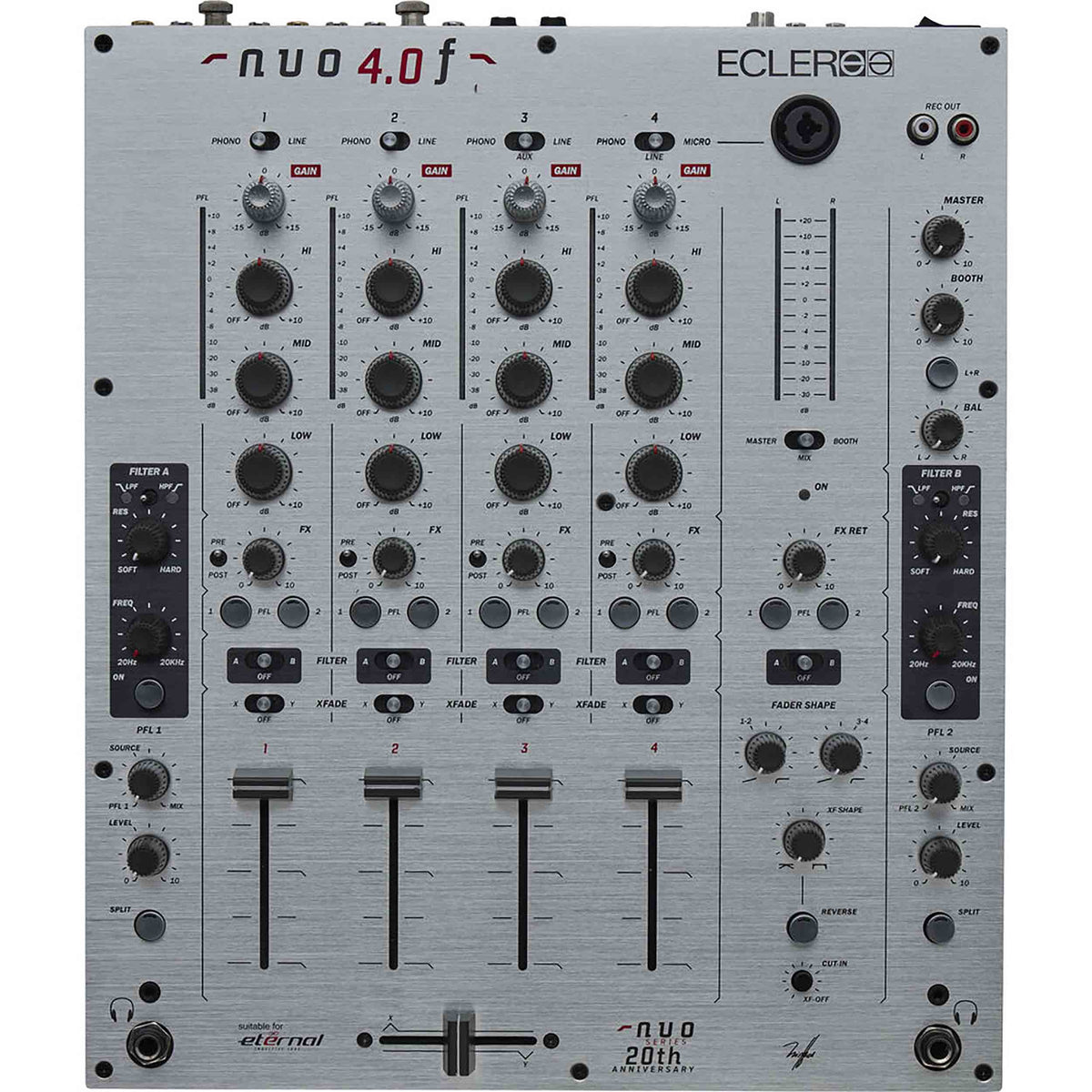

The Ecler NUO4.0F is a professional 4-channel analogue DJ mixer designed to deliver reliable performance and creative control for today's demanding DJs. Celebrating the 20th anniversary of the NUO series, it combines Ecler's established analogue sound with modern performance features. Its four-channel layout makes it well-suited to nightclubs, DJ studios, and mobile DJ performances.
Flexible Connectivity

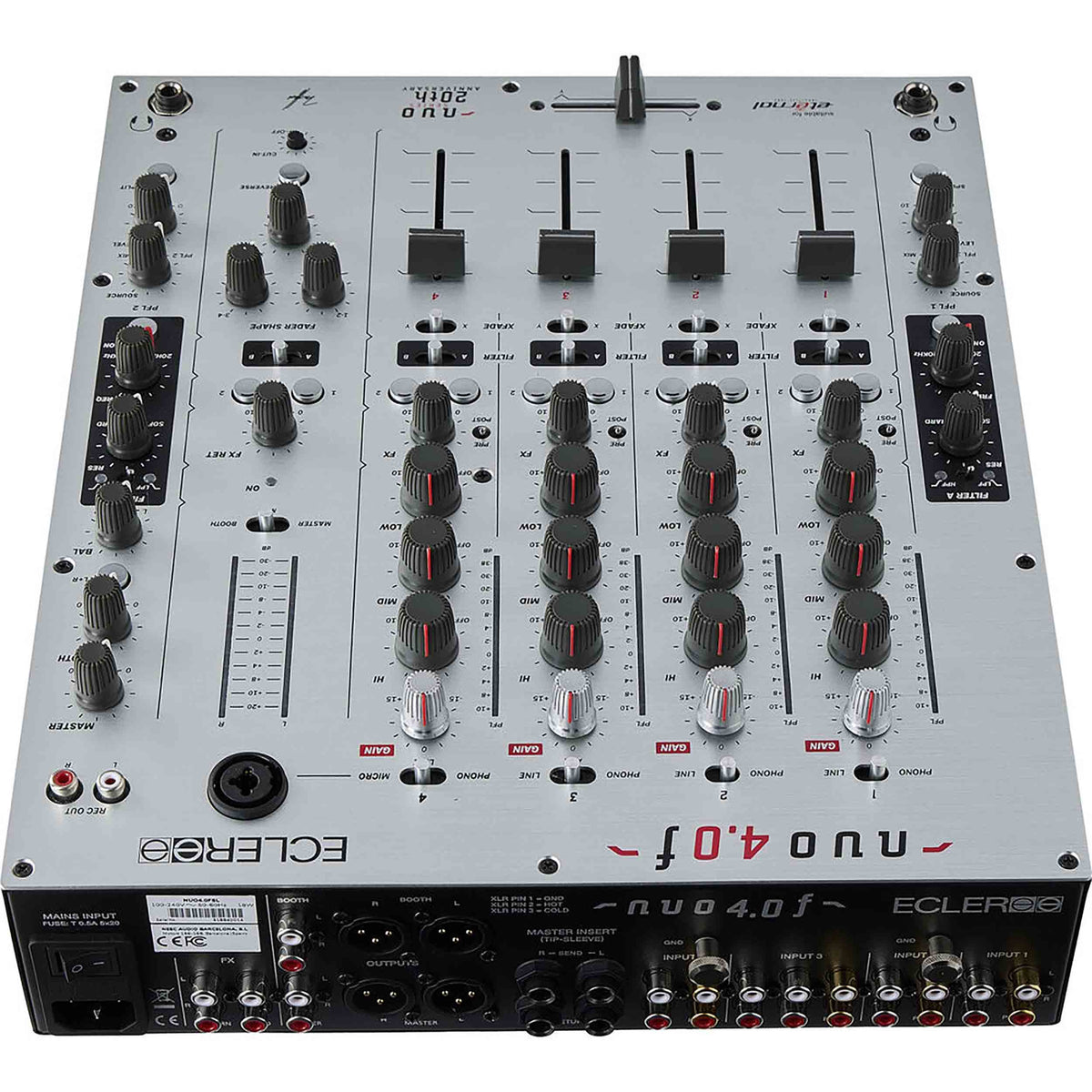

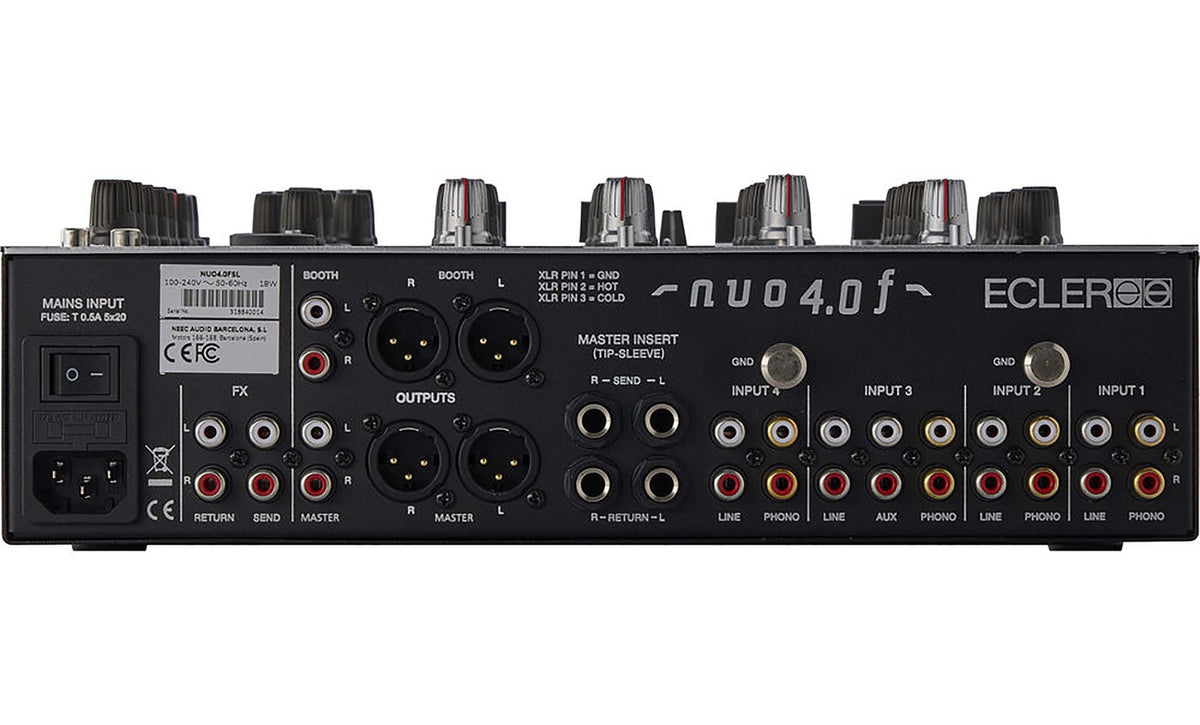

The NUO4.0F provides four PHONO/LINE inputs plus an AUX input, allowing DJs to connect multiple turntables, media players, and other audio sources. A dedicated microphone input is provided through a balanced XLR/Jack combo connector. Master and Booth outputs are available in both balanced XLR and unbalanced RCA formats, with additional Record, FX Send, and FX Return connections for flexible system integration.
Advanced Sound Control
Two independent HP/LP VCF filters with variable resonance provide powerful creative sound-shaping options and can be assigned to different channels, including the effects return. Each channel features dedicated EQ controls, while the FX Send section includes pre/post-fader selection, and the FX Return provides PFL monitoring. These features give DJs greater control over transitions, effects, and overall mix character.
Built for Professional Performance
The NUO4.0F is designed with turntablism, scratching, and advanced mixing techniques in mind. It features 60mm Ecler channel faders with adjustable fading curves and supports the Ecler ETERNAL magnetic crossfader for precise crossfader control. Two independent headphone PFL systems are specially designed for B2B sessions, while the mixer delivers a maximum undistorted output level of 21dBV (23dBu) for clean, powerful audio performance.
Specifications:
Configuration: 4-channel analogue DJ mixer.
Channels: 4 × stereo.
Line Inputs: 5 × stereo RCA.
Phono Inputs: 4 × stereo RCA.
AUX Input: 1 × stereo RCA.
Microphone Input: 1 × balanced XLR/1/4" combo.
FX Return: 1 × stereo RCA.
Master Output: Balanced XLR and stereo RCA.
Booth Output: Balanced XLR and stereo RCA.
Record Output: 1 × stereo RCA.
FX Send: 1 × stereo RCA.
Headphone Outputs: 2 × 1/4" TRS.
Channel Faders: 4 × 60 mm.
Crossfader: 45 mm, Ecler ETERNAL compatible.
VCF Filters: 2 × HP/LP with variable resonance.
EQ: 3-band channel EQ.
Main Meter: 4 × 12-segment LEDs.
Built-In Effects: No.
USB: No.
Maximum Output Level: 21 dBV (23 dBu).
Frequency Response: 10 Hz–30 kHz, line input.
Signal-to-Noise Ratio: >103 dB, line input.
Power Requirements: 90–264 VAC, 50/60 Hz.
Power Consumption: 37 VA.
Weight: 6.14 kg.
Dimensions (L × W × H): 19.3 x 17.5 x 7.1"
