Descripción

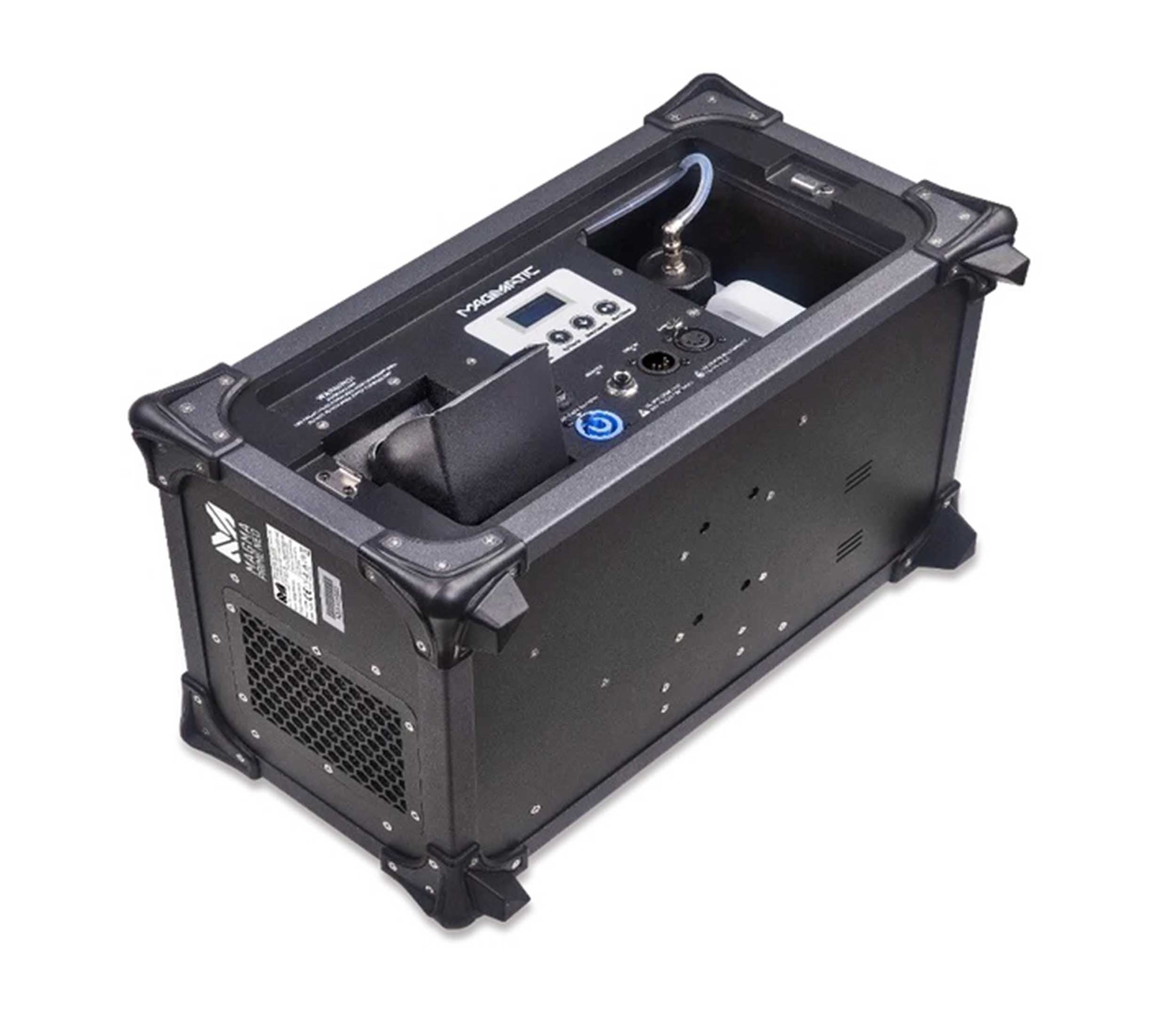

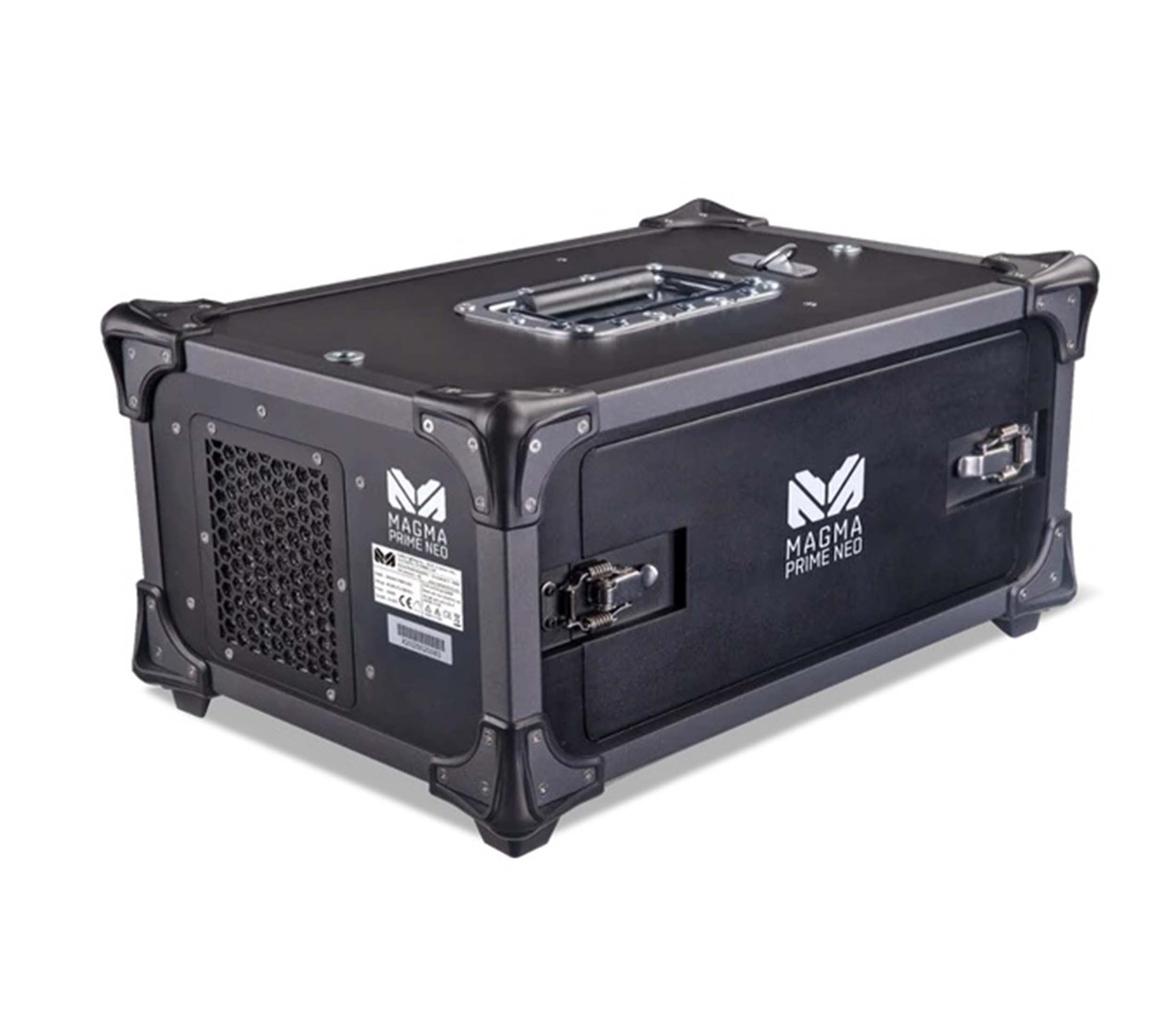

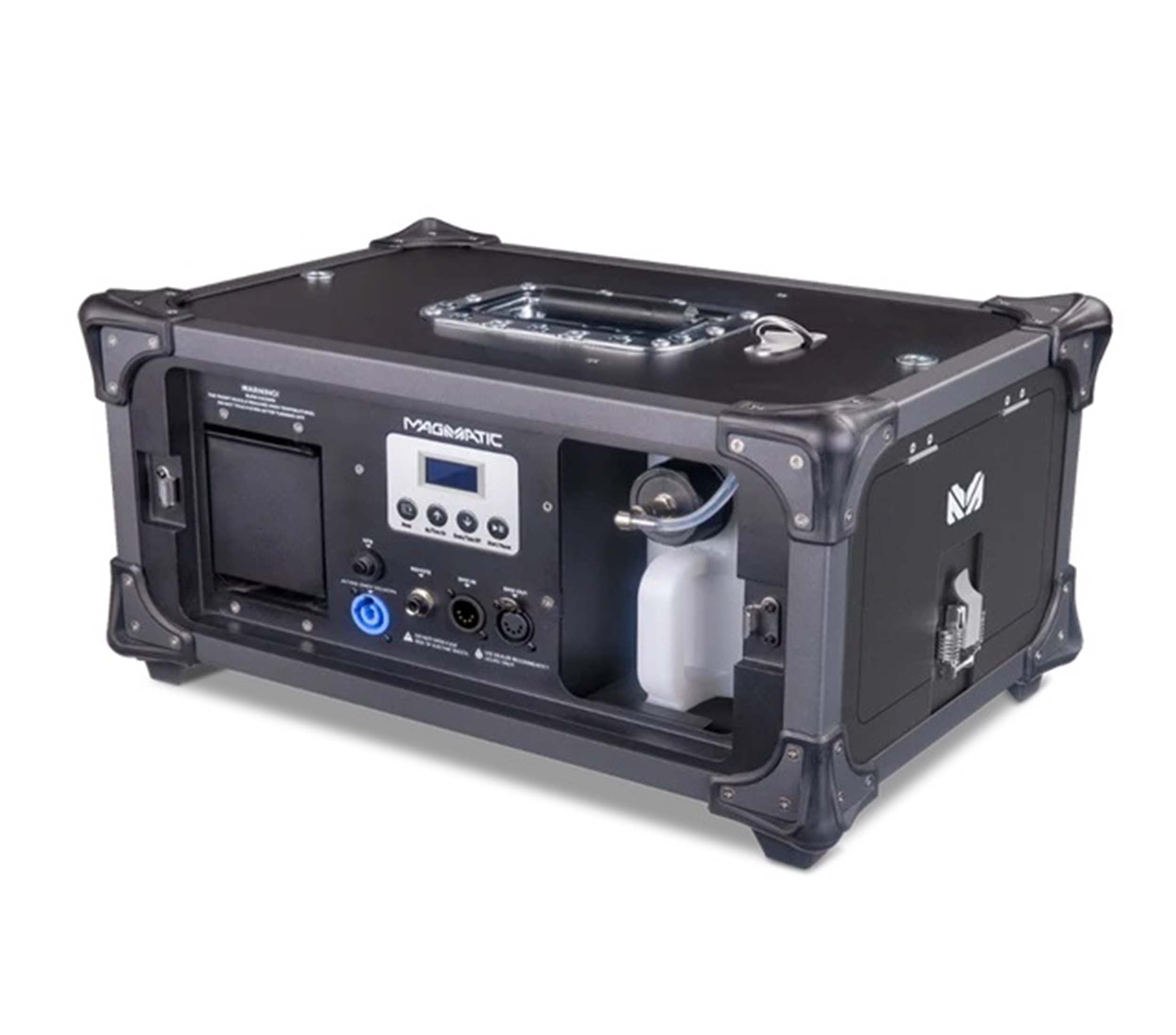

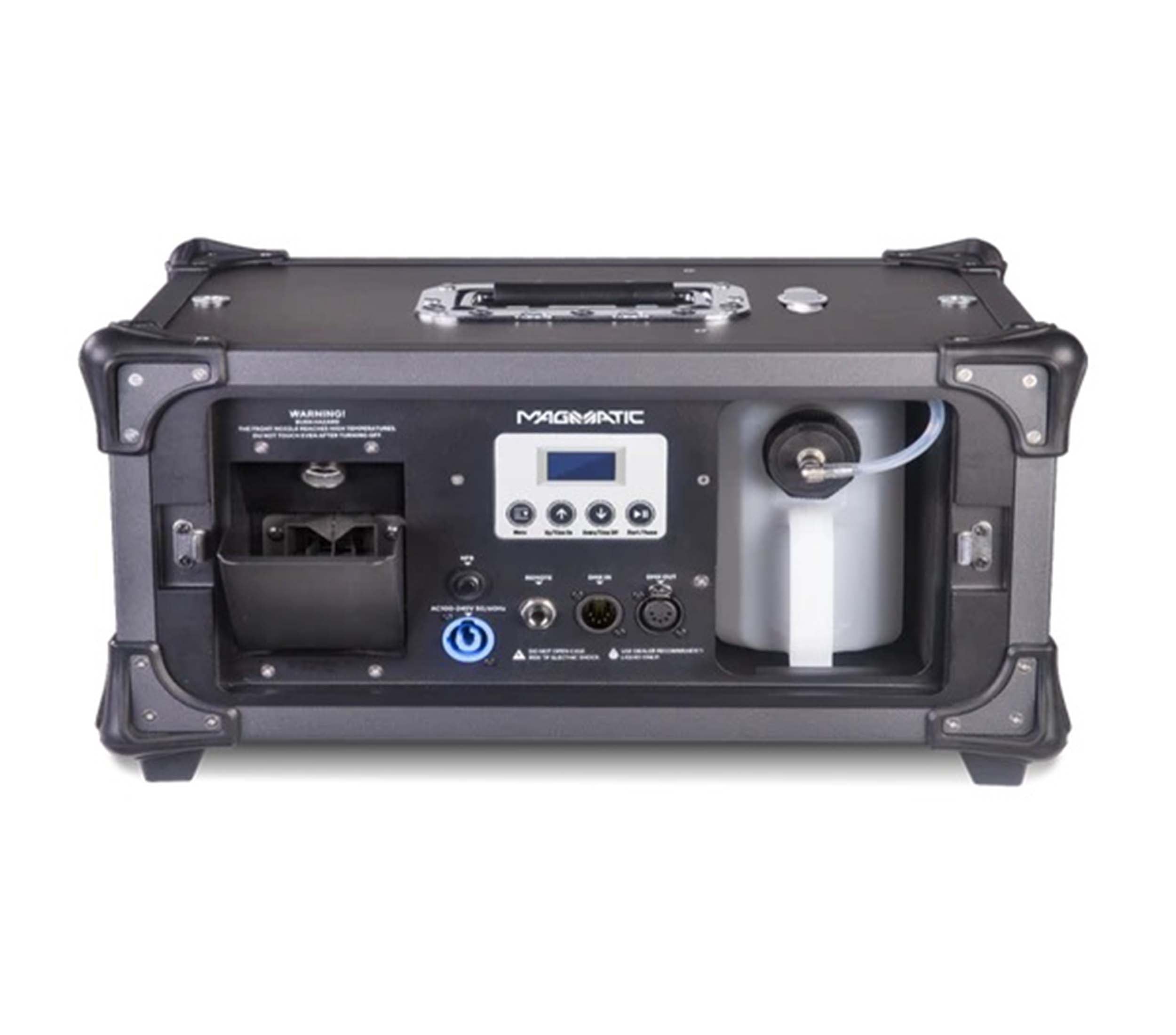

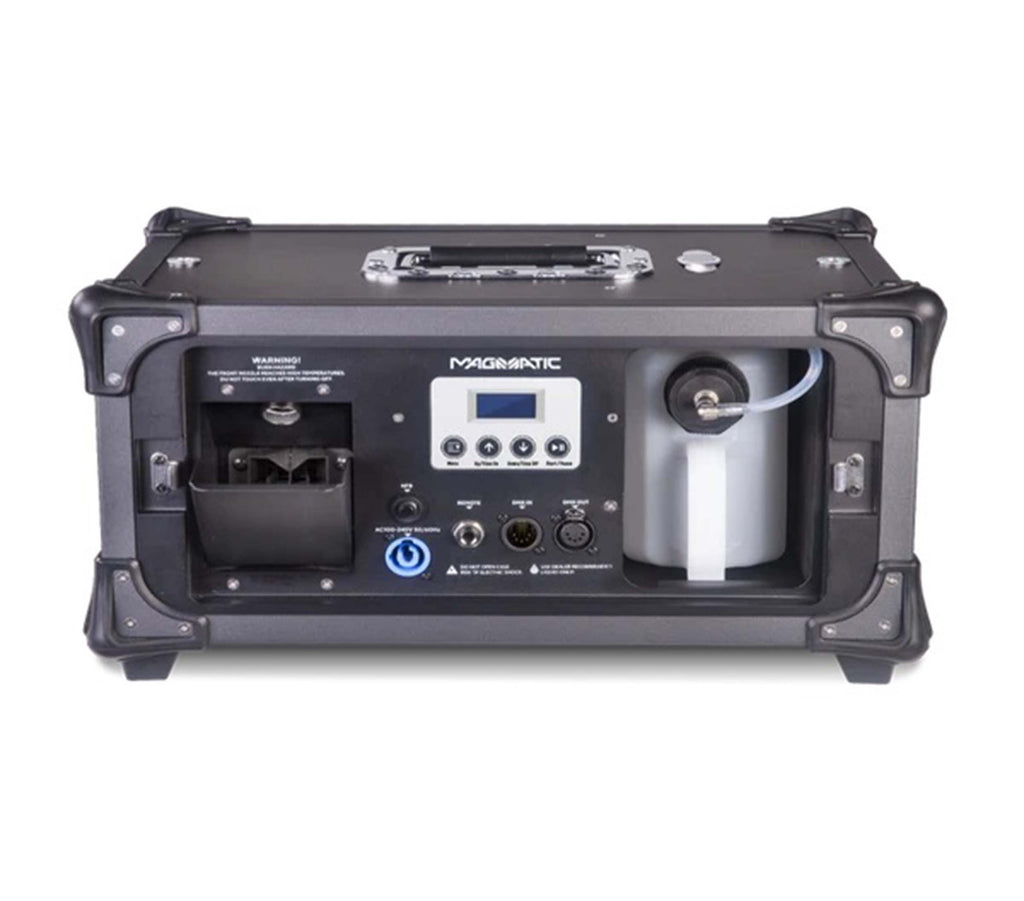

The Elation MSP104 Magmatic Magma Prime Neo is a professional compact fazer engineered to produce smooth, consistent atmospheric effects for lighting and stage applications. With a powerful 10,000 cu.ft/min fog output, it generates an even, fine haze that enhances lighting beams, scenic effects, and atmospheric environments without overpowering the space. Output can be precisely adjusted from 5–100%, making it suitable for everything from subtle haze to stronger atmospheric effects.
Fast Warm-Up & Efficient Fluid Usage
Designed for productions where quick response and efficient operation are essential, the Magma Prime Neo reaches operating temperature in approximately 60 seconds. Its 1,350W heater supports reliable fog production while fluid consumption remains efficient at just 6 ml/min. The integrated 2-liter (0.53 gal) fluid tank provides extended operating time while reducing the need for frequent refills.
Flexible DMX & Stand-Alone Control
The Magma Prime Neo provides professional control through 1, 2, or 4-channel DMX modes with 5-pin XLR input and output connections. Stand-alone operation is also available through the onboard LCD interface, allowing users to configure continuous or timed fogging directly from the fixture. Manual fogging, external controller support, and a 1/4" remote connector provide additional control options for different production environments.
Reliable Operation & Self-Cleaning
A built-in 60-second self-clean function helps maintain reliable operation and simplifies routine maintenance. The onboard system also provides warnings for low fluid, overheating, and heating-system issues, helping operators monitor the unit during demanding productions. Air-cooled operation and a maximum ambient operating temperature of 40°C (104°F) further support dependable performance.
Compact Professional Construction
Housed in a durable Obsidian gray enclosure, the Magma Prime Neo combines a compact footprint with an integrated handle for easier handling and transport. Its 17.6" × 11.7" × 9.5" dimensions and 27.6 lbs weight make it practical for touring, rental inventories, theaters, clubs, houses of worship, and permanent installations. Wide-range 100–240VAC power compatibility adds further flexibility for professional production environments.
Product Specifications:
Product Type: Compact Fazer
Application: Touring, Rental, Permanent Installations, Theaters, Clubs, Houses of Worship
Fog Output: 10,000 cu.ft/min
Output Adjustment: 5–100%
Fluid Consumption Rate: 6 ml/min
DMX Channels: 1 / 2 / 4
DMX Connectors: 5-pin XLR In / out
Stand-Alone Operation: Yes
Onboard Control: Continuous Fogging, Timed Fogging
Warm-Up Time: 60 seconds
Warnings: Low Fluid, Overheat, No Heating
External Controller Support: Yes
Remote Connector: 1/4" Jack
Manual Fogging: Yes
Self-Clean Function: Yes, 60 seconds
Input Voltage: 100–240VAC
Frequency: 50/60 Hz
Heater Power: 1,350W
Power Consumption: 1,500W
Power Input: Indoor, IP20 Locking Power Input
Maximum Ambient Temperature: 40°C (104°F)
Handle: Integrated Handle
Fluid Tank Capacity: 2 liters (0.53 gal)
Deflector Angle: -14° to 42°
Housing Color: Obsidian Gray
Product Weight: 27.6 lbs
Product Dimensions: 17.6" L × 11.7" W × 9.5" H
Shipping Weight: 29.6 lbs
Shipping Dimensions: 19.6" L × 13.7" W × 11.5" H
