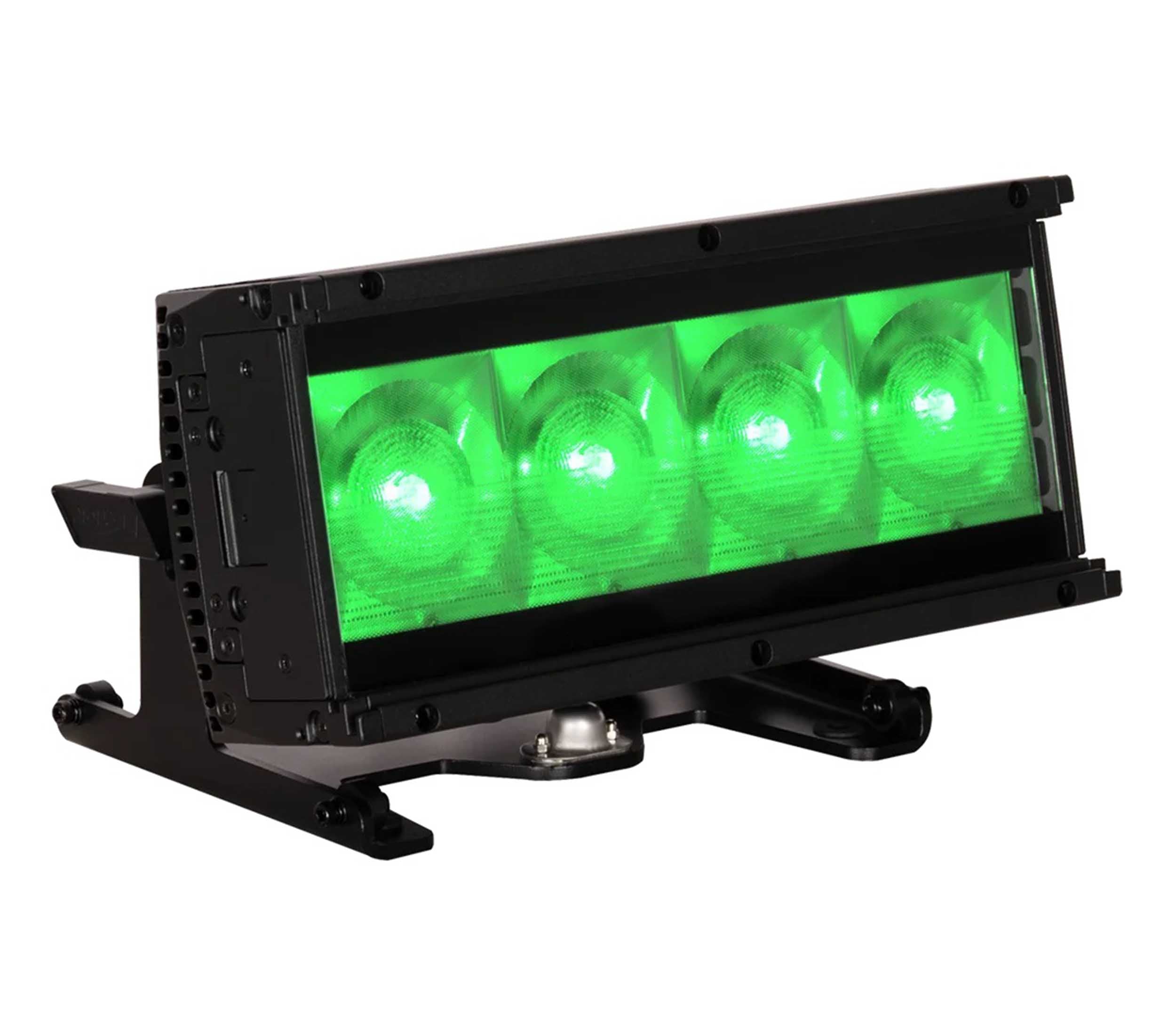

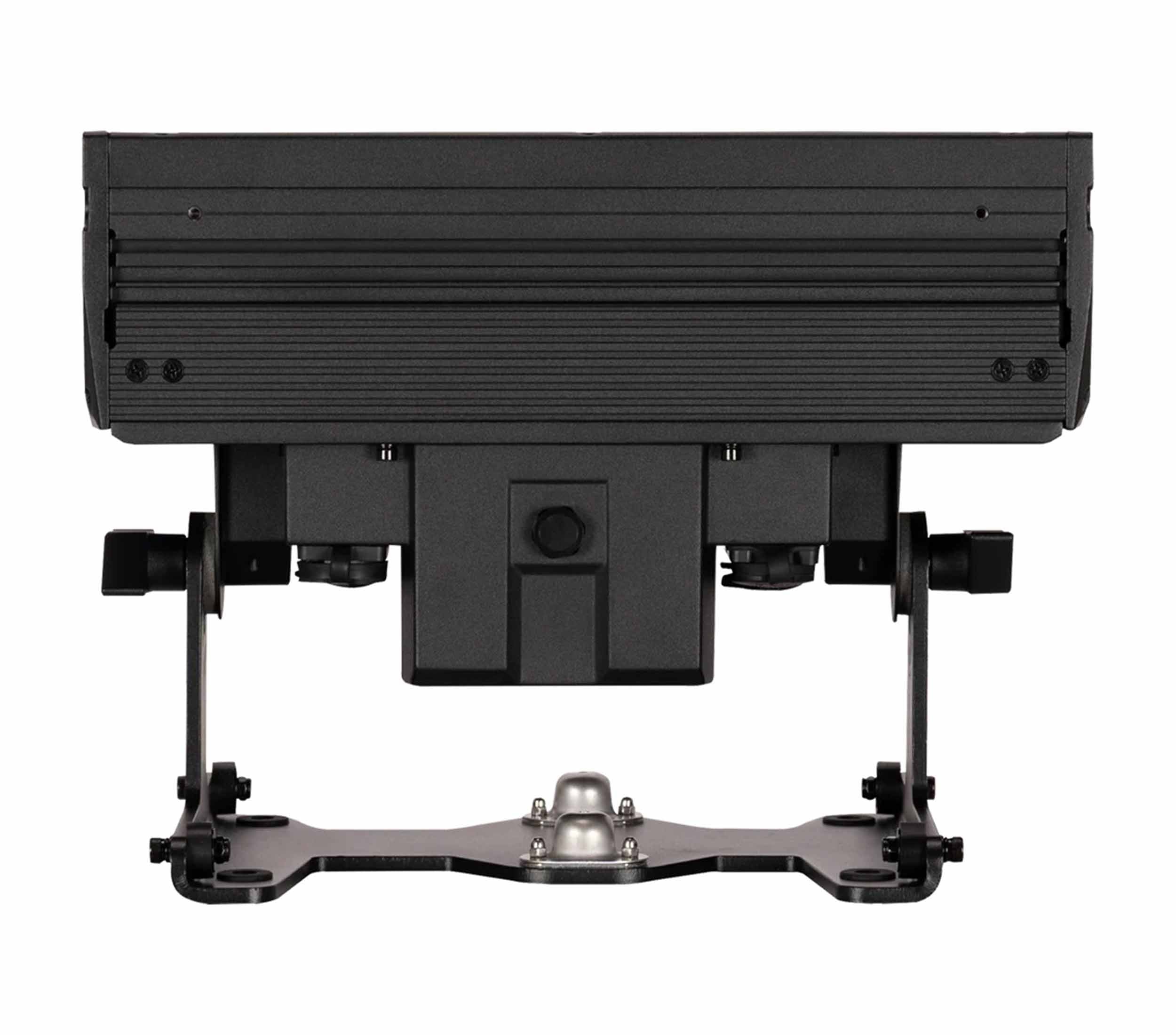

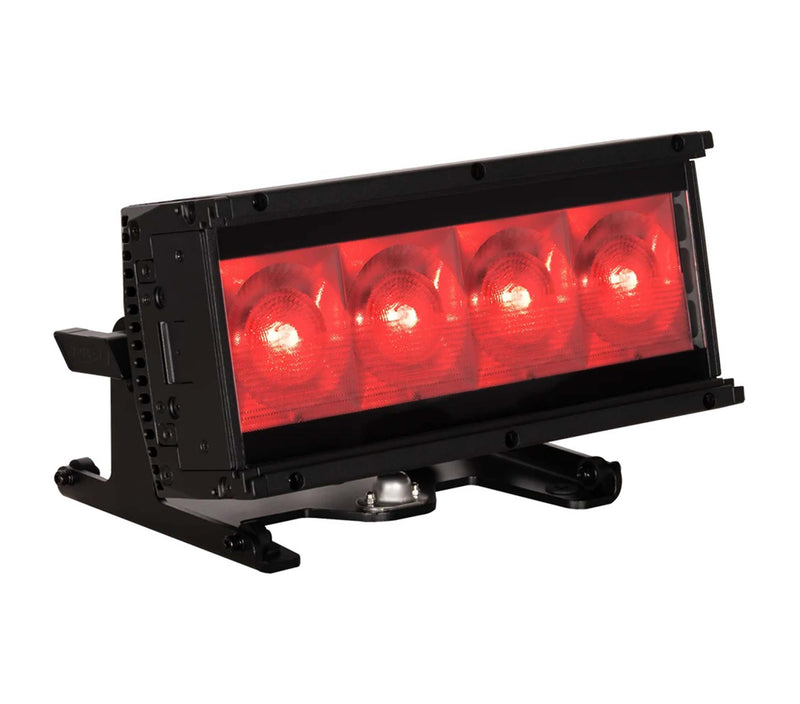

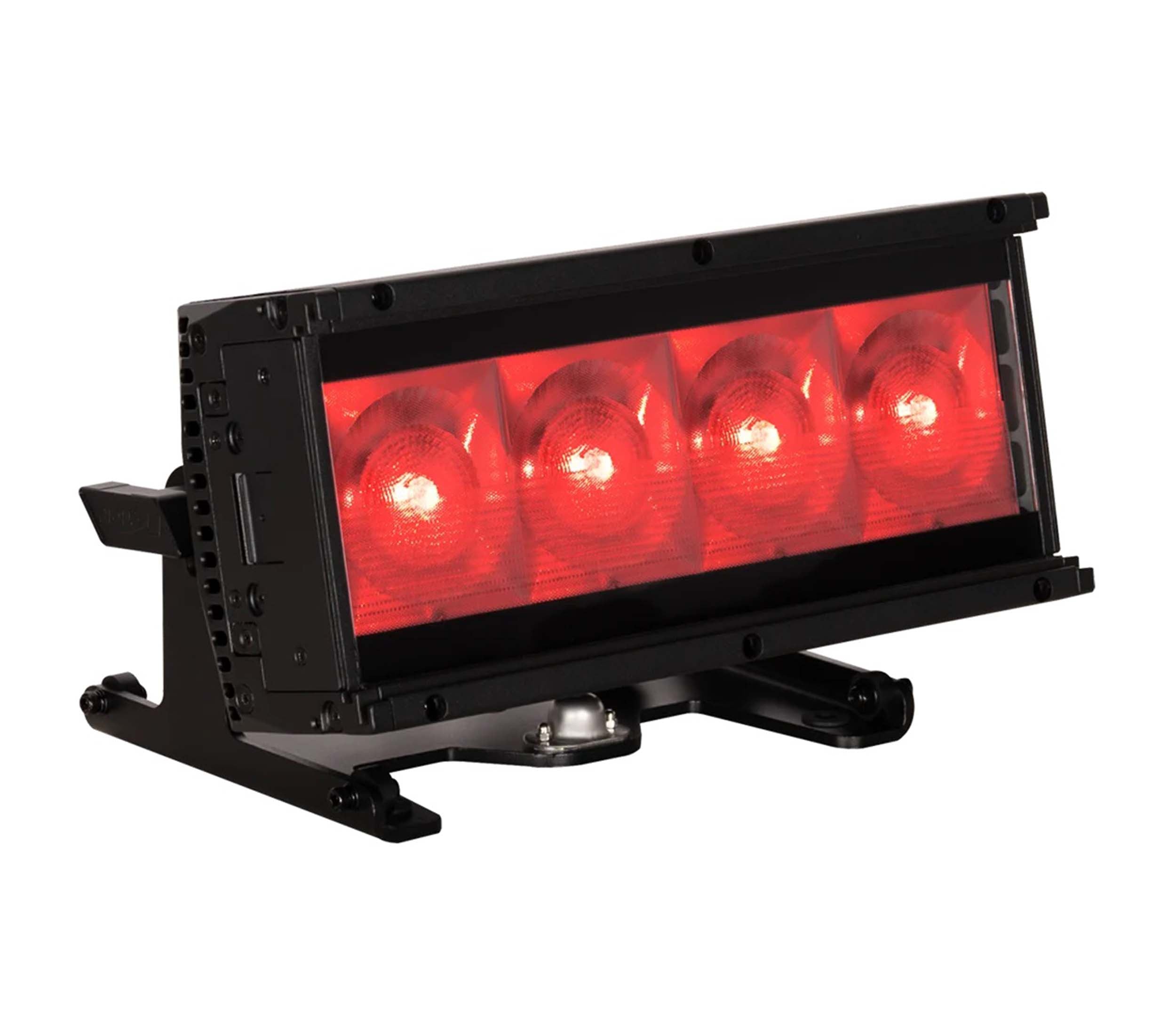

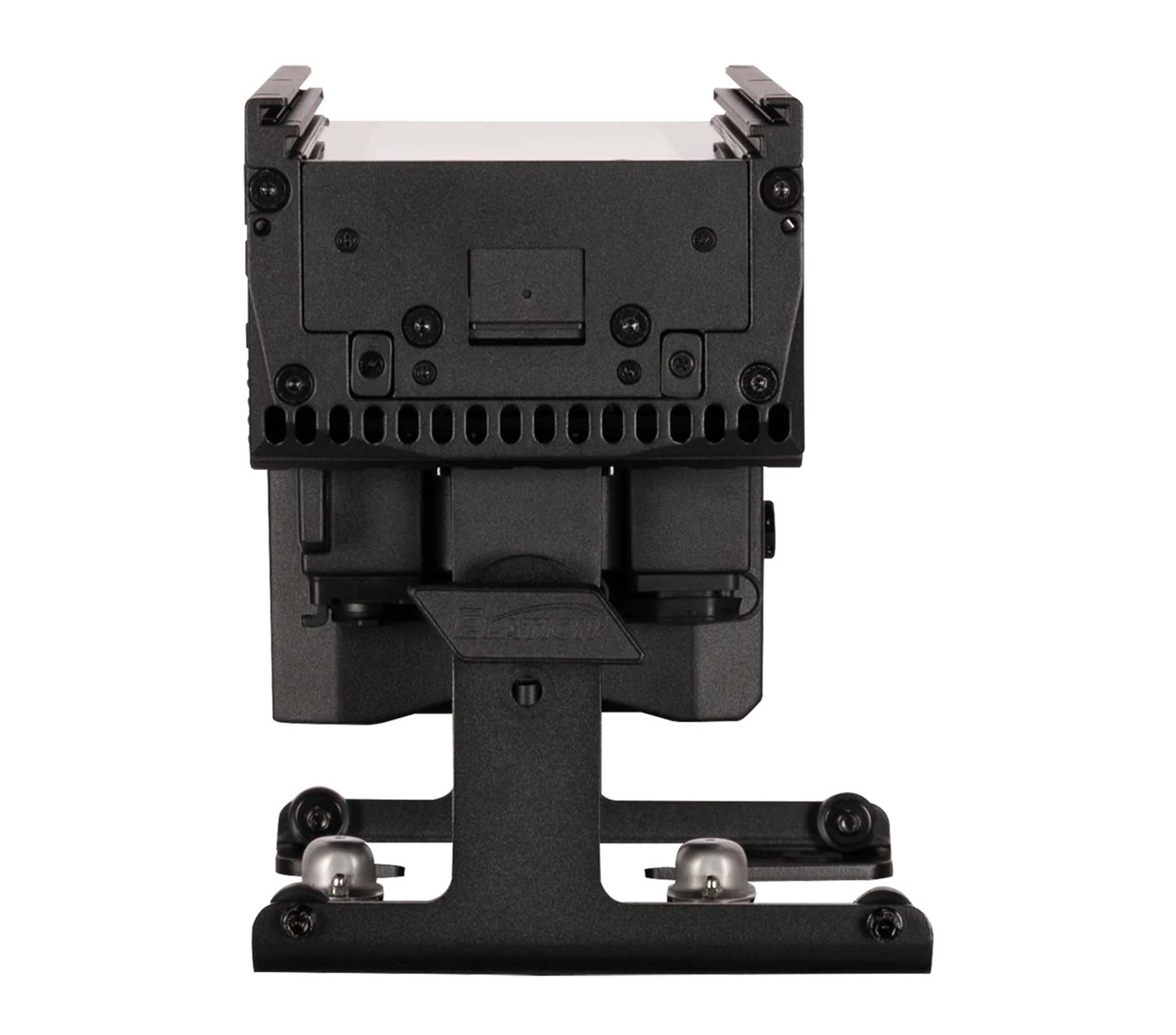

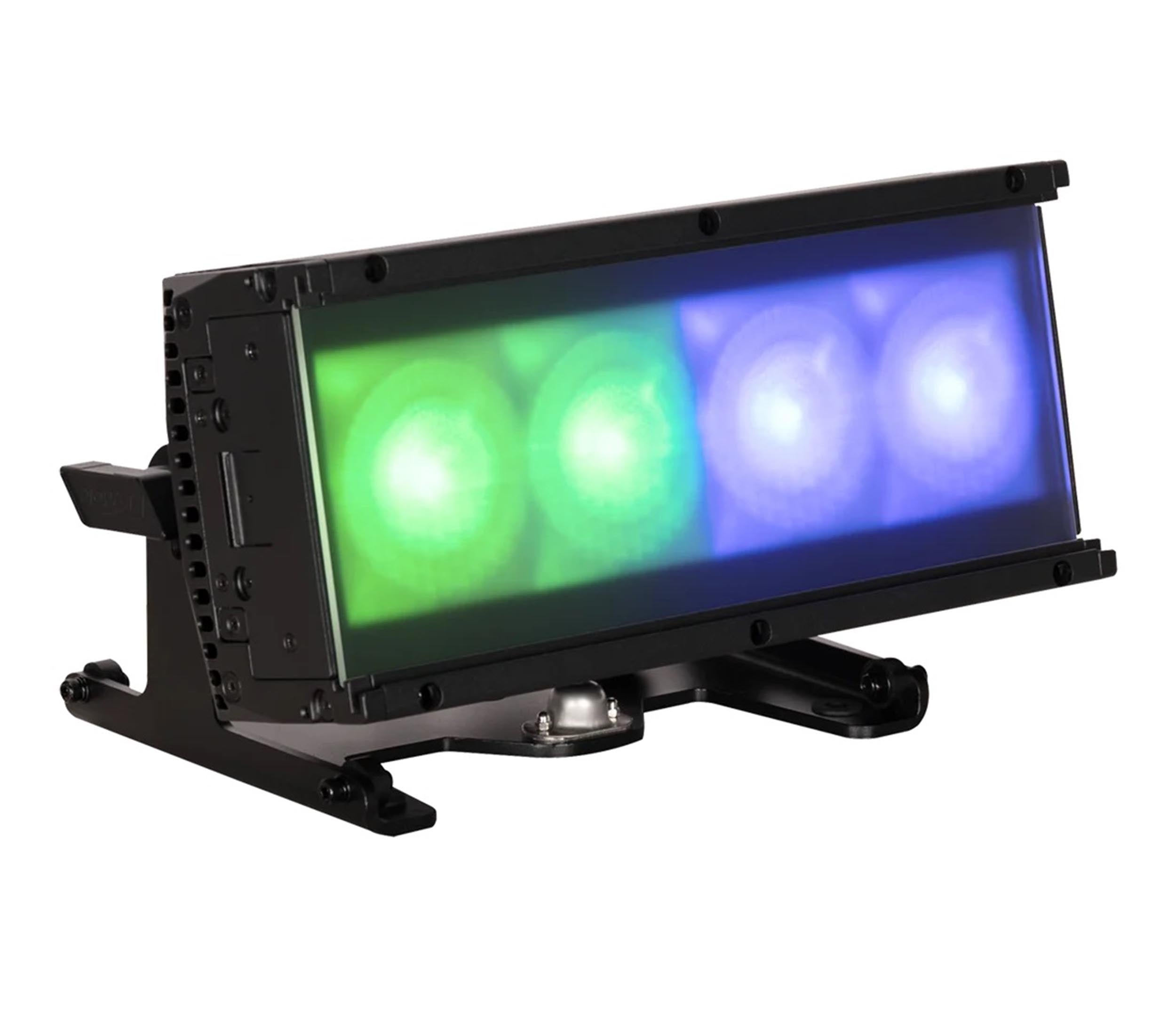

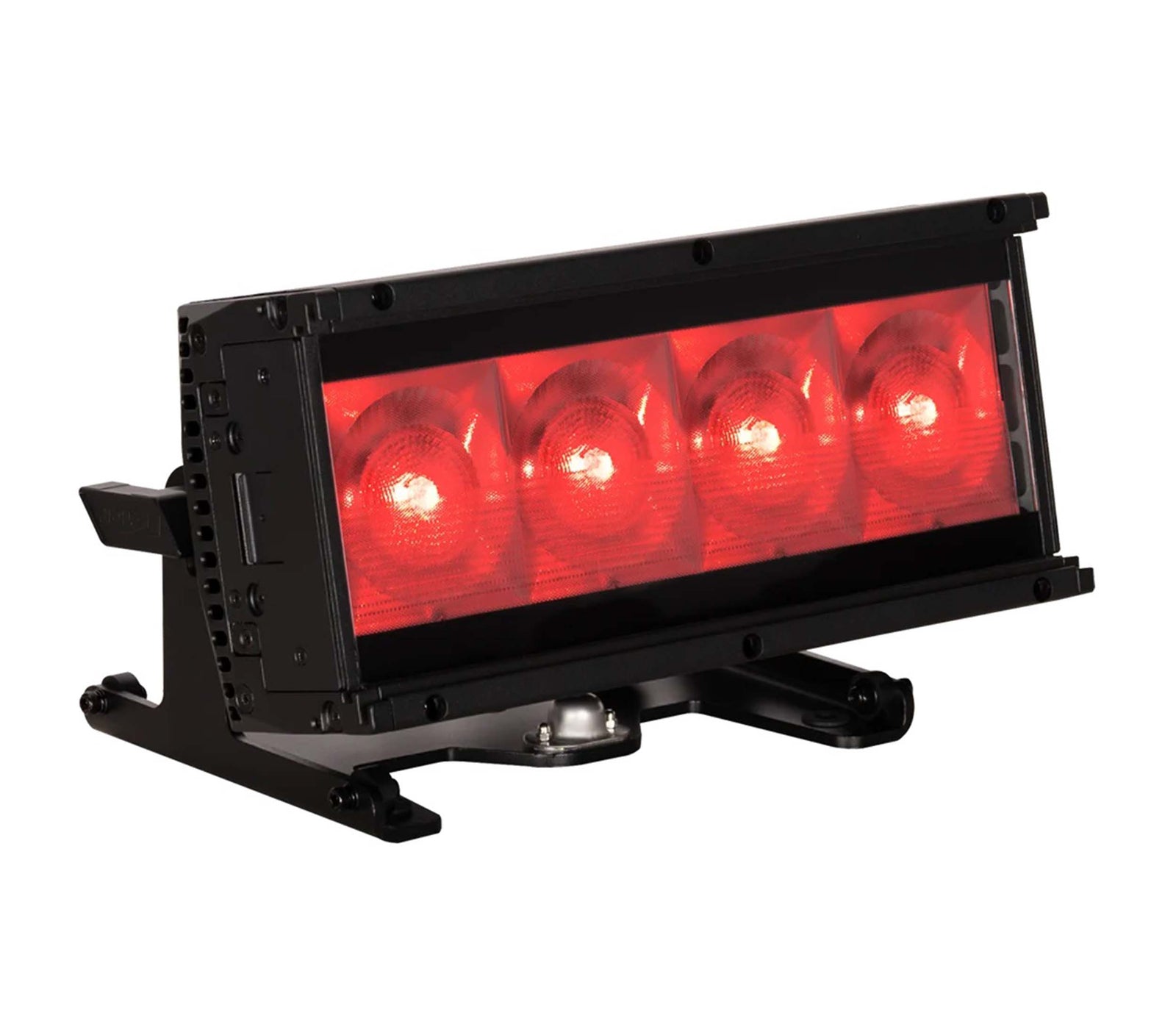

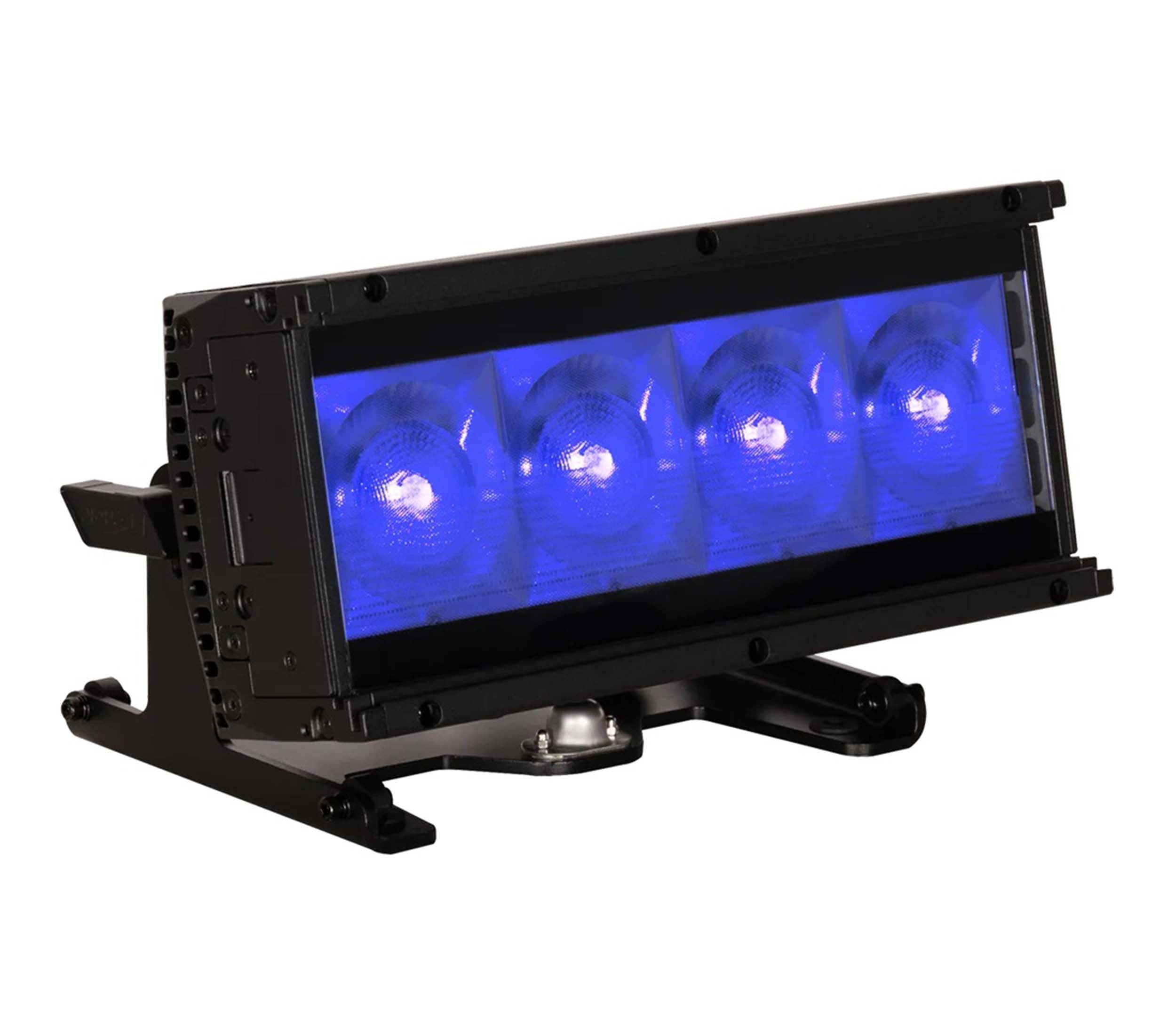

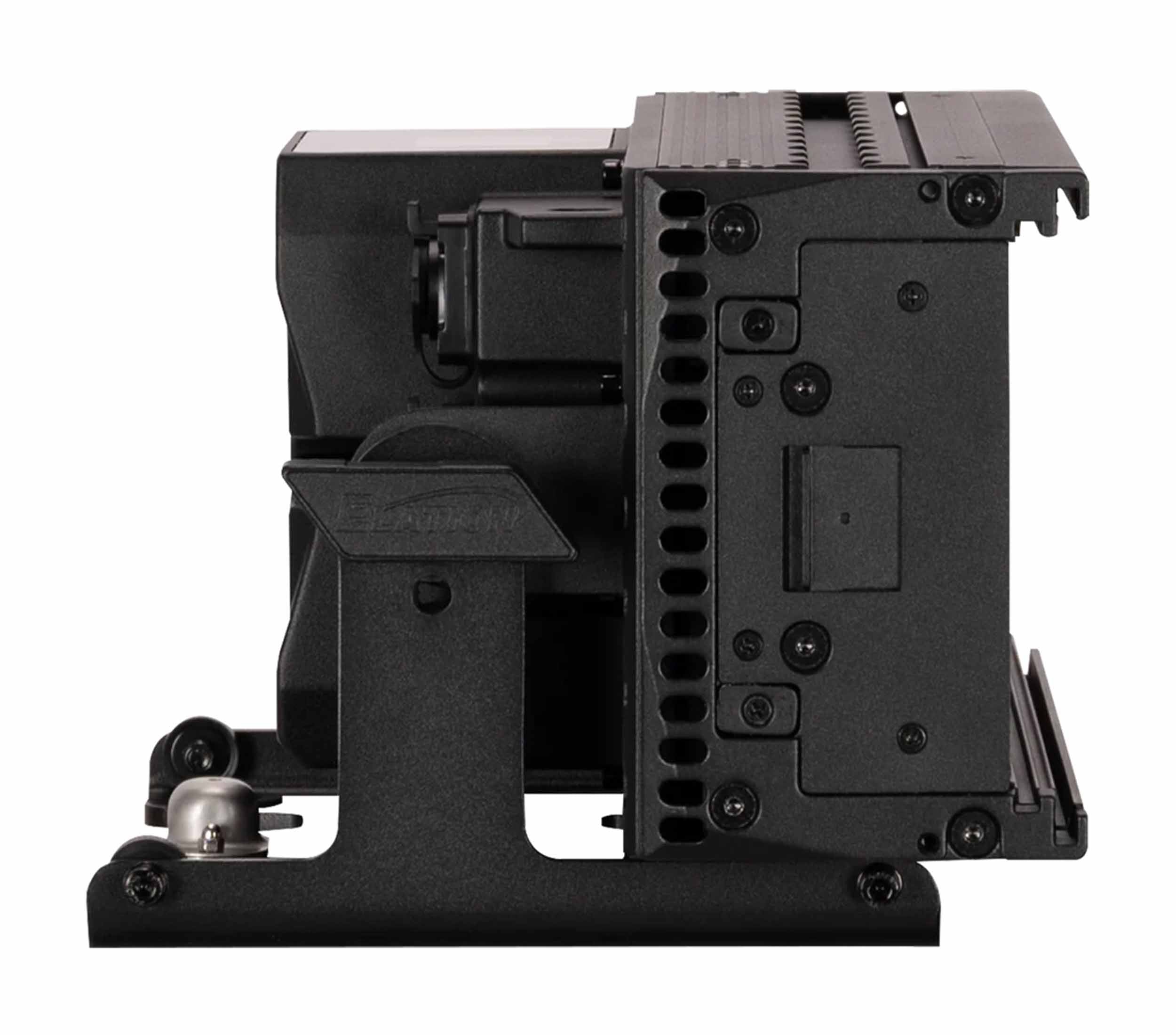

The Elation Professional KL BATTEN 12 is a compact, high-output LED batten designed for professional stages, studios, live events, and outdoor applications. Its four 100W RGBMA LEDs produce up to 10,300 lumens while delivering a smooth, homogeneous field with natural and accurate color reproduction. With a CRI of 94.9 and TLCI of 95, the fixture is especially well suited for applications where excellent on-camera color quality is important.

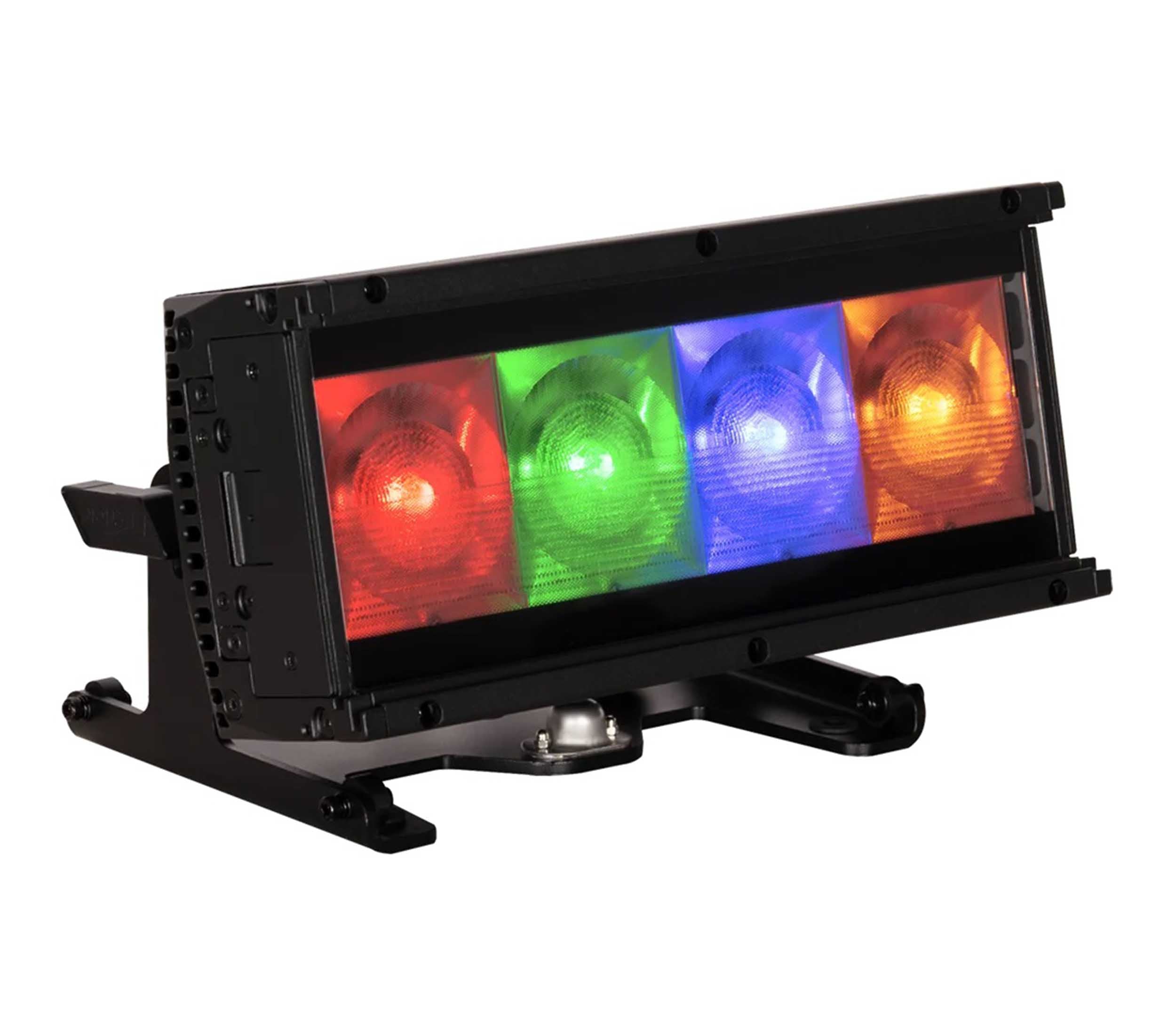

The RGBMA color engine provides full-spectrum color control with a variable 16-bit CCT range from 2400K to 8500K. Full pixel control enables individual creative effects, while electronic dimming, strobe functions, selectable 16-bit dimming modes, green/magenta adjustment, and dim-to-warm fading provide extensive control over the fixture's output. Its 22 DMX channel modes offer flexible control ranging from simple setups to advanced pixel-based programming.
Built for demanding professional environments, the KL BATTEN 12 features an IP65 rating for protection against dust and water exposure. IP65-rated DMX, Ethernet, and power connections support reliable outdoor operation, while Art-Net and sACN networking allow easy integration into modern lighting control systems. The integrated L-Track mounting system, end-to-end magnetic alignment, and optional mounting accessories provide flexible rigging options for touring and permanent installations.
This is just the lighting fixture. Gear and accessories in product images not included.
Product Specifications:
Product Type: LED Batten Fixture
LED Source: (4) × 100W RGBMA LEDs
LED Engine: RGBMA
Total Fixture Output: 10,300 lumens
CRI: 94.9
TLCI: 95
LED Life: 30,000 hours average
Beam Angle: 22° × 20°
Field Angle: 44° × 42°

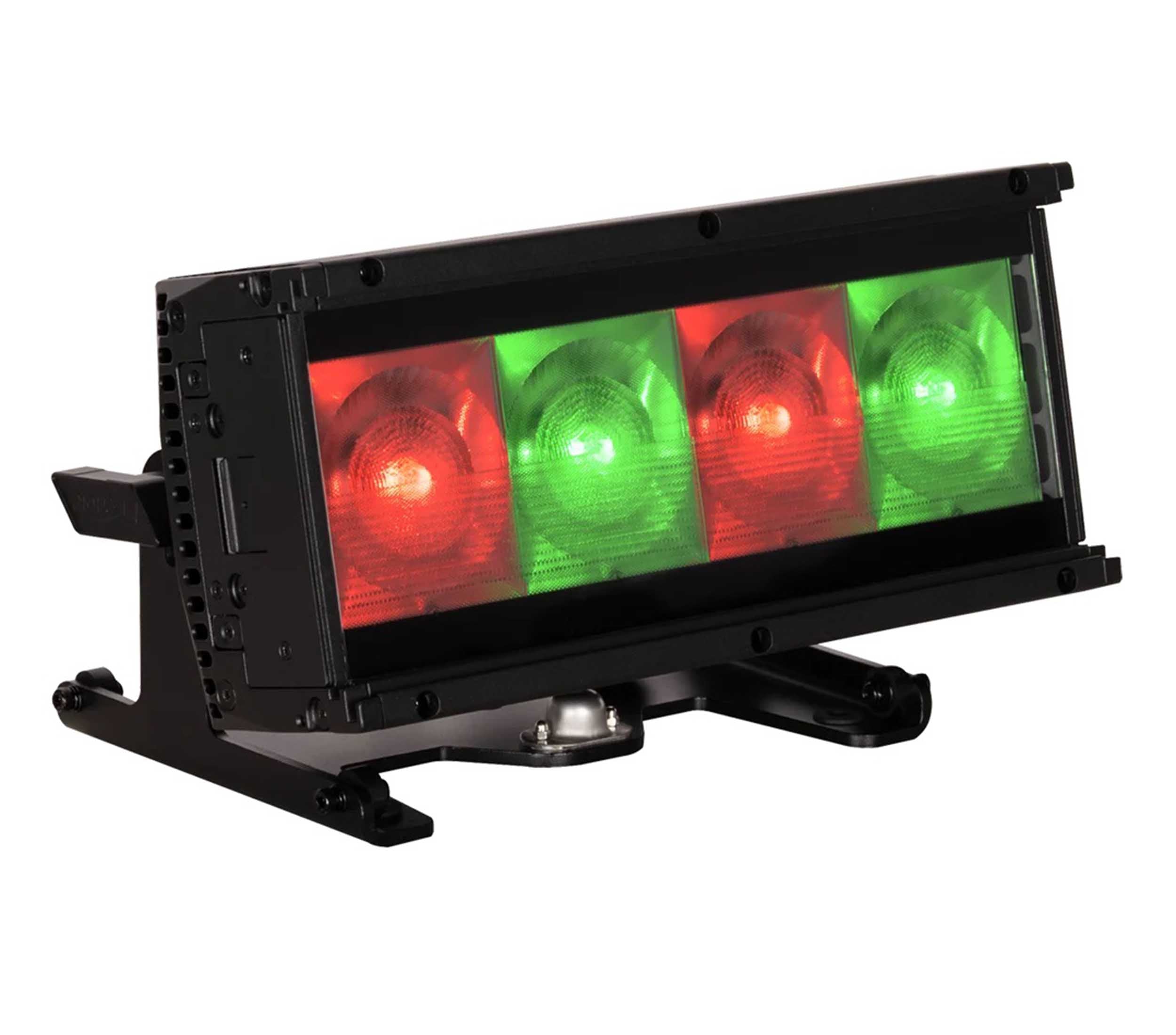

Pixel Control: Full Pixel Control
Dimmer: Electronic
Dimming Resolution: 16-bit
Dimming Modes: Variable 16-bit Modes and Curves
Strobe: Electronic Strobe
CCT Range: 2400K–8500K
Color Adjustment: Green/Magenta Shift
Dim-to-Warm: Supported
Virtual Gel: Swatch Book Included
DMX Channel Modes: 22
DMX Channel Range: 1 to 61 Channels

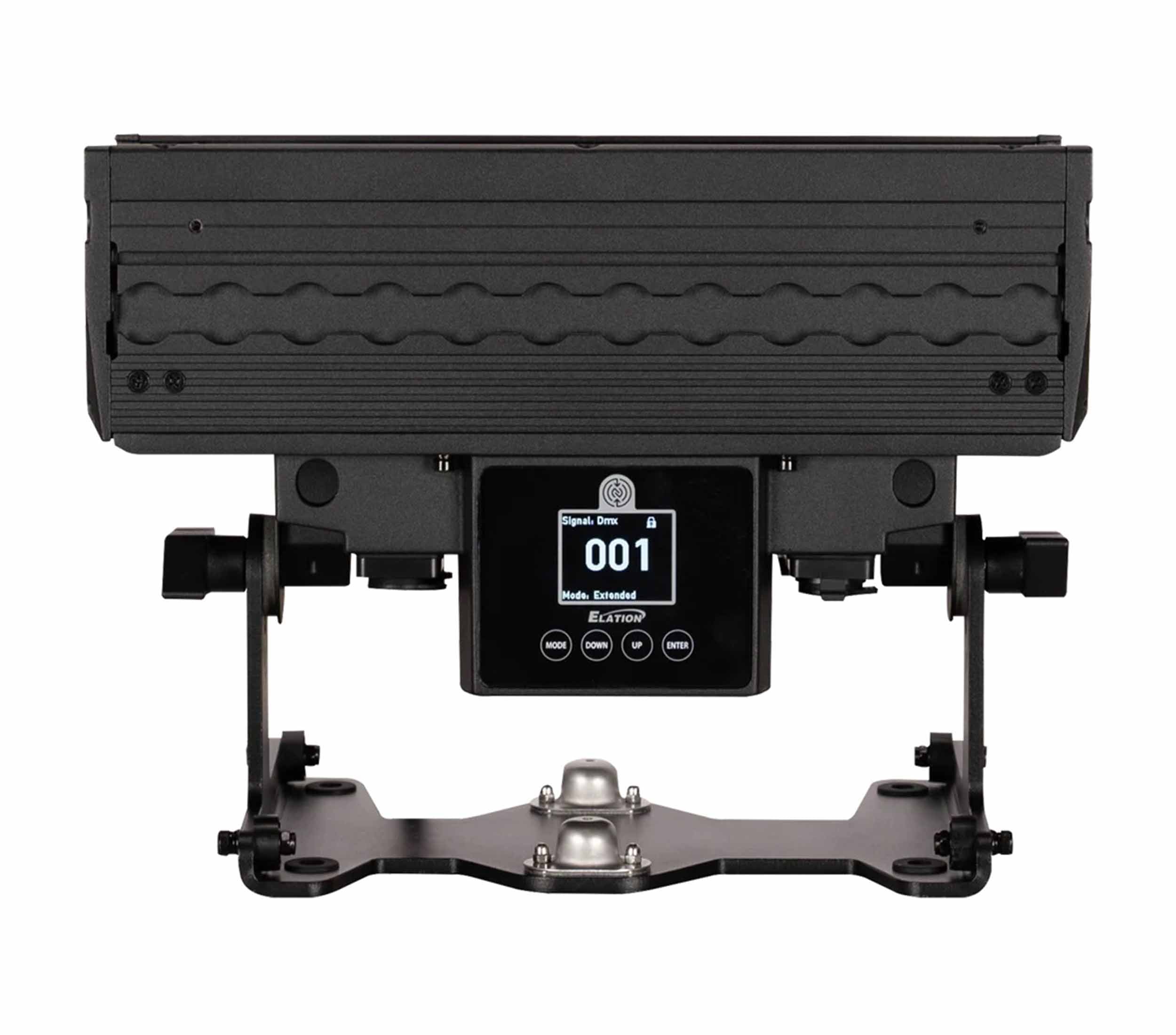

Control Panel: 4-Button
Display: Color LED Display
RDM: Supported
Wireless Management: Aria x2
NFC Configuration: Supported
Networking: Art-Net & sACN
DMX Connection: IP65 5-pin XLR In/Out
Ethernet Connection: IP65 RJ45 In/Out
Power Connection: IP65 Locking Power Cable In/Out
Mounting System: Integrated L-Track
Alignment System: End-to-End Magnetic Alignment
IP Rating: IP65
Input Voltage: AC 100–240V
Frequency: 50/60Hz
Maximum Power Consumption: 200W
Power Thru Capacity: 10A
Operating Temperature: -40°F to 131°F
Thermal Output: 682 BTU/hr ±10%
Length: 12.6"
Width: 7.2"
Vertical Height: 9.4"
Low-Clearance Height: 8.6"
Approvals: CE, cETLus, FCC, UKCA

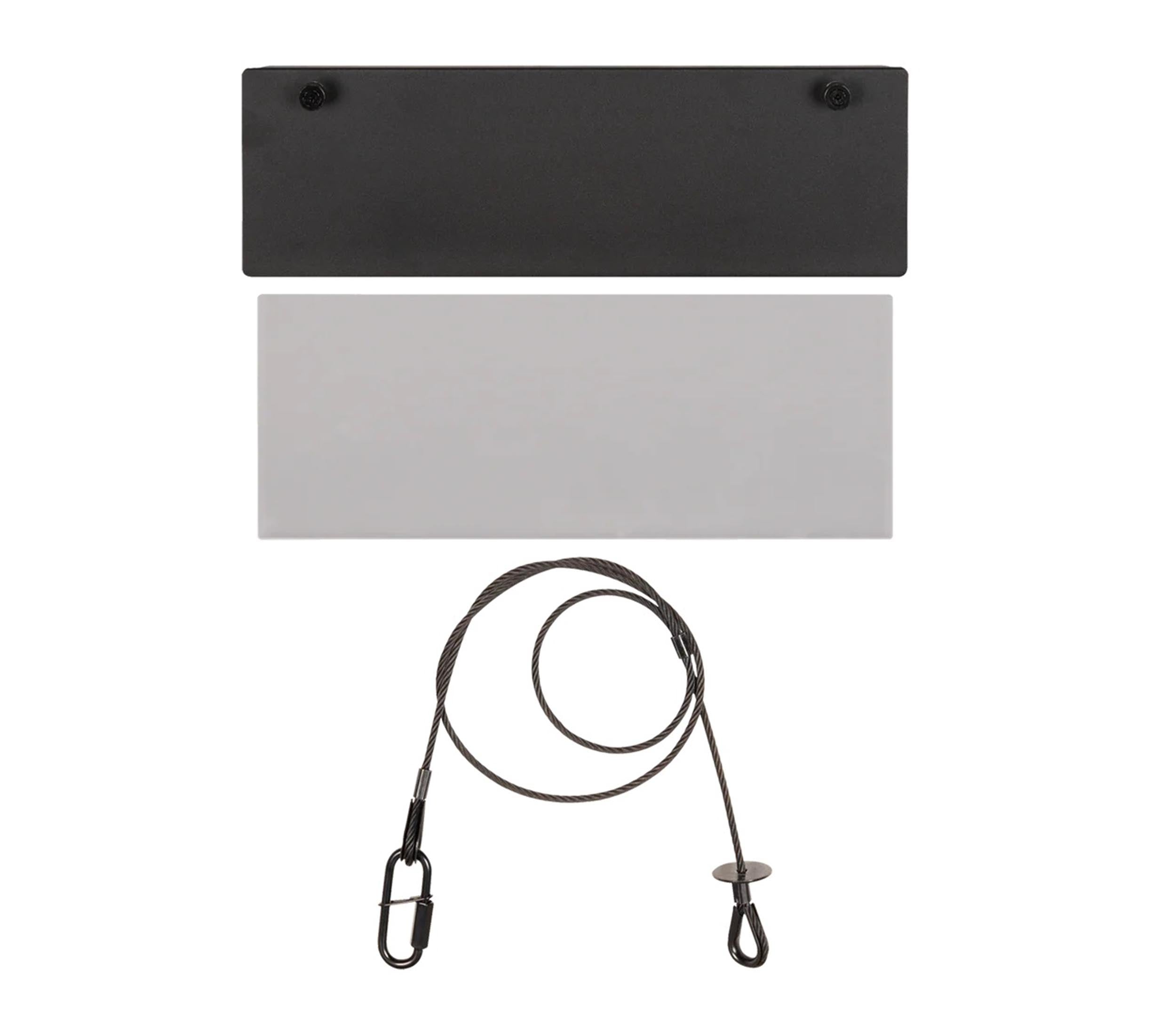

Included Accessory: Glare Shield
Included Accessory: Border Light Filter
Included Accessory: Safety Cable
Included Accessory: IP65 Locking Power Cable
Optional Accessory: 90° Slotted Omega Bracket OB-107-90B
Optional Accessory: L-Track to M10 Adapter 70mm LTR001
Optional Accessory: L-Track to M10 Adapter 44.5mm LTR008
Optional Accessory: L-Track C-Clamp Adapter Assembly 70mm LTR100
Optional Accessory: L-Track C-Clamp Adapter Assembly 44.5mm LTR112
Product Weight: 14.7 lbs
Product Dimensions: 12.6" L × 7.2" W × 9.4" H
Shipping Weight: 16.7 lbs
Shipping Dimensions: 14.6" L × 9.2" W × 11.4" H
