Descripción

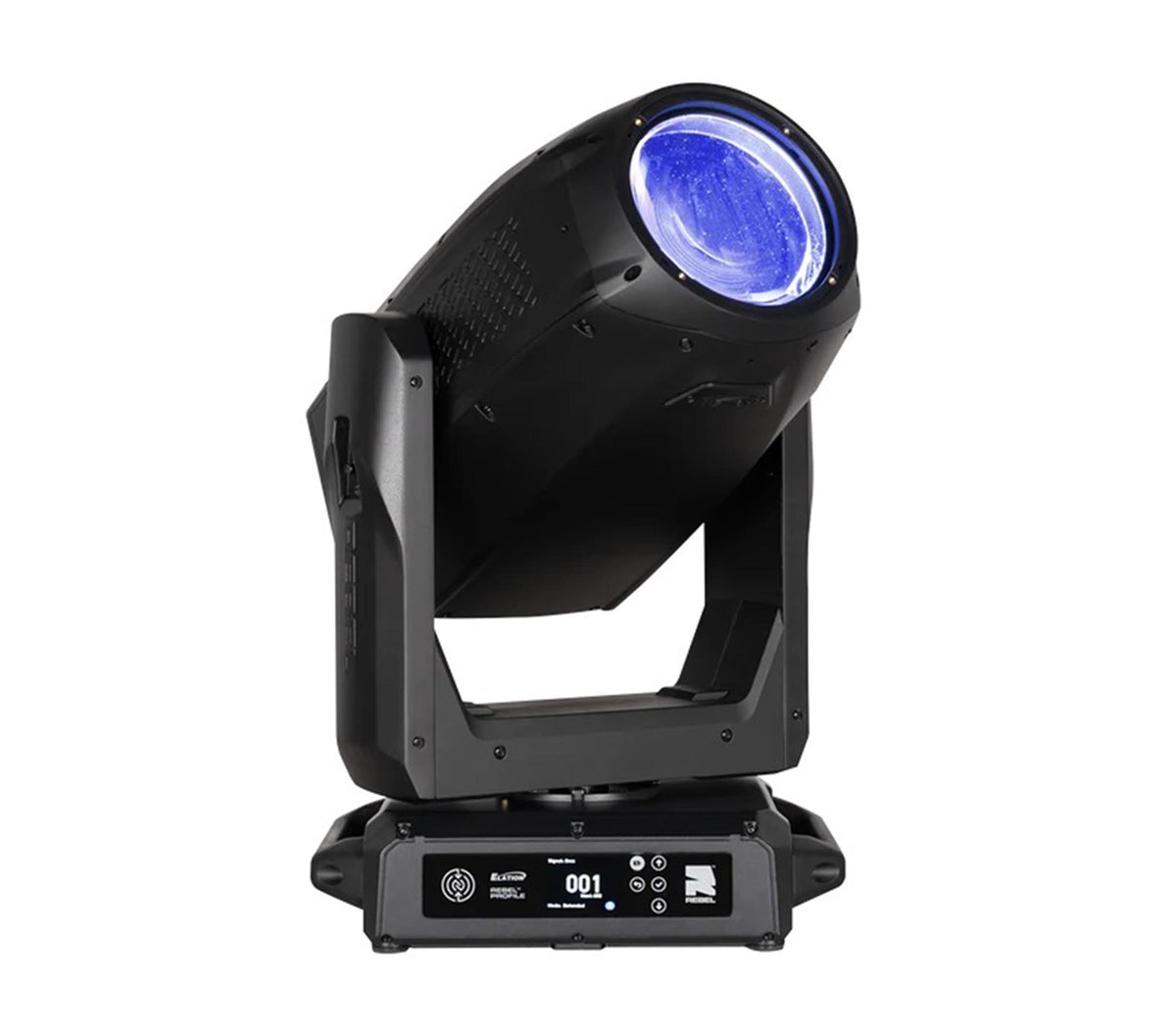

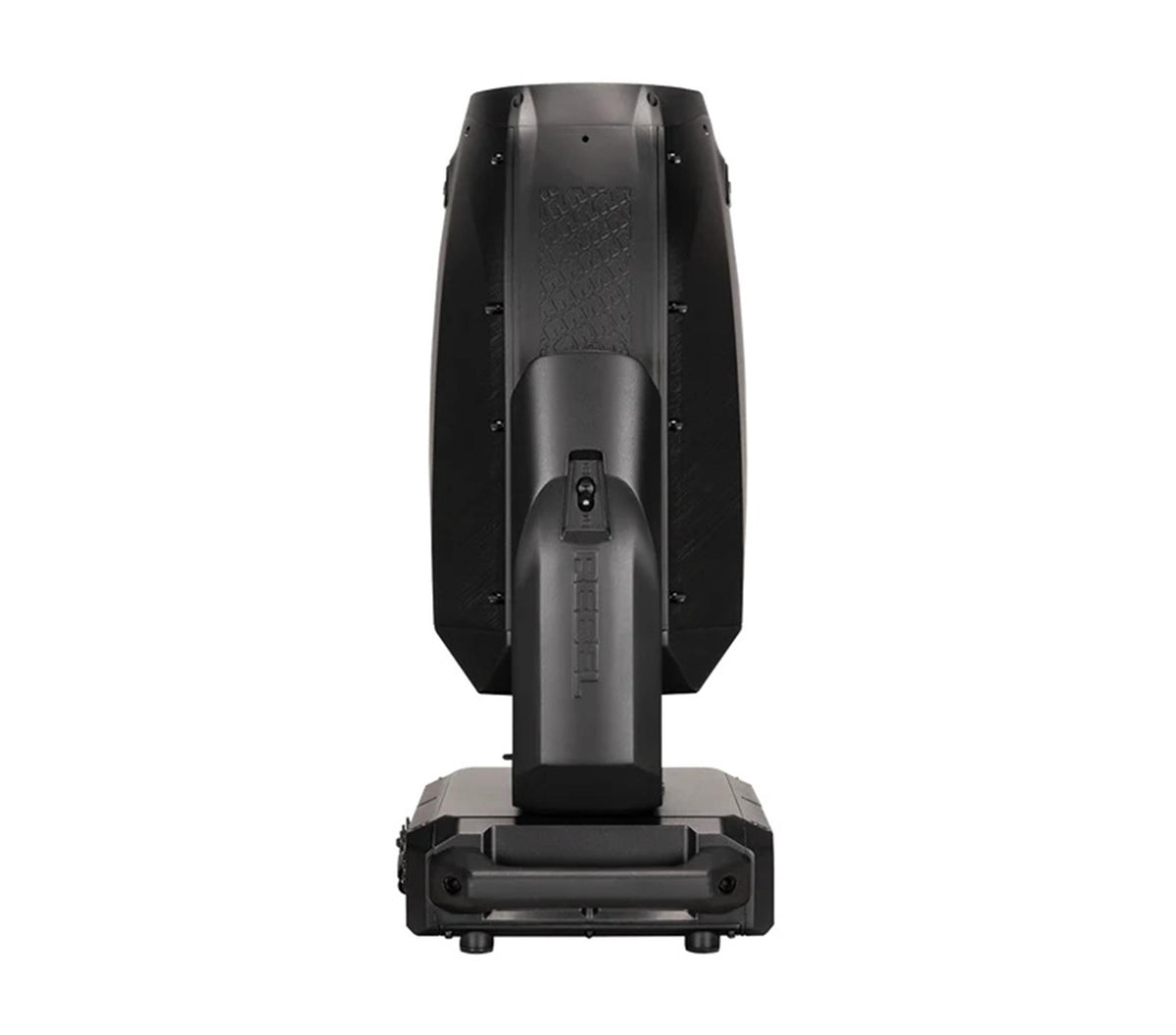

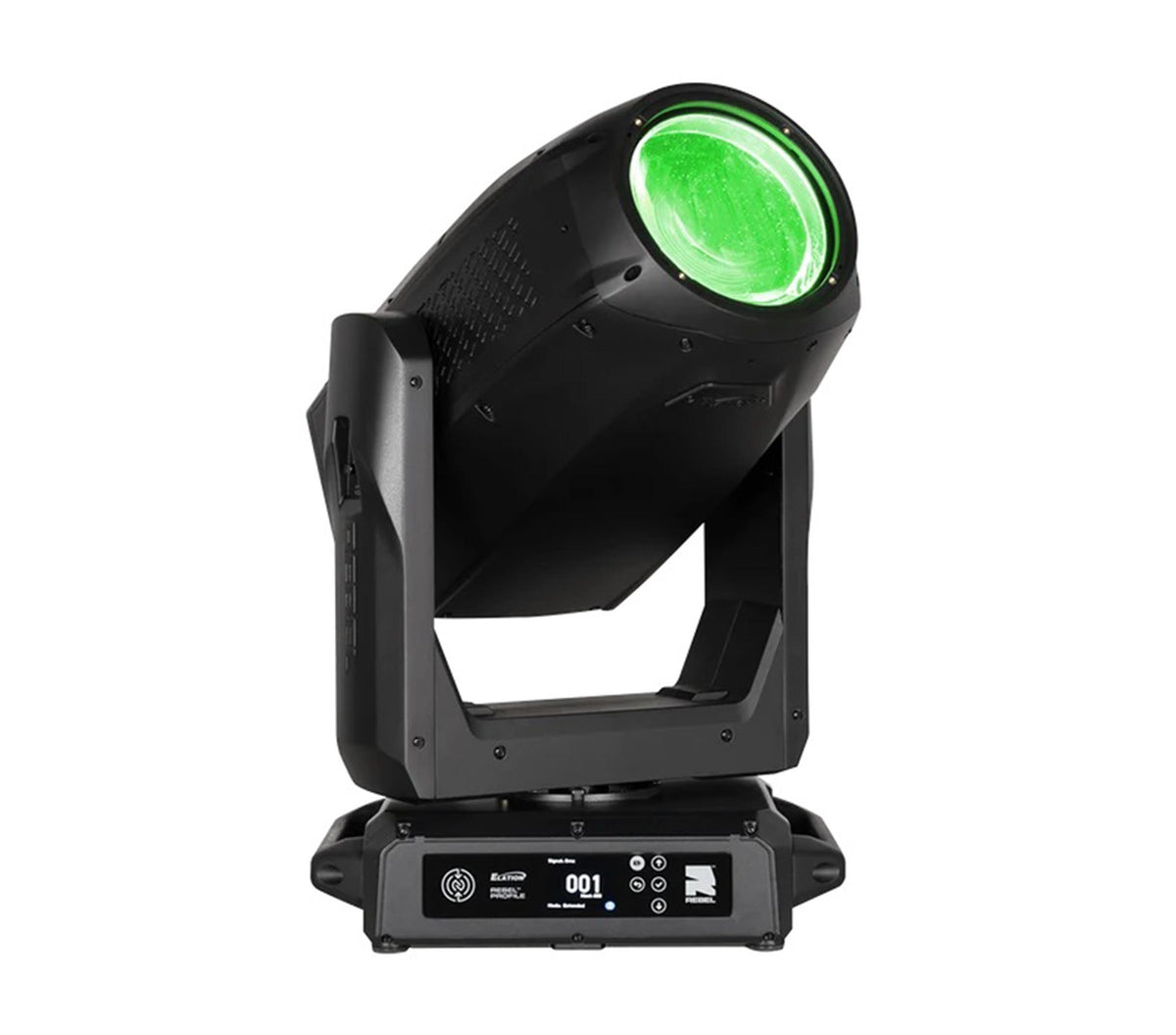

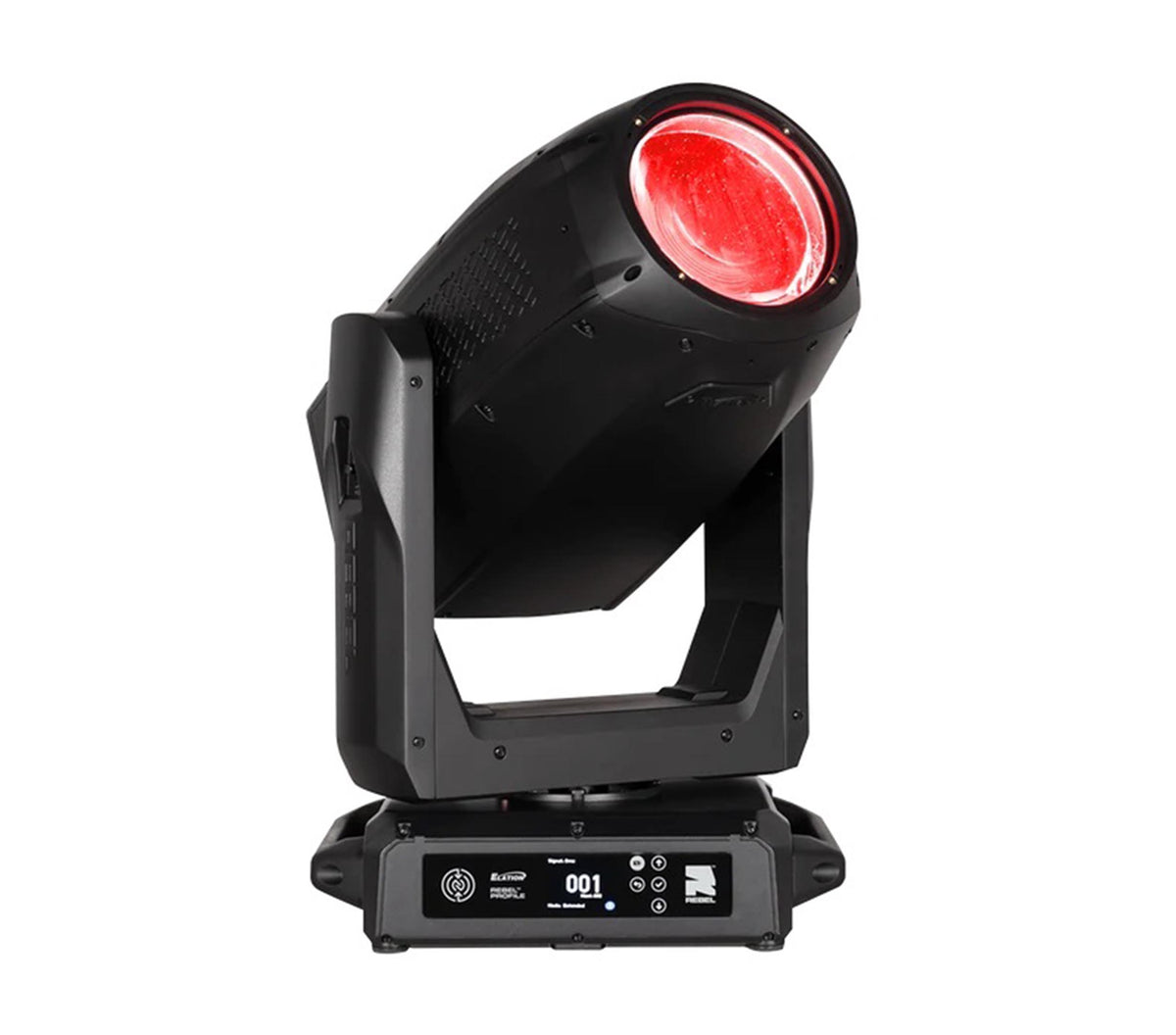

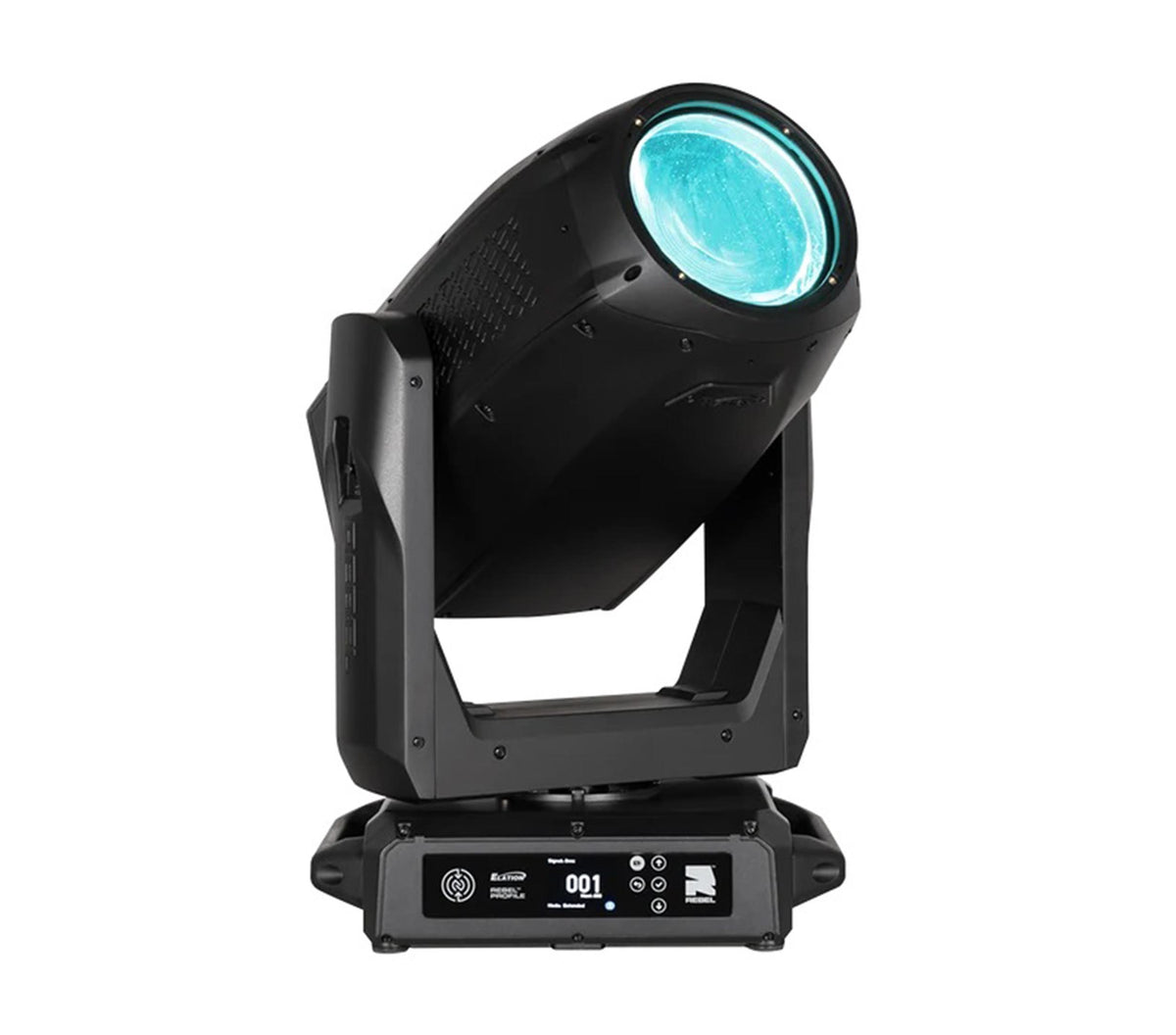

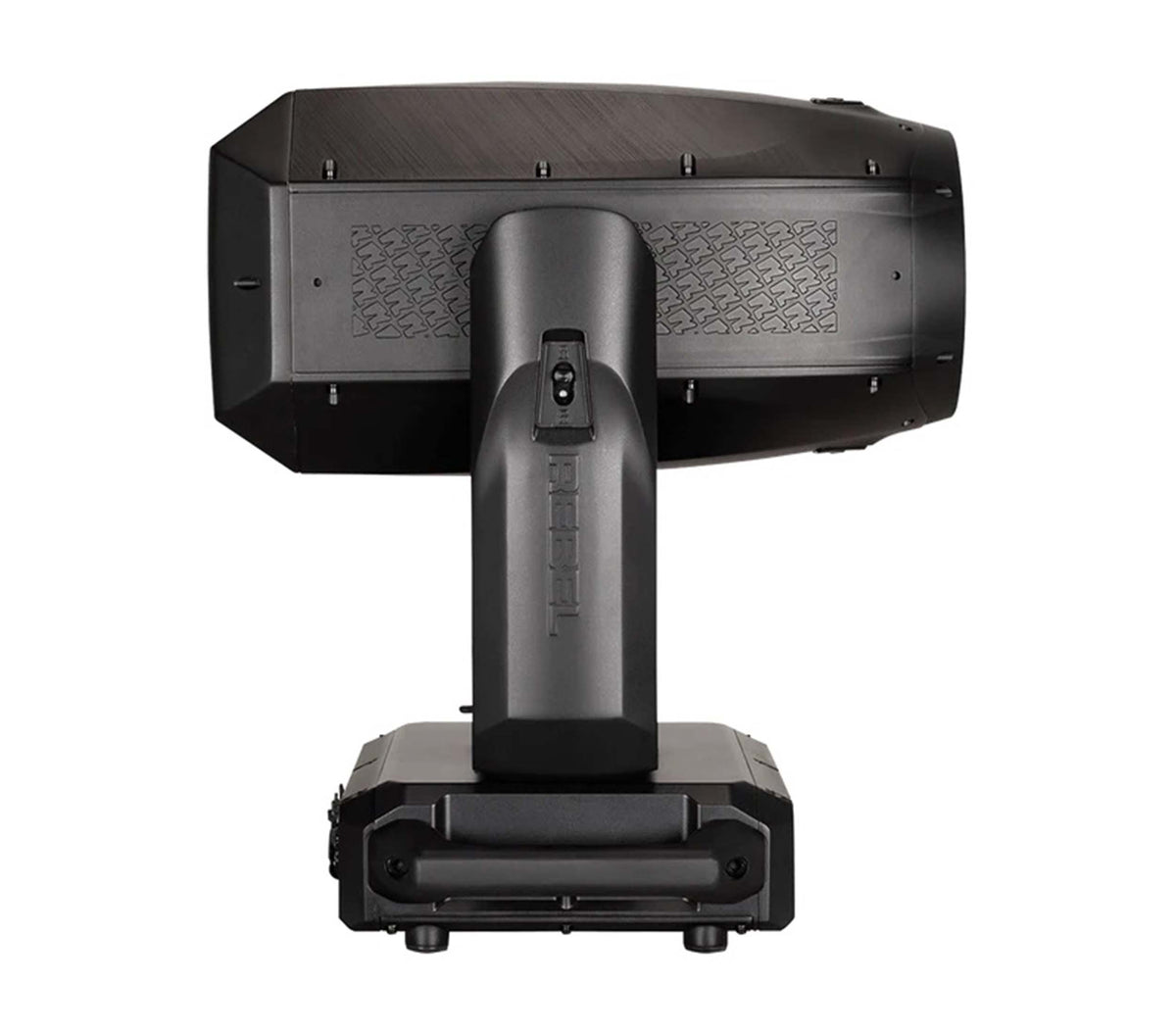

The Elation REBEL Profile™ combines high-output performance and advanced creative control in a compact IP65-rated profile fixture designed for demanding indoor and temporary outdoor applications. Its 500W 6,500K Peak Field LED engine delivers up to 22,000 lumens, providing intense beams, crisp projections, and powerful mid-air effects.
A comprehensive graphics and effects package gives the REBEL Profile exceptional versatility for professional lighting applications. It features 15 glass gobos, a full 360° bi-directional animation wheel, dual rotating prisms, dual variable frost filters, and a motorized iris with pulse effects. The four-blade indexable framing system provides precise beam shaping and full blackout shutter cuts.
The fixture's 3.5°–51° motorized zoom allows for everything from tight beams to broad washes, while CMY color mixing, linear CTO correction, and high-CRI color options provide extensive color control. With continuous 360° pan rotation, advanced dimming, multiple control protocols, and rugged IP65-rated connections, the REBEL Profile is built for sophisticated stage, touring, event, and temporary outdoor lighting applications.
Product Specifications:
Product Type: LED Profile / Framing Fixture
IP Rating: IP65
LED Source: 500W 6,500K Bright White Peak Field LED
LED Life: 20,000 hours
Total Fixture Output: 22,000 lumens
CRI: 70+; 80 or 90 with HCRI filter
Zoom Range: 3.5°–51°
Hotspot Ratio: 2:1
Pan: 540°
Tilt: 270°
Pan Movement: Continuous 360°
Framing: 4 Rotating Full Blackout Framing Blades
Framing Module Index: ±60°
Animation: Full 360° Bi-Directional Animation Wheel
Prisms: 4-Facet Round and 6-Facet Linear Rotating Prisms
Frost: 2 Variable Frost Filters
Iris: Motorized Iris with Variable Pulse Effects
Dimming: Variable 16-bit Dimming Curves
Strobe: High-Speed Electronic Shutter and Strobe
Color Mixing: CMY
CTO: Linear CTO Color Correction
Color Wheel: 7 Dichroic Colors with CRI 80 and CRI 90 Filters
Gobo Wheels: 2
Rotating Gobos: 7 Glass Gobos
Static Gobos: 8 Glass Gobos
DMX Modes: 2
Protocols: DMX, RDM, Art-Net, sACN

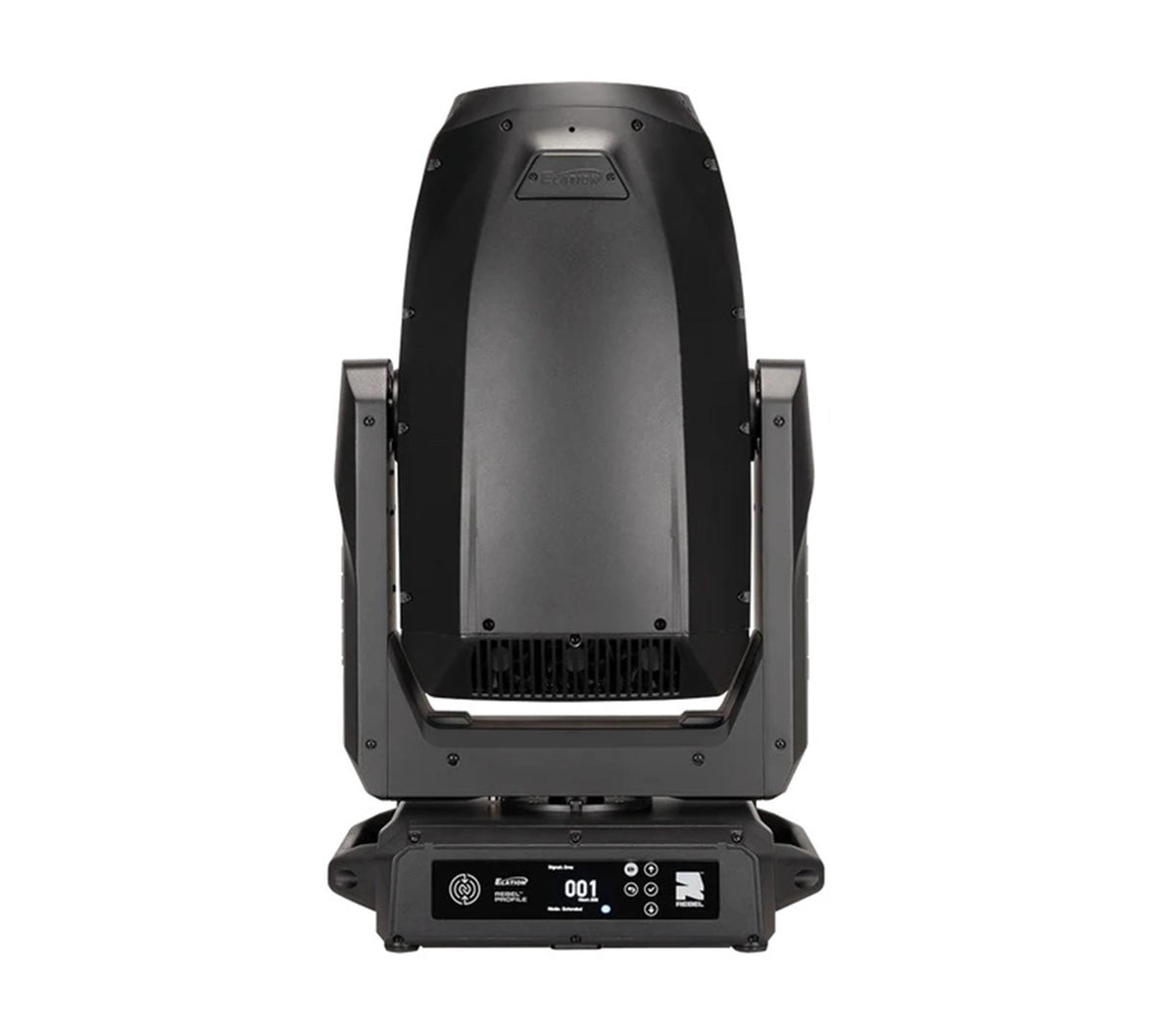

Display: Full-Color 180° Reversible LCD
Control: 5-Button Touch Control Panel
Wireless Management: Aria x2
Configuration: NFC
Power: AC 100–240V, 50/60Hz
Maximum Power Consumption: 1026W
Operating Temperature: -20°C to 45°C
Heat Output: 3509 BTU/hr ±10%

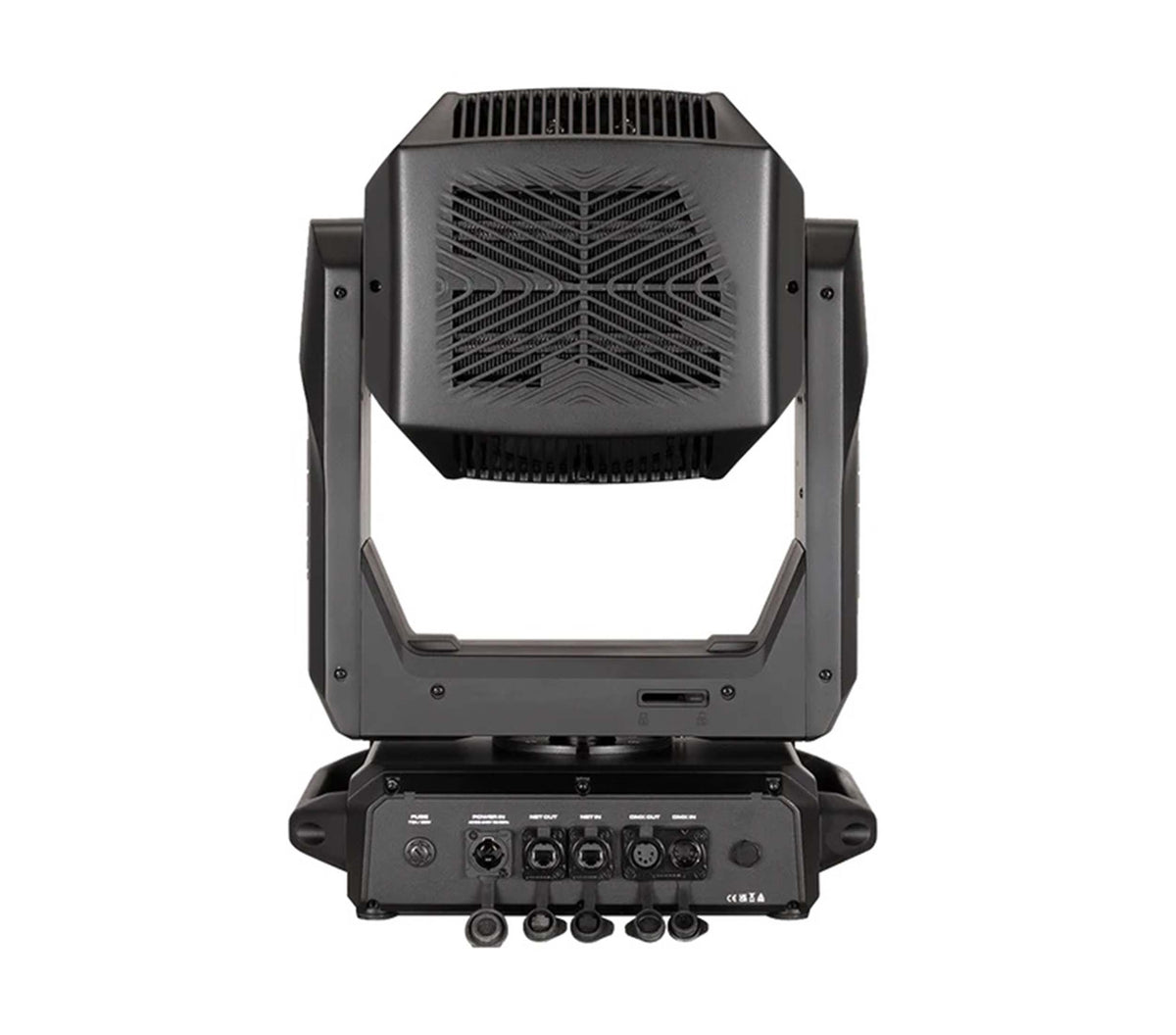

Power Connector: IP65 Locking
DMX Connectors: IP65 Locking 5-Pin XLR In/Out
Ethernet: IP65 Locking RJ45 In/Out

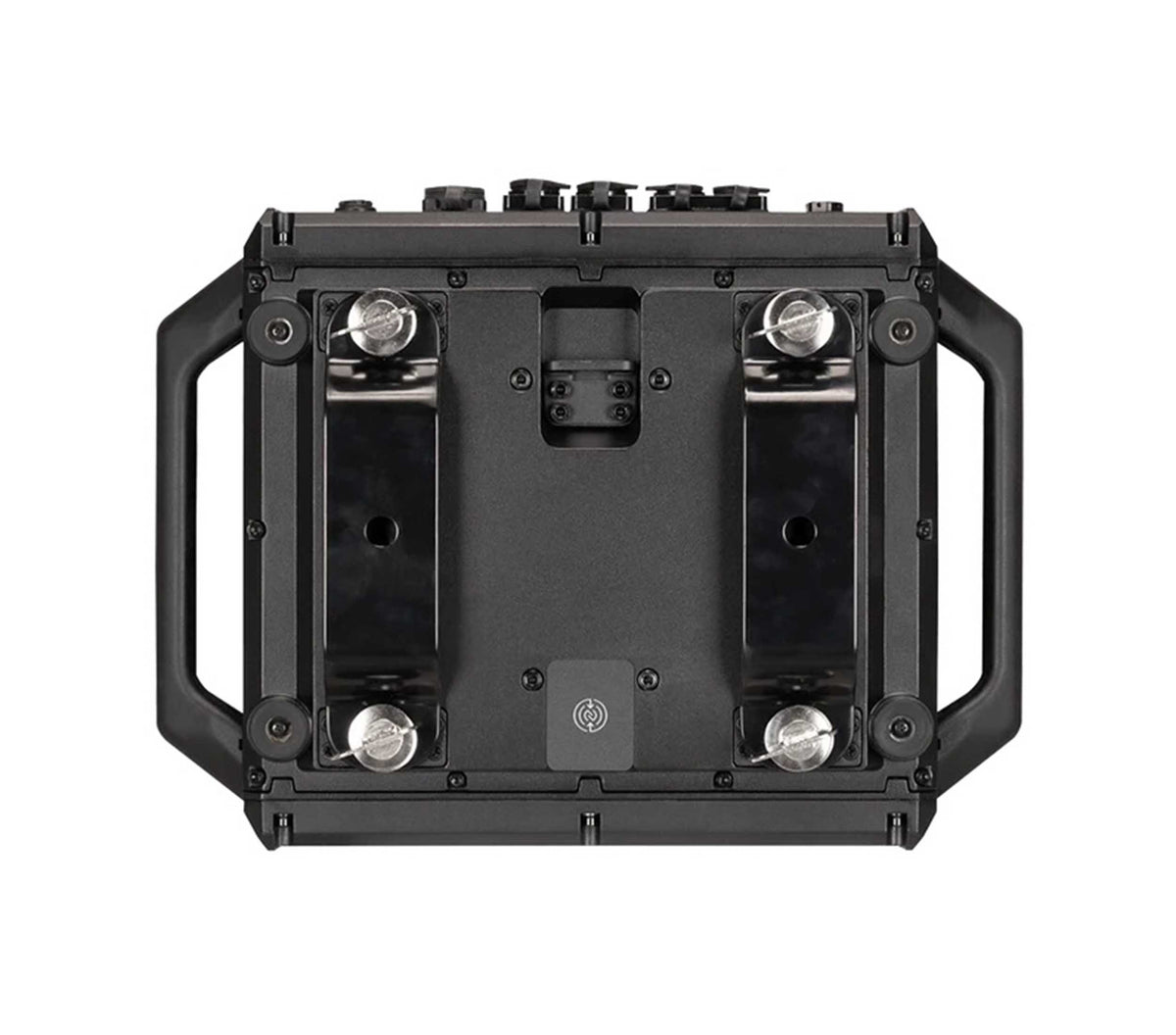

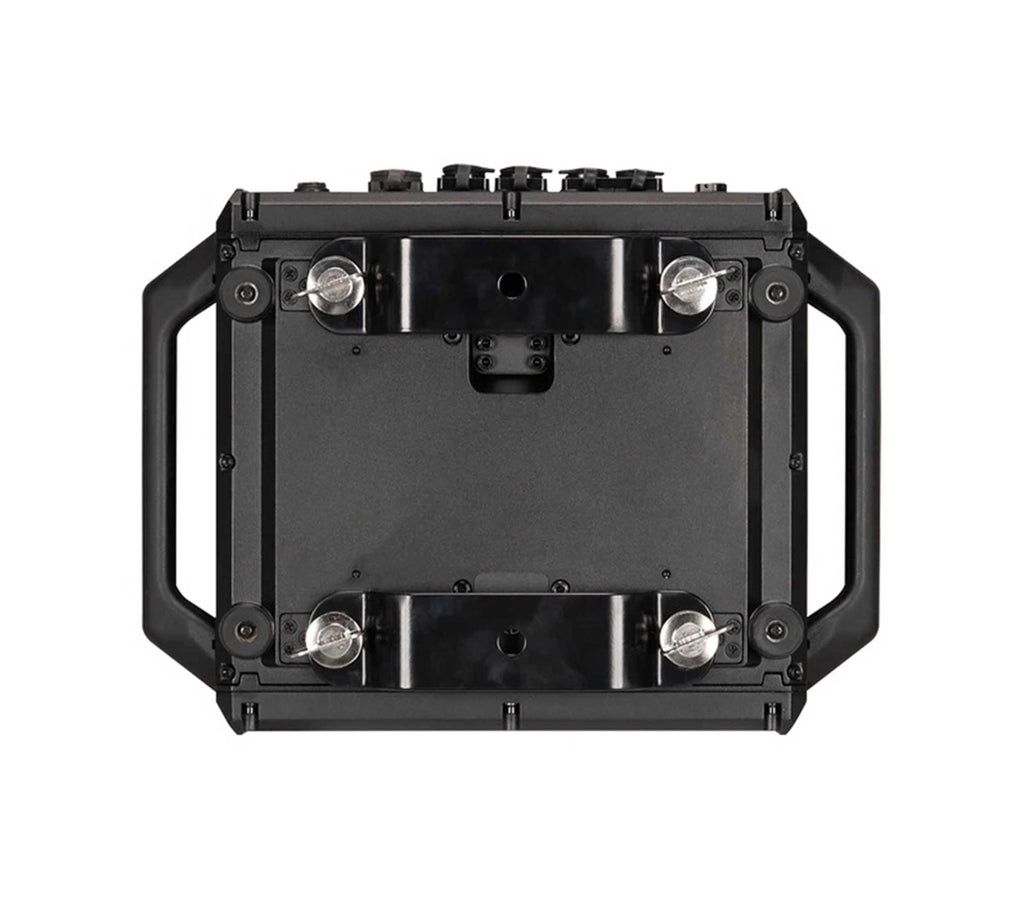

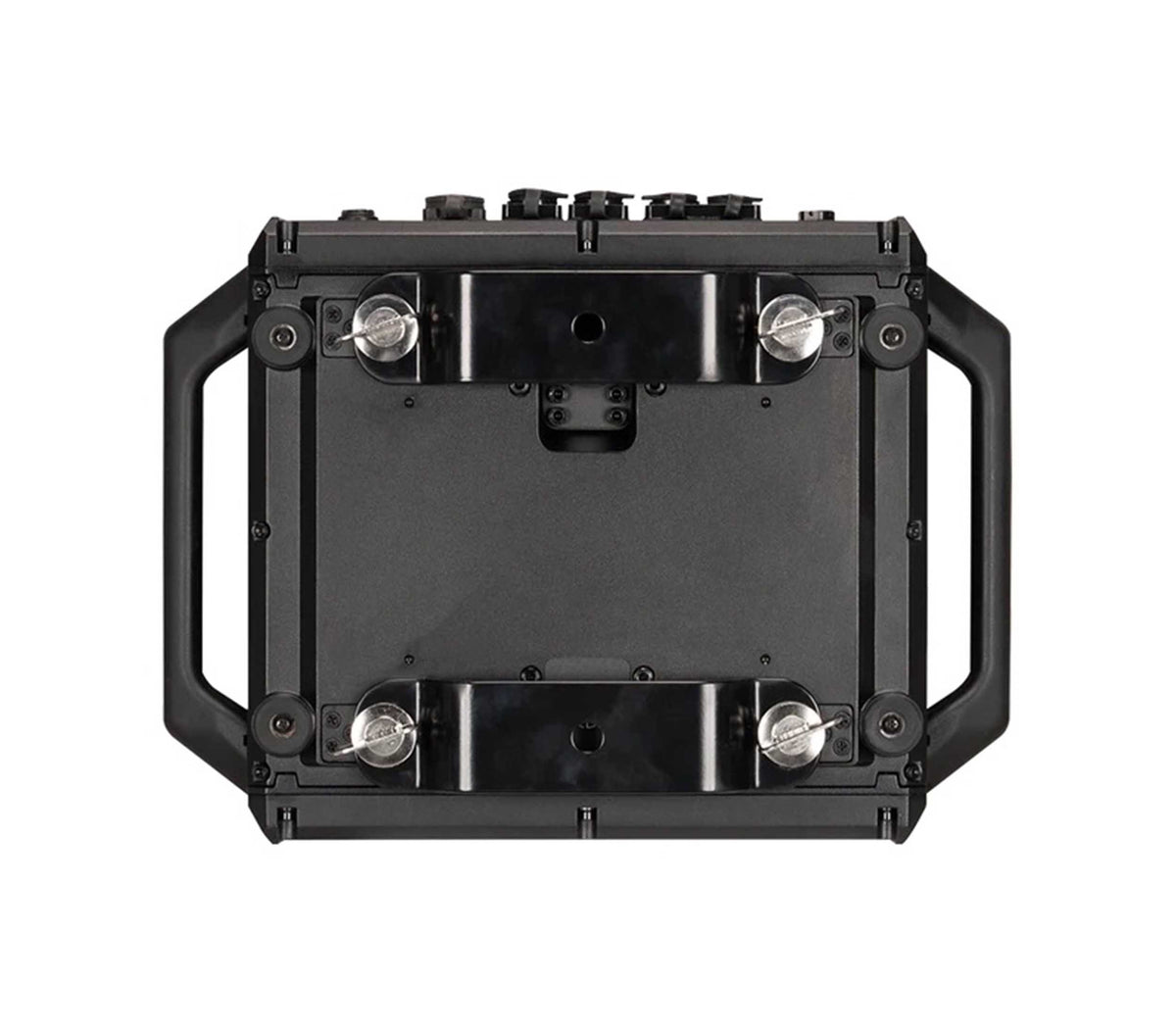

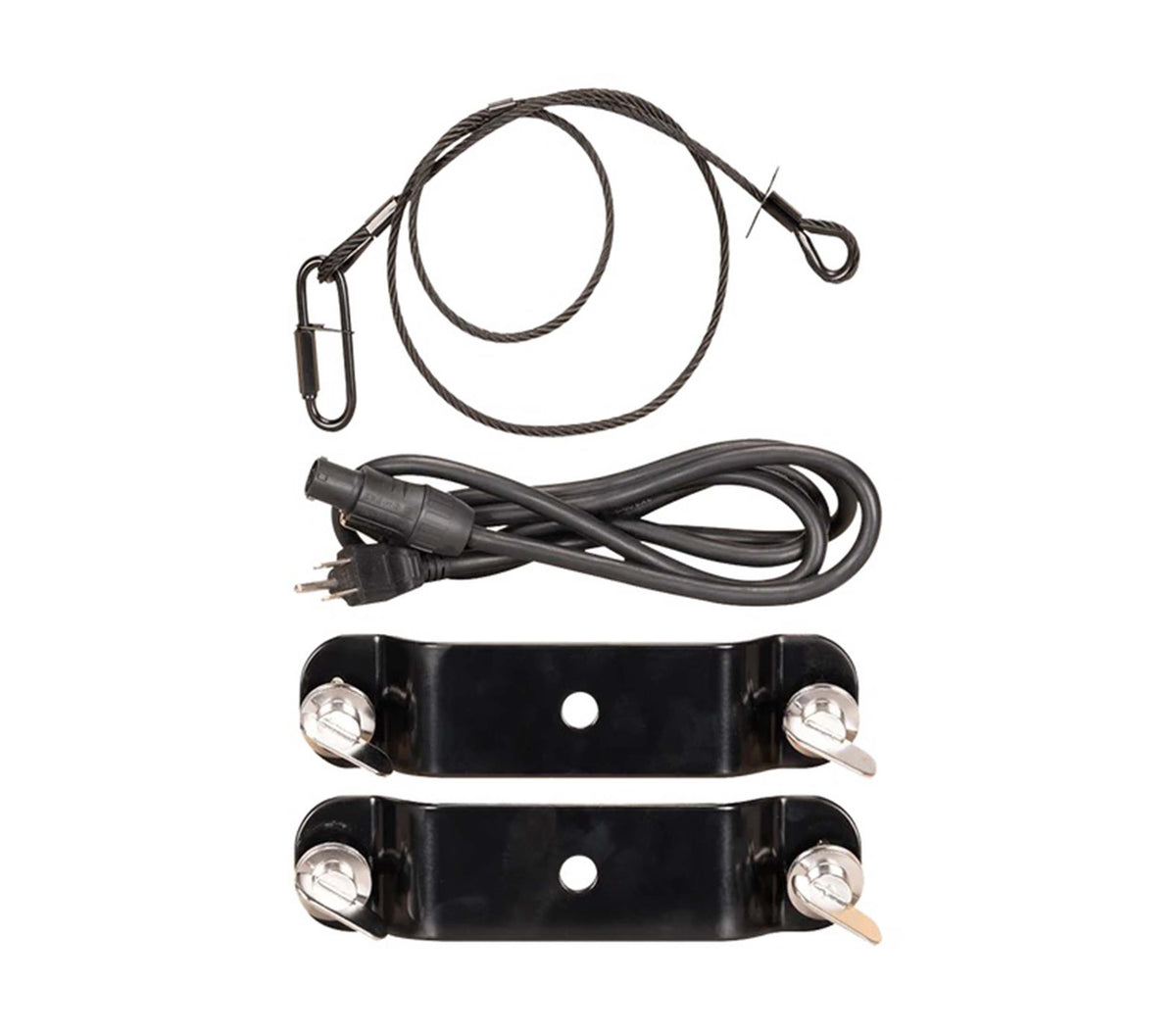

Included Accessories: 2 Omega Brackets, Safety Cable, IP65-Rated Locking Power Cable
Approvals/Ratings: CE, cETLus, FCC, UKCA, IP65
Product Weight: 66.00 lbs
Product Dimensions: 26 H × 11 W × 15 L
