Descripción

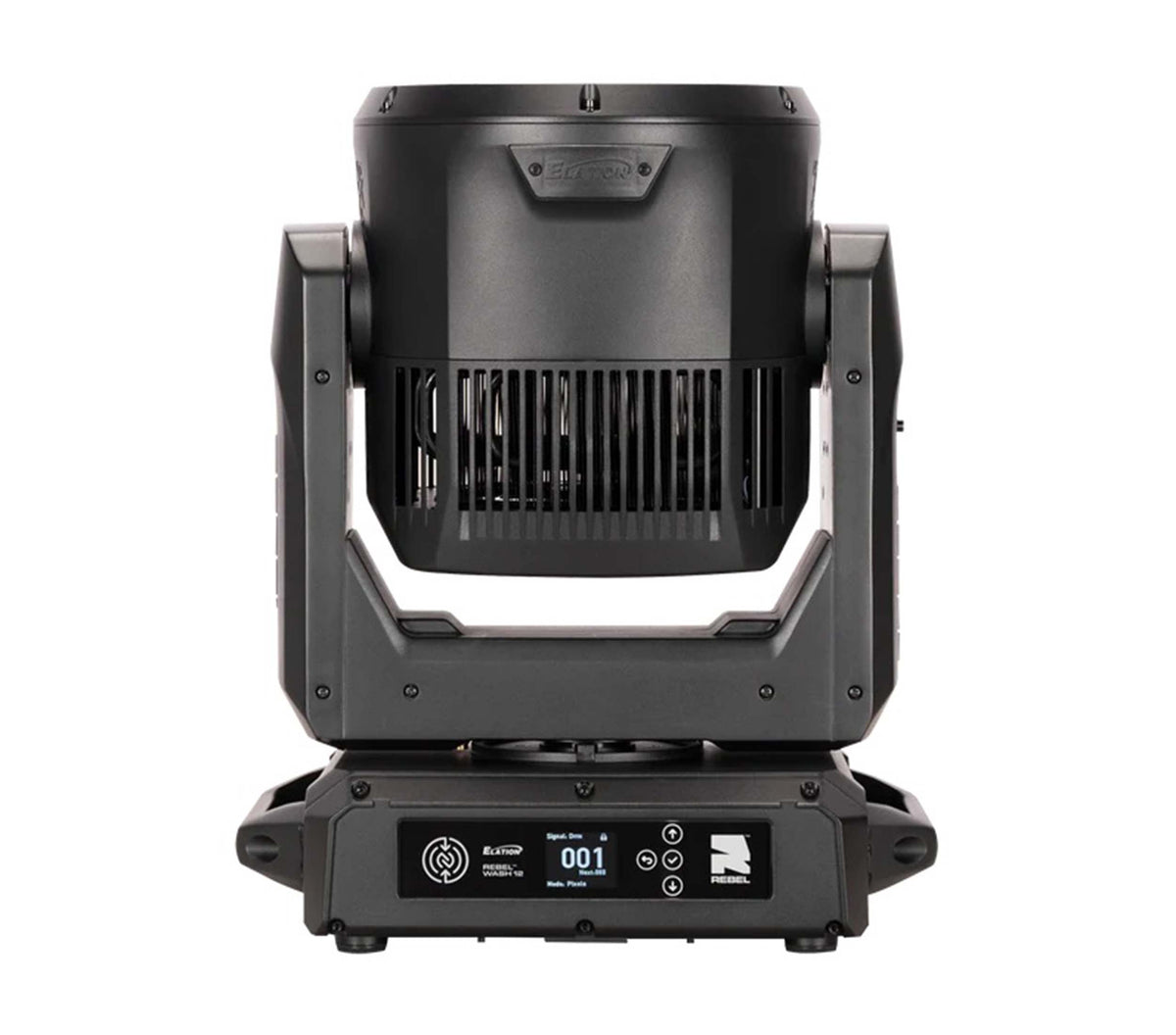

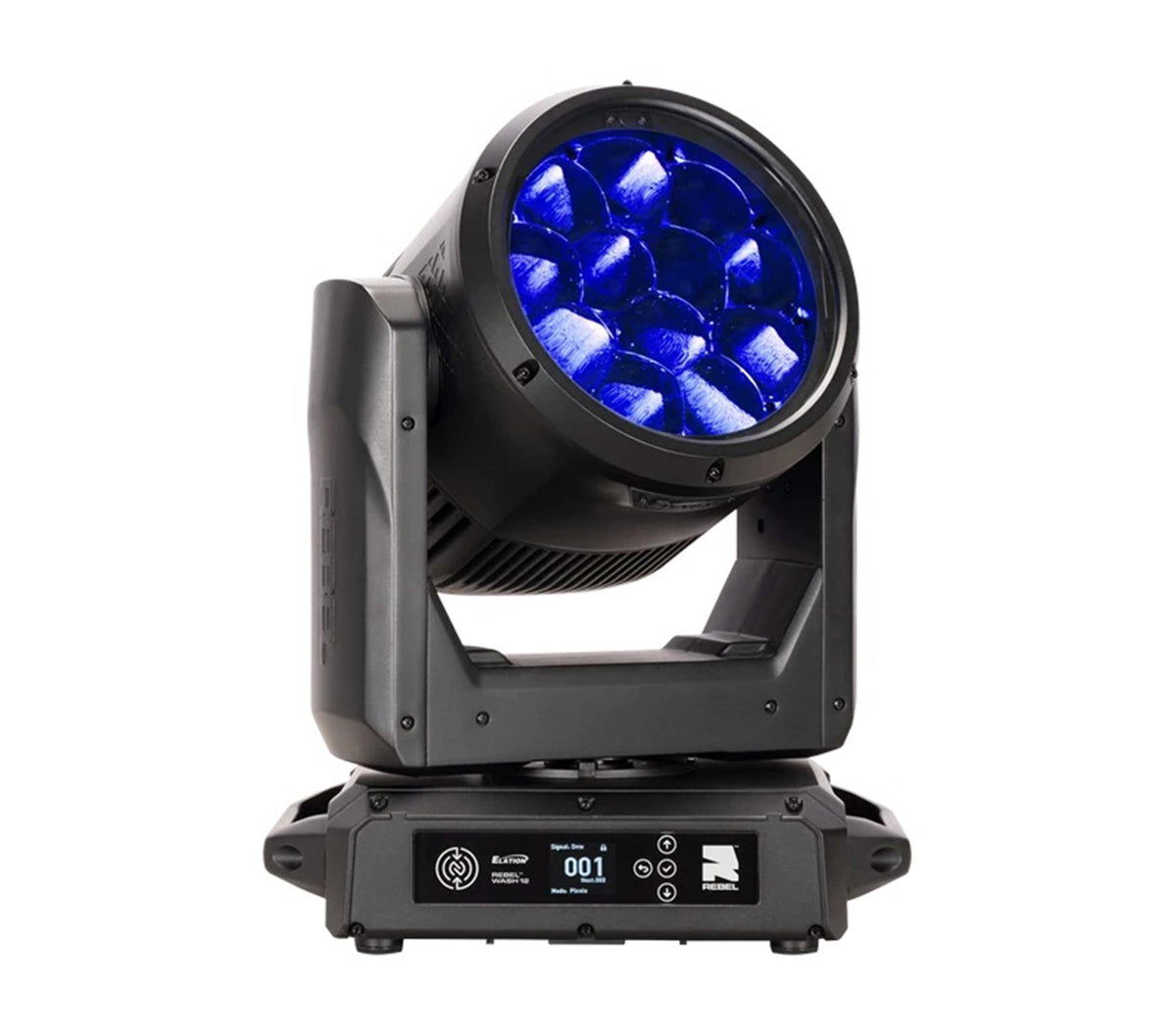

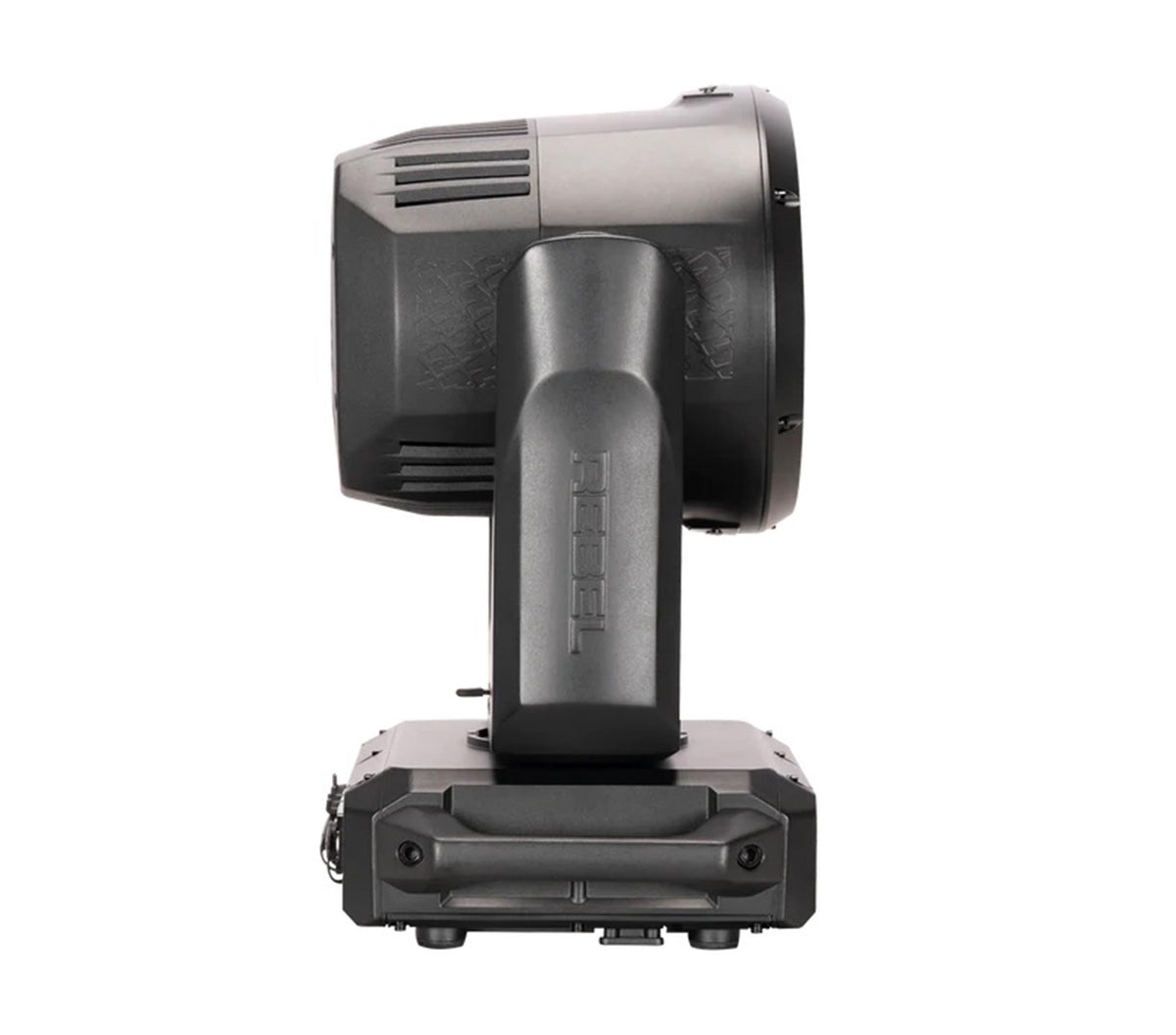

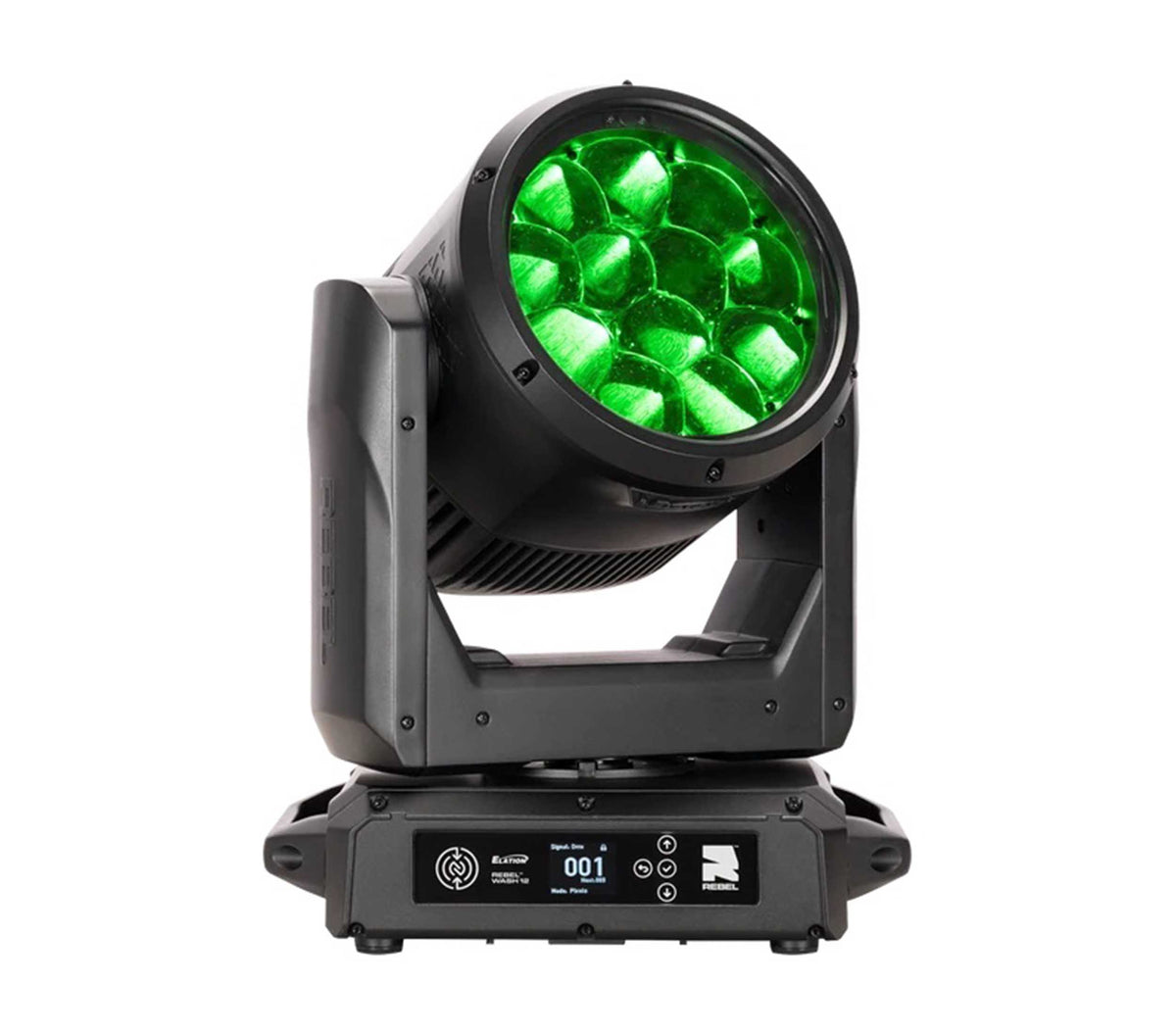

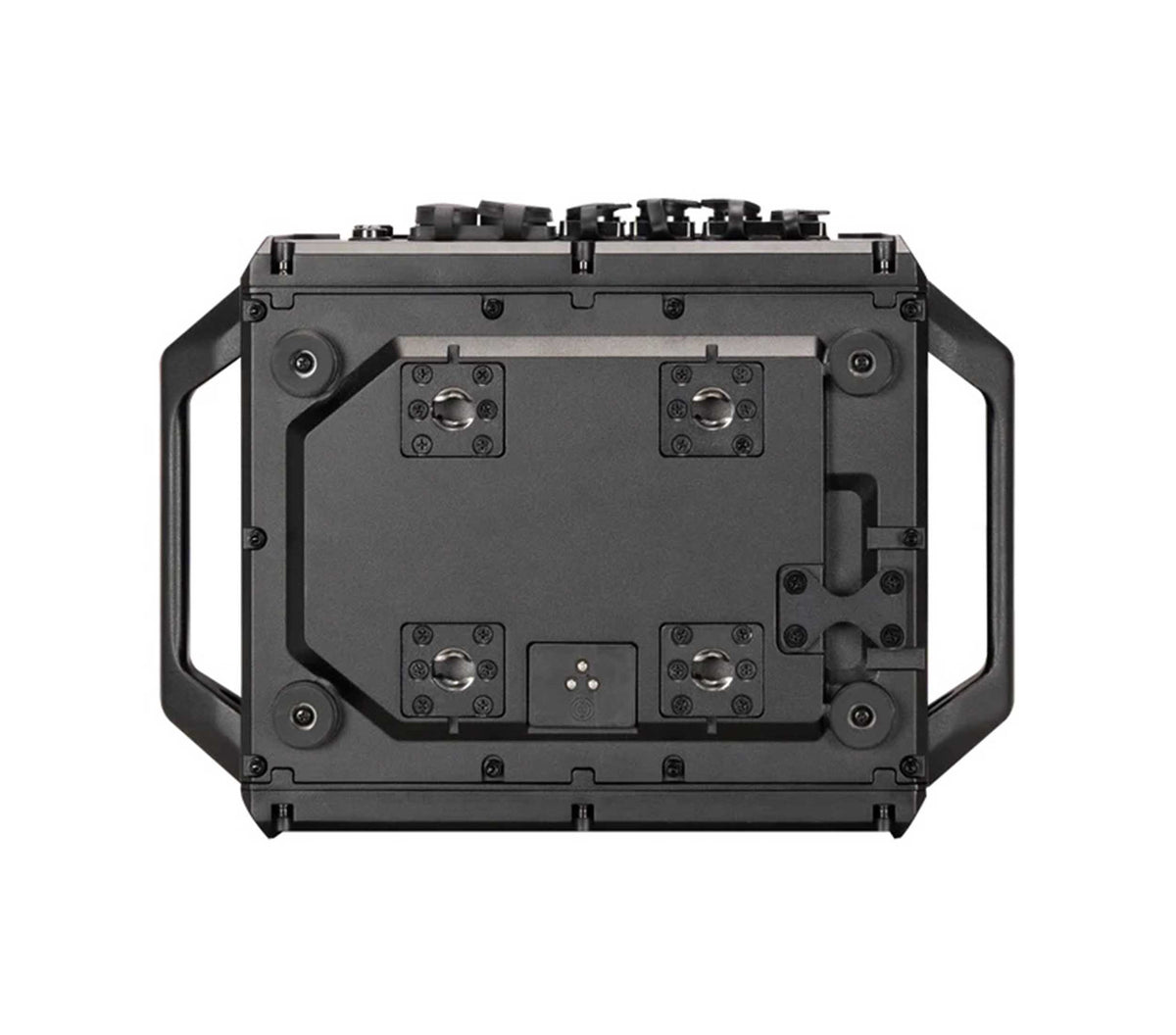

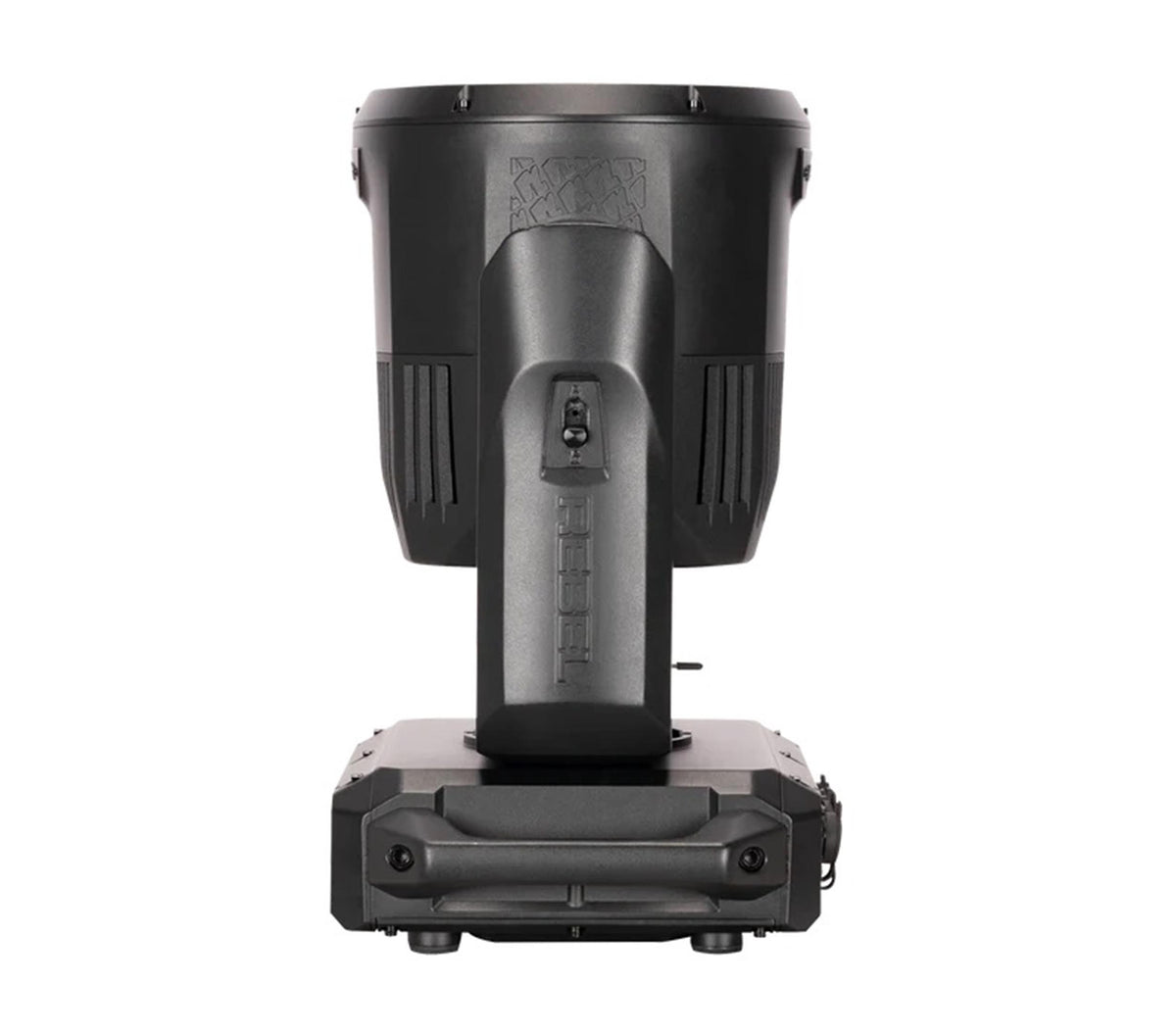

The Elation REBEL WASH 12™ is a powerful and versatile IP65-rated LED wash fixture designed for a wide range of indoor and temporary outdoor applications. Its 12 × 60W RGBL LED array produces up to 14,000 lumens, delivering high-output beams, wide washes, and excellent color performance in a compact fixture.

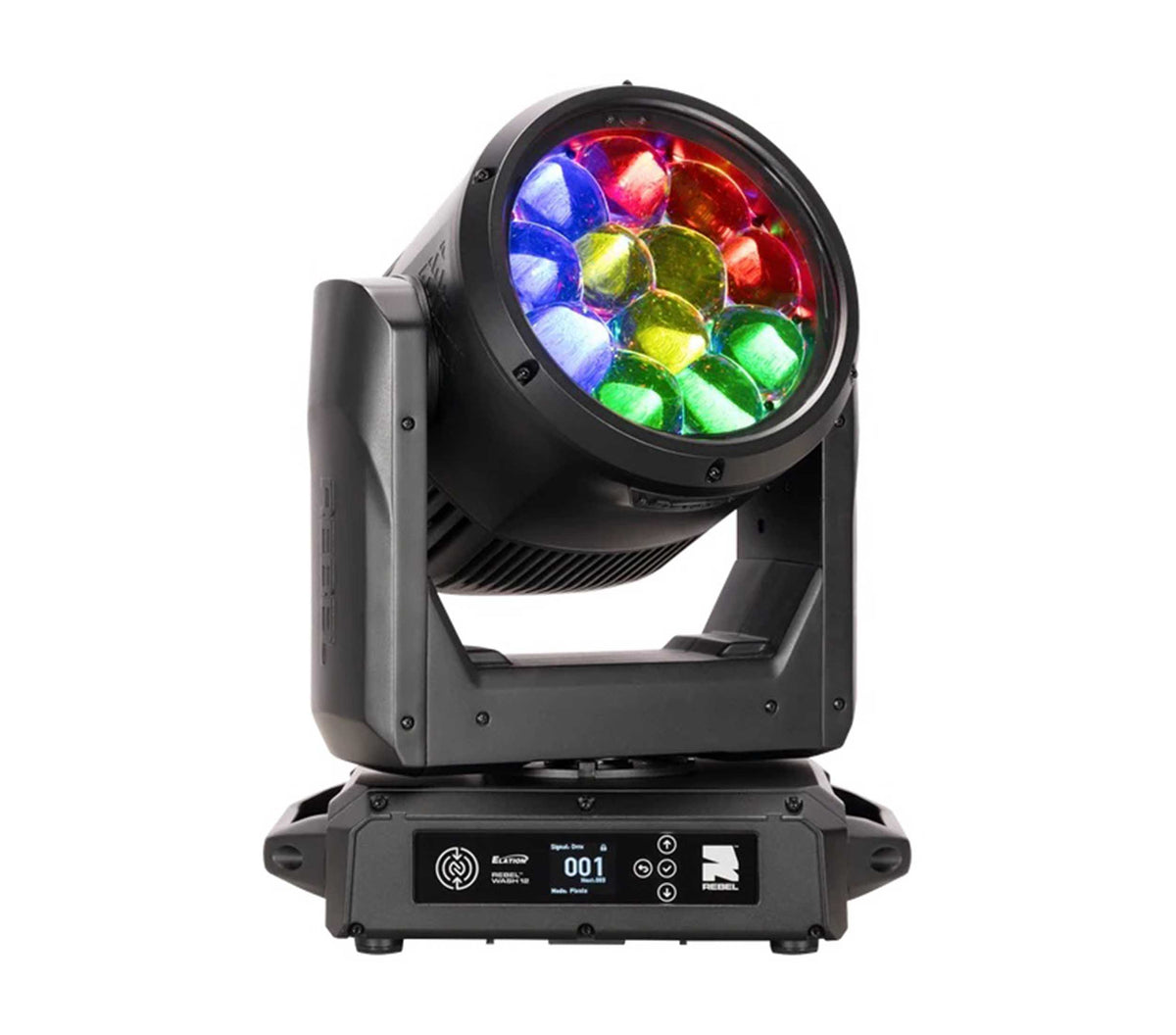

Advanced RGBL color mixing and pixel control provide extensive creative possibilities, from vibrant primary colors to high-quality white light. Variable color temperature control from 2400K to 8500K, along with a virtual gel swatch book and calibrated color control, allows lighting professionals to achieve precise and consistent color results across a wide range of applications.
A fast 5°–40° motorized zoom provides flexibility for both concentrated beams and broad washes, while continuous 360° Pan and Tilt rotation adds dynamic movement and visual impact. Fully sealed against dust and water, the REBEL WASH 12 is built for demanding shows, events, touring applications, and temporary outdoor installations.
Product Specifications:
Product Type: LED Wash Fixture
IP Rating: IP65
LED Source: 12 × 60W RGBL LEDs
LED Life: 30,000 hours
Total Fixture Output: 14,000 lumens
CRI: 83.4
TLCI: 67
Zoom Range: 5°–40°
Beam Angle: 5°–40°
Field Angle: 8.5°–56.5°
Pixel Control: Yes
Dimming: Variable 16-bit Dimming Curves
Strobe: High-Speed Electronic Shutter and Strobe
Pan Angle: 360° / 540°
Tilt Angle: 360° / 270°
Pan & Tilt Movement: Continuous 360°
Color System: RGBL Color Array
CMY Emulation: Yes
CCT Range: 2400K–8500K
Color Library: Virtual Gel Swatch Book
DMX Modes: 3 — 21, 28, and 68 channels
Protocols: DMX, RDM, Art-Net, sACN
Control Panel: 5-Button Touch Control
Display: Full-Color 180° Reversible LCD
Power Save: Hibernation Mode
Wireless Management: Aria x2
Configuration: NFC

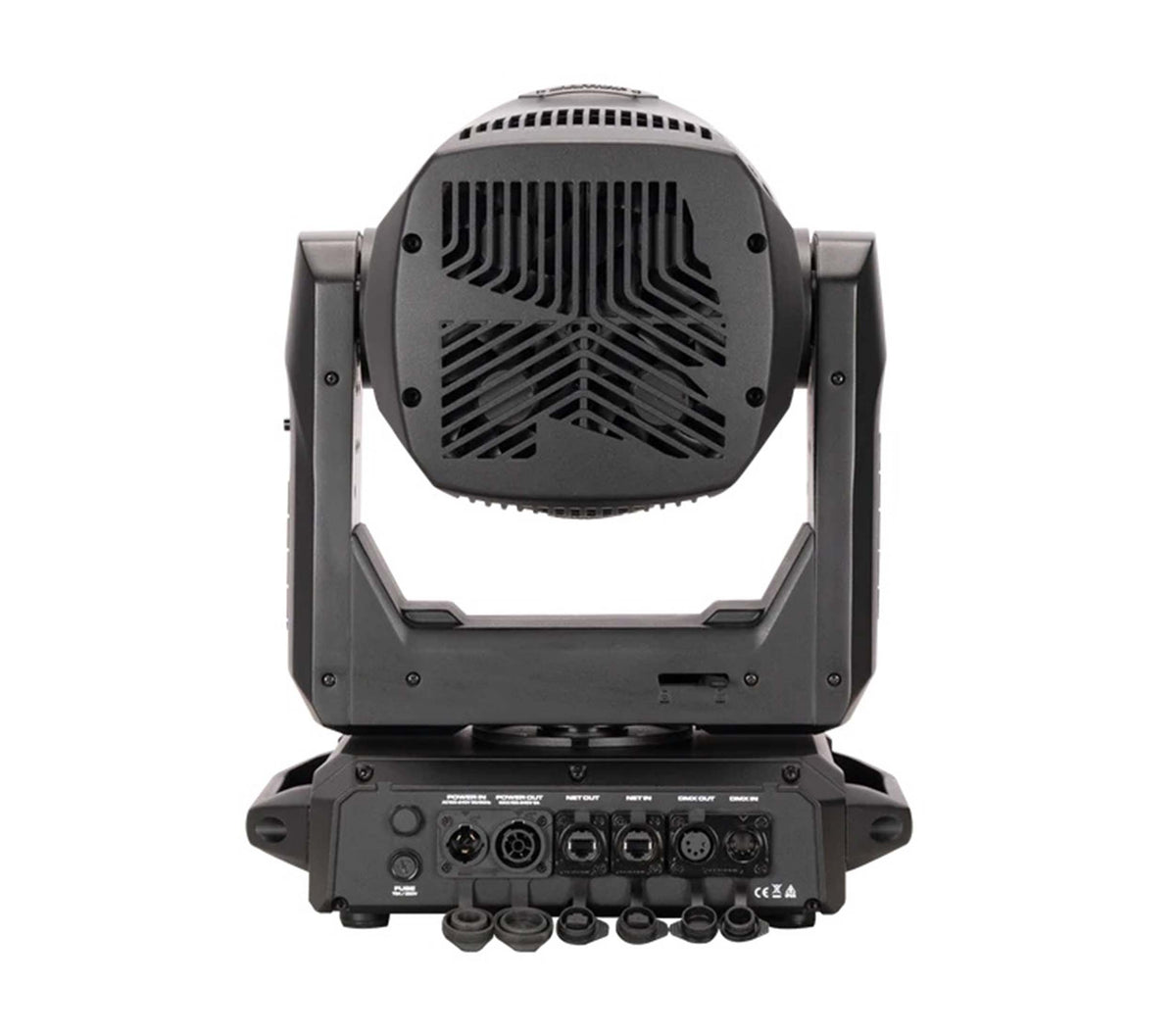

DMX Connection: IP65 Locking 5-Pin XLR In/Out
Ethernet Connection: IP65 Locking RJ45 In/Out
Power Connection: IP65 Locking Power Connector
Power: AC 100–240V, 50/60Hz
Maximum Power Consumption: 700W
Operating Temperature: -20°C to 45°C
Heat Output: 2489.3 BTU/hr ±10%
Included Accessories: 2 Omega Brackets, Safety Cable, IP65-Rated Locking Power Cable
Approvals/Ratings: CE, cETLus, FCC, UKCA, IP65
Product Weight: 36 lbs
Product Dimensions: 17 H × 10 W × 14 L
