Descripción

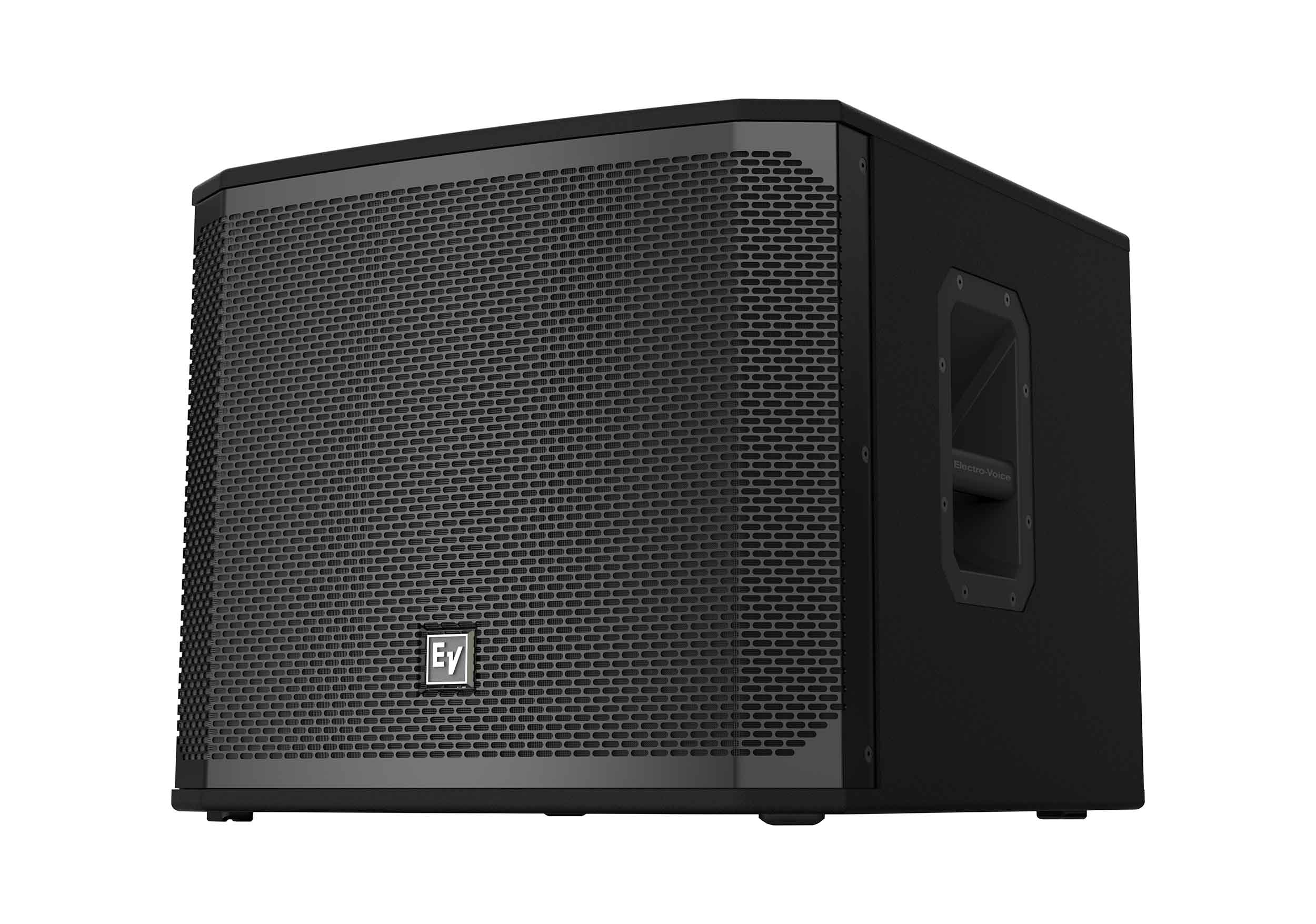

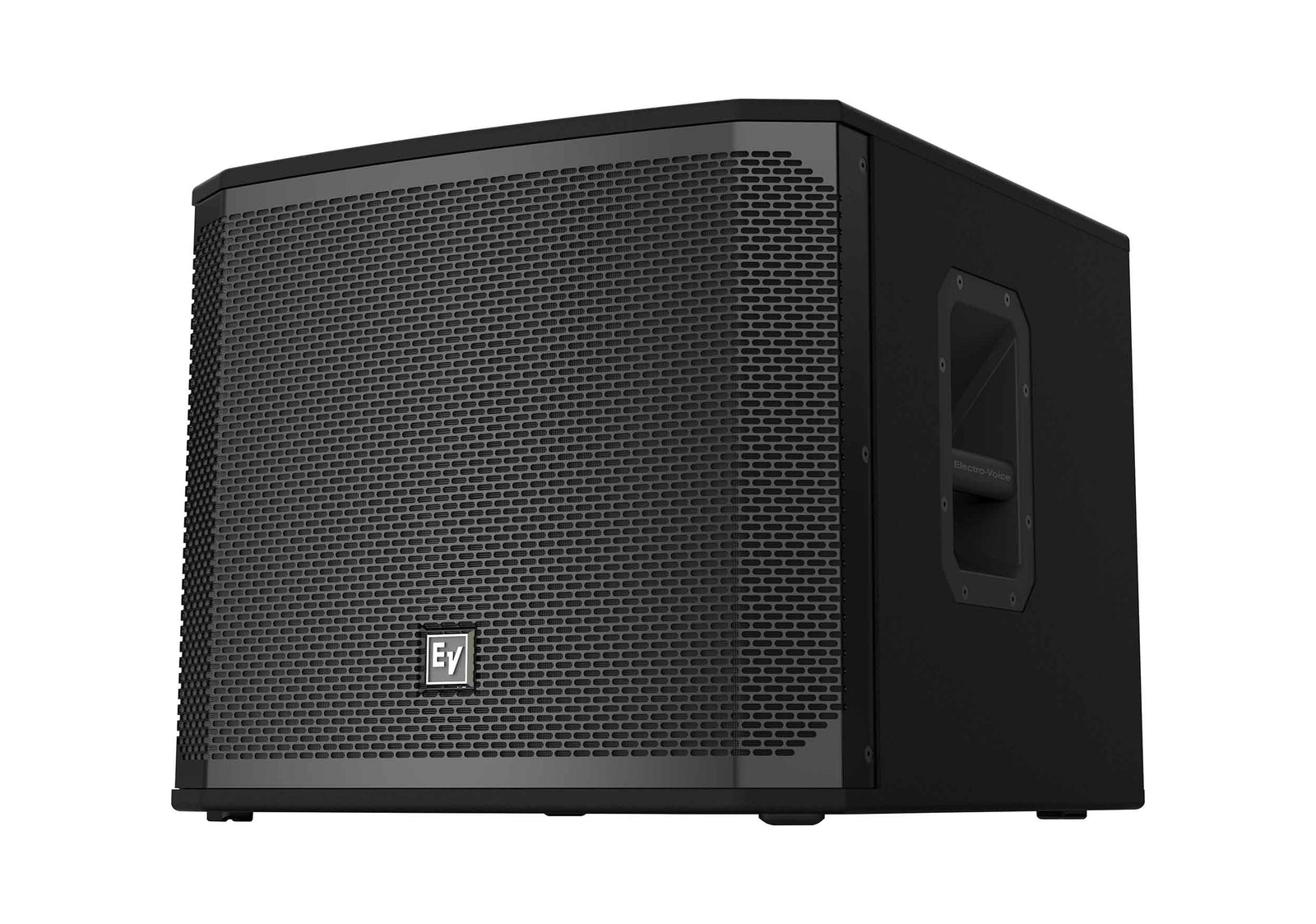

The Electro-Voice EKX-15S is a professional passive 15-inch subwoofer engineered to deliver powerful, accurate low-frequency reinforcement for live sound, portable PA systems, DJs, rental companies, and fixed installations. Equipped with a high-sensitivity EVS-15C woofer, it delivers up to 1600W peak power handling and an impressive 133 dB maximum SPL, providing deep, punchy bass with exceptional clarity.
Its durable 15 mm plywood enclosure features internal bracing and Electro-Voice's rugged EVCoat finish for reliable performance in demanding environments. Large slot ports reduce distortion while extending low-frequency response, resulting in smooth and powerful bass reproduction. A reinforced powder-coated steel grille protects the driver during transport and daily operation.

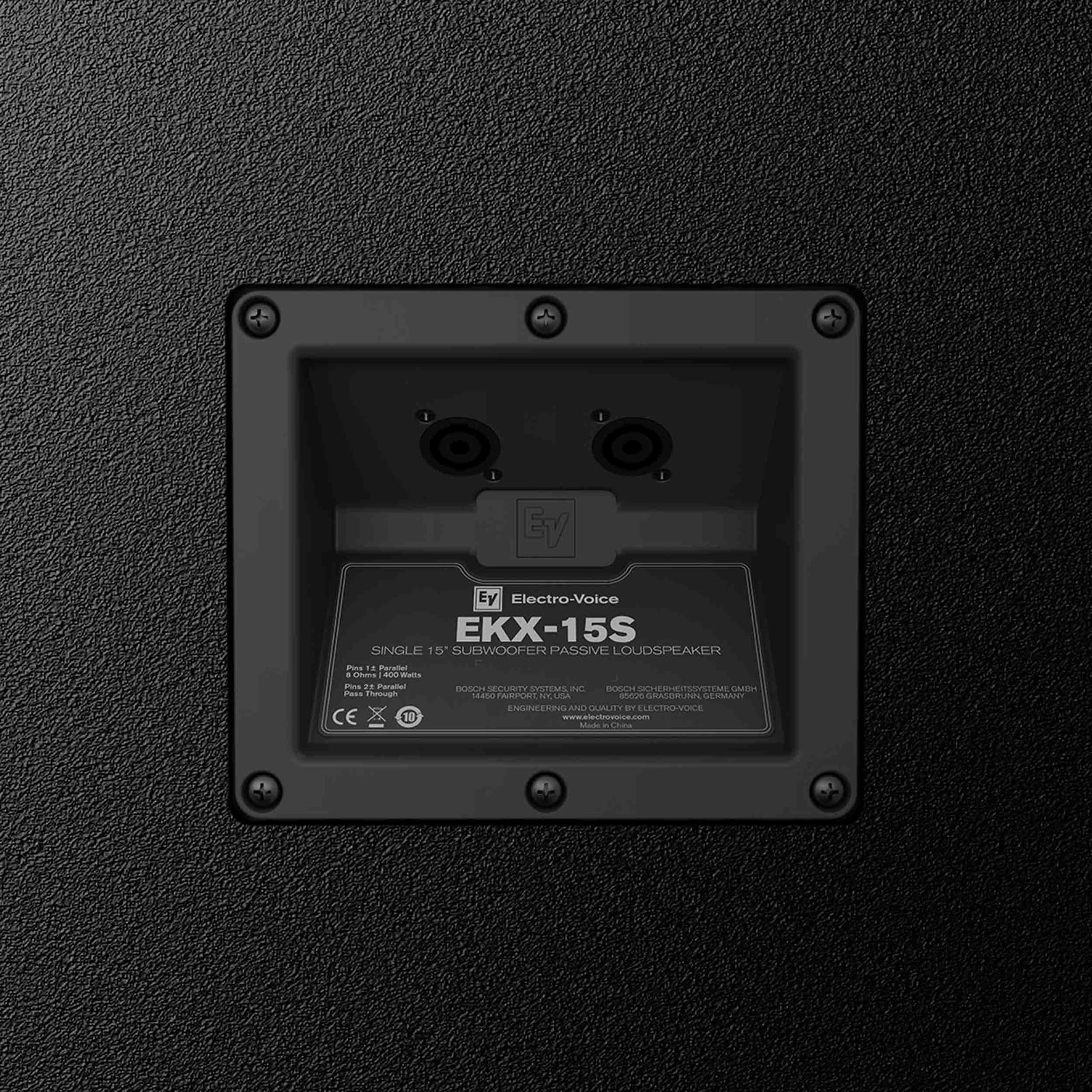

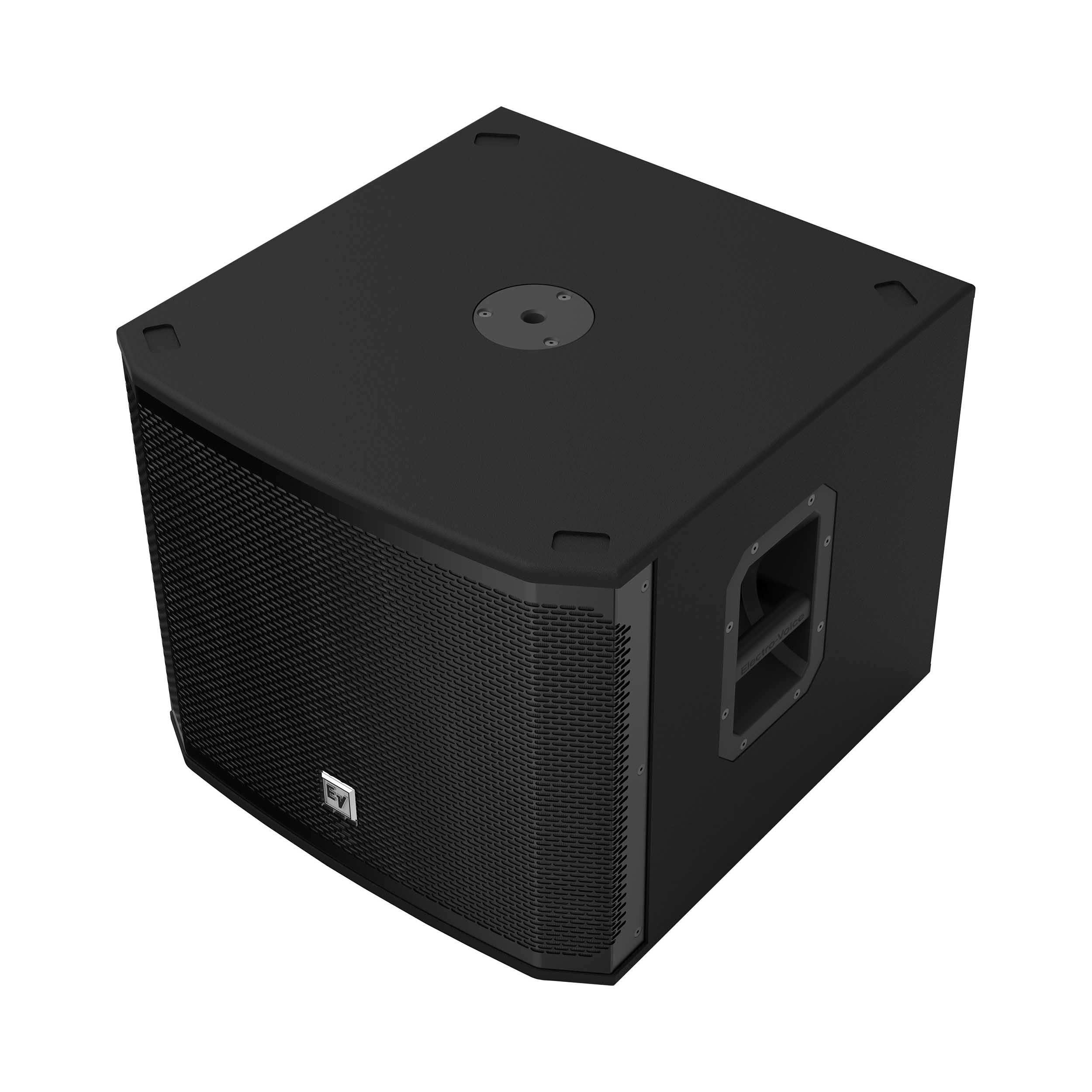

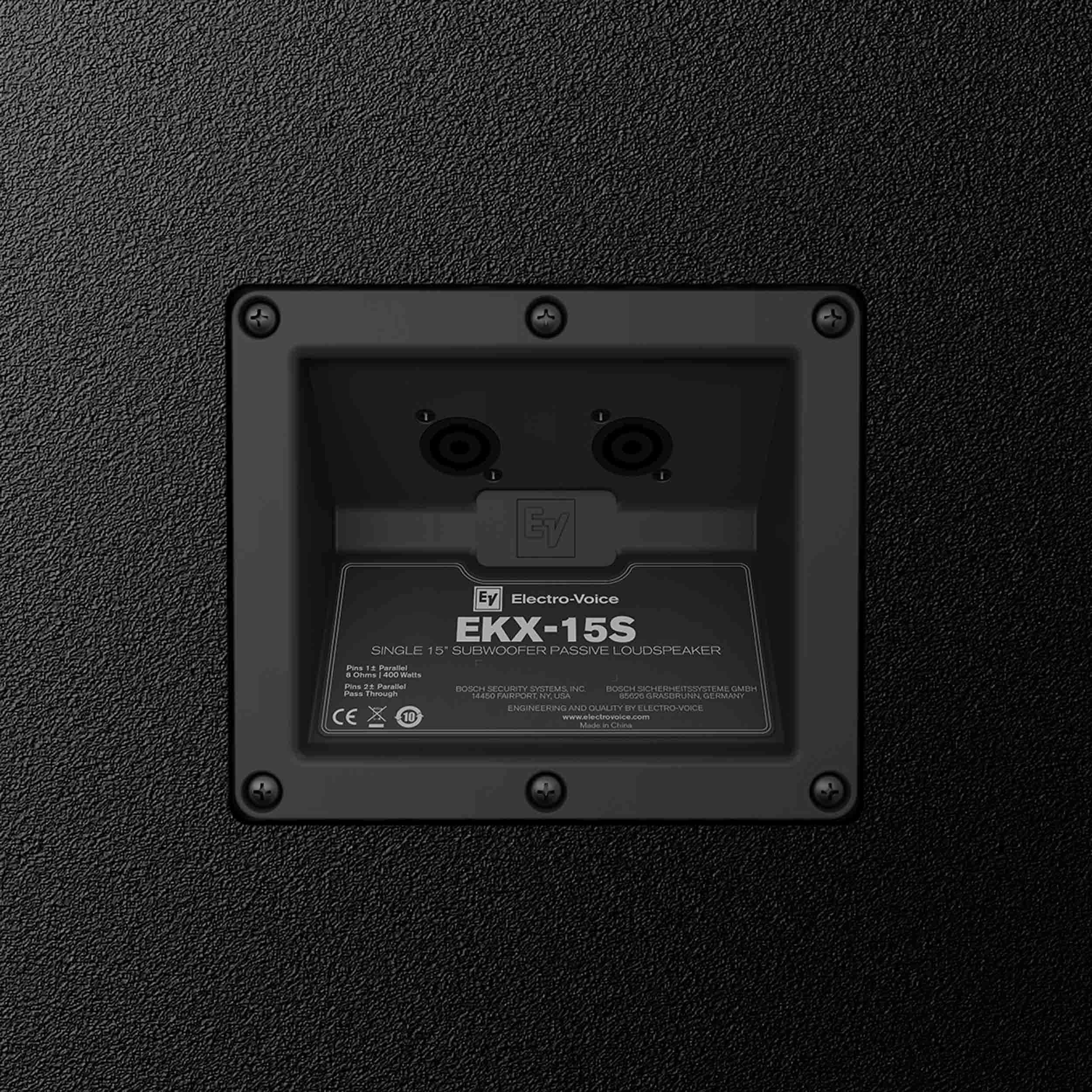

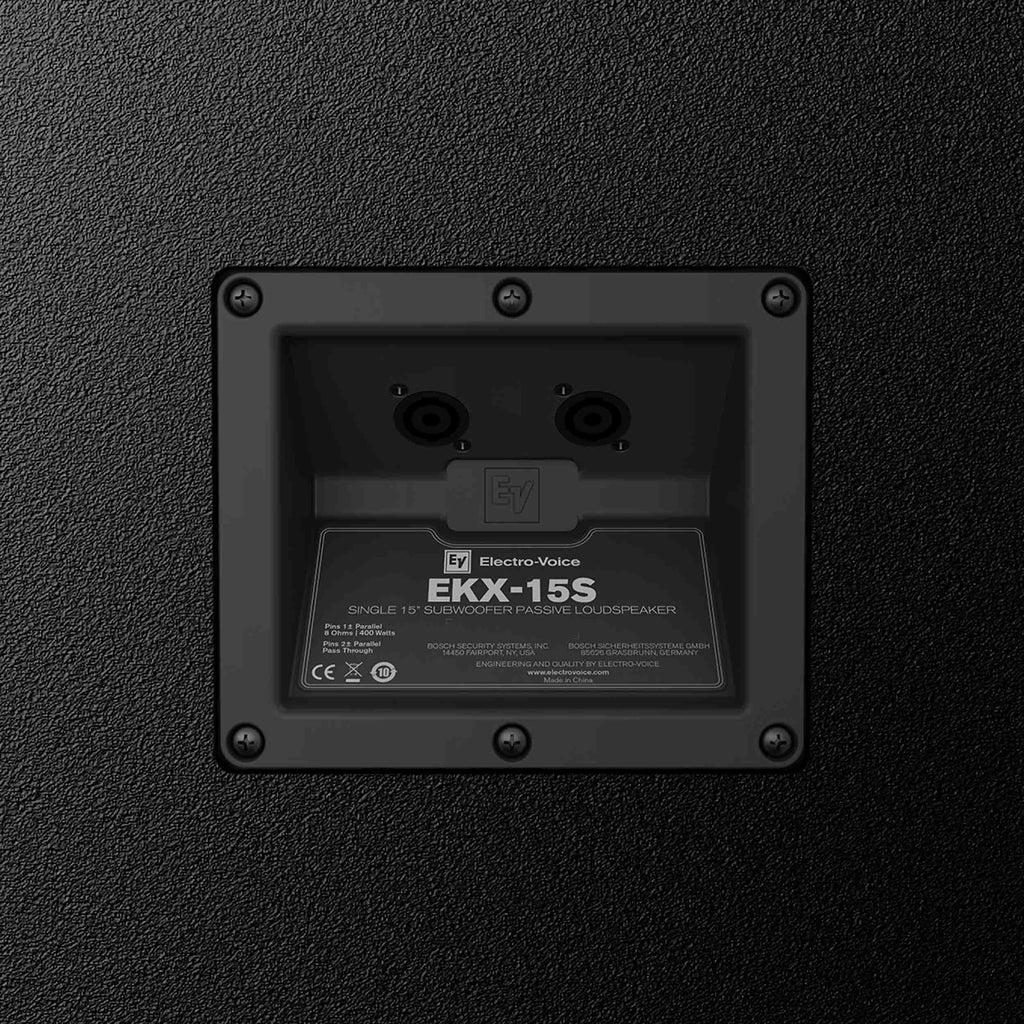

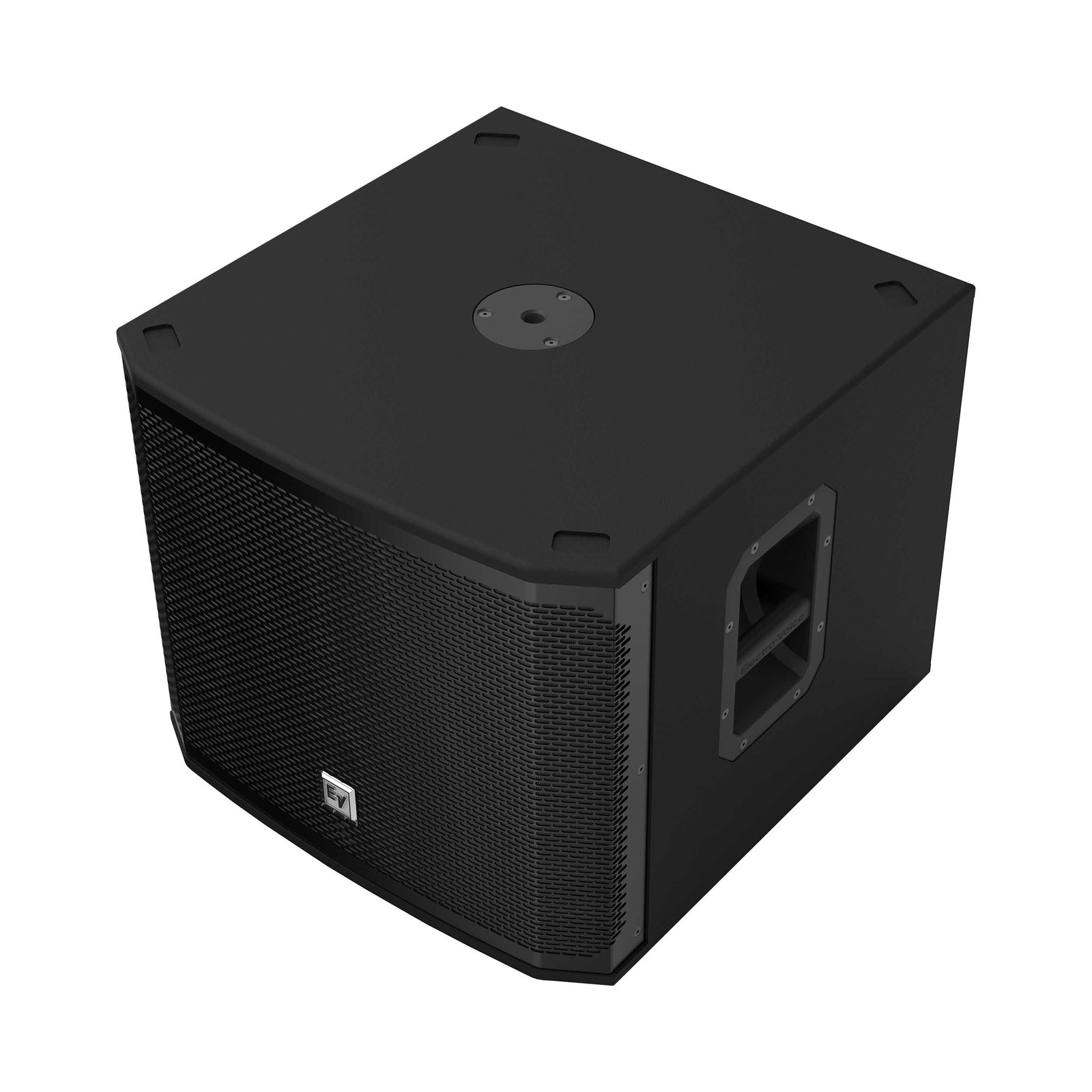

Designed for easy system integration, the EKX-15S includes dual NL4 speakON connectors for input and link connections, along with an M20 threaded pole mount for mounting full-range loudspeakers above the subwoofer. Its lightweight construction makes transportation and setup quick and convenient while maintaining the durability expected from professional touring equipment.
Product Specifications:
Speaker Type: Passive Subwoofer
Woofer Size: 15"
LF Transducer: EVS-15C, 381 mm (15")
Powered/Passive: Passive
Frequency Range (-10 dB): 40 Hz – 300 Hz
Frequency Response (-3 dB): 60 Hz – 100 Hz
Recommended High-Pass Frequency: 35 Hz
Nominal Impedance: 8 Ohms
Minimum Impedance: 7.5 Ohms
Power Handling (Continuous): 400 W
Passive Power Handling: 1600 W
Maximum SPL: 133 dB
Sensitivity (1 W @ 1 m): 95 dB
Connectors: Dual NL4 speakON
Enclosure Material: 15 mm Plywood with EVCoat Finish
Grille: Powder-Coated 18 AWG Steel
Pole Mount: M20 Threaded Pole Mount Plate
Color: Black
Product Weight: 24.9 kg (54.9 lbs)
Product Dimensions (L × W × H): 21.7" × 20.9" × 17.9"
Shipping Weight: 31.3 kg (69.0 lbs)
Shipping Dimensions (L × W × H): 25" × 24" × 22"
