Descripción

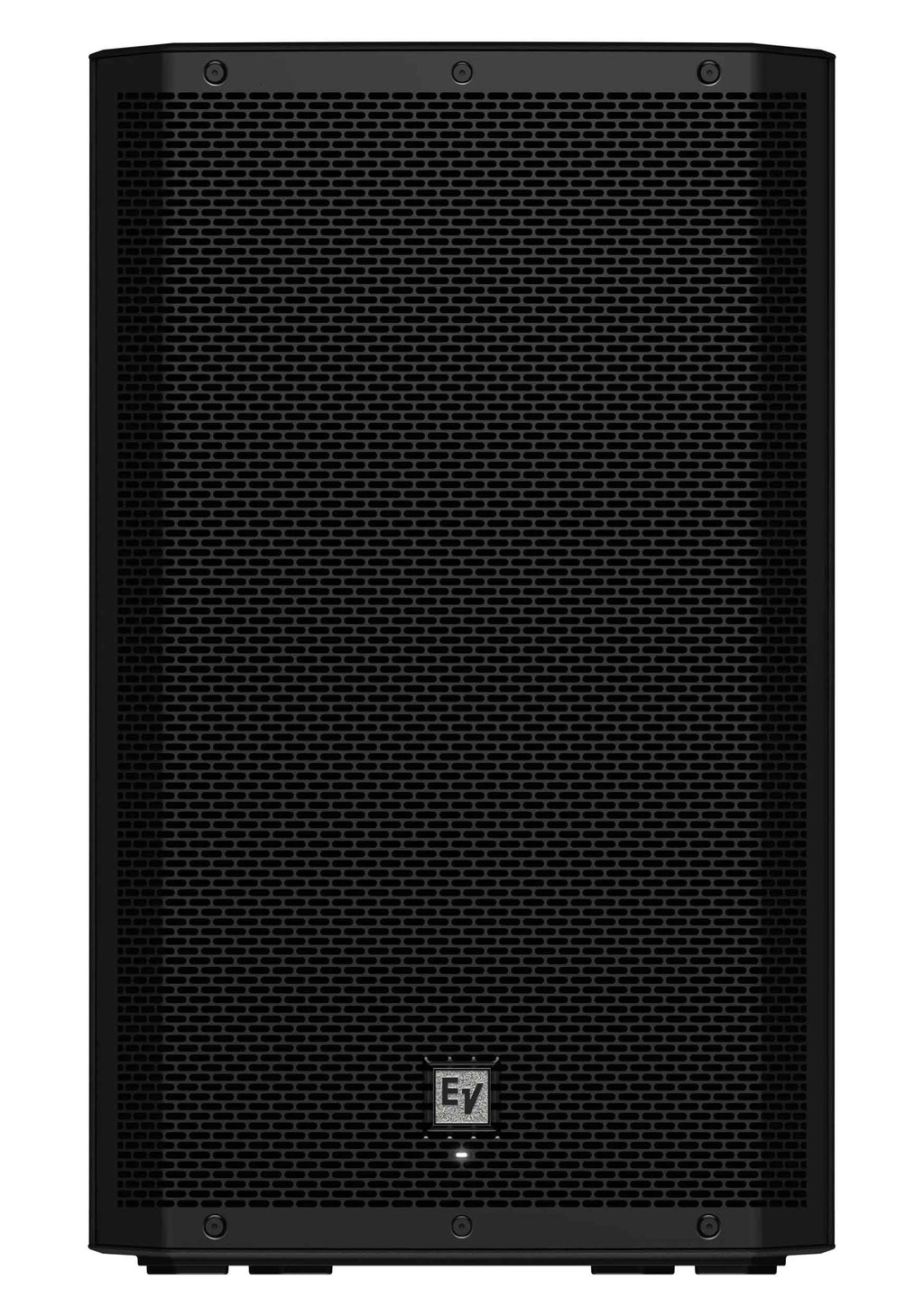

The Electro-Voice ZLX-15-G2 is a professional 15-inch two-way passive loudspeaker designed as the next generation of the best-selling ZLX series. It combines a high-output 15-inch low-frequency transducer with a 1.40-inch titanium-diaphragm compression driver to deliver powerful, balanced sound for portable PA systems, live performances, DJs, events, and installations. With a 250W continuous and 1,000W peak power rating, the ZLX-15-G2 provides substantial output for professional applications.
Electro-Voice's patented Signal Synchronized Transducers (SST) baffle design is engineered to improve bass performance while maintaining consistent coverage across the frequency range. The loudspeaker provides a 90° x 60° coverage pattern, 95 dB sensitivity, and up to 126 dB maximum SPL at 1 meter. Its frequency response extends from 68 Hz to 18 kHz at -3 dB and from 53 Hz to 20 kHz at -10 dB when used with the recommended preset.

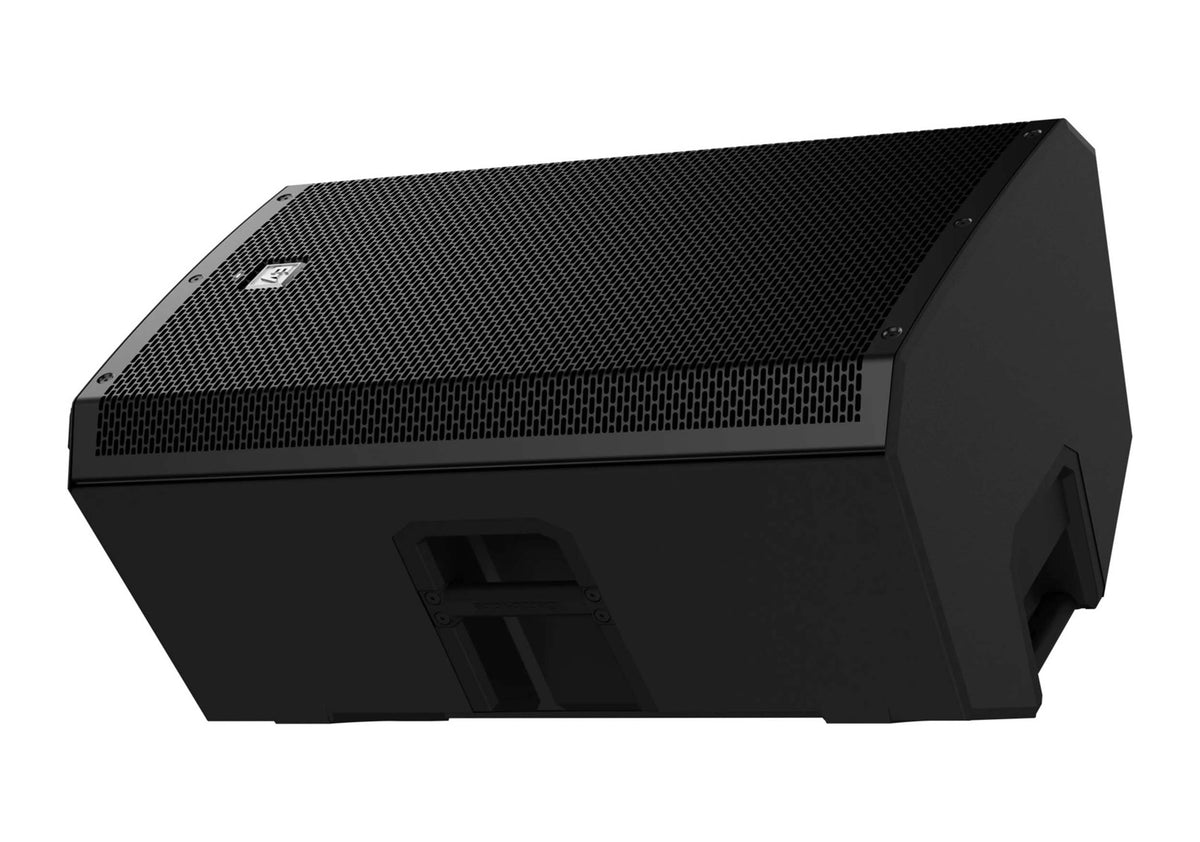

The ZLX-15-G2 features a robust and ergonomic enclosure designed for day-to-day portability and durability. Its 55-degree monitor angle and additional 23-degree kickback monitor angle provide flexible stage-monitoring positions, while two parallel NL4 connectors allow standard speaker connections with all pins passed through.
Key Features
- 15-inch two-way passive loudspeaker.
- 1,000W peak power handling.
- Up to 126 dB maximum SPL.
- 90° x 60° coverage pattern.
- Patented SST baffle design.
- 40-inch titanium compression driver.
- Parallel NL4 speaker connections.
- 55° monitor and 23° kickback angles.
- Compatible with Dynacord DSP amplifiers.
- SONICUE speaker preset integration.
Ideal For
- Live sound and portable PA systems.
- DJs and mobile entertainers.
- Concerts and touring applications.
- Corporate events and presentations.
- Houses of worship and performance venues.
- Stage monitoring.
- Professional sound reinforcement installations.
What’s in the Box
- Electro-Voice ZLX-15-G2 15-inch passive loudspeaker.
- User manual.
Inputs & Outputs
- Speaker Connections Two parallel NL4 connectors.
- Signal Pass-Through All NL4 pins are passed through.
- Amplifier Connection Designed for connection to an external power amplifier.
- Recommended Processing Dynacord DSP amplifier with the appropriate EV Speaker Database preset.
Frequently Asked Questions
What is the Electro-Voice ZLX-15-G2?
The ZLX-15-G2 is a professional 15-inch 2-way passive loudspeaker designed for high-output sound reinforcement applications.
What is the frequency response of the ZLX-15-G2?
It provides a frequency response of 68 Hz–18 kHz at -3 dB and a frequency range of 53 Hz–20 kHz at -10 dB.
How much power can the ZLX-15-G2 handle?
The speaker handles 250W of continuous power and up to 1,000W peak power with an 8-ohm nominal impedance.
What is the maximum SPL and coverage angle?
The ZLX-15-G2 reaches up to 126 dB maximum SPL and provides a 90° × 60° horizontal and vertical coverage pattern.
What connections does the ZLX-15-G2 use?
It uses two industry-standard NL4 connectors wired in parallel, allowing all pins to pass through.
What are the dimensions and weight?
The ZLX-15-G2 measures 27.46 × 16.65 × 15.08 inches and weighs 36.24 lbs. Its shipping weight is 42.28 lbs.
Full Technical Specifications
Audio Performance Specifications
|
Speaker Type |
Passive 15" 2-Way Loudspeaker |
|
Frequency Response (-3 dB) |
68 Hz – 18,000 Hz |
|
Frequency Range (-10 dB) |
53 Hz – 20,000 Hz |
|
Axial Sensitivity |
95 dB SPL 1W/1m |
|
Maximum SPL |
126 dB |
|
High-Pass Frequency |
40 Hz |
|
Crossover Frequency |
2 kHz |
|
Coverage Angle (H x V) |
90° x 60° |
|
Continuous Power Handling |
250 W |
|
Peak Power Handling |
1,000 W |
|
Nominal Impedance |
8 Ω |
|
Recommended Amplification |
Dynacord DSP Power Amplifier |
|
Speaker Processing |
SONICUE Integration |
Transducer & Design Specifications
|
LF Transducer |
WECA2158 |
|
LF Transducer Size |
15" |
|
LF Magnet Material |
Ferrite |
|
HF Transducer |
DH-1K |
|
HF Transducer Type |
Compression Driver |
|
HF Transducer Size |
1.40" |
|
HF Diaphragm Material |
Titanium |
|
Baffle Design |
Signal Synchronized Transducers (SST) |
|
Monitor Angle |
55° |
|
Kickback Monitor Angle |
23° |
|
Connections |
2 x NL4, Parallel, All Pins Pass-Through |
|
Included Items |
1 Loudspeaker, 1 User Manual |
Physical Specifications
|
Product Weight |
36.24 lbs. |
|
Product Dimensions (L x W x H) |
27.46" x 16.65" x 15.08" |
|
Shipping Weight |
42.28 lbs. |
|
Shipping Dimensions (L x W x H) |
30.12" x 19.29" x 19.29" |
