The JBL 308P MkIII is a powered 8-inch professional studio monitor designed for producers, engineers, content creators, and demanding production environments. Its next-generation acoustic platform combines a high-performance silk dome tweeter, redesigned 8-inch low-frequency driver, patented Image Control Waveguide, and Slipstream port to deliver detailed imaging, controlled bass, and consistent tonal balance across a wide listening area. With a frequency range extending from 41 Hz to 40 kHz and 120° x 90° coverage, the 308P MkIII provides extended low-frequency response and accurate monitoring for critical mix decisions.
The monitor features a bi-amplified 110W Class-D amplifier system with 55W dedicated to the low-frequency driver and 55W to the high-frequency driver. Maximum RMS SPL reaches 101 dB, while maximum peak SPL reaches 113 dB for powerful transient performance and increased headroom. Four onboard DSP controls provide 81 configurable room-tuning combinations, allowing users to optimize performance for desktop, stand, or wall placement while adjusting boundary compensation and high- and low-frequency response. HF adjustment at 3 kHz and LF adjustment at 300 Hz each provide -2 dB, 0 dB, or +2 dB settings.
The 308P MkIII features a ported 15 mm MDF enclosure with a matte black PVC finish, injection-molded structural ABS baffle, and 2 mm SPCC rear panel. A balanced Neutrik Combo input provides professional analog connectivity, while M4 x 8 mounting points and a 75 x 75 mm VESA pattern support flexible installation. The monitor operates from 100–240 VAC and weighs 19.4 lbs, with cabinet dimensions of 17.5" x 9.8" x 11.7". Its combination of extended bass response, JBL acoustic technologies, DSP room optimization, high-output Class-D amplification, and flexible mounting makes the 308P MkIII suitable for project studios, professional control rooms, educational facilities, cinematic production, and immersive audio environments.
Product Specifications:
Product Type: Powered 8-Inch Studio Monitor
Application: Studio Monitoring, Music Production, Mixing, Content Creation, Post Production, and Immersive Audio
LF Driver Size: 8" / 203 mm
HF Driver Size: 1" / 25 mm
HF Driver Type: Soft Dome
Crossover: 1960 Hz
Power Configuration: Bi-Amplified
HF Driver Power Amp: 55W Class-D
LF Driver Power Amp: 55W Class-D
Total Amplification: 110W Class-D
Frequency Response (±3 dB): 49 Hz to 27 kHz
Frequency Range (-10 dB): 41 Hz to 40 kHz
Low Frequency Extension (-10 dB): 41 Hz
Maximum RMS SPL: 101 dB
Maximum Peak SPL: 113 dB
Coverage (Horizontal x Vertical): 120° x 90°
Input Type: 1 x Neutrik Combo, Balanced
Input Sensitivity (-10 dBV Input): 92 dB / 1 m
Maximum Peak Input Level (-10 dBV / +4 dBu): +7 dBV / +21 dBu
Input Impedance: 20 kΩ
Signal-to-Noise Ratio: 83 dB, A-Weighted, Relative to 1W Output
Sample Rate: 192 kHz
LF Adjustment: -2 dB, 0 dB, +2 dB at 300 Hz
DSP Room Optimization: 81 Configurable Room-Tuning Combinations
Acoustic Technology: Image Control Waveguide and Slipstream Port
Enclosure Type: Ported
Enclosure Construction: 15 mm MDF
Enclosure Finish: Matte Black PVC
Baffle Construction: Injection-Molded Structural ABS, UL 94 V-0

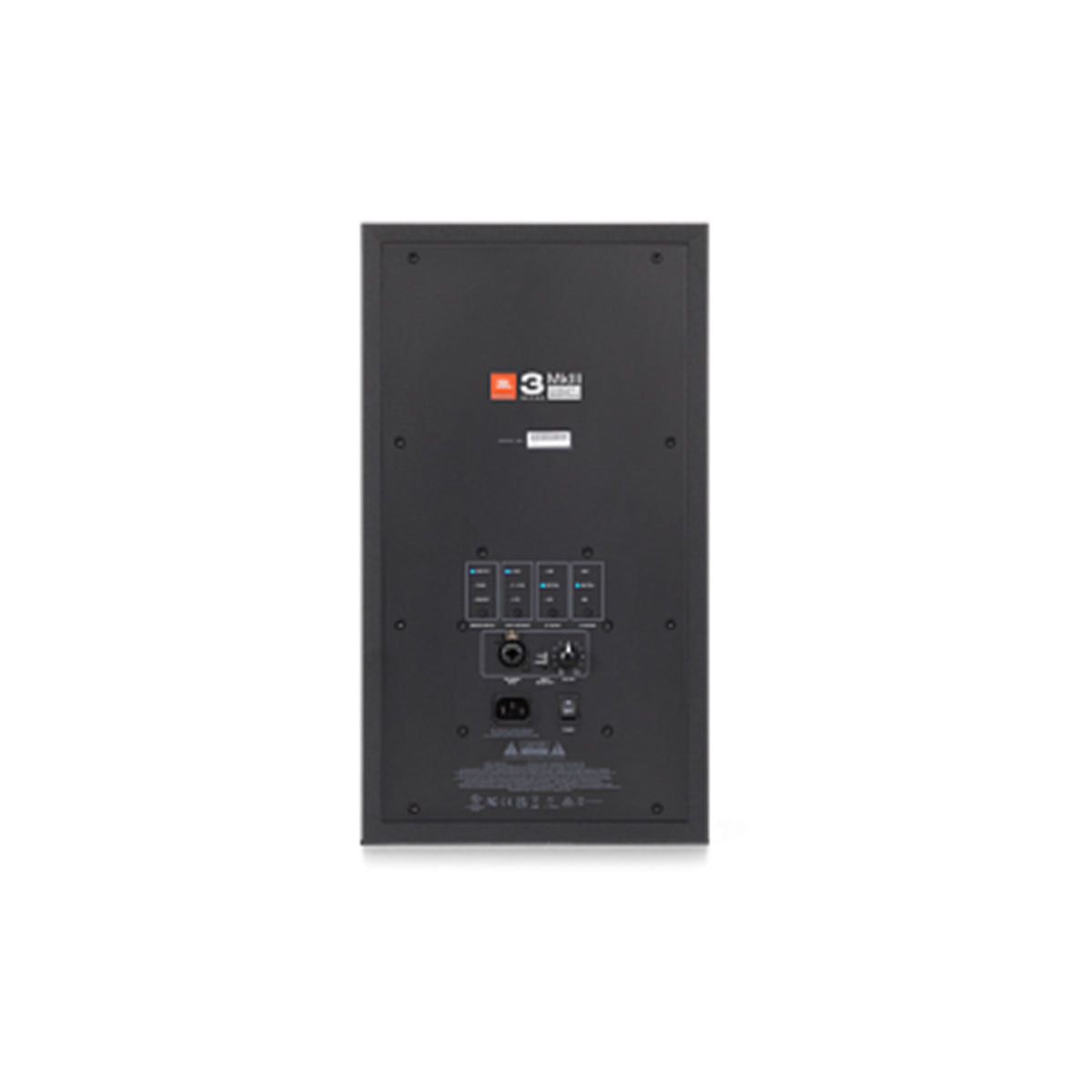

Rear Panel Construction: 2 mm SPCC

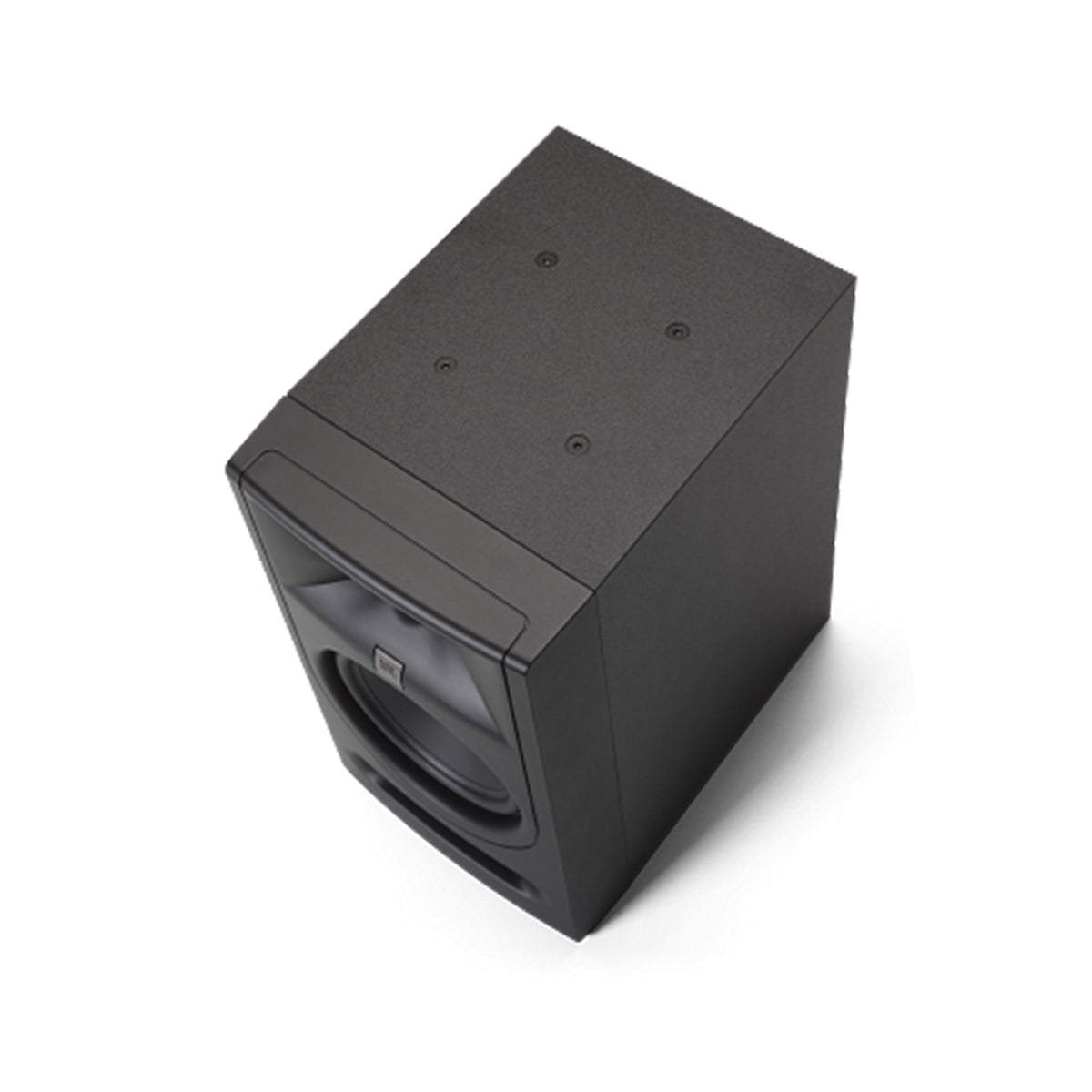

Mounting Points: M4 x 8, 4 Top and 4 Bottom
VESA Mounting Pattern: 75 x 75 mm
Magnetically Sensitive Equipment: Suitable
AC Input Voltage: 100–240 VAC ±10%, 50/60 Hz
Product Weight: 19.4 lbs.
Product Dimensions (H x W x D): 17.5" x 9.8" x 11.7"
