Descripción

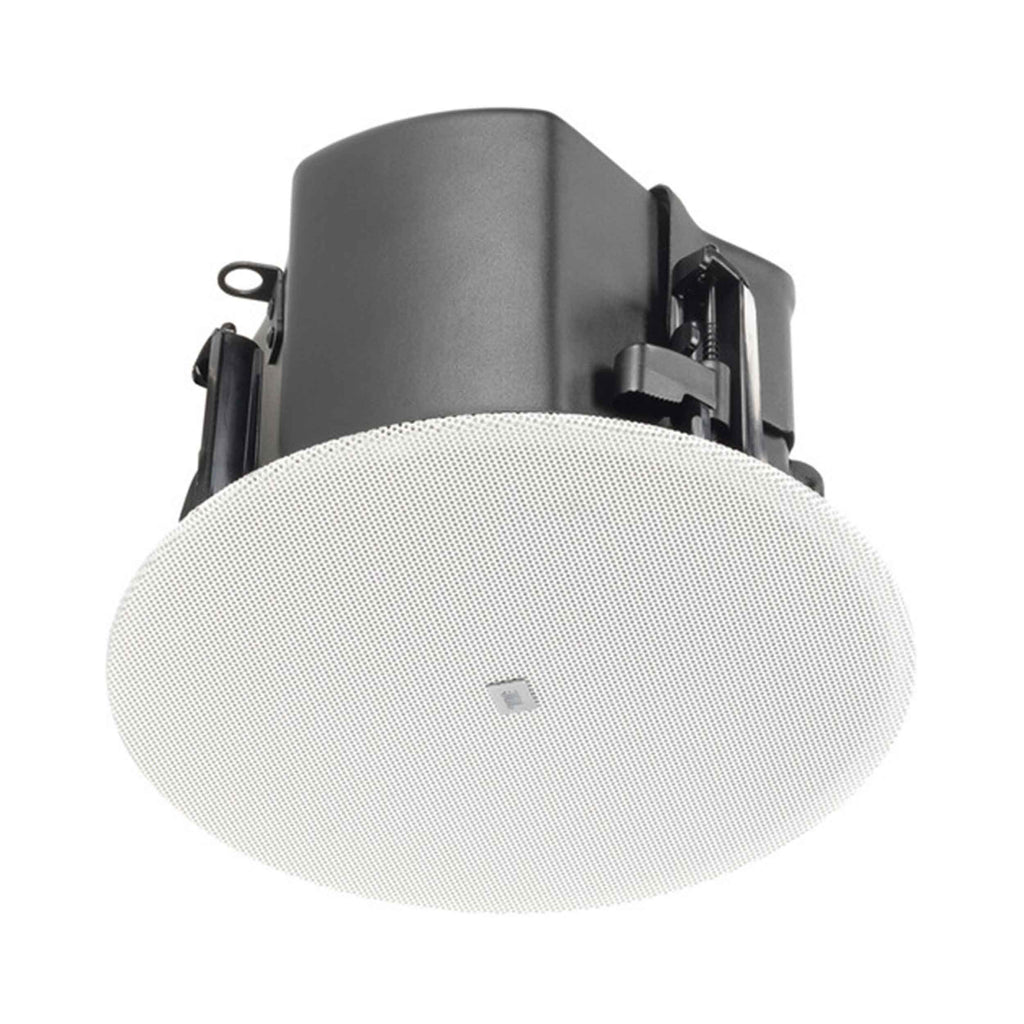

The JBL Control 412C/T-VA is a professional full-range ceiling loudspeaker engineered for commercial audio and life safety installations. Featuring a 3-inch full-range driver housed in an integrated enclosure, it delivers clear speech intelligibility and balanced background music. Its compact design fits easily into most ceiling plenum spaces without requiring additional back cans. The speaker is EN54-24 certified, making it suitable for emergency voice alarm systems. Wide sound coverage ensures consistent performance throughout the listening area. It is ideal for offices, schools, hospitals, retail stores, hotels, and public facilities.
Supporting both 70V/100V distributed audio systems and 8-ohm low-impedance operation, the Control 412C/T-VA offers exceptional installation flexibility. Multiple transformers tap settings allow easy system matching for a variety of commercial audio applications. The 160-degree conical coverage provides even sound distribution while minimizing the number of speakers required. Reliable performance makes it suitable for both paging and background music. High-quality components ensure long-term durability and dependable operation. It is designed to meet the demands of professional installed sound systems.
Installation is simplified with top and side cable entry options and durable captive dogear mounting clamps that accommodate various ceiling thicknesses. The paintable full-face magnetic grille blends seamlessly into modern architectural spaces while integrated safety tethers enhance installation security. Its IP33 environmental rating provides protection against dust and dripping water in indoor environments. Optional round, square, weather-resistant grilles and mounting accessories add further installation flexibility. JBL's commercial engineering ensures consistent performance and long service life. The result is a reliable ceiling speaker for both everyday audio and critical life safety applications.
Product Specifications:
Speaker Type: Full-Range Ceiling Loudspeaker
Series: JBL Control 400 Standard Coverage Series

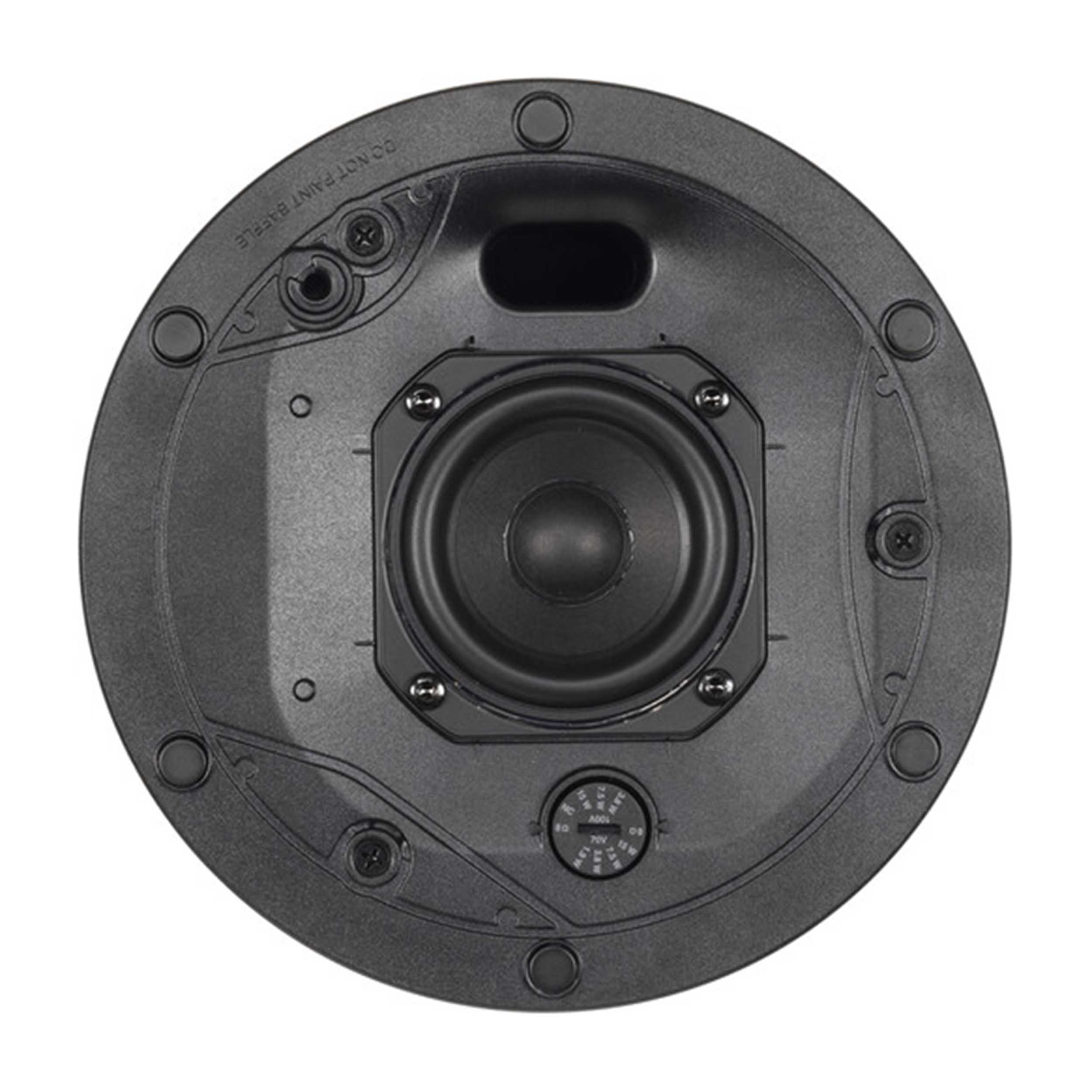

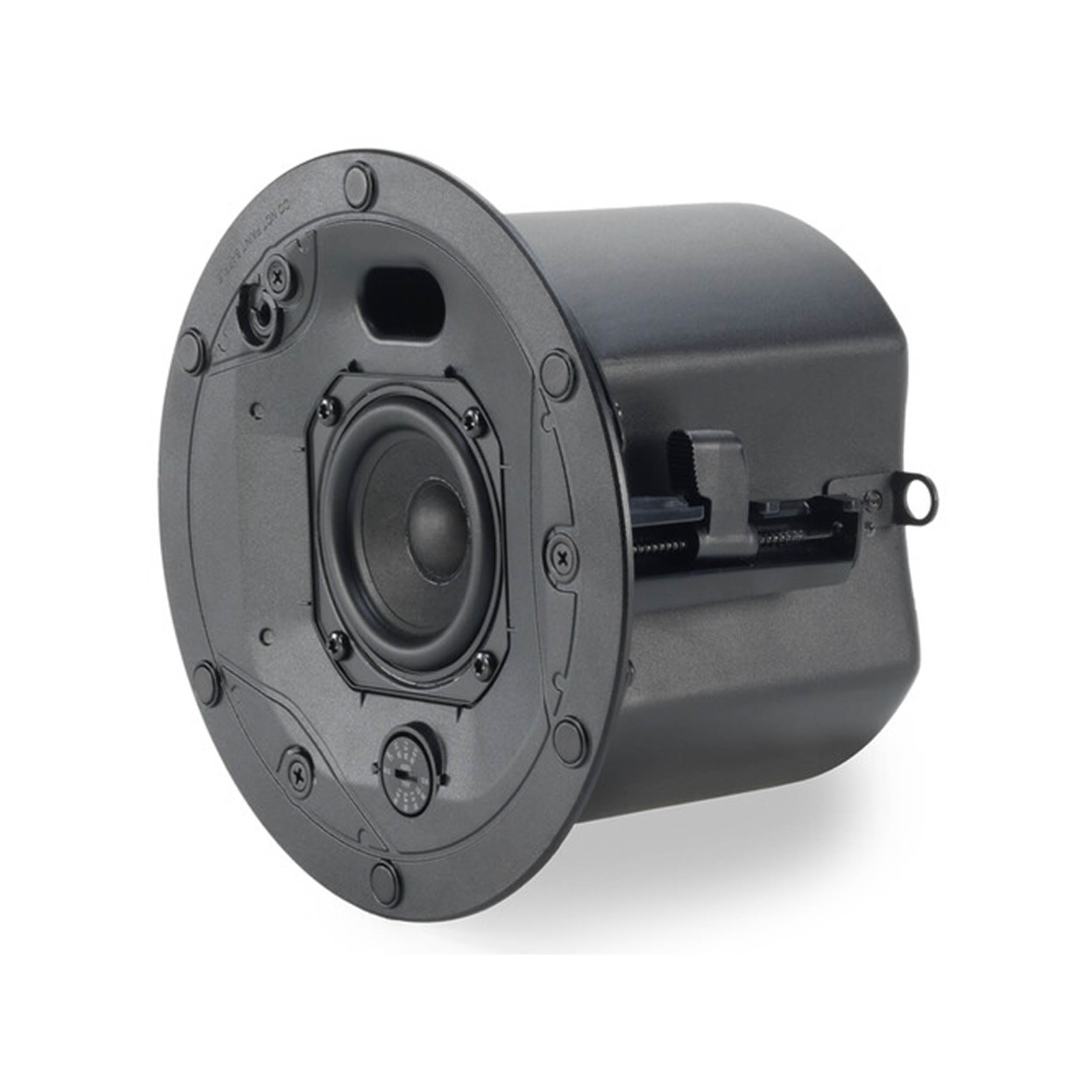

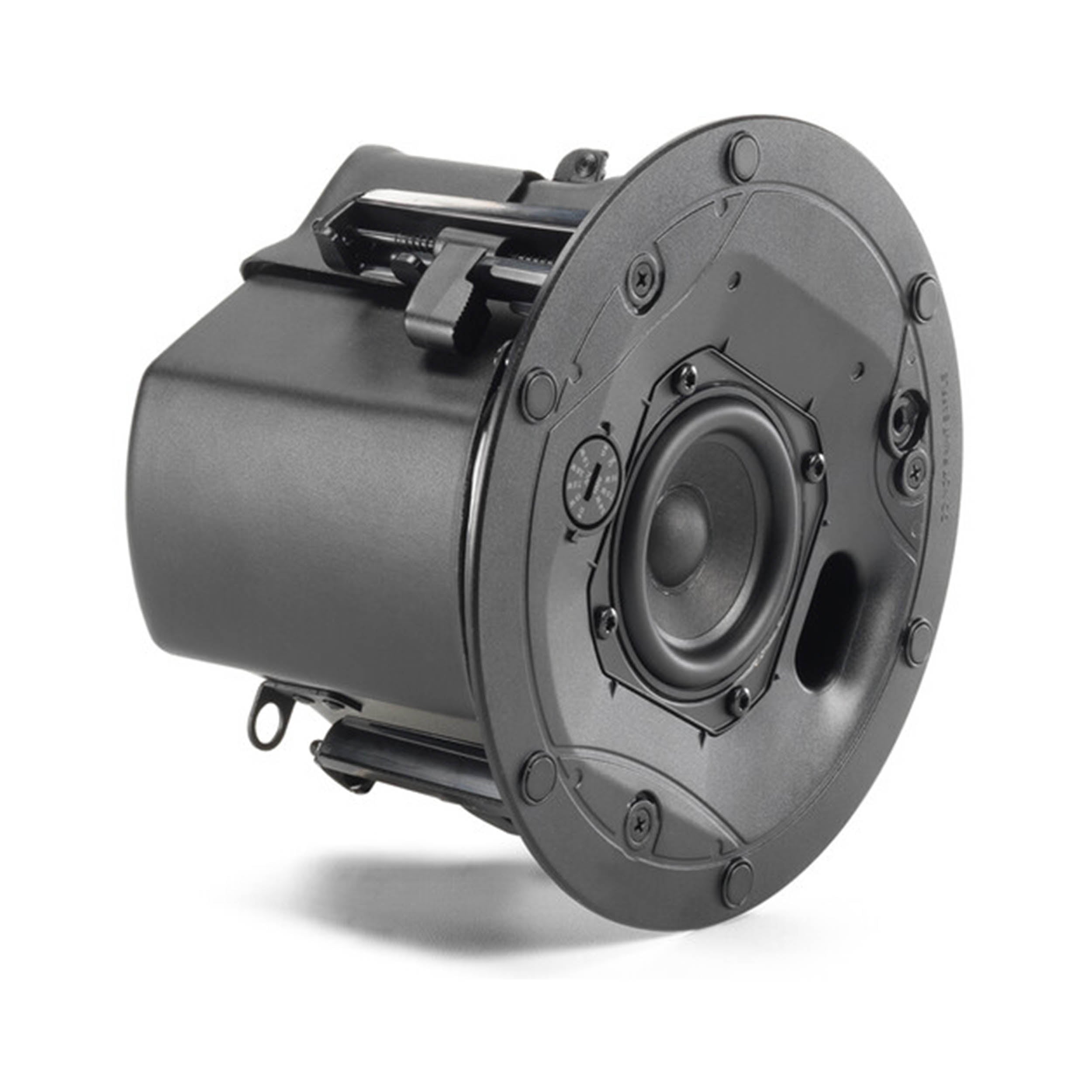

Driver: 76 mm (3 in) Full-Range Driver with Paper Cone and SBR Surround

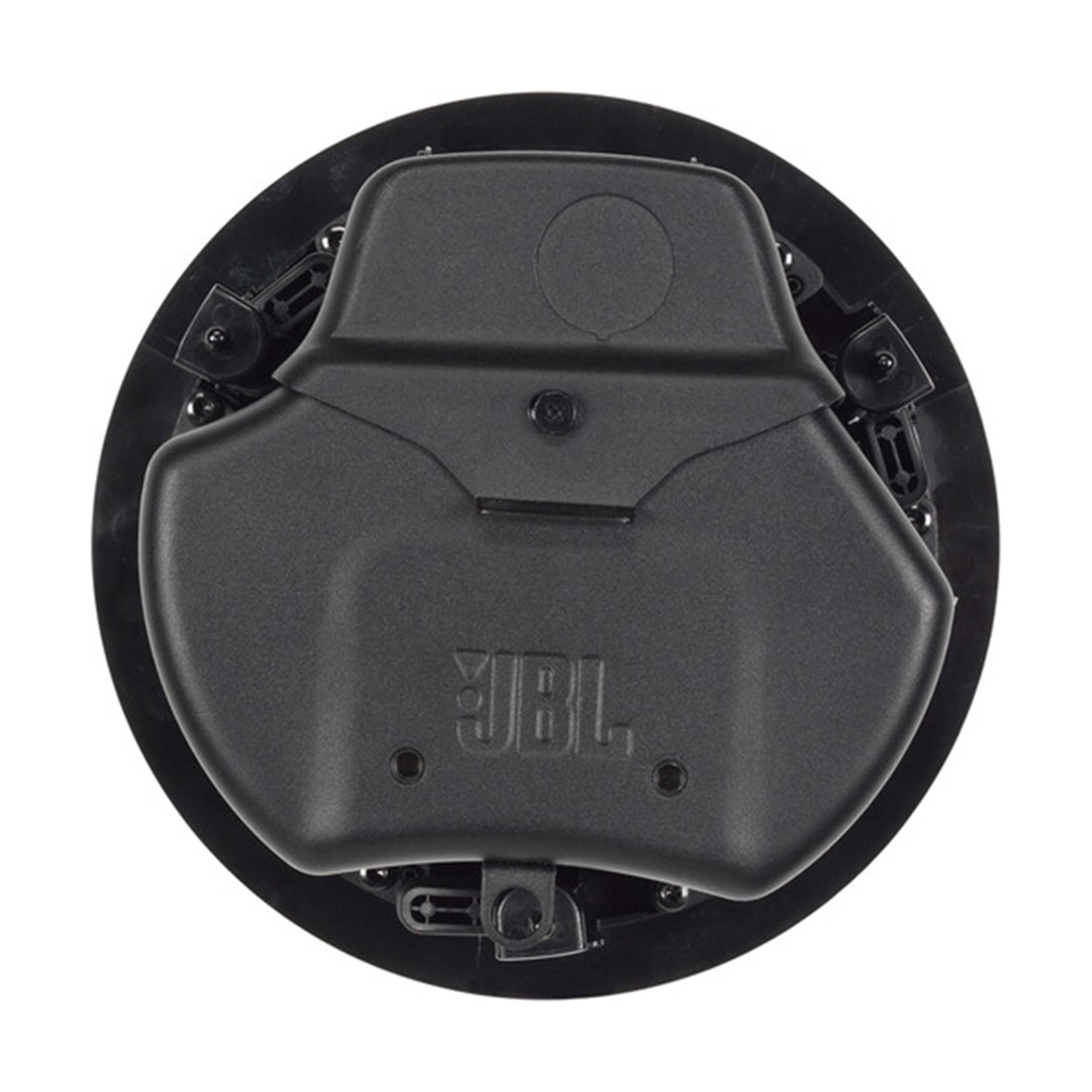

Enclosure: Integrated Backcan
Frequency Range (-10 dB): 68 Hz – 17 kHz
Power Capacity: 30 W Continuous (120 W Peak, 2-Hour Pink Noise); 20 W Continuous (80 W Peak, 100-Hour Pink Noise)
Sensitivity (1W/1m): 84 dB
Coverage Angle: 160° Conical
Maximum SPL: 99 dB Continuous / 105 dB Peak
Nominal Impedance: 8 Ω
Transformer Taps (70V): 15 W, 7.5 W, 3.8 W, 1.9 W
Transformer Taps (100V): 15 W, 7.5 W, 3.8 W
Ceiling Cutout Size: 168 mm (6.6 in)
Cable Entry: Top and Side Entry

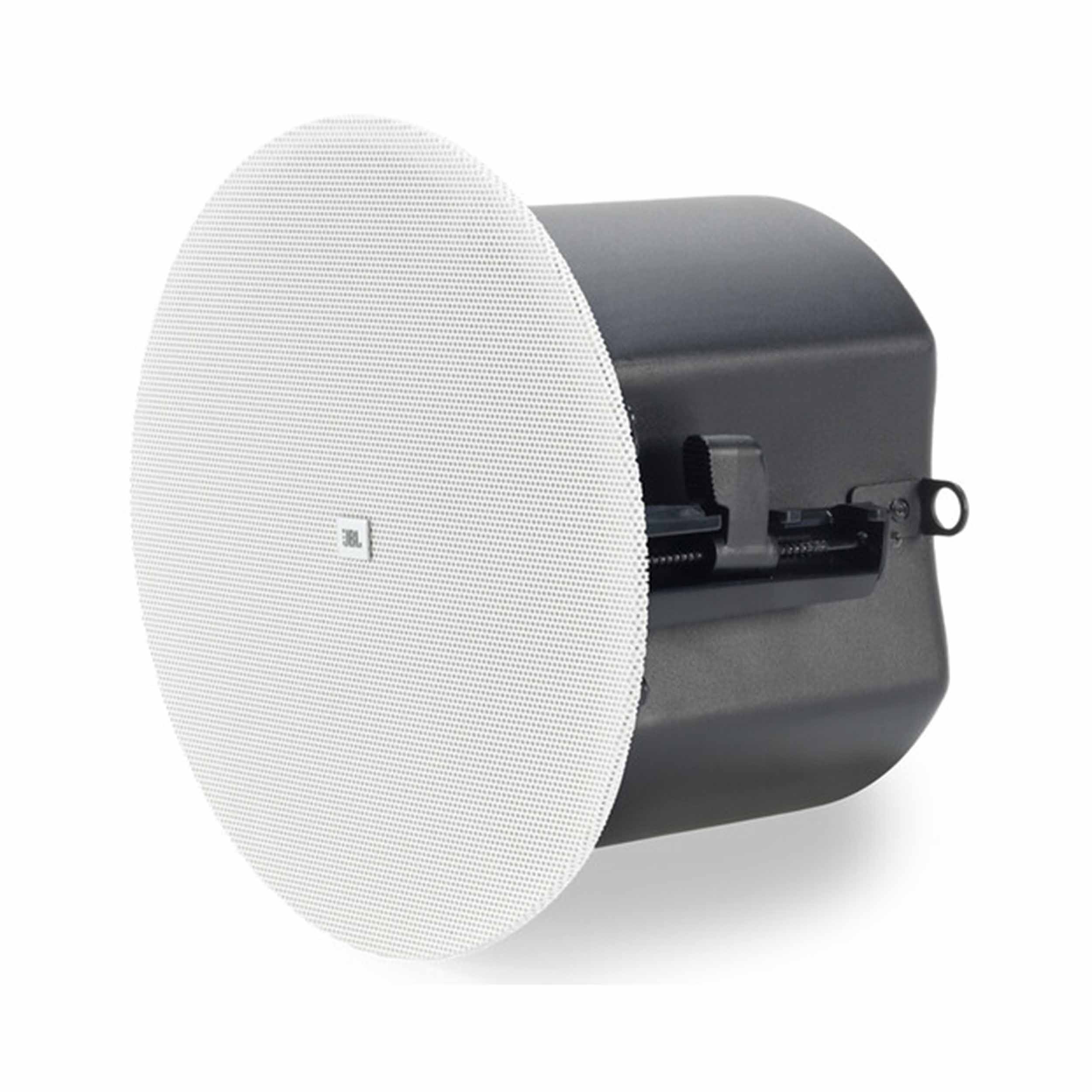

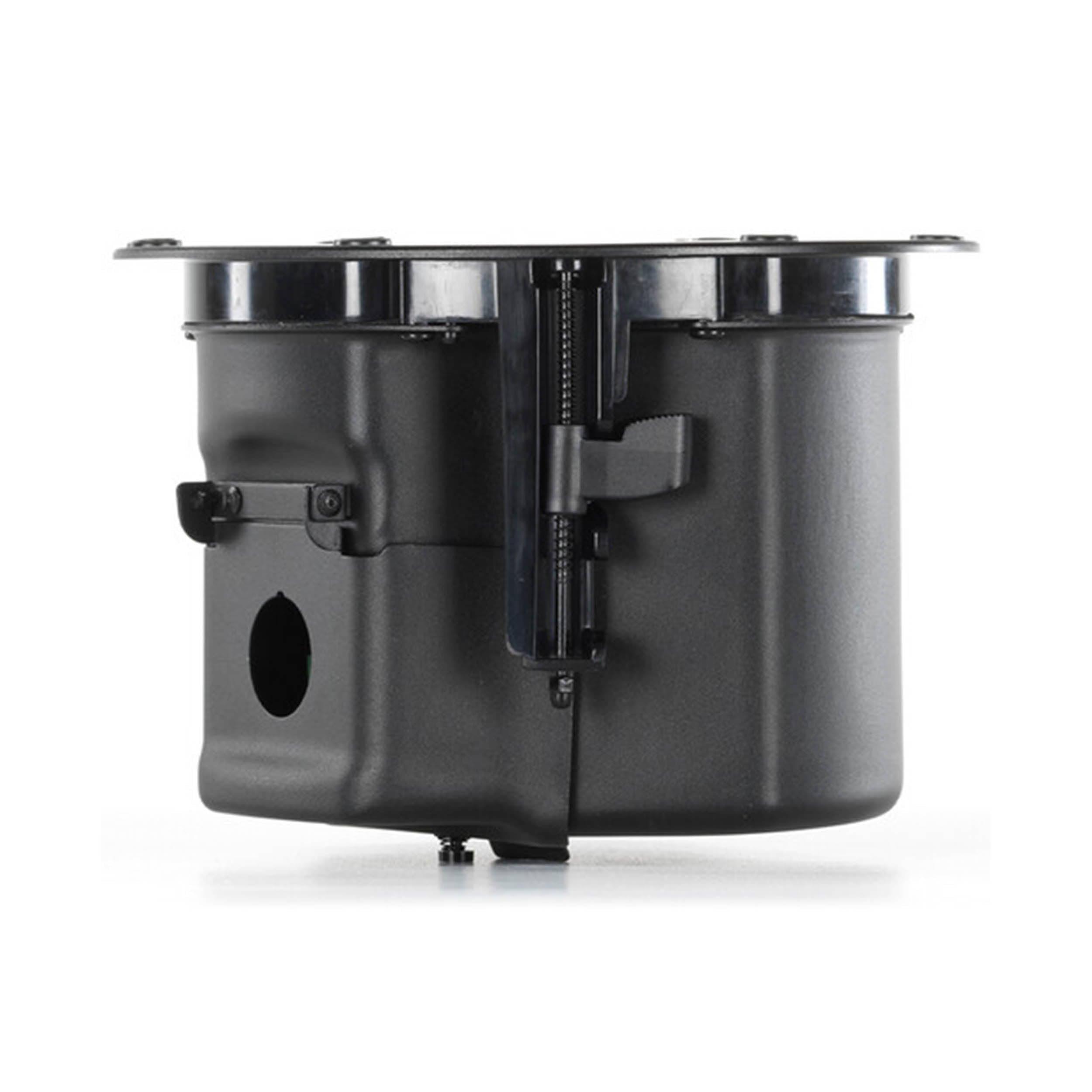

Mounting System: Captive Dogear Clamps

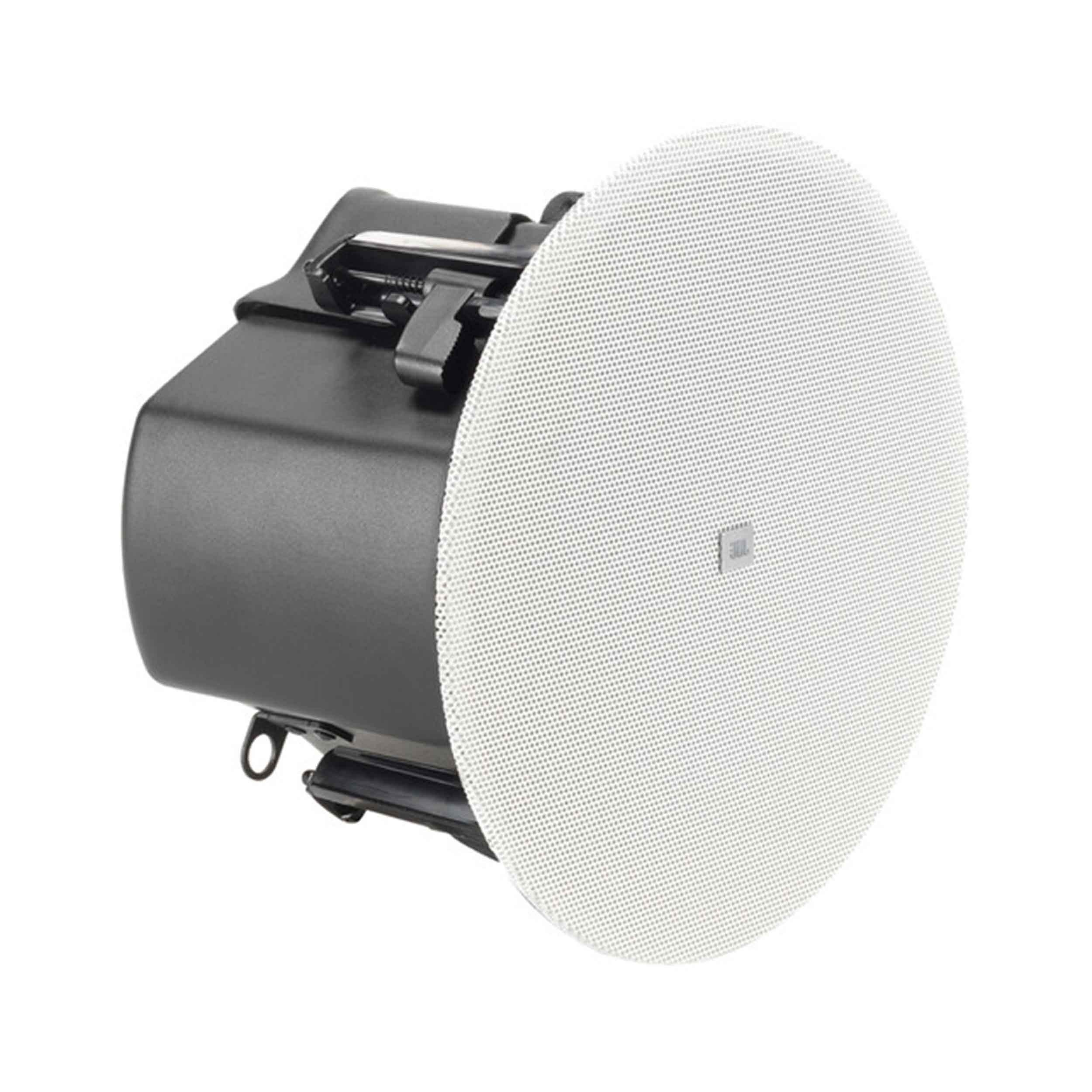

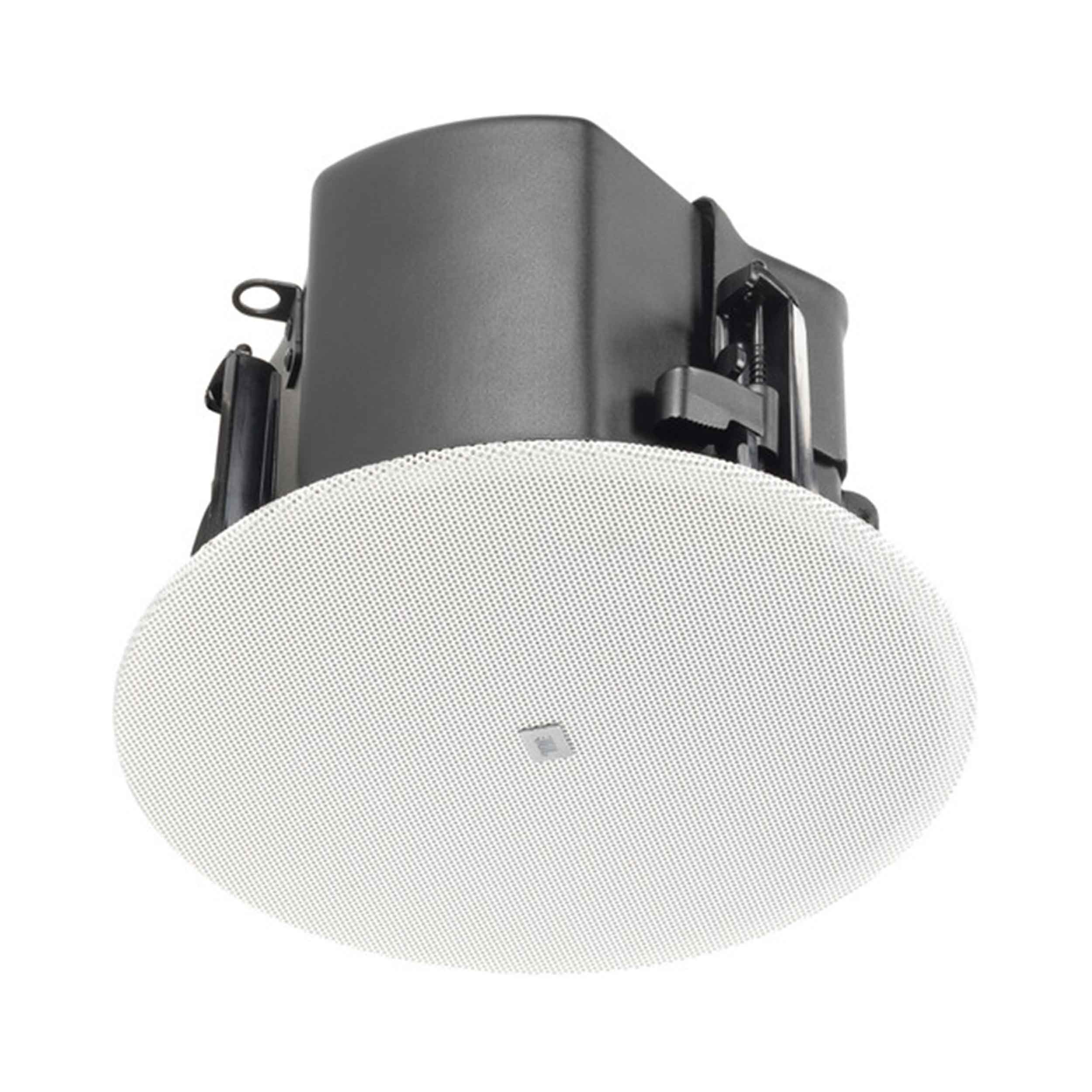

Grille: Full-Face Magnetic, Paintable with Safety Tether
Environmental Rating: IP33 (EN/IEC 60529)
Safety Certification: EN 54-24:2008 Type A
Compliance: UL 2043, NFPA 90A, NFPA 70, UL 1480A, CSA C22.2 No. 205
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Color: White (RAL9003), Paintable
Product Weight: 1.76 kg (3.88 lbs)
Product Dimensions (L × W × H): 8.1 × 8.1 × 6.5 in
