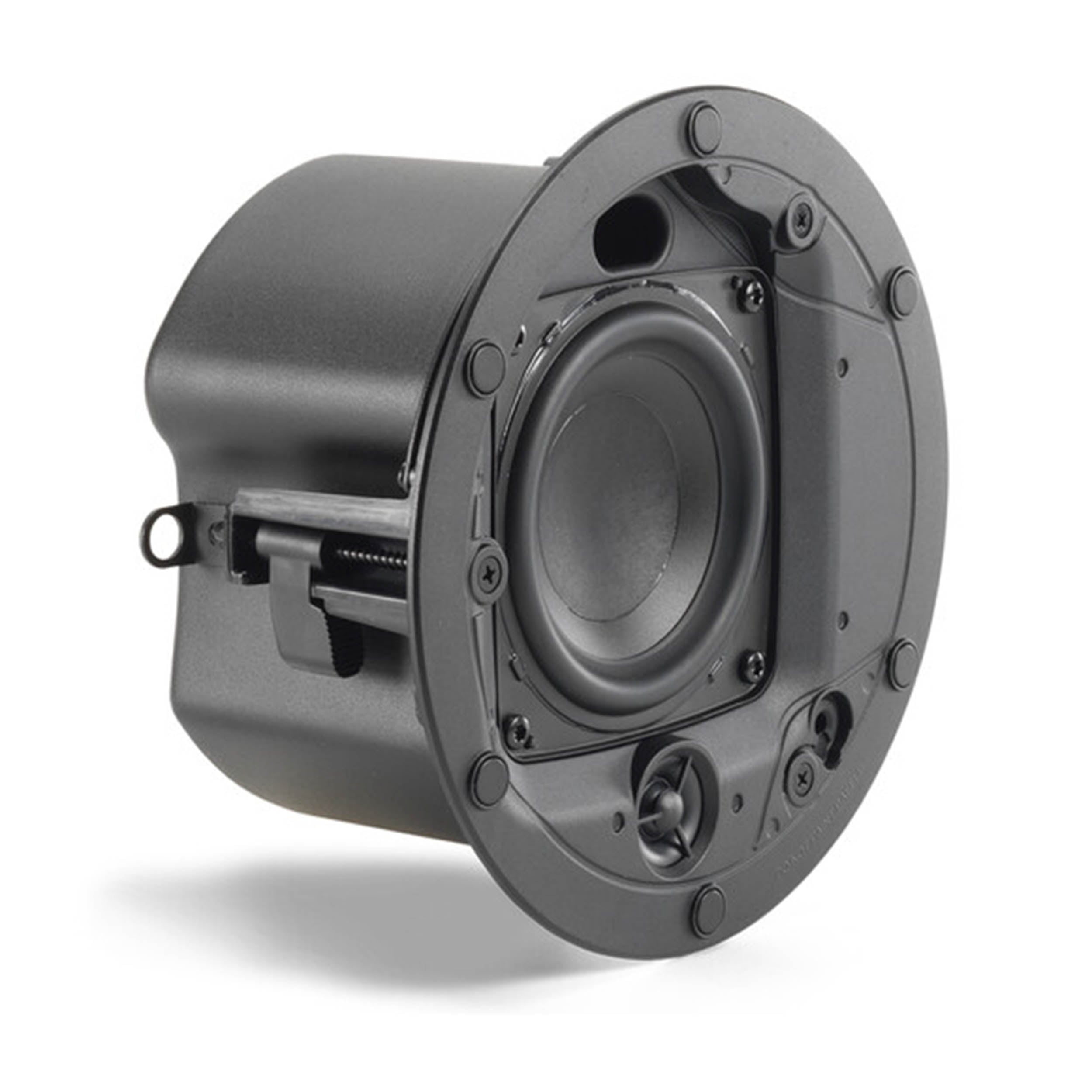

JBL Control 414C/T Micro 4-Inch Coaxial Ceiling Loudspeaker - 2-Way

The JBL Control 414C/T Micro is a compact two-way ceiling loudspeaker designed for commercial audio installations where ceiling plenum space is limited. Featuring a 4-inch woofer, 0.5-inch PEI dome tweeter, and a low-profile integrated enclosure, it delivers clear speech and balanced music reproduction. Its shallow design allows installation in tight ceiling cavities without sacrificing audio performance. The speaker blends seamlessly into modern interiors with its paintable magnetic grille. Wide sound coverage ensures consistent performance across the listening area. It is ideal for offices, retail stores, hospitality venues, schools, and healthcare facilities.

Supporting both 70V/100V distributed audio systems and 8-ohm low-impedance operation, the Control 414C/T Micro provides excellent installation flexibility. Multiple transformers tap settings simplify system design for commercial paging and background music applications. The two-way coaxial design produces detailed highs and smooth midrange for natural, intelligible sound. High-quality JBL components deliver dependable performance and long service life. Wide dispersion minimizes the number of speakers required in many installations. It is engineered for reliable operation in professional commercial environments.

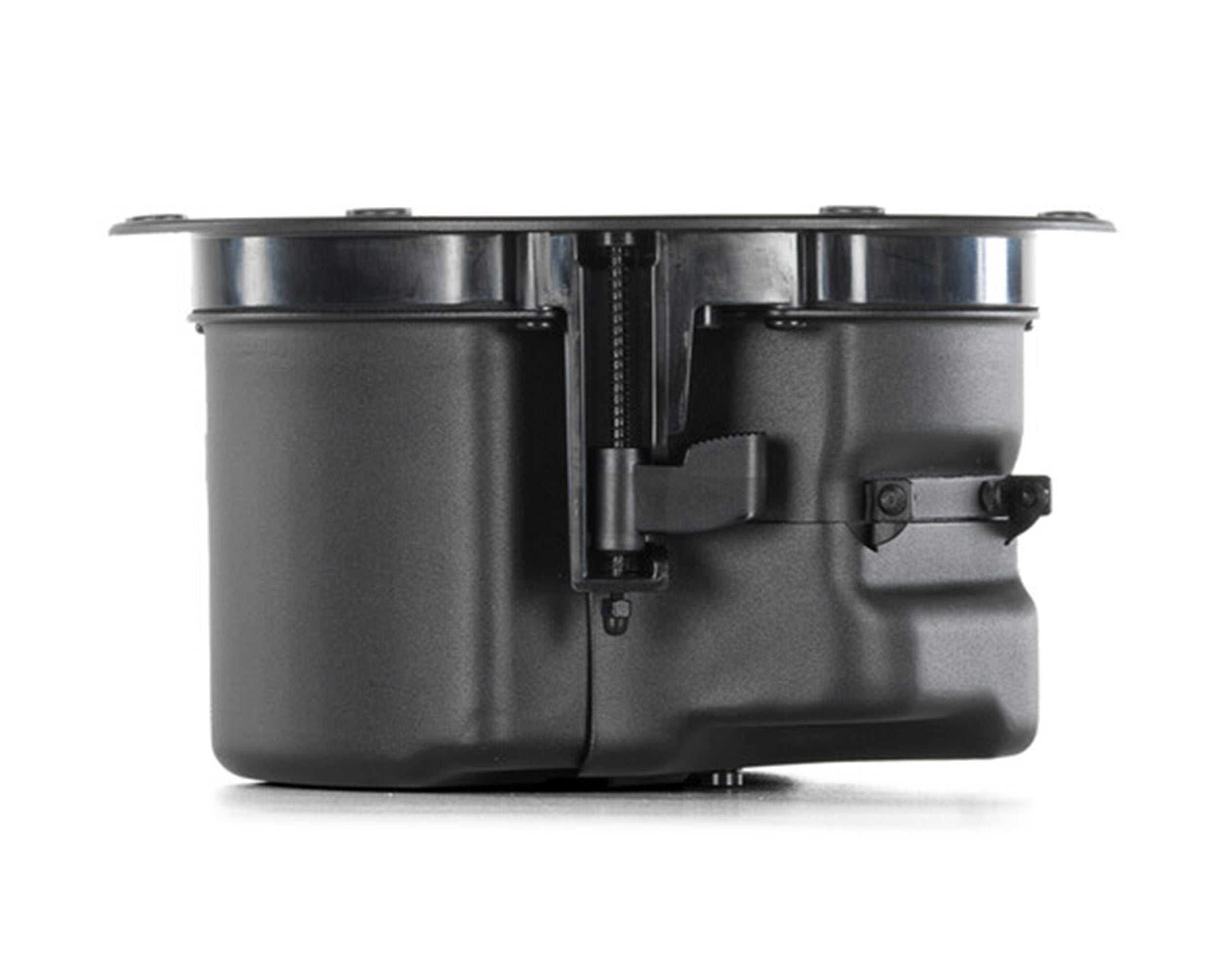

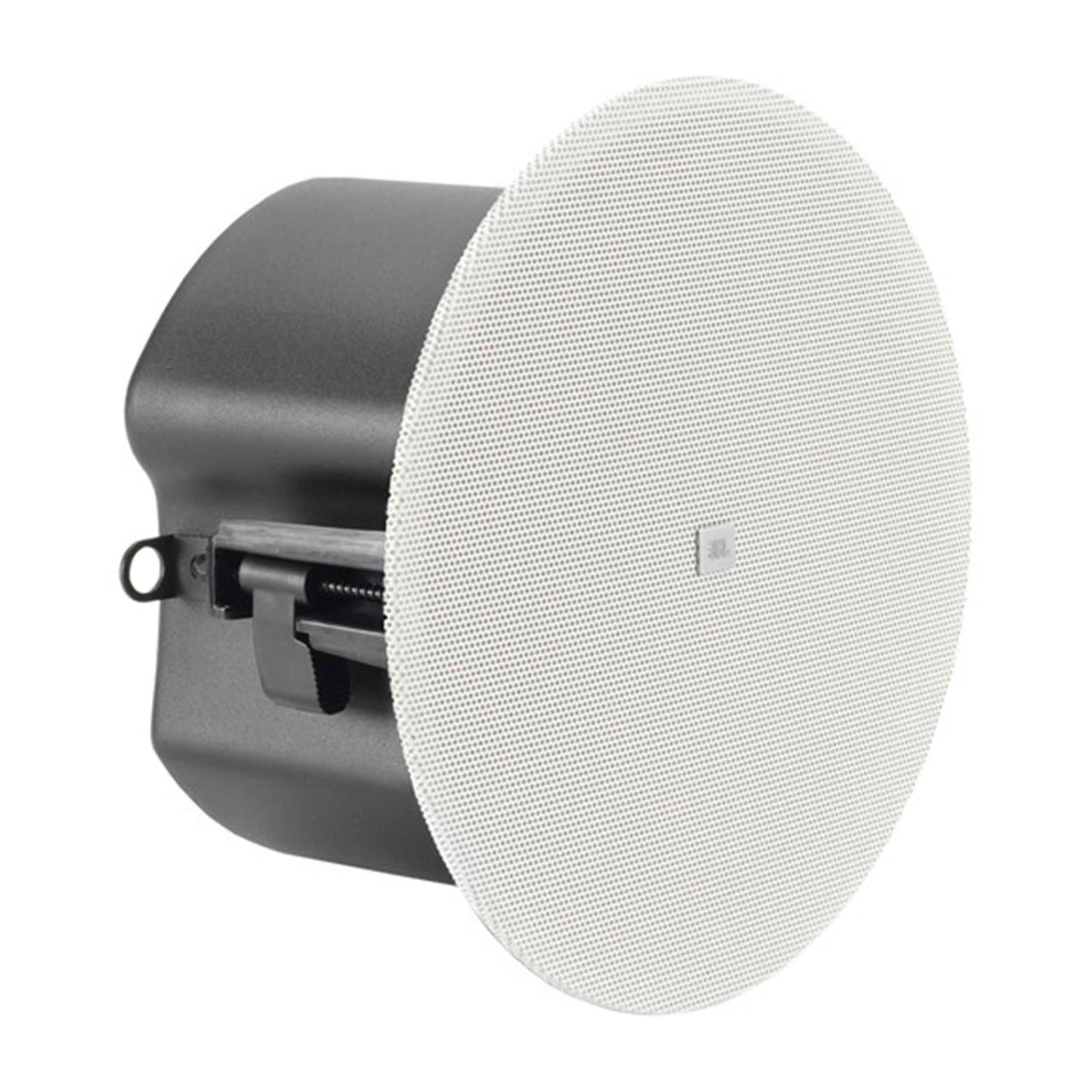

Installation is quick and efficient with top and side cable entry options and durable captive dogear mounting clamps that fit a wide variety of ceiling thicknesses. The full-face magnetic grille creates a clean architectural appearance and can be painted to match surrounding décor. Integrated safety tethers provide added installation security while the IP32-rated enclosure offers protection against dust and dripping water. Optional round, square, weather-resistant grilles and mounting accessories increase installation versatility. JBL's commercial engineering ensures dependable long-term reliability. The result is a compact ceiling speaker designed for professional installed sound systems.

Product Specifications:

Speaker Type: Two-Way Low-Profile Ceiling Loudspeaker

Series: JBL Control 400 Standard Coverage Series

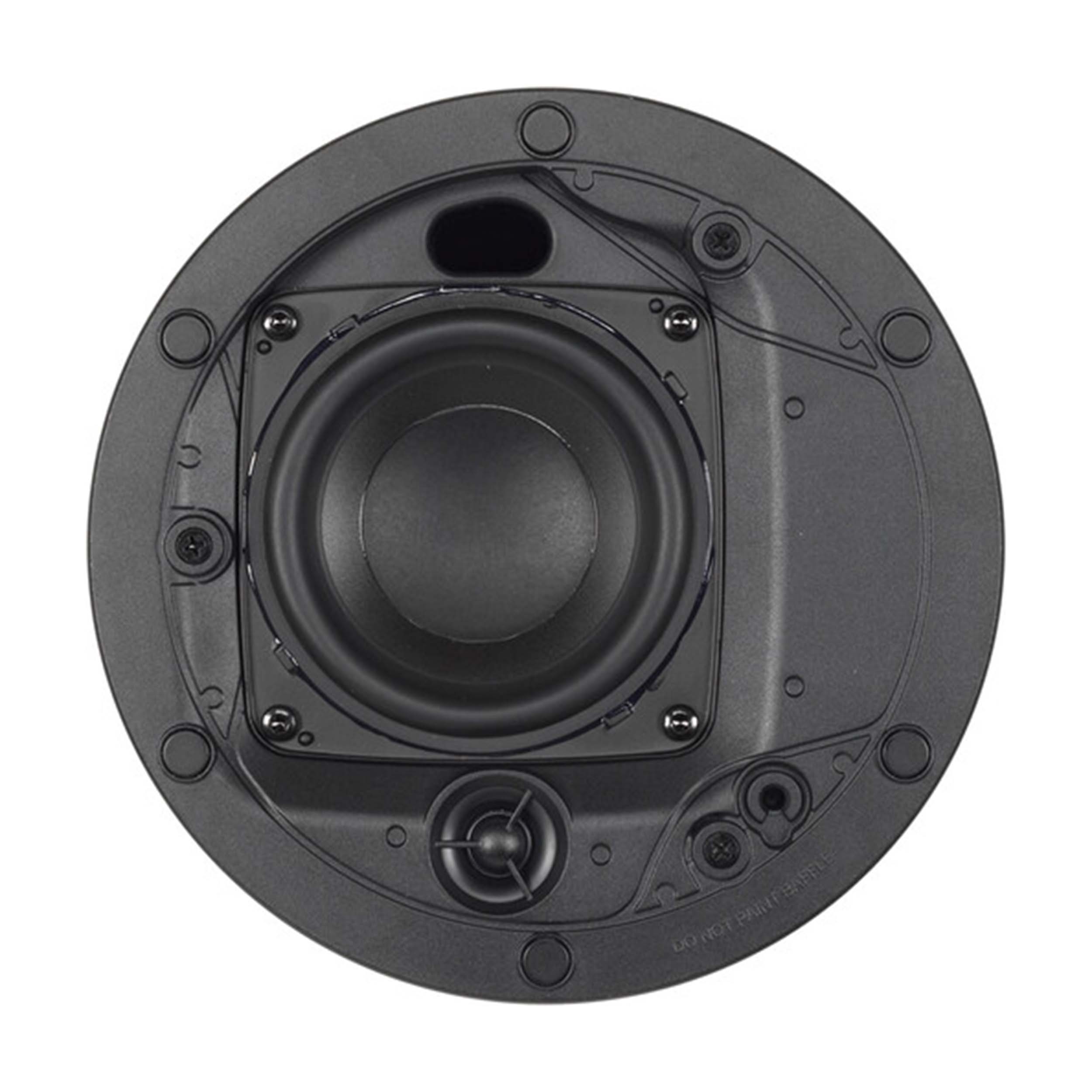

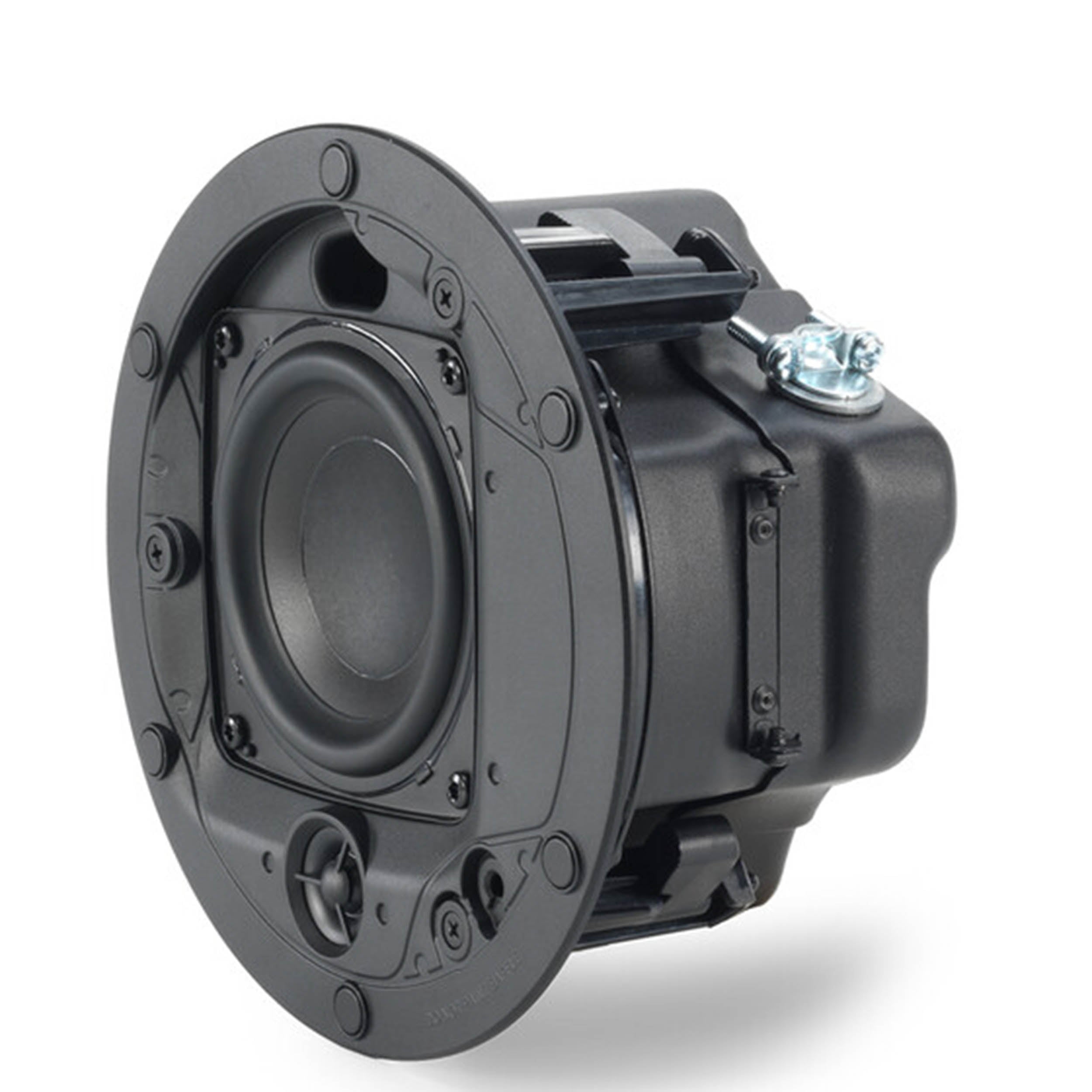

LF Driver: 103 mm (4 in) Woofer with PP Cone, Paper Cup and SBR Surround

HF Driver: 13 mm (0.5 in) PEI Dome Tweeter

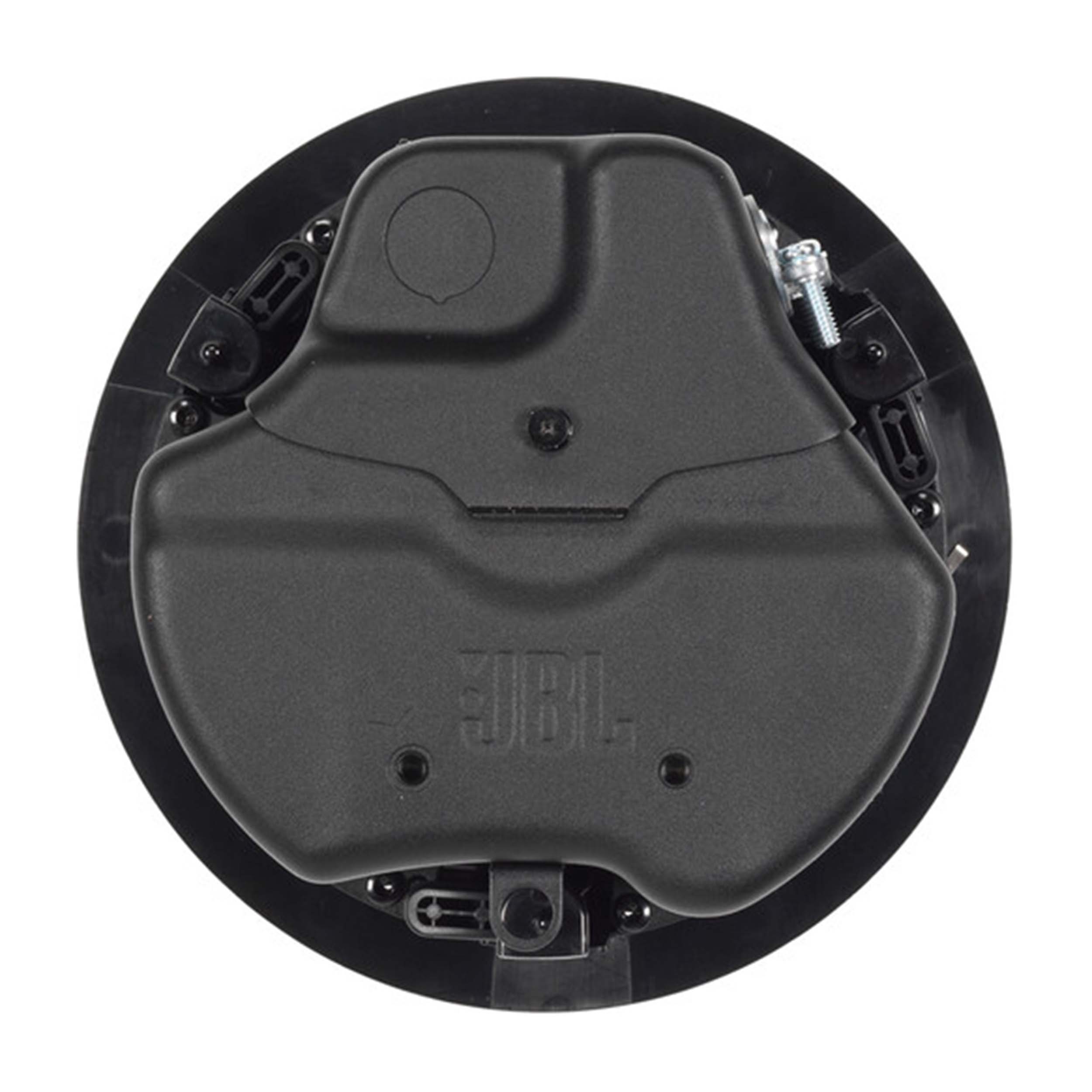

Enclosure: Integrated Low-Profile Backcan

Frequency Range (-10 dB): 69 Hz – 25 kHz

Power Capacity: 22.5 W Continuous (90 W Peak, 2-Hour Pink Noise); 15 W Continuous (60 W Peak, 100-Hour Pink Noise)

Sensitivity (1W/1m): 86 dB

Coverage Angle: 160° Conical

Maximum SPL: 98 dB Continuous / 104 dB Peak

Nominal Impedance: 8 Ω

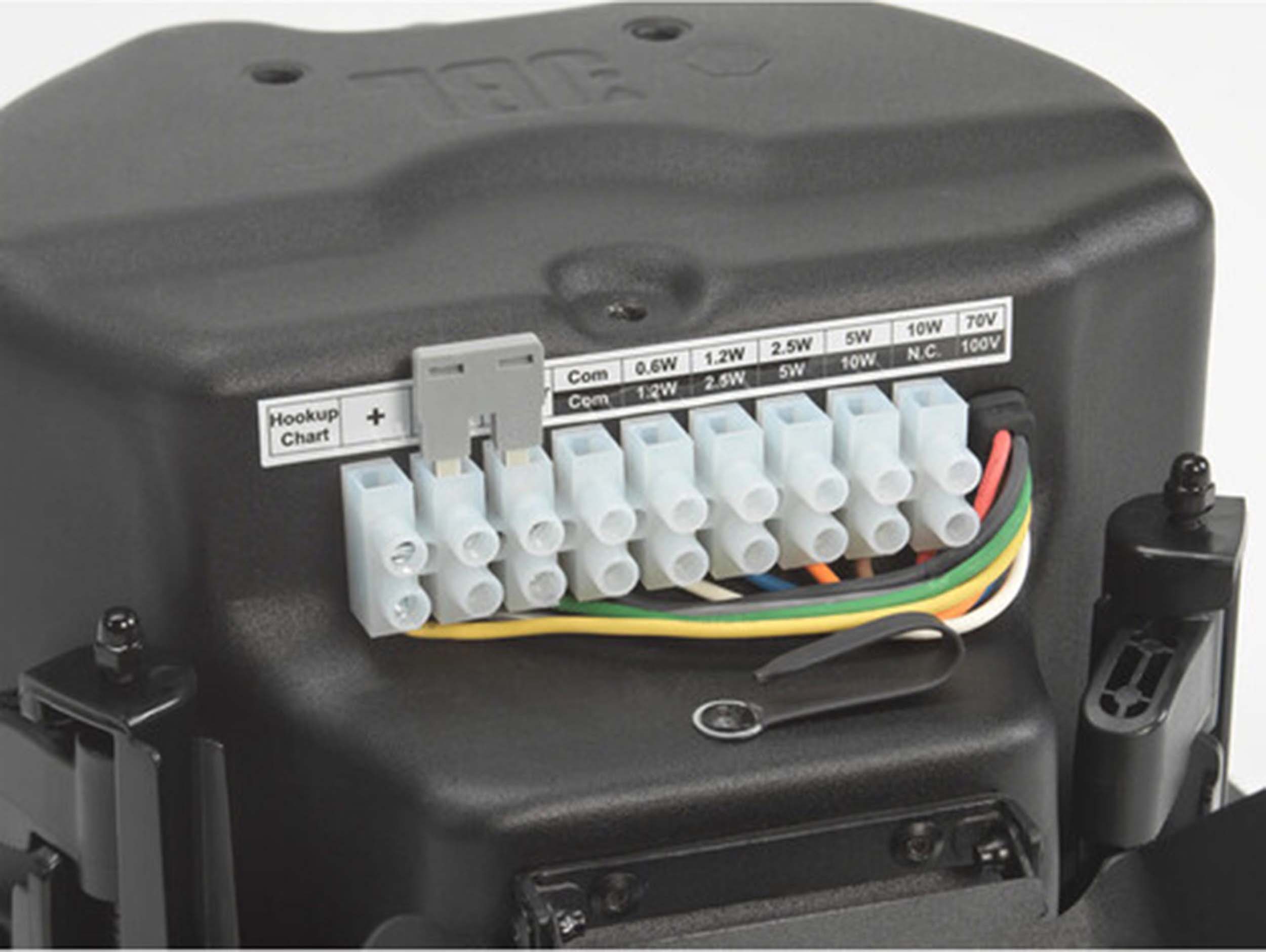

Transformer Taps (70V): 10 W, 5 W, 2.5 W, 1.2 W, 0.6 W

Transformer Taps (100V): 10 W, 5 W, 2.5 W, 1.2 W

Ceiling Cutout Size: 168 mm (6.6 in)

Mounting Depth: 105 mm (4.13 in)

Cable Entry: Top and Side Entry

Mounting System: Captive Dogear Clamps

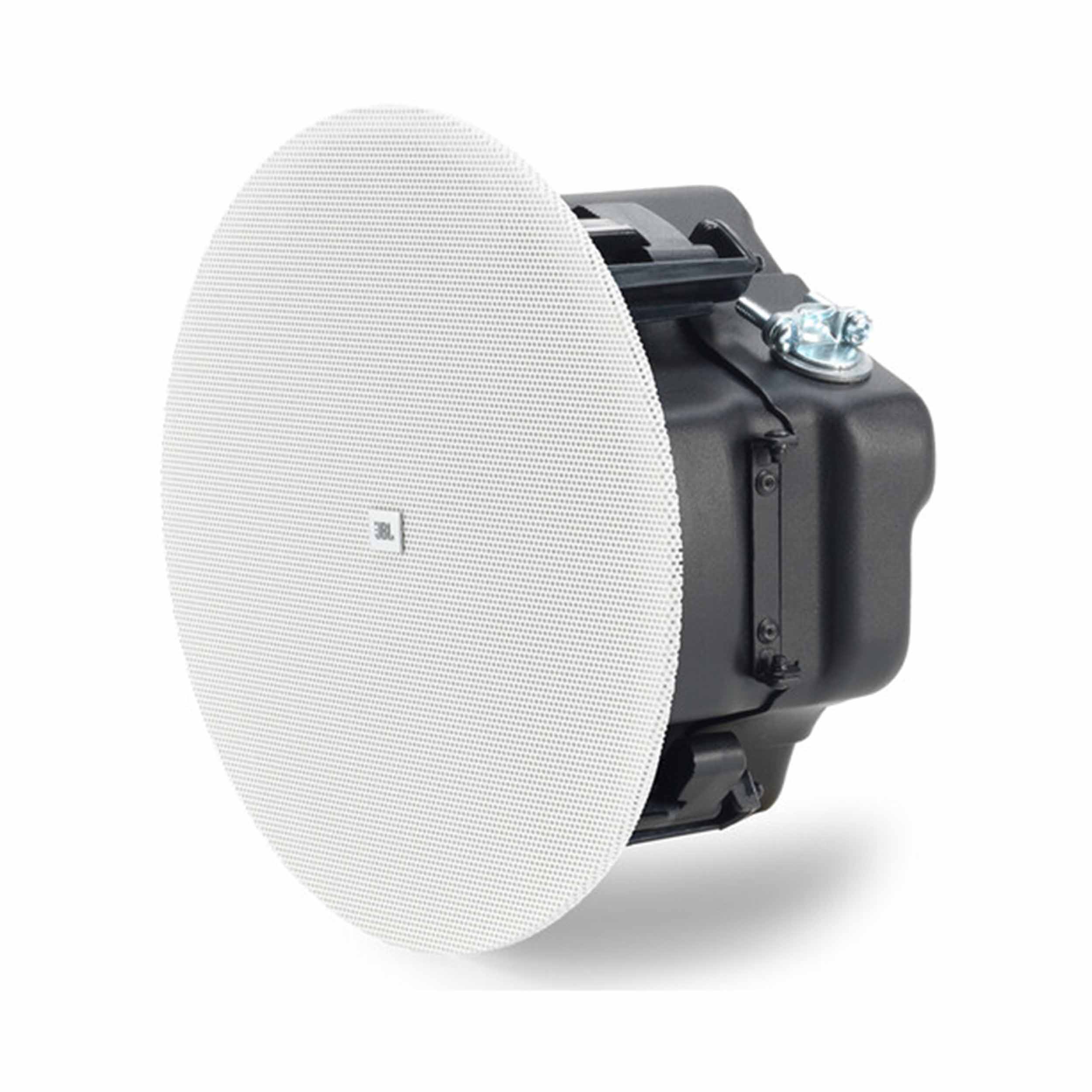

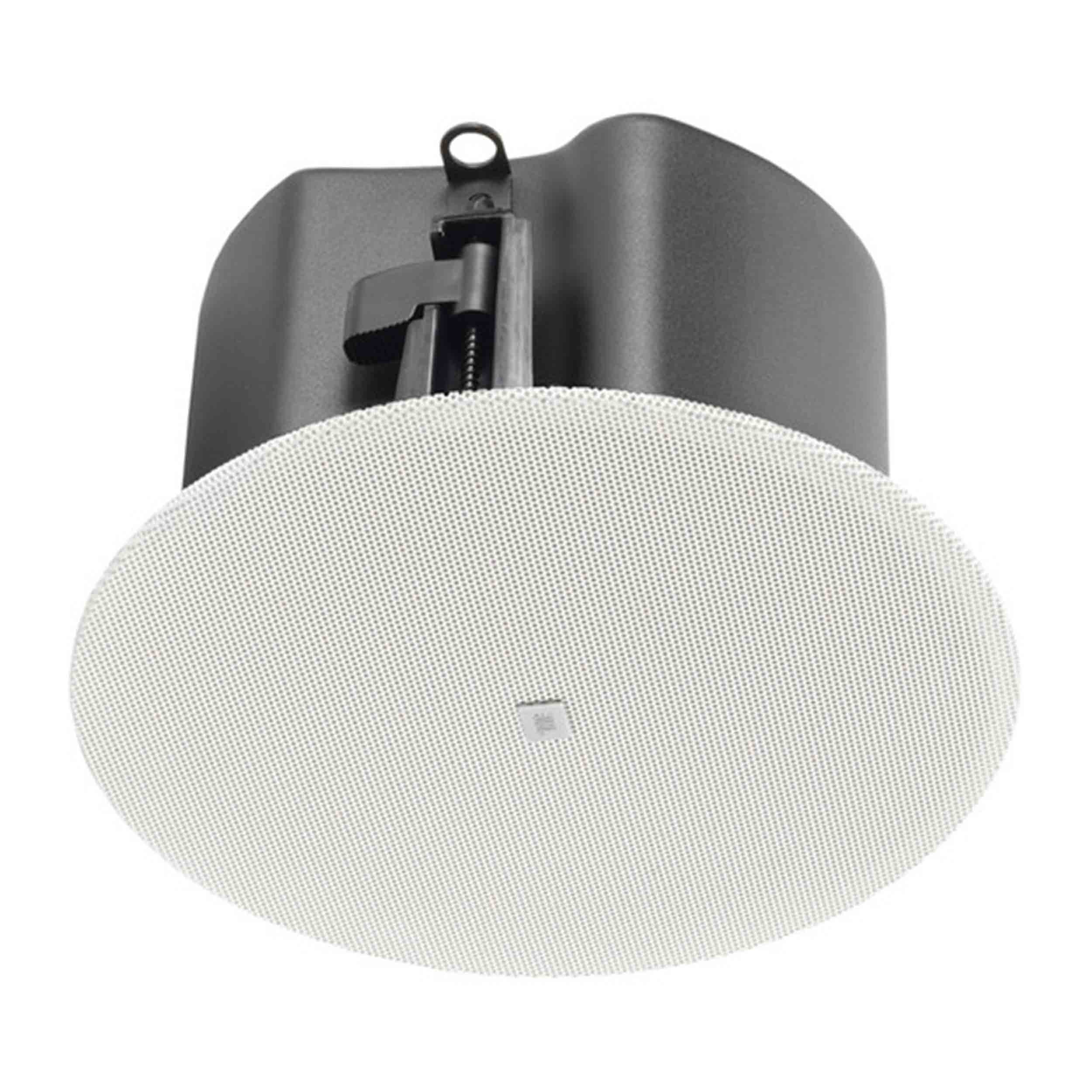

Grille: Full-Face Magnetic, Paintable with Safety Tether

Environmental Rating: IP32 (EN/IEC 60529)

Safety Compliance: UL 2043, NFPA 90A, NFPA 70, UL 1480A, CSA C22.2 No. 205, UL Registered Transformer

Operating Temperature: 0°C to 45°C (32°F to 113°F)

Color: White (RAL9003), Paintable

Product Weight: 4.65 lbs (2.11 kg)

Product Dimensions (L × W × H): 8.1 × 8.1 × 4.6 in (203 × 203 × 114 mm)
