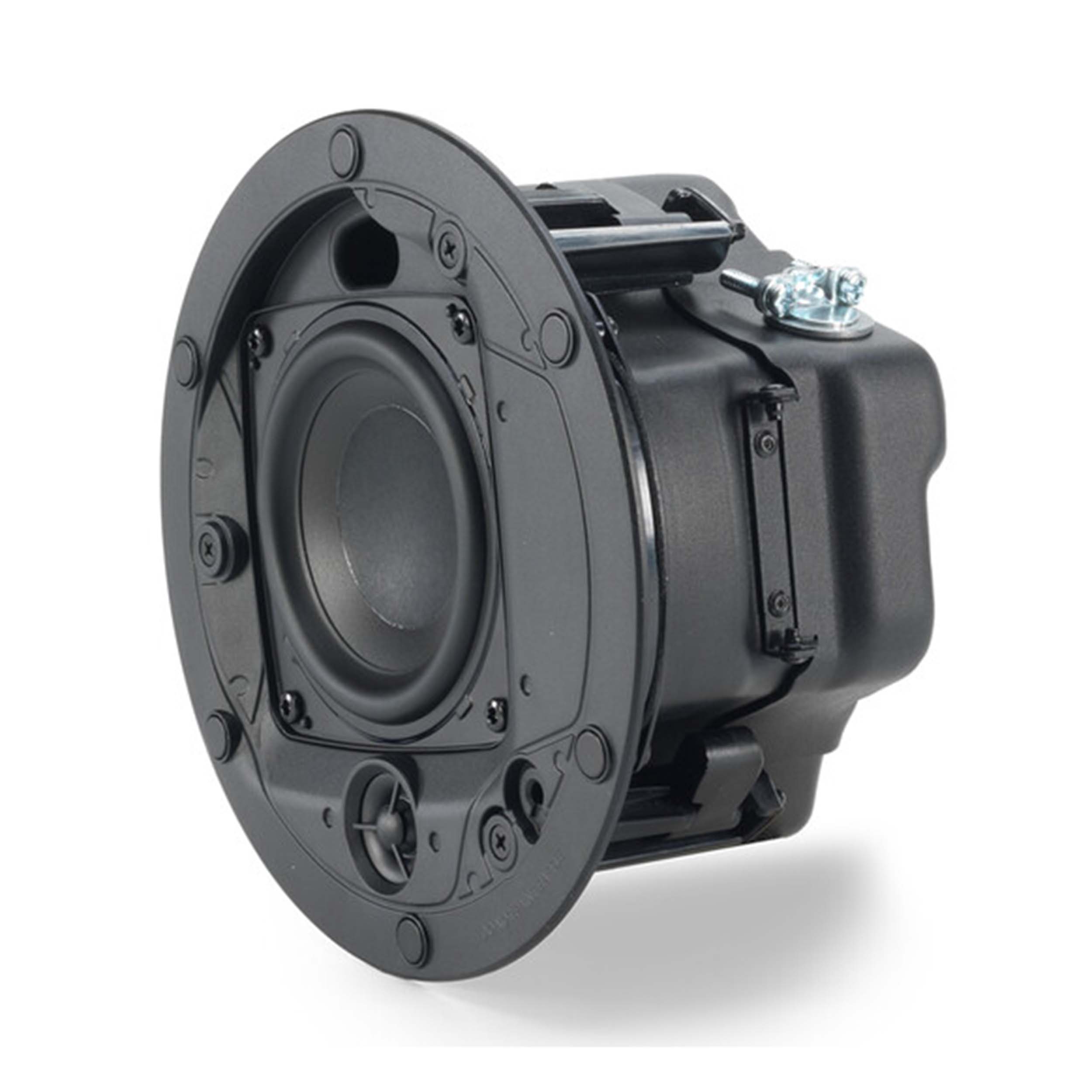

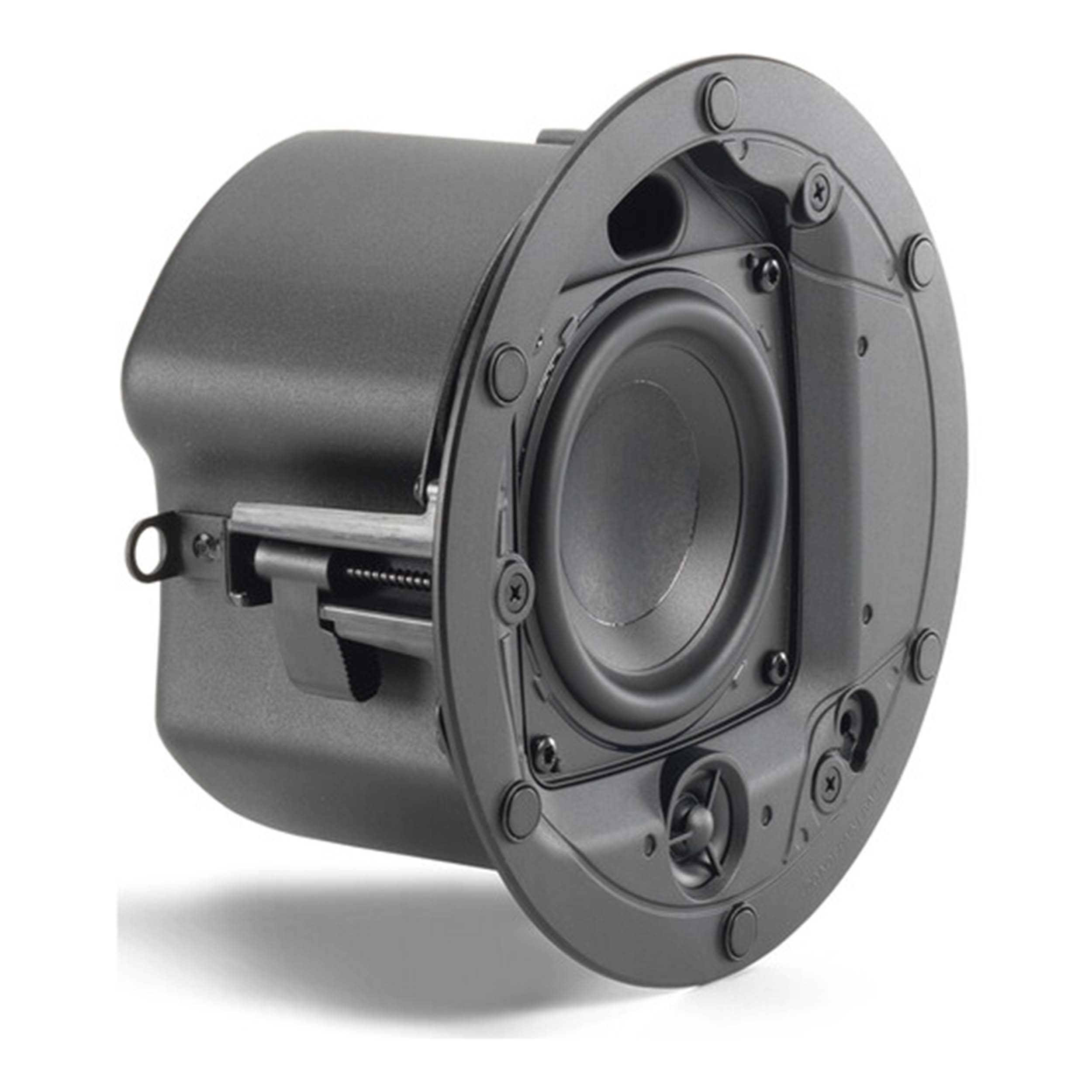

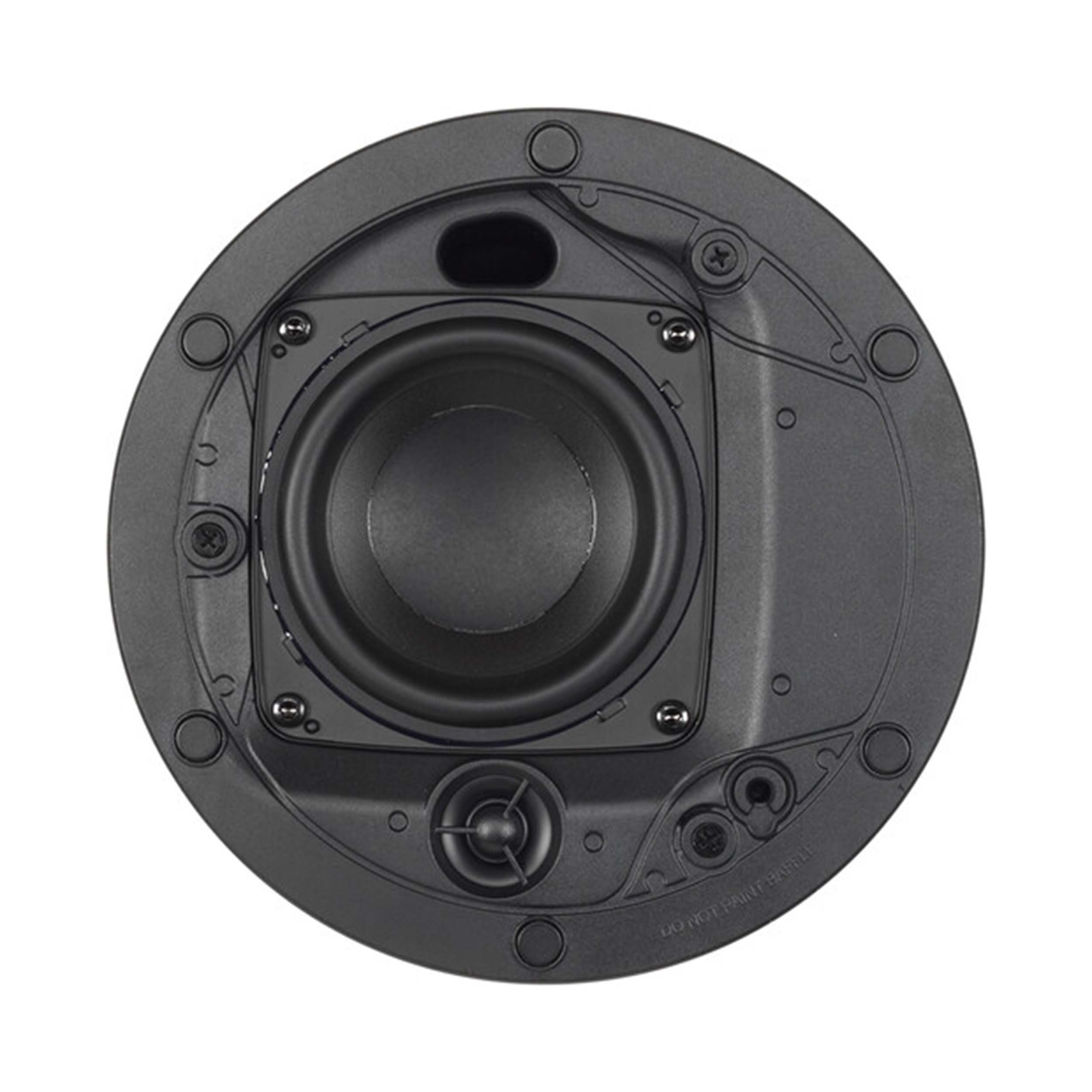

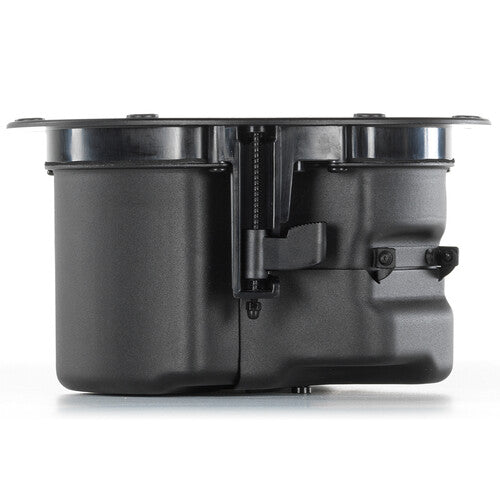

The JBL Control 414C/T MicroPlus is a compact two-way ceiling loudspeaker engineered for distributed commercial audio systems. Featuring a 4-inch woofer and coaxially mounted 0.5-inch PEI soft-dome tweeter, it delivers clear speech and balanced background music across a wide listening area. Its ultra-low-profile integrated backcan makes it an ideal choice for installations where ceiling plenum space is limited. The bezel-free magnetic grille blends seamlessly into modern architectural environments. Wide 160-degree coverage ensures consistent sound throughout commercial spaces. It is ideal for hotels, retail stores, museums, restaurants, offices, airports, and educational facilities.
Designed exclusively for 70V/100V distributed audio systems, the built-in 25W transformer delivers clean, low-distortion performance even at high output levels. The speaker provides up to 100 watts peak power handling and a wide 69 Hz to 25 kHz frequency range for detailed music and highly intelligible paging. The neodymium-powered PEI dome tweeter improves high-frequency clarity while maintaining excellent efficiency. This model does not include an 8-ohm bypass, making it purpose-built for commercial distributed installations. JBL's premium components ensure dependable long-term performance. It is an excellent solution for low- to medium-volume background music systems.

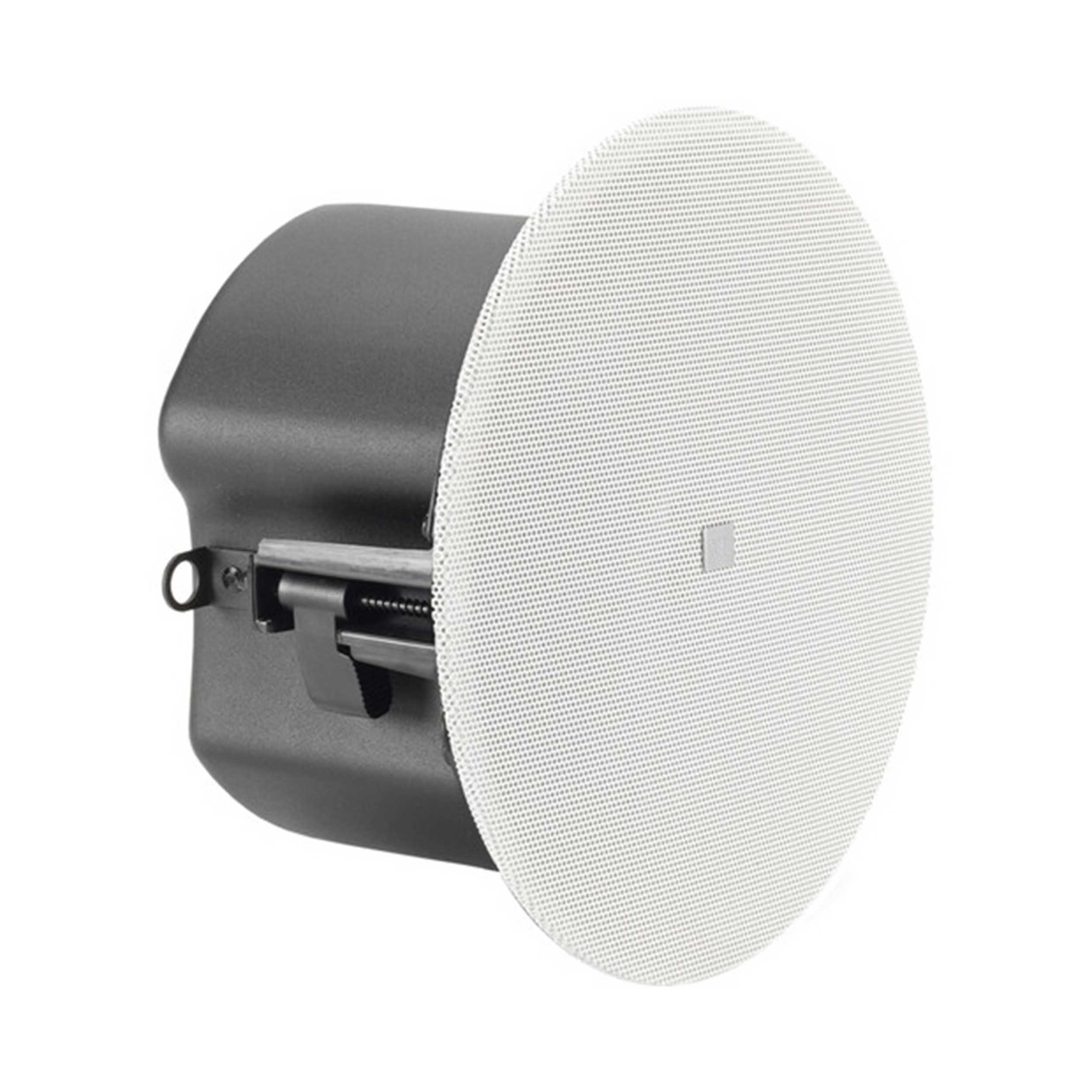

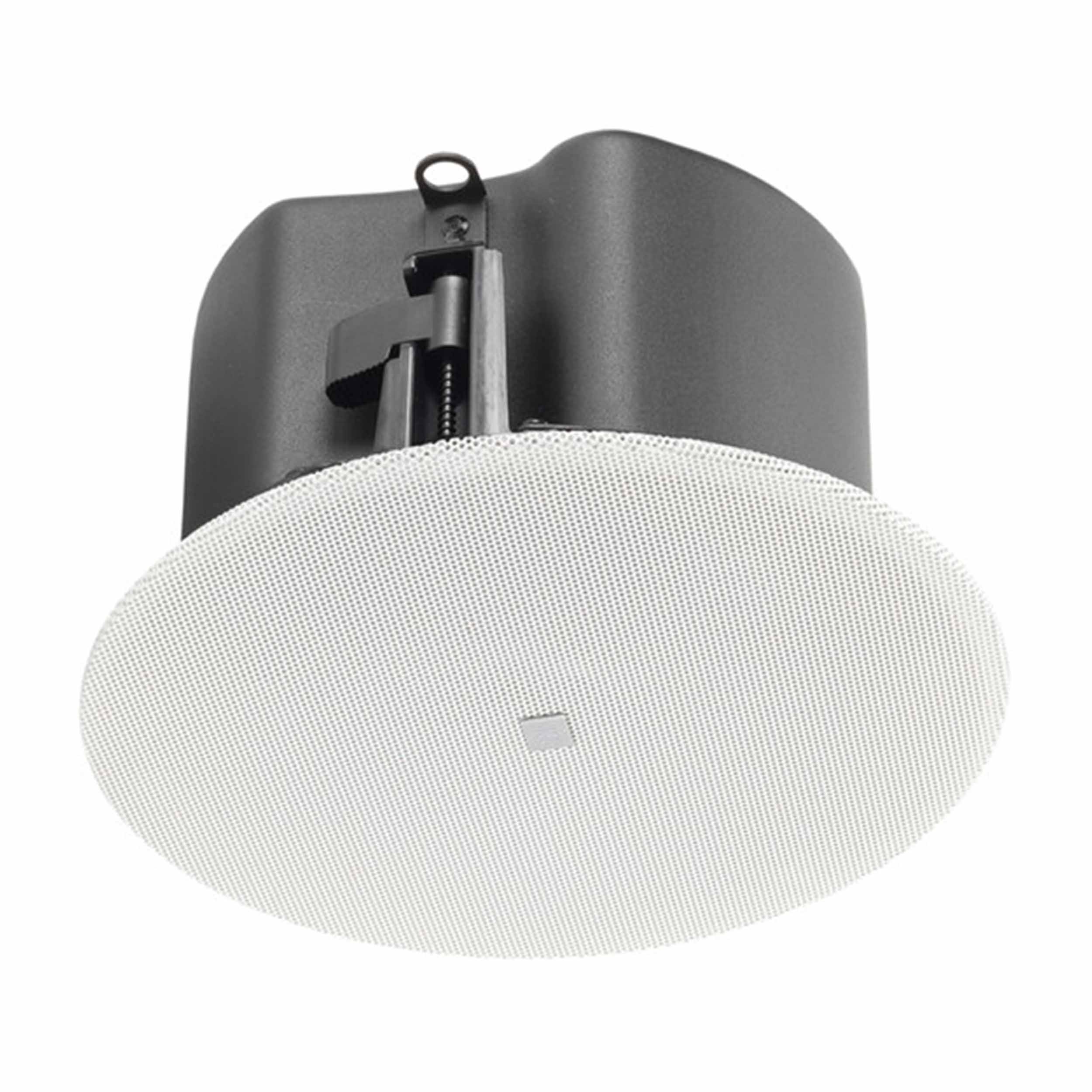

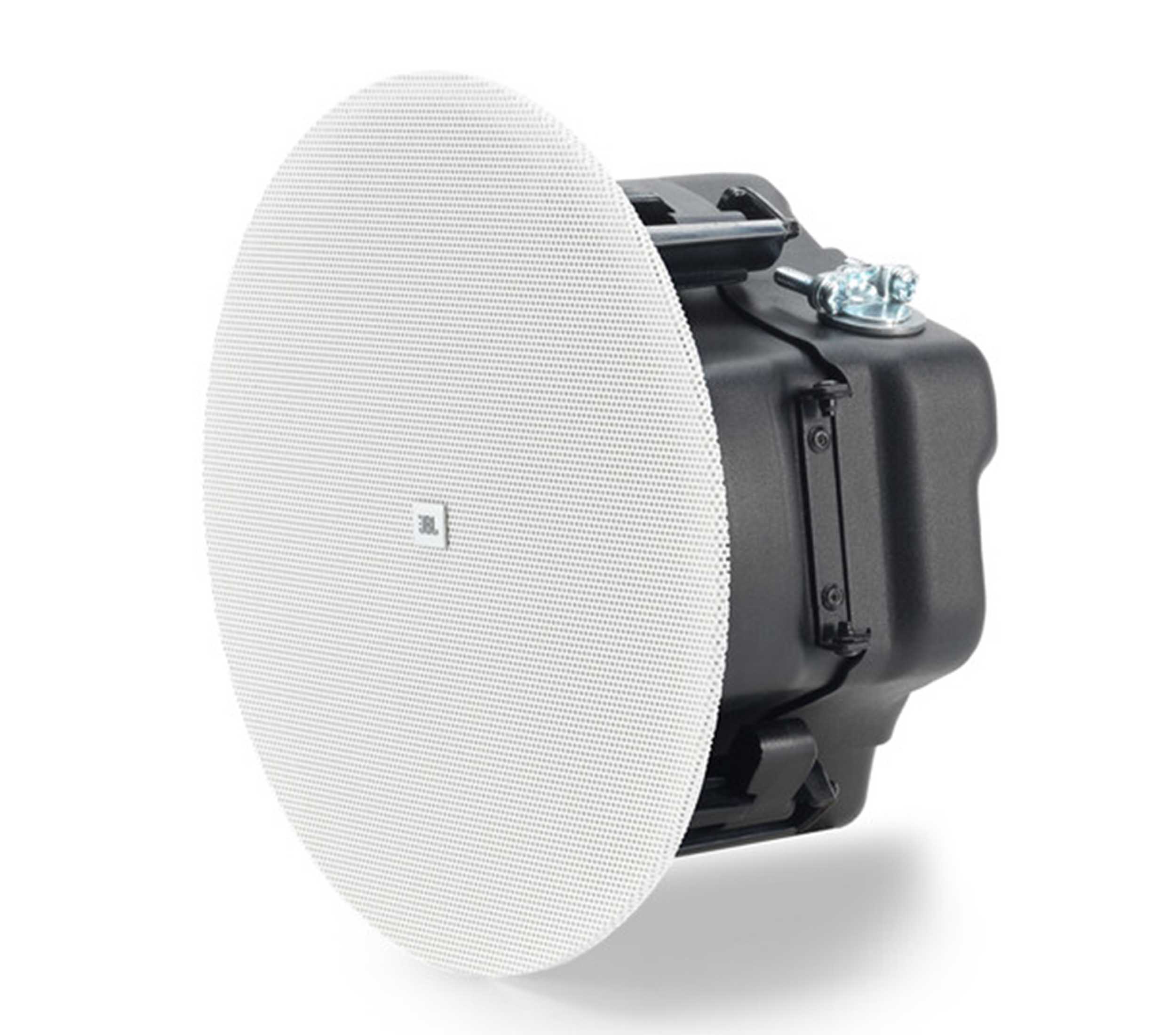

Installation is fast and reliable thanks to the integrated backcan, captive dogear mounting system, and flexible top or side cable entry options. The included C-ring, tile rails, cutout template, cable strain relief, screws, and mounting hardware simplify installation in suspended ceilings. The paintable bezel-free grille allows seamless integration into virtually any décor while optional black and square grilles provide additional design flexibility. The IP32-rated construction offers dependable protection in indoor commercial environments. UL-listed components ensure compliance with professional installation standards. The result is a versatile ceiling speaker built for years of reliable service.
Product Specifications:
Speaker Type: Two-Way Coaxial Ceiling Loudspeaker
Speaker Configuration: 2-Way
System Type: Passive
LF Driver: 4 in (102 mm) Polypropylene-Coated Paper Woofer
HF Driver: 0.5 in (13 mm) PEI Soft-Dome Tweeter
Magnet: Neodymium

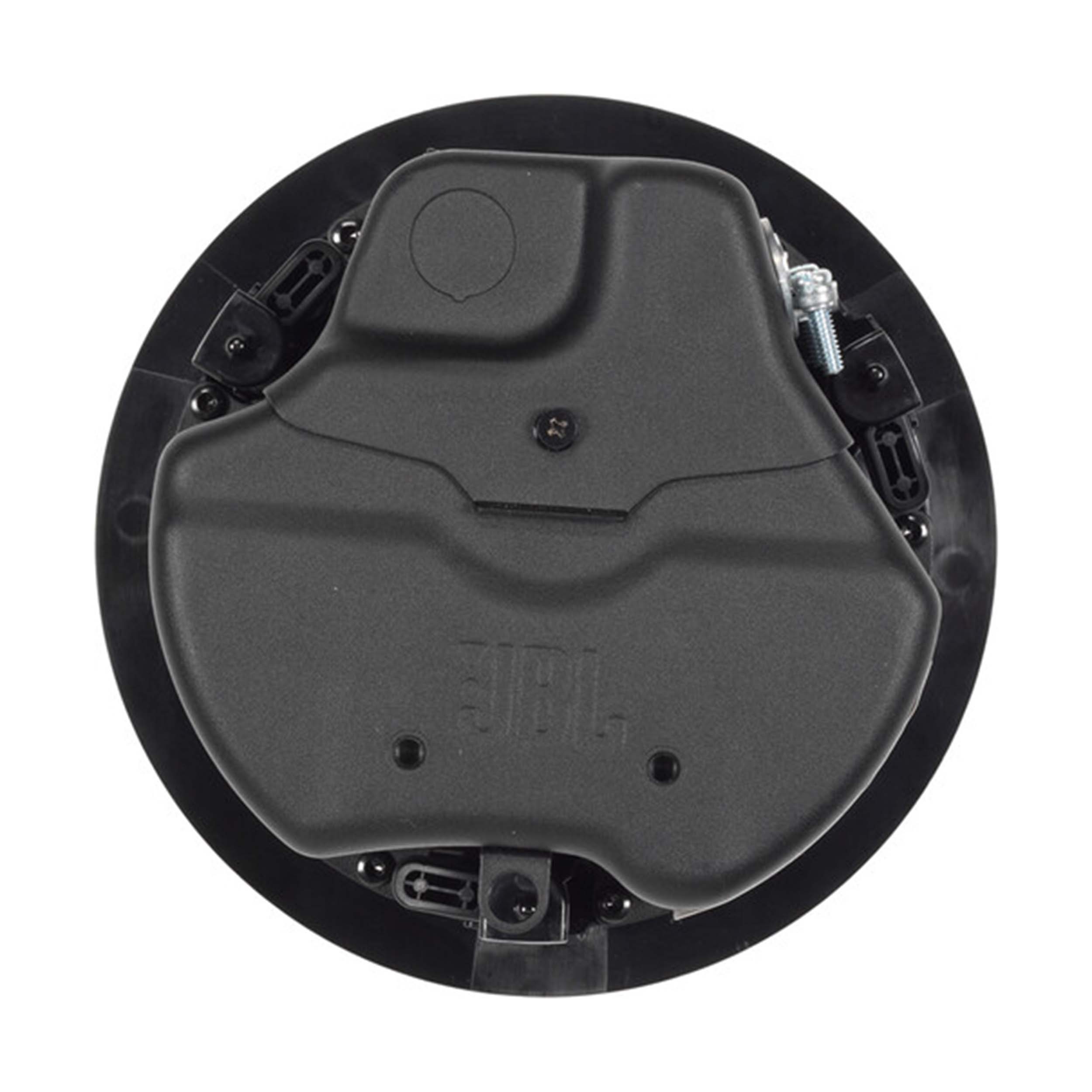

Enclosure: Low-Profile Integrated Backcan
Frequency Range (-10 dB): 69 Hz – 25 kHz
Frequency Response: 93 Hz – 21 kHz
Power Handling: 25 W RMS / 100 W Peak
Maximum SPL: 99 dB Continuous / 105 dB Peak
Sensitivity (1W/1m): 85 dB
Coverage Angle: 160° Conical
Directivity Factor (Q): 2.9
Directivity Index (DI): 4.6 dB
Nominal Impedance: 70V/100V Distributed System Only
Transformer Wattage: 25 W
Transformer Taps (70V): 25 W, 12 W, 6 W
Transformer Taps (100V): 25 W, 12 W
Transformer Bypass: None

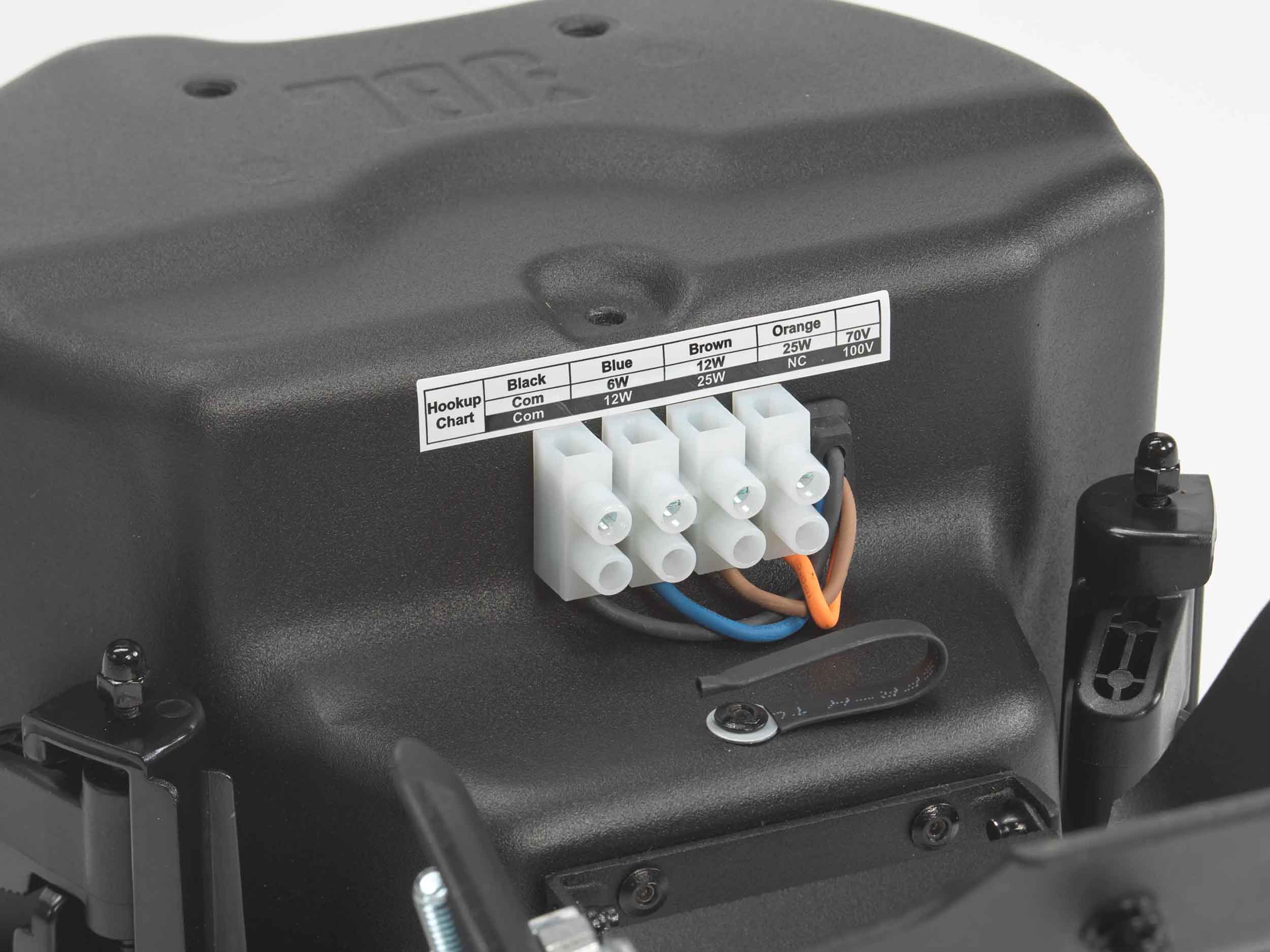

Inputs/Outputs: Locking Removable 4-Pin Screw Terminal Input/Thru
Protection: Output Limiter
Mounting: In-Ceiling
Cutout Size: 6.6 in (168 mm)
Cutout Depth: 4.2 in (107 mm)
Construction Material: ABS, Aluminum, Paper, Polycarbonate, Steel
Environmental Rating: IP32
Certifications: UL 1480A, UL 2043, RoHS
Operating Temperature: 32°F to 113°F (0°C to 45°C)
Included Accessories: C-Ring, Tile Rails, Cable Strain Relief, Cutout Template, Screws, Mounting Hardware, Paintable White Grille
Color: White / Black
Product Weight: 4.6 lbs (2.1 kg)
Product Dimensions (L × W × H): 8.1 × 8.1 × 4.6 in (206 × 206 × 117 mm)
