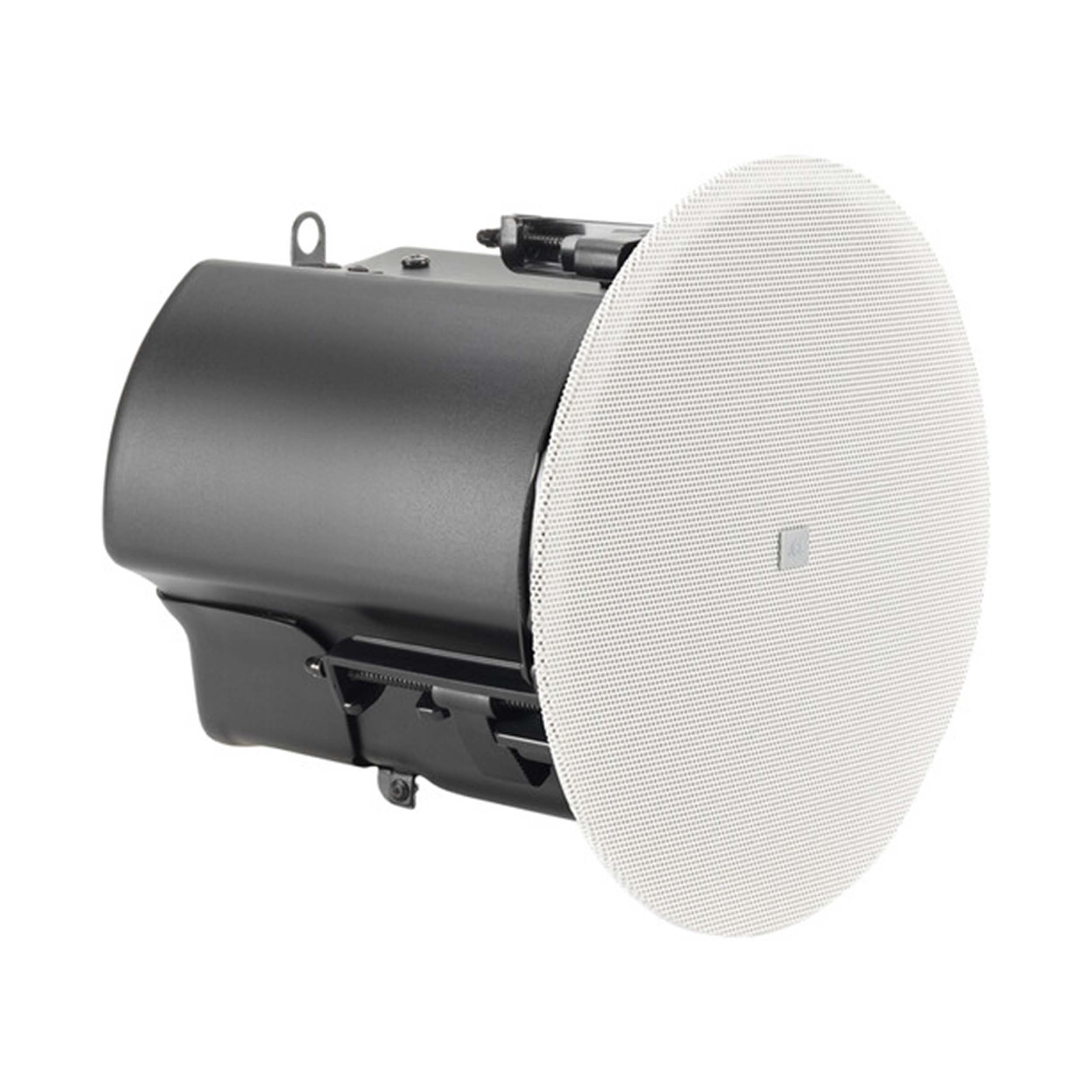

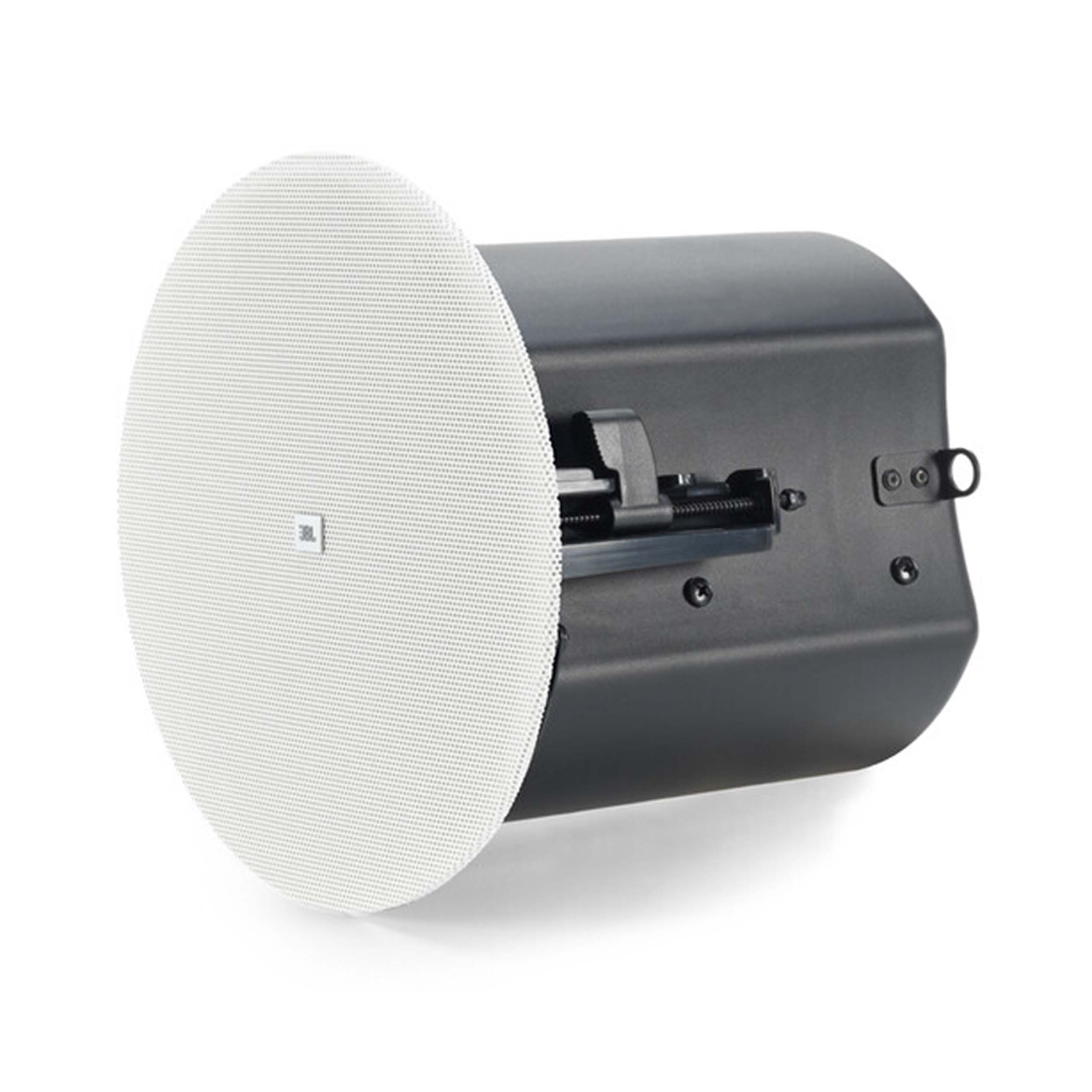

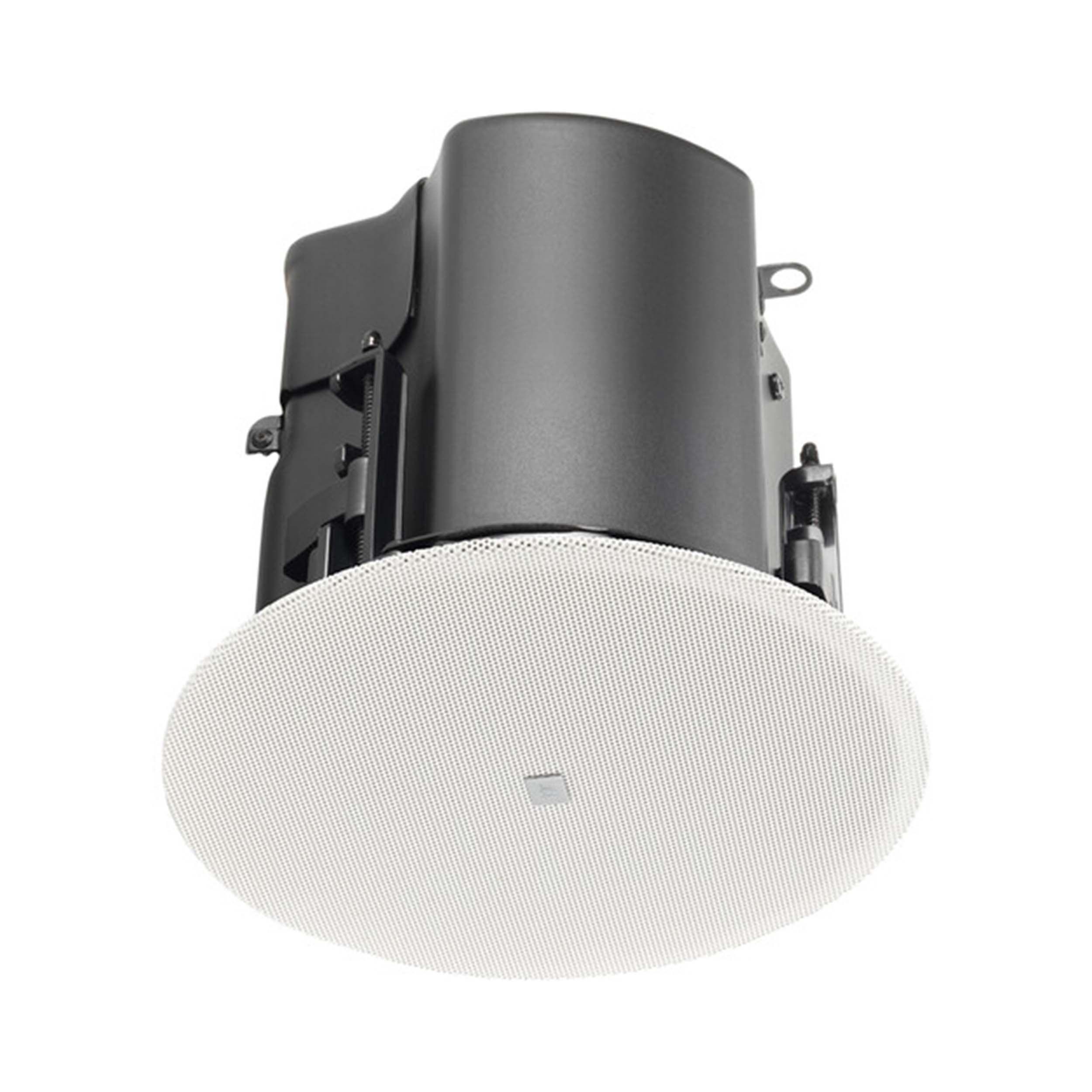

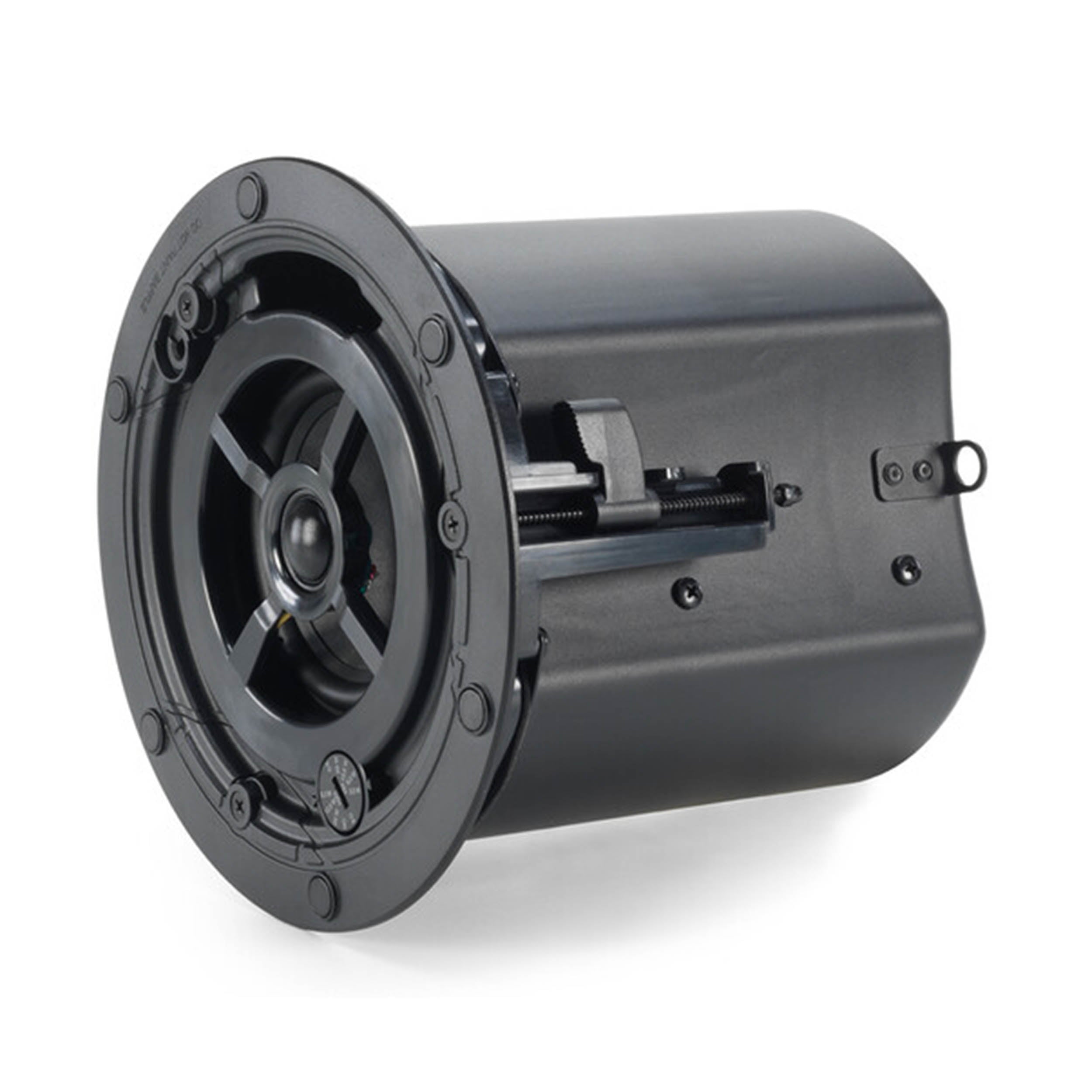

The JBL Control 414C/T-VA is a professional two-way coaxial ceiling loudspeaker designed for commercial audio and life safety installations. Featuring a 4-inch woofer and a 0.75-inch soft-dome tweeter within an integrated enclosure, it delivers excellent speech intelligibility and full-range music reproduction. Its compact design fits easily into most ceiling plenum spaces without requiring a separate back can. EN54-24 certification makes it suitable for emergency voice alarm applications. The wide 130-degree conical coverage provides consistent sound throughout the listening area. It is ideal for offices, schools, hospitals, retail stores, hotels, and public facilities.
The integrated 70V/100V multi-tap transformer supports distributed audio systems while the 8-ohm bypass enables direct low-impedance operation. Multiple transformers tap settings provide flexibility for a wide variety of commercial sound installations. The high-performance coaxial design produces clear highs, detailed midrange, and balanced low frequencies for paging and background music. Reliable acoustic performance reduces the number of speakers needed in many installations. Premium JBL components ensure dependable long-term operation. It is engineered for professional installed audio systems.
Installation is fast and secure with top and side cable entry options and durable captive dogear mounting clamps that accommodate a wide range of ceiling thicknesses. The full-face magnetic grille is paintable to blend seamlessly into modern architectural interiors, while integrated safety tethers provide additional installation security. An IP33 environmental rating offers protection against dust and dripping water in indoor environments. Optional round, square, weather-resistant grilles and installation accessories increase design flexibility. JBL's commercial engineering ensures reliable performance for years of operation. The Control 414C/T-VA is an excellent choice for both everyday audio and critical life safety applications.
Product Specifications:
Speaker Type: Two-Way Coaxial Ceiling Loudspeaker
Series: JBL Control 400 Standard Coverage Series

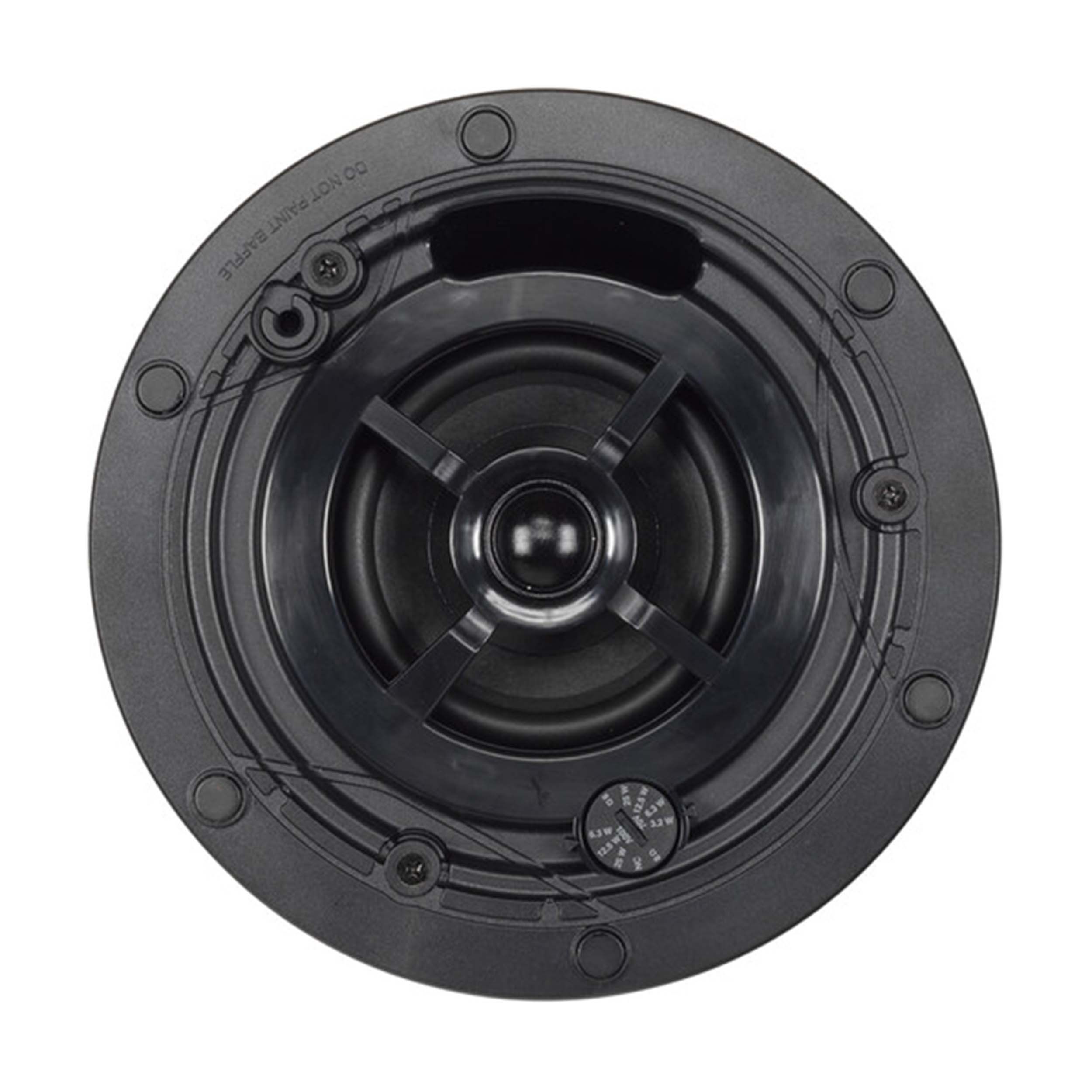

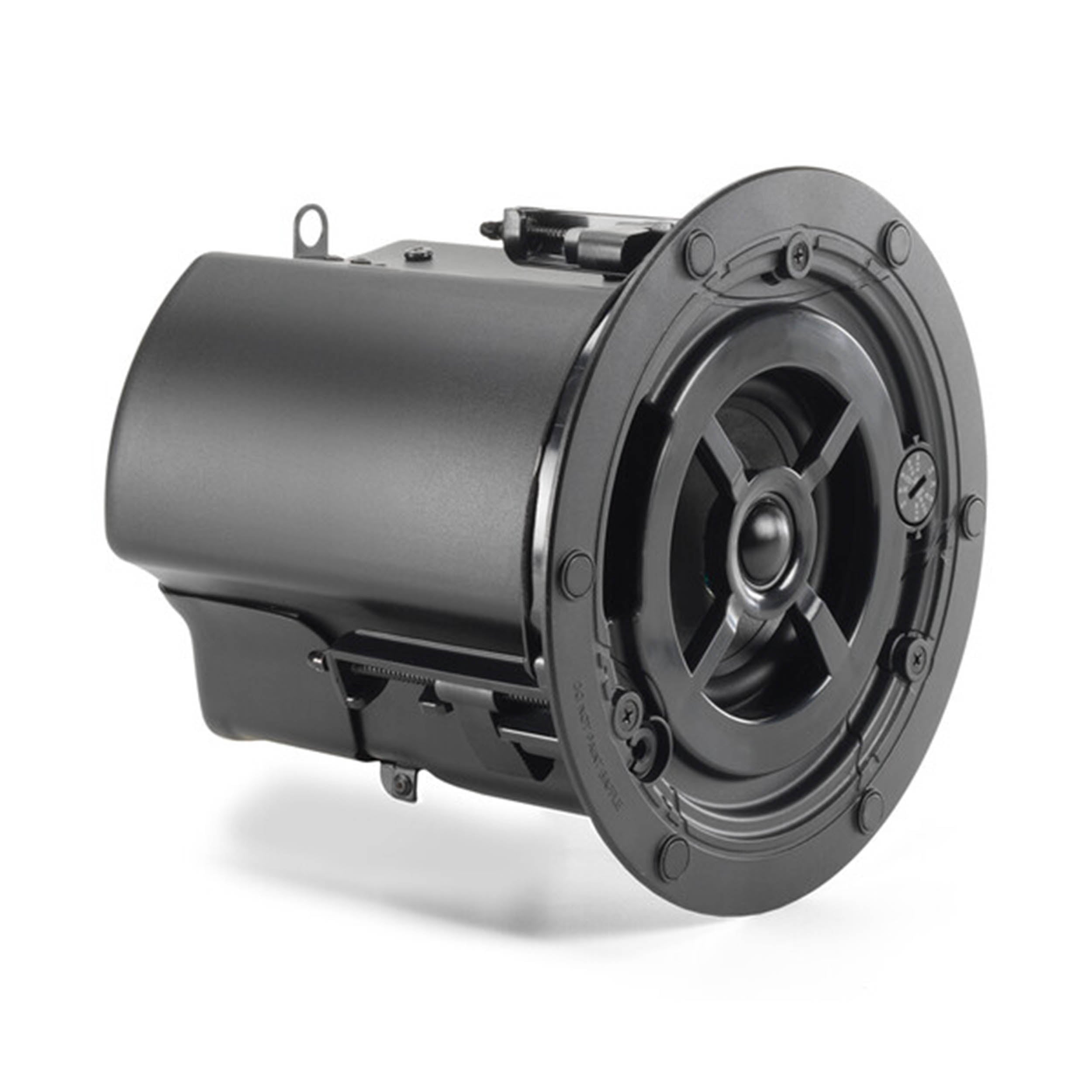

LF Driver: 100 mm (4 in) Woofer with Paper Cone and SBR Surround
HF Driver: 20 mm (0.75 in) Soft-Dome Tweeter

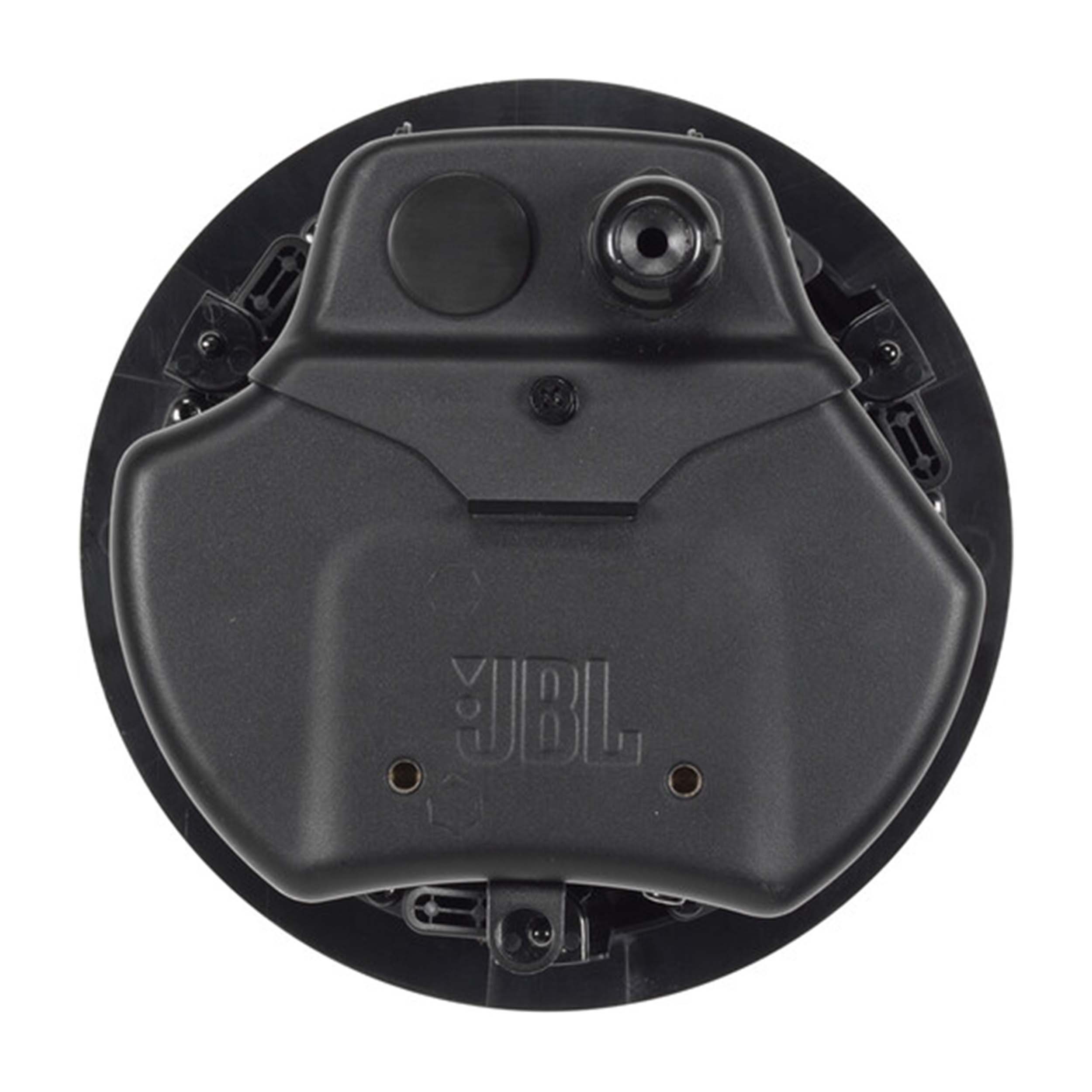

Enclosure: Integrated Backcan
Frequency Range (-10 dB): 65 Hz – 20 kHz
Power Capacity: 45 W Continuous (180 W Peak, 2-Hour Pink Noise); 30 W Continuous (120 W Peak, 100-Hour Pink Noise)
Sensitivity (1W/1m): 86 dB
Coverage Angle: 130° Conical
Maximum SPL: 103 dB Continuous / 109 dB Peak
Nominal Impedance: 8 Ω
Transformer Taps (70V): 25 W, 12.5 W, 6.3 W, 3.2 W
Transformer Taps (100V): 25 W, 12.5 W, 6.3 W
Ceiling Cutout Size: 168 mm (6.6 in)

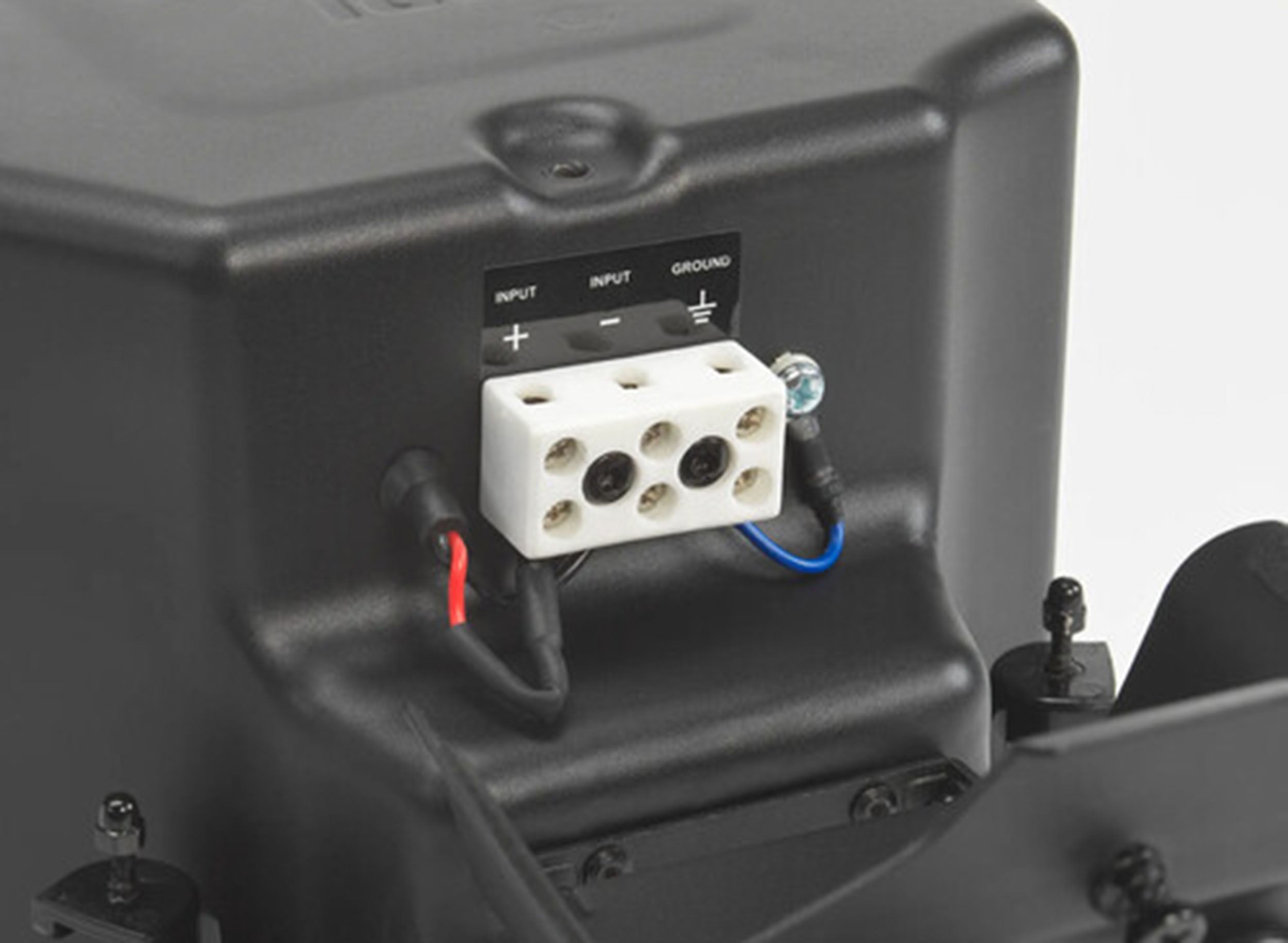

Cable Entry: Top and Side Entry

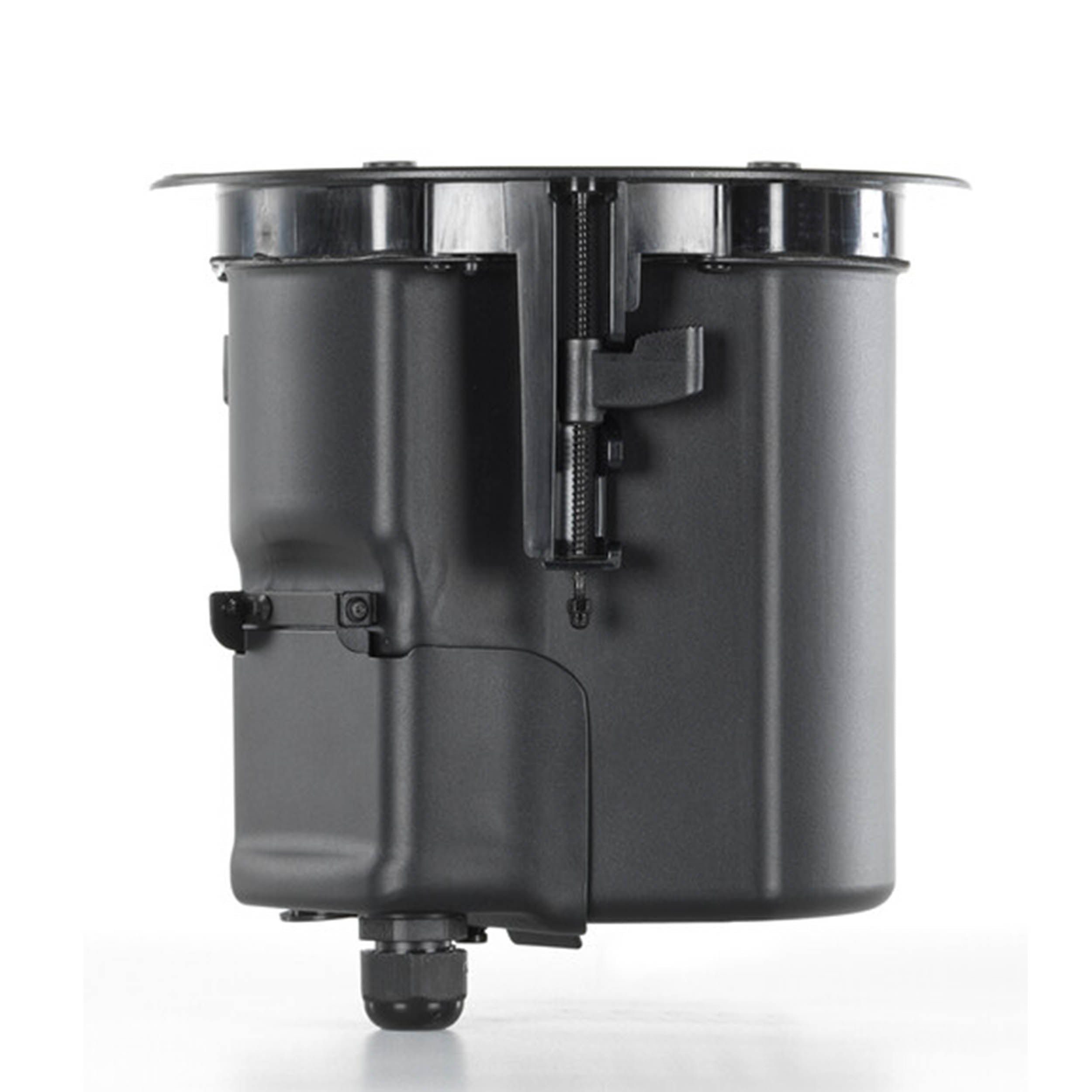

Mounting System: Captive Dogear Clamps

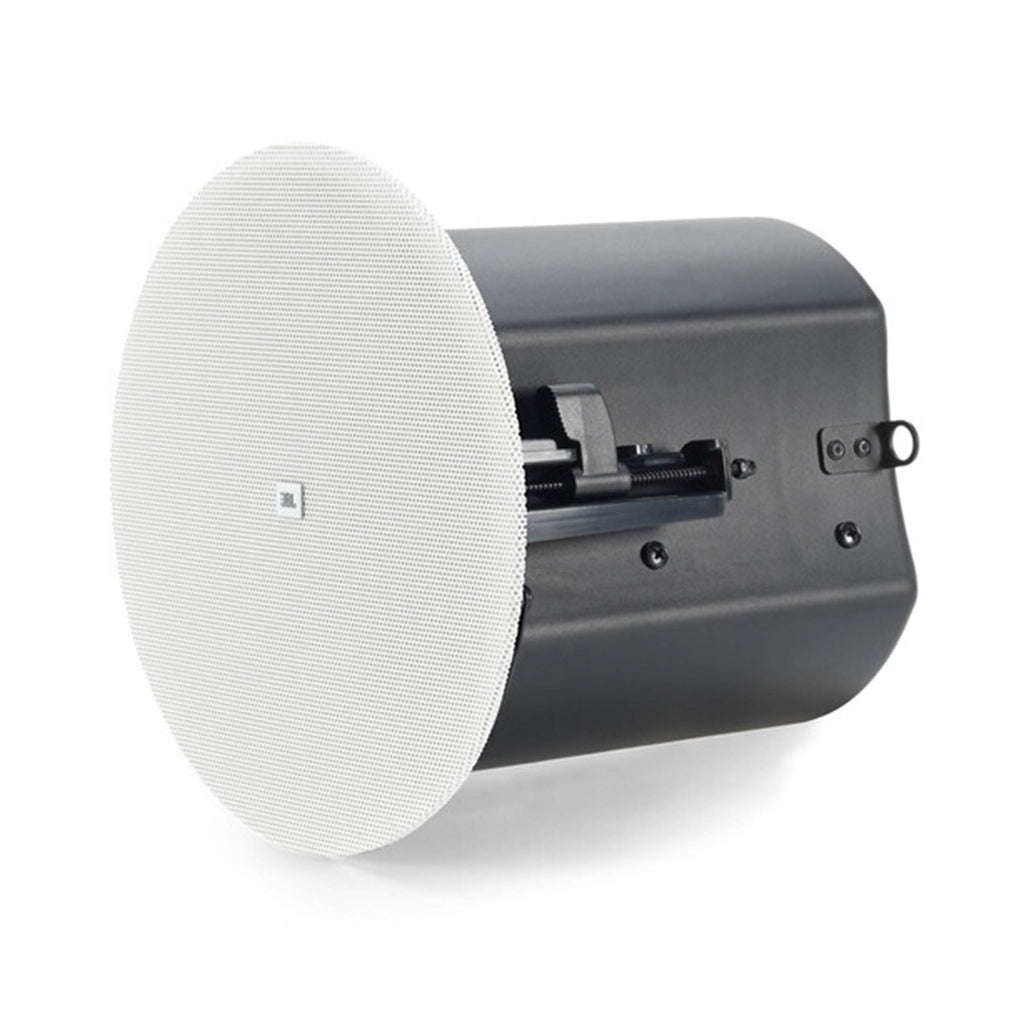

Grille: Full-Face Magnetic, Paintable with Safety Tether
Environmental Rating: IP33 (EN/IEC 60529)
Safety Certification: EN 54-24:2008 Type A
Compliance: UL 2043, NFPA 90A, NFPA 70, UL 1480A, CSA C22.2 No. 205
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Color: White (RAL9003), Paintable
Product Weight: 2.50 kg (5.51 lbs Each)
Product Dimensions (L × W × H): 8.1 × 8.1 × 8.2 in
