Descripción

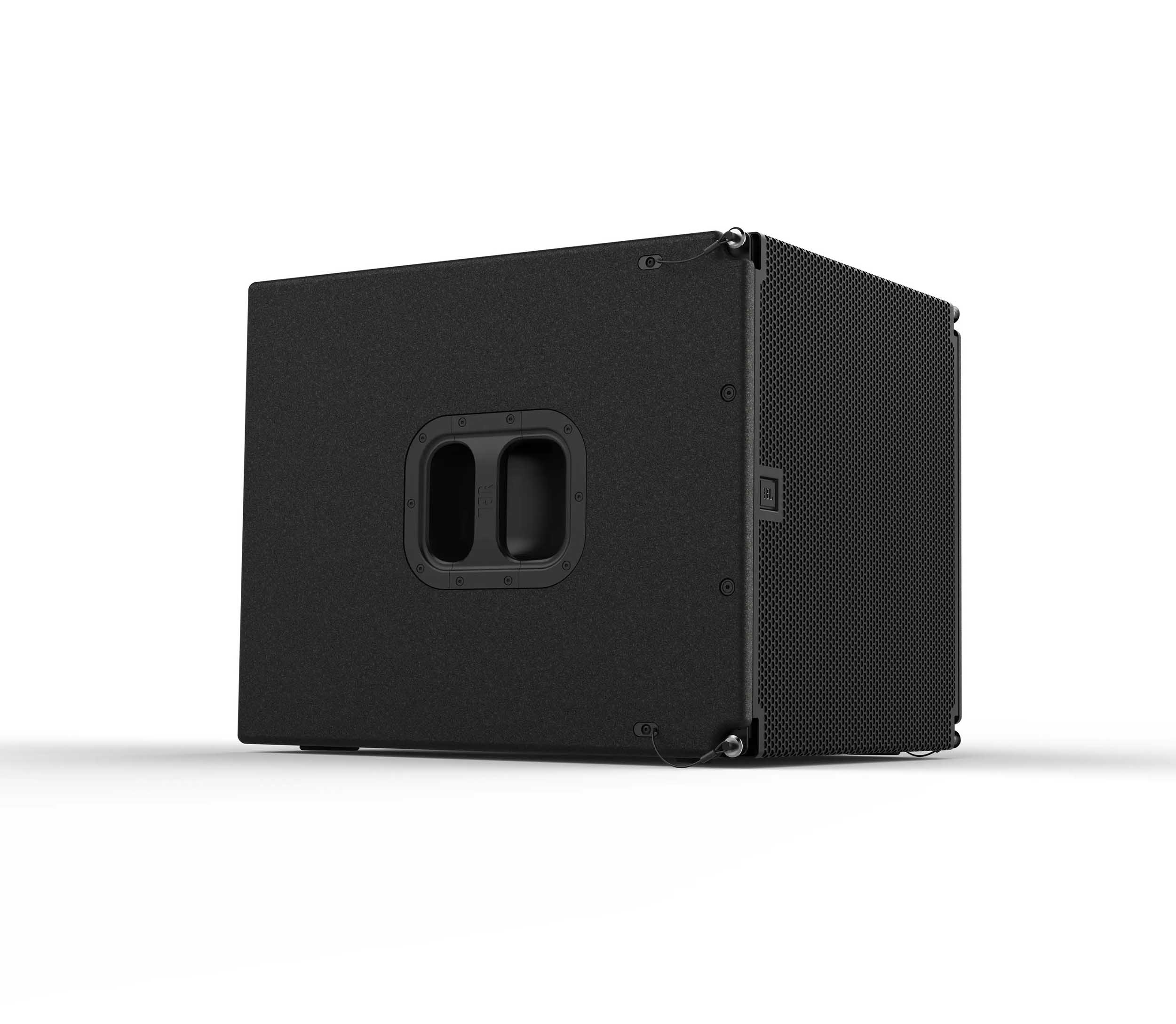

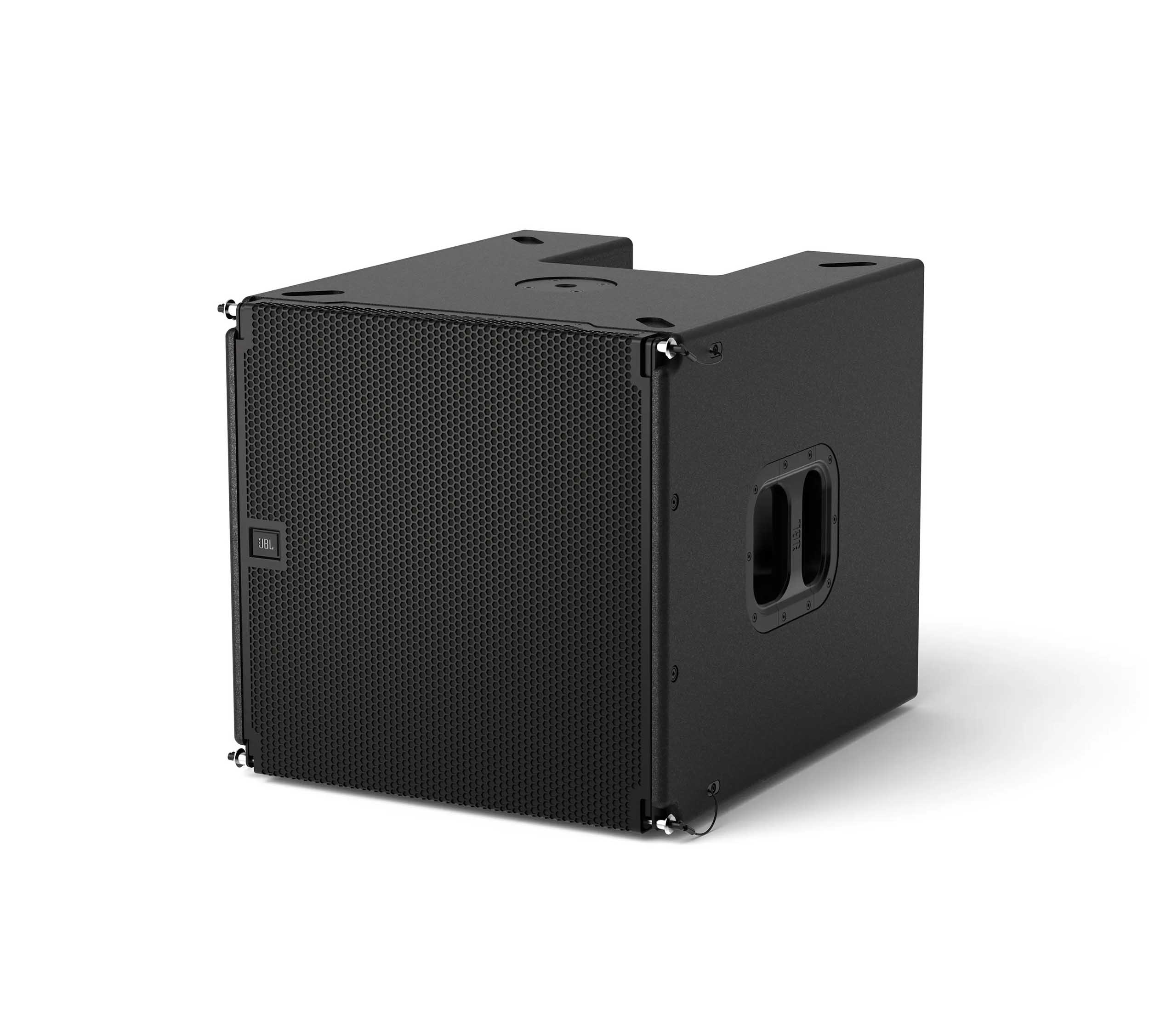

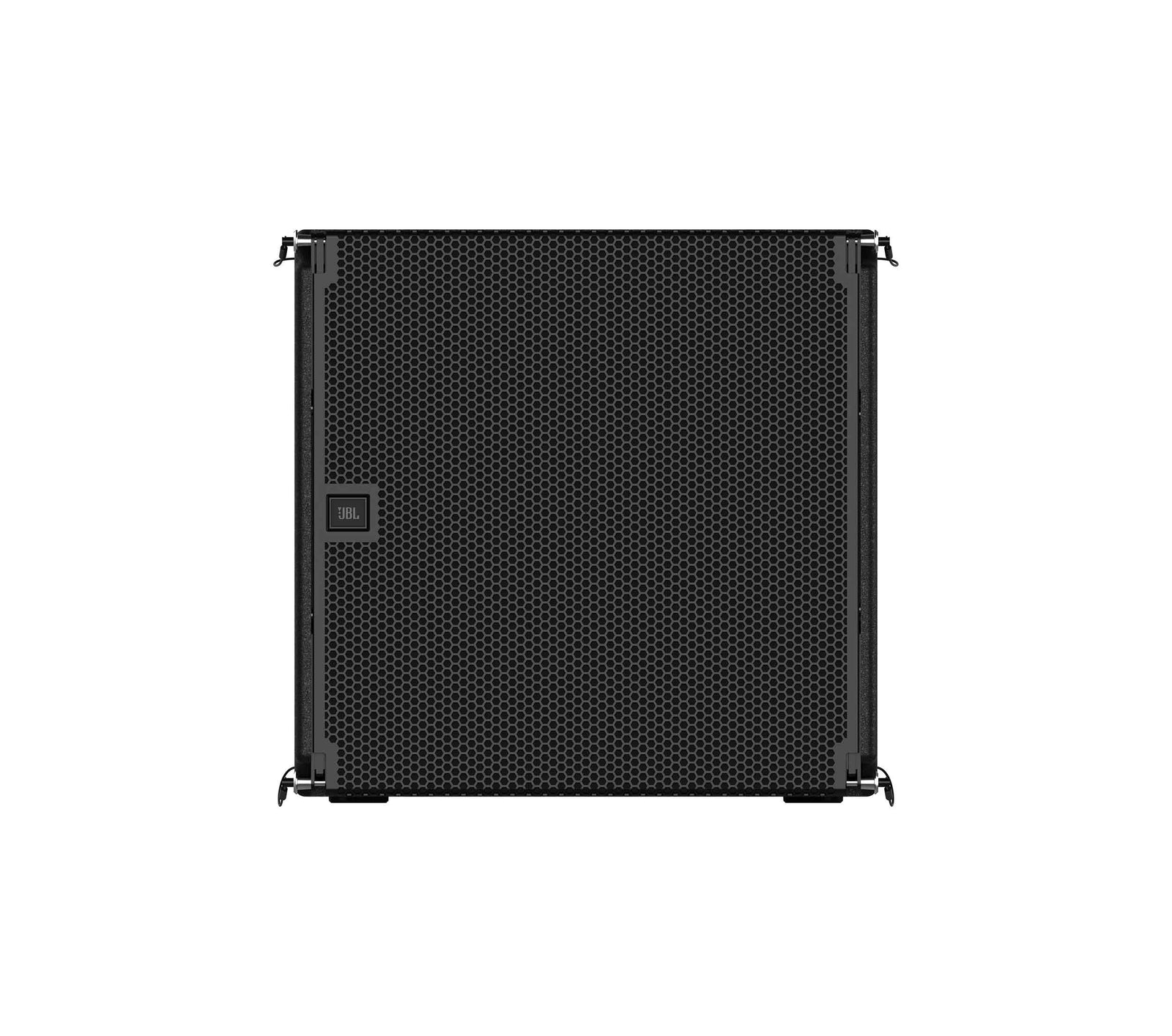

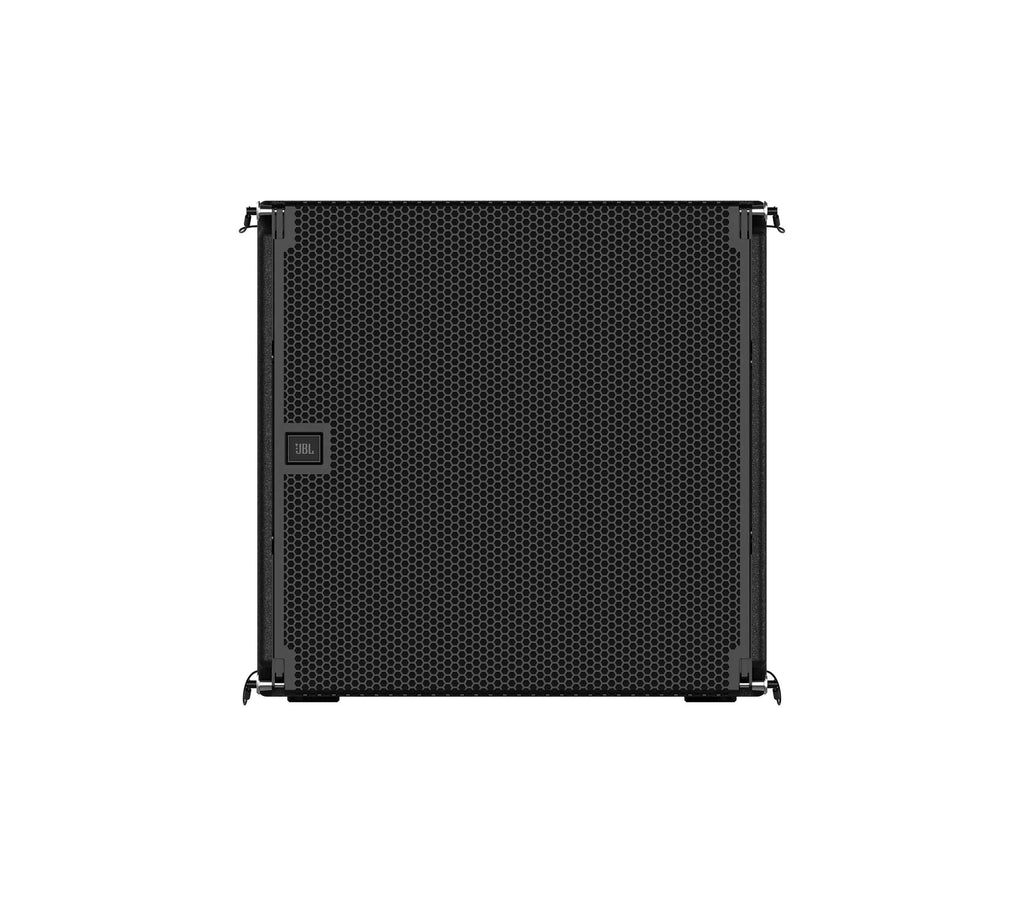

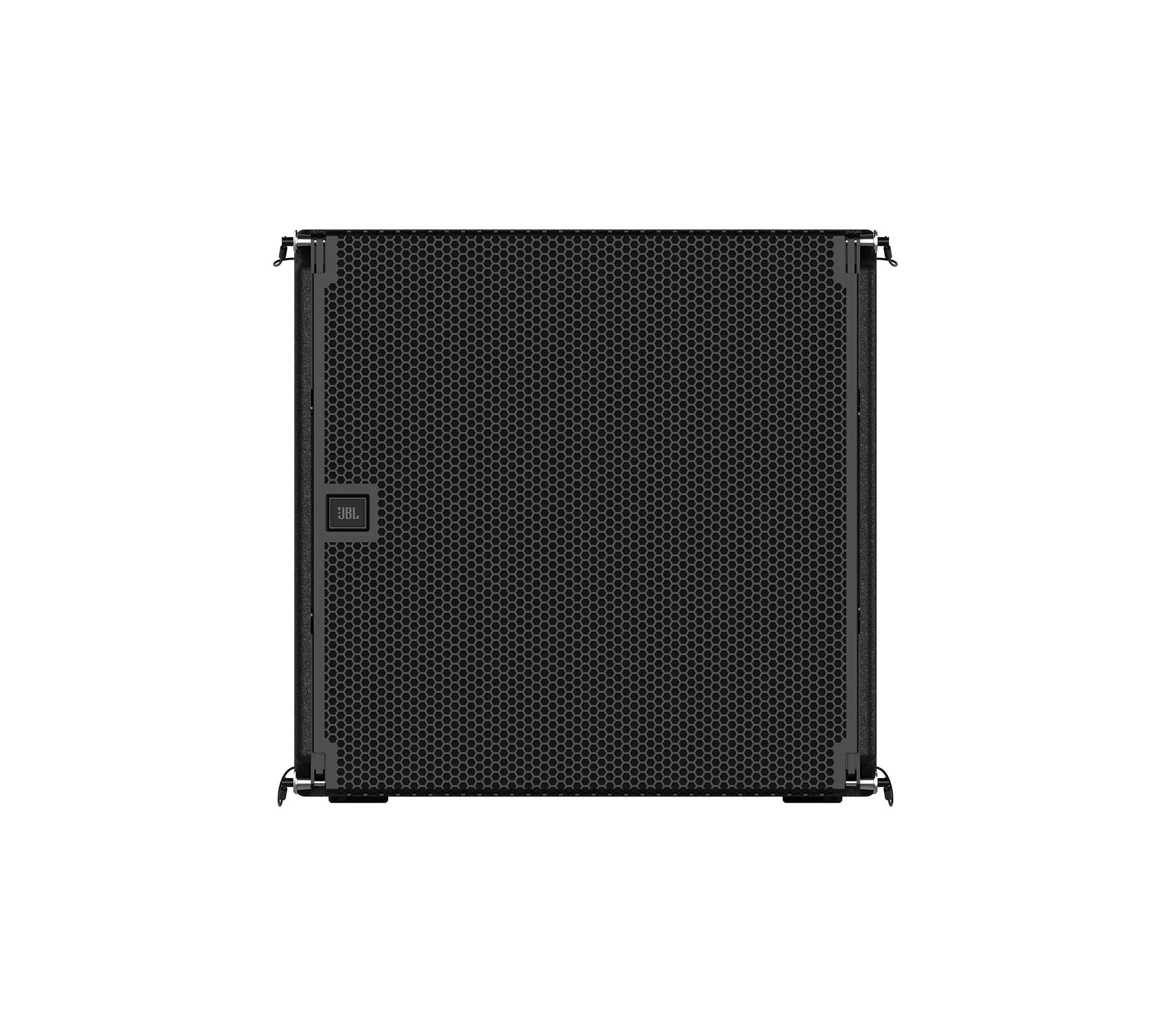

The JBL SRX915SF is a high-performance 15-inch powered flyable subwoofer designed to deliver powerful, controlled low-frequency performance for professional SRX900 Series sound reinforcement systems. Featuring a JBL 2276H Differential Drive® woofer with dual 3-inch voice coils, the SRX915SF provides excellent power handling, reduced power compression, and extended bass response down to 36 Hz. Its compact, truck-pack-friendly enclosure makes it an ideal solution for touring, live events, concerts, and professional installations.

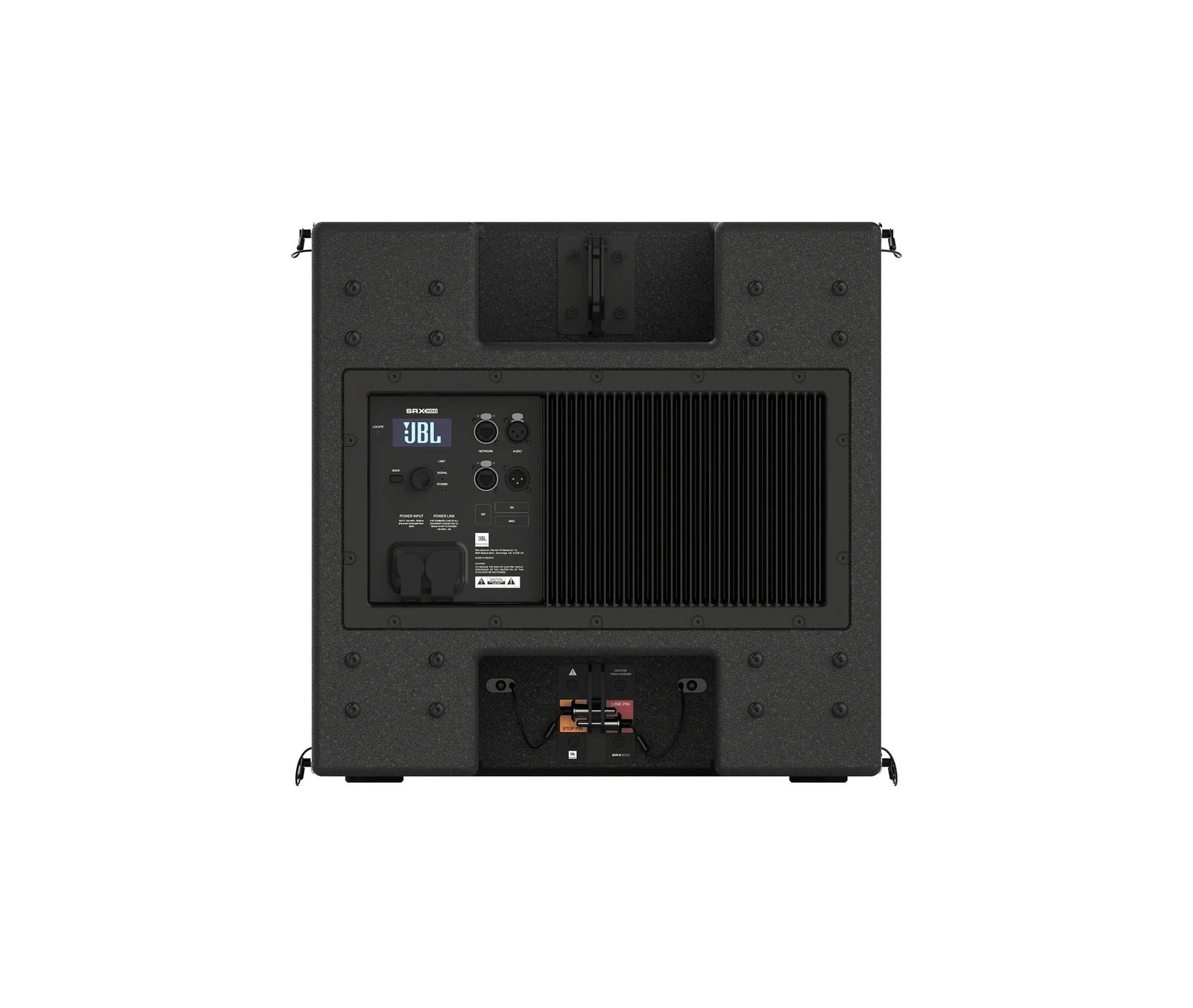

Built-in Class-D amplification and advanced 24-bit DSP provide a true plug-and-play solution with consistent performance across different applications. The DSP includes user-adjustable filters, up to 2,000 ms of delay, Array Size Compensation, FIR-based Throw Distance Correction, and LevelMax limiting technology for reliable system protection. Omnidirectional and cardioid presets allow the SRX915SF to be configured for different deployment requirements, while the rear LCD provides convenient access to essential control functions.

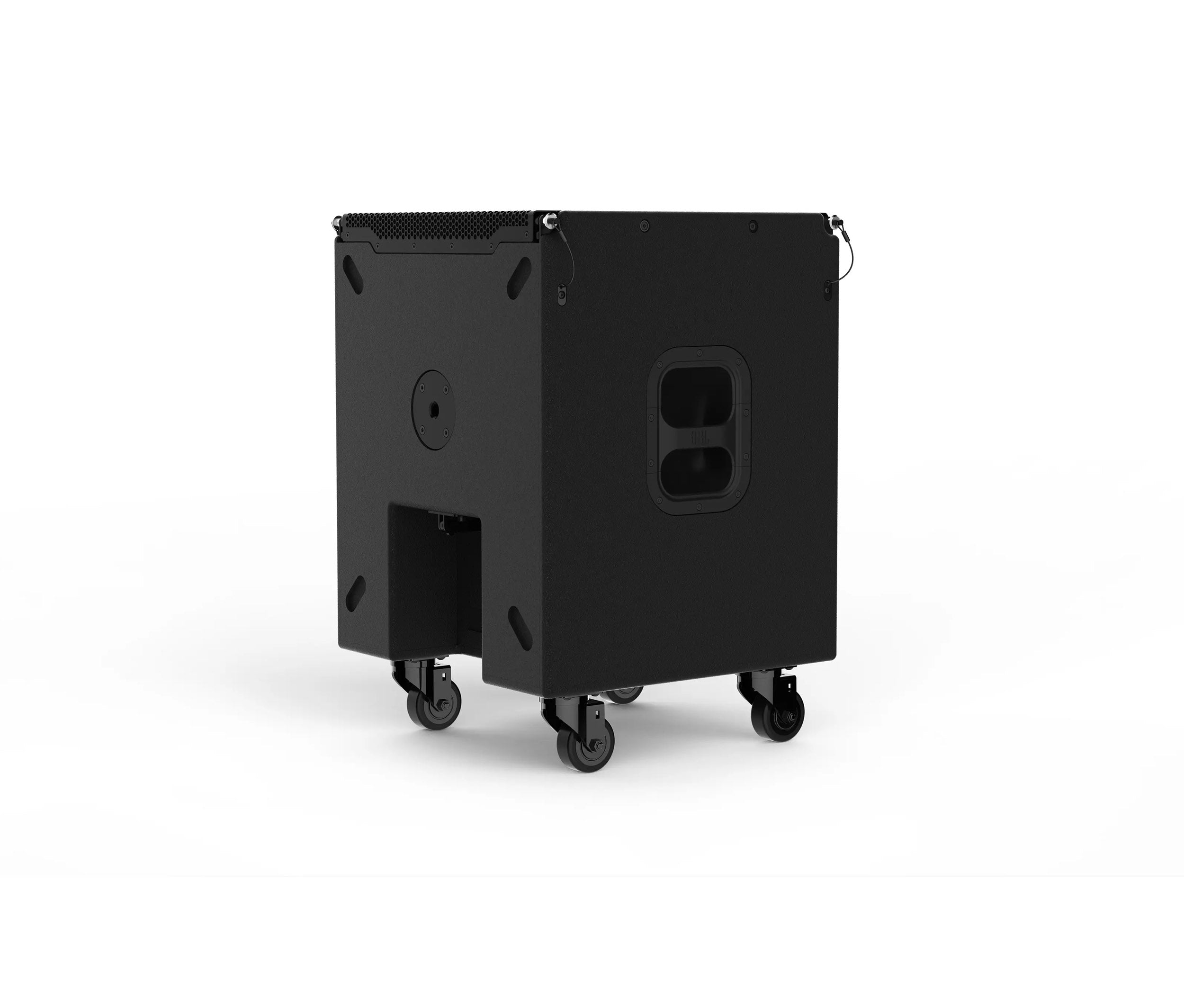

The SRX915SF features an integrated three-point rigging system and shares the same width and suspension hardware as the SRX906LA, allowing the two models to be combined in flown and ground-stacked configurations. Its reinforced birch plywood cabinet, M20 pole mount, dual Ethernet connectivity, and professional Neutrik connectors make it suitable for demanding touring and installation environments. With a 130 dB maximum SPL, 1,100W continuous power rating, and 2,500W peak power, the SRX915SF delivers powerful low-frequency output in a compact professional package.
Product Specifications:
Speaker Type: Powered Flyable Subwoofer
System Type: Active Subwoofer

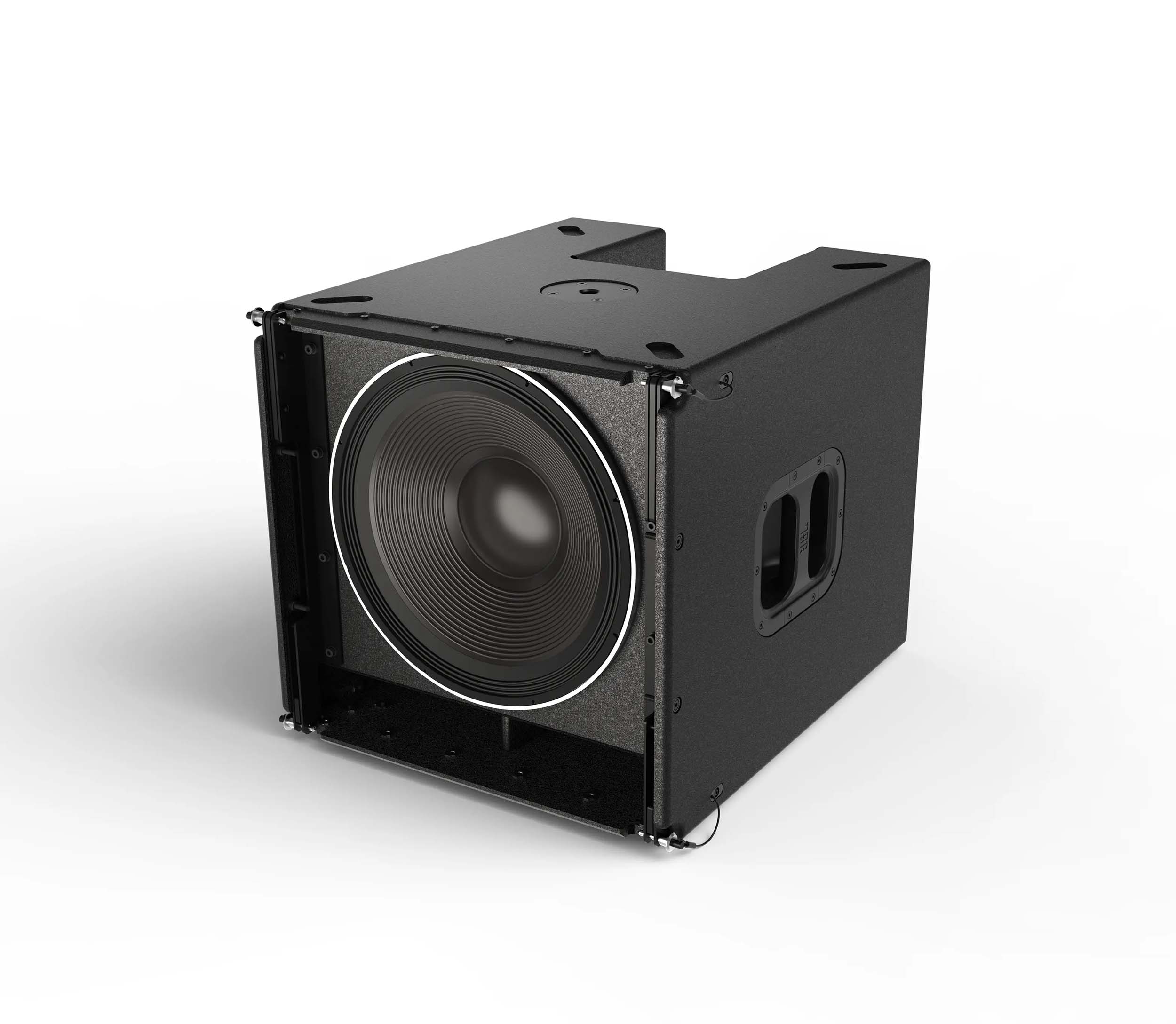

LFDriver: 1 × JBL 2276H 15" Woofer, 8 Ohms, Dual 3" Voice Coil, Ferrite Differential Drive®
Frequency Response (-10 dB): 36 Hz – 100 Hz (80 Hz Preset)
Maximum SPL: 130 dB
Coverage Pattern: Omnidirectional or Cardioid
Amplifier Channels: 1
Continuous Power: 1,100W
Peak Power: 2,500W
DSP: 24-Bit DSP
Sample Rate: 48 kHz
Protection: LevelMax Limiting
Input Type: Balanced Line Level

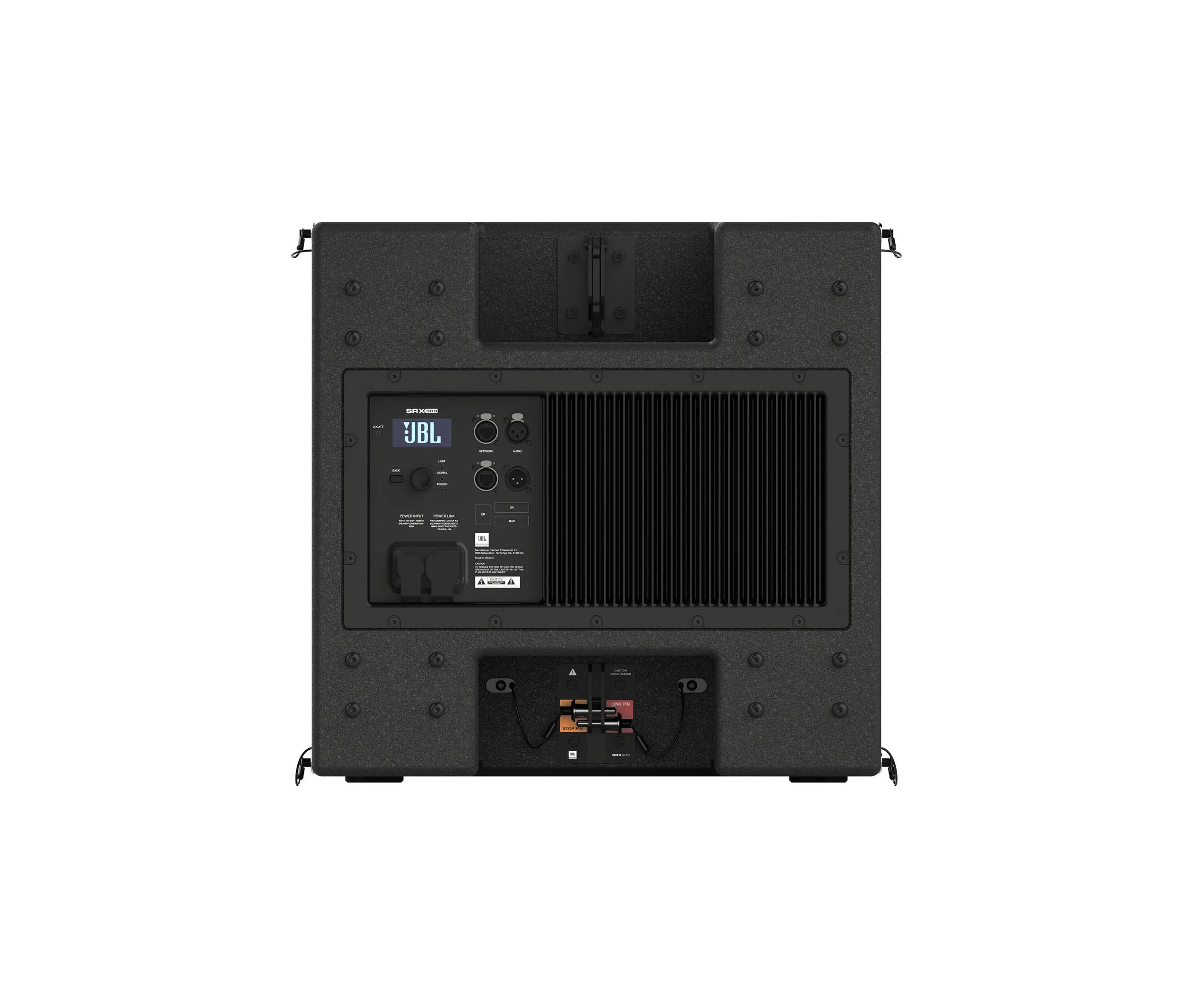

Inputs/Outputs: 2 × Neutrik XLR IN/OUT
Nominal Input Sensitivity: +6 dBu
Maximum Input Level: +21 dBu
Network Type: TCP/IP
Network Protocol: HARMAN HControl
Network Ports: 2 × Neutrik etherCON Dual 100 Mbps

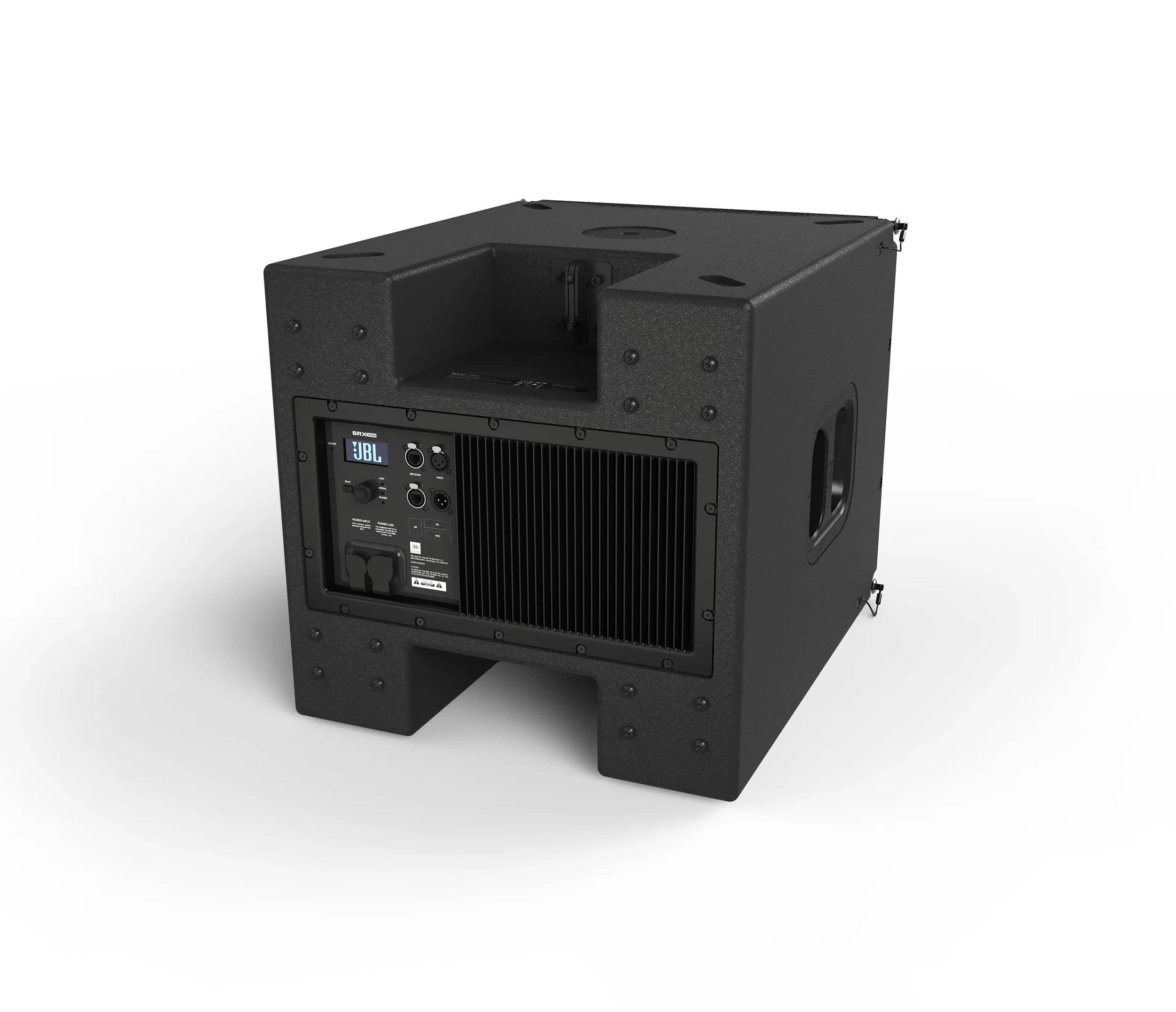

Cooling: Convection, External Aluminum Heat Sink with Internal On-Demand Fan
Rigging: Integrated Three-Point Rigging System
Mounting: M20 Threaded Pole Mount
Enclosure: Exterior-Grade Birch Plywood
Finish: Black DuraFlex
Environmental Rating: IP54
Product Weight: 87 lbs
Product Dimensions: 19.4" x 20.0" x 24.0"
Shipping Weight: 100 lbs
Shipping Dimensions: 21.4" x 22.0" x 26.0"
