The LaserCube Ultra MK2 10W STADIUM is a powerful all-in-one laser show package designed for professional performances, large-scale events, installations, and immersive visual productions. Built around the 10,000mW LaserCube Ultra MK2, it combines high-output RGB laser technology with a comprehensive selection of projection, atmospheric, and safety accessories. Pure 455nm blue, 525nm green, and 638nm red laser diodes produce vibrant full-color effects, while AT-40S galvo scanners running above 35,000 points per second at 7° deliver smooth, dynamic graphics and beam movement.

At the heart of the system is advanced laser technology capable of producing up to 16.7 million colors with analog 70kHz modulation and a maximum scan angle of more than 37°. The included STAGE accessories expand creative possibilities with an Optics Kit, Rain Cover, Expander, Hologram Net, and Diffract Lens, allowing you to create larger projections, floating holographic-style effects, and radial, line, and burst patterns. The Expander increases the projection size by 9X, while the Optics Kit provides additional Lens and Lumia effects for more variety in your laser productions.

Built for professional shows, touring productions, and immersive installations, the STADIUM package delivers powerful effects with exceptional flexibility. The Nano Fogger enhances beam visibility, while the E-Stop Kit adds essential safety control. With LaserOS, CubeOS, DMX, ILDA, Wi-Fi, Ethernet, and a 92.16Wh battery offering up to 4 hours of runtime, it’s ready to take your laser productions to the next level.

Key Features

• 10W laser output delivers powerful, high-impact projections.
• Full-color RGB laser uses 455nm, 525nm, and 638nm pure-diode sources.
• 35K+ galvo scanners provide smooth, detailed projections.
• Analog 70kHz modulation delivers up to 16.7 million colors.

Ideal For

• Concerts & Live Performances
• Nightclubs & DJ Shows
• Festivals & Large-Scale Events
• Stage Productions & Theater

What's in the Box

• LaserCube Ultra MK2 10W laser projector
• SOLO Protective Carrying Case and additional carrying case
• Tripod, Expander, Hologram Net & Optics Kit
• Rain Cover Ultra, Diffract Lens & Nano Fogger
• E-Stop Kit, Power Adapter, USB-C Adapter, Ethernet Cable, Interlock & Security Loop

Laser System Highlights

• Laser Power: 10W total RGB laser output with high-impact projection performance for professional shows, events, and large-scale visual productions.
• Laser Performance: Full-color RGB system with> 35,000 pps scanning, >37° scan angle, and 16.7 million colors for smooth, detailed, and dynamic laser graphics.

Full Technical Specifications

Laser System

Model	LaserCube Ultra MK2 10W
Laser Class	Class 4
Total Laser Power	10,000mW
Blue Laser	455nm / 5,000mW
Green Laser	525nm / 2,800mW
Red Laser	638nm / 2,800mW
Modulation	Analog 70kHz
Scan Speed	>35,000pps @ 7°
Maximum Scan Angle	>37°
Beam Diameter	4mm
Beam Divergence	1mRad
Model	LaserCube Ultra MK2 10W
Laser Class	Class 4
Total Laser Power	10,000mW
Blue Laser	455nm / 5,000mW
Green Laser	525nm / 2,800mW
Red Laser	638nm / 2,800mW
Modulation	Analog 70kHz

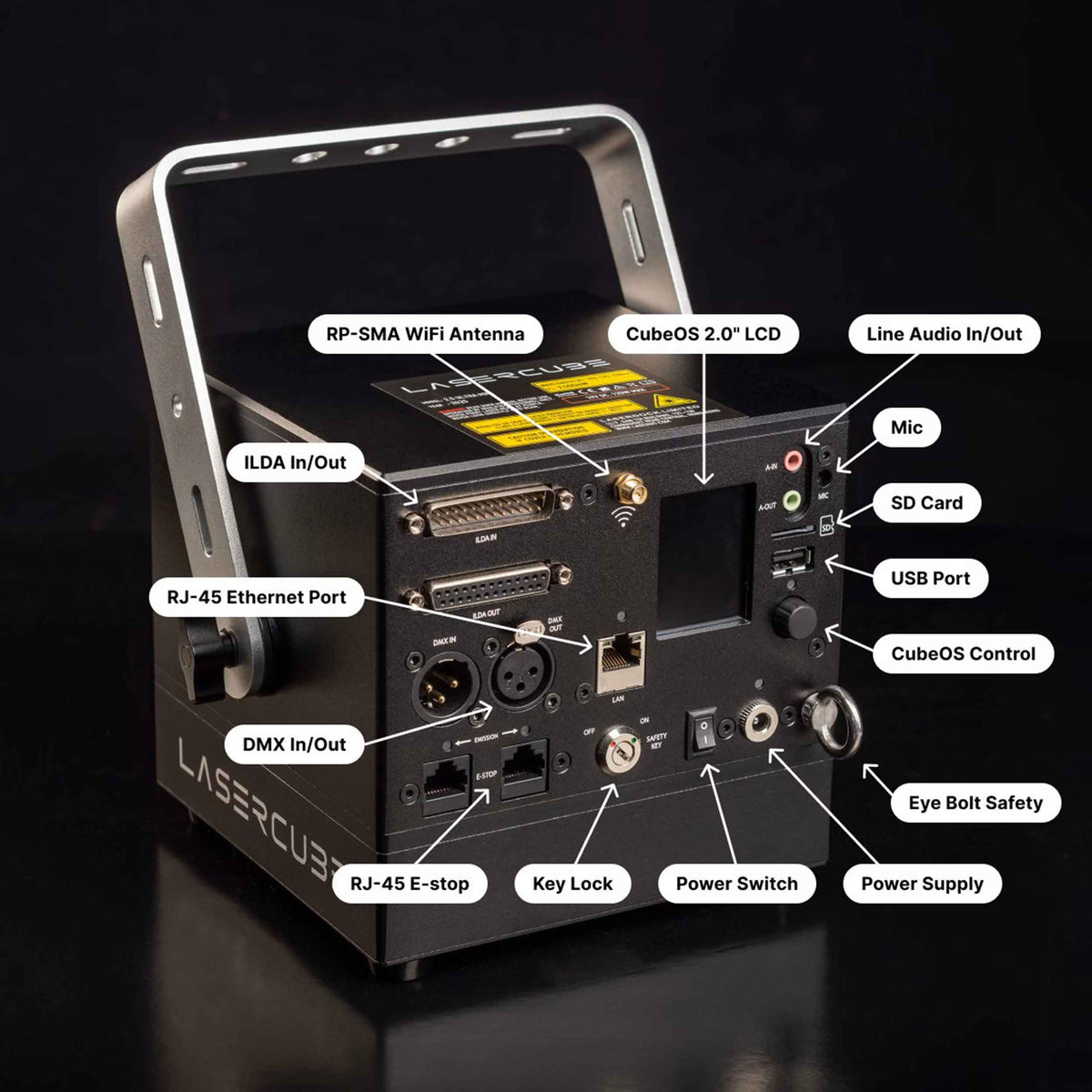

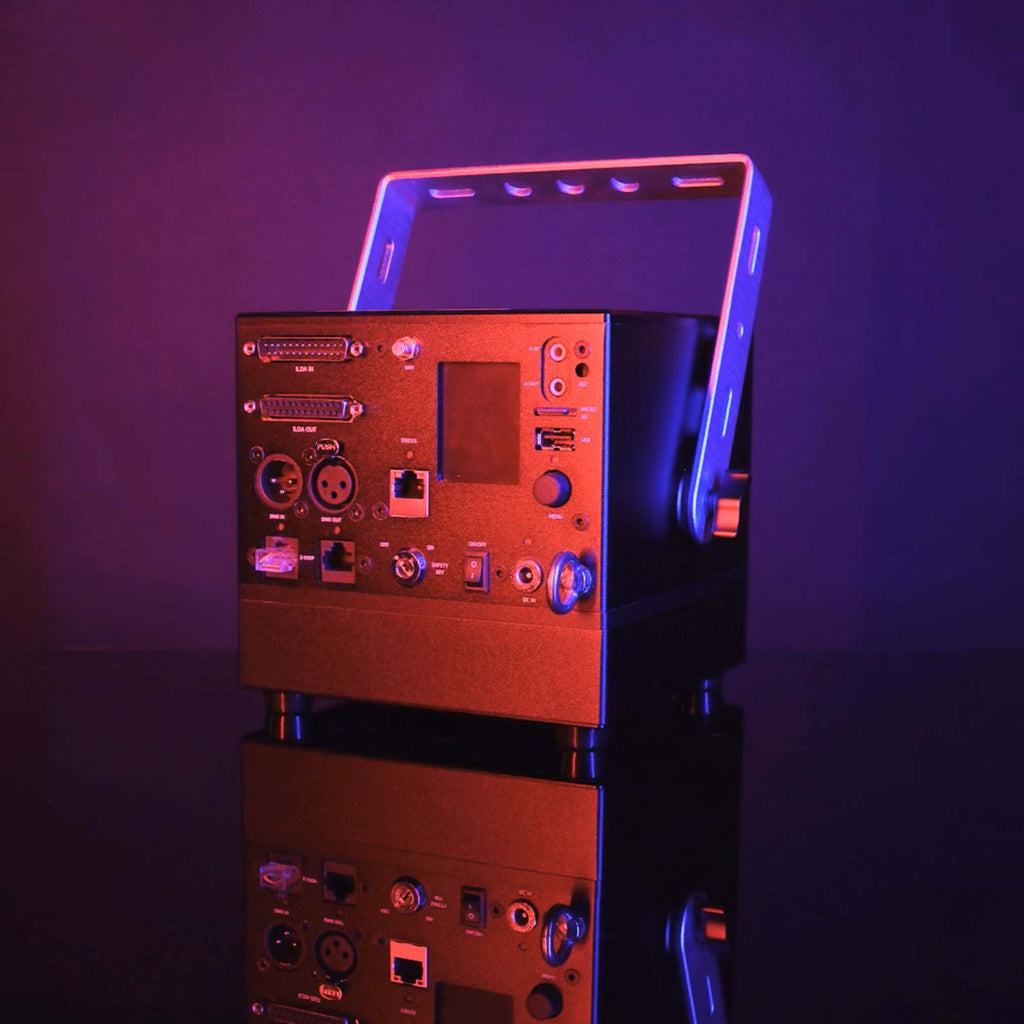

Connectivity & Control

Wireless Connectivity	2.4GHz Wi-Fi
Ethernet	RJ45, 100Mbps
ILDA	In/Out
DMX	In/Out
USB	USB-A
Audio	3.5mm Stereo Line In/Out
Storage	MicroSD Card Slot
Interlock	RJ45 In/Through
Operating Software	CubeOS + LaserOS
Wireless Connectivity	2.4GHz Wi-Fi
Ethernet	RJ45, 100Mbps
ILDA	In/Out

Power & Battery

Battery Capacity	92.16Wh
Battery Runtime	3–4 Hours
Charging Time	Approximately 4 Hours
Power Supply	19V DC, 120W Adapter
Battery Capacity	92.16Wh

Dimensions & Weight

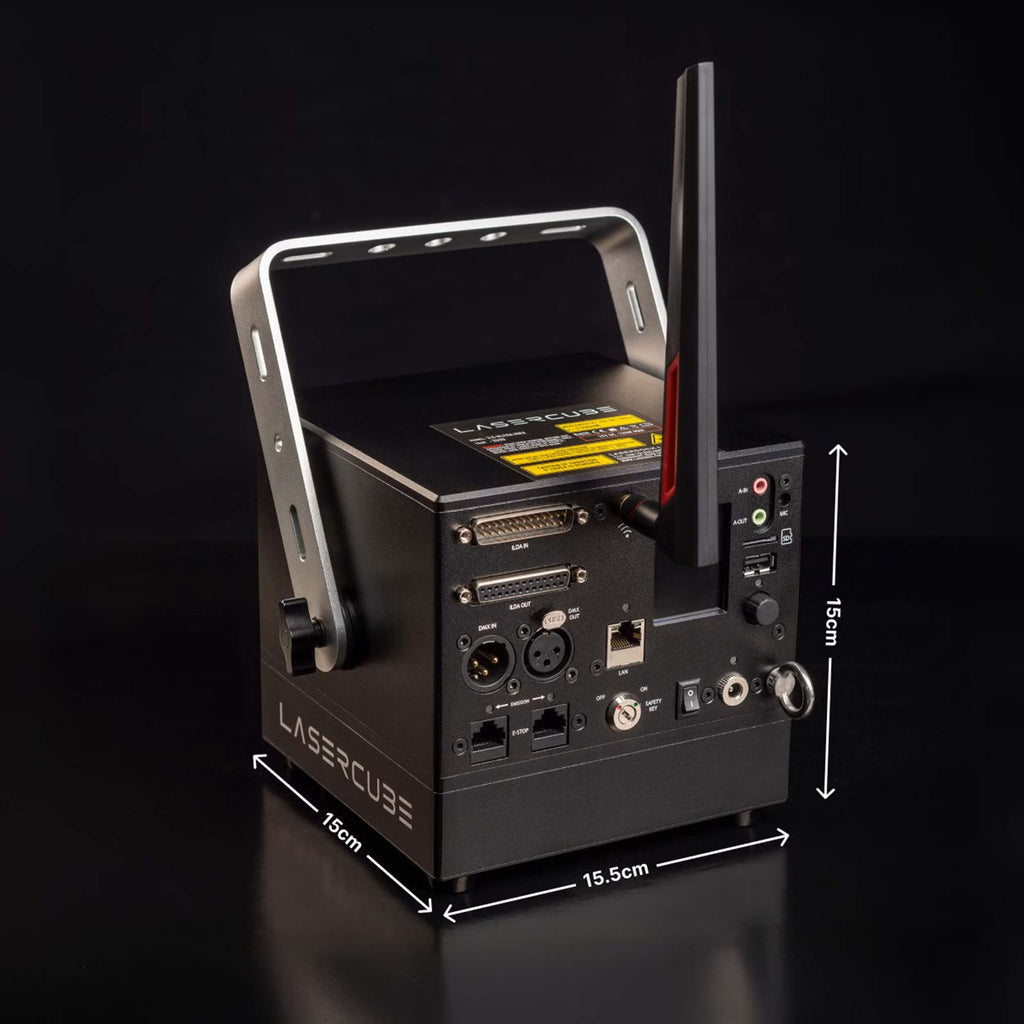

Dimensions	155 × 150 × 155mm (6.1" × 5.9" × 6.1")
Weight	3.7kg (8.2 lbs)

Safety & Compliance

Safety Features	Key Switch, Interlock, Beam Block, Indicator LED
Certification	EU DoC / RoHS / IEC 60825-1
