Descripción

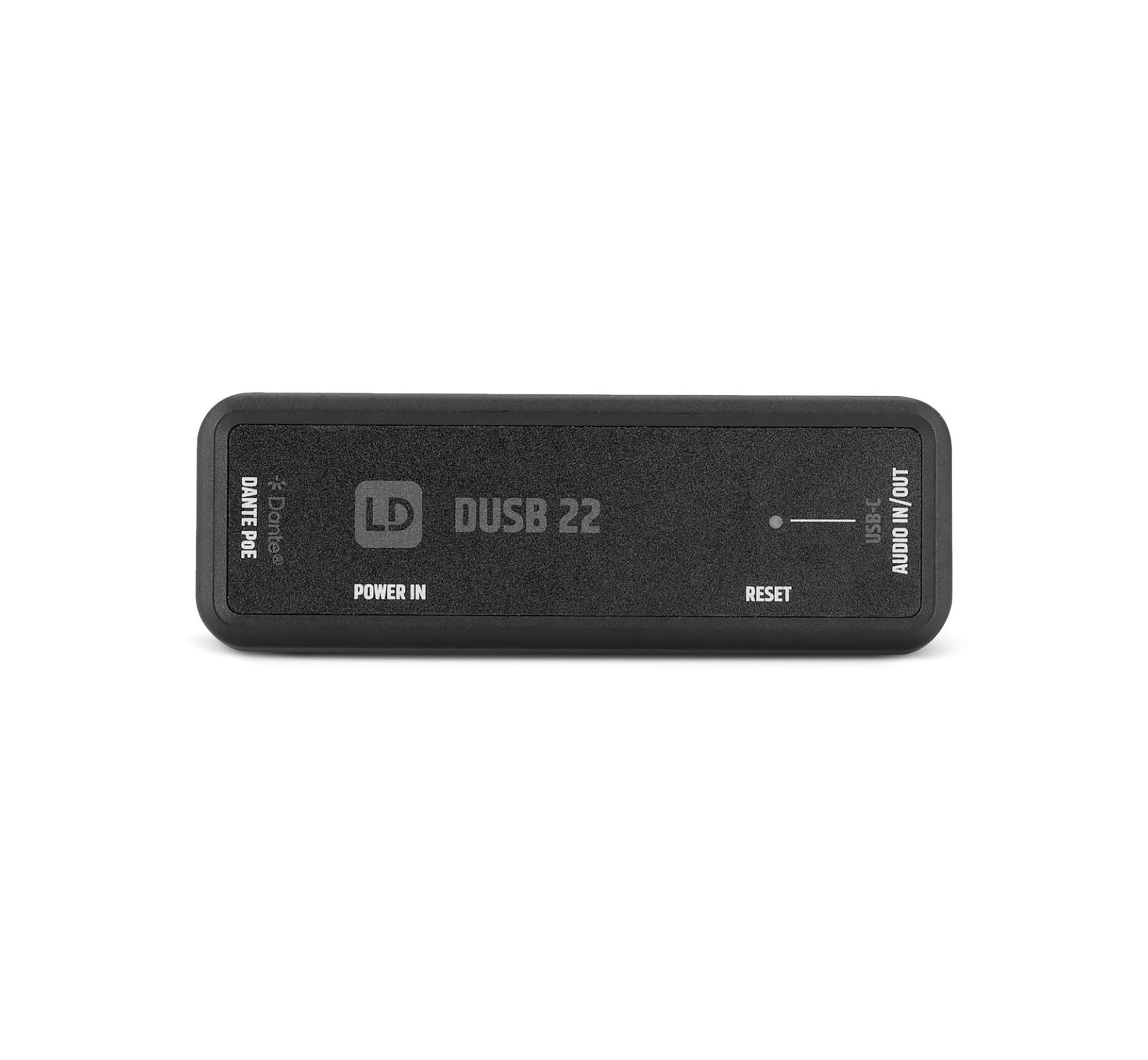

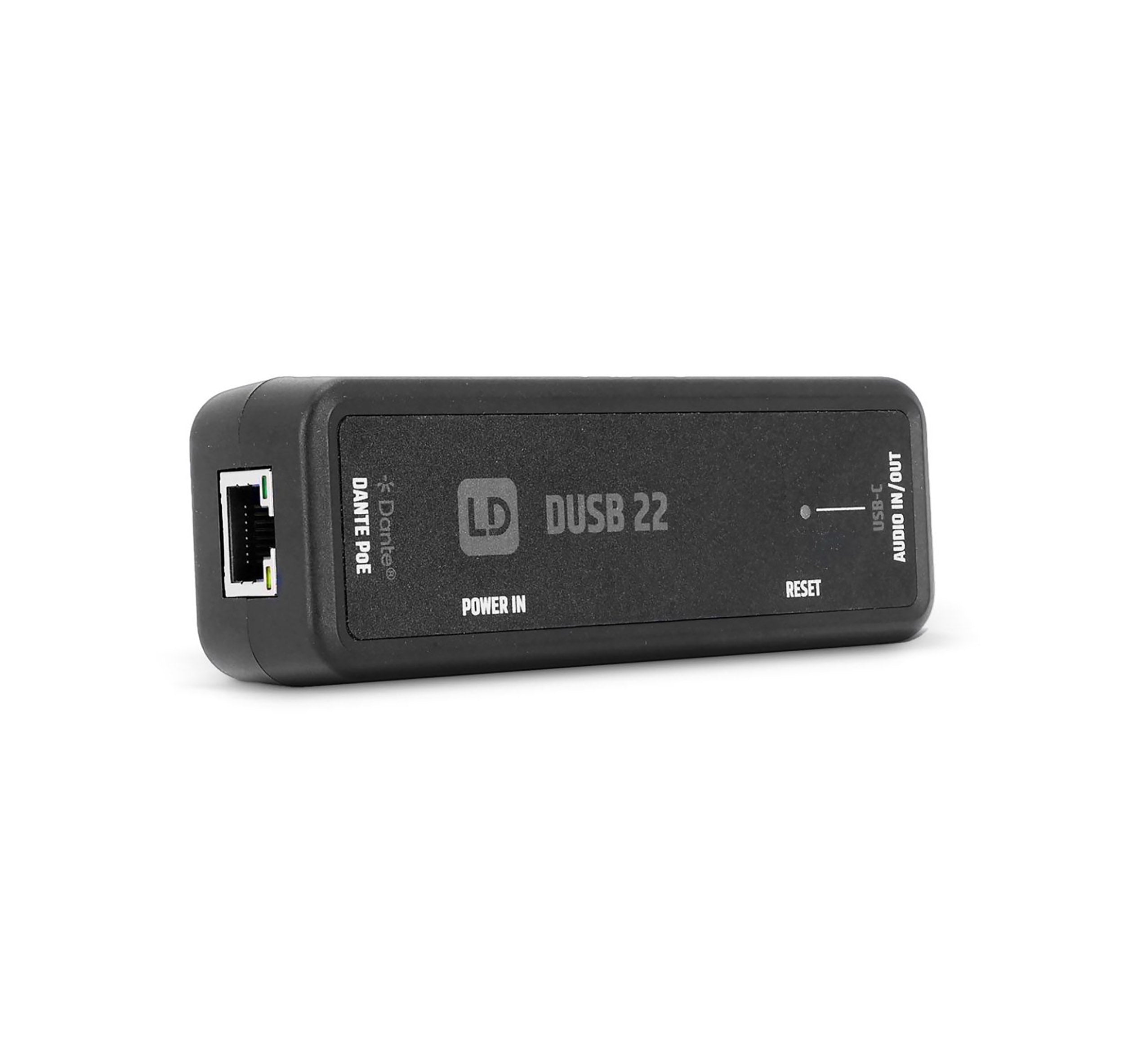

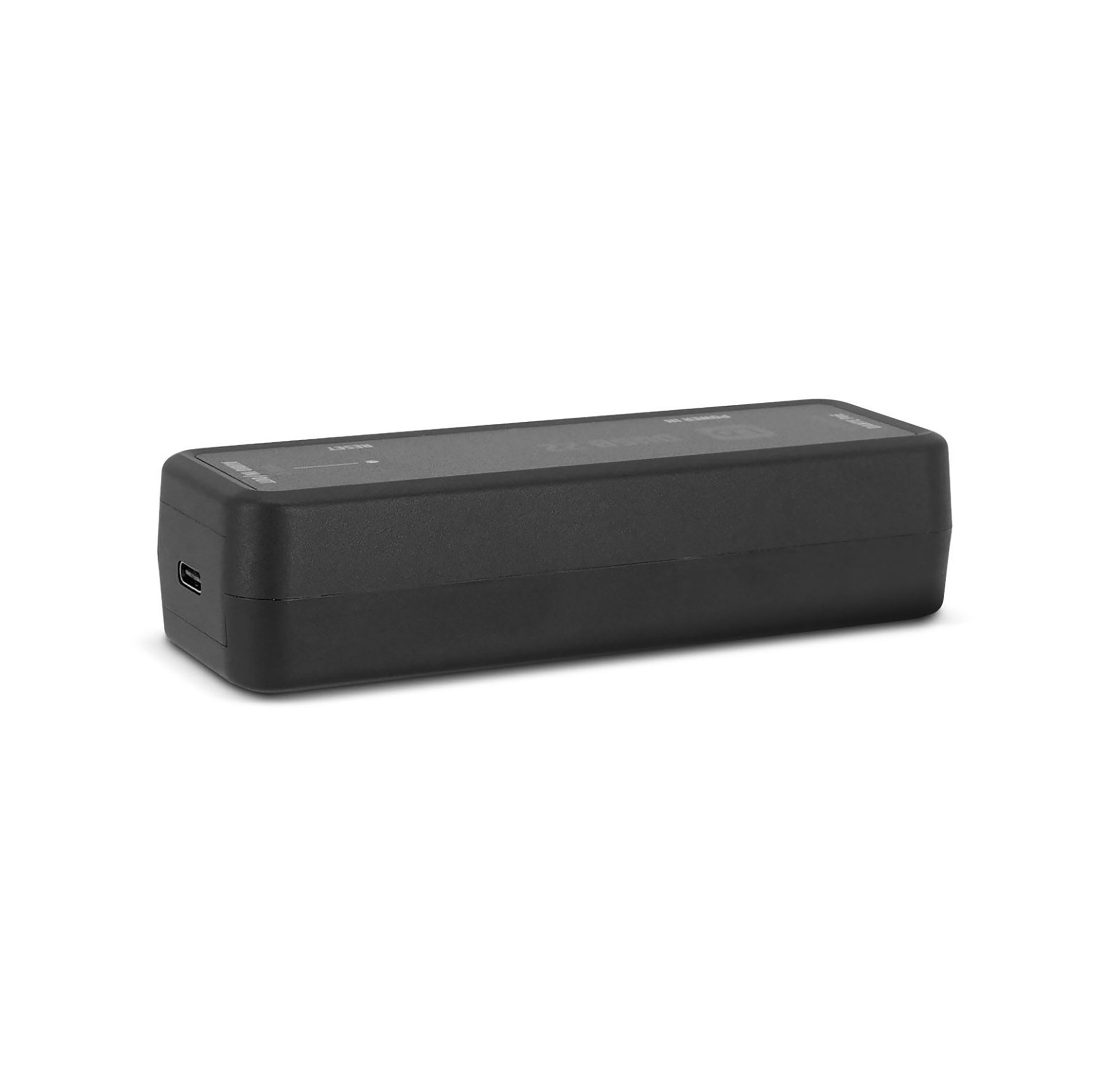

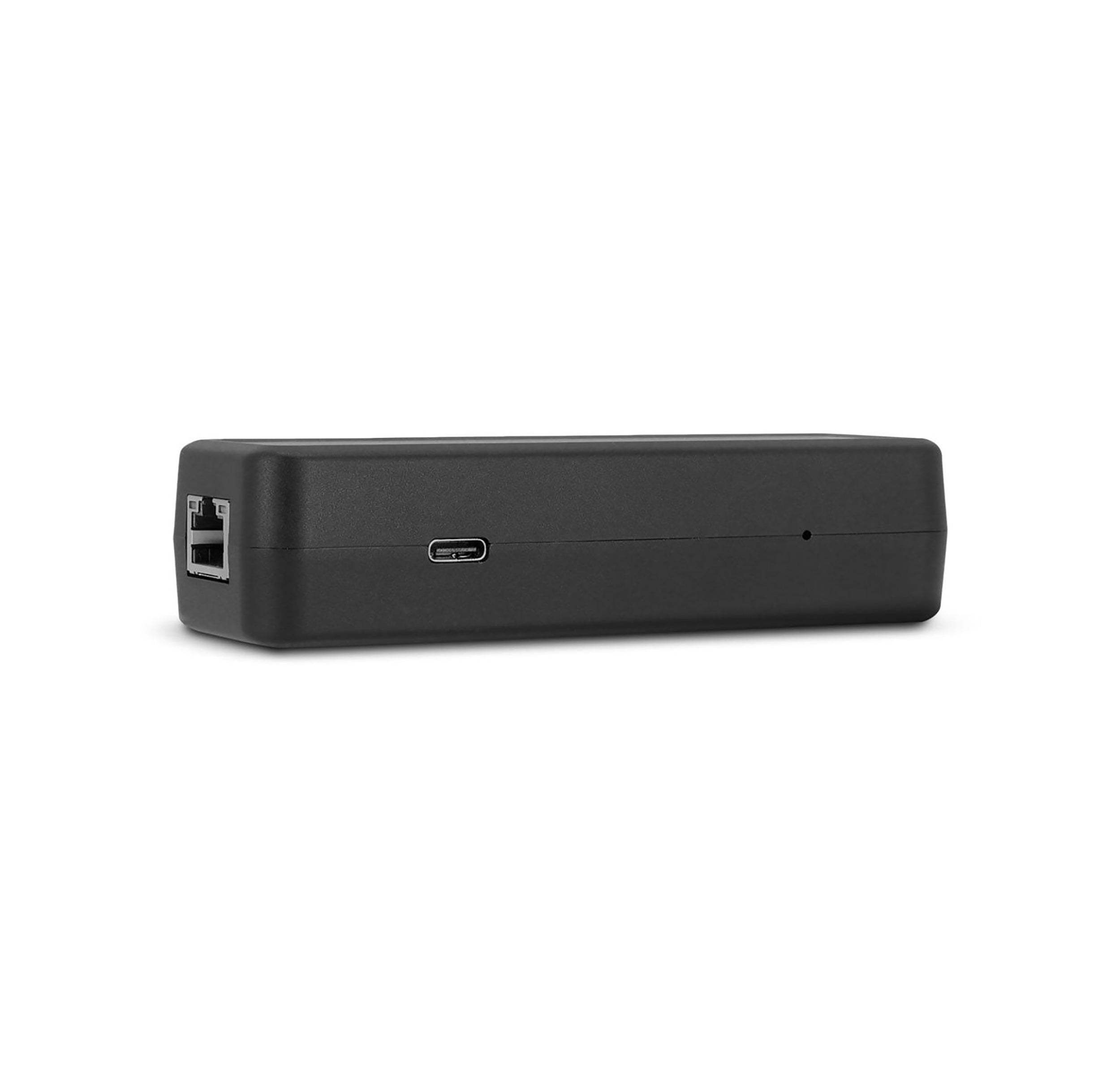

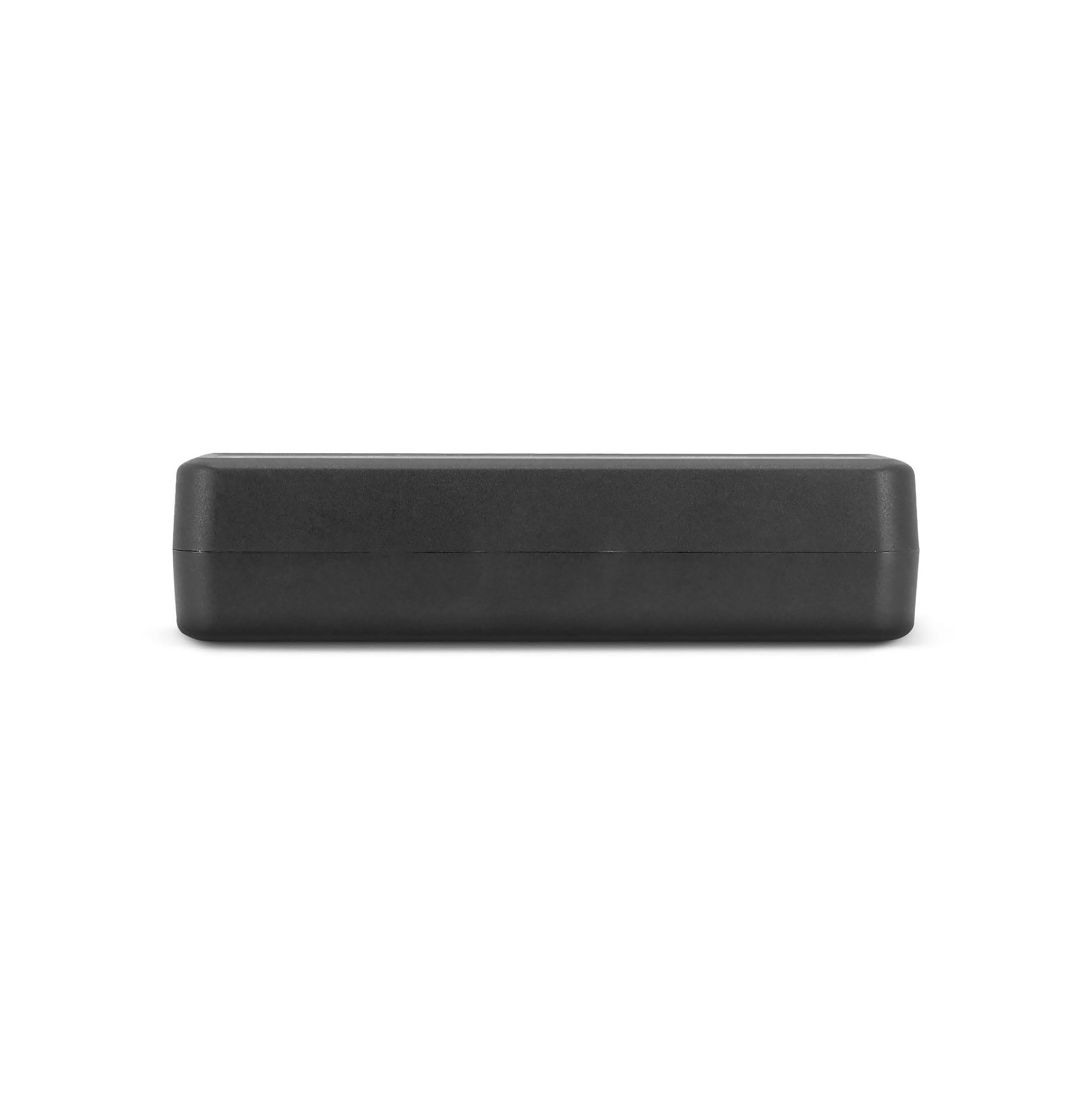

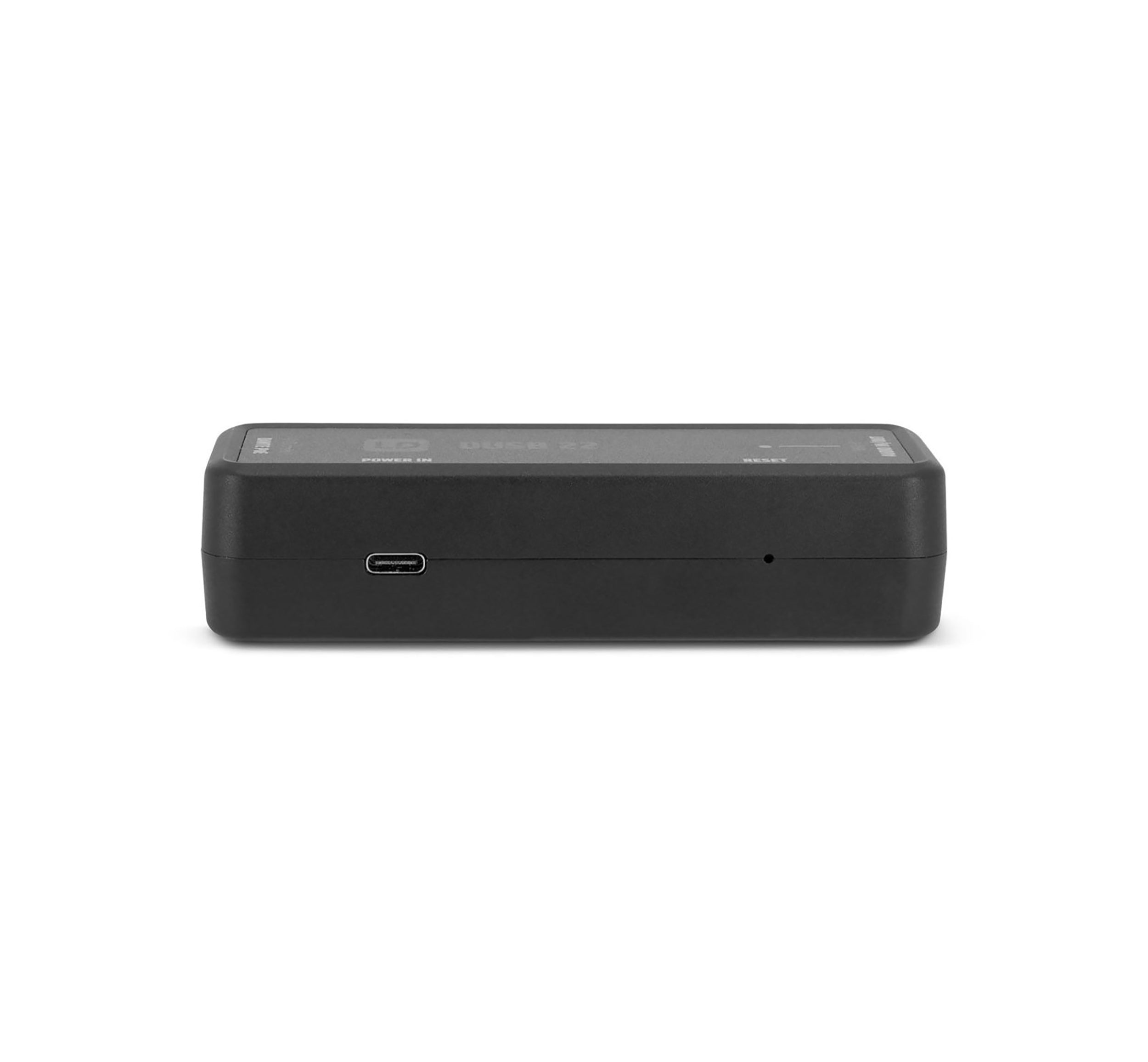

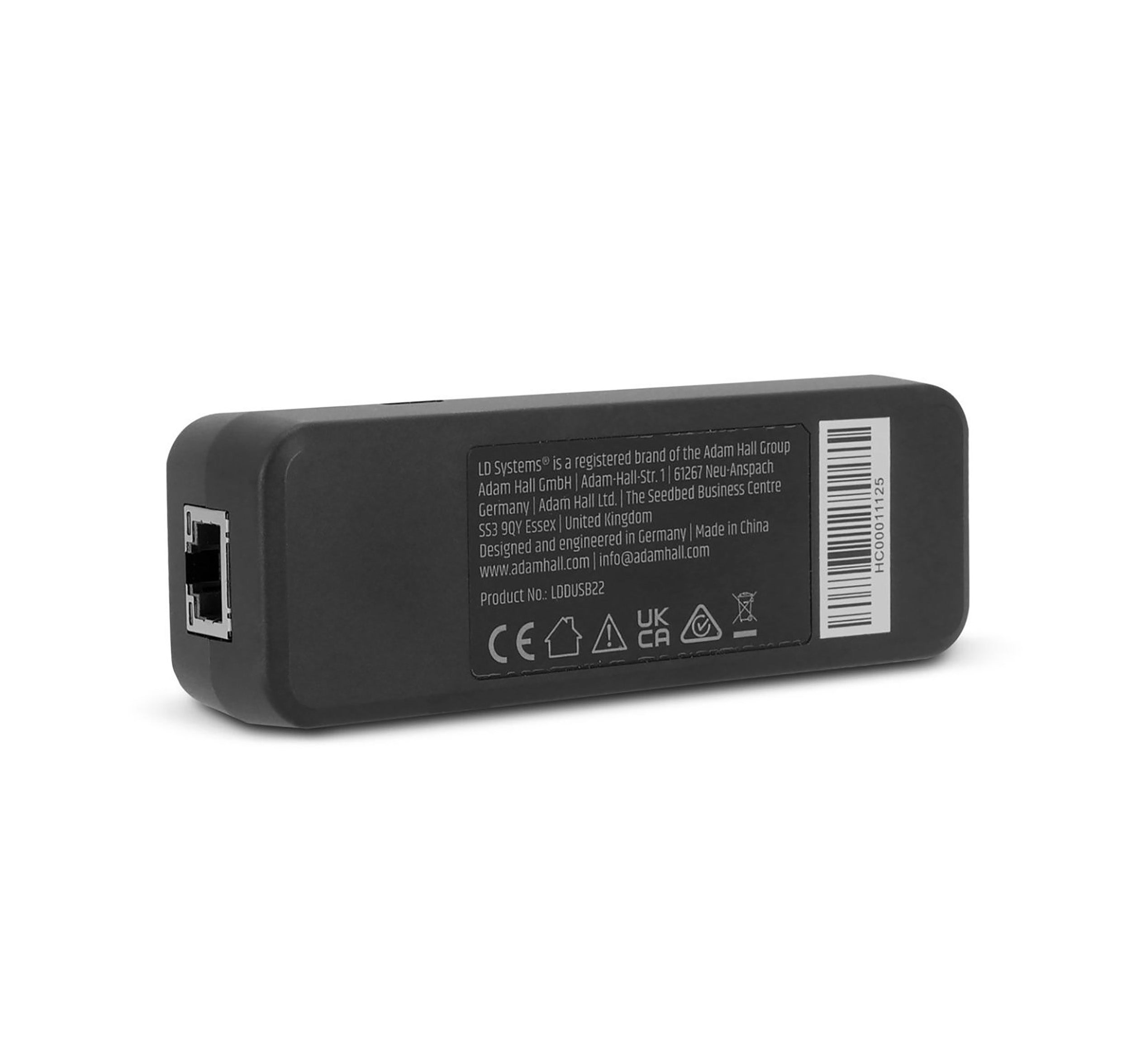

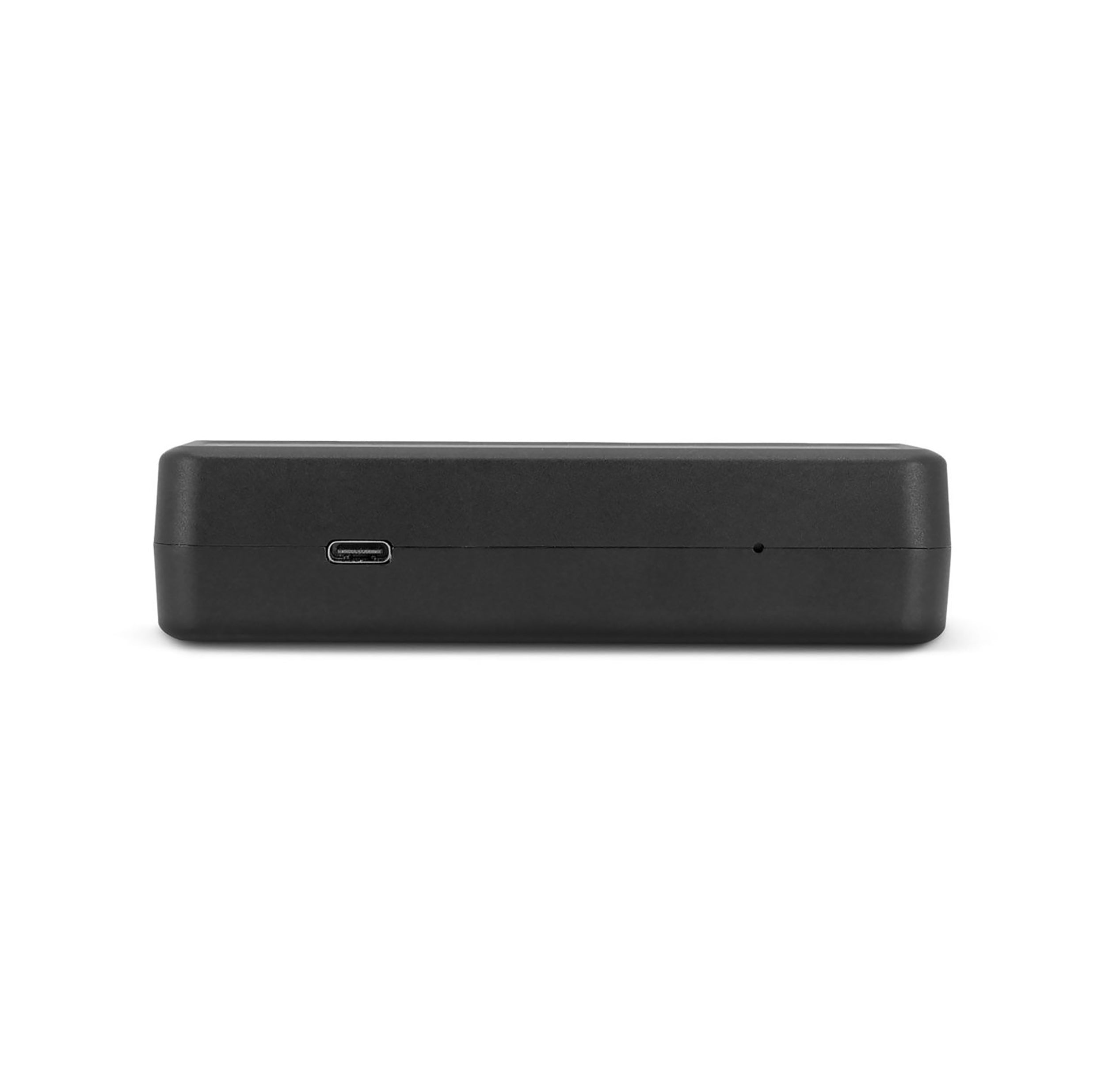

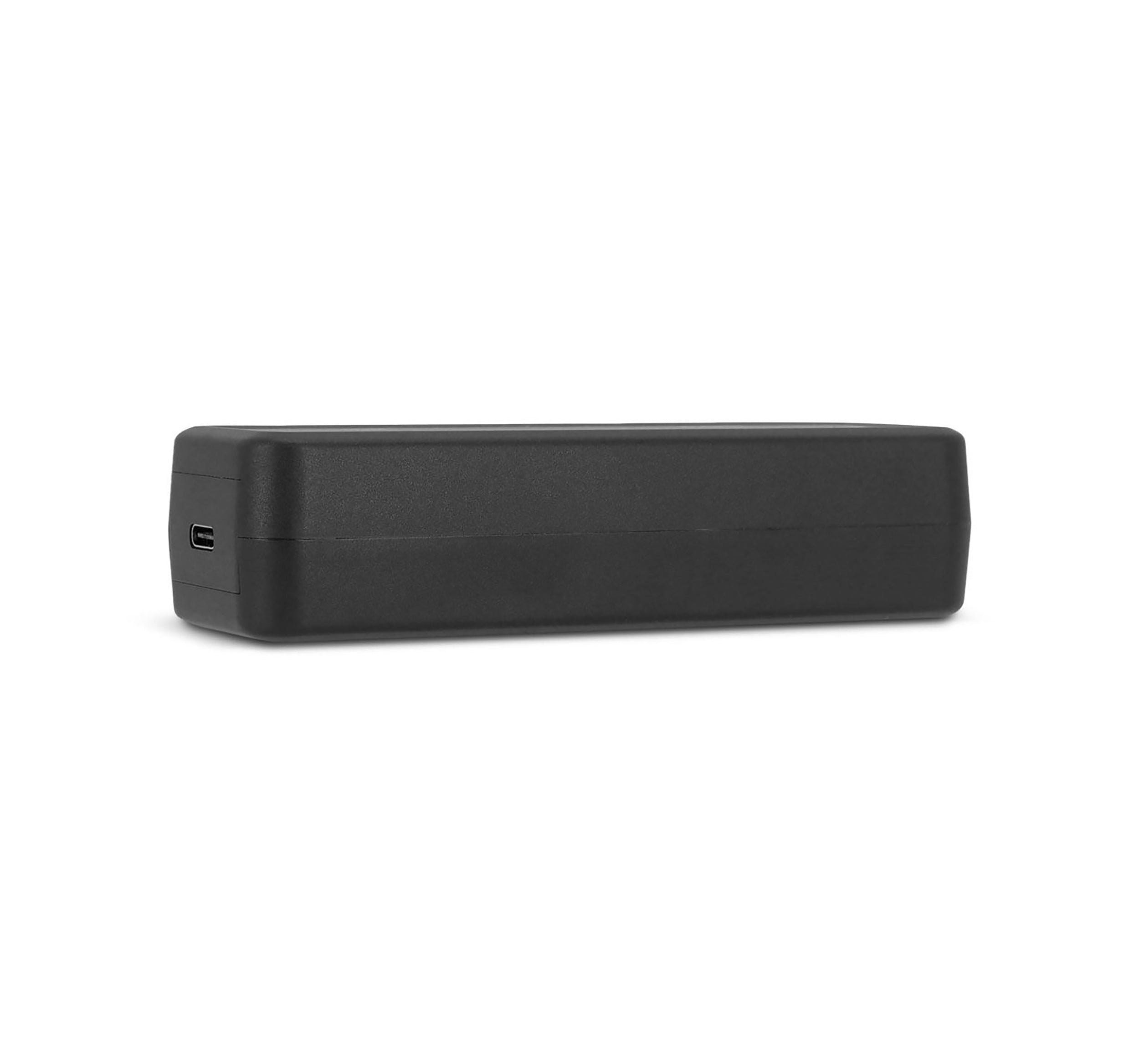

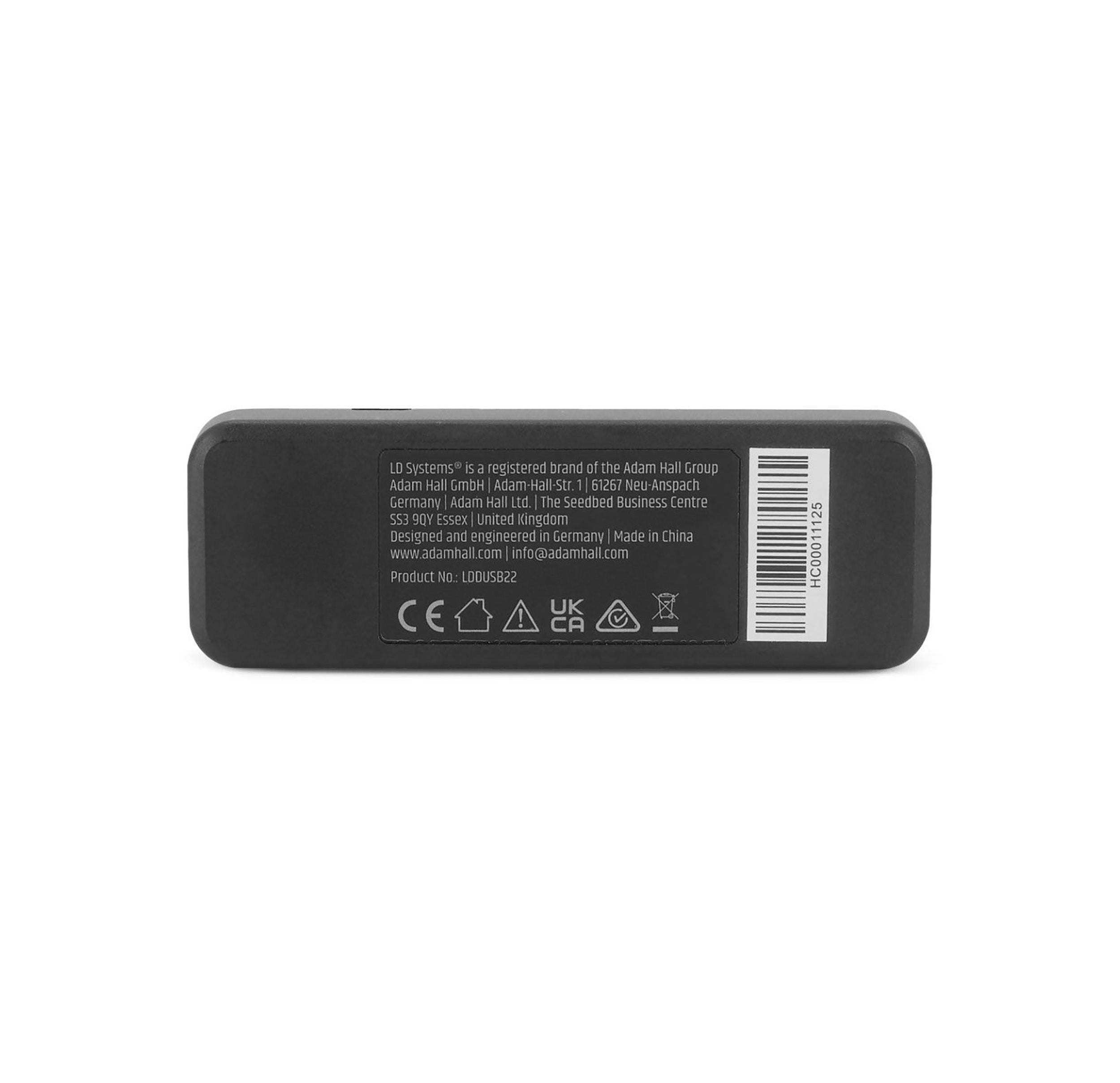

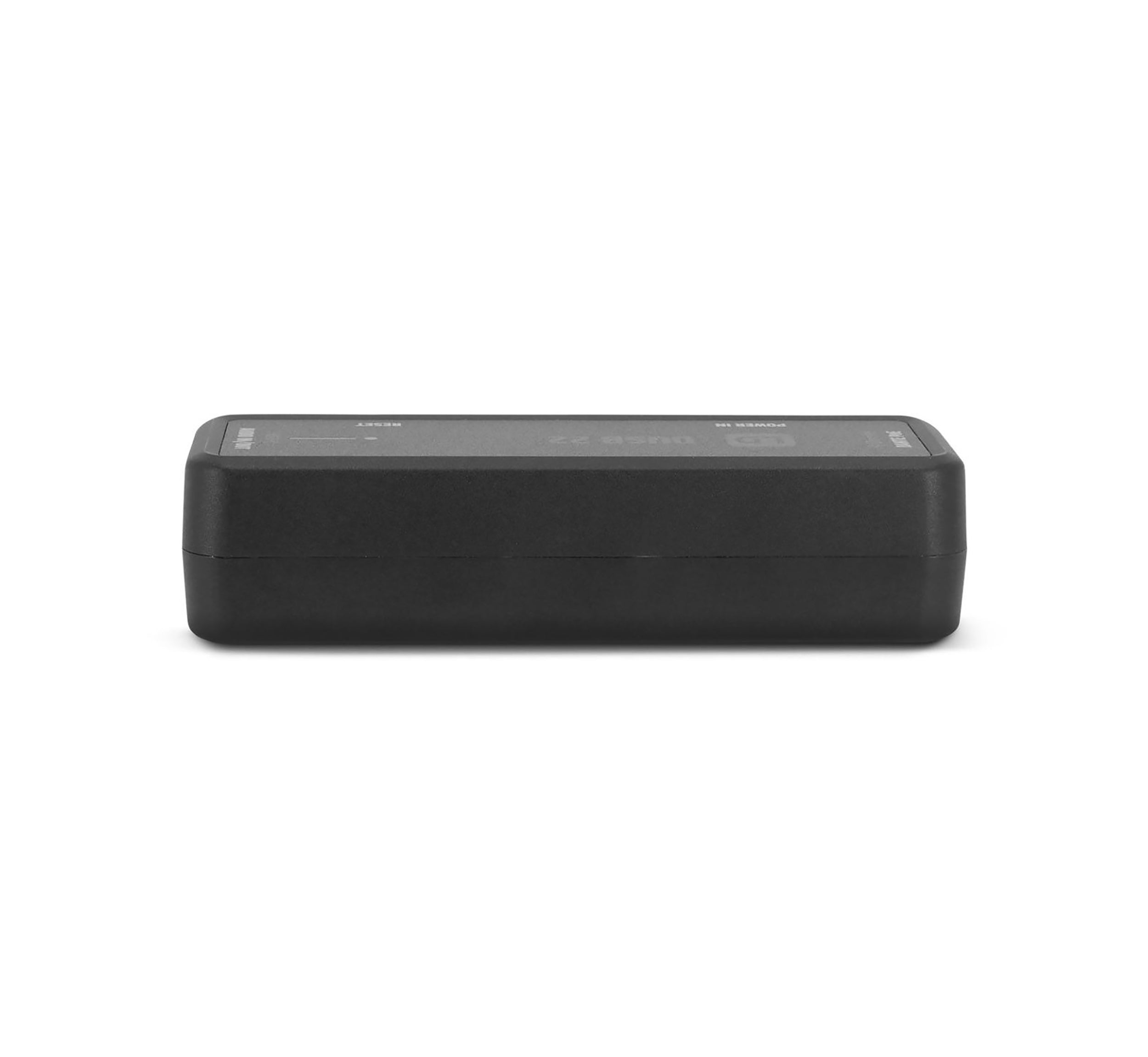

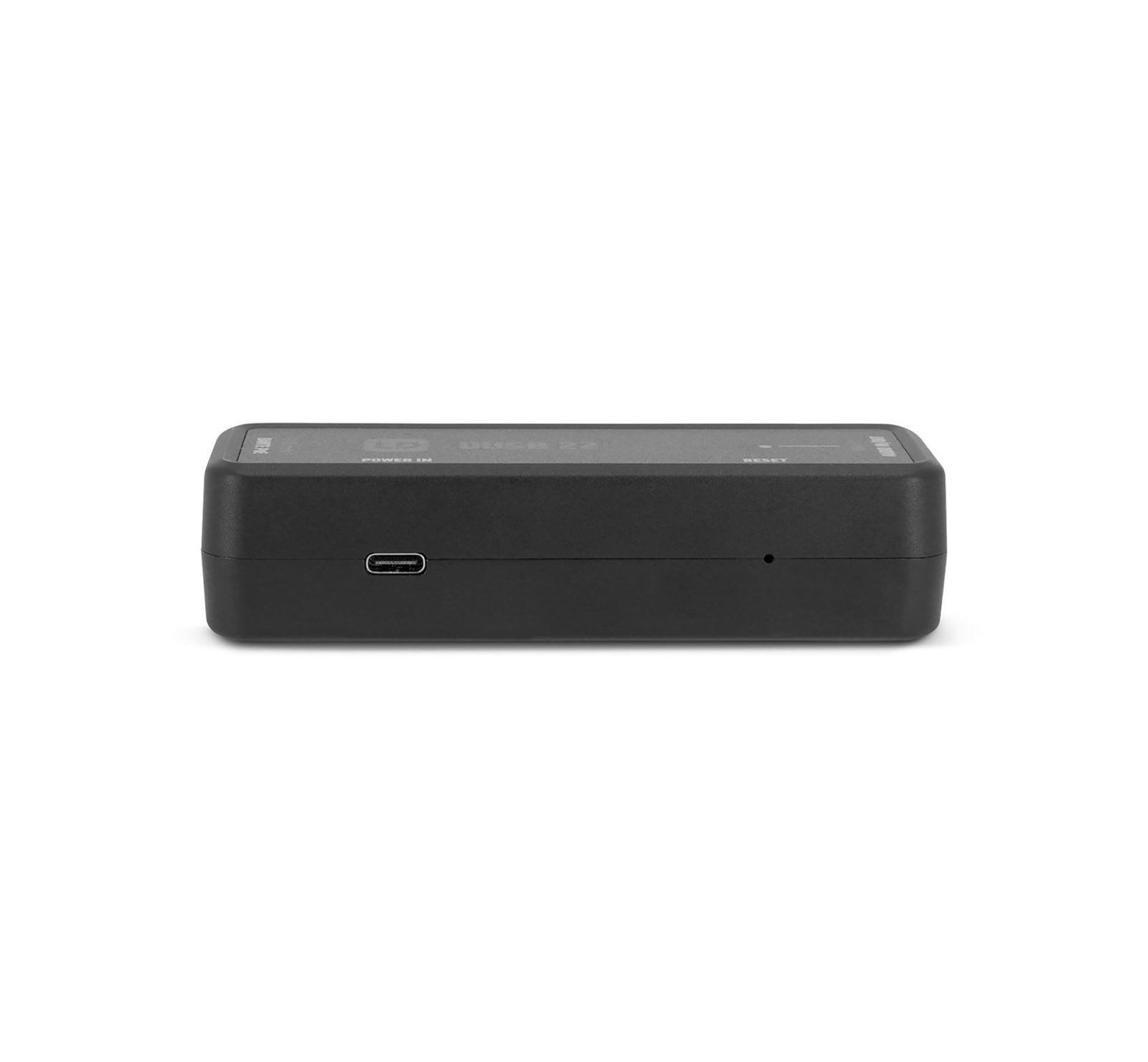

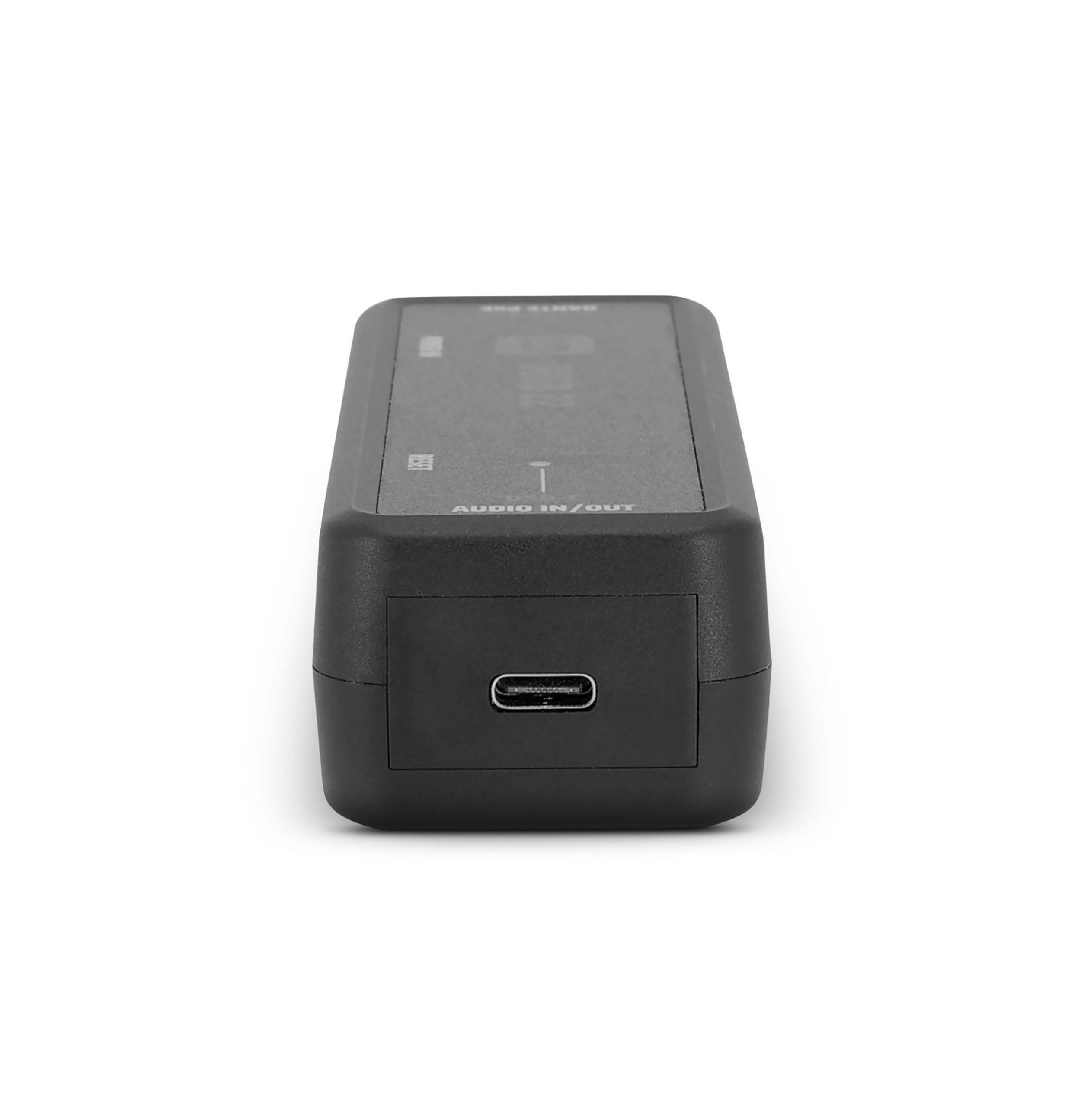

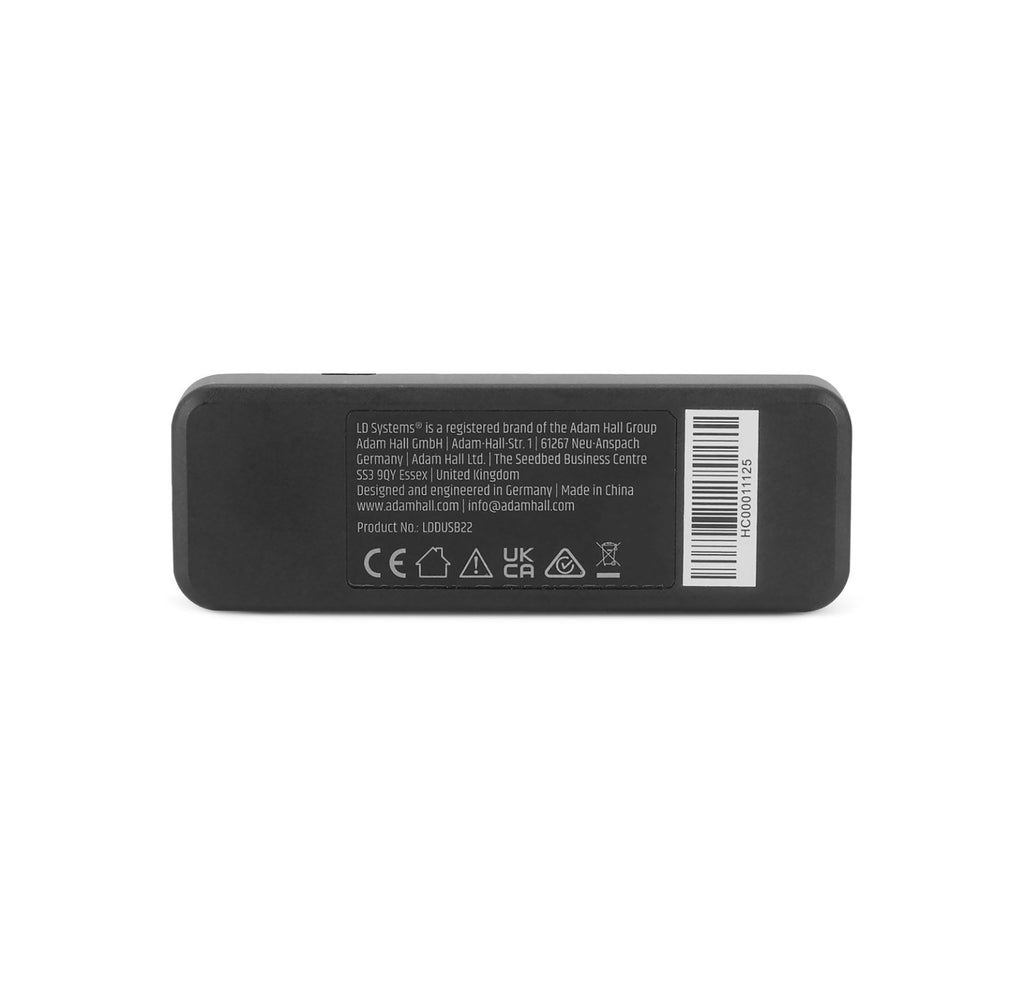

The LD Systems DUSB22 2×2 Dante USB-C Audio Adapter is a compact, bidirectional audio interface designed to connect computers and USB-C devices to professional Dante networked audio systems. It provides plug-and-play operation through USB Audio Device Class 2.0, while Dante routing and device settings can be conveniently managed using Dante Controller. AES67 RTP support further enhances compatibility with mixed-network audio environments.
The adapter delivers high-resolution 24-bit audio with support for sample rates up to 96 kHz, providing clear and reliable audio performance for professional applications. Selectable Dante latency options of 1, 2, or 5 ms allow the interface to be configured according to different system requirements. USB 2.0 High-Speed connectivity and a female USB-C socket provide convenient integration with modern computers and USB-C devices.
Designed for flexible installation, the LD Systems adapter can be powered through PoE or directly via USB-C, making it suitable for both permanent and temporary setups. Its compact black housing measures approximately 4.53 × 1.57 × 1.1 inches and weighs just 0.21 lbs, making it easy to transport and deploy. With its durable design and professional network audio capabilities, it is well suited for portable, fixed, and indoor AV installations.
Product Specifications:
Material: Plastic
Colour: Black
Frequency Response: 20 Hz – 20 kHz
USB Standard: USB 2.0 High-Speed
USB Connector: USB-C Female
Dante® Connector: RJ-45
Dante® Channels: 2 × 0
Bit Depth: 16-bit / 24-bit
Sample Rate: 48 kHz
Internal Sampling Rate: 44.1 / 48 / 88.2 / 96 kHz
Audio Format: PCM 2.0
Max. Data Rate: 480 Mbps
Power: PoE / USB-C Bus Powered
PoE Voltage: 37–57 V DC
USB Power: 5 V DC / 500 mA
Rated Power: 1.65 W
Operating Temperature: 0–40 °C
Maximum Humidity: 80% RH, non-condensing
Application: Indoor
Weight: 0.21 lbs
Width: 4.53 in
Height: 1.1 in
Depth: 1.57 in
