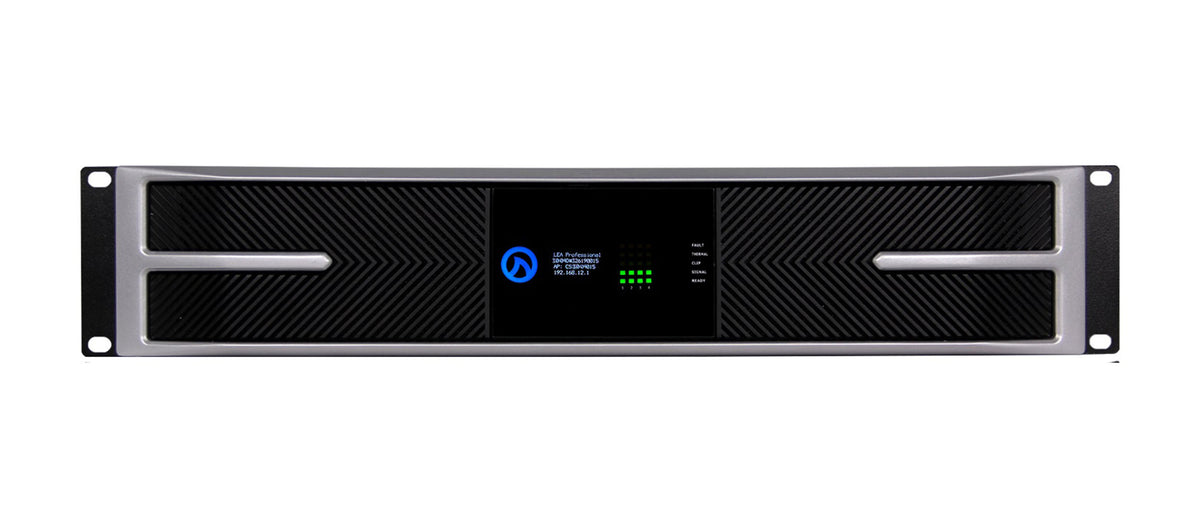

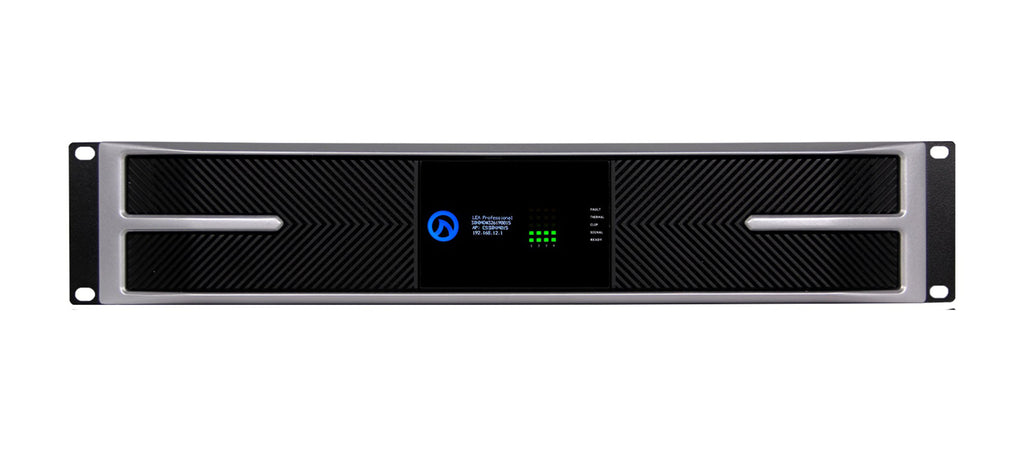

The LEA Professional CDS1504 Cinema Digital Series Smart Amplifier is a four-channel professional amplifier delivering up to 1,500 watts per channel for demanding cinema and commercial audio installations. It supports low-impedance loudspeakers and high-impedance 70V/100V distributed systems, with output modes selectable independently for each channel. Its high-power design makes it suitable for small- to medium-scale installations that require flexible speaker configuration and reliable amplification.

The CDS1504 features a highly efficient Class-D output stage, proprietary Smart Power Bridge technology, and a 96kHz Analog Devices SHARC DSP processor with a 32-bit core and sample rate converters. Its processing capabilities include linear-phase FIR crossovers, IIR filters up to 48dB per octave, eight-band parametric EQ per channel, up to four seconds of output delay, adjustable peak and RMS voltage limiting, and real-time load monitoring. Integrated protection functions help safeguard the amplifier and connected loudspeakers during operation.

With three networking options, the CDS1504 can connect through its built-in Wi-Fi access point, an existing Wi-Fi network, or wired Ethernet using Cat5 or Cat6 cable. Browser-based WebUI provides configuration from compatible devices without requiring additional software downloads, while LEA Cloud enables remote control and monitoring from virtually anywhere without a VPN. Additional features include balanced analog inputs, an 8 × 8 AES67 interface, and external I/O for remote on/off control and amplifier fault monitoring.

Key Features

• Four-channel professional amplifier rated at up to 1,500W per channel.
• Supports Lo-Z, 70V, and 100V operation, selectable per channel.
• Proprietary Smart Power Bridge technology for bridged output functionality.
• 96kHz Analog Devices SHARC DSP with a 32-bit core.
• Linear-phase FIR crossovers and IIR filters up to 48dB per octave.
• Eight-band parametric EQ and up to four seconds of output delay per channel.
• 8 × 8 AES67 audio networking at 48kHz or 96kHz.
• Three network options: built-in Wi-Fi, venue Wi-Fi, and wired Ethernet.
• Browser-based WebUI, LEA Cloud, SharkWare, and third-party API control.
• External I/O for remote power control and amplifier health monitoring.

Ideal For

• Cinema and professional audio installations.
• Commercial sound reinforcement systems.
• Corporate offices and conference facilities.
• Educational institutions and public venues.
• Houses of worship.
• Hospitality and entertainment environments.
• Distributed 70V/100V loudspeaker systems.
• Networked audio installations using AES67.

What's in the Box

• LEA Professional CDS1504 4-Channel Cinema Digital Series Smart Amplifier.

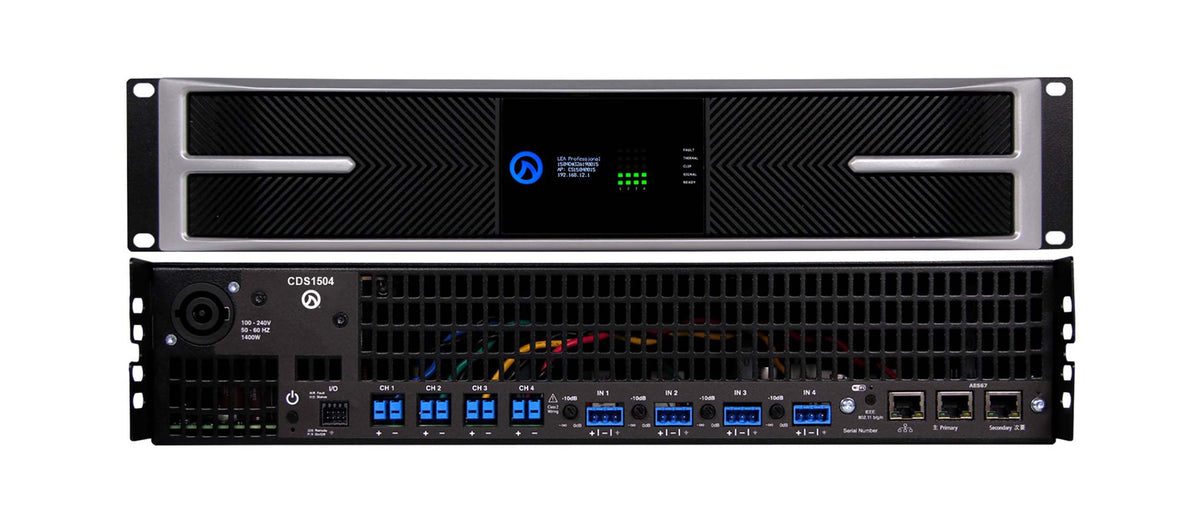

Inputs & Outputs

• Four balanced analog inputs with selectable 26dB or 34dB input sensitivity.
• 8 × 8 AES67 digital audio interface supporting 48kHz and 96kHz.
• AES67 multicast and unicast transmission, configurable through AES67 Controller software.
• Four amplifier channels supporting low-impedance and high-impedance output modes.
• Network connectivity through built-in Wi-Fi, existing Wi-Fi, or wired Ethernet.
• External I/O input for remote on/off control.
• External I/O output for amplifier health and fault monitoring.

Frequently Asked Questions

How many channels does the CDS1504 have?

The CDS1504 is a four-channel professional smart amplifier.

What is the output power of the CDS1504?

According to the supplied power table, it delivers 1,500W per channel at 2Ω, 4Ω, and 8Ω, as well as 1,500W at 70V/100V. The listed output at 25V is 750W per channel.

Does the CDS1504 support 70V and 100V systems?

Yes. It supports direct high-impedance 70V or 100V operation, selectable independently for each channel, as well as low-impedance operation.

Can the CDS1504 be controlled remotely?

Yes. It supports browser-based WebUI, LEA Cloud, SharkWare, and third-party API control. LEA Cloud allows remote control and monitoring without requiring a VPN.

Does the CDS1504 support AES67?

Yes. Its 8 × 8 AES67 interface supports 48kHz and 96kHz audio with multicast or unicast transmission.

What DSP features are included?

The amplifier includes linear-phase FIR crossovers, IIR filters up to 48dB per octave, eight-band parametric EQ per channel, up to four seconds of output delay per channel, adjustable peak and RMS voltage limiting, and real-time load monitoring.

Full Technical Specifications

Amplifier and Audio Specifications

Model	CDS1504
Product Series	Cinema Digital Series
Amplifier Channels	4
Power per Channel at 2Ω	750 Watts
Power per Channel at 4Ω, 8Ω, 25V, and 70V/100V	1500 Watts
Amplifier Class	Class D
Output Technology	Proprietary Smart Power Bridge
Output Modes	Lo-Z, 70V, or 100V, selectable per channel
THD+N	0.1% (20Hz–20kHz)
Frequency Response	20Hz–20kHz, ±0.5dB at 4Ω, 8Ω, 70V, and 100V; -2.5dB at 20kHz at 2Ω
Signal-to-Noise Ratio	105dB (20Hz–20kHz, referenced to 8Ω)
Crosstalk	70dB (20Hz–20kHz)
Analog Inputs	4 balanced inputs
Analog Input Sensitivity	Selectable 26dB or 34dB
AES67 Interface	8 × 8
AES67 Sample Rates	48kHz or 96kHz
AES67 Transmission	Multicast or unicast

DSP & Signal Processing

DSP Architecture	Analog Devices Sigma DSP
DSP Sample Rate	96kHz
DSP Core	32-bit with sample rate converters
Input Matrix	Routable matrix; any input to any output
Input Priority	Primary and secondary input priority
Crossover Filters	IIR filters up to 48dB/octave
Crossover Types	Linkwitz-Riley and Butterworth
Parametric EQ	8 bands per channel
Output Delay	100ms per channel
User-Adjustable Limiting	Peak voltage and RMS voltage
Load Monitoring	Real-time load monitoring and pilot tone detection from internal or external sources

Network & Control

User Interface	Browser-based WebUI
Control Options	WebUI, third-party API, LEA Cloud, and SharkWare
Network Connectivity	Built-in Wi-Fi access point, existing Wi-Fi network, or wired LAN
Wired Network Connection	Cat5 or Cat6 Ethernet
Cloud Control	Remote control, monitoring, and notifications without requiring a VPN
External I/O Input	Remote on/off control
External I/O Output	Amplifier health indication
AES67 Configuration	AES67 Controller software

Power & Electrical Requirements

AC Mains	100–240VAC ±15%
Mains Frequency	50Hz or 60Hz
Power Supply	Universal switch-mode power supply
Power Factor Correction	Yes
Output Stage	High-efficiency Class D

Connectivity & Protection Features

Output Protection	DC, VHF, and AC mains protection
Thermal Protection	Overtemperature protection
Current Protection	Current limiter
Fan Monitoring	Fan fault detection
Speaker Limiting	User-adjustable peak and RMS voltage limits
Load Monitoring	Real-time load monitoring and pilot tone detection
Cooling	Front-to-rear airflow with variable-speed fan
Fan Noise at Idle	50dB at 1m
Fan Noise at 50% Speed	57dB at 1m
Fan Noise at Full Speed	63dB at 1m

Physical Specifications

Rack Format	2U
Product Dimensions (L × W × H)	17.25 × 19 × 3.5 inches
Product Weight	28 lbs
Shipping Dimensions (L × W × H)	22 × 22.75 × 8 inches
Shipping Weight	30 lbs
